FLAT TOP LOW LOADER

4 AXLE FLAT TOP LOW LOADER STRAIGHT DECK
MTE Flat Top Low Loaders are the industry standard for heavy machinery transportation. One of the most popular MTE Trailer Models, Flat Top Load Loaders are versatile medium sized tow behind solution for transporting machinery. With a GVW of 29,000kg it is an option for most common jobs.

*Specifications are subject to change. To be used as a guide only.

4 AXLE FLAT TOP LOW LOADER STRAIGHT DECK

SPECIFICATIONS

CAPACITY (GVM)

29,000kg

DECK HEIGHT

910mm

DECK WIDTH

2490mm

DECK LENGTH

9420mm

OVERALL

11,500mm

DECK TYPE

50mm Treated Pine Deck

LASHINGS

6x Ferry tie down chain lugs (2x in bumper, 2x on bogie & 2x under middle of  trailer

LASHINGS

19x per side & 4x at front

AXLE SPACING

Bogie 1245mm – Rear 1245mm

AXLE TYPE

MTW 17.5” 10st 225PCD Outboard drum brake Low Loader axles

SUSPENSION

MTW Air Suspension

BRAKES

Knorr-Bremse Multi-volt EBS Braking System

DRAWBAR

1750mm Long with Swappable 40mm – 50mm Tow eye

RAMPS

2400mm x 860mm Light Weight Hydraulic ramps

LIGHTS

Hella LED

SIGNAGE

Hazard Signage where applicable

WHEELS

16x Total - 17.5” x  6” 10st 225PCD Steel Wheels

TYRES

16x Total – 215 x 17.5” Synergy Tyres

MUD FLAPS

Black Plastic mud flaps on front

TOOLBOXES

2x Chain Bins built into Front Corners of deck with lids

PAINT

Sandblasted and painted to your fleet colours in Valspar 510

*Specifications are subject to change. To be used as a guide only.

4 AXLE FLAT TOP LOW LOADER STRAIGHT DECK

OPTIONAL EXTRAS

ALLOY WHEELS
Machined, polished  or premium finish
STORAGE
Extra Storage
HEADBOARD
Headboard up to 1200mm High fixed or Removable.
DRAWBAR
Various Drawbars
POWER PACKS
Various Powerpacks
RAMPS
Various Ramps
LIGHTS & SIGNAGE
Various Lights & Signage
BRAKES
Various Brakes
GREASE
MTE Battery Powered Grease Gun
LOAD RESTRAINT KET
Various Load Restraint Ket

*Specifications are subject to change. To be used as a guide only.

4 AXLE FLAT TOP LOW LOADER STRAIGHT DECK

MODEL DRAWINGS

*Specifications are subject to change. To be used as a guide only.

4 AXLE FLAT TOP LOW LOADER STRAIGHT DECK

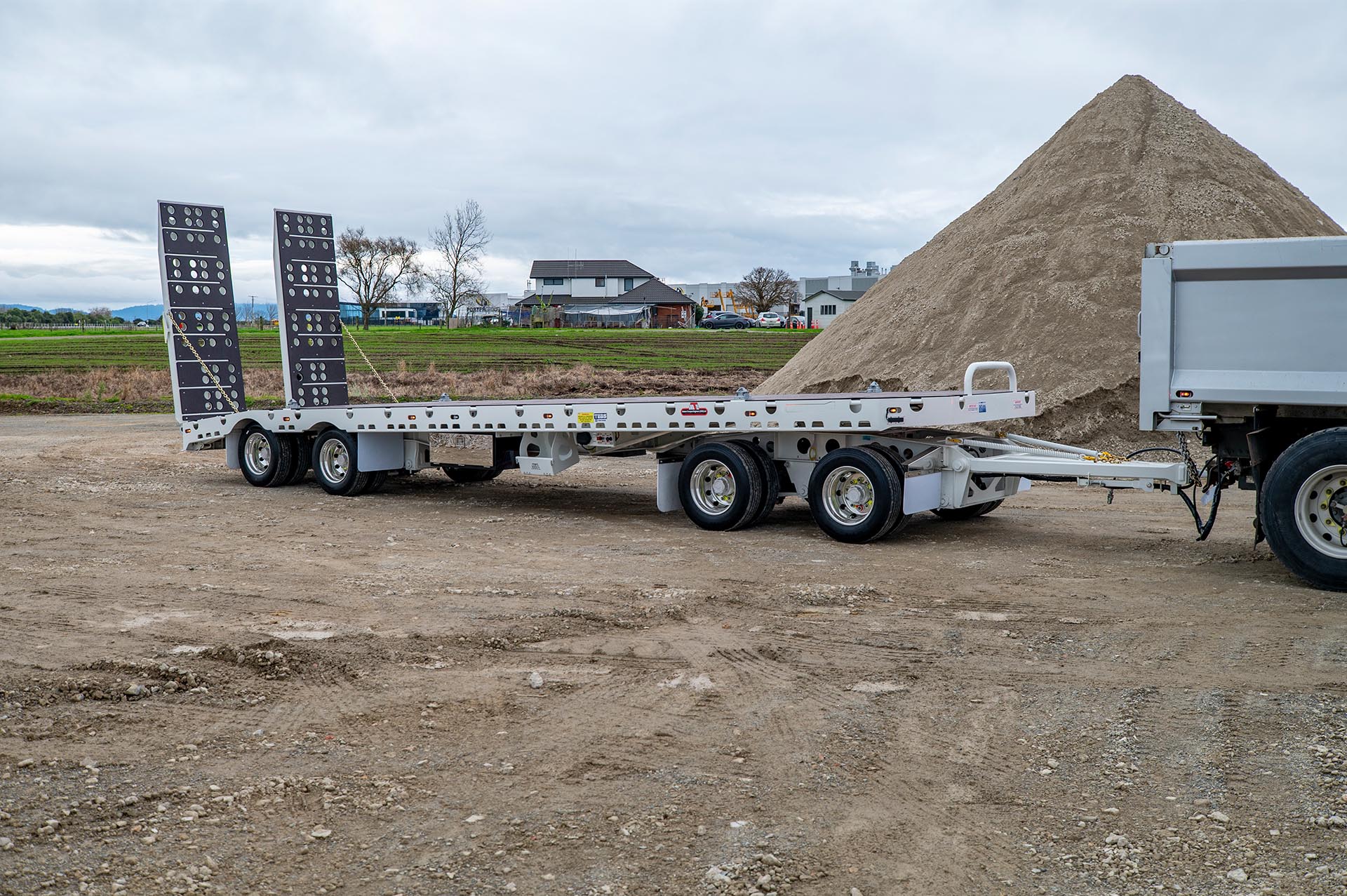

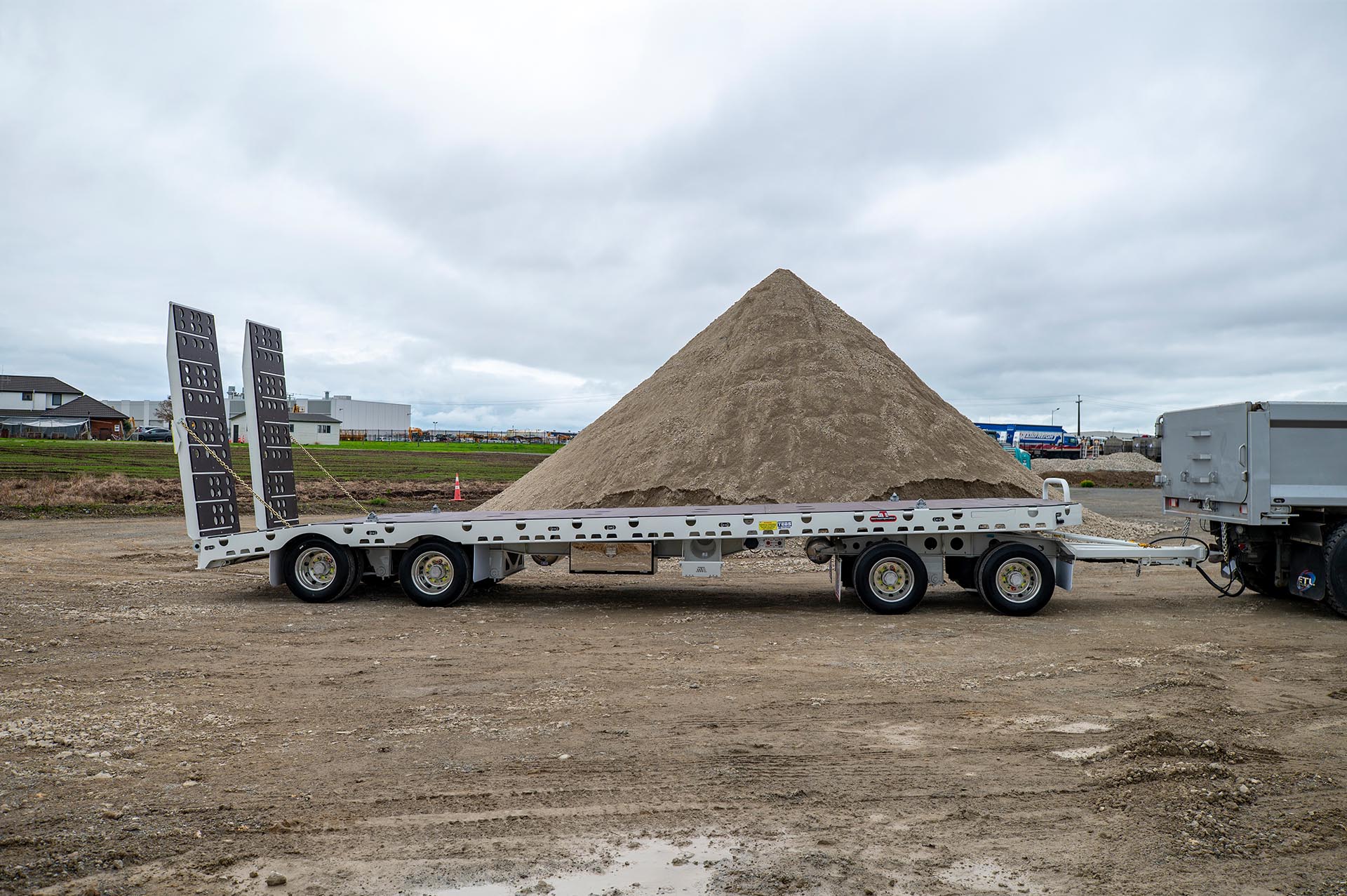

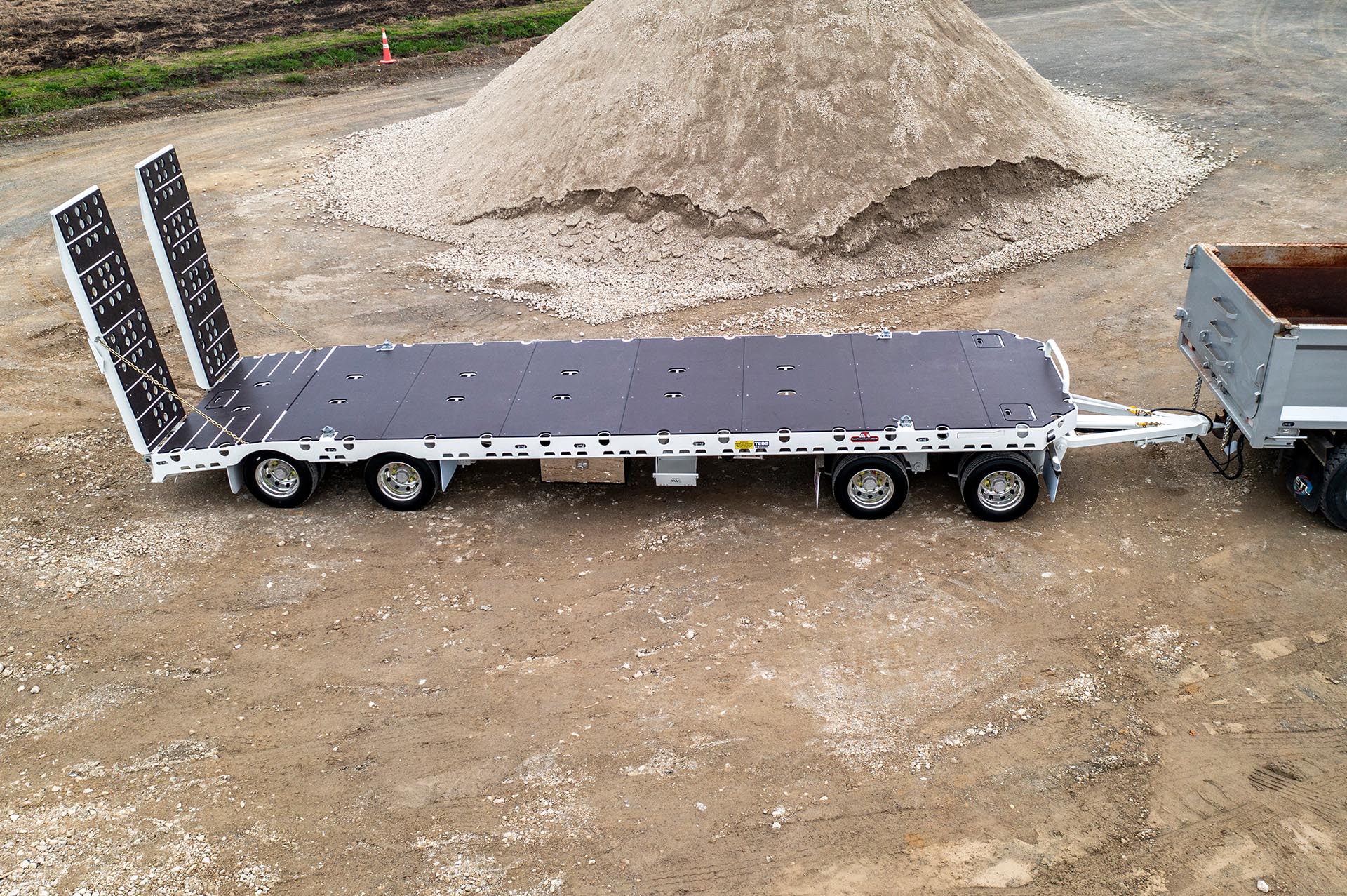

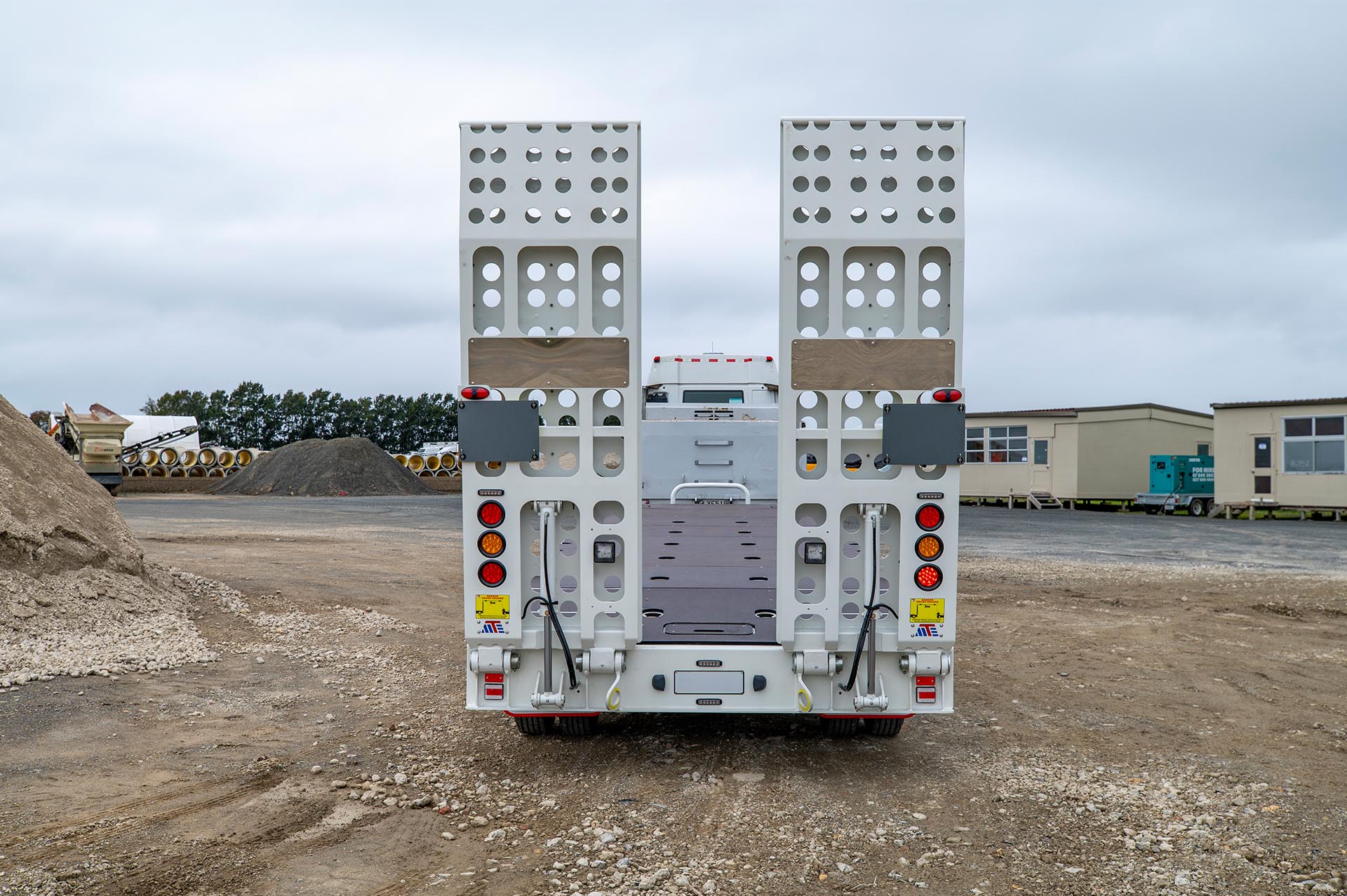

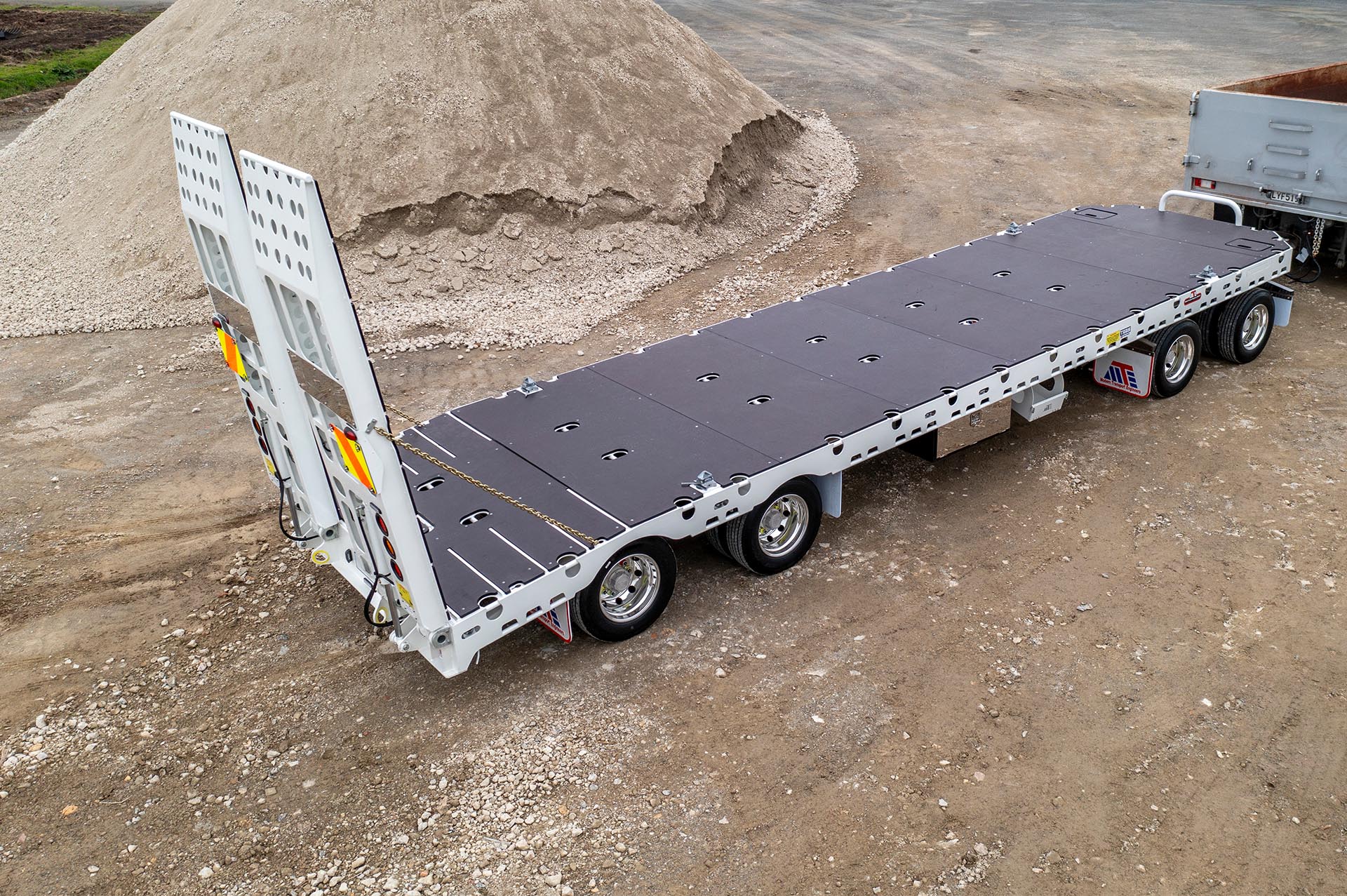

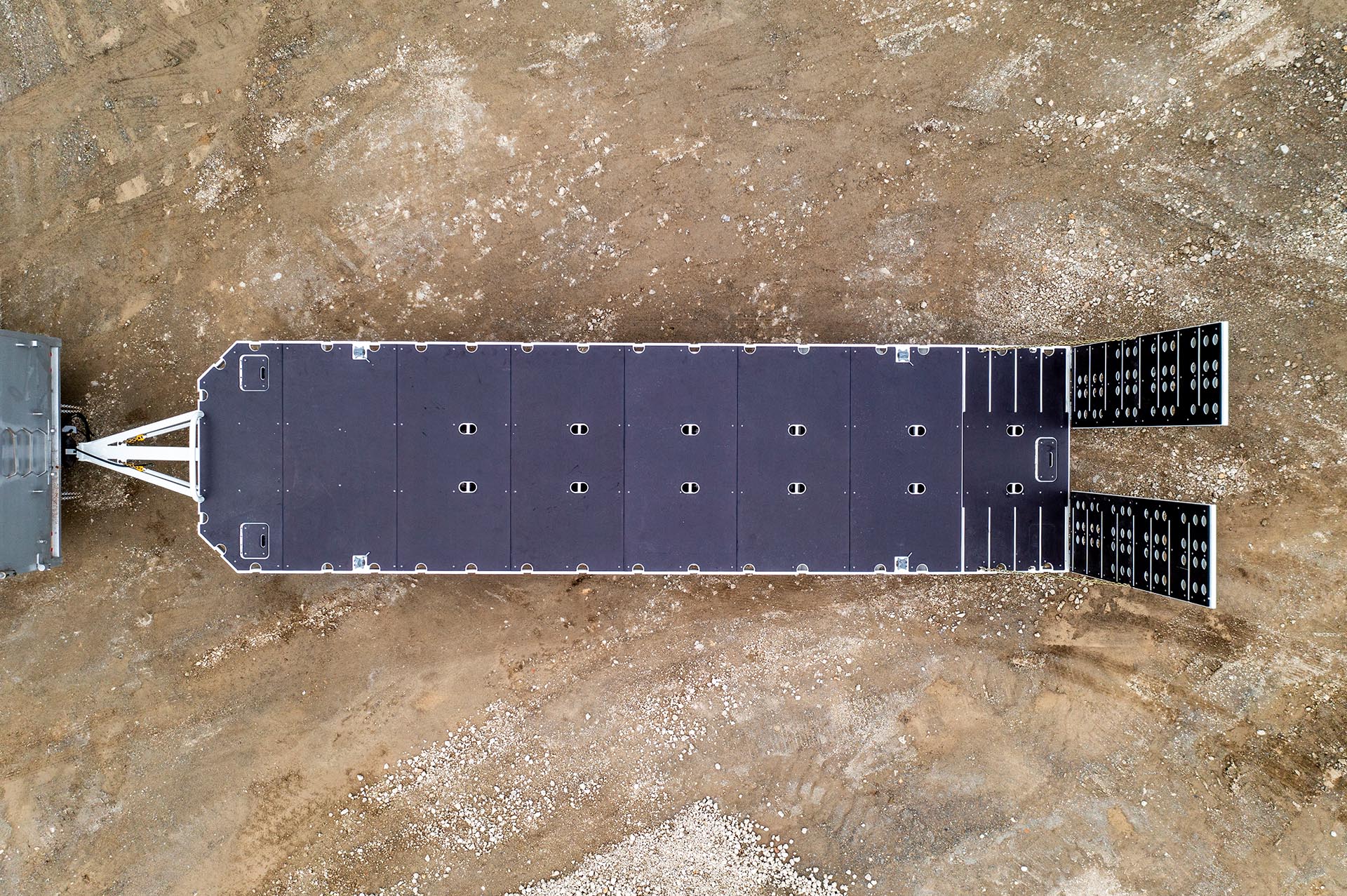

GALLERY

modern transport engineers

CUSTOM TRAILERS

All Modern Transport Engineers Trailers can be modified and built to your own custom specifications. We pride ourselves on being the total transport solutions provider. There is no trailer too big or small that we can’t handle.
