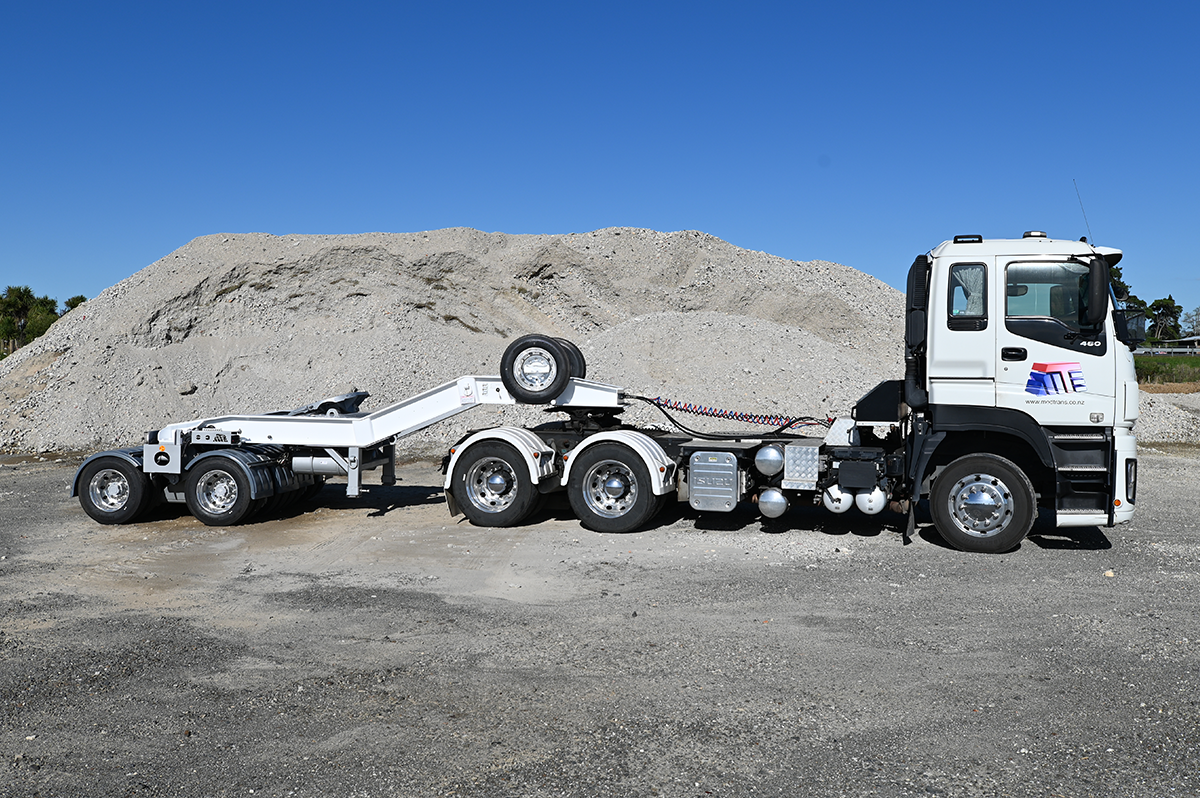

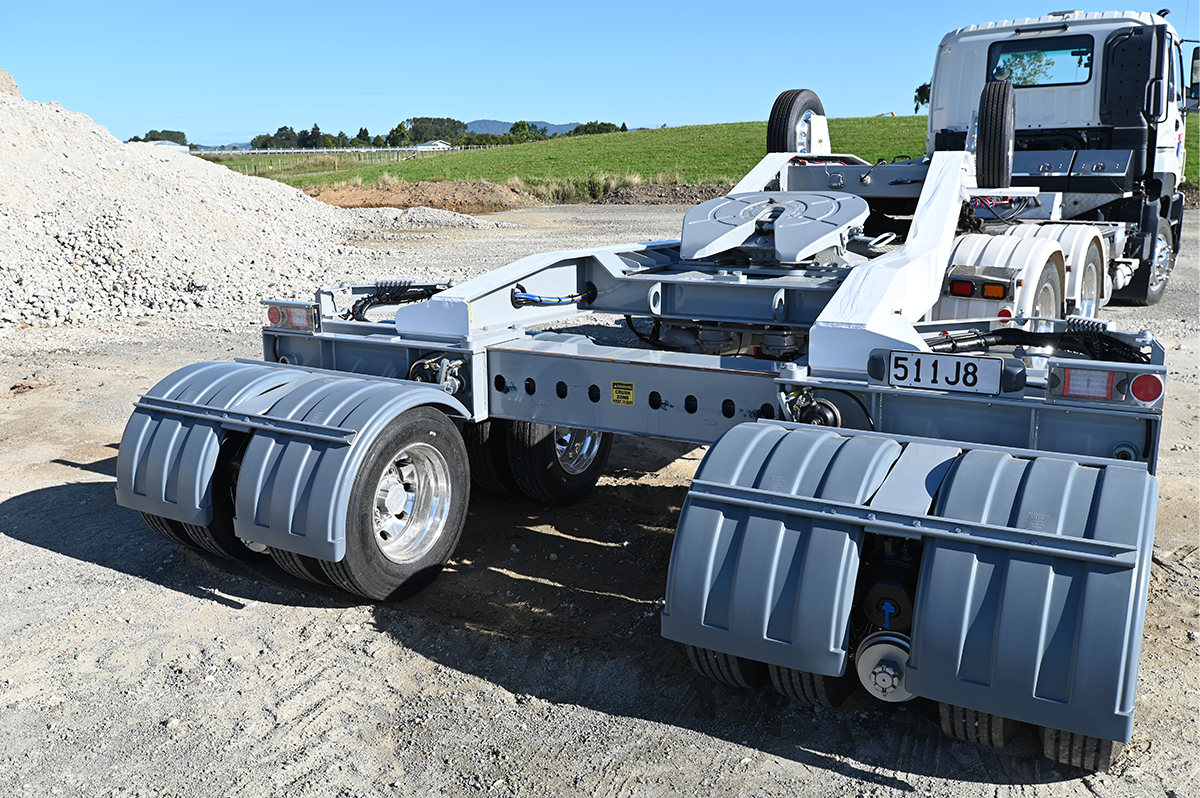

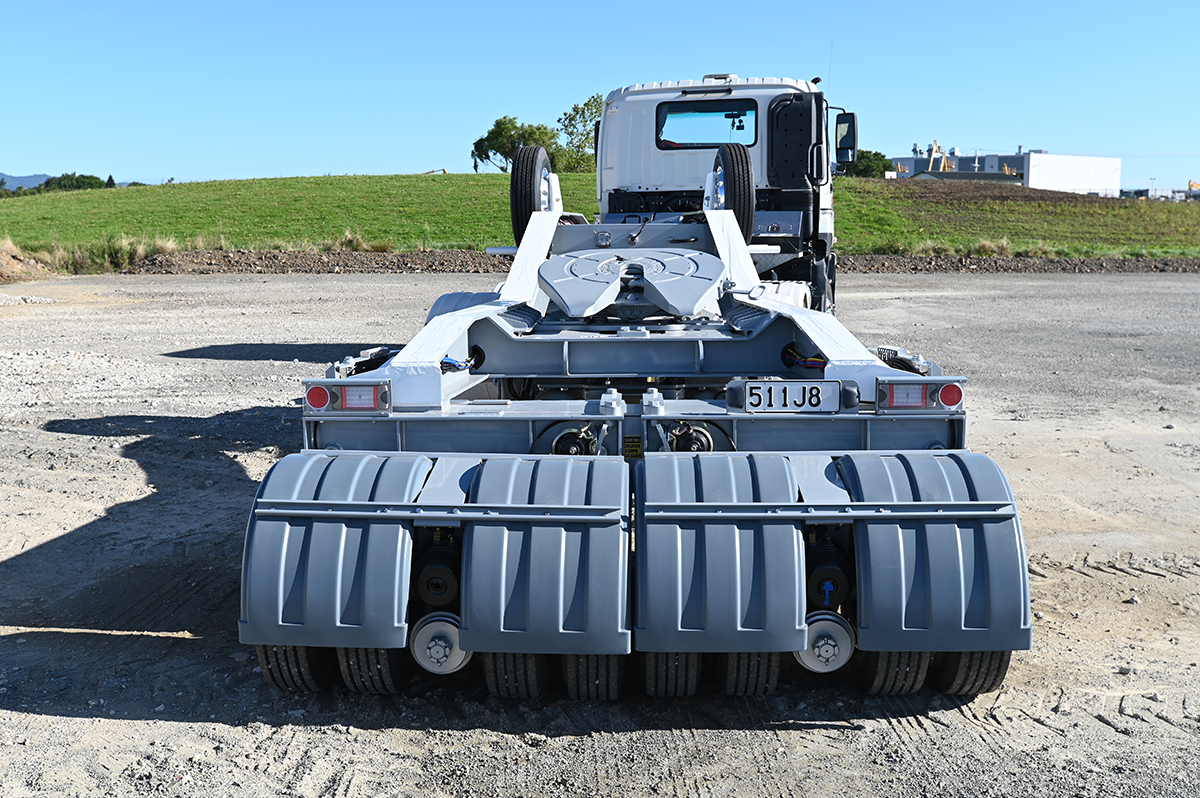

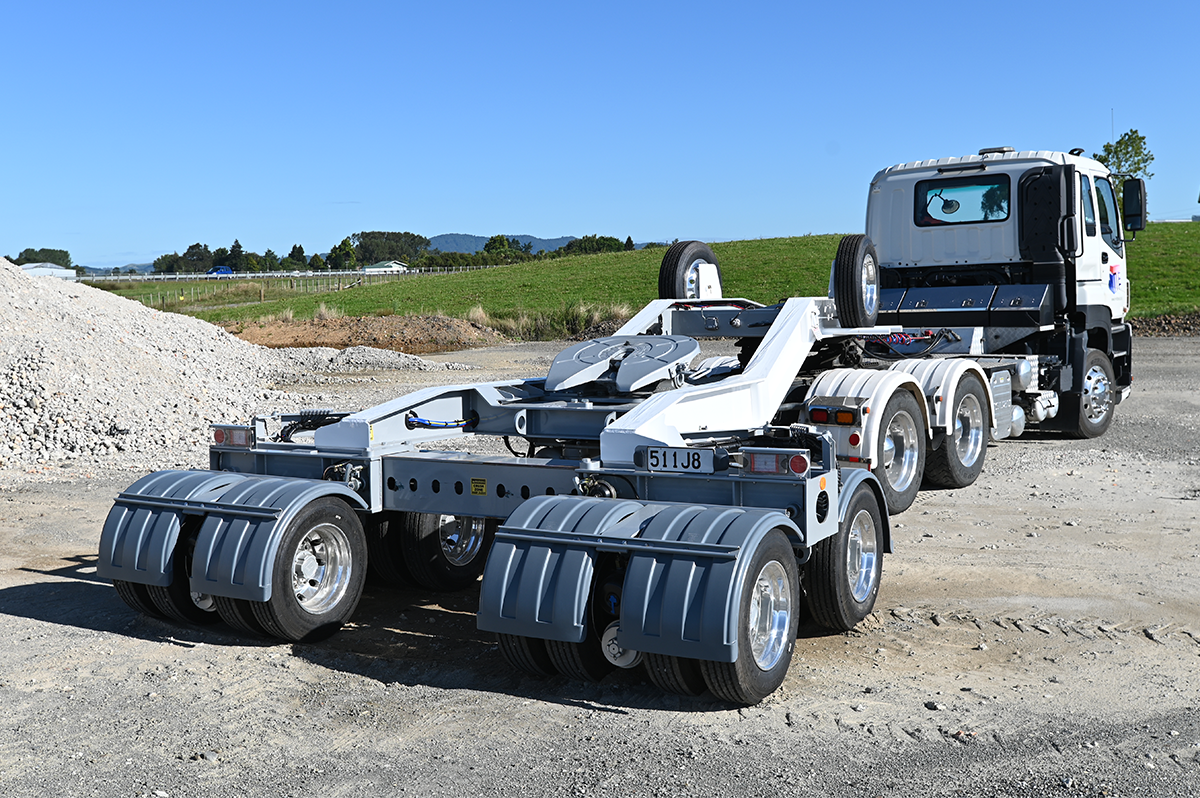

Designed to increase the capability of heavy transport combinations, the MTE 2 Rows of 8 Dolly provides additional axle capacity and improved load distribution for heavy and oversized loads. Commonly paired with MTE Linkwing trailers, its proven widening design and robust construction make it a versatile addition for operators tackling demanding heavy-haul applications.
Increase your combination capability, Adds additional axle capacity and distributes weight across more axles, providing greater flexibility when transporting heavy loads.
Designed to work with the Linkwing, A proven pairing with MTE Linkwing trailers, creating a highly capable heavy transport combination.

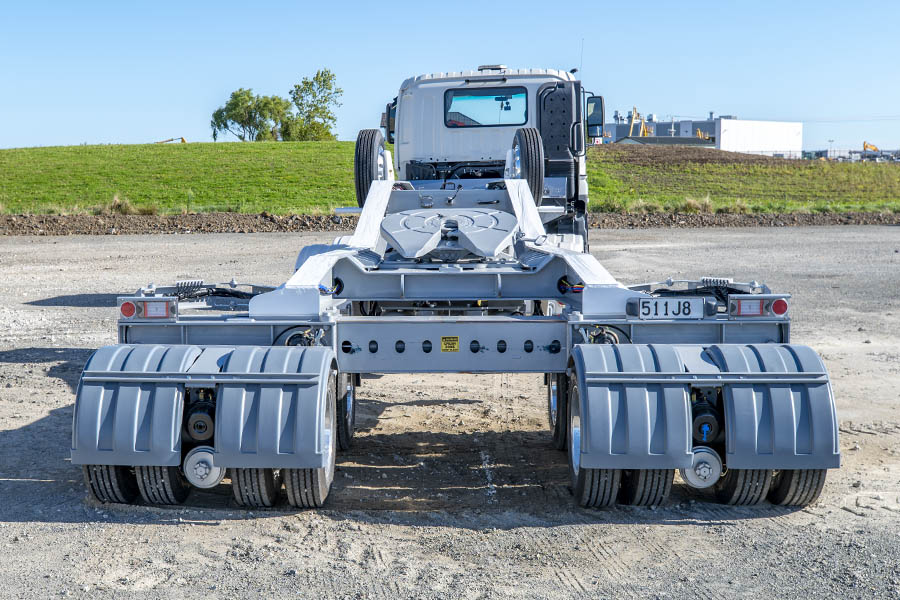

Widening versatility, Multiple locking widths allow the dolly to match the trailer configuration and provide additional stability for wider loads.
More than machinery transport, Can be engineered with bolster configurations for specialist applications including concrete and steel beam transport.
Locking Configurations: 2.5m – 2.8m – 3.1m – 3.4m – 3.7m

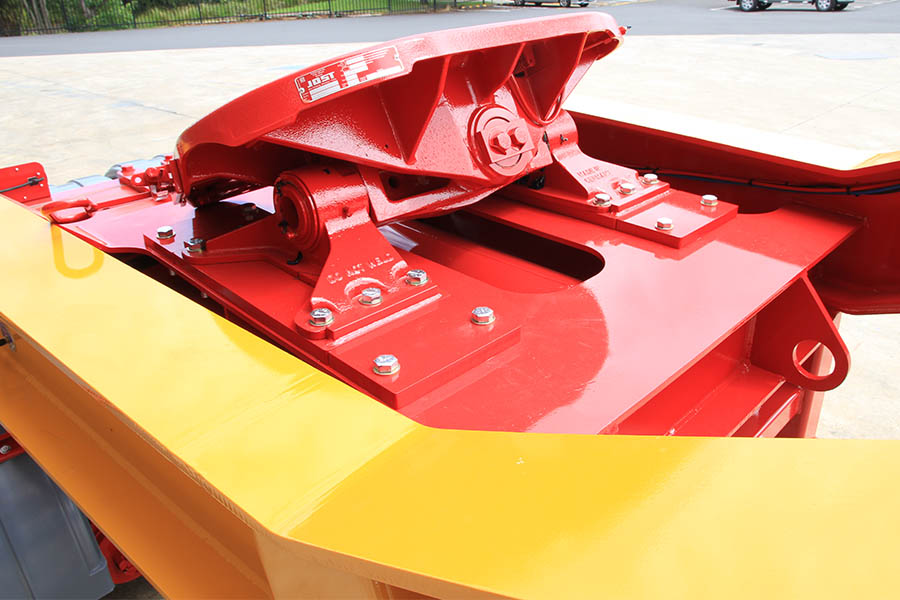

Fully oscillating 3-1/2” Jost 5th Wheel on a fixed plate

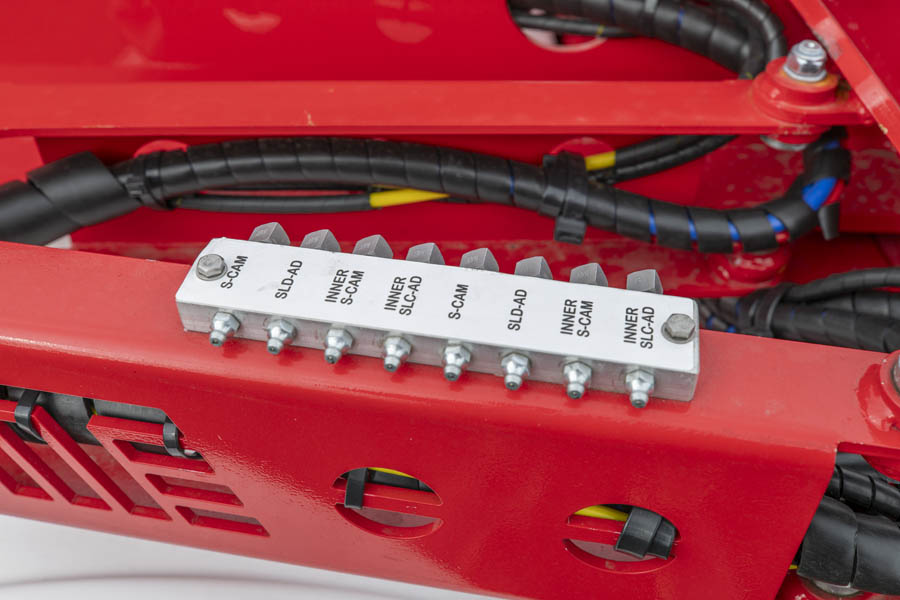

Greasing for Suspensions & Axles/Brakes out to easily accessible grease blocks on hose track wings
Capacity (GVM): 55,000kg
Tare Weight: From 4,700kg
Closed Width: 2,500mm
Open Width: 3,700mm
Axle Spacing: 1,220mm
Axles: MTE 17.5”, Outboard Drum
Suspension: R8 Dolly Trunnion Suspension
Brakes: Knorr-Bremse EBS
Wheels: 17.5 x 6.0” - 10 Stud, 225 PCD Steel Wheels
Tyres: 215/75 x 17.5”, 16 Ply Synergy Tyres
Gooseneck: Fixed Height Gooseneck
Rub Plate Height: 1370mm
Rub Plate: Single Fixed Position
King Pin: 1 x MTE 90mm (3-1/2”) Drop-in King Pin
5th Wheel: Fully oscillating 3-1/2” Jost 5th Wheel on a fixed plate
5th Wheel Height: 1,370mm
Locking Pins: 2 x Manual pull locking pins on widening box
Landing Legs: Pin type heavy duty landing legs
Hydraulic Supply: Truck PTO
Lights: Hella LED
Hoses: 1 x Set Hydraulic Hoses for Back Couplings, 1 x Set Suzi Air Coil Leads for Back Couplings, 1 x Suzi 7 Pin Electrical Lead for Back Plug
Lashings: 2 x 5,000kg ‘Drop D’ Tie down Lashings (one on outsides of each landing leg)
Chain Lugs: 2 x 16mm Tie down Chain Lugs, (one each side under wide-box)
Signage: Hazard signage where applicable
Greasing: Greasing for Suspensions & Axles/Brakes out to easily accessible manual Labelled grease blocks on hose track wings
Mudguards: Plastic Mudguards over Wheels
Paint: Sandblasted and painted to your fleet colours in Valspar 510
Machined, polished or premium finish
Various designs available

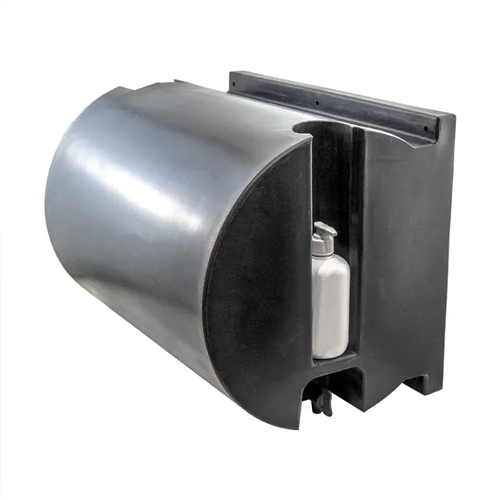

Stainless steel or plastic watertank mounted to gooseneck

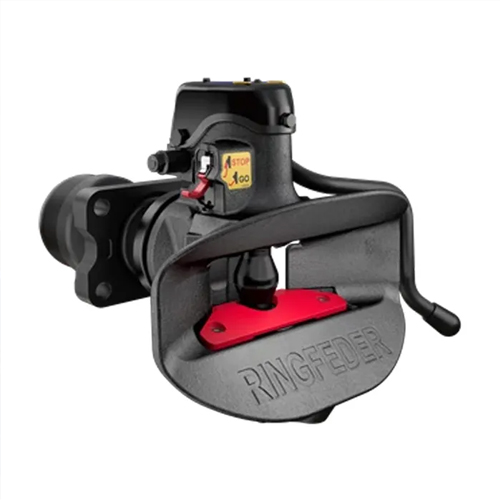

50mm Ringfeder Mounted on rear with Aircouplings for towing

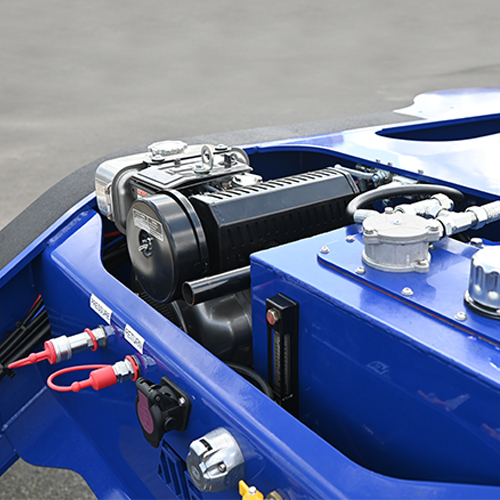

Petrol or diesel powerpack options

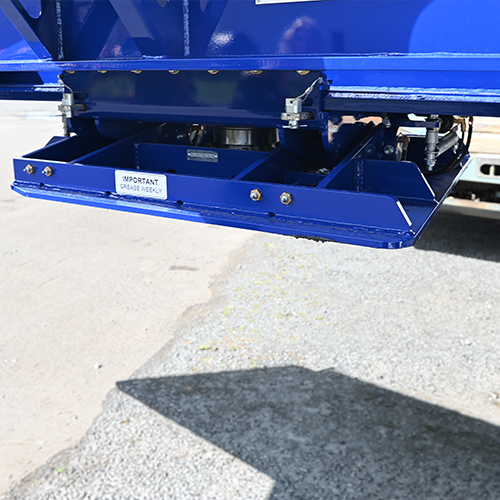

Sliding front Rubplate with pneumatic locks.
