Designed for machinery where loading angle and ground clearance matter, the MTE 3 Axle Semi Tilt Deck Transporter combines a hydraulically tilting deck with low-angle ramps to create a smooth, gradual loading approach. Its compact wheelbase provides excellent manoeuvrability, making it a versatile solution for transporting pavers, access equipment, construction machinery and other low-clearance equipment.

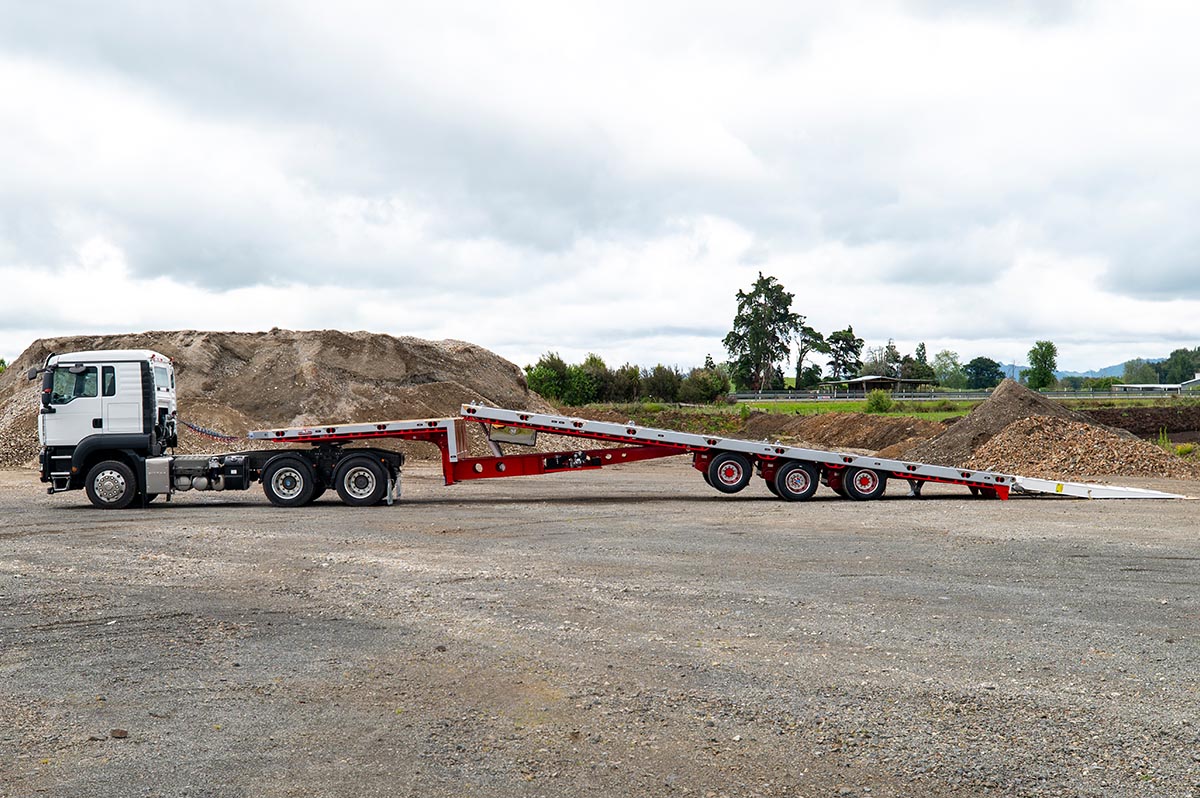

Low-angle loading, The hydraulic tilt deck and dog-leg ramps work together to create a gradual approach for low-clearance machinery.
Ideal for difficult-to-load equipment, Particularly well suited to pavers, access equipment and machinery where breakover angle can be an issue.
Compact & manoeuvrable, The shorter wheelbase makes it easier to operate in urban environments, confined worksites and areas with restricted access.
Versatile everyday transporter, Combines the flexibility of a tilt deck with a practical semi-transporter layout for a wide range of machinery and equipment.

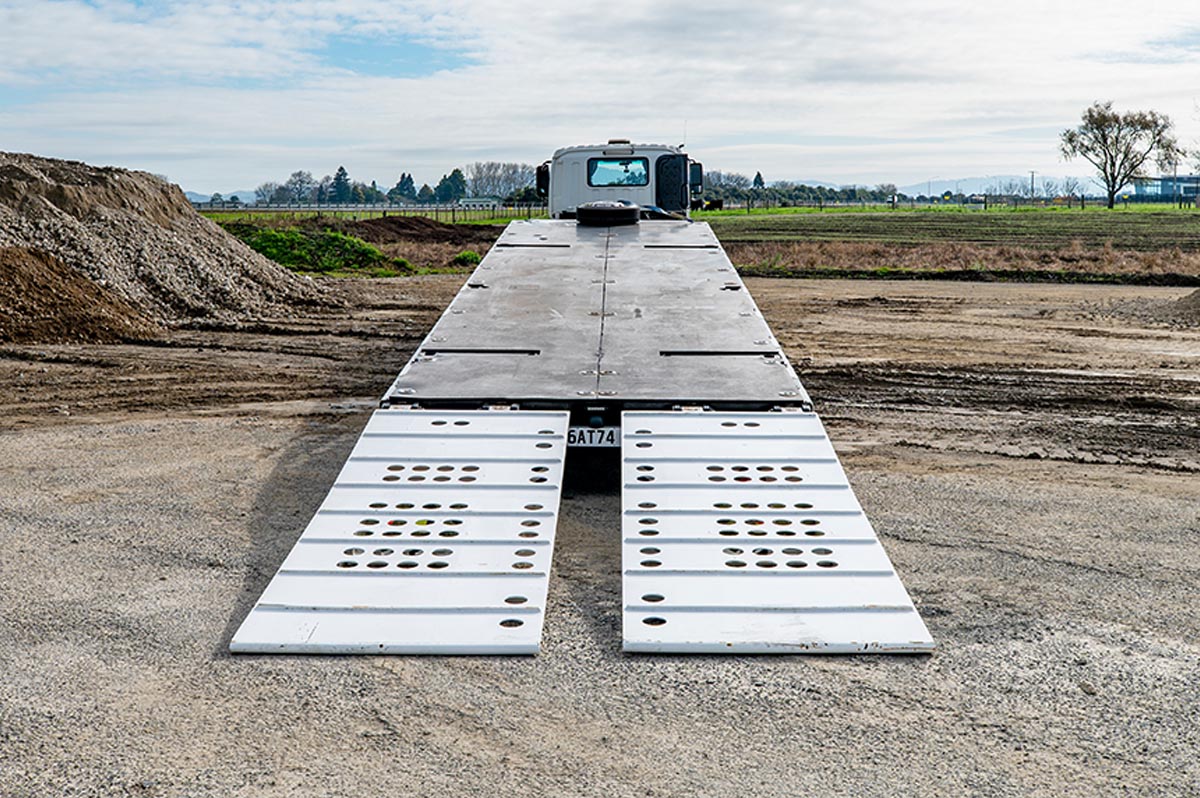

Low angle dog leg ramps
Suits 20' or 40' container
Lockable toolbox under deck
Outboard drum brake design for quick and easy servicing
Knorr-Bremse ABS Brakes
Provides enhanced grip and safety during loading
Capacity (GVM): 40,000kg
Tare Weight: From 8,900kg
Deck Height: 950mm
Deck Width: 2,500mm
Deck Length: 10,510mm
Forward Length: 9,200mm
Rear Overhang: 4,210mm

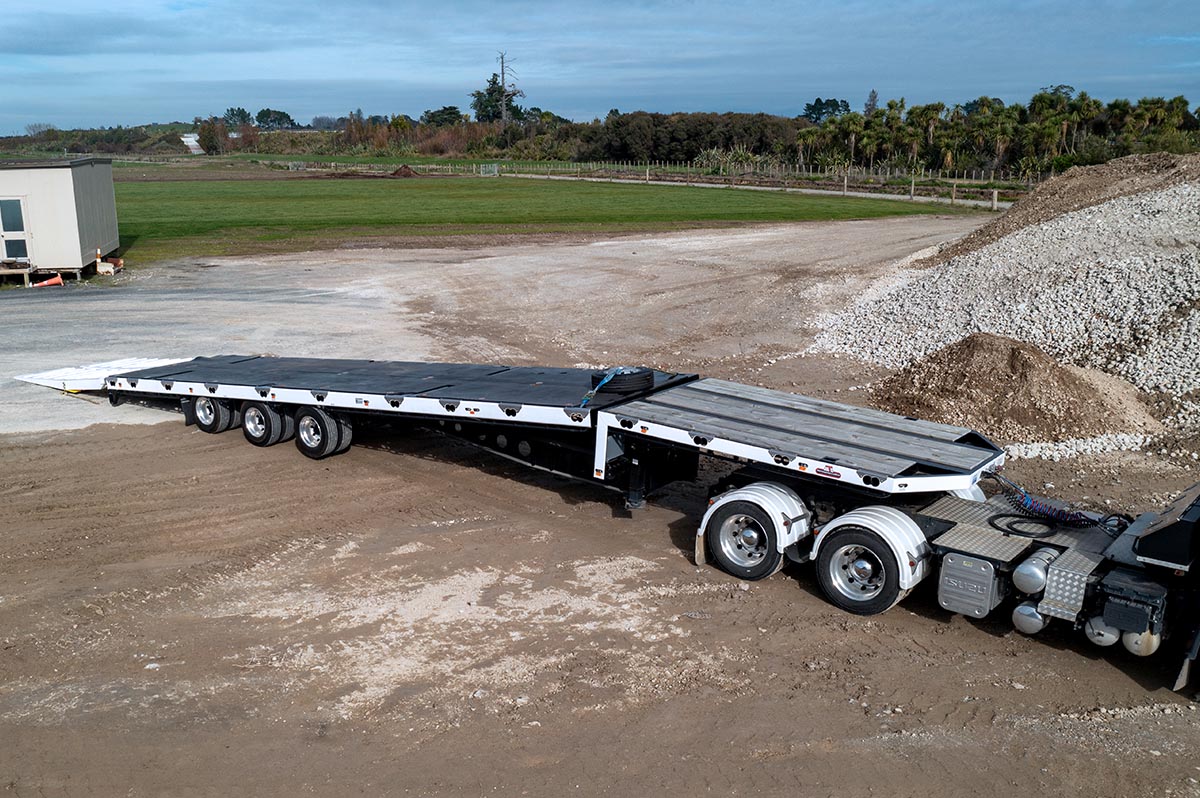

Top Deck: 4,090mm
Lashings: Figure 8 Tie Points in combing Rails. Full Length Certified Rope Rail top & bottom deck, 4 x SHS Twitch Holders each side in front of neck Ship-Lock Pockets for 2 x 20’, 1 x Loaded 20’ & 1 x 40’ Container
Axle Spacing: 1,300mm
Axles: 3 x 17.5” MTE Drum Brake Axles with 7.5” x 12.5” Brakes
Suspension: Air suspension with dump/rise switch for loading
Brakes: Knorr EBS braking system
Gooseneck: Fixed
Rub Plate: 1270mm Fixed single position
King Pin: Retention type 50mm
Ramps: 2,700mm x 900mm hydraulic
Landing Legs: Full weight wind up
Controls: Ramp & tilt deck controls under passenger side of top deck
Lights: Hella LED
Signage: Hazard signage
Wheels: 12 x 17.5 x 6.75” 10st 225PCD Alloy Polished Wheels
Tyres: 12 x 17.5 235 Synergy tyres
Storage: Chain bins in front corners of top deck, 2 x 900 x 400 x 350mm lockable toolboxes with stainless door
Hydraulic Supply: 5.5HP Petrol power pack, electric start with battery
Machined, polished or premium finish
Various designs available
Various sizes available
Folding "OVERSIZE" signs and sliding chevrons.
