The shorter wheelbase allows for greater maneuverability, perfect for city use and tight space restrictions.

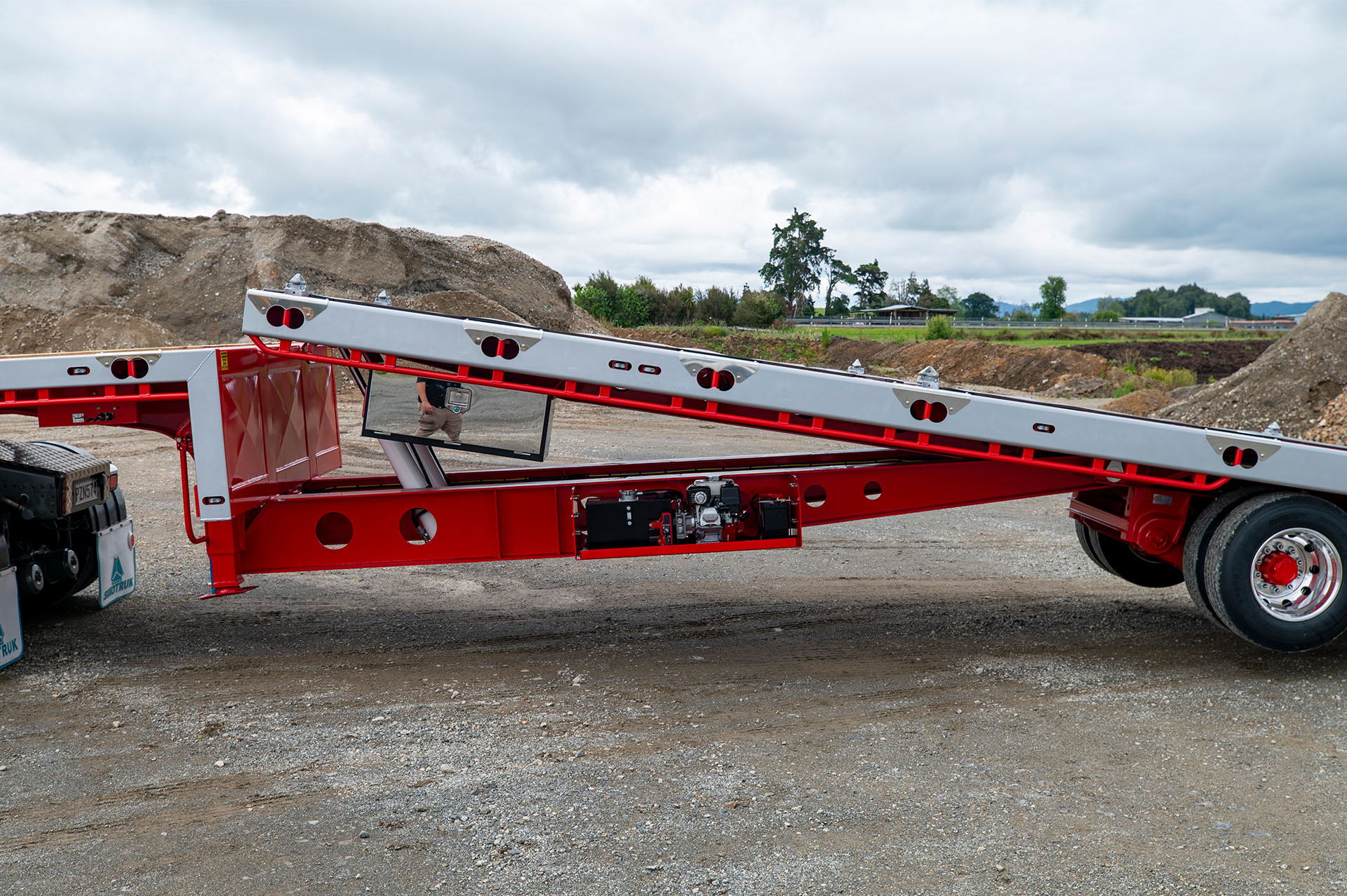

The MTE 3 axle semi tilt deck trailer is a versatile and robust option used for transporting heavy equipment and machinery. Designed with a hydraulic tilting mechanism, the trailer’s deck can be inclined to provide a ramp-like surface, allowing for easy loading and unloading of equipment. This feature is particularly useful for transporting vehicles like construction machinery, agricultural equipment, and large industrial machines that may not be easily driven onto standard trailers or have low ground clearance.

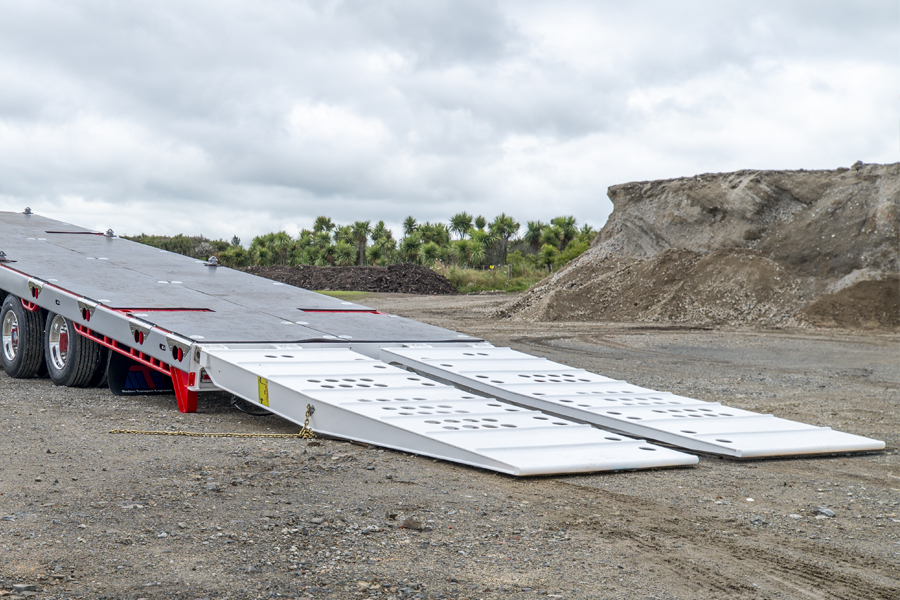

Low angle dog leg ramps
Suits 20' or 40' container

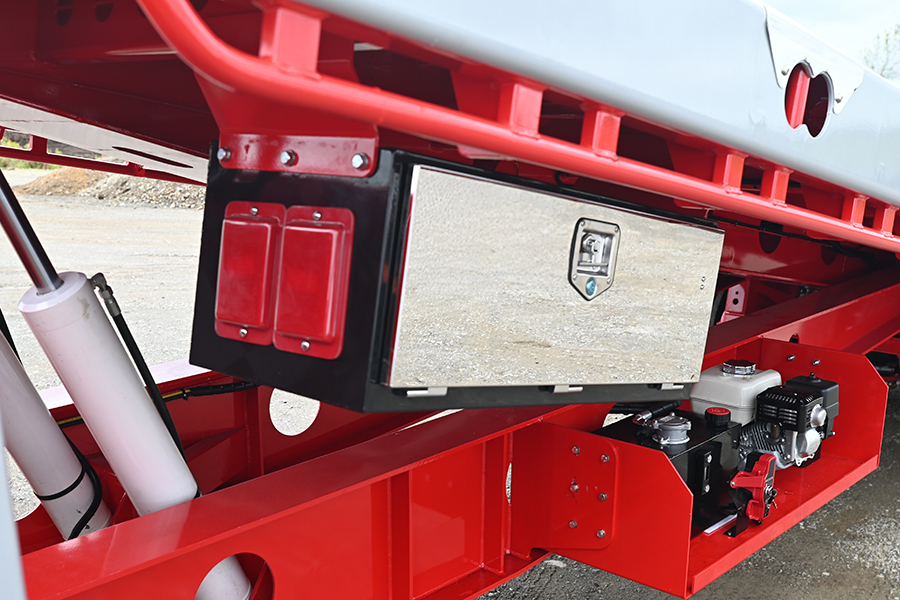

Lockable toolbox under deck
Outboard drum brake design for quick and easy servicing
Knorr-Bremse ABS Brakes

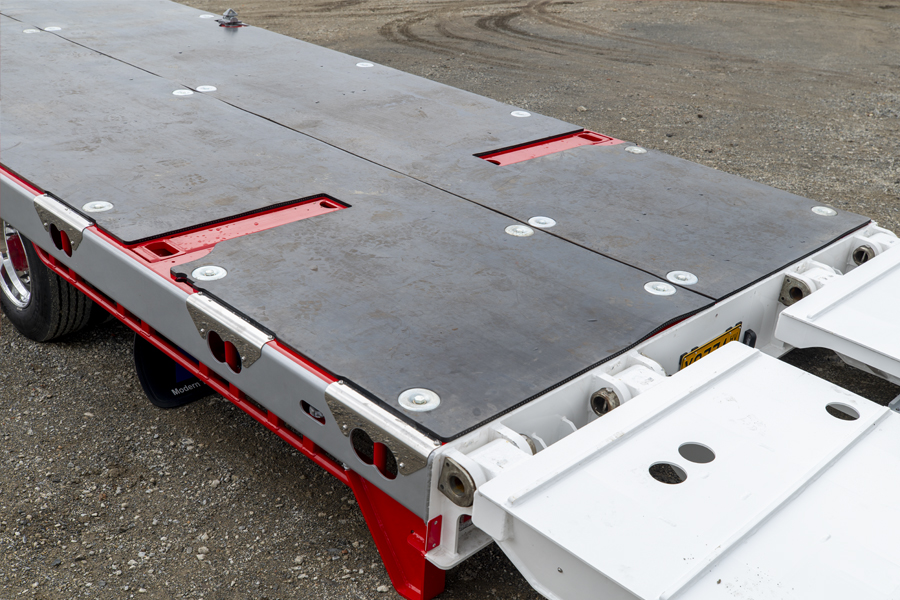

Provides enhanced grip and safety during loading
Capacity (GVM): 40,000kg
Deck Ride Height: 950mm
Deck Width: 2490mm
Deck Length: 10,510mm
Forward Length: 9200mm
Rear Overhang: 4210mm

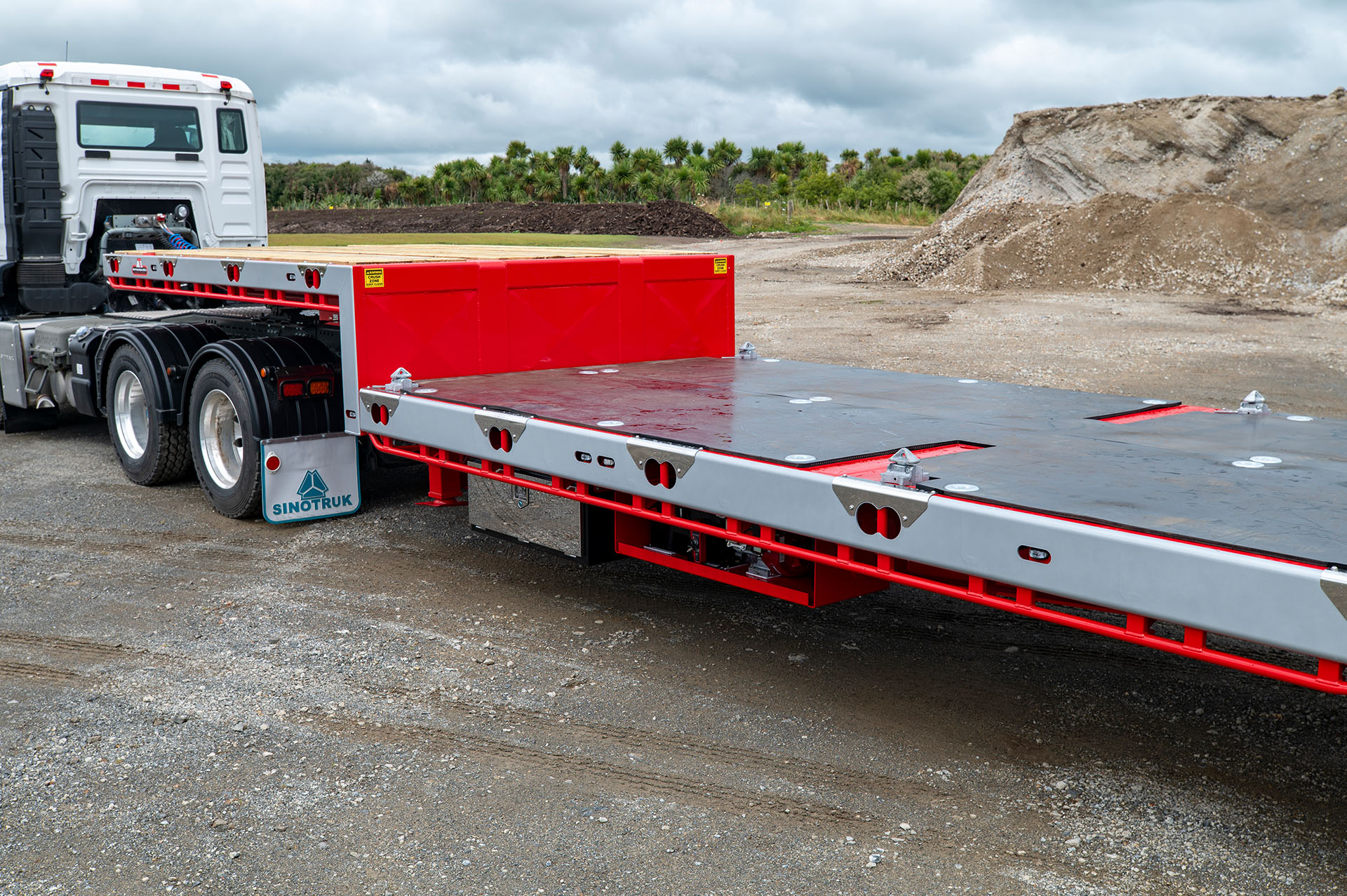

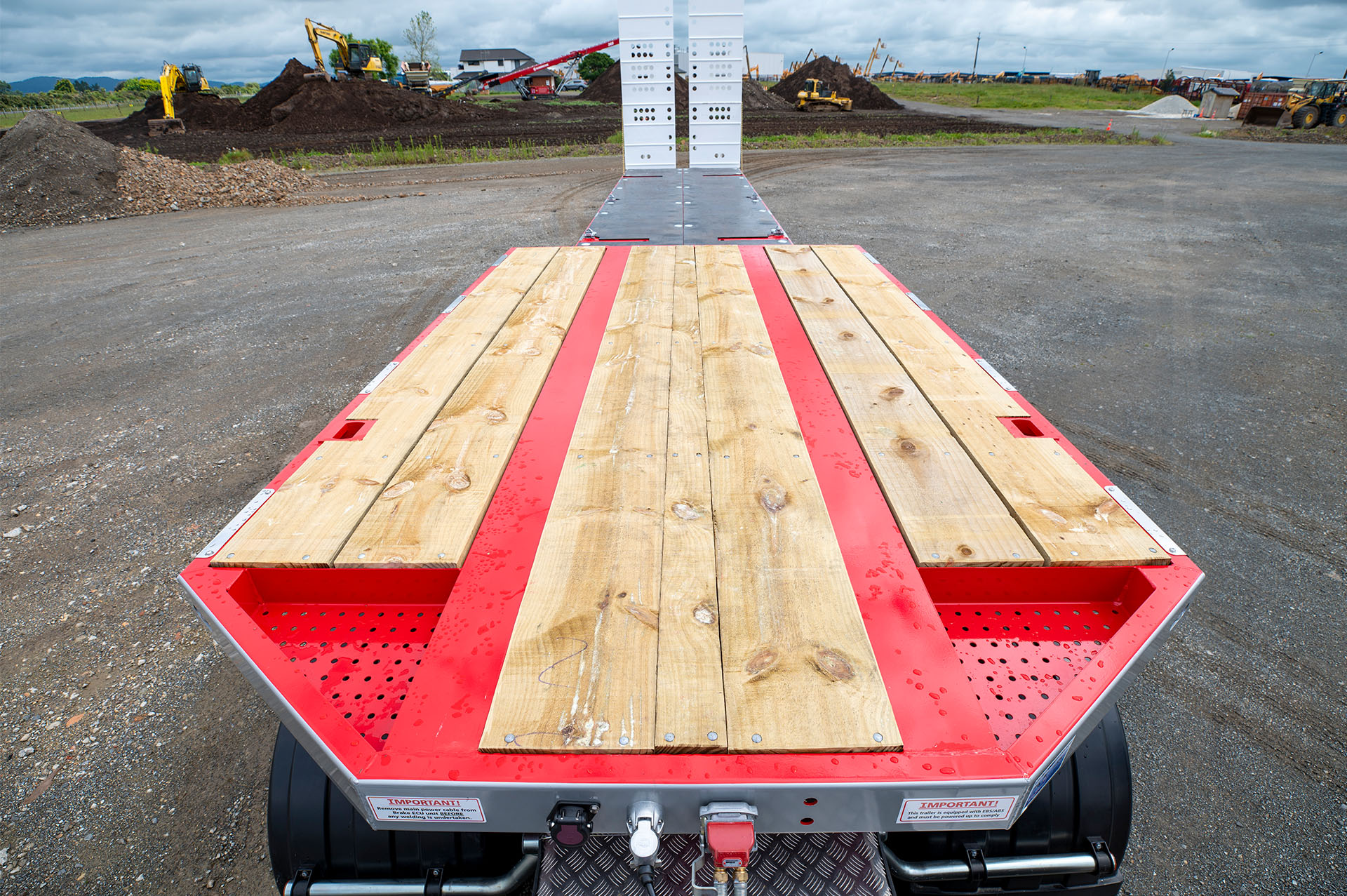

Top Deck: 4088mm

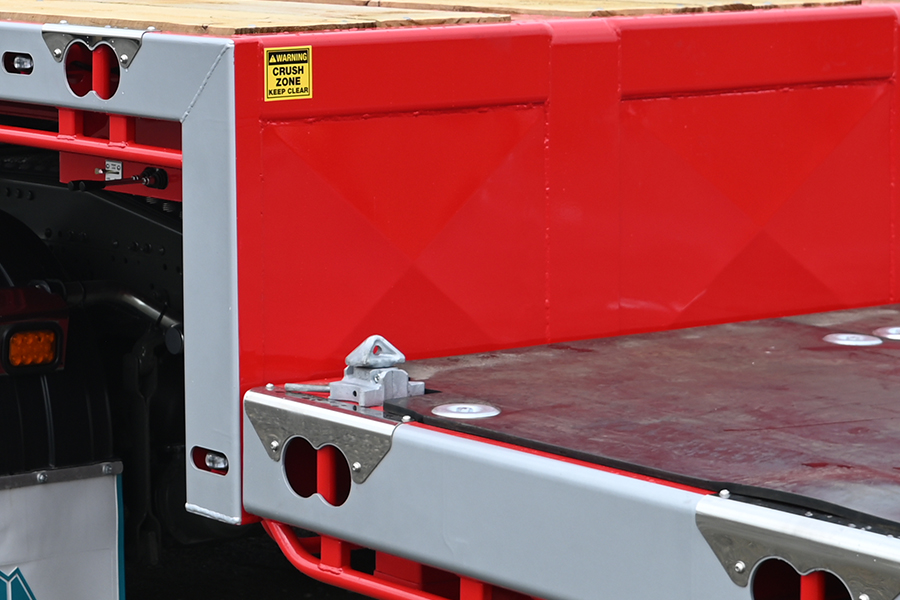

Lashings: Figure 8 Tie Points in combing Rails. Full Length Certified Rope Rail top & bottom deck, 4 x SHS Twitch Holders each side in front of neck Ship-Lock Pockets for 2 x 20’, 1 x Loaded 20’ & 1 x 40’ Container
Axle Spacing: 1300mm

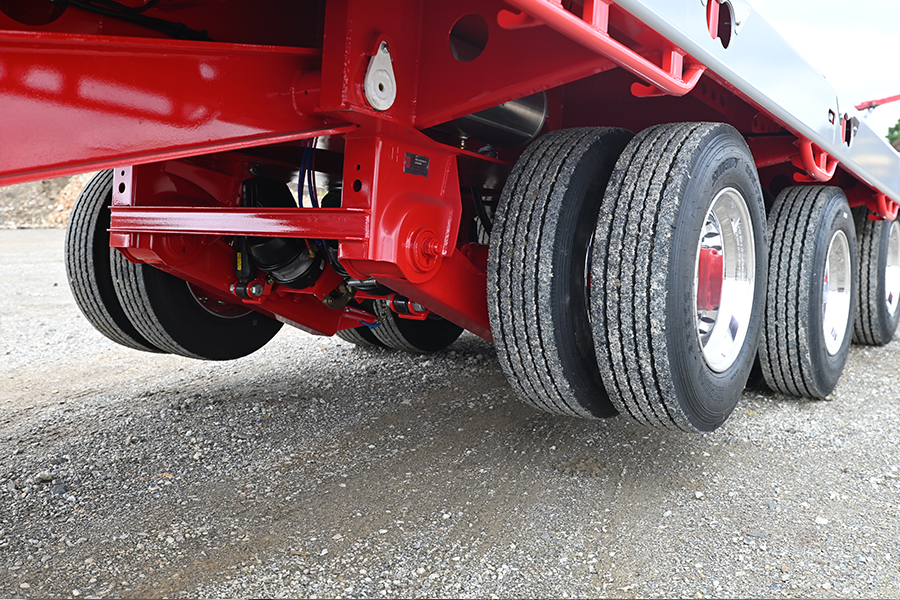

Axles: 3 x 17.5” MTE Drum Brake Axles with 7.5” x 12.5” Brakes
Suspension: Air suspension with dump/rise switch for loading
Brakes: Knorr EBS braking system
Gooseneck: Fixed
Rub Plate: 1270mm Fixed single position
King Pin: Retention type 50mm

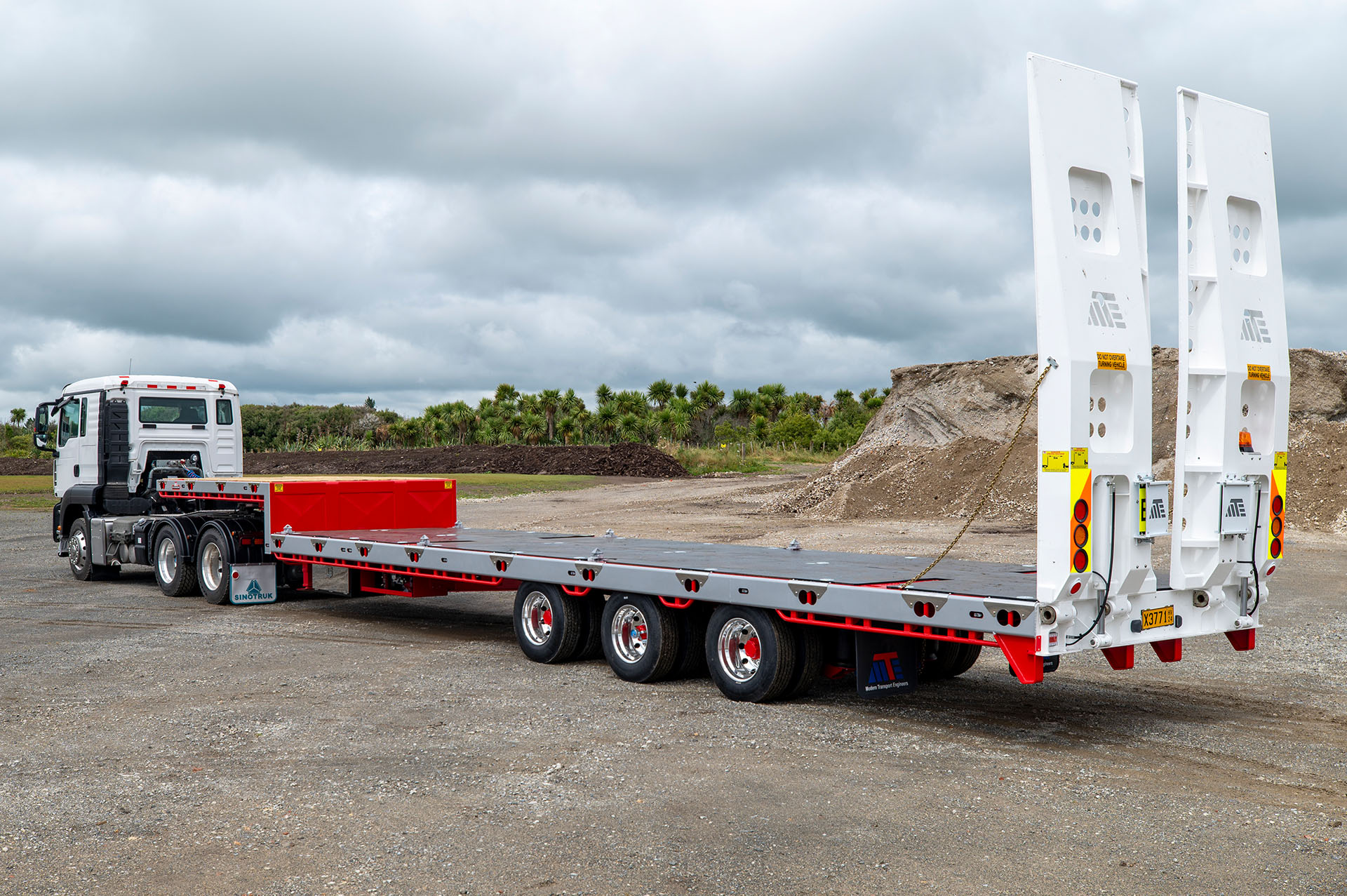

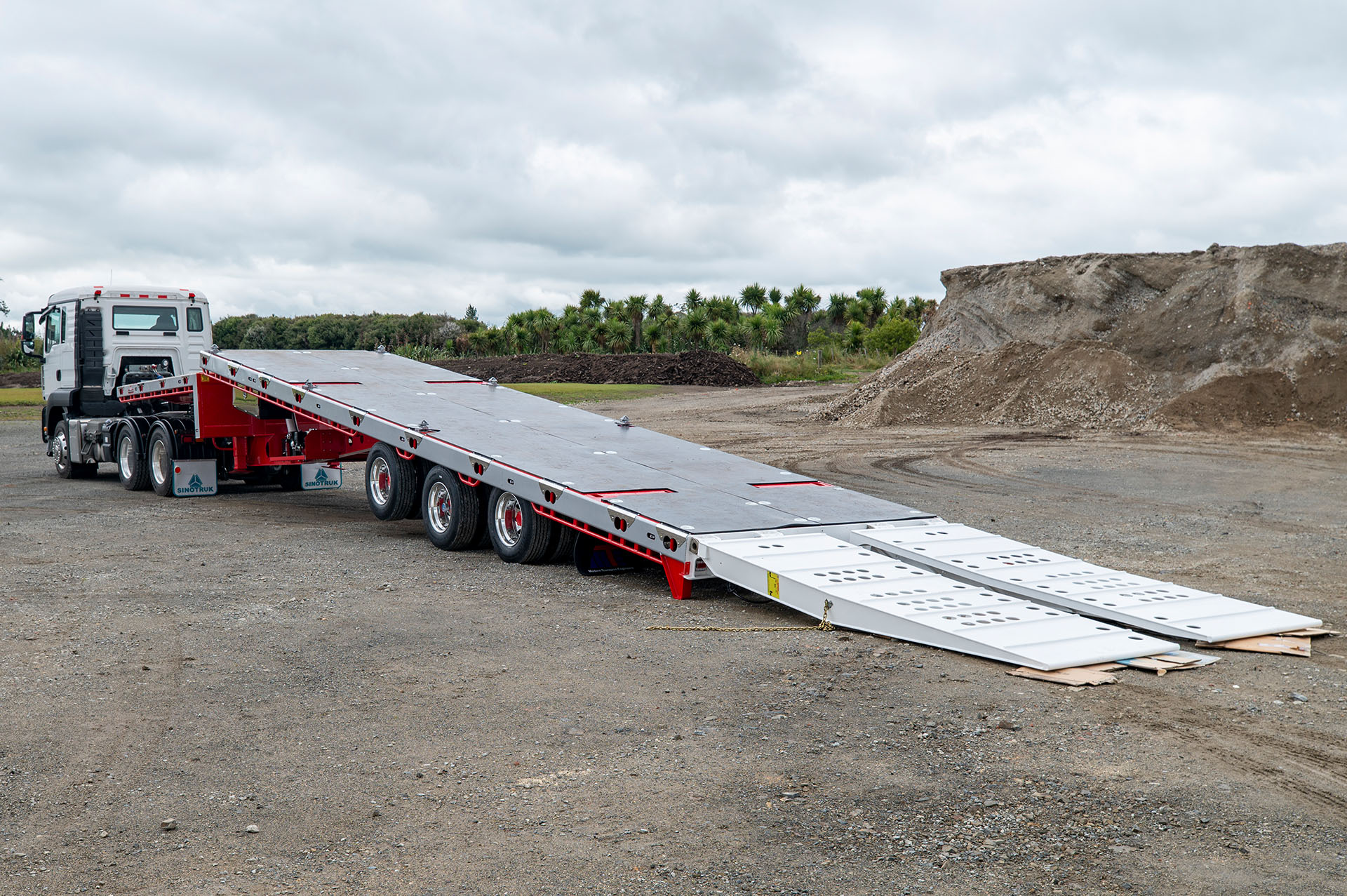

Ramps: 3300mm x 1100mm Custom Ramps with Cleats & Dog leg for better loading angle for pavers
Landing Legs: Full weight wind up
Controls: Ramp & tilt deck controls under passenger side of top deck
Lights: Hella LED
Signage: Hazard signage
Wheels: 12 x 17.5 x 6.75” 10st 225PCD Alloy Polished Wheels
Tyres: 12 x 17.5 235 Synergy tyres
Storage: Chain bins in front corners of top deck, 2 x 900 x 400 x 350mm lockable toolboxes with stainless door
Hydraulic Supply: 5.5HP Petrol power pack, electric start with battery

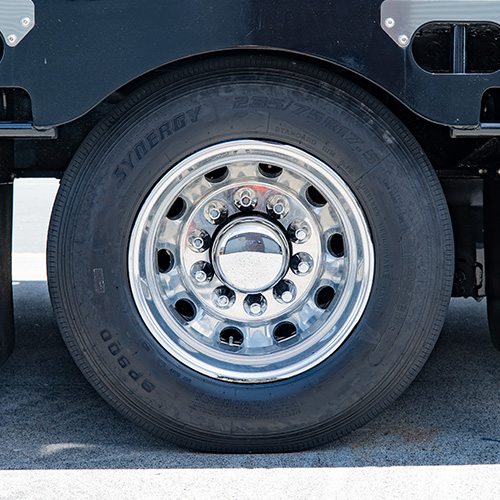

Machined, polished or premium finish
Various designs available
Various sizes available
Folding "OVERSIZE" signs and sliding chevrons.
