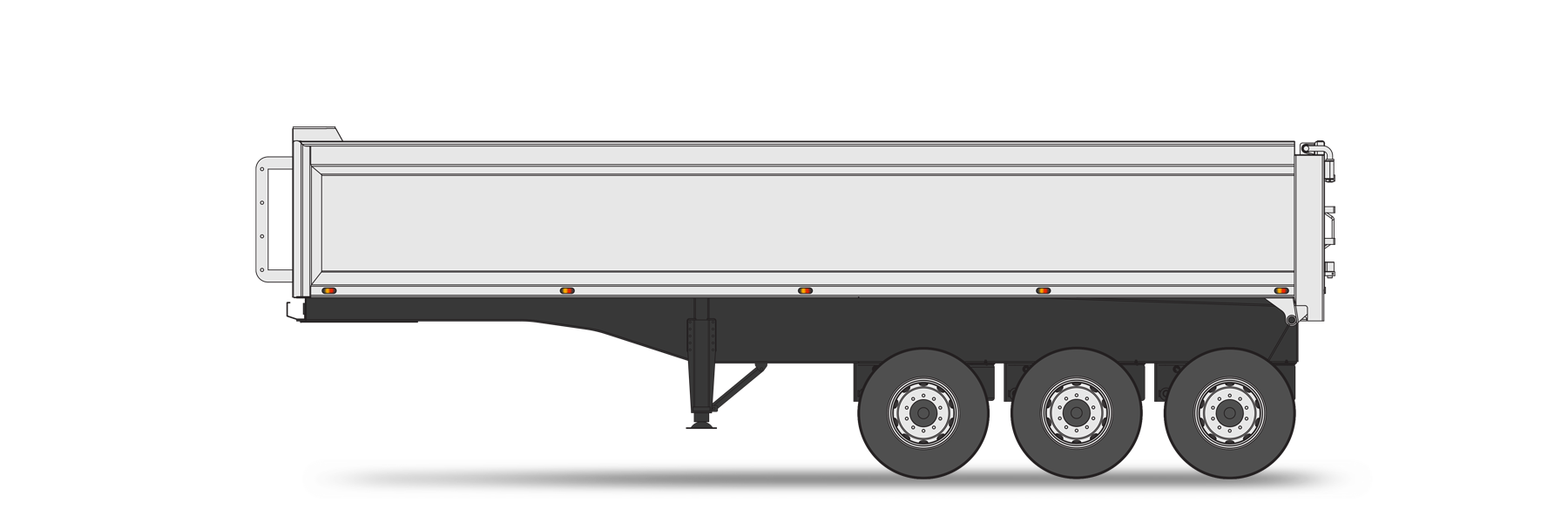

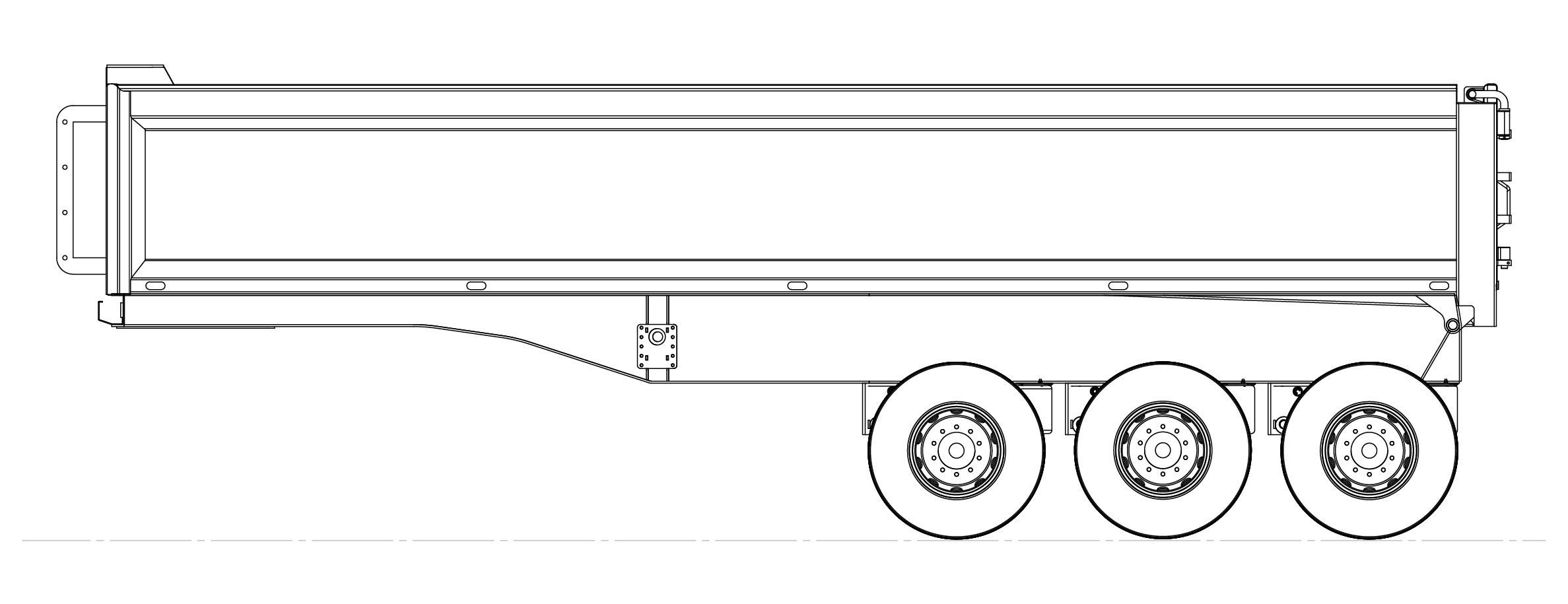

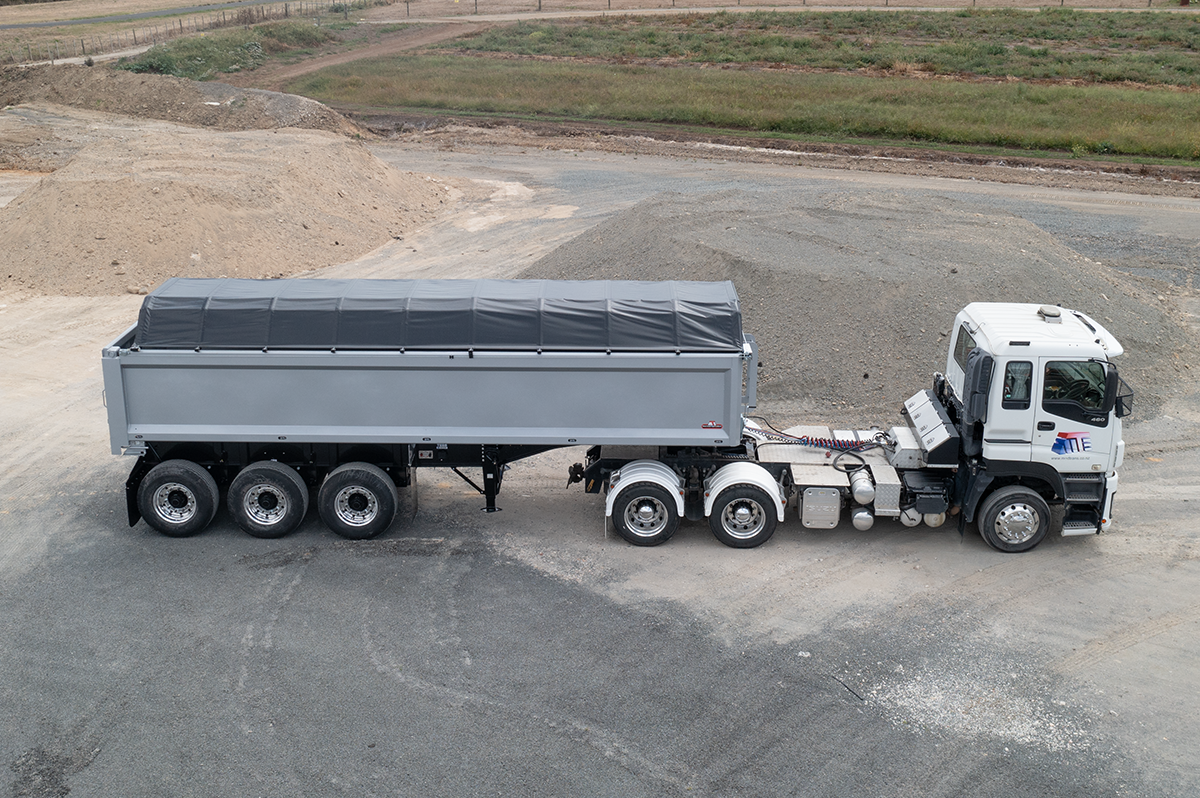

Built for demanding bulk-haul applications, the MTE 3 Axle Semi Tipper combines a high-strength wear-resistant body with a robust, proven design for reliable day-to-day operation. Designed for civil construction, quarrying, demolition or general bulk transport, it is engineered to withstand tough working environments while delivering efficient loading and unloading cycle after cycle.

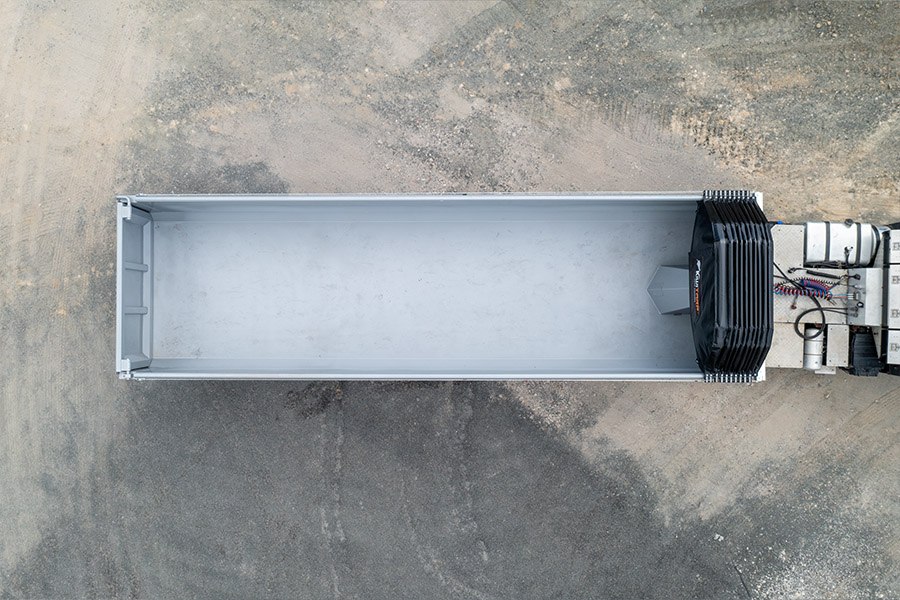

Built for hard work, High-strength, wear-resistant Hardox Steel construction provides excellent durability against abrasion and impact.

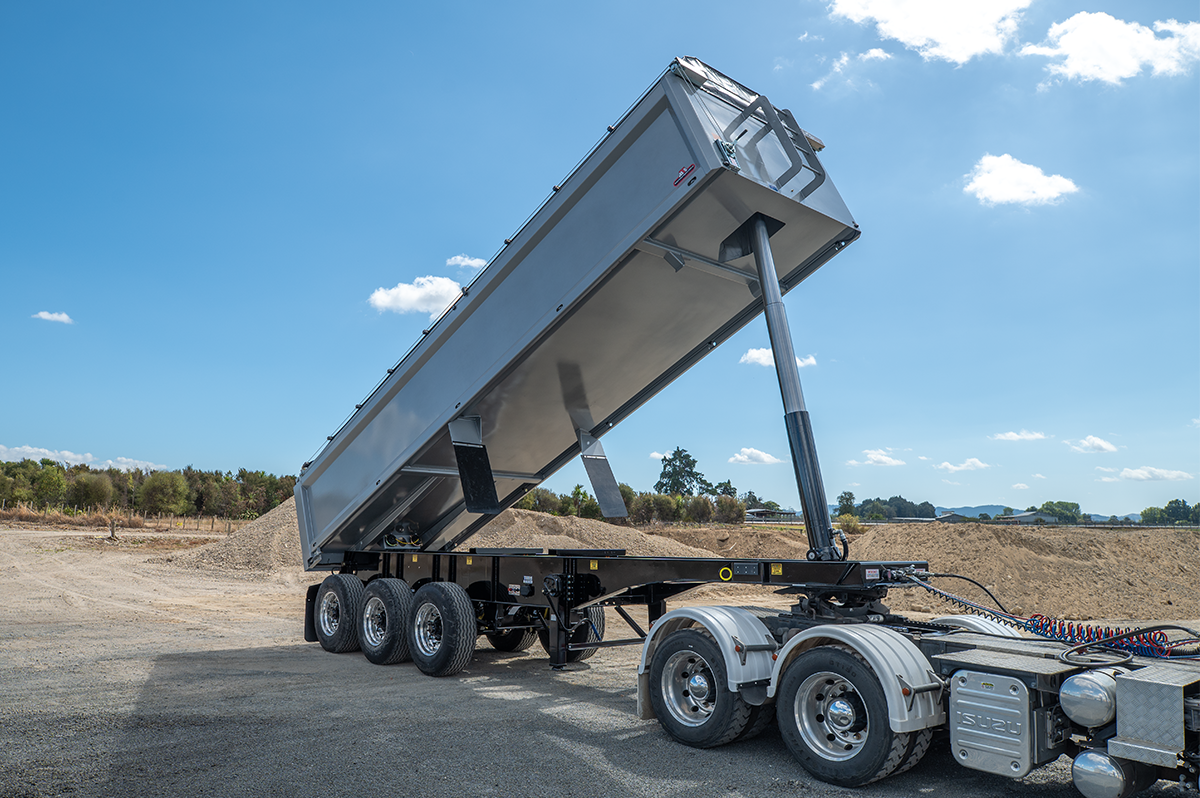

Efficient unloading, A buried front-of-body hoist provides a stable tipping configuration while maximising usable bin space.

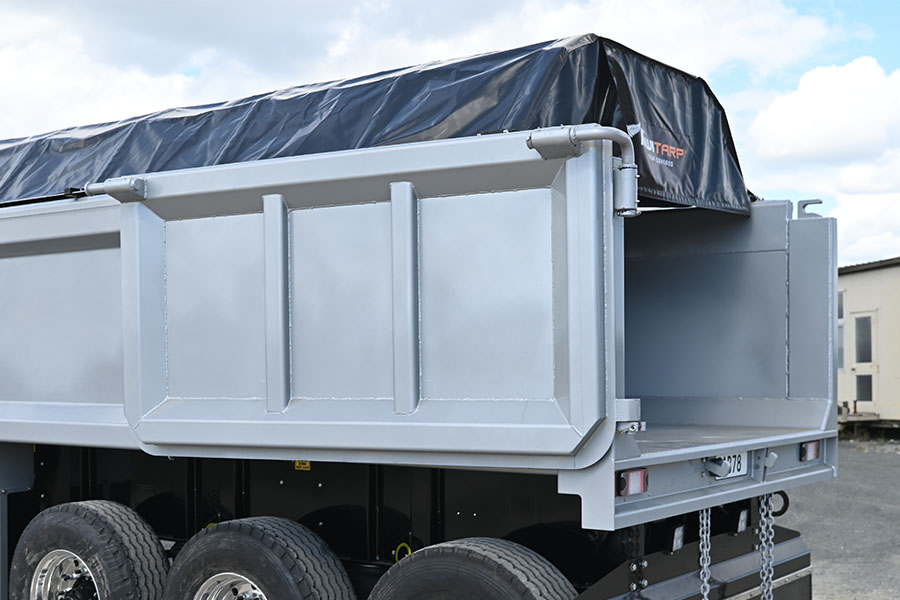

Versatile tailgate design,The two-way demolition tailgate with spreader chains provides flexibility when discharging aggregates, demolition material and other bulk products.

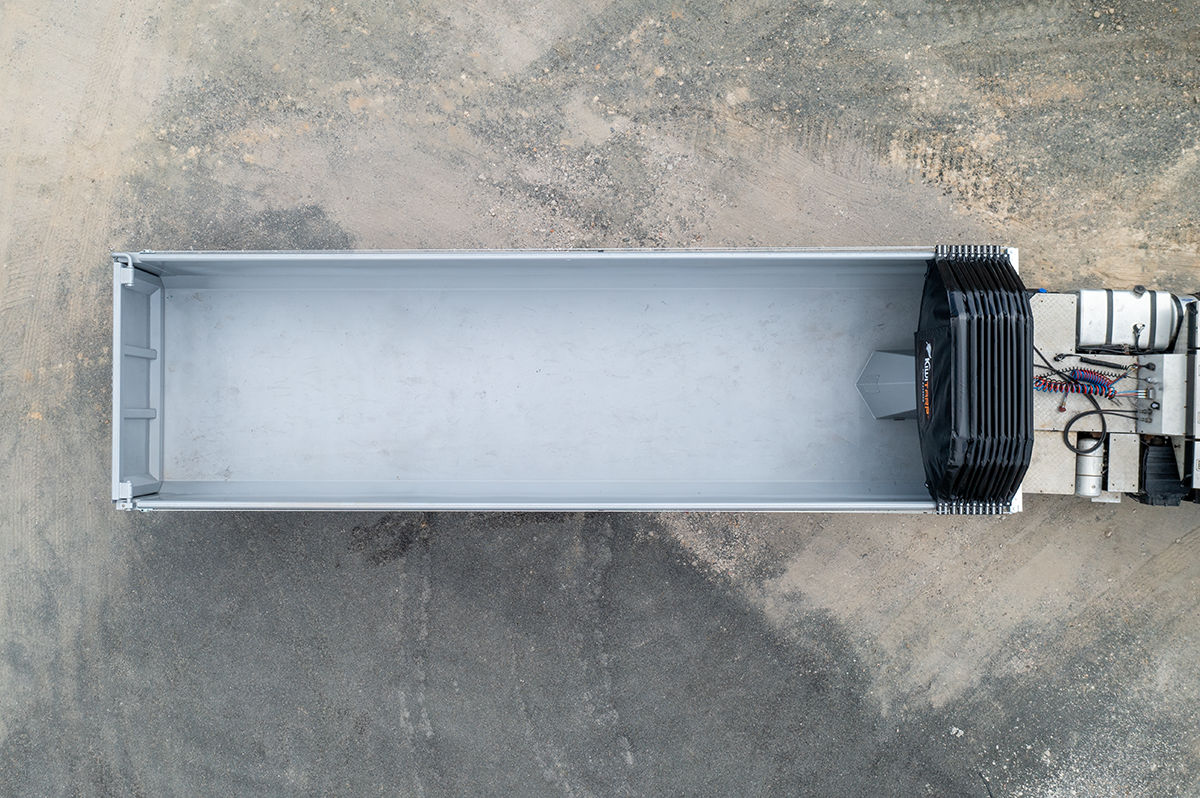

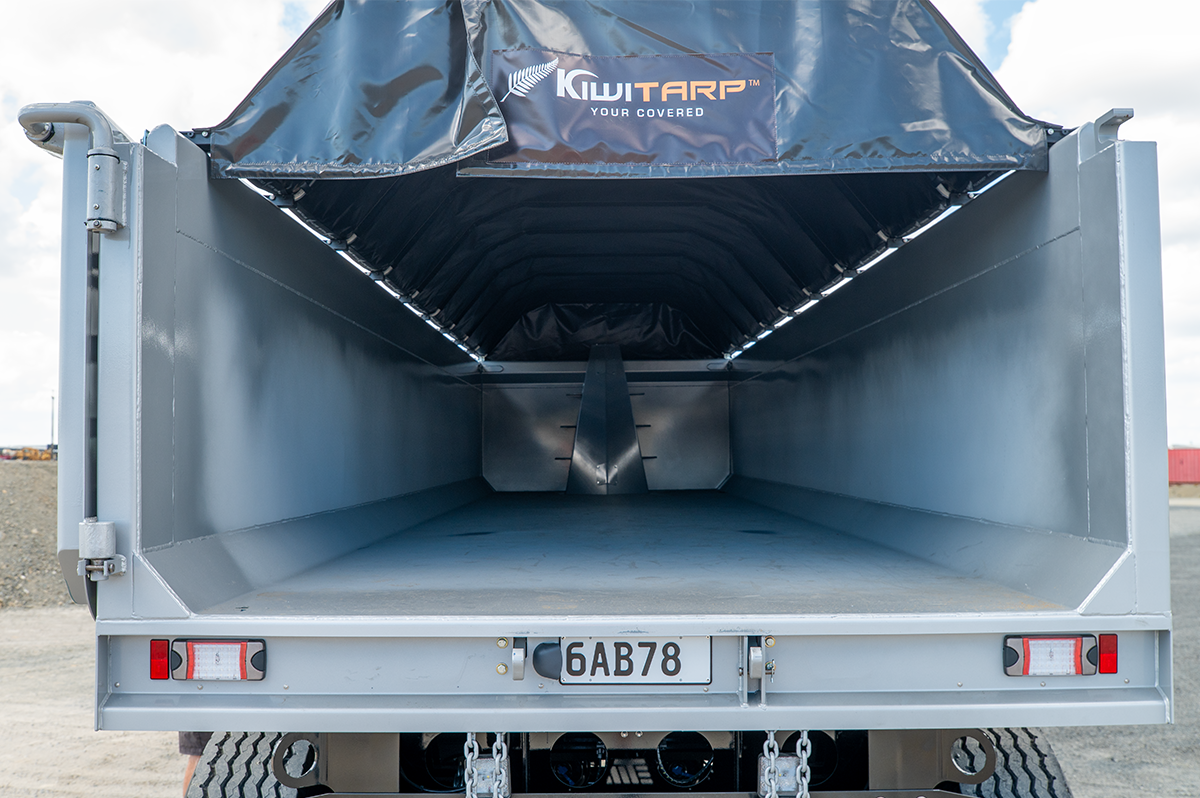

Steel wear plate body

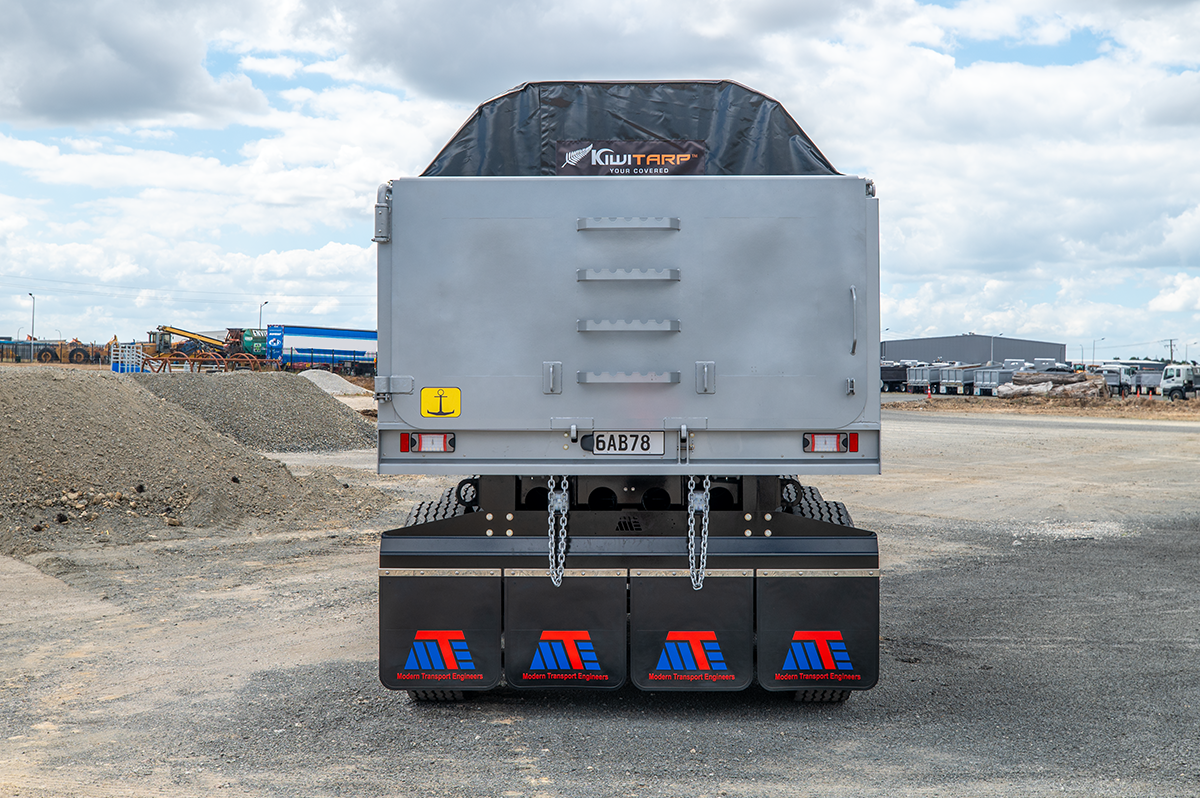

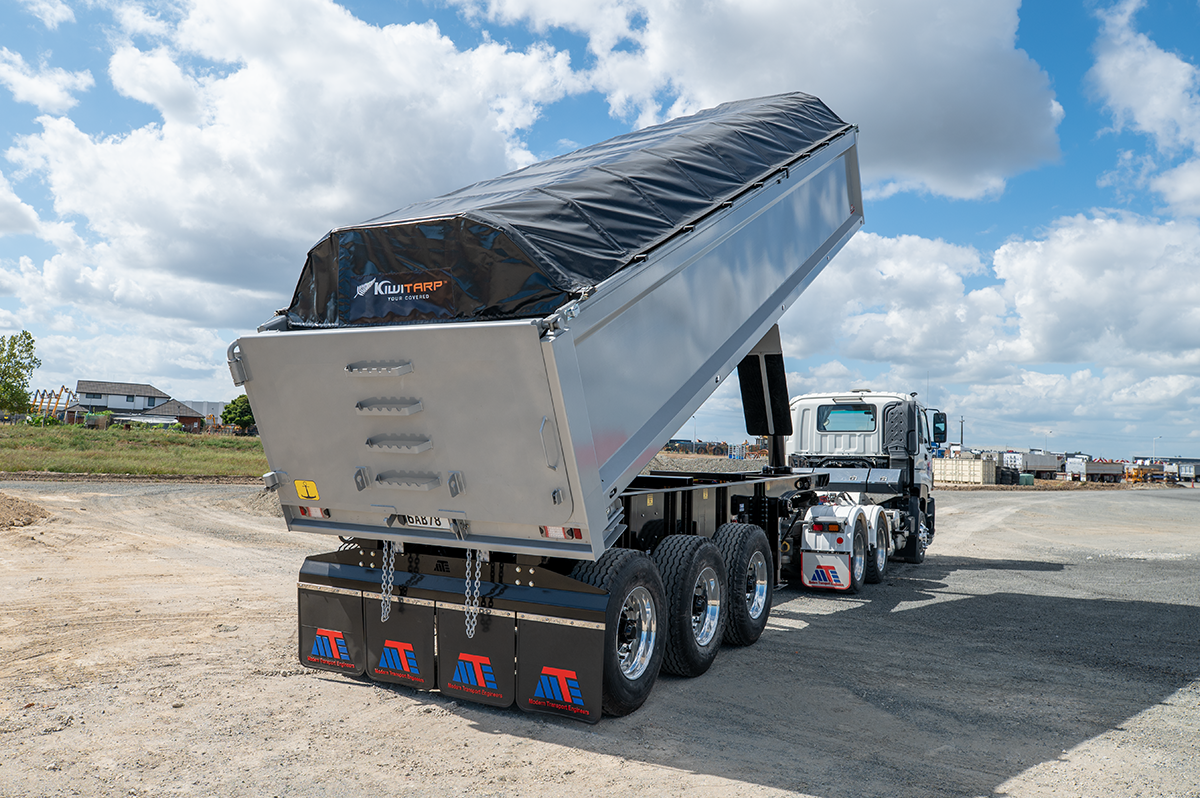

Demo door with spreader chains

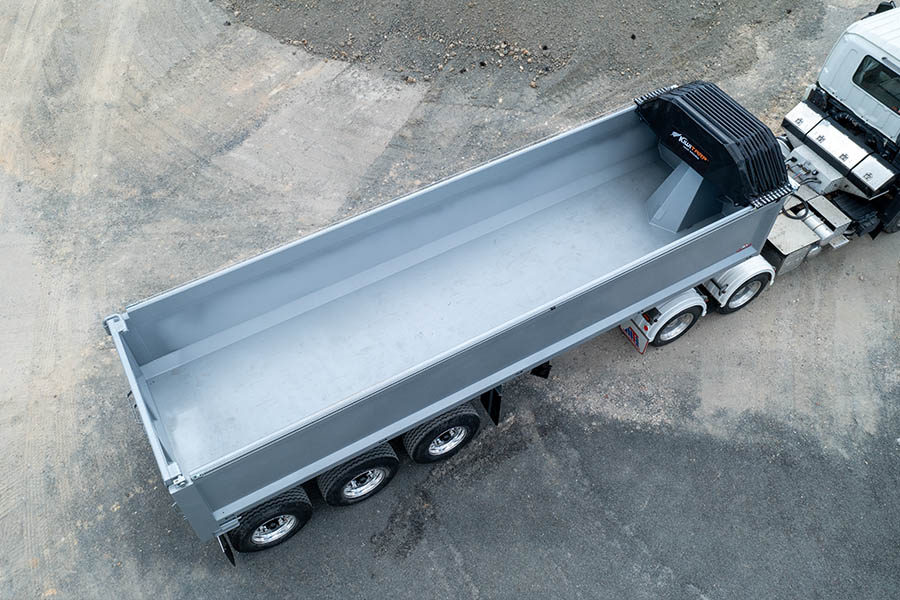

22m2 Bin capacity

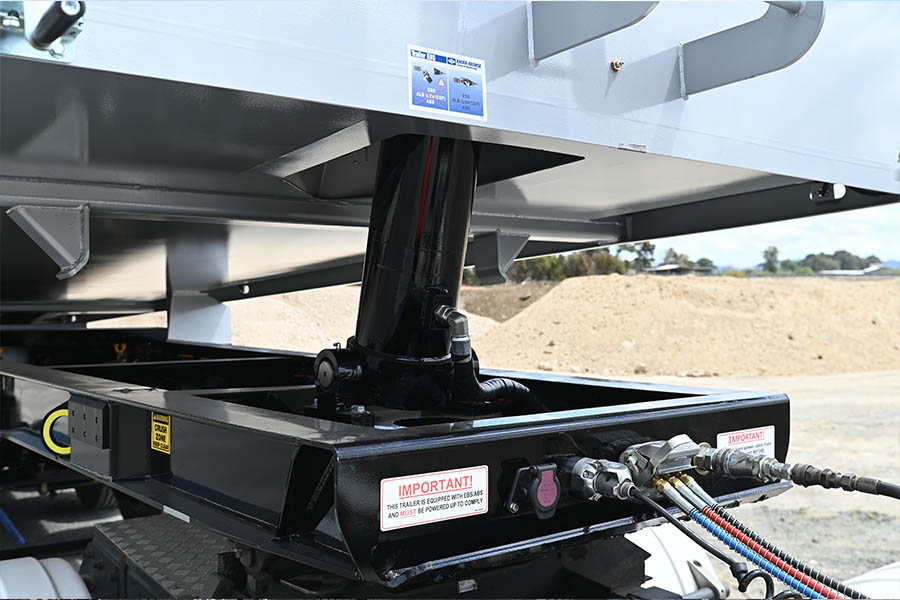

MH Hydraulics buried hoist

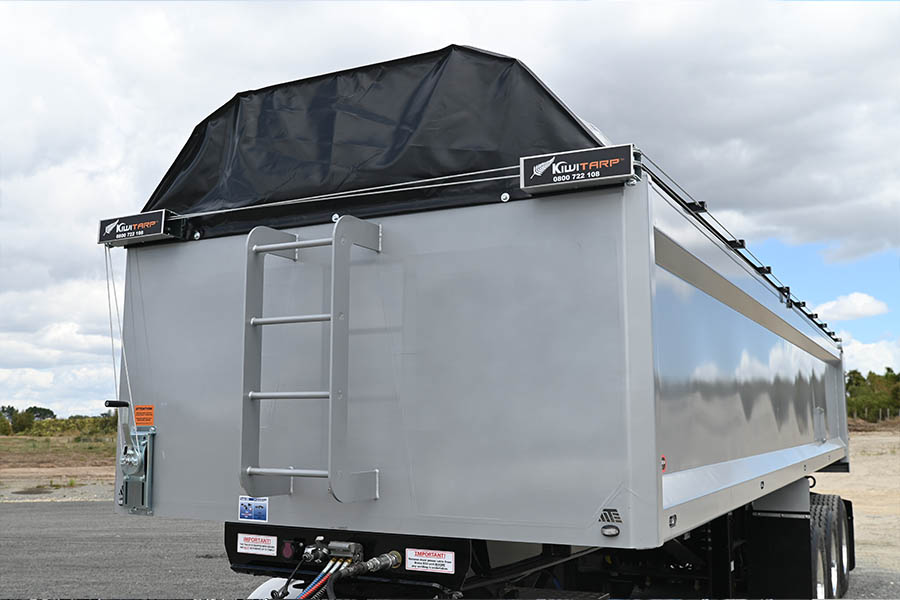

Front access ladder

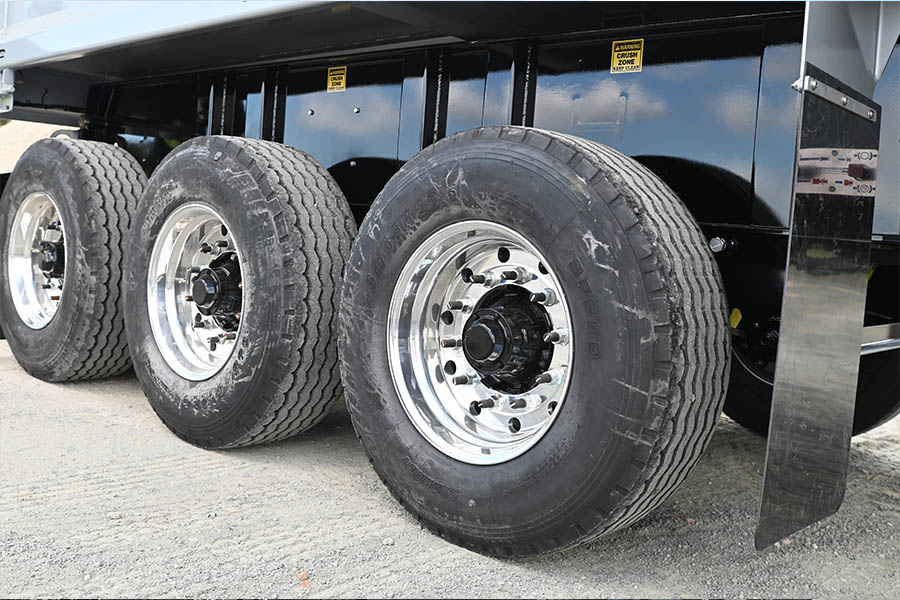

385/65R 22.5" Tyres on Weight Cheetah alloy wheels
GVM: 36,000kg
Tare Weight: From 7,000kg with alloy wheels
Bin Sides: 5mm
Bin Floor: 6mm
Bin Rear: 4mm
Bin Front: 5mm
Side Height: 1,200mm
Bin Length Overall: 8,530mm
Bin Width Outside: 2,450mm
Bin Width Inside: 2,350mm
Capacity: 22m3
Hoist: Buried front of body
Tailgate: Two-way demo door
Axles: MTW 22.5”, Outboard drum
Suspension: MTW Air suspension
Brakes: Knorr-Bremse EBS
Wheels: Weight Cheetah 22.5”
Tyres: 385/65R 22.5
Hydraulic Supply: Truck PTO
Landing Legs: Pin type heavy duty landing legs
King Pin: 50mm drop-in king pin
Access Ladder: Front of body
Lights: Hella LED
Odometer: Included

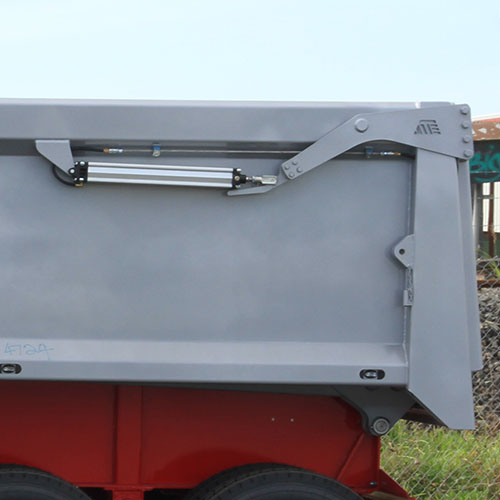

High lift top hinge pneumatic tailgate

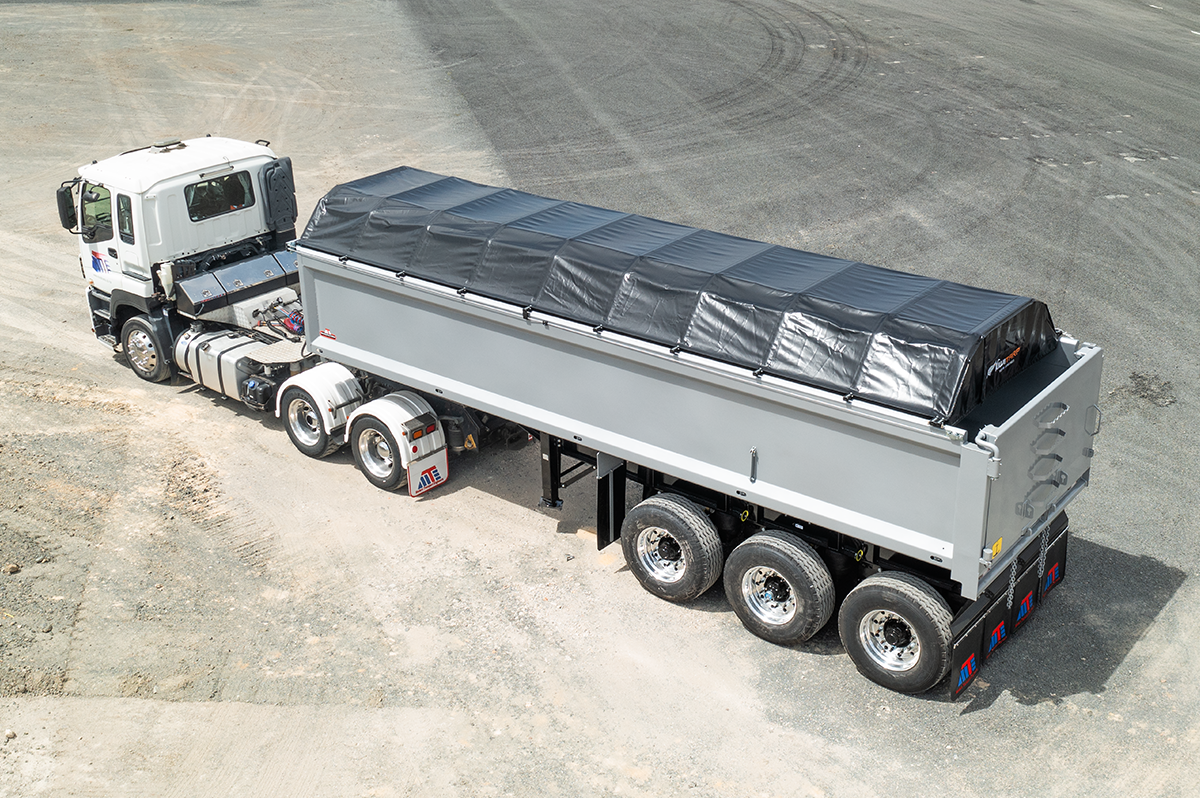

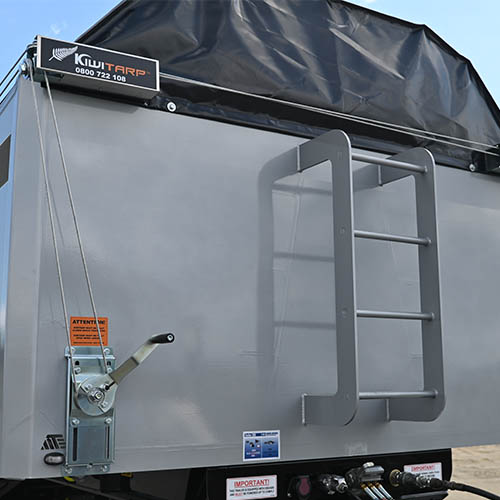

Electric or manual retractable tarp
Various design options
