The ideal MTE trailer where access is difficult or bridges are narrow.

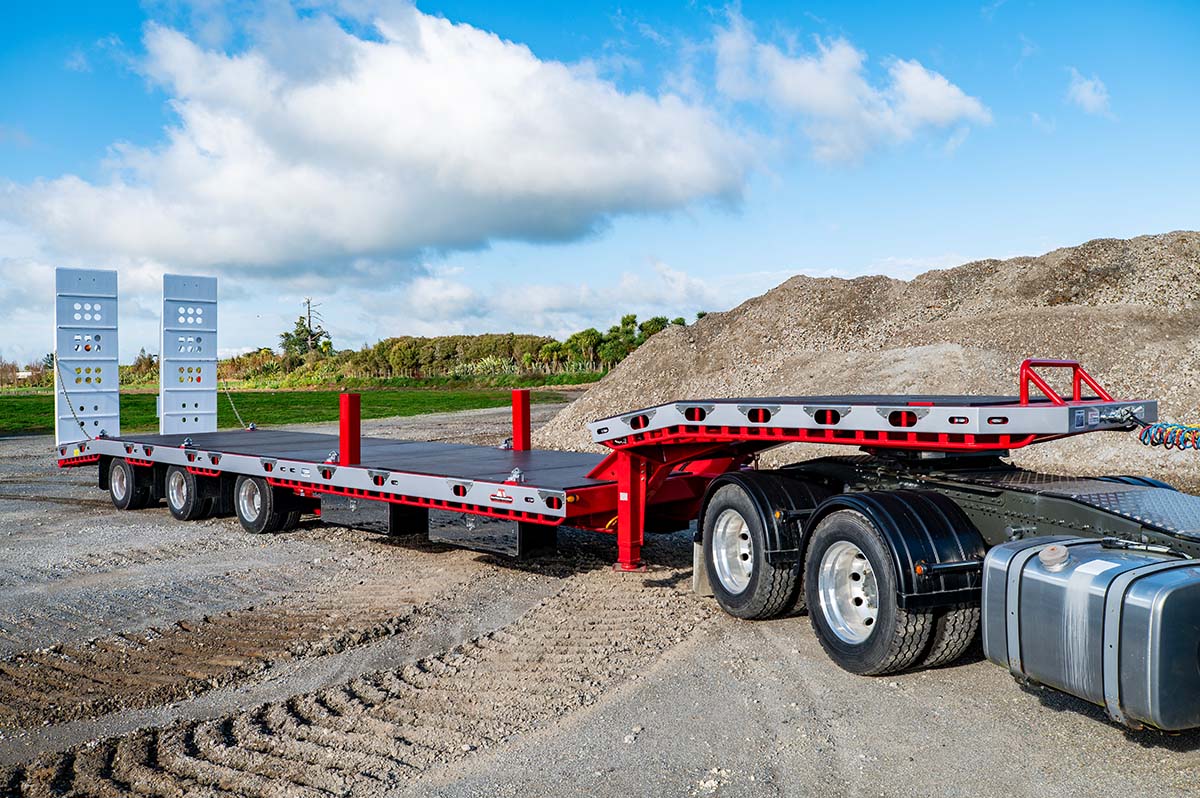

Our specialised Semi 3 Axle Air Suspension Trailer is built to be tough. Made from full high tensile steel (790 MPA), it is capable of transporting large loads with a GVM of 39,000kg. Ideal for transporting heavy machinery & shipping containers, you can rely on this trailer to get the job done. It is a simple trailer to operate at lighter tare weights than a widening trailer.

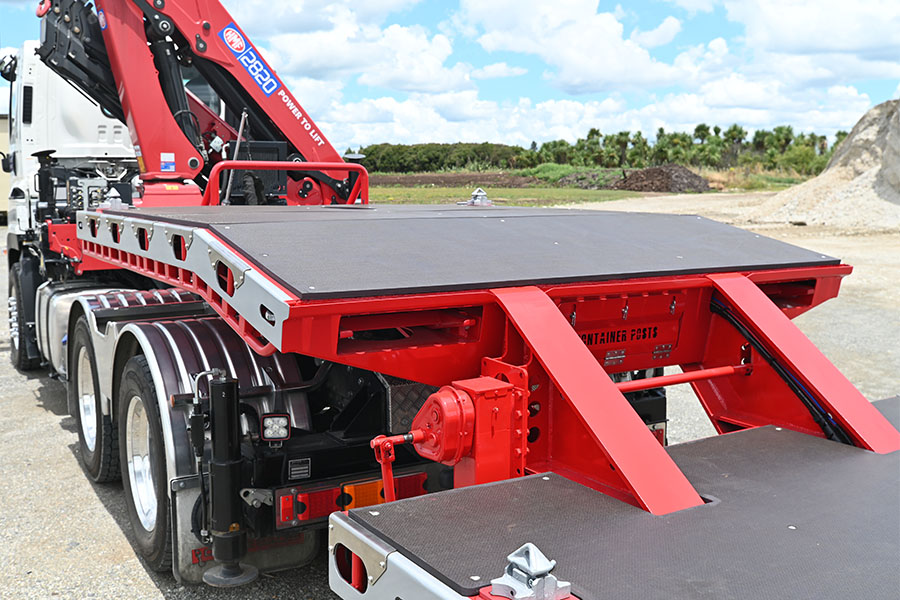

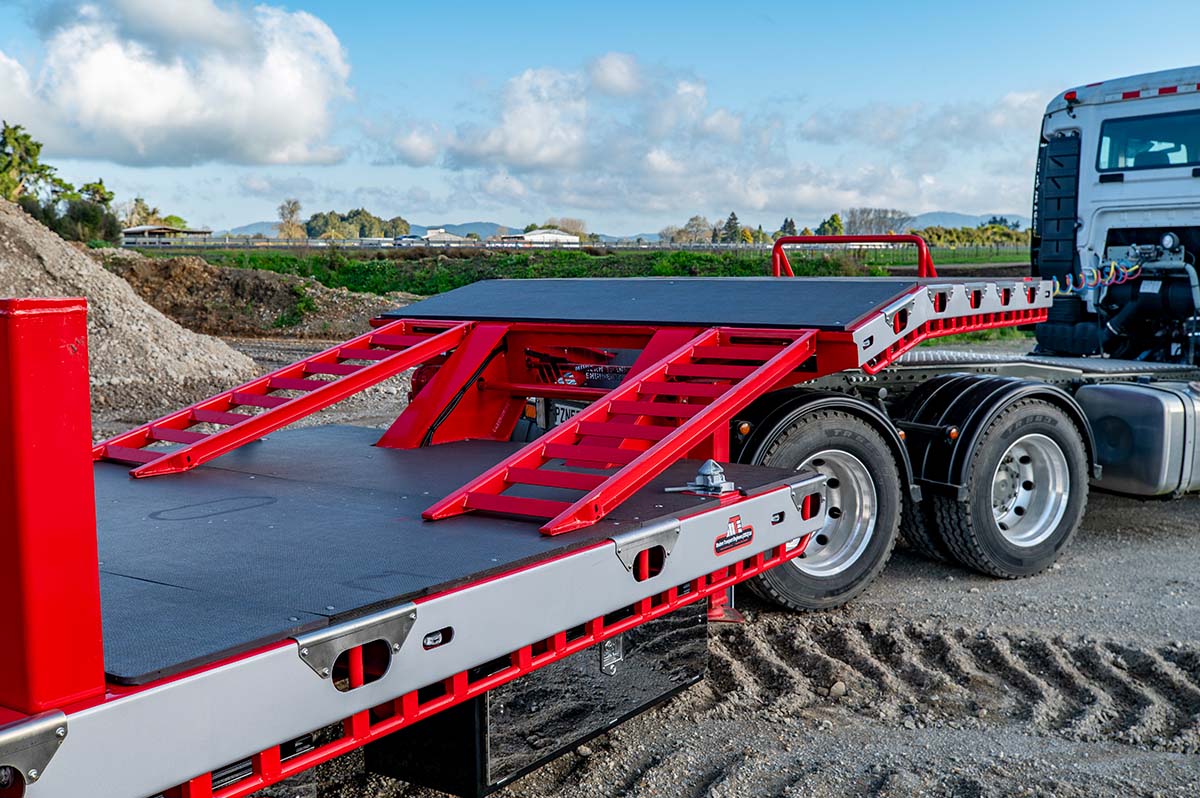

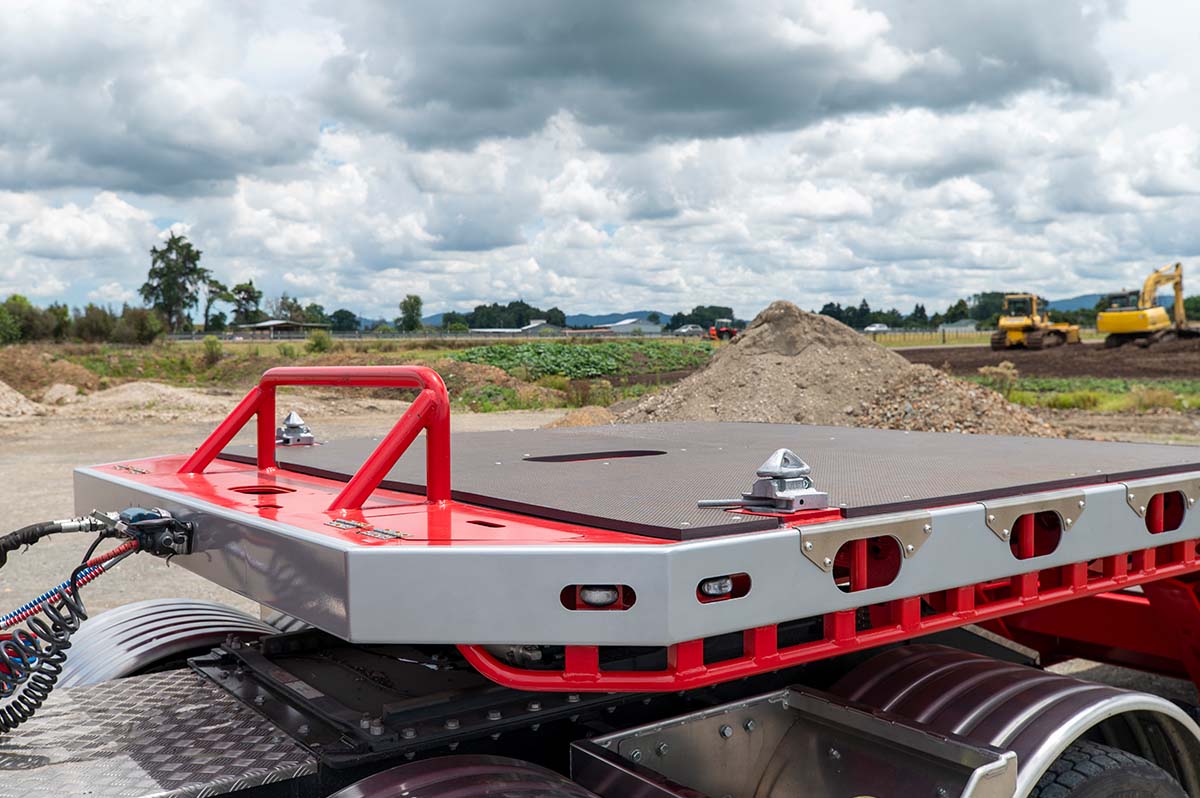

Top Deck: 3.3m long x 2.5m wide

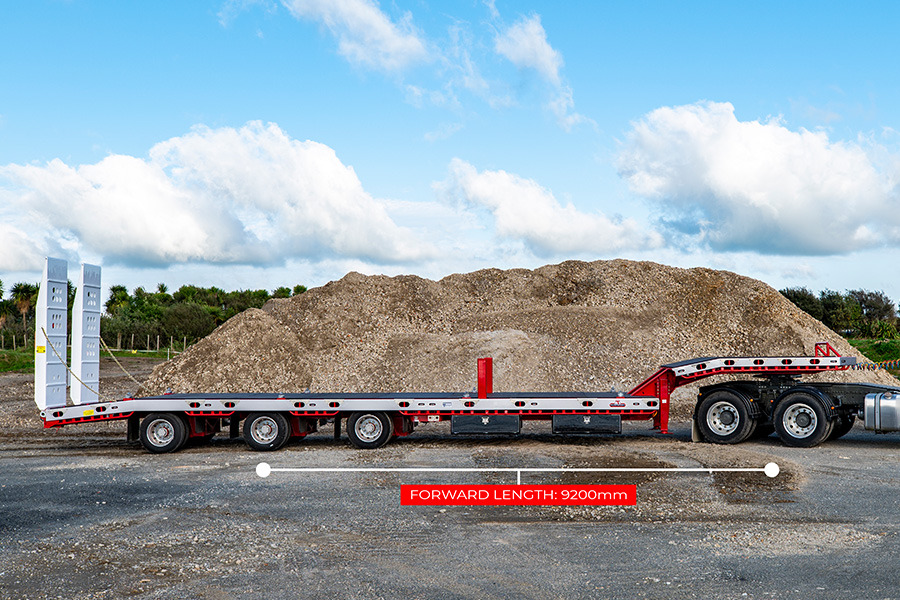

Standard 9200mm forward length at closed width

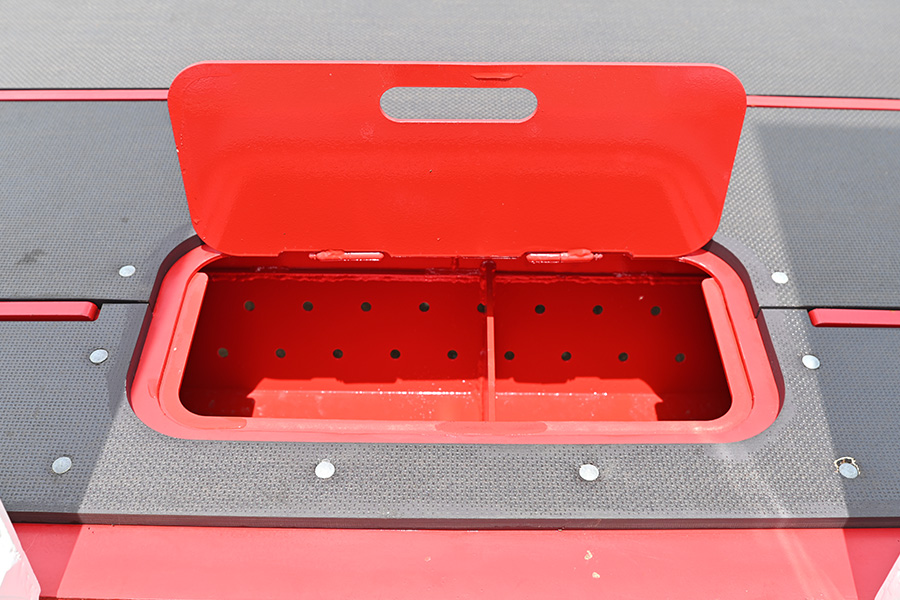

Various chain bins and dunnage tray configurations
Outboard drum brake design for quick and easy servicing

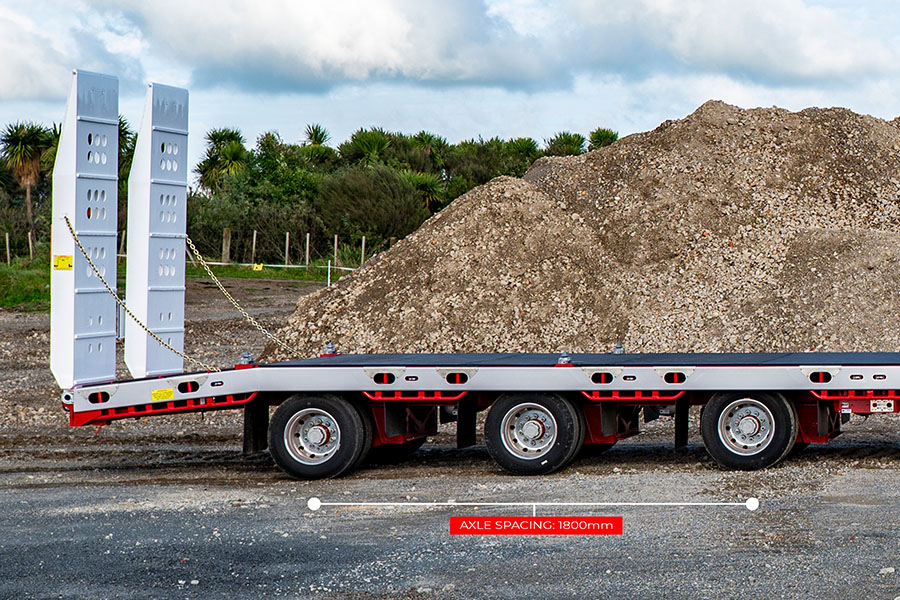

Short 1800mm Axle Spacing
.jpg)
Provides enhanced grip and safety during loading
Capacity (GVM): 39,000kg
Deck Ride Height: 915mm
Forward Length: 9200mm
Deck Length: 10,587mm
Deck Width: 2500mm

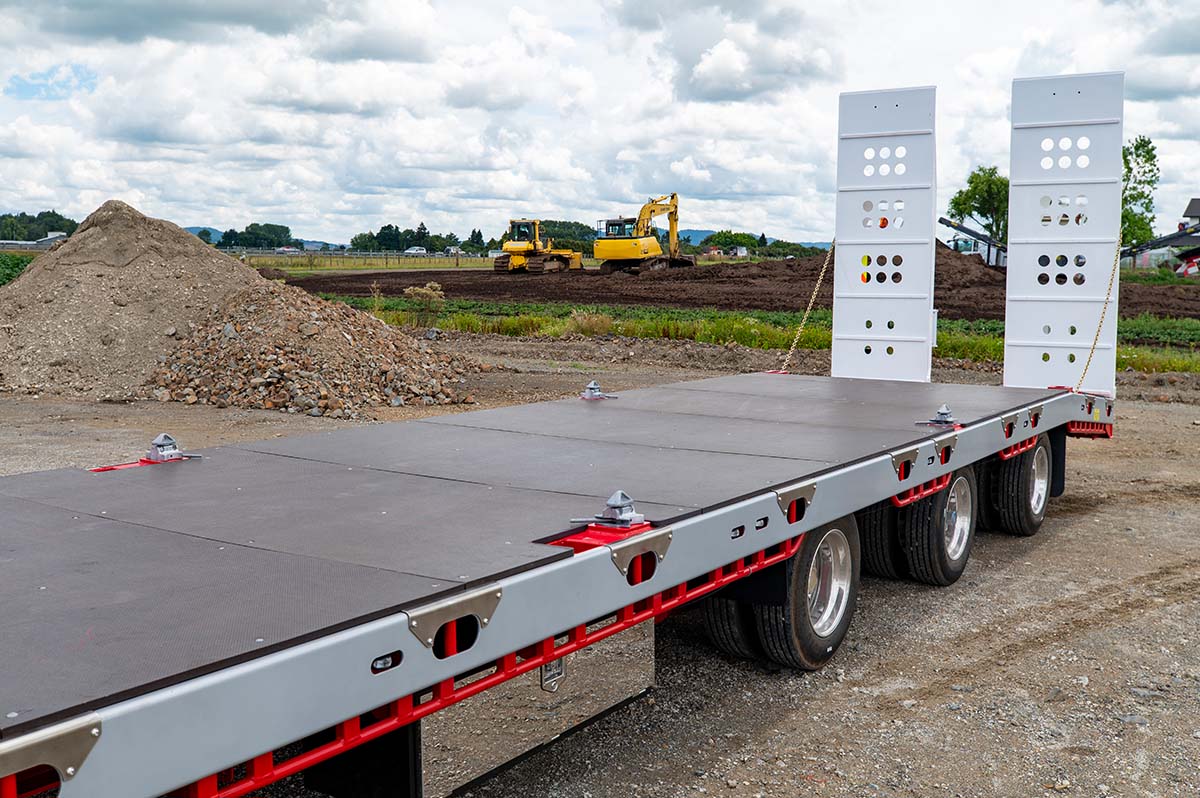

Deck Type: Steel with 18mm ply
Axle Spacing: 1800mm
Axle Type: MTW 17.5”, Outboard drum
Suspension: MTW air suspension
Brakes Type: Knorr-Bremse EBS
Wheels: 17.5” x 6” weight cheetah alloy wheels
Tyres: 215 x 17.5 ply
Rubplate: Fixed
King Pin: MTE 50mm & 90mm drop in

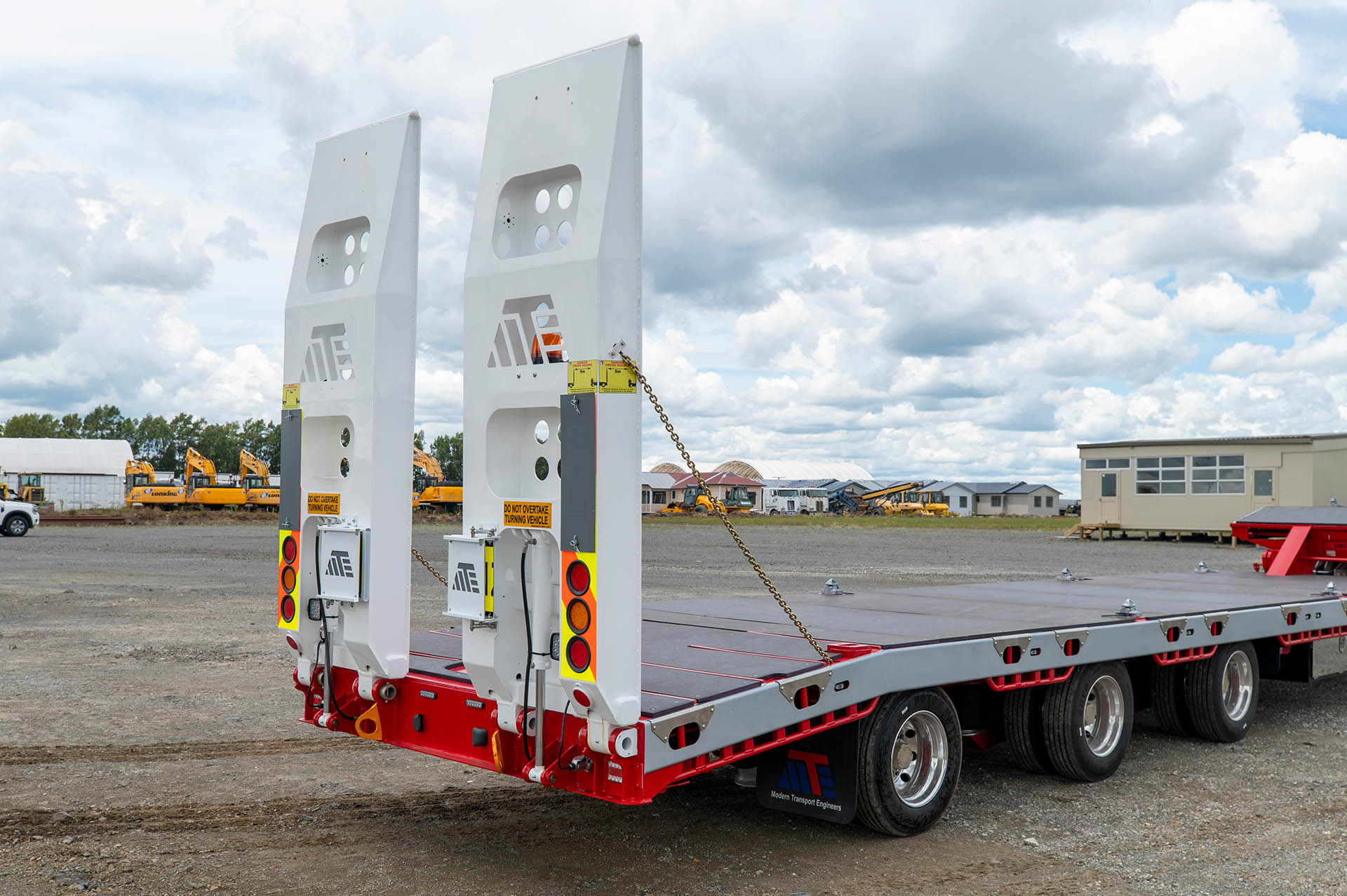

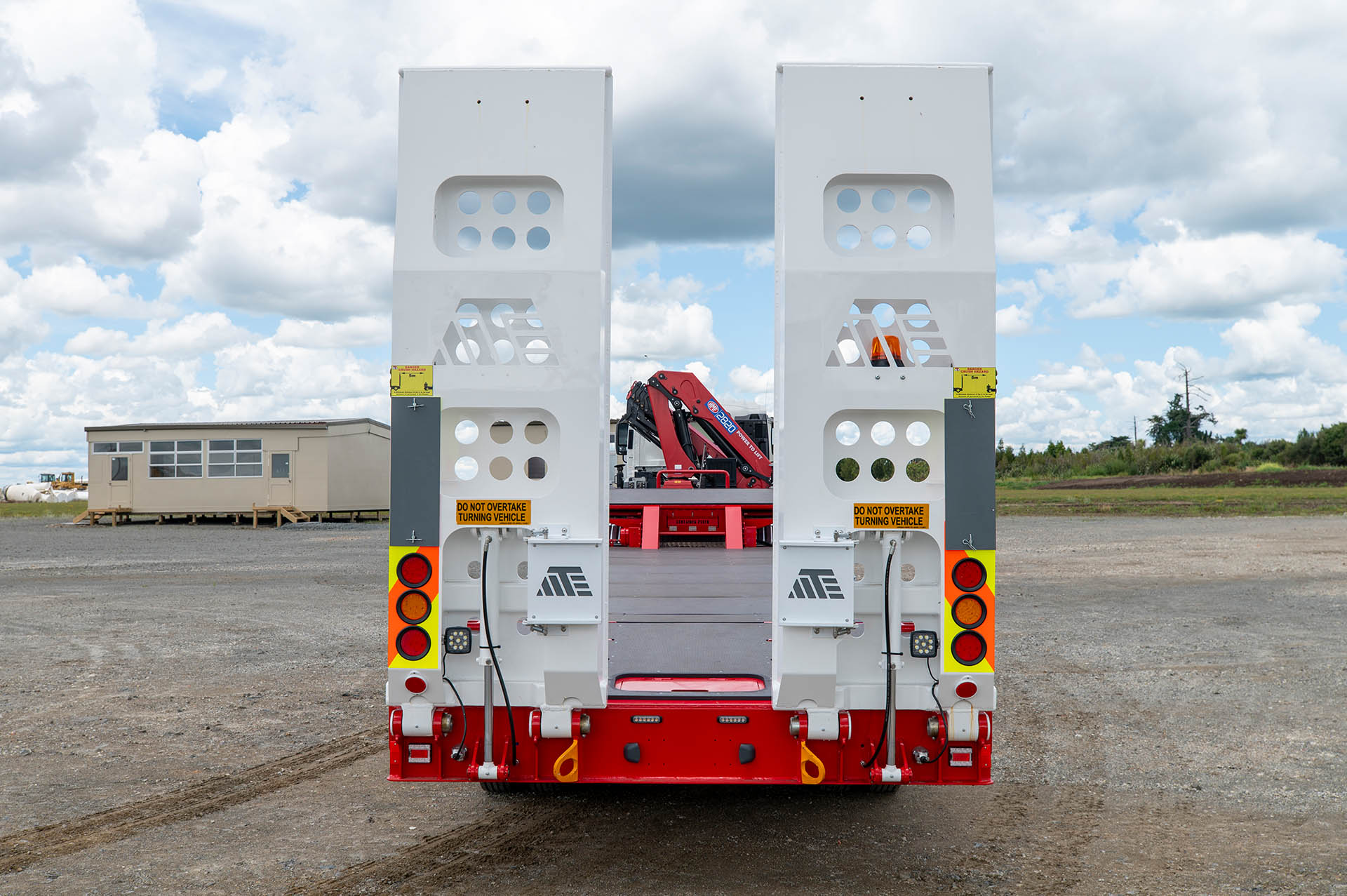

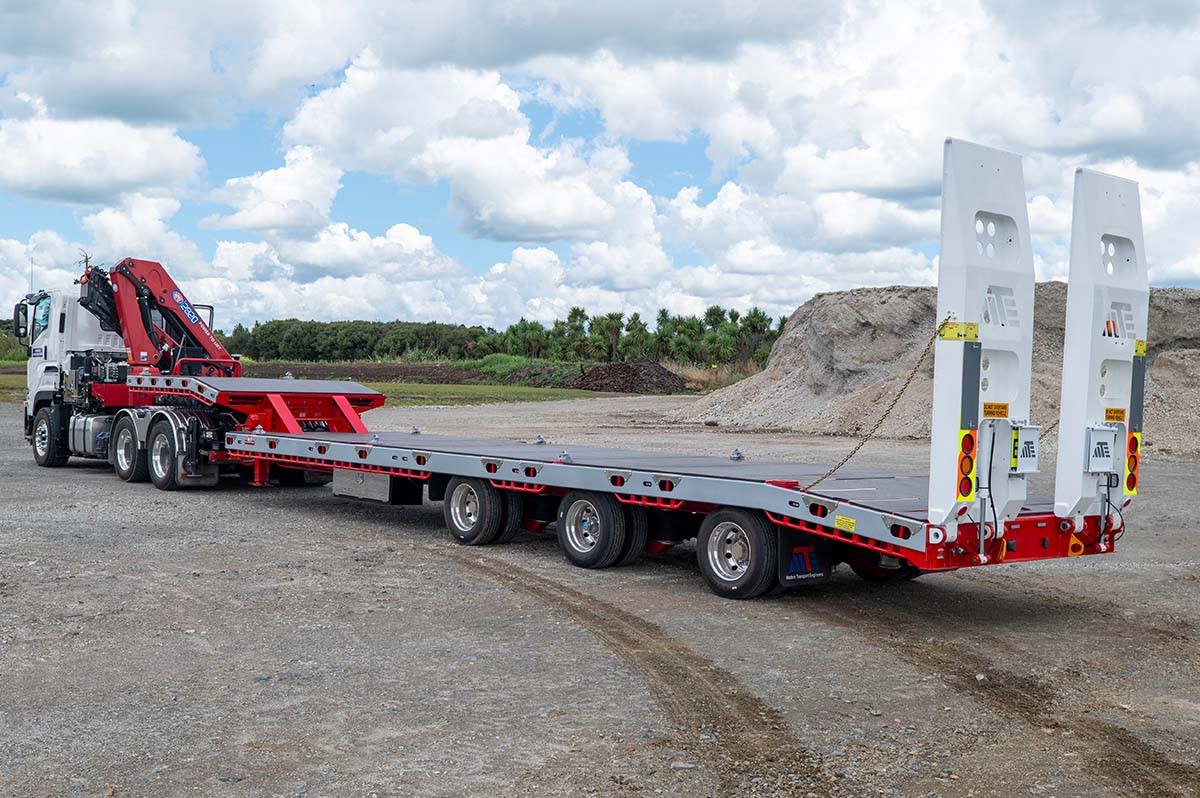

Ramps: 2700mm x 860mm hydraulic

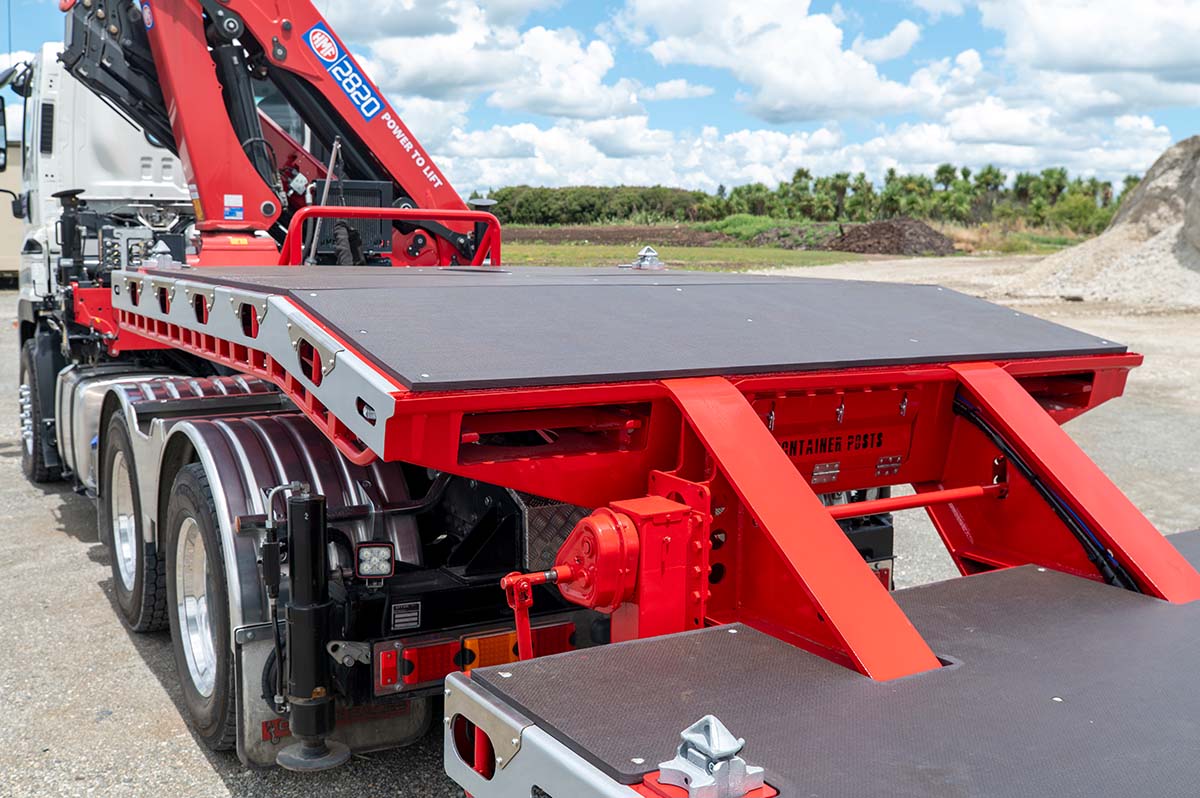

Landing Legs: Wind up landing legs
Hydraulic Supply: Truck PTO
Lashings: Ferry hooks, ship lock pockets, rope rails
Control Valves: Drivers side
Lights: Hella LED
Signage: Hazard panels & oversize signs

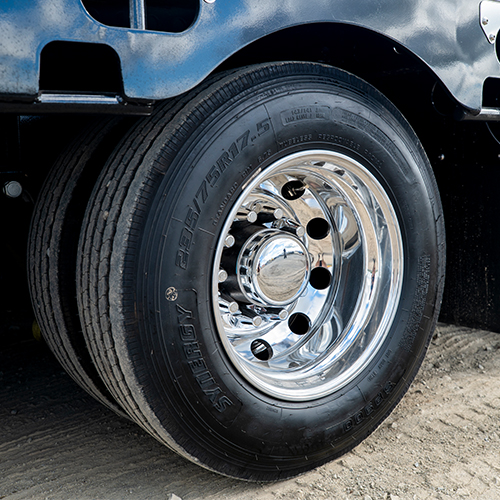

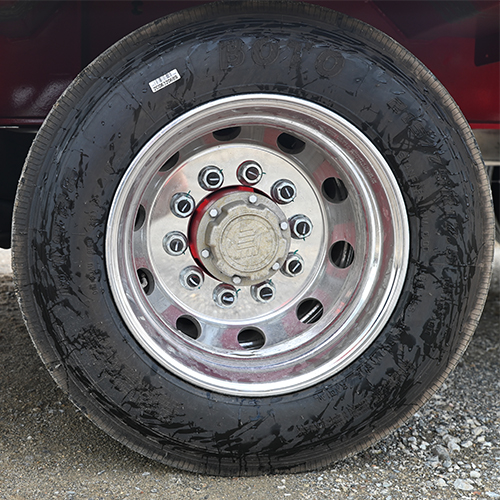

Machined, polished or premium finish
Various sizes available

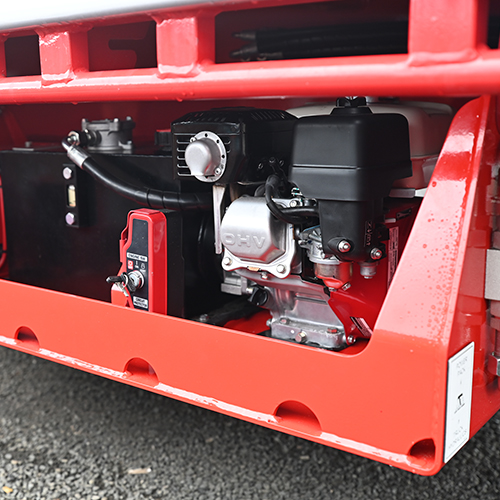

Petrol or diesel powerpack options

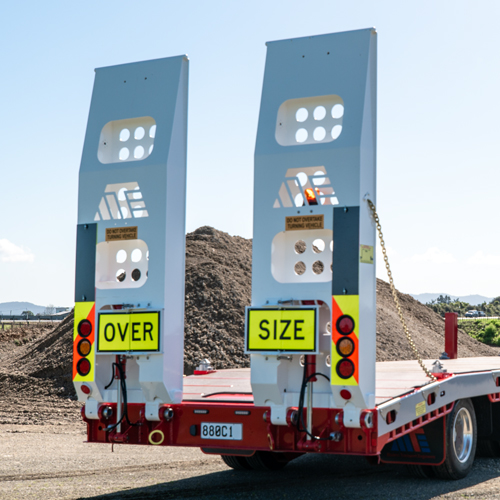

Rear Chevrons and Oversize Signs

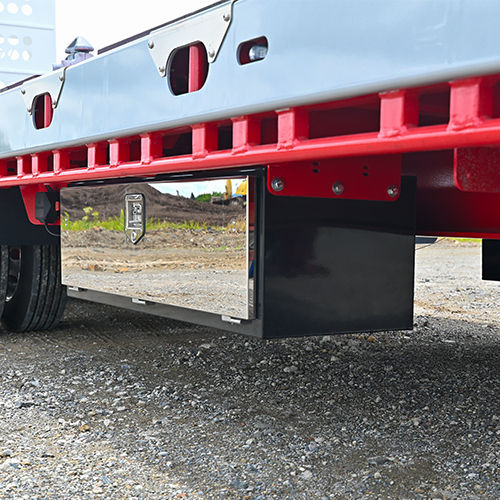

Extra storage
Various design options
