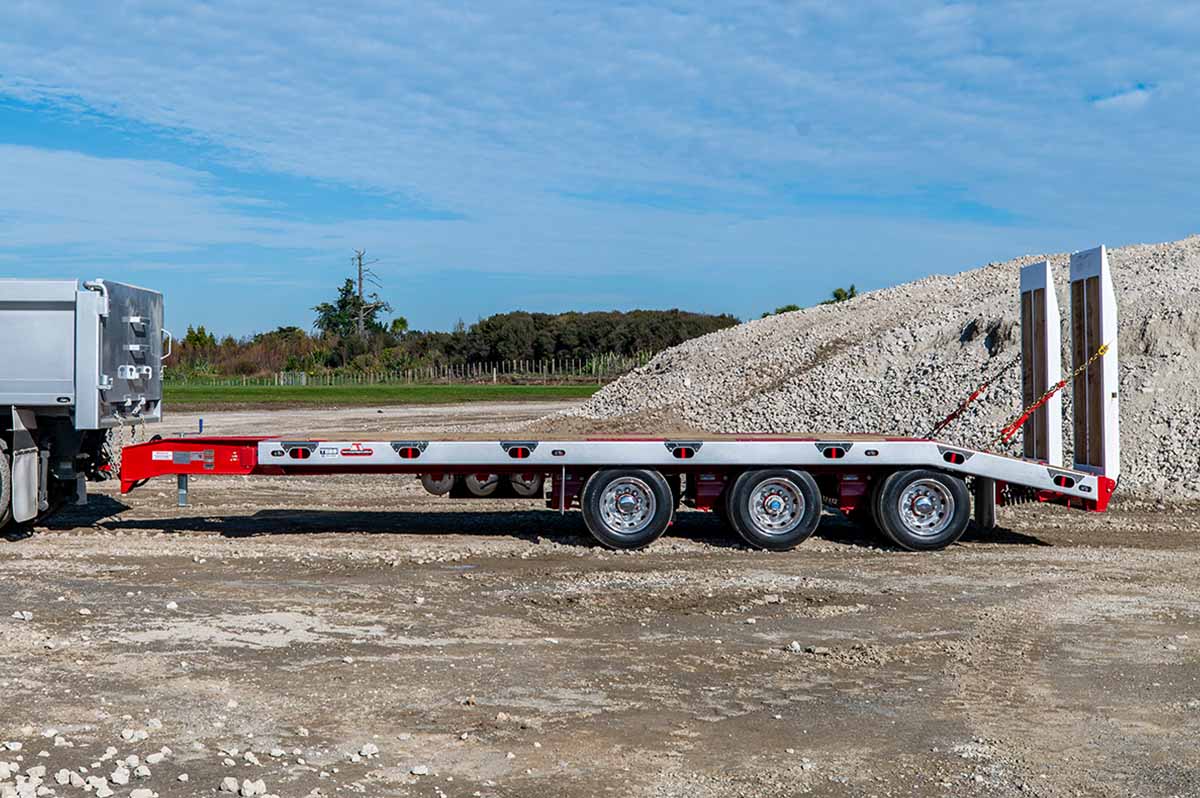

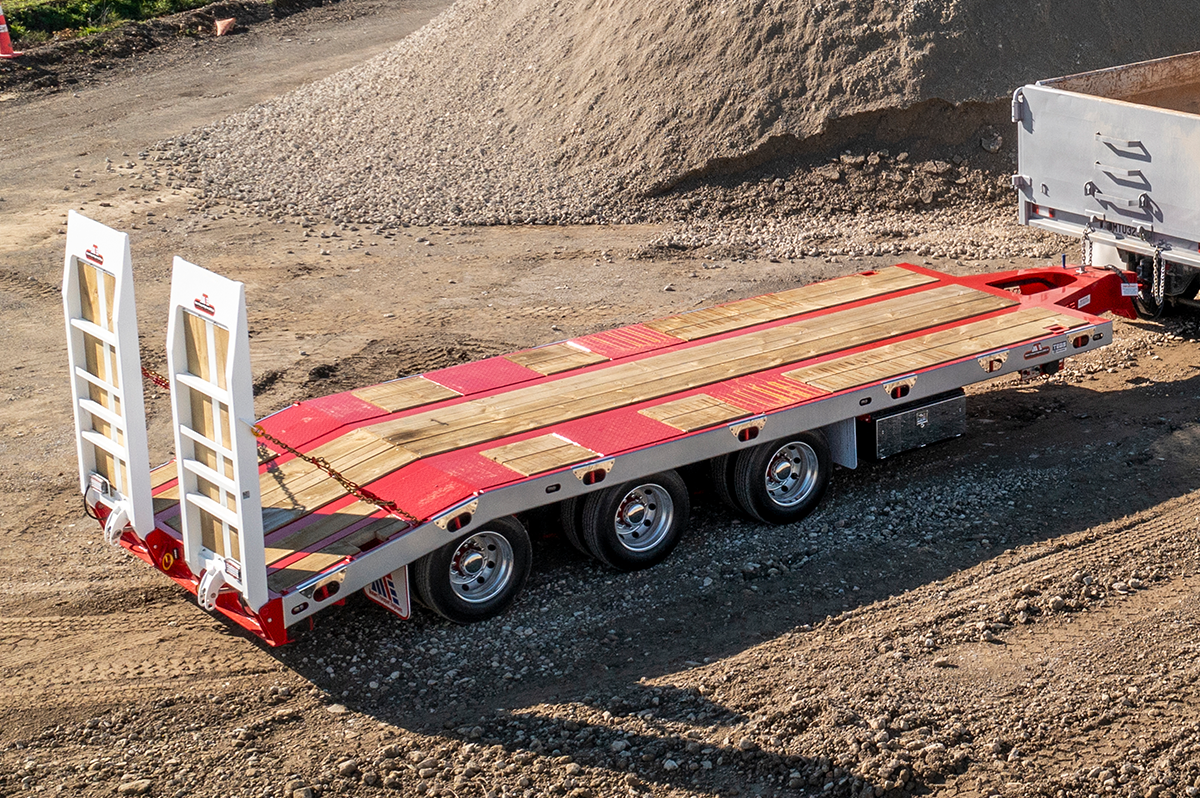

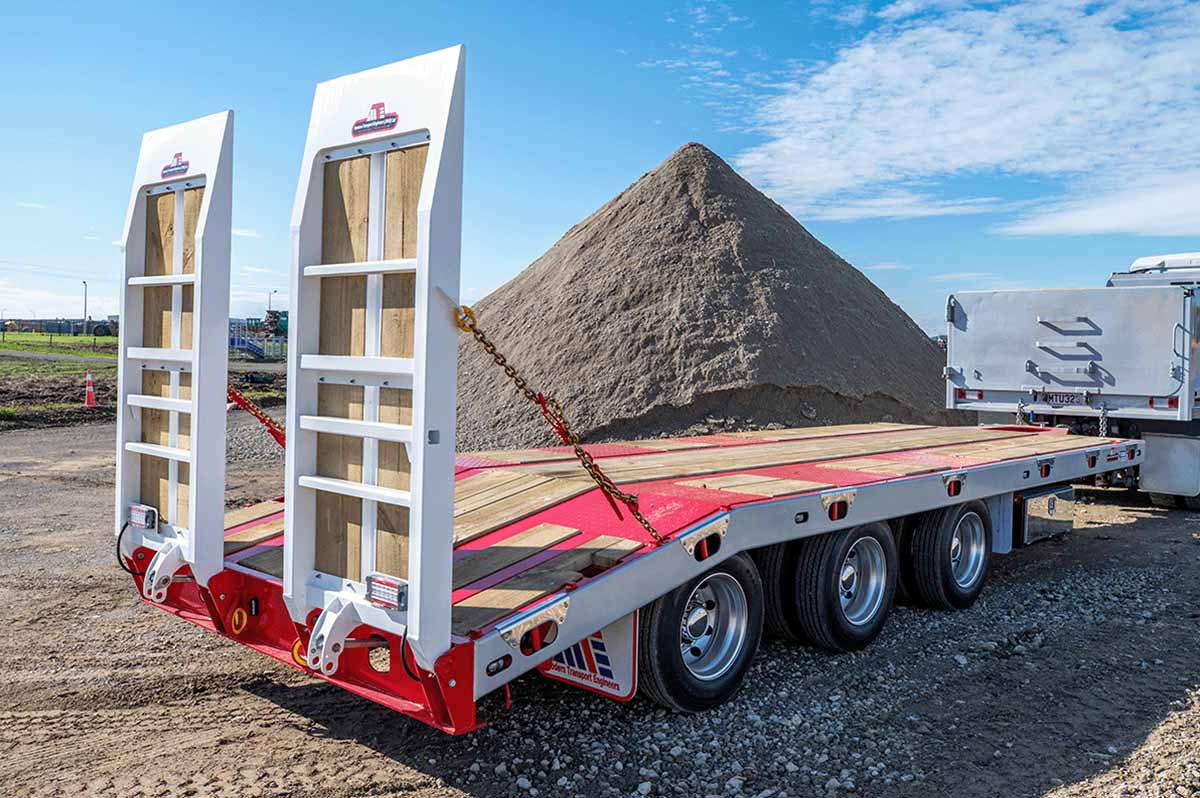

A practical, no-fuss machinery transporter built for everyday use. The MTE 3 Axle Simple Trailer combines a straightforward, proven design with the strength and reliability required for regular equipment transport, making it an ideal choice for contractors, hire fleets and operators wanting a dependable trailer without unnecessary complexity.
Simple, proven design, Built around the essentials for reliable day-to-day machinery transport.
Easy to load & operate, Designed to make loading, unloading and everyday operation straightforward.
Low maintenance, A practical design focused on durability, serviceability and keeping whole-of-life operating costs down.
Versatile by design, Well suited to transporting excavators, rollers, access equipment and other compact machinery.

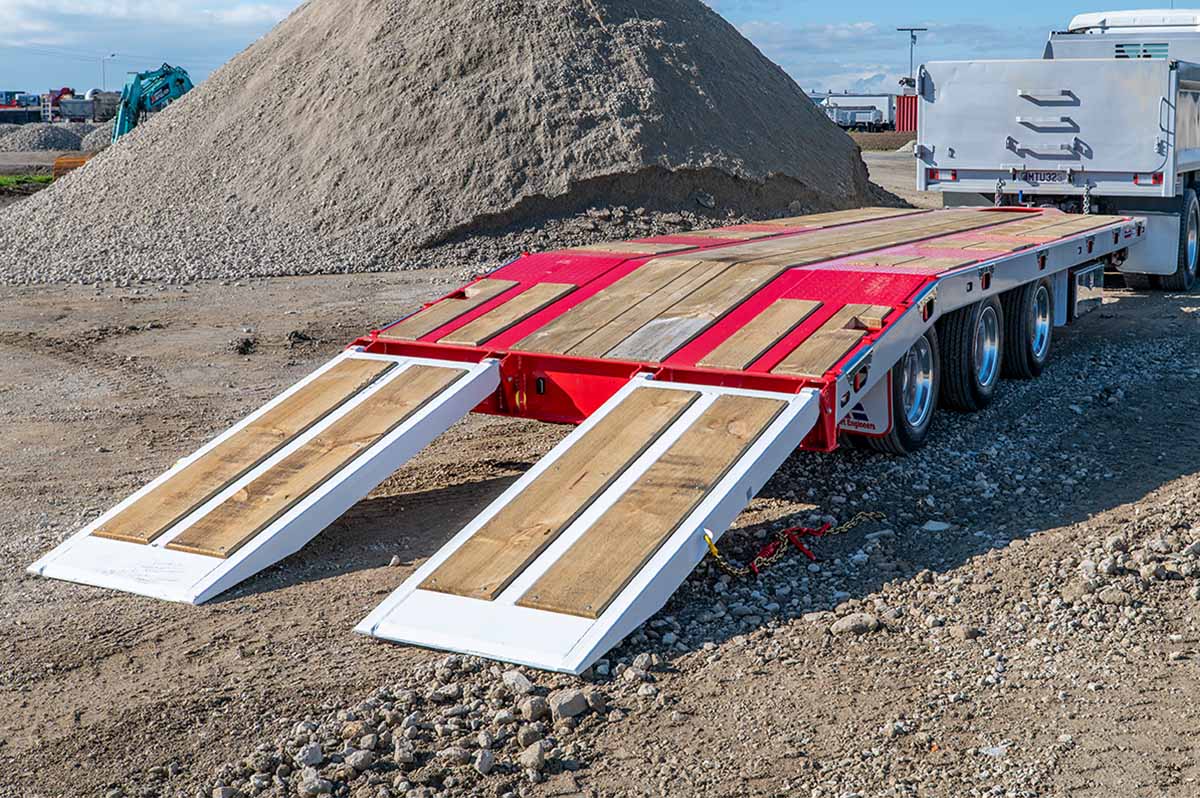

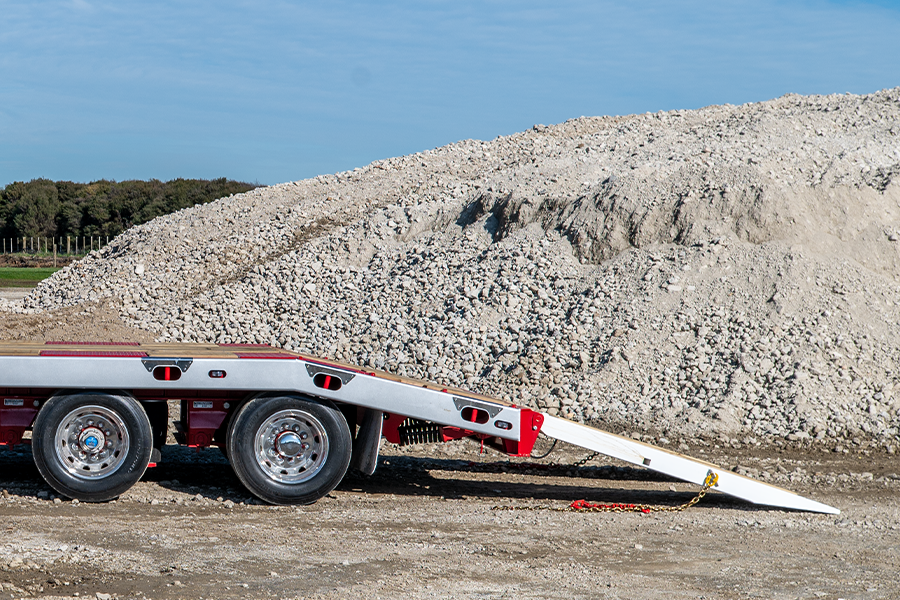

Spring assisted ramps
Suits 20' container

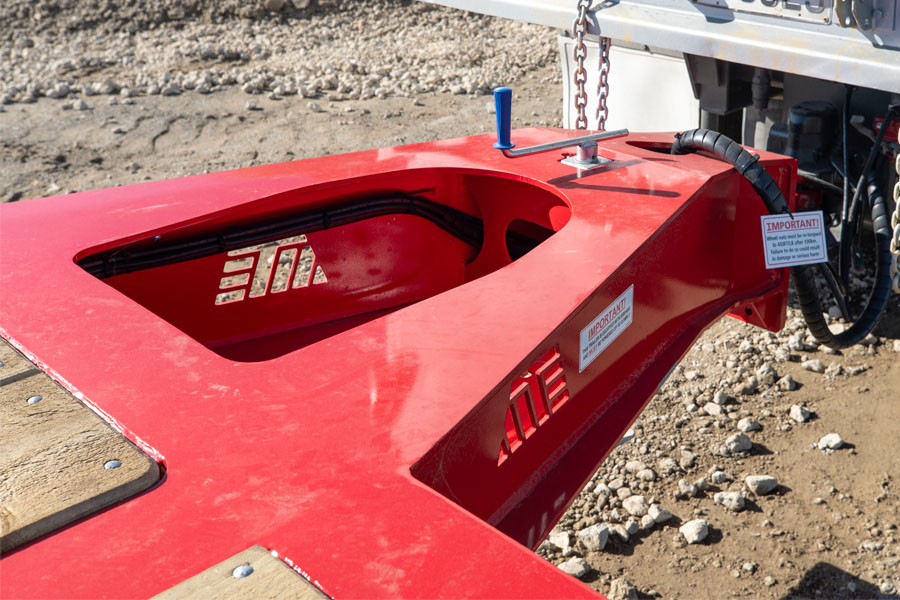

Chain bin in drawbar
Outboard drum brake design for quick and easy servicing

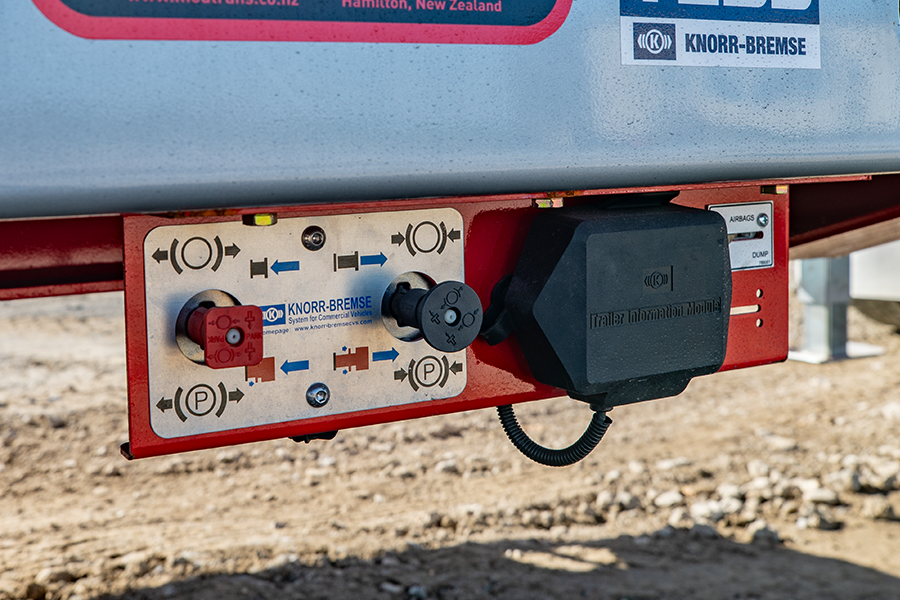

Knorr-Bremse ABS Brakes
Provides enhanced grip and safety during loading

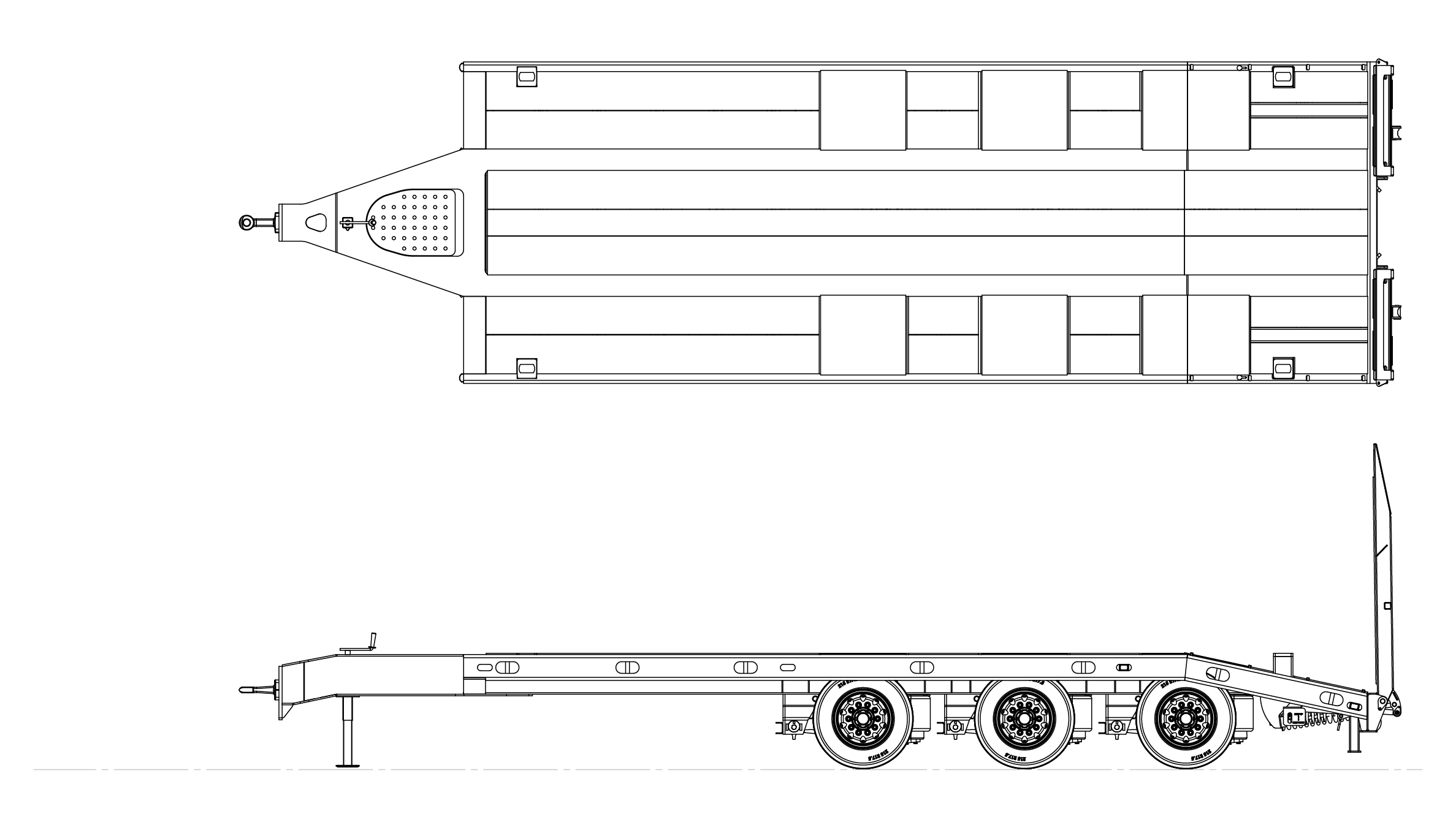

Capacity (GVM): 23,000kg
Tare Weight: From 4,500kg

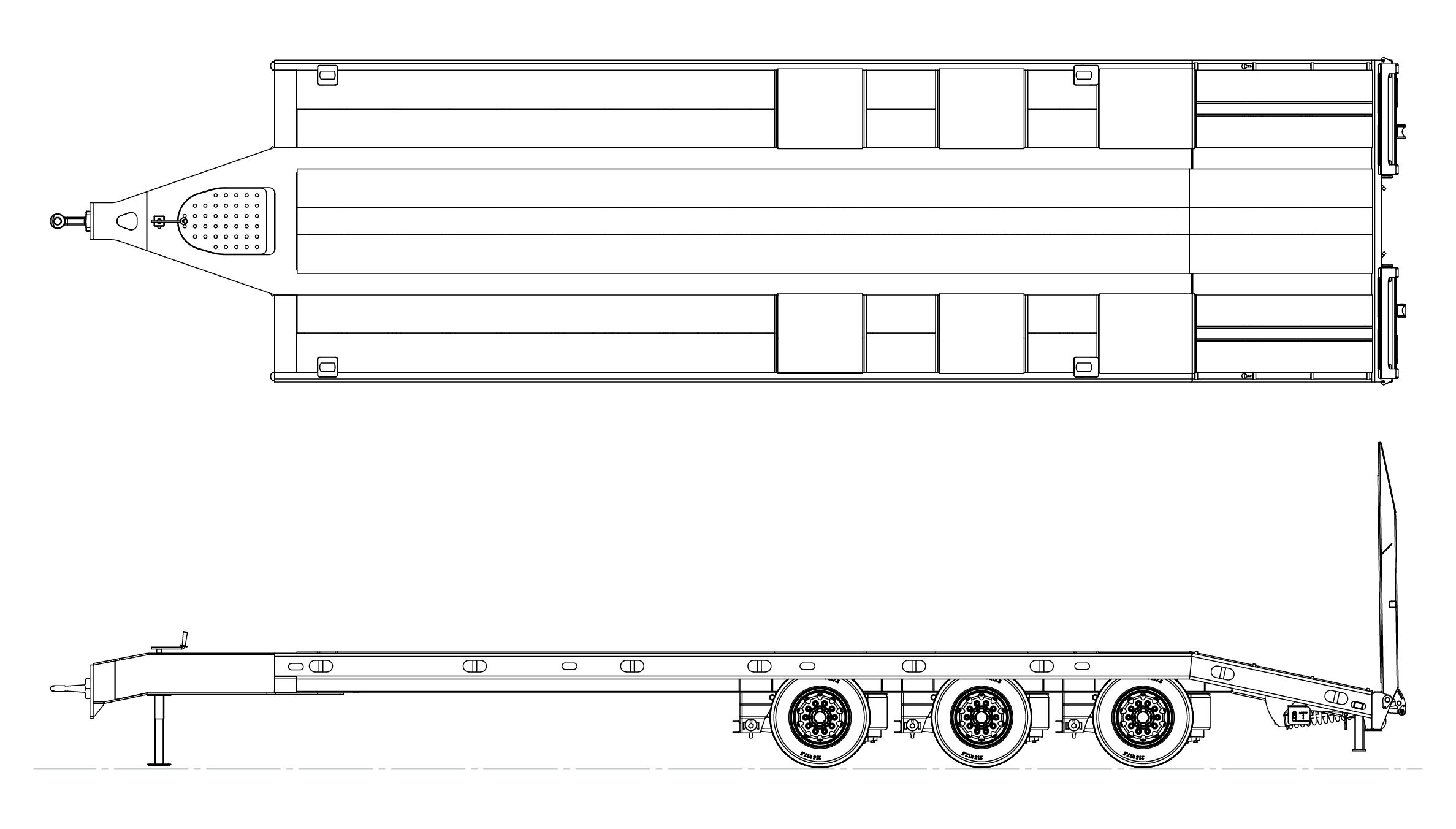

Forward Length: 6,020mm or 7,150mm

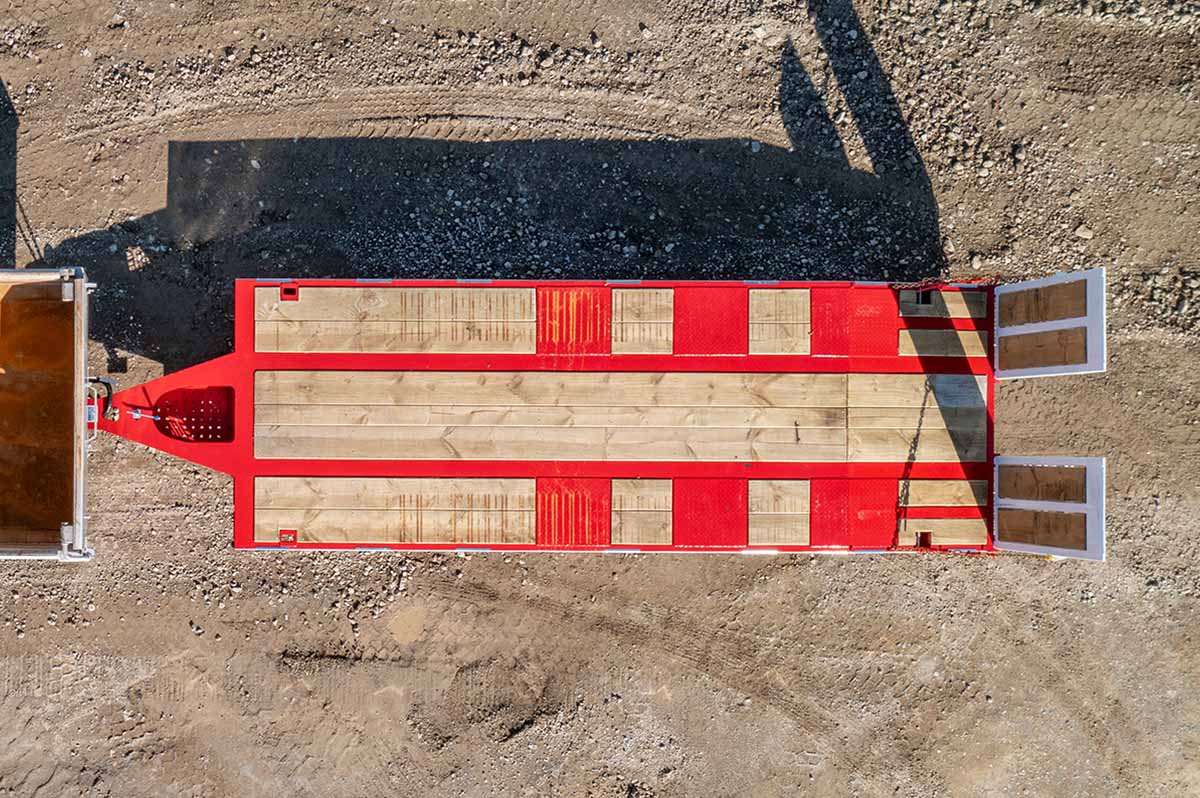

Deck Length: 7,000mm or 8,500mm
Deck Height: 910mm
Width: 2,500mm
Axle Spacing: 1,250mm

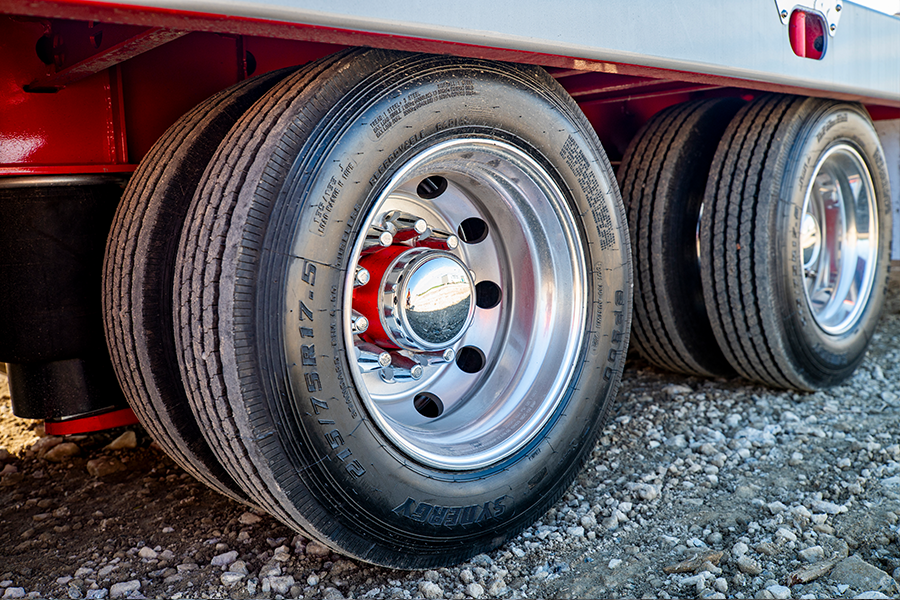

Axle Type: MTW Low Loader, outboard drum
Suspension: MTW Air Suspension
Brakes: Knorr-Bremse EBS
Drawbar: 4500kg (With Pintle)
Ramps: 2,000mm x 860mm spring assisted (optional hydraulic)
Wheels: Weight Cheetah 17.5" x 6.00"
Tyres: 215 x 17.5"
Landing Legs: 5,000kg Wind up landing legs

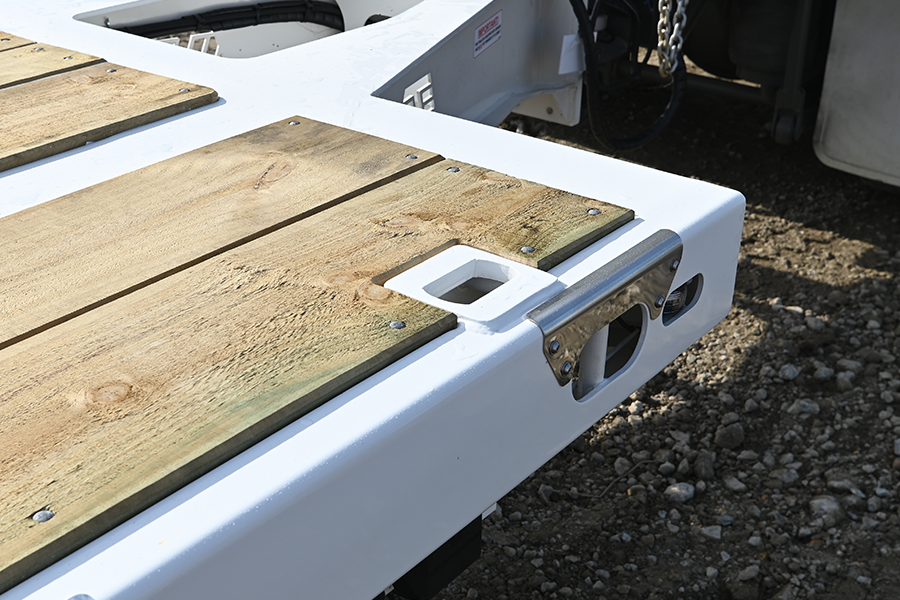

Lashings: 7x load anchors each side, ship lock pockets & stools for 20' container (4x double ended ship locks supplied)

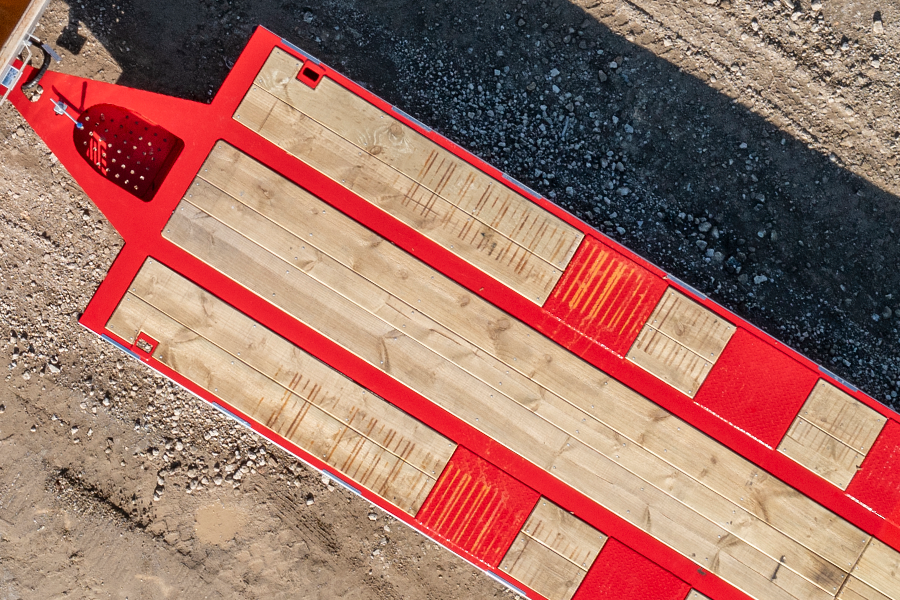

Deck Type: 2" Pine
Lights: Hella or Lucidity LED
Hubodometer: Included
Signage: Warning Signage

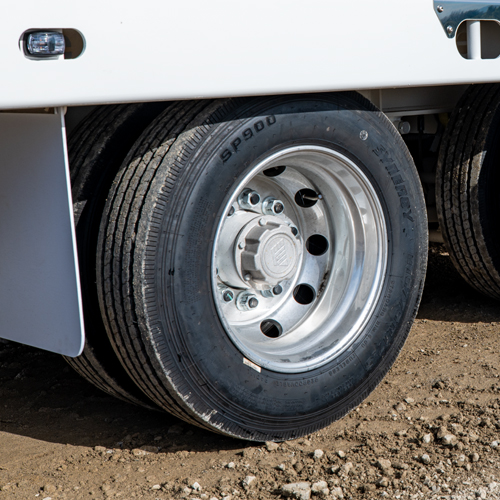

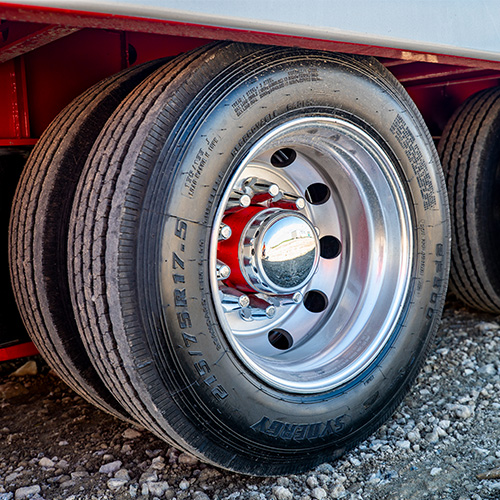

Machined, polished or premium finish
Various design options

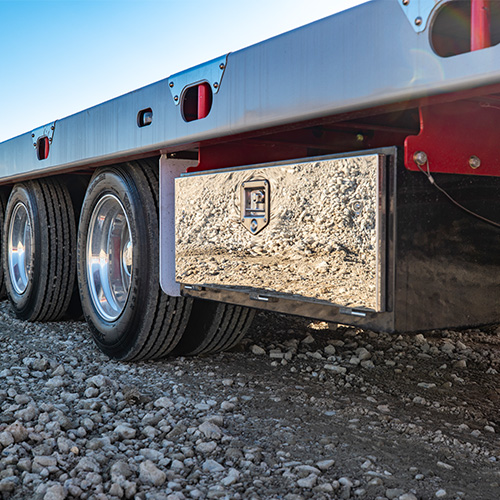

900mm Lockable Toolbox

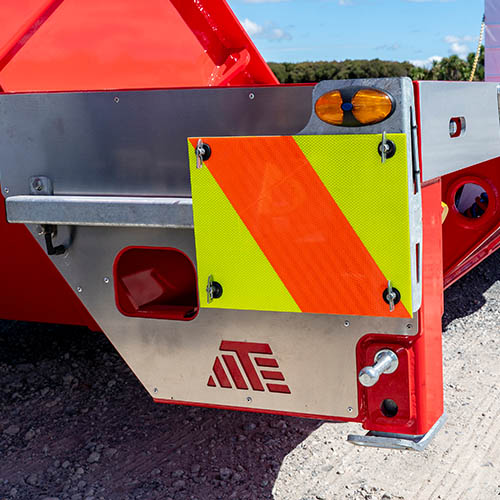

Front Chevrons (Example)

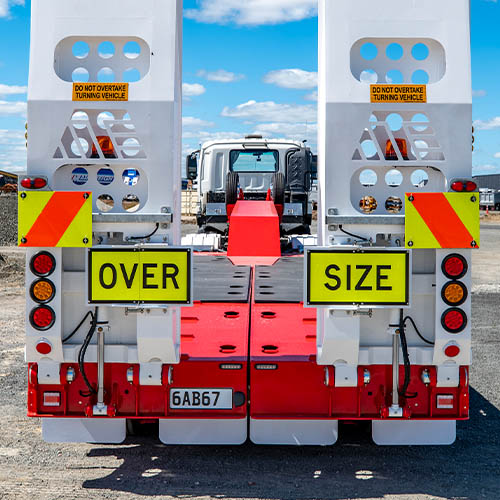

Rear Chevrons and Oversize Signs (Example)
