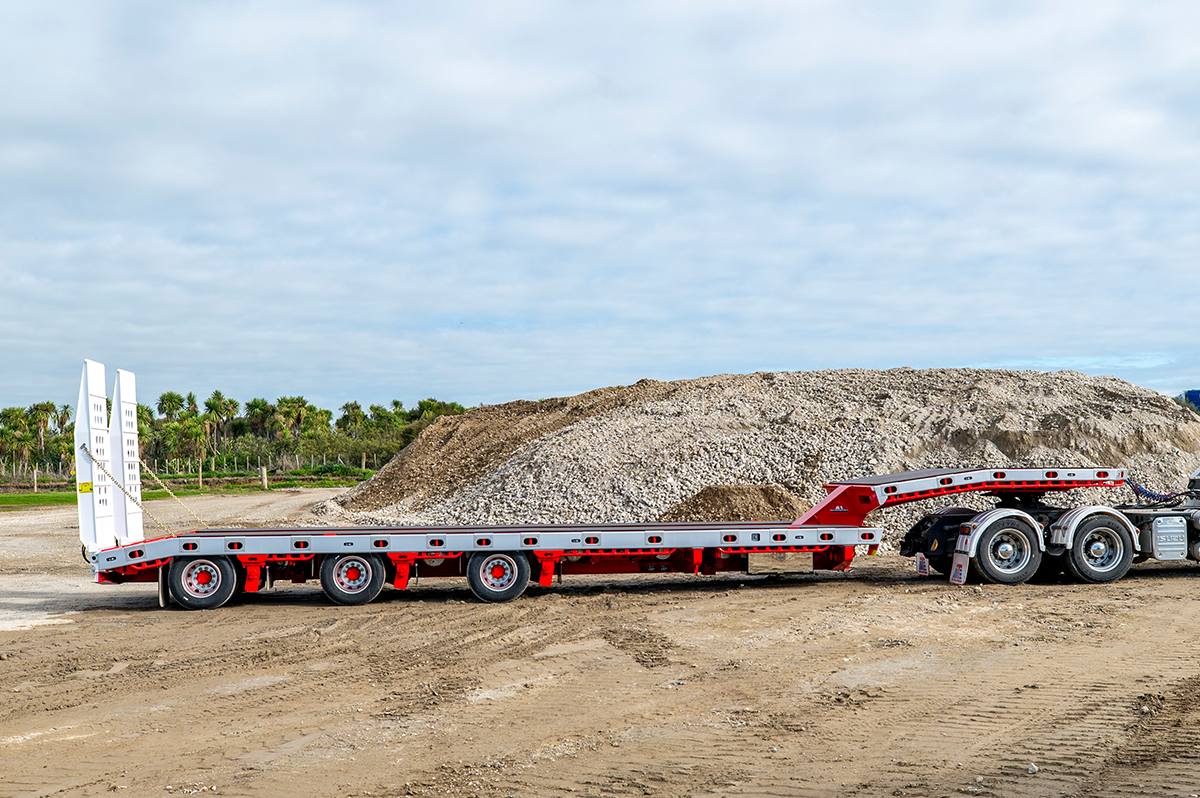

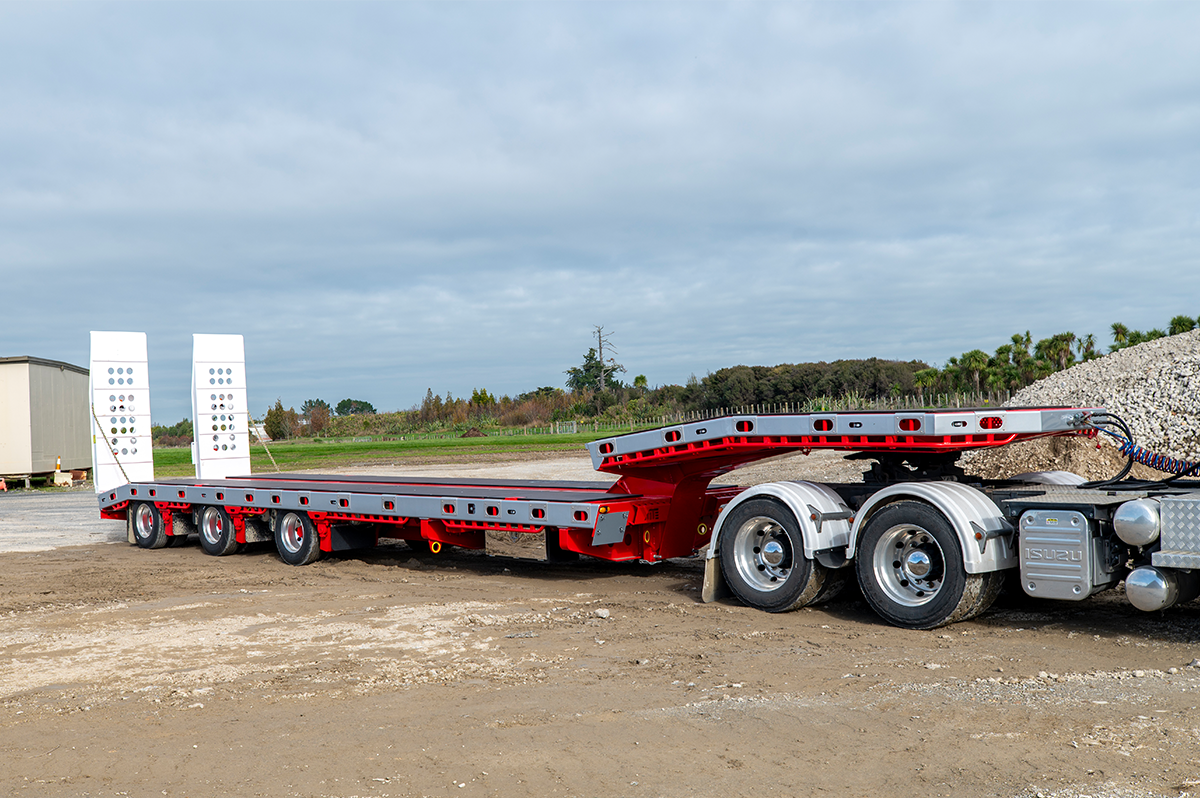

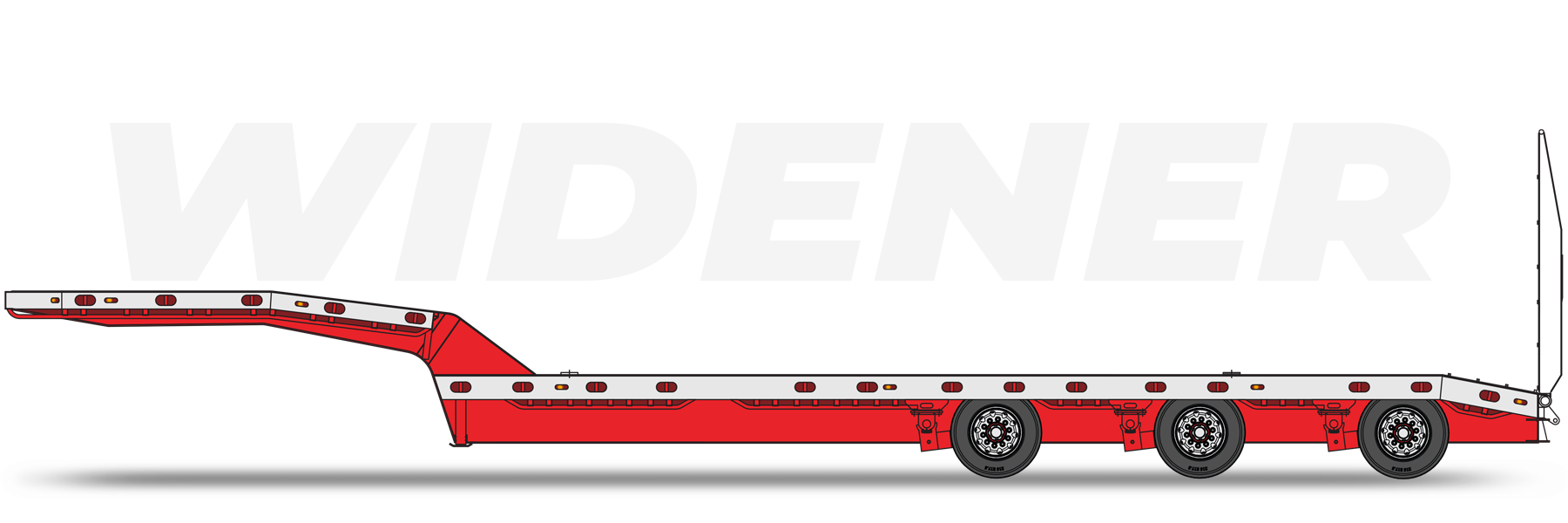

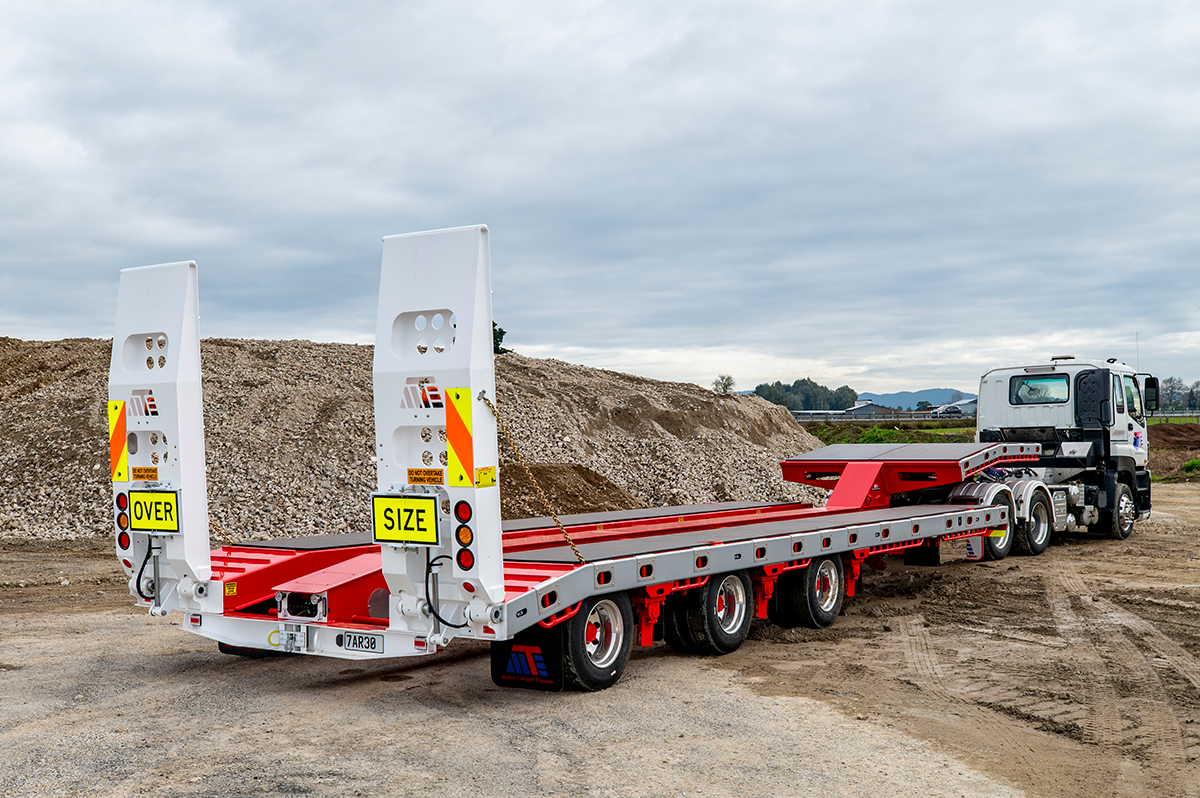

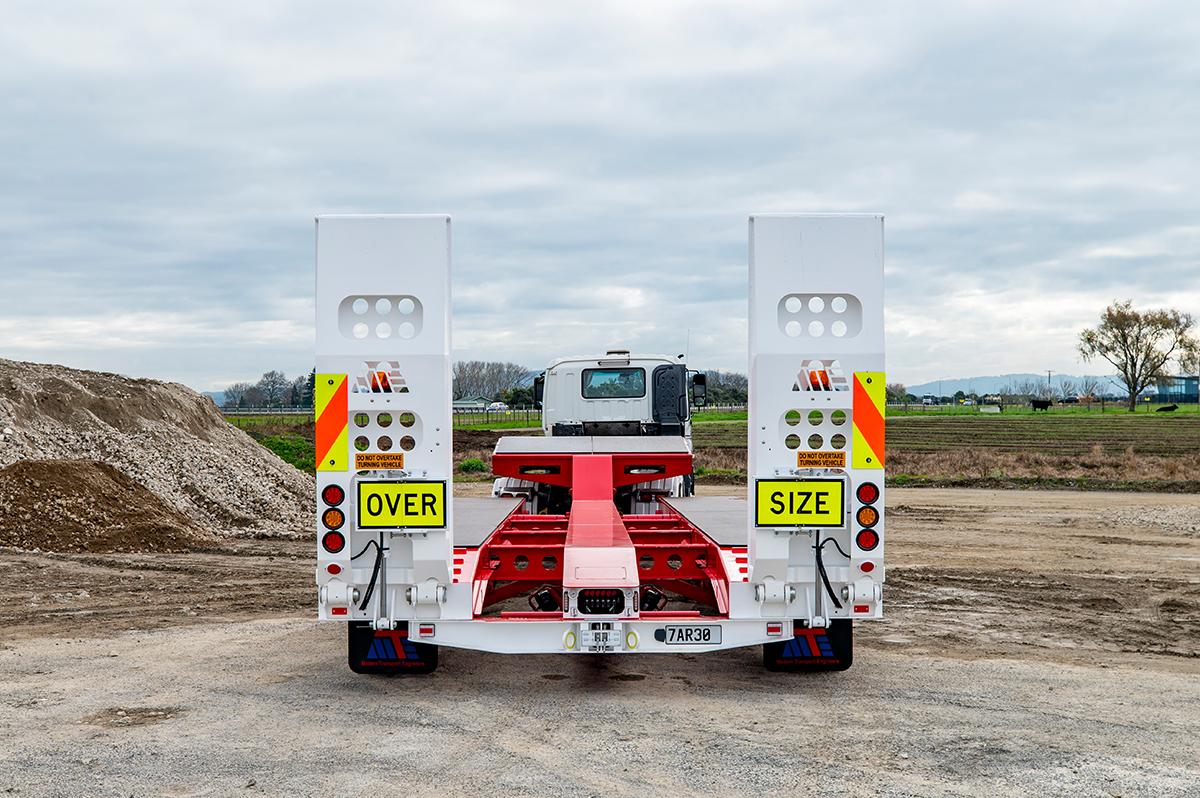

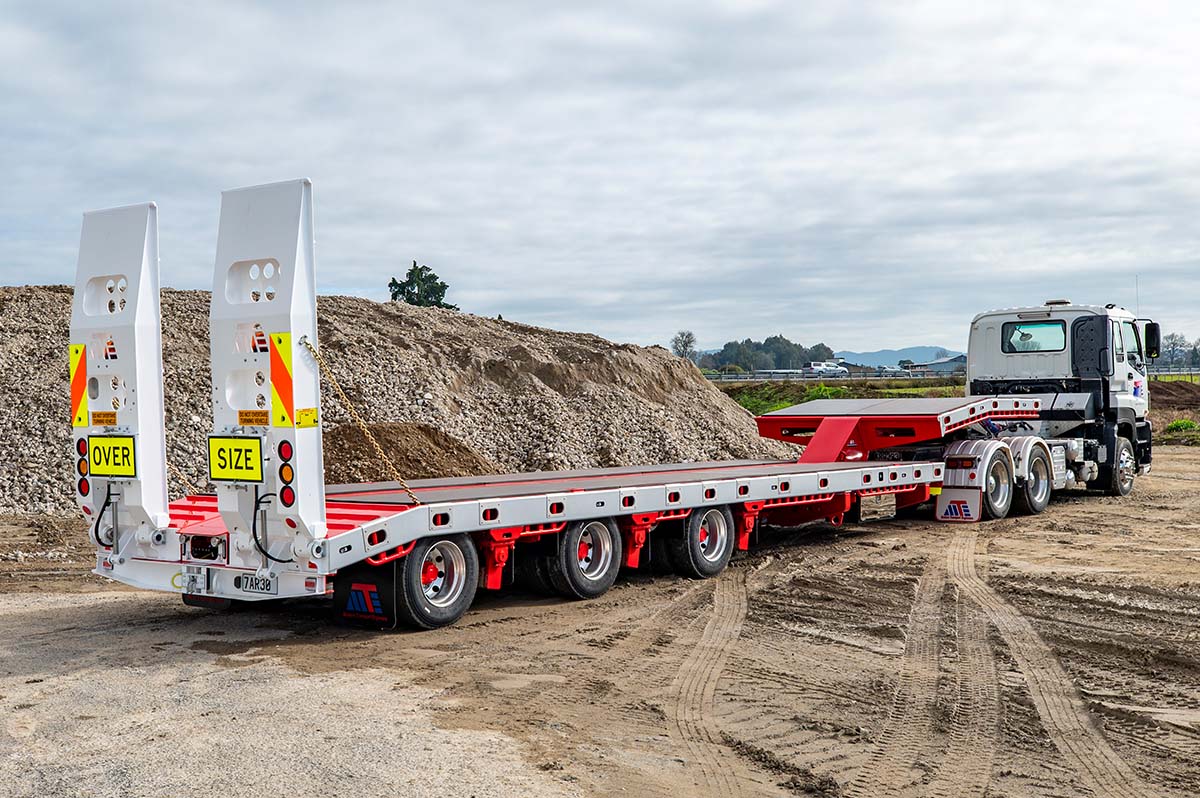

A versatile heavy machinery transporter designed to give operators greater flexibility when moving wide and oversized equipment. The MTE 3 Rows of 4 Widener combines a hydraulically widening deck with a compact, robust design, providing a practical solution for transporting everything from everyday construction machinery through to larger, wider loads.

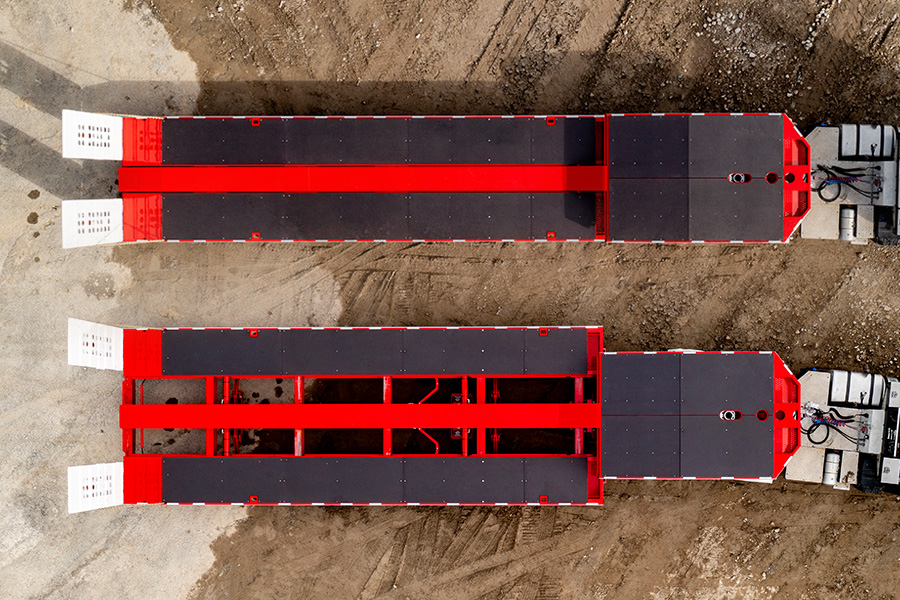

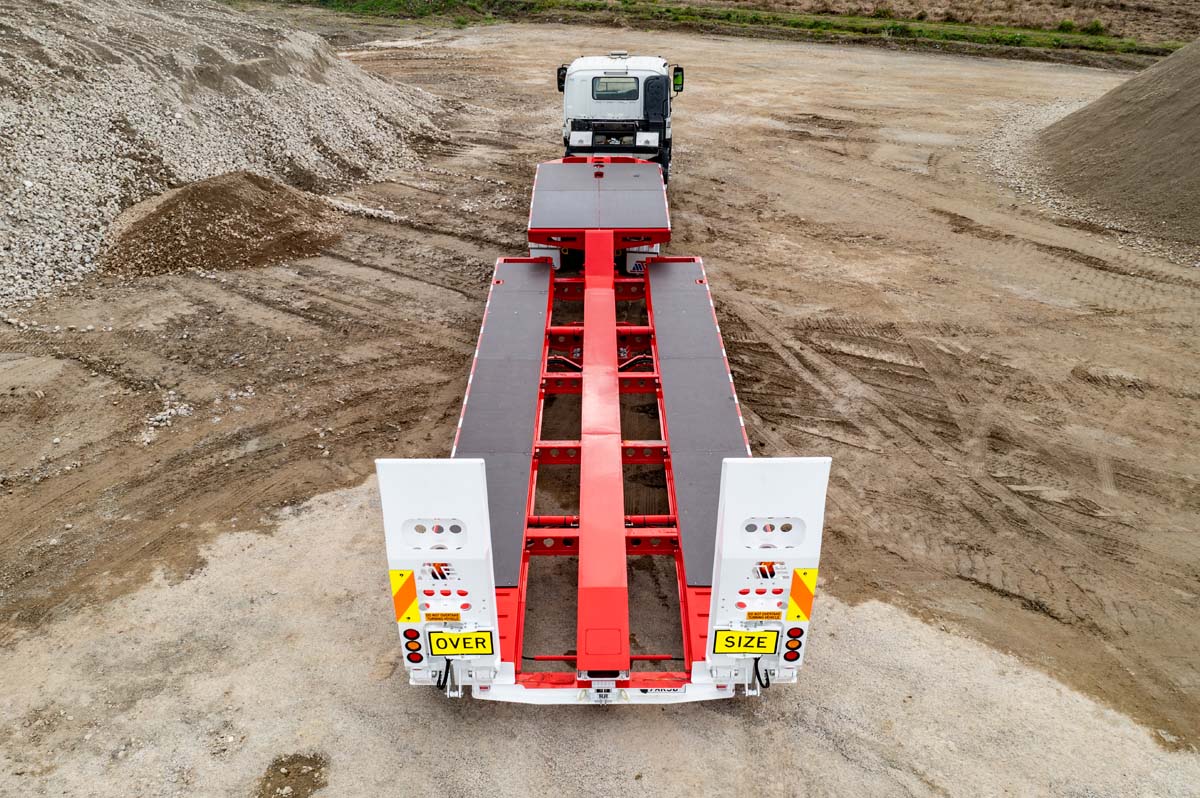

Width when you need it, The hydraulically widening deck provides additional width for larger machinery while returning to standard road width when closed.
Built for oversized machinery, A strong, stable platform designed for transporting excavators, dozers, loaders and other heavy equipment.
Hydraulic suspension, Provides excellent load sharing and allows the trailer height to be adjusted to assist with loading, ground clearance and overall transport height.
Compact & versatile, Short axle spacing and a practical overall configuration make it a highly capable all-rounder for heavy machinery transport.

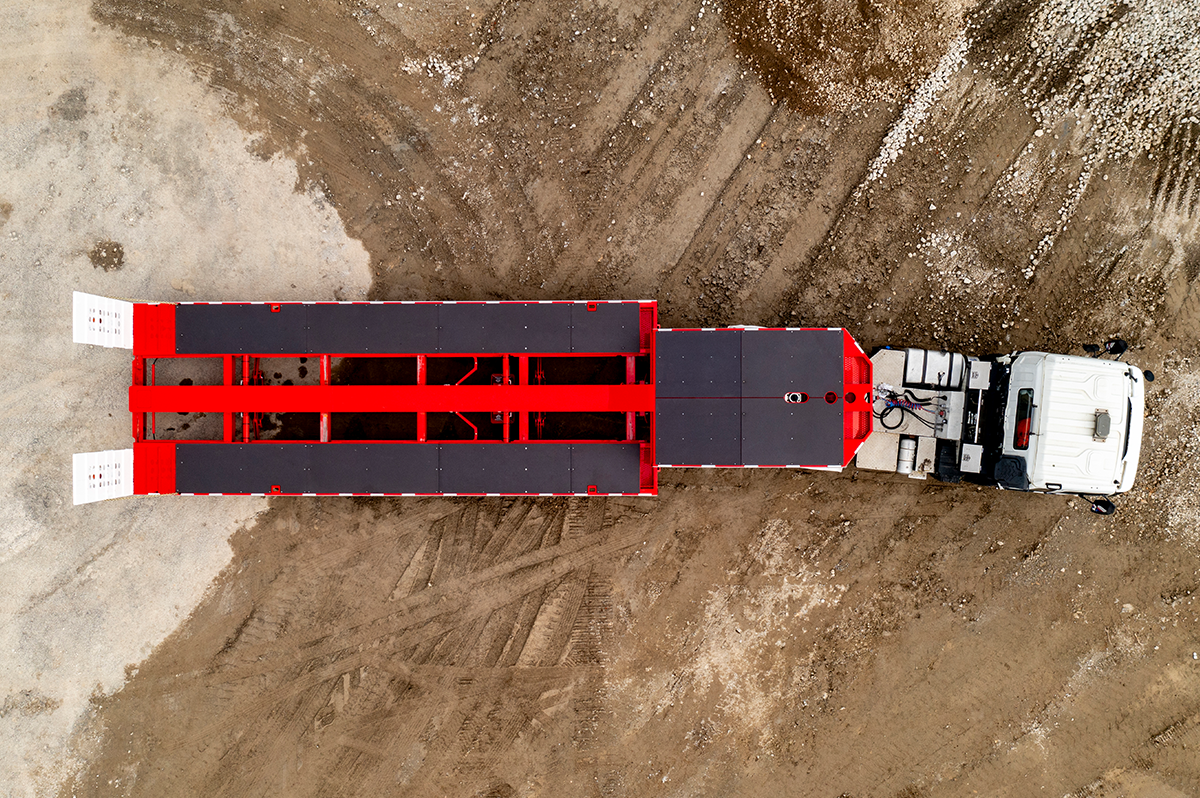

Open Width: 3,600mm,

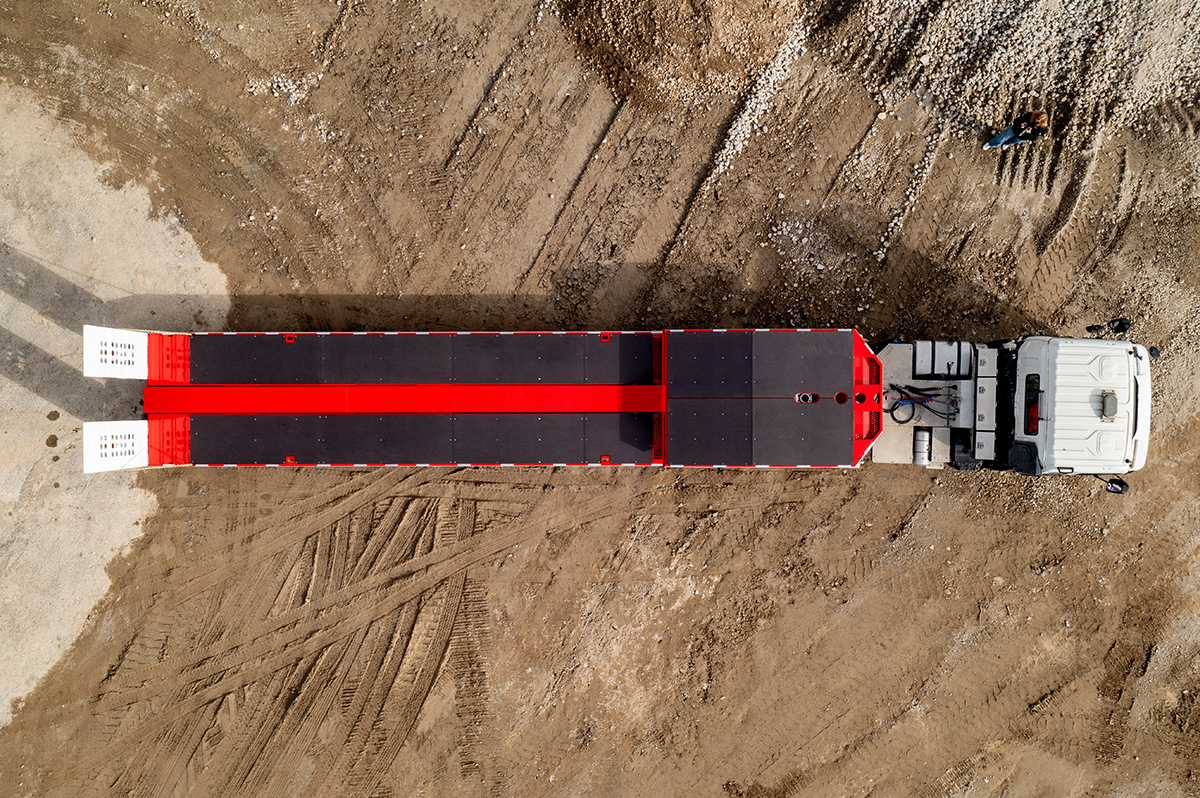

Closed Width: 2,500mm

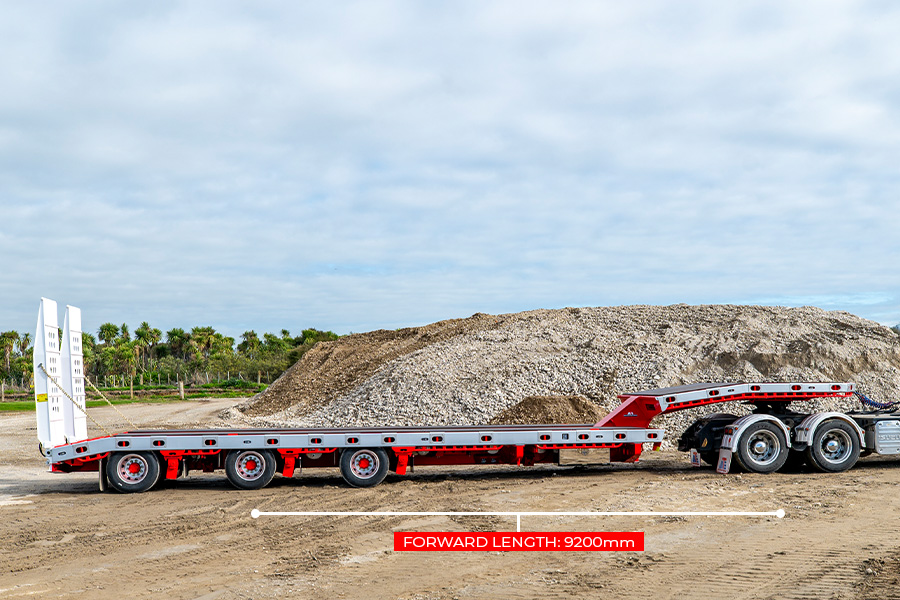

Standard 9,200mm forward length at closed width
Various chain bins and dunnage tray configurations
Outboard drum brake design for quick and easy servicing

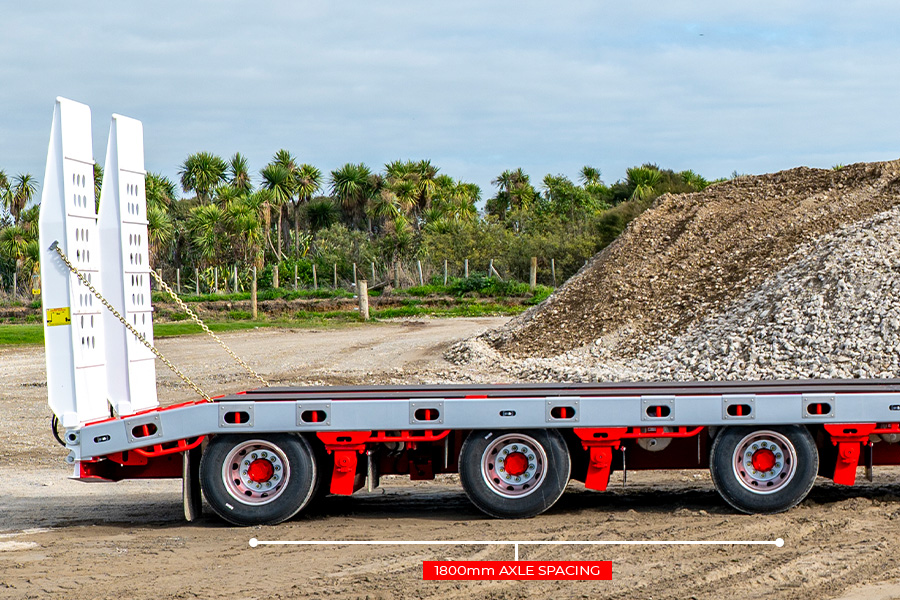

Short 1,800mm Axle Spacing

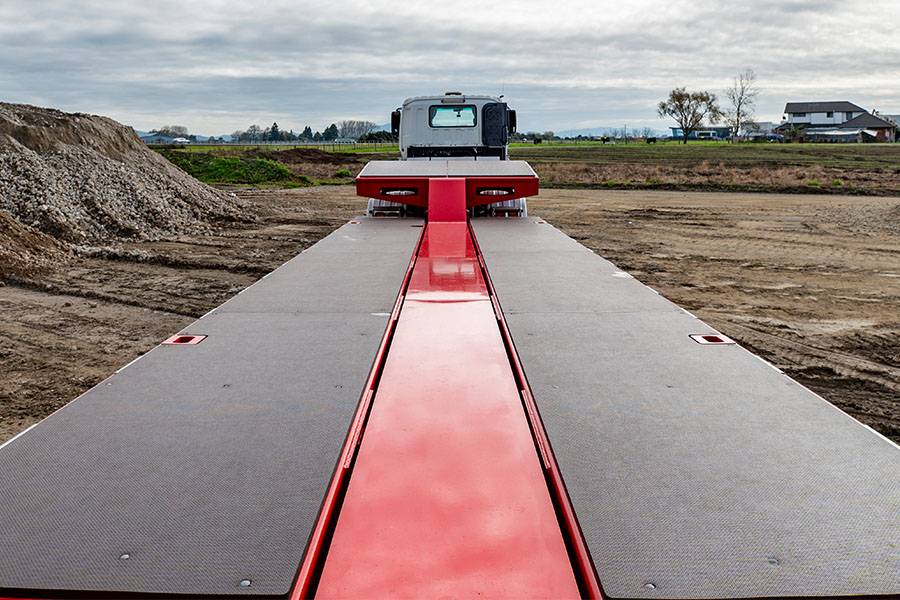

Provides enhanced grip and safety during loading
Capacity (GVM): 40,000kg
Tare Weight: From 9,000kg
Deck Height: 920mm
Deck Closed Width: 2,500mm
Deck Open Width: 3,600mm
Deck Length: 9,750mm
Deck Loading Height: 820mm
Forward Length: 9,200mm
Deck Type: Steel with 18mm plywood
Axle Spacing: 1,800mm

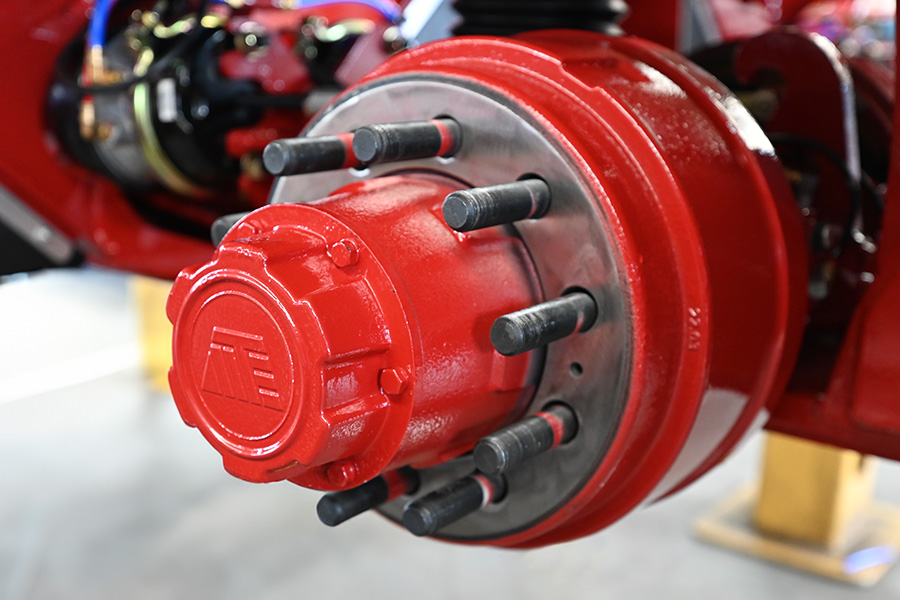

Axle Type: MTW 17.5”, Outboard drum
Suspension: MTE hydraulic
Brakes Type: Non ABS/EBS
Wheels: Weight Cheetah 17.5” x 6.75” steel
Tyres: 235/75 17.5” Synergy
Hydraulic Supply: Truck PTO
Rub Plate: Fixed at 1,360mm
King Pin: MTE 50mm drop in
Ramps: 2,400mm x 900mm hydraulic
Landing Legs: Pin type landing legs
Lashings: Certified Tie Bar Lashings in combing rails: Top Deck x6 per side (Front lashings on corners). Bottom deck x14 per side.
2 x Chain Lugs each side of Gooseneck.
2 x Ferry hook lashings in back Bumper & behind landing Legs in front beam.
Lights: Hella LED or Lucidity LED
Control Valves: At rear of trailer
Controls: Gauges for L/H & R/H suspension load indication.
Pneumatic suspension retraction locks on front & rear axles
Odometer: Included

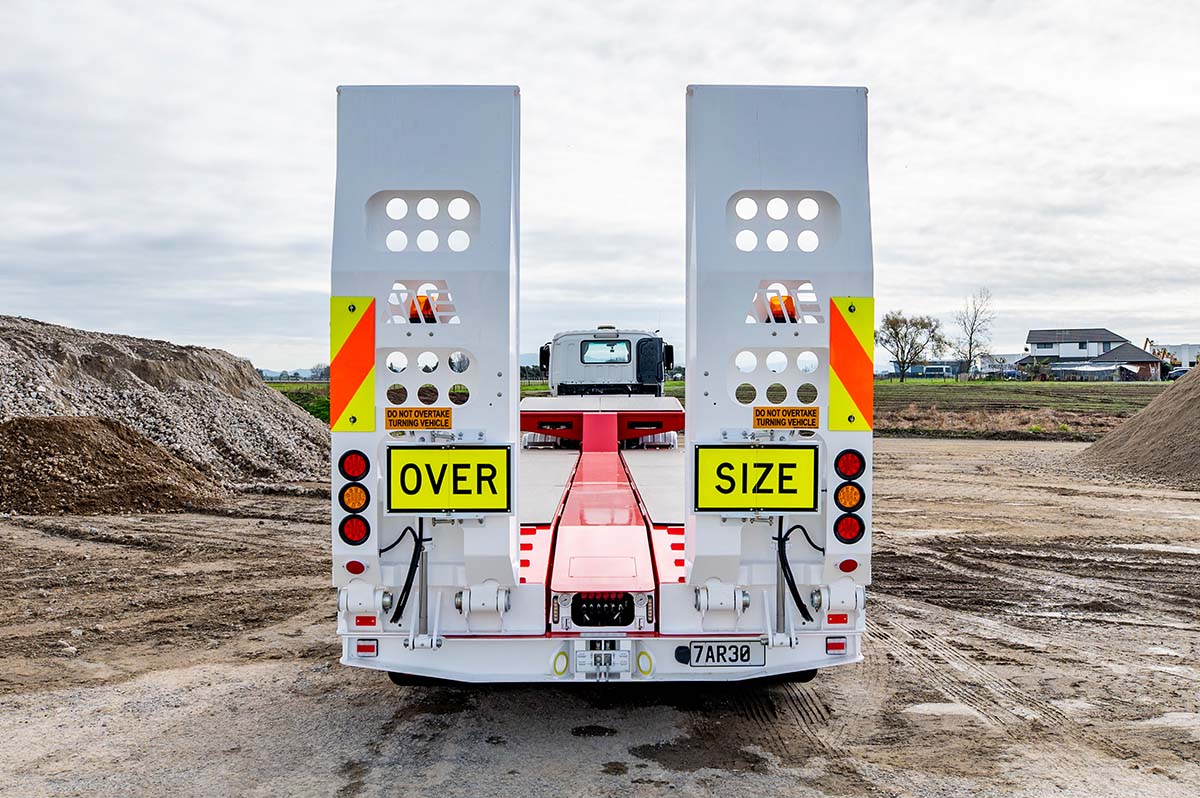

Signage: Hazard panels & oversize signs

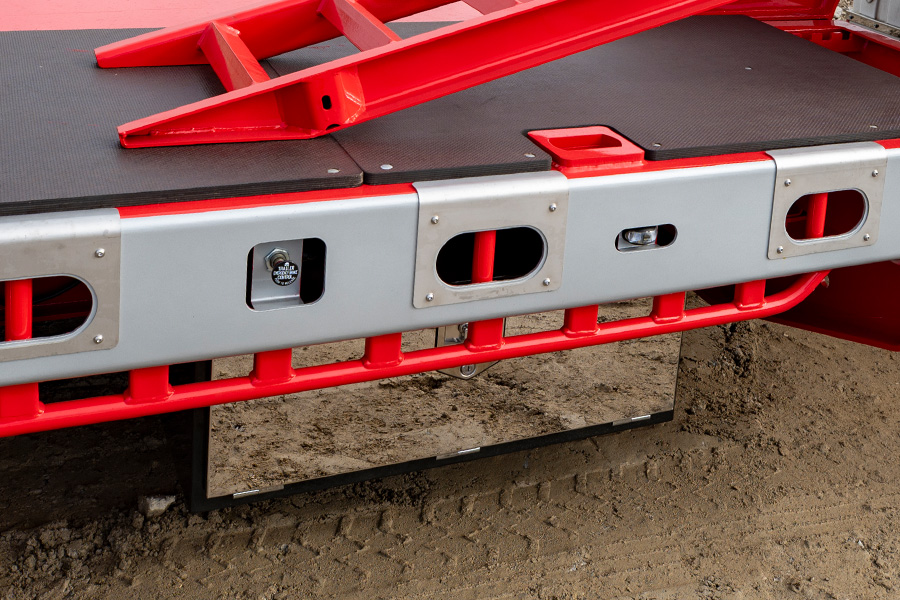

Storage: 2 x 900mm toolboxes, 4 x built in chain bins

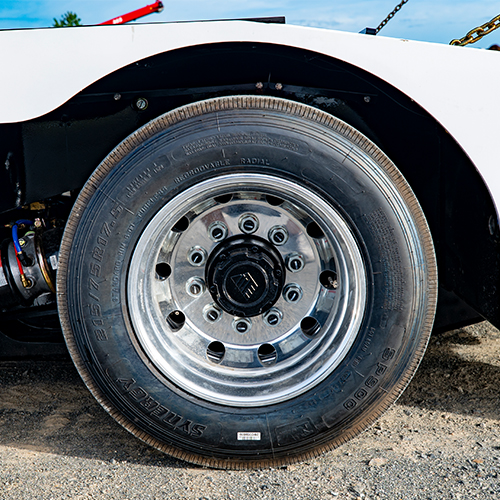

Machined, polished or premium finish

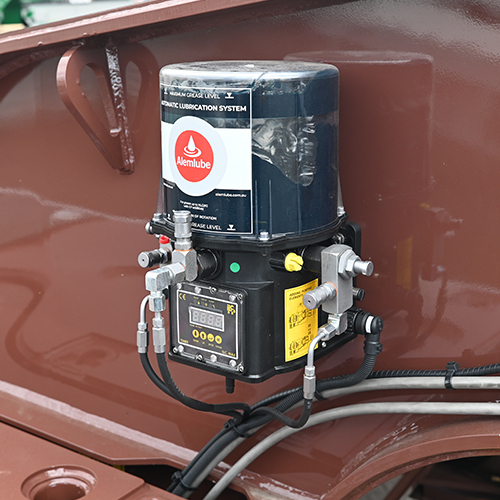

Centralised automatic greasing
Various sizes available

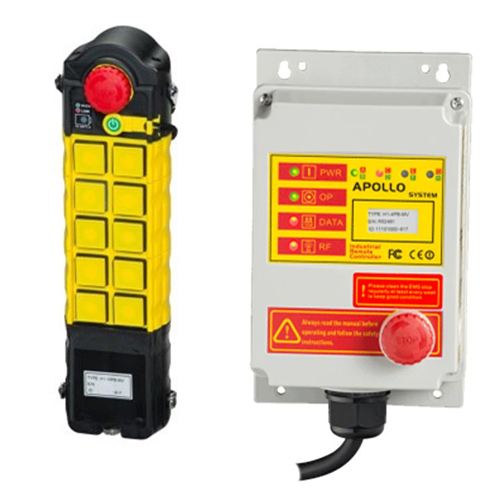

Remote suspension, widening & gooseneck

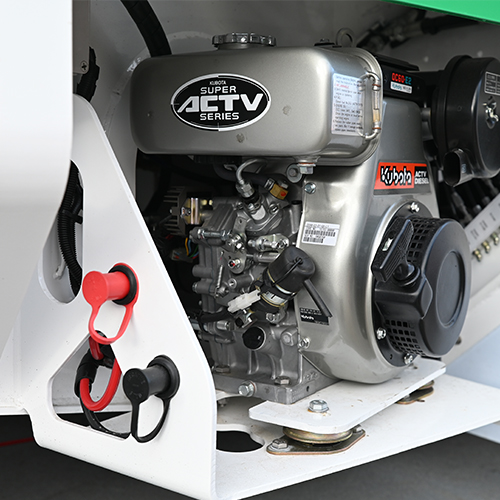

Petrol or Diesel Powerpack options

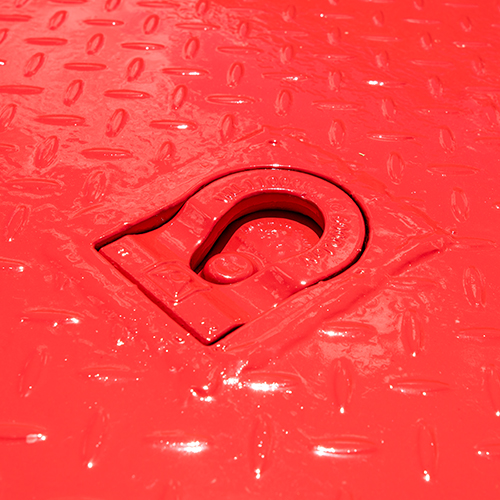

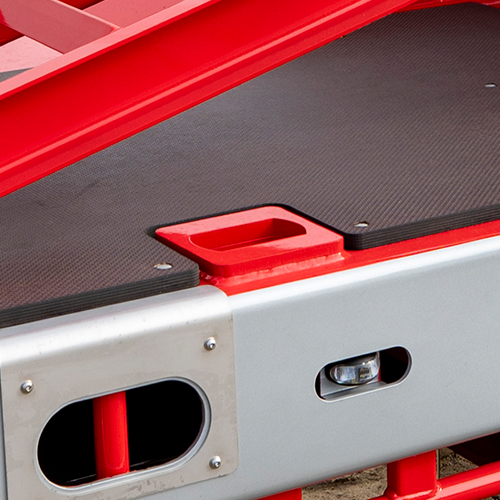

In deck recessed 6,000kg rated hooks

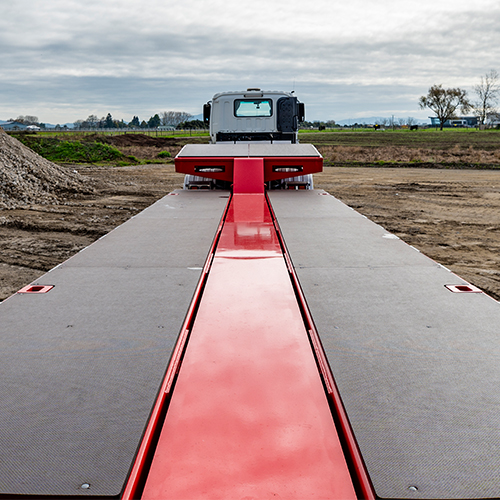

Rubber decking

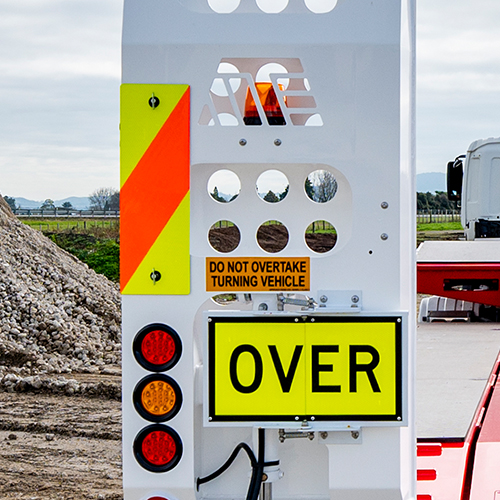

Folding oversize signage and sliding chevrons with lights

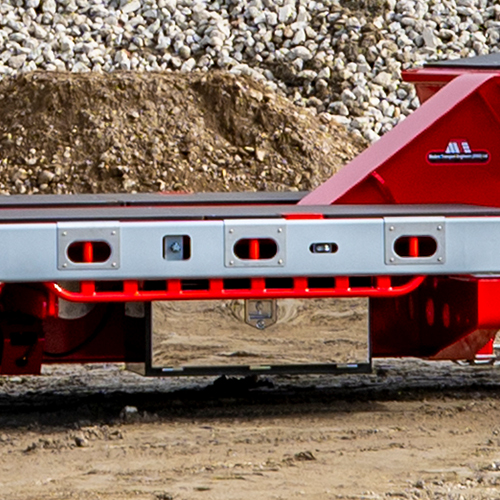

Extra lockable storage

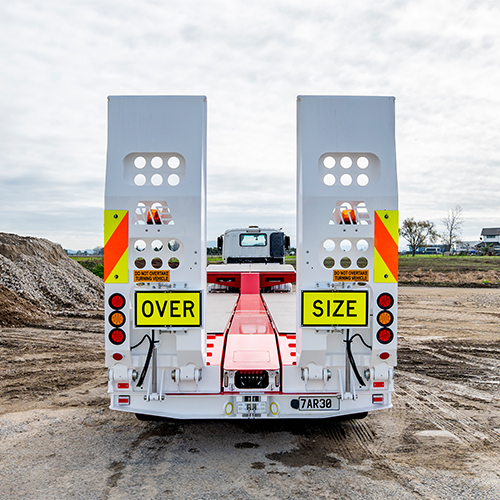

Larger or custom ramps

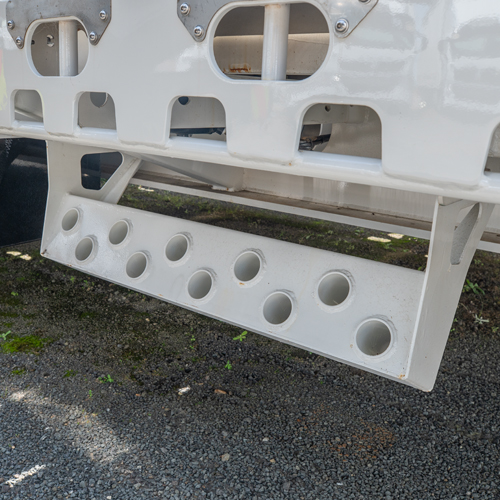

Holds 10 Twitches

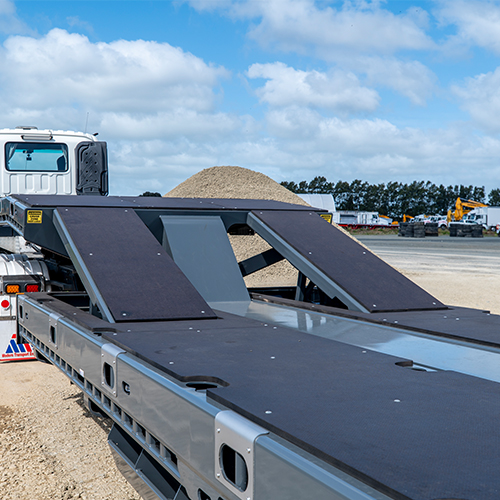

Air operated ramps to top deck
Options for 20’ & 40” containers
