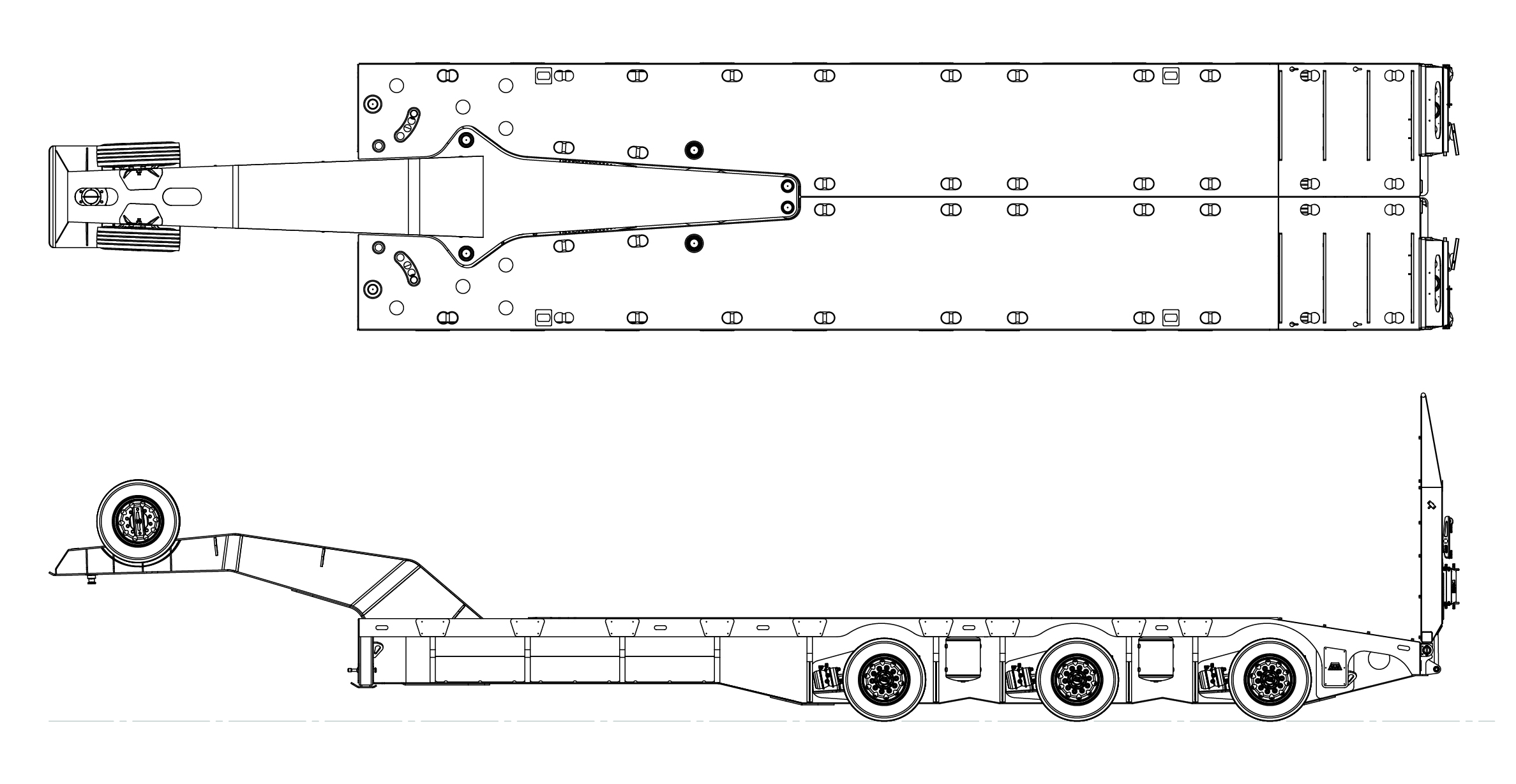

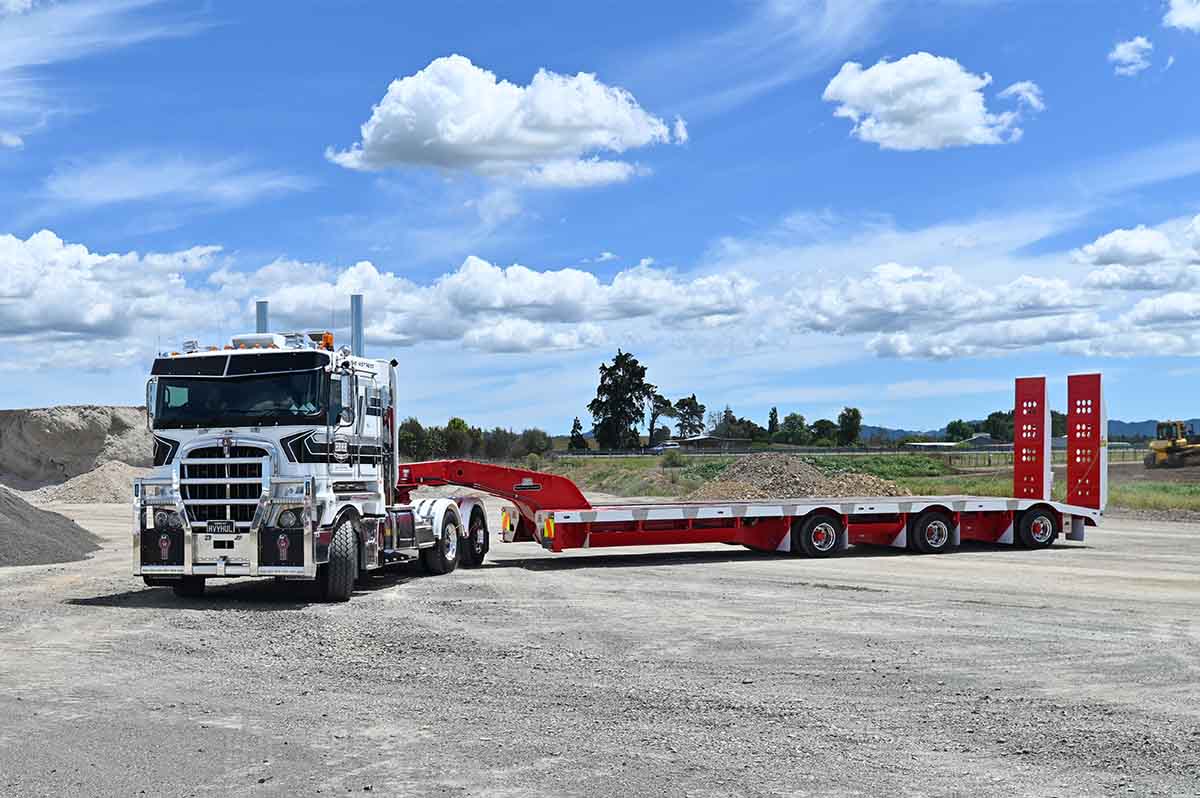

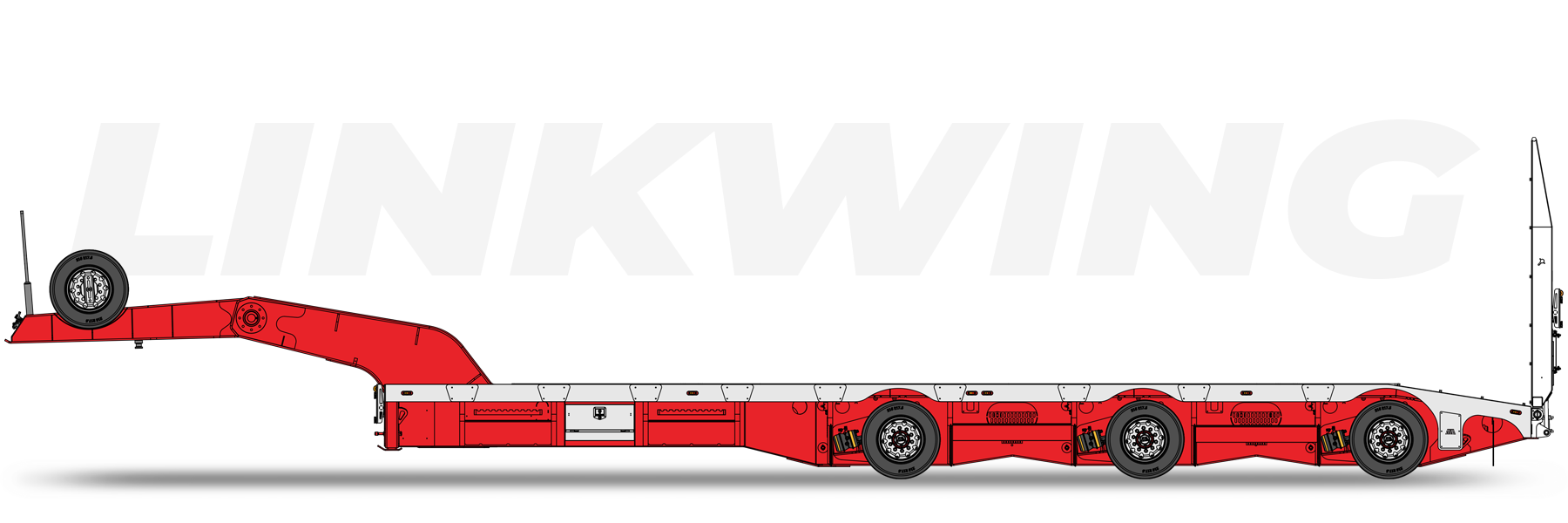

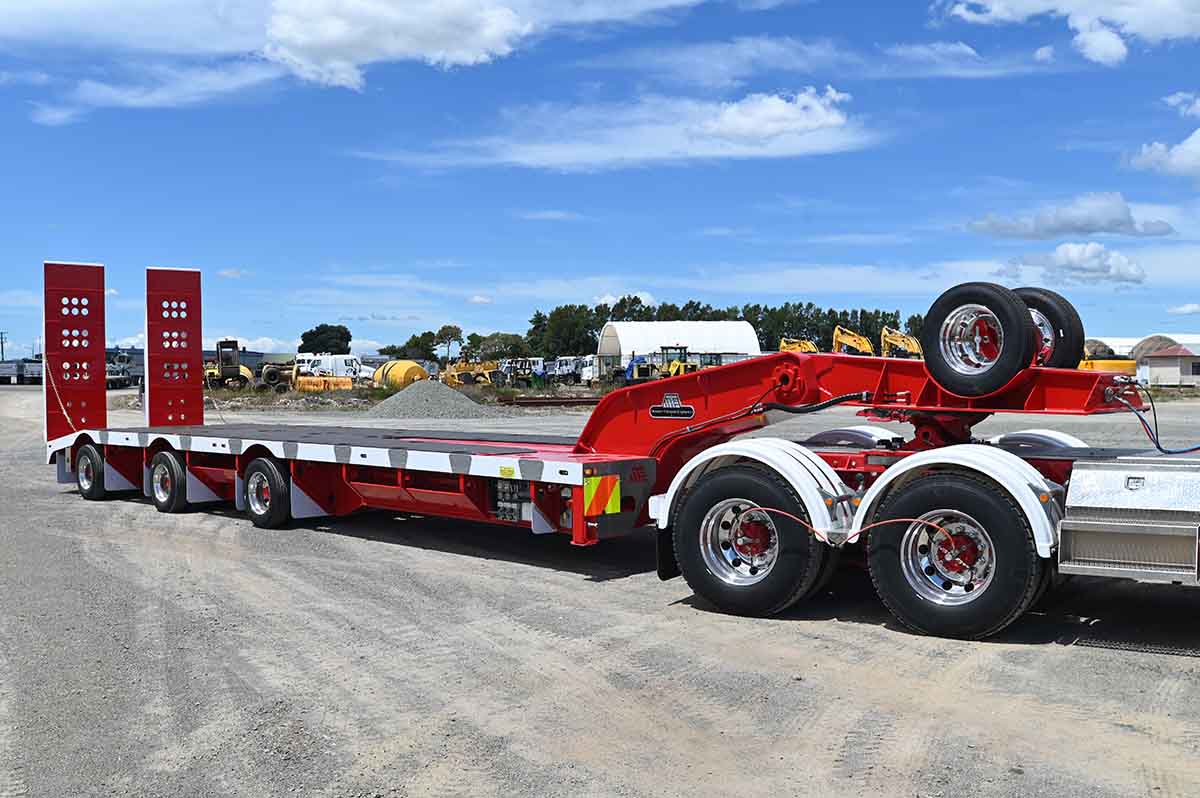

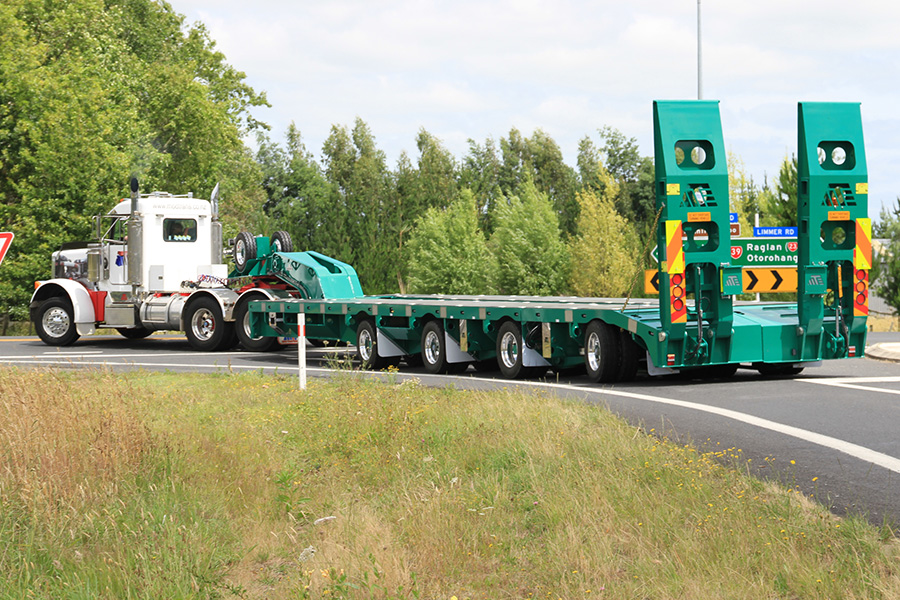

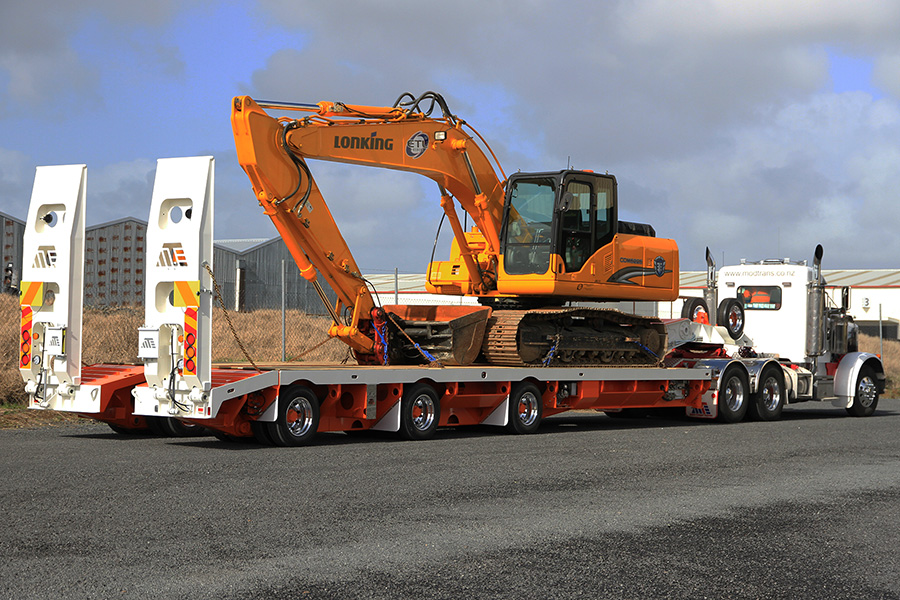

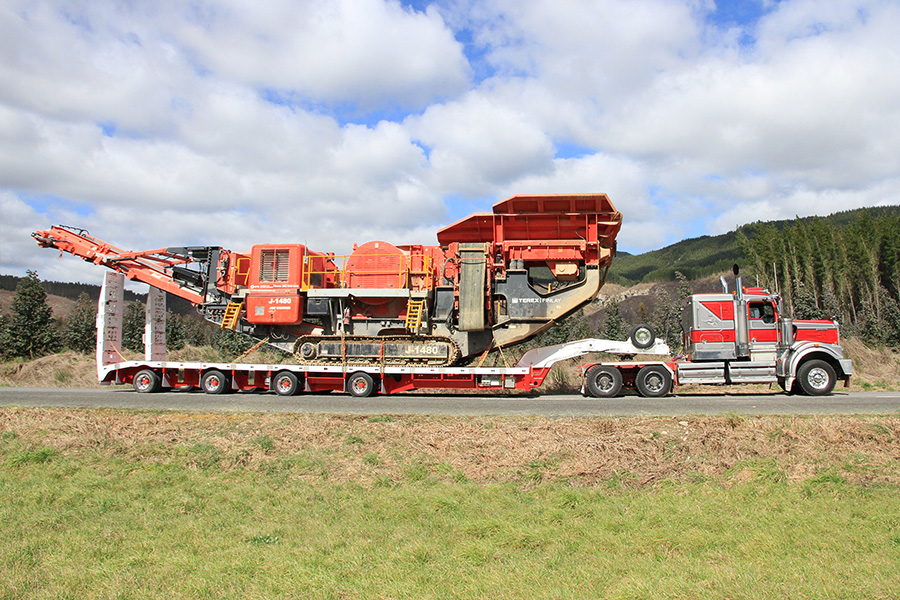

The iconic MTE Linkwing is Australasia’s most popular Heavy Transport Trailer. No customer trailer is standard, each MTE Linkwing trailer is carefully designed and engineered to the customer’s specifications and use cases, with a focus on efficiency and durability which will provide them with a solution that lasts a lifetime.
Locking Configurations: 2.5m – 2.8m – 3.1m – 3.4m – 3.7m
Standard 9200mm forward length at closed width
Various chain bins and dunnage tray configurations
Outboard drum brake design for quick and easy servicing
Short 1800mm or 2400mm Axle Spacing
.jpg)
Provides enhanced grip and safety during loading
Capacity (GVM): 80,000kg
Tare: From 11,600kg
Payload: 42,000kg-45,000kg or 65,000kg as 3R8 & Dolly
Forward Length: 9200mm
Deck Height: 900mm
Deck Width: 2500mm closed, 3700mm open
Widening: 3 hydraulic rams
Deck Type: Steel with 18mm ply

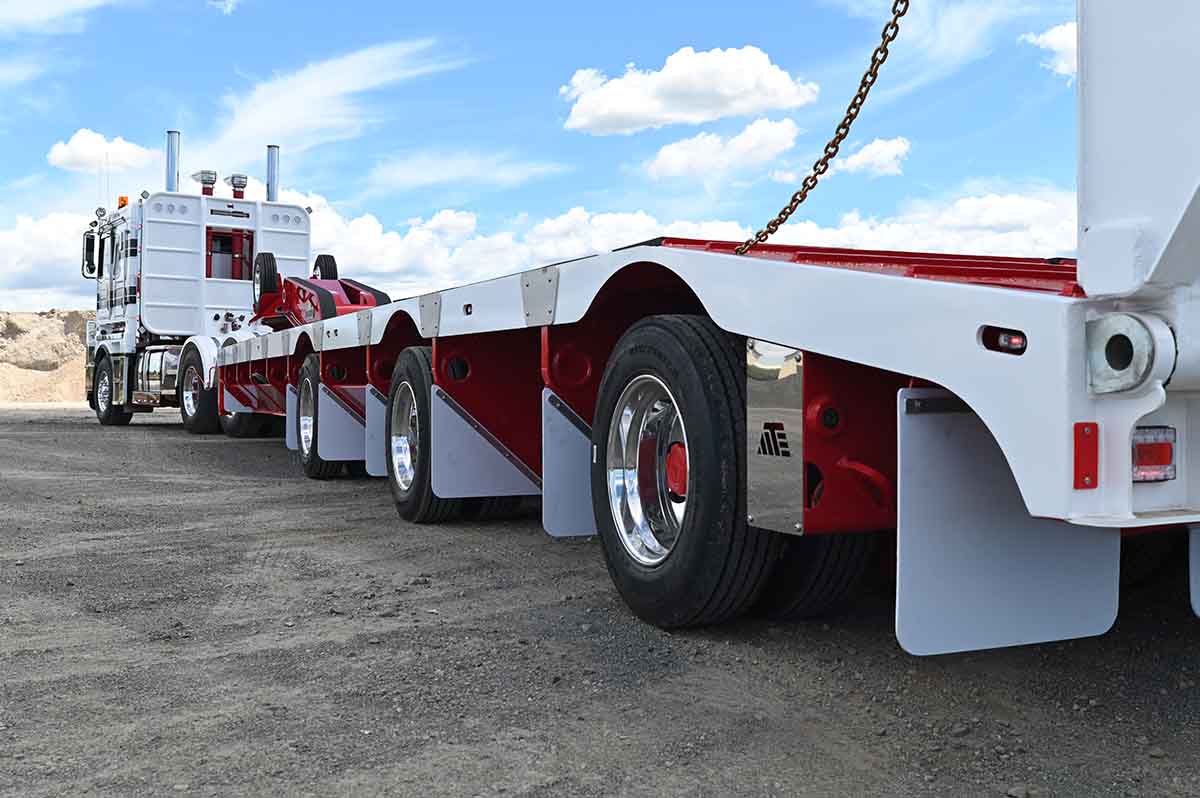

Axles: MTW 17.5”, Outboard drum
Axle Retraction: Axle retraction to all axles with valves to shut of oil flow to suspension cylinders.
Suspension: MTE hydraulic suspension with new quick change cylinders

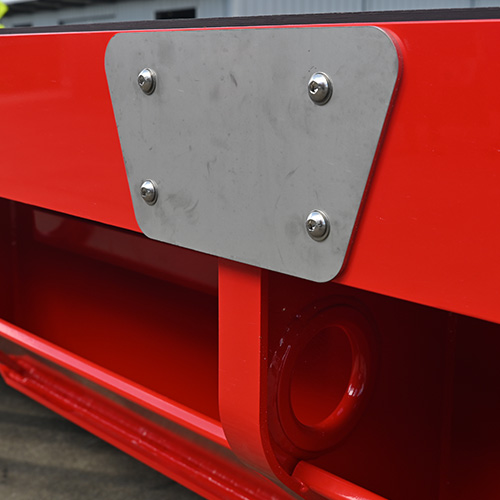

Brakes: Stainless Steel Combing Rail Protectors bolted on above each cross member lashing on outer combing rails
Wheels: Weight Cheetah 17.5” x 6.75”
Tyres: 215/75R 17.5
Gooseneck Height: 1370mm
Hydraulic Supply: Truck PTO
Rub Plate: x 2 position
King Pin: MTE 50mm or 90mm drop in

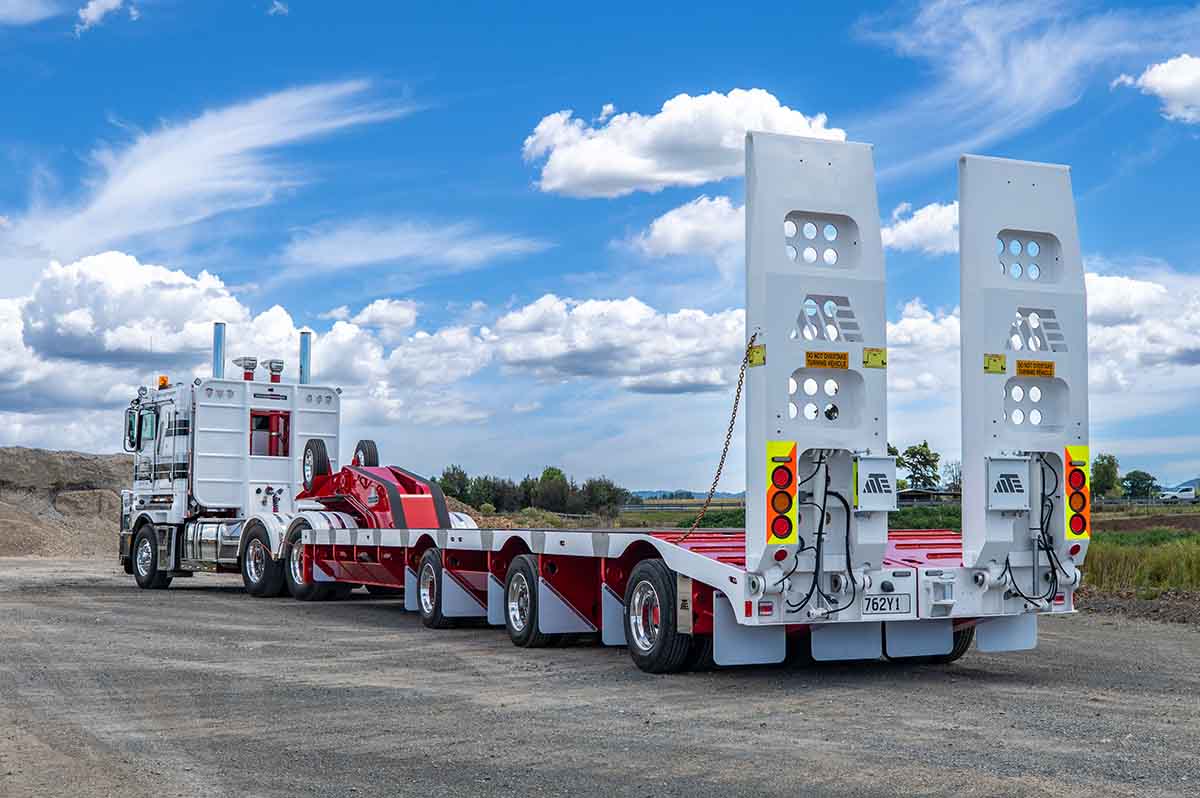

Ramps: 2400mm x 890mm hydraulic
Spare Tyre Carrier: 2 x Included
Landing Legs: Pin type landing legs
Greasing: Manual
Control Valves: Mounted drivers side
Guages: Load indication
Lashing Ties: Certified
Odometer: Included
Machined, polished or premium finish
Centralised automatic greasing
Various sizes available

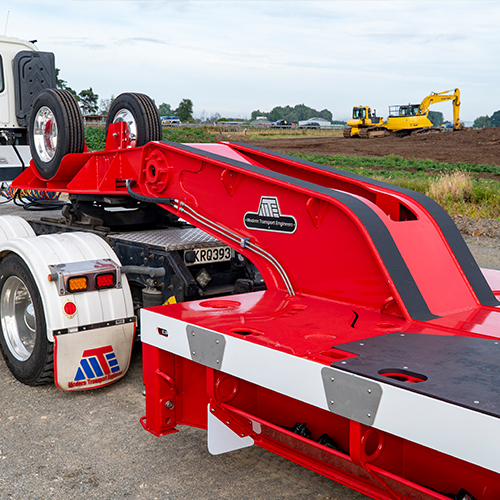

Remote suspension, widening & gooseneck
Petrol or diesel powerpack options

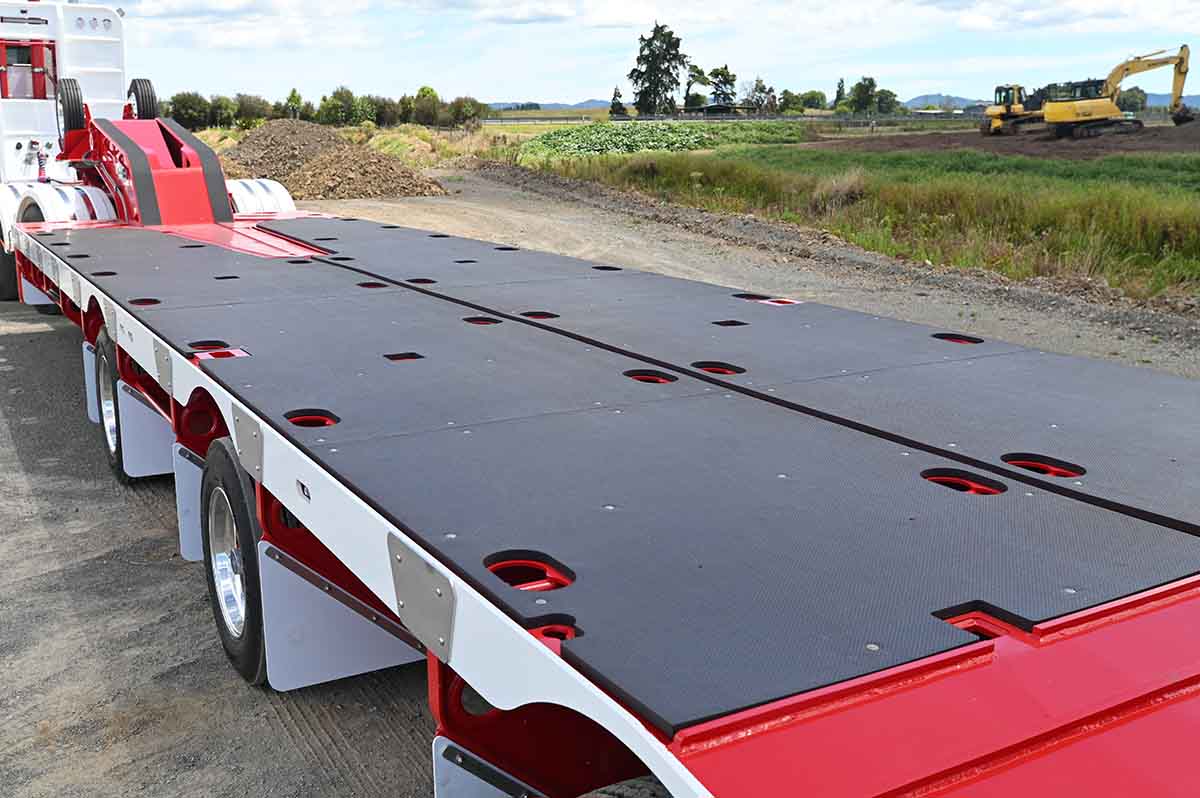

Rubber decking
Sliding chevrons
Extra storage
Larger or custom ramps
