Revolutionise your bulk cartage operations with Modern Transport Engineers Hardox Tippers.

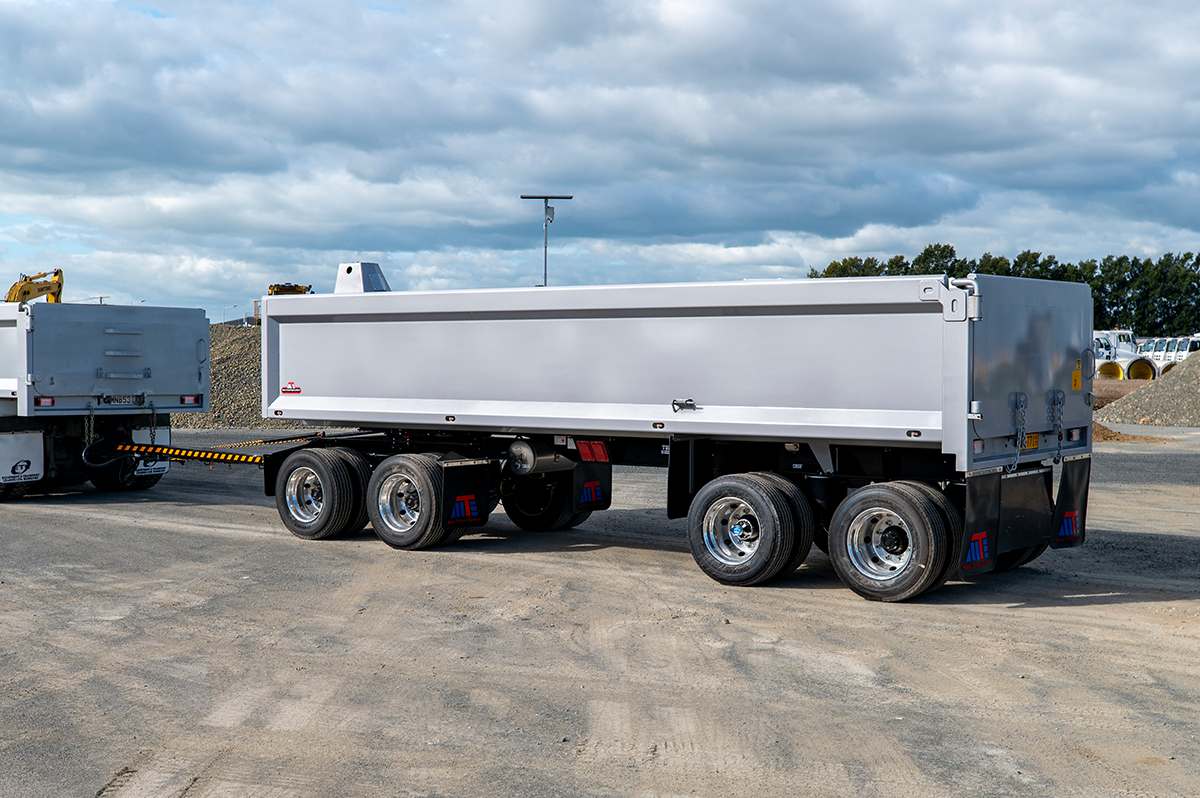

Built to handle New Zealand’s toughest bulk haulage applications, the MTE 4 Axle Dog Tipper combines proven engineering, high-strength Hardox steel construction, and over 50 years of trailer manufacturing experience. Designed for maximum durability, payload, and versatility, the 4 Axle Dog Tipper is equally at home transporting aggregates, demolition material, construction products, and agricultural loads. Available in multiple bin lengths and configurable to suit your operation, every MTE Dog Tipper is built to deliver reliable performance, low maintenance, and long service life in demanding conditions.

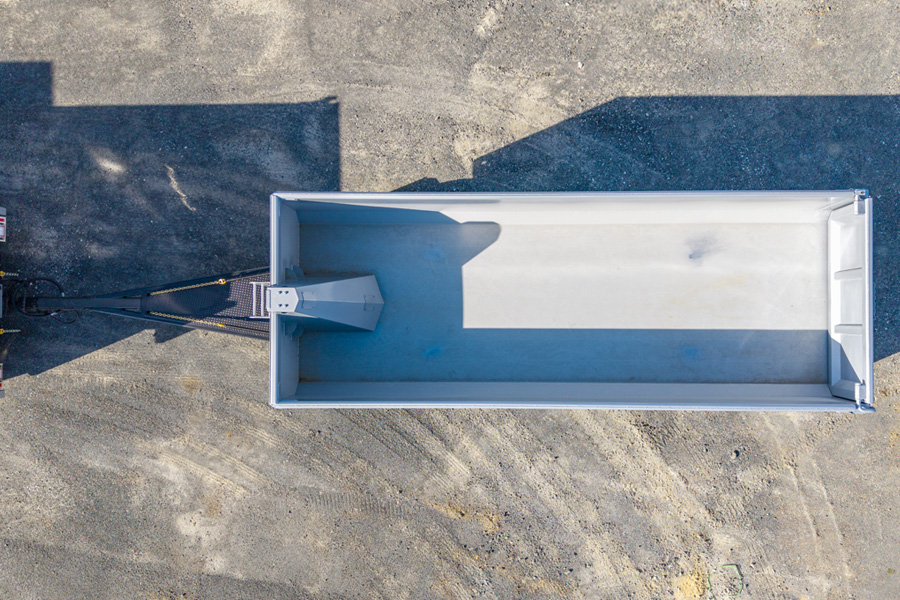

Designed to withstand abrasive materials, demanding construction environments

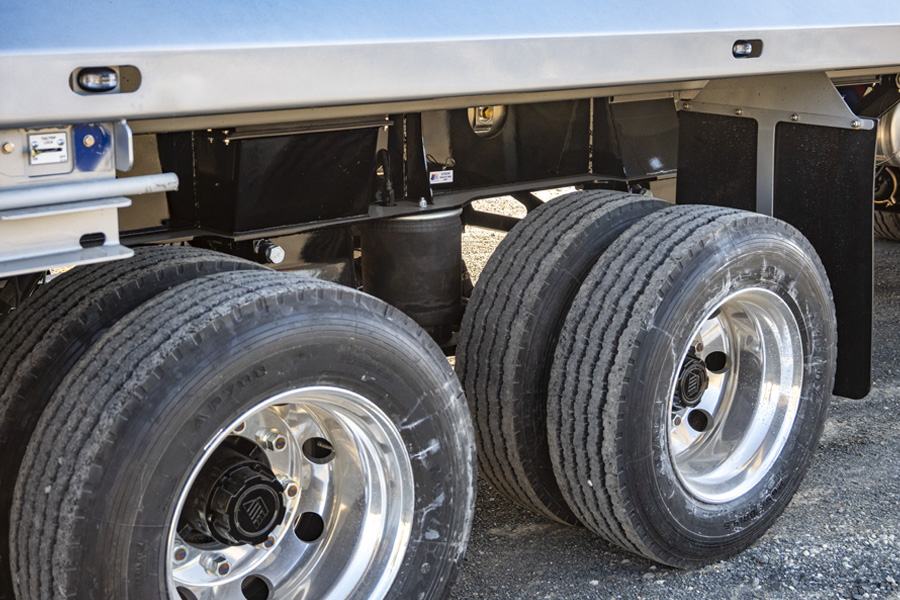

MTW air suspension system delivering improved ride quality
Configured for both conventional tipping and demolition applications

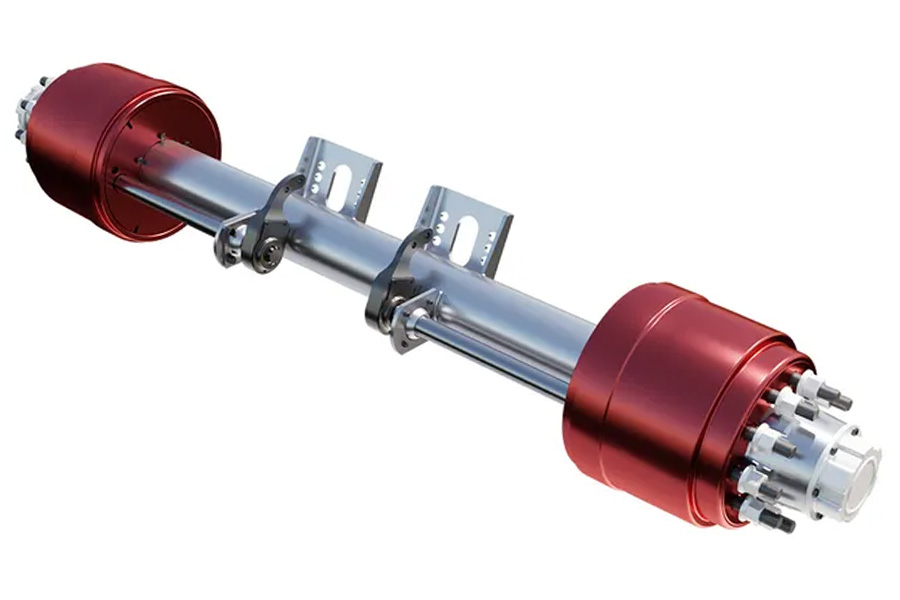

Outboard drum brake design for quick and easy servicing

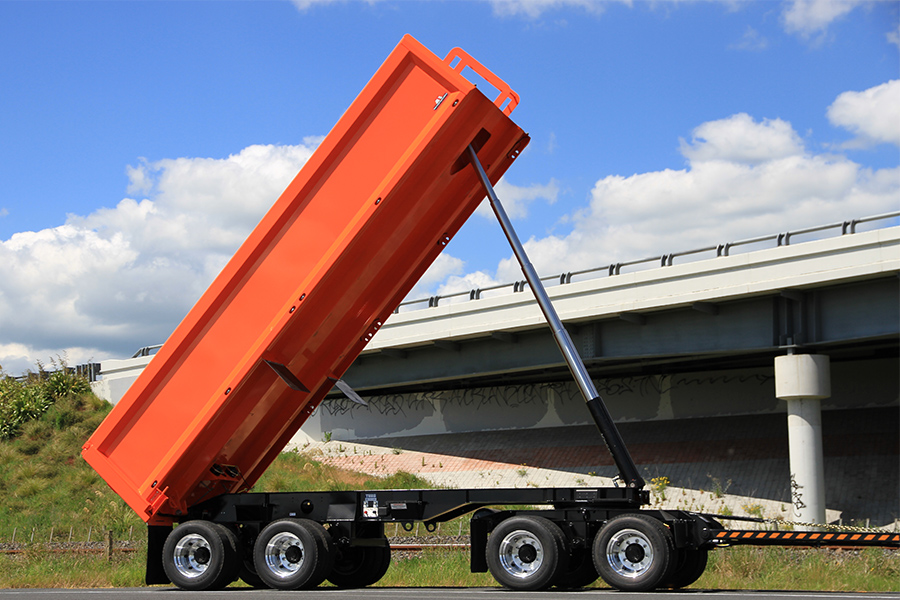

Buried front hoist design allows for maximum usable bin length

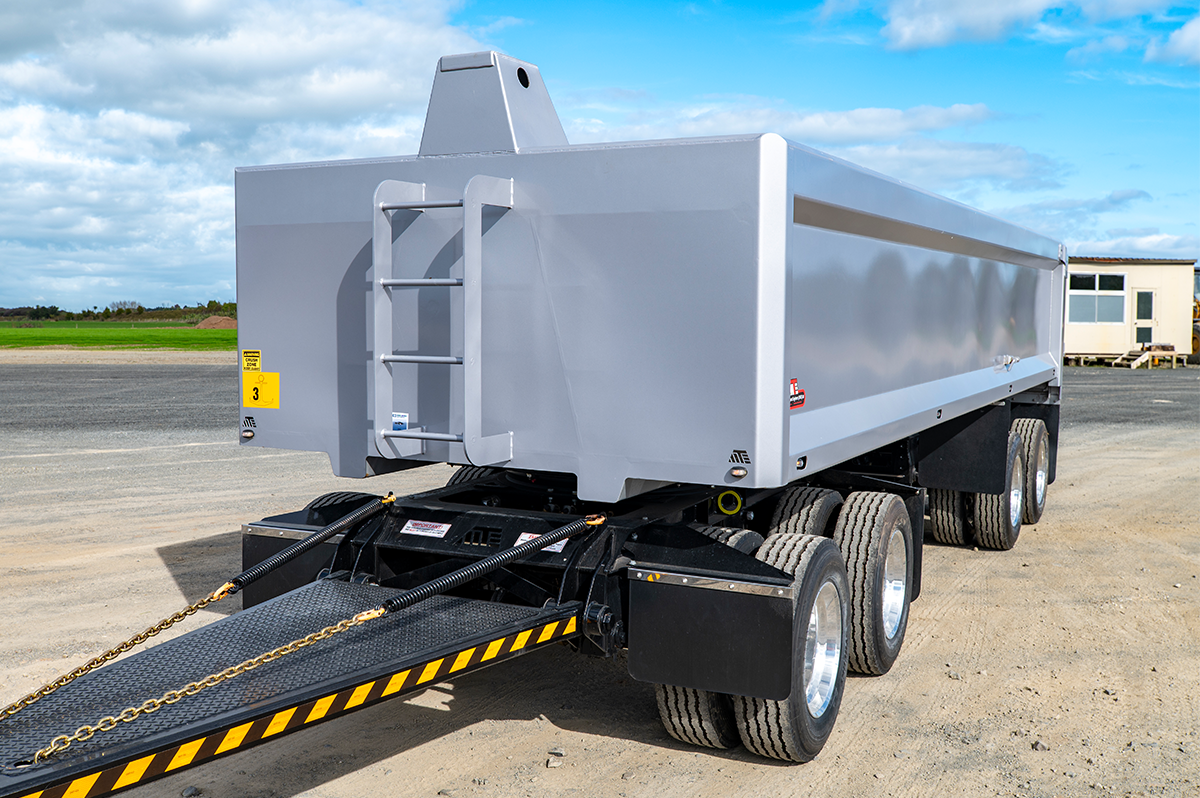

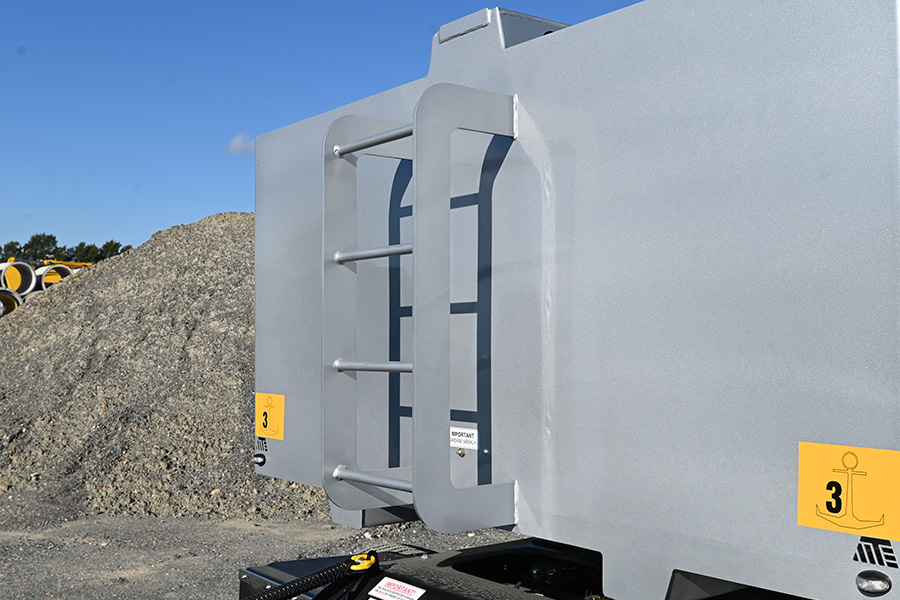

Front access ladder
Capacity (GVM): 29,000kg
Tare: From 7,200kg with alloy wheels
Bin Sides: 5mm
Bin Floor: 6mm
Bin Rear: 4mm
Bin Front: 4mm
Side Height: 1100mm
Bin Length Overall: 6723mm
Bin Length Inside: 6648mm
Bin Width Outside: 2500mm
Bin Width Inside: 2350mm
Capacity: 17m3
Hoist: Buried front of body

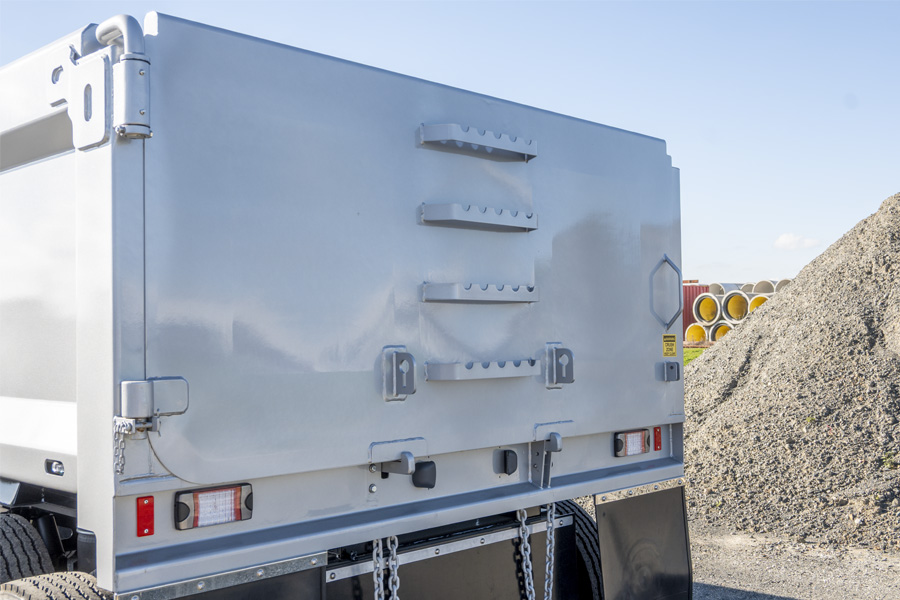

Tailgate: Two-way demo door
Axles: MTW 19.5”, Outboard drum
Suspension: MTW Air suspension
Brakes: Knorr-Bremse EBS
Wheels: Weight Cheetah 19.5”
Tyres: 265/70R 19.5
Hydraulic Supply: Truck PTO
Tow Eye: 50mm weld-in
Ball Race: Jost
Drawbar: Fixed ‘A’ frame 4m
Access Ladder: Front of body
Lights: Hella LED
Odometer: Included
Machined, polished or premium finish
Electric or manual retractable tarp

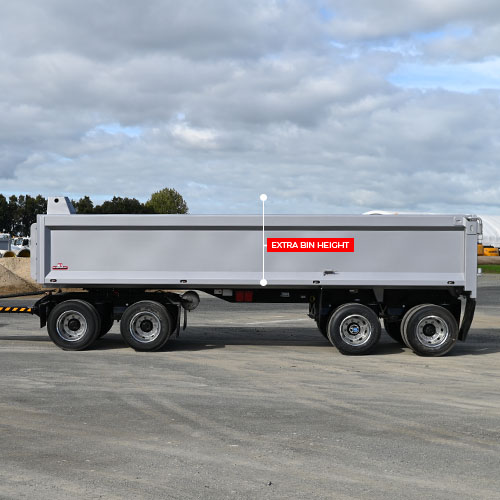

Custom bin side height options
