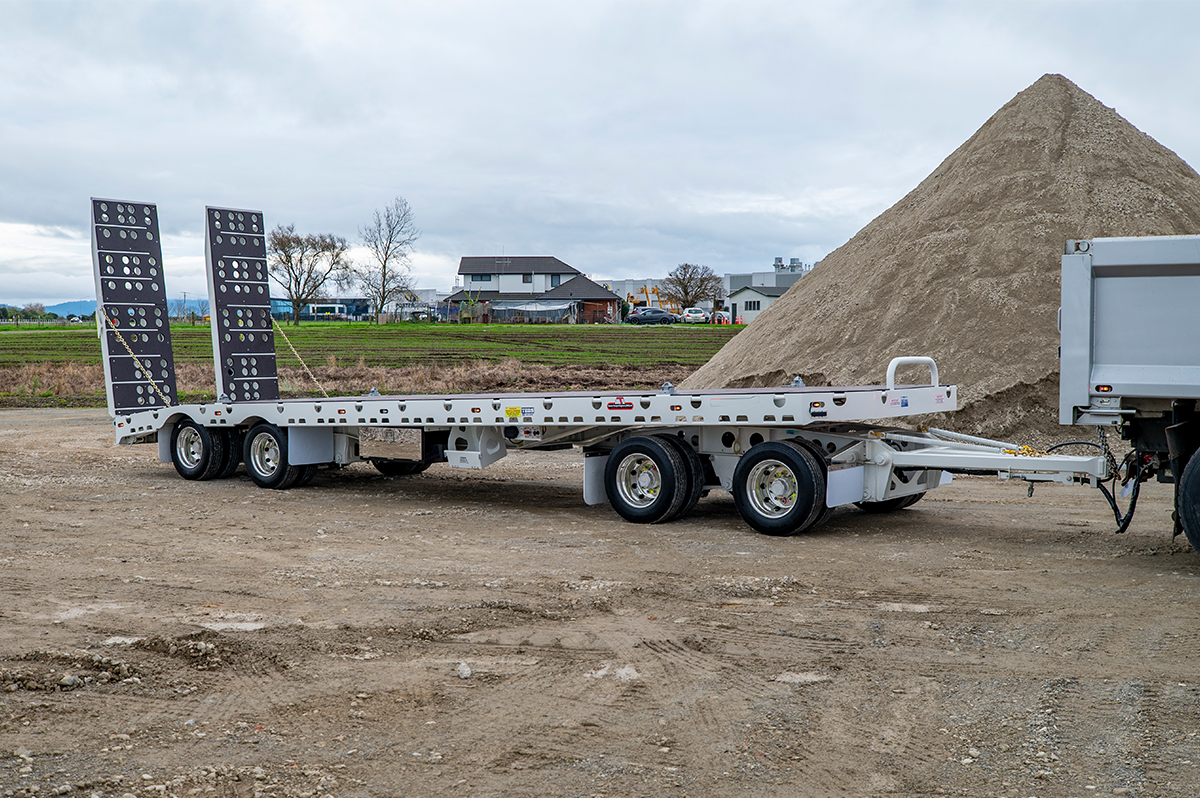

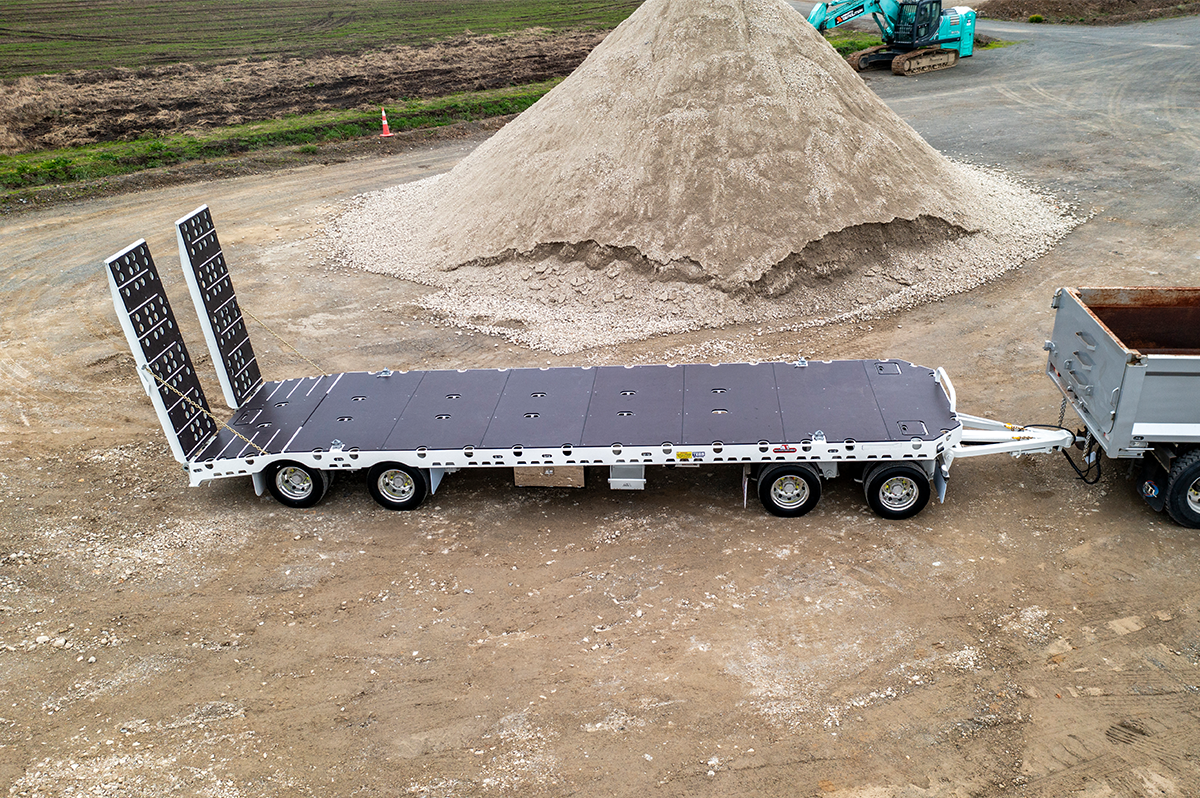

A versatile trailer for everyday machinery transport, the MTE 4 Axle Flat Top Low Loader combines a low-profile deck with a practical, heavy-duty design built for demanding operations. Equally capable of transporting construction machinery, earthmoving equipment, access gear or containers, it provides operators with a flexible trailer that can adapt to a wide variety of loads.

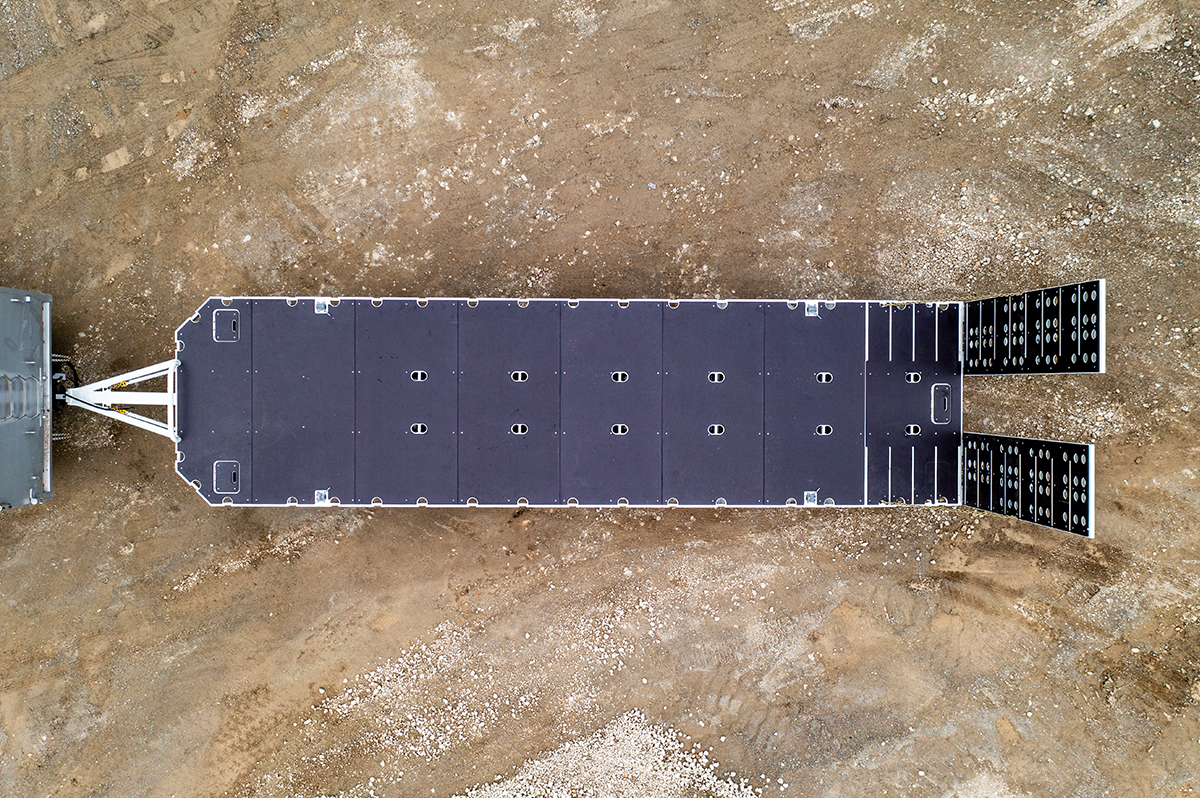

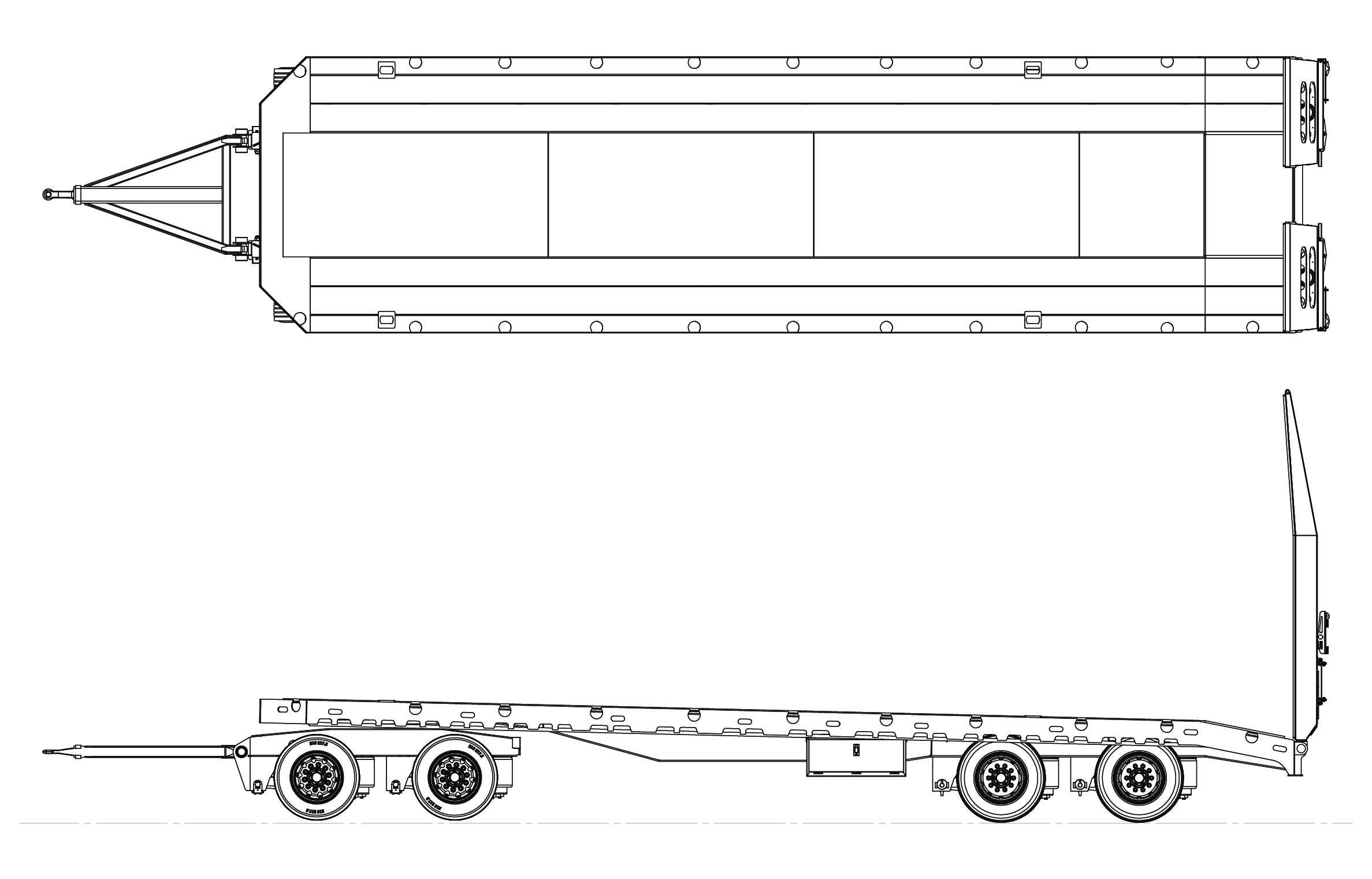

Flexible by design, A straight deck configuration provides the flexibility to transport a wide range of tracked and wheeled machinery, equipment and containers.
Easy machinery loading, Low-angle ramps and a anti-slip ply deck provides an easy approach for loading a variety of equipment.
Flexible load restraint, Certified tie-down points and full-length rope rails provide plenty of options for safely securing different loads.
Built around everyday operation, Integrated shiplocks, in-deck storage and a wide range of optional equipment can be added to suit the operator and application.

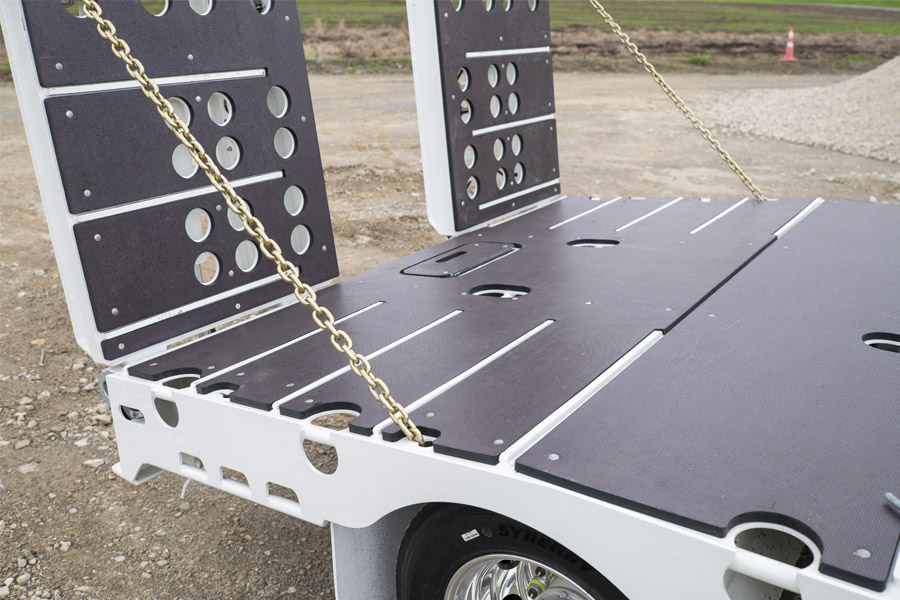

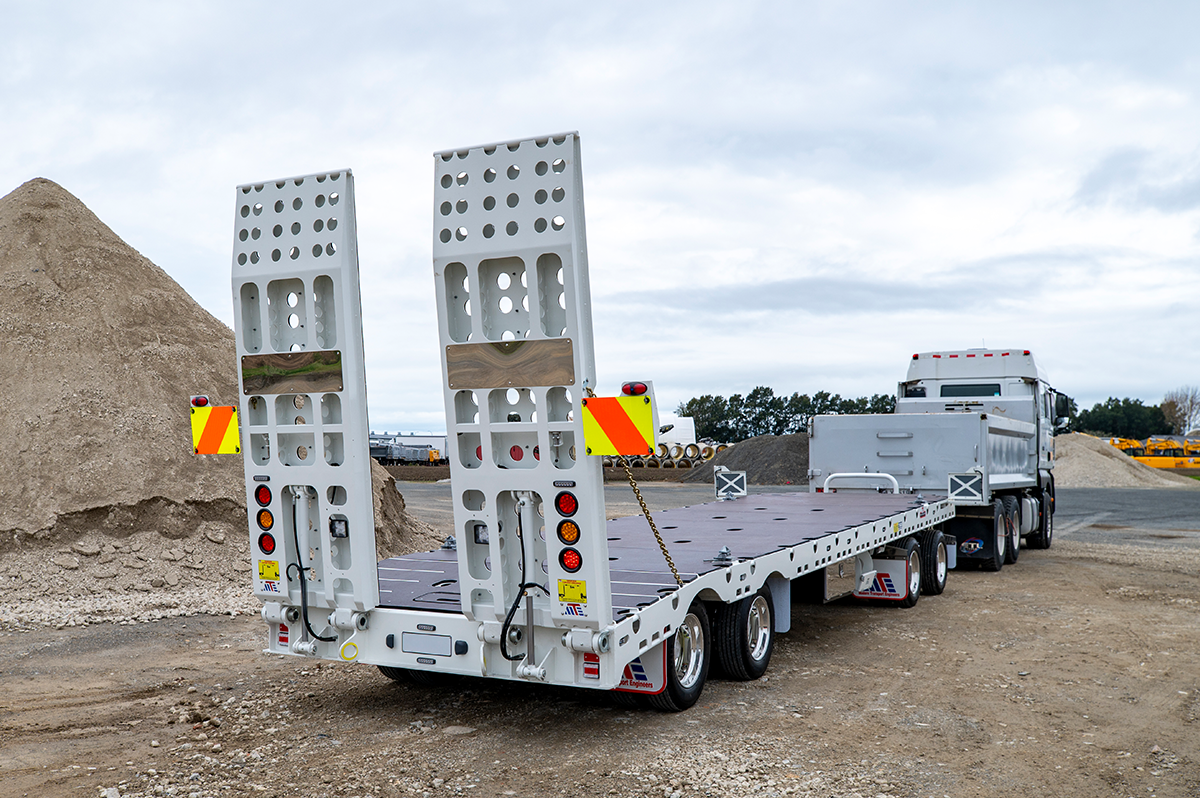

Provide a reduced loading angle, making it easier and safer to load a wide range of tracked and wheeled machinery

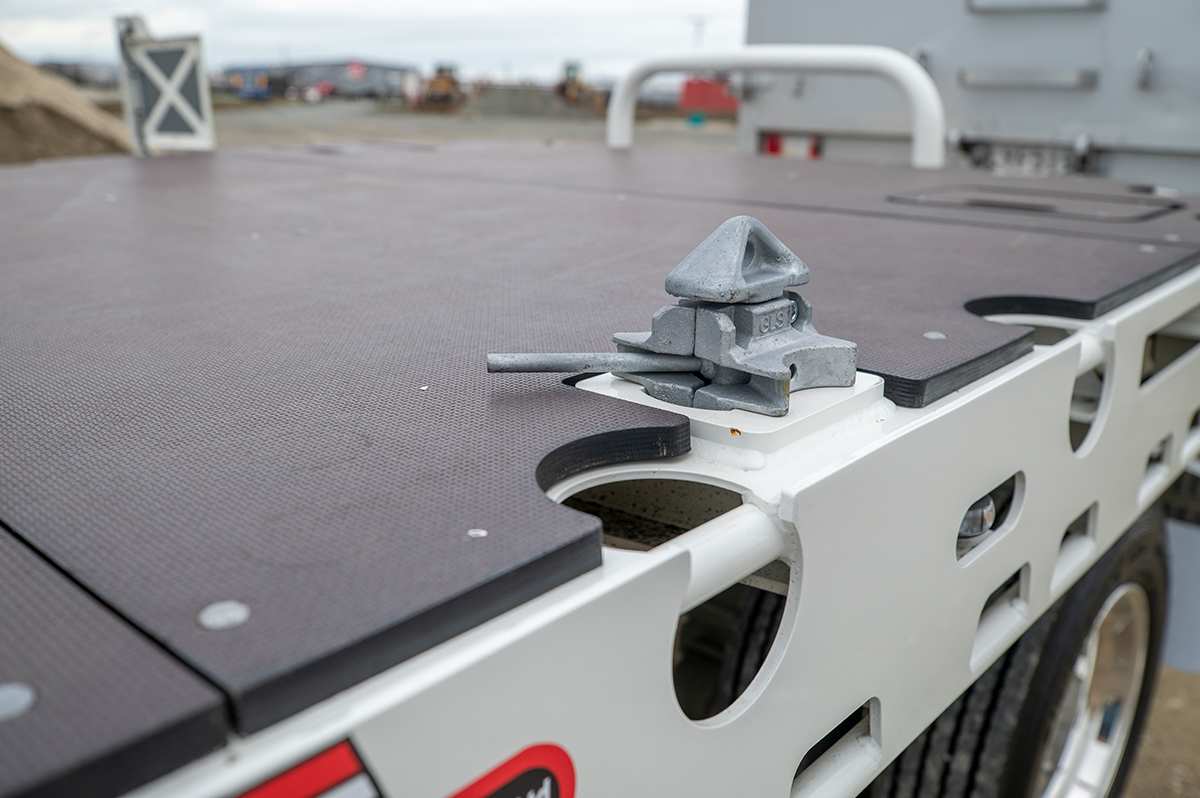

Allow containers and compatible equipment to be securely locked directly to the deck

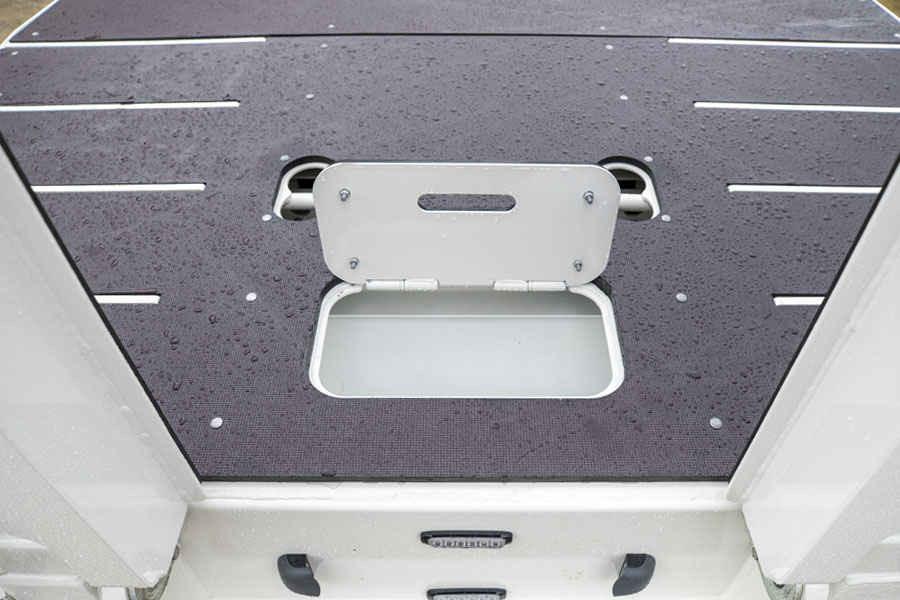

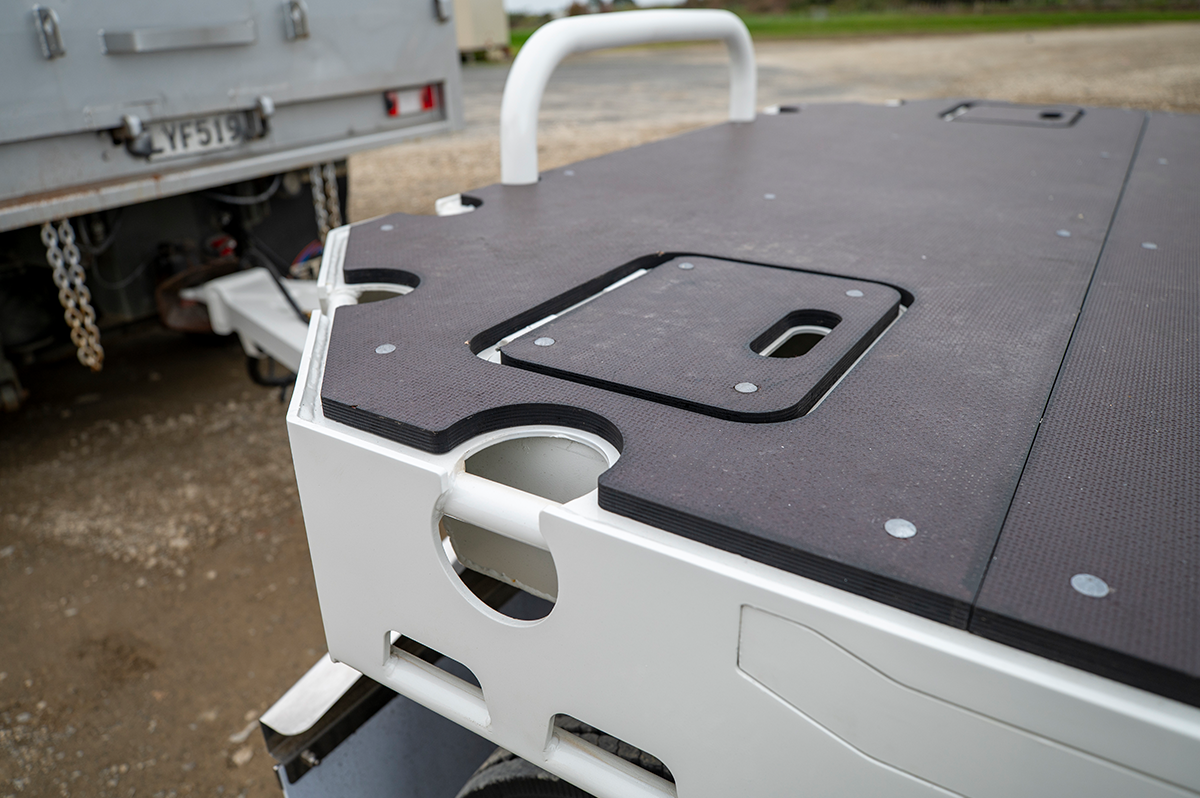

Integrated storage compartments at front and rear of trailer deck

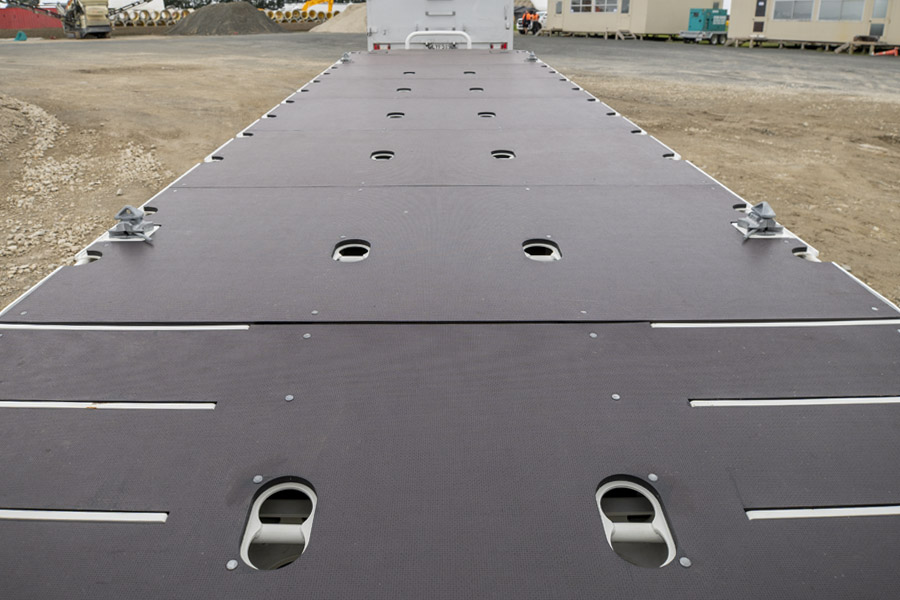

Strategically positioned certified lashing points provide flexible and secure load restraint for machinery

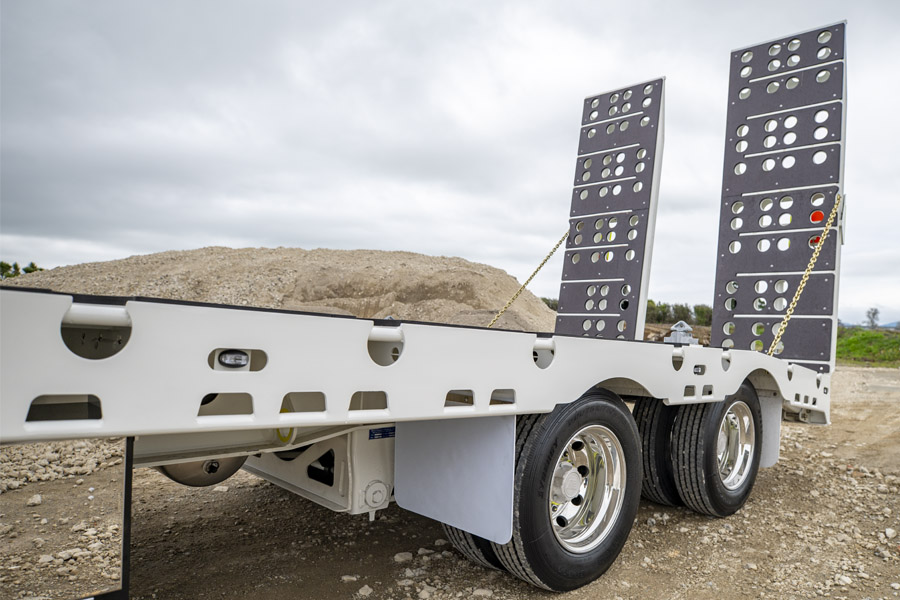

Full-length rope rails provide additional tie-off points along the entire trailer

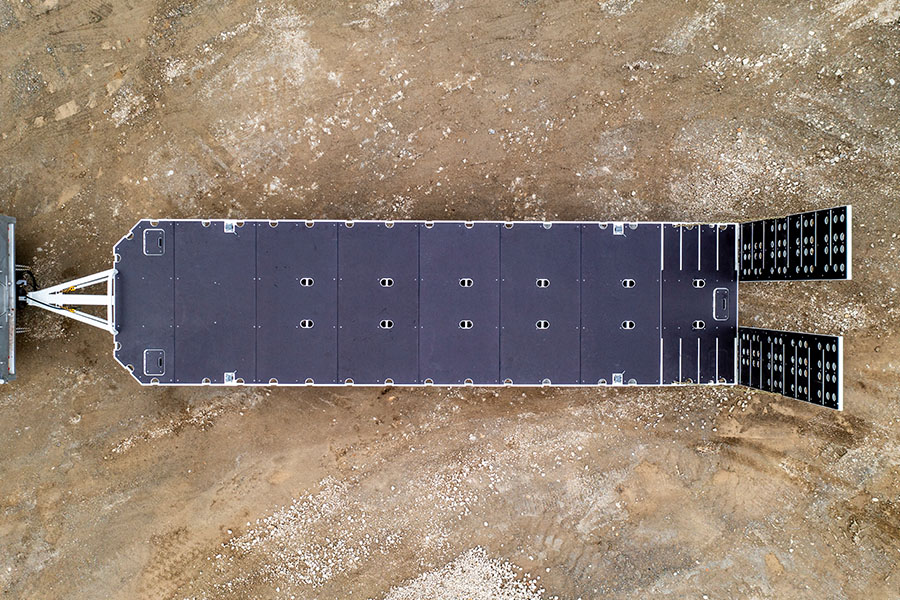

Provides enhanced grip and safety during loading

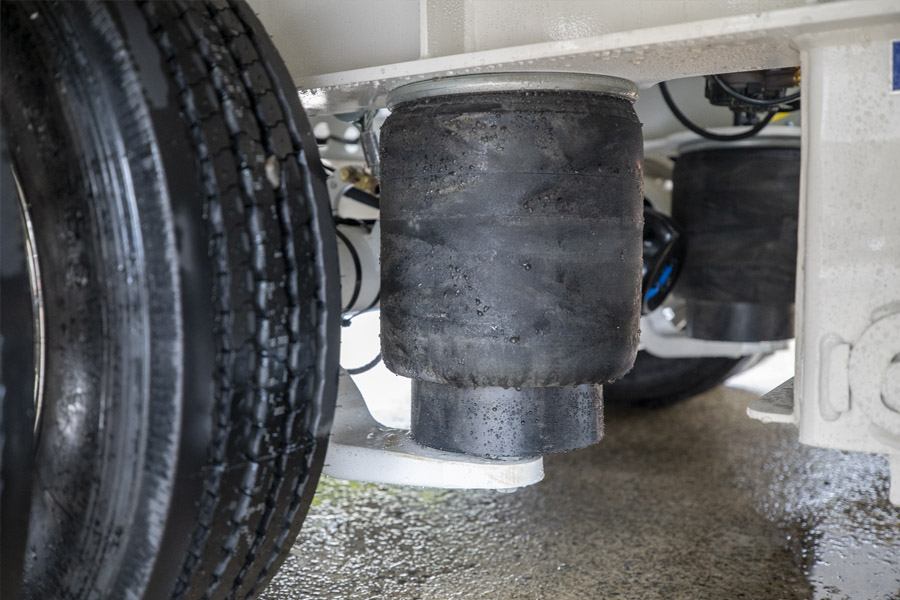

MTW air suspension delivers a smoother ride, improved load protection, and enhanced handling across varying road conditions

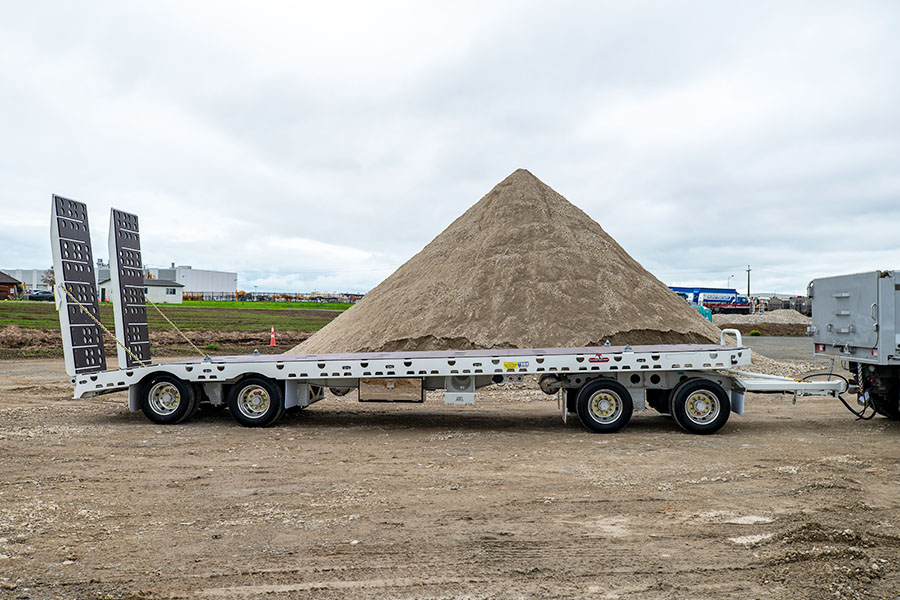

Designed with a low loading height to improve stability and maximise the legal transport height for oversized machinery

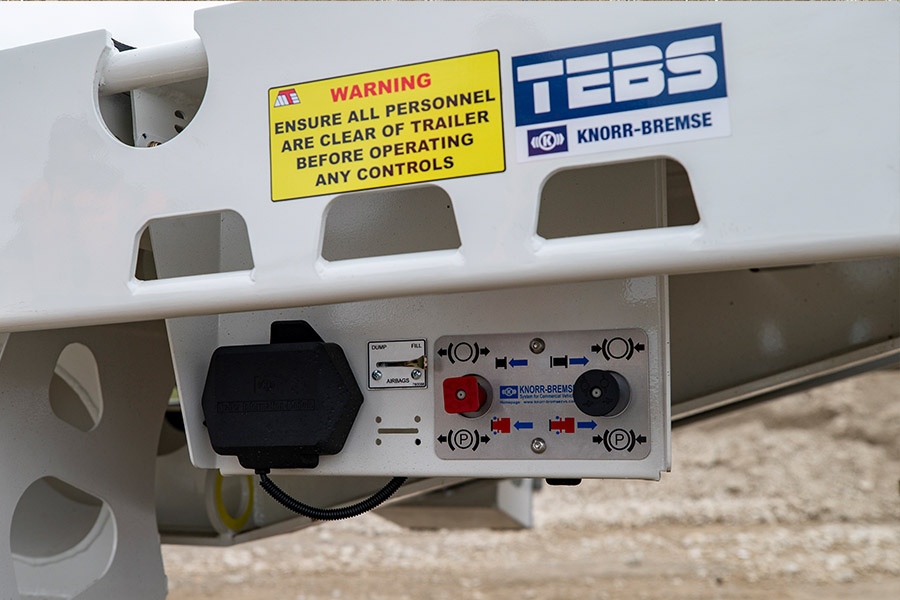

Equipped with proven axles, braking systems and suspension components to minimise downtime
GVM: 32,000kg
Tare Weight: From 6,500kg
Overall Length: 11,470mm
Deck Length: 9,430mm
Deck Width: 2,490mm
Front Deck Height: 1,090mm
Axle Spacing: 1,250mm
Axle Type: MTW 17.5”, Outboard drum
Suspension: MTW air suspension
Brakes Type: Knorr-Bremse EBS
Hydraulic Supply: Truck PTO
Guards & Flaps: On bogie & rear
Tow Eye: 40mm or 50mm

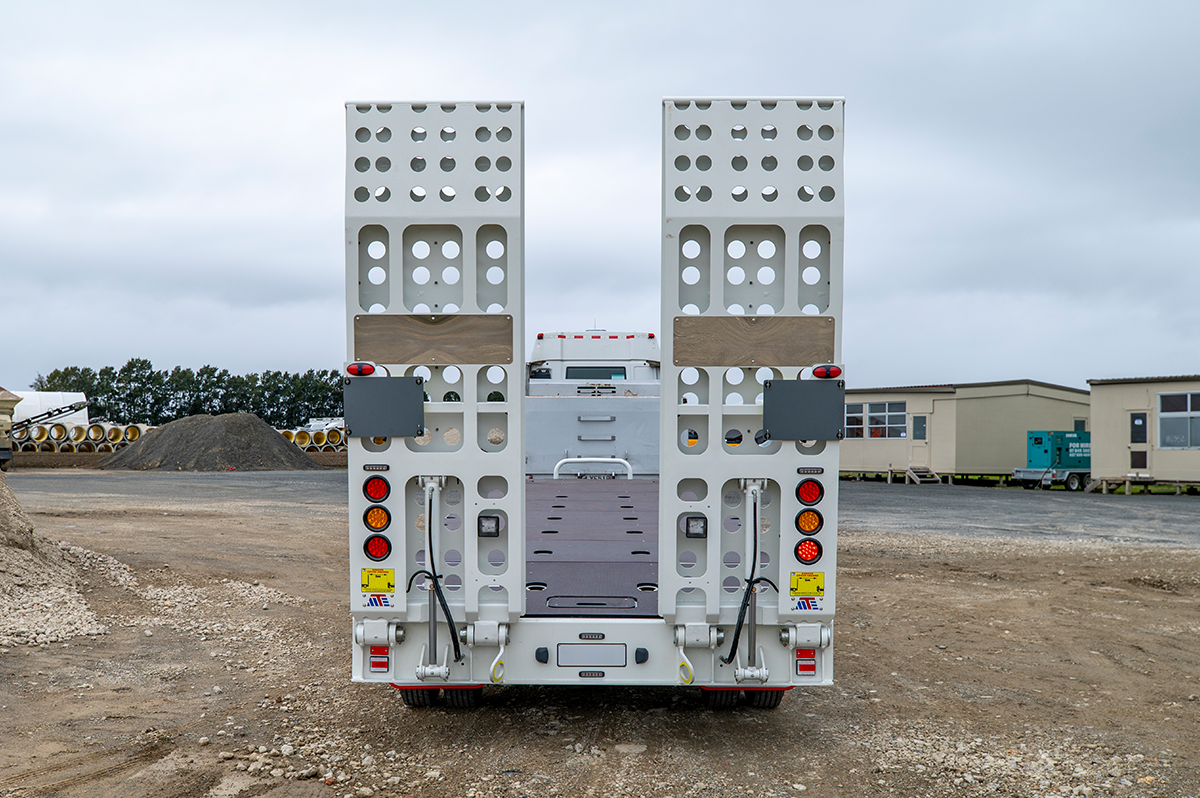

Ramps: 2,700 x 900mm hydraulic
Wheels: Weight Cheetah 17.5” x 6.75”
Tyres: 215 x 17.5”
Deck Type: Steel with 2” pine
Lights: Hella LED
Control Valves: Drivers side
Odometer: Included

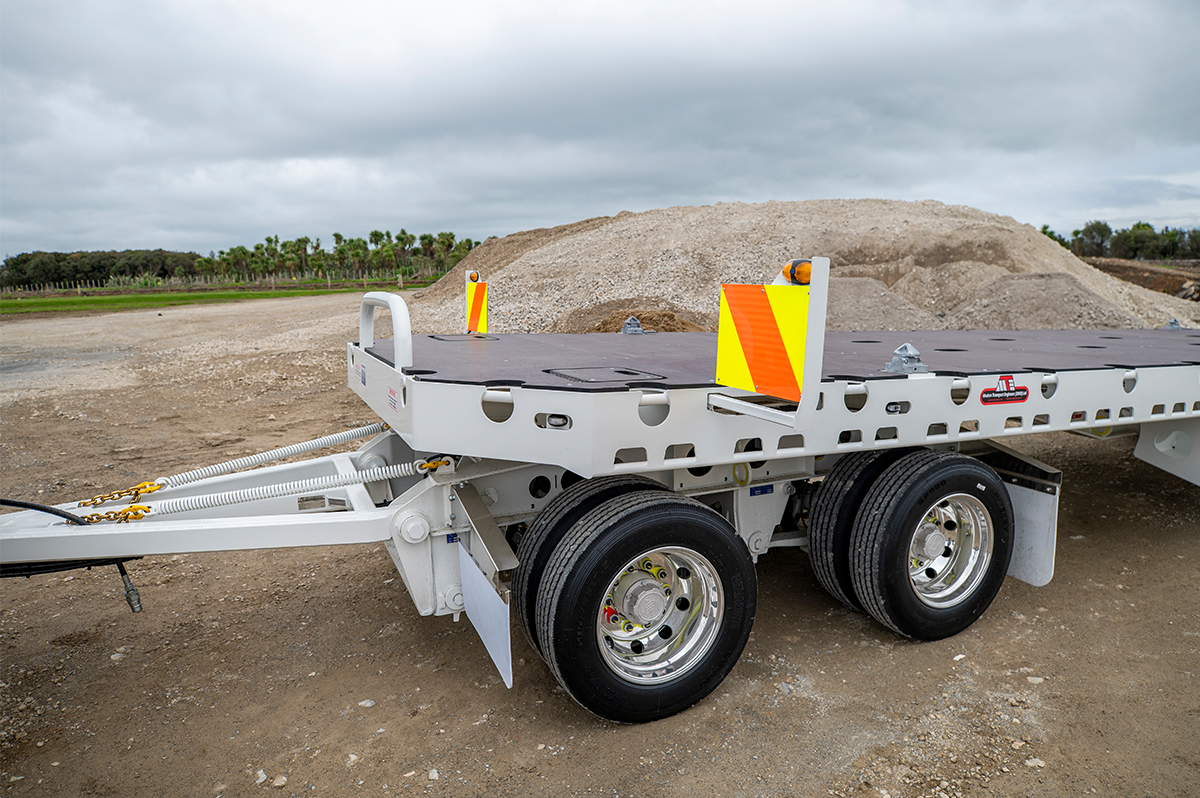

Signage: Hazard panels & oversize signs
Machined, polished or premium finish

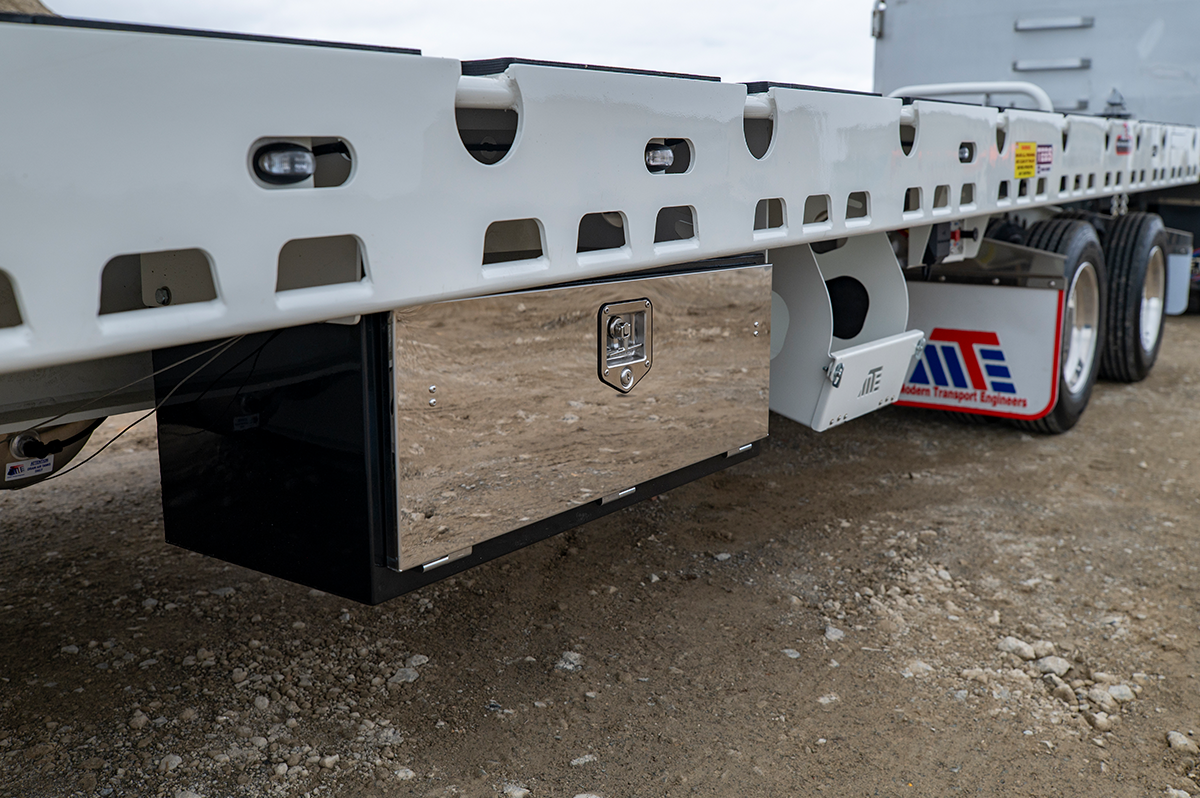

Lockable toolbox options
Traffic Cone Storage

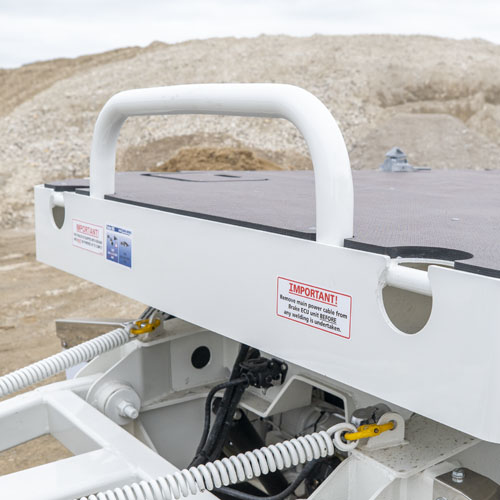

Protecting from forward-moving loads
Petrol or diesel powerpack options
Provides safe and convenient access into the rear of a tipper
