TAKE ON ANY LOAD, BIG OR SMALL, WITH THE MTE SEMI FLAT TOP EXTENDABLE TRAILER – ENGINEERED FOR FLEXIBILITY AND BUILT TO GO THE EXTRA LENGTH.

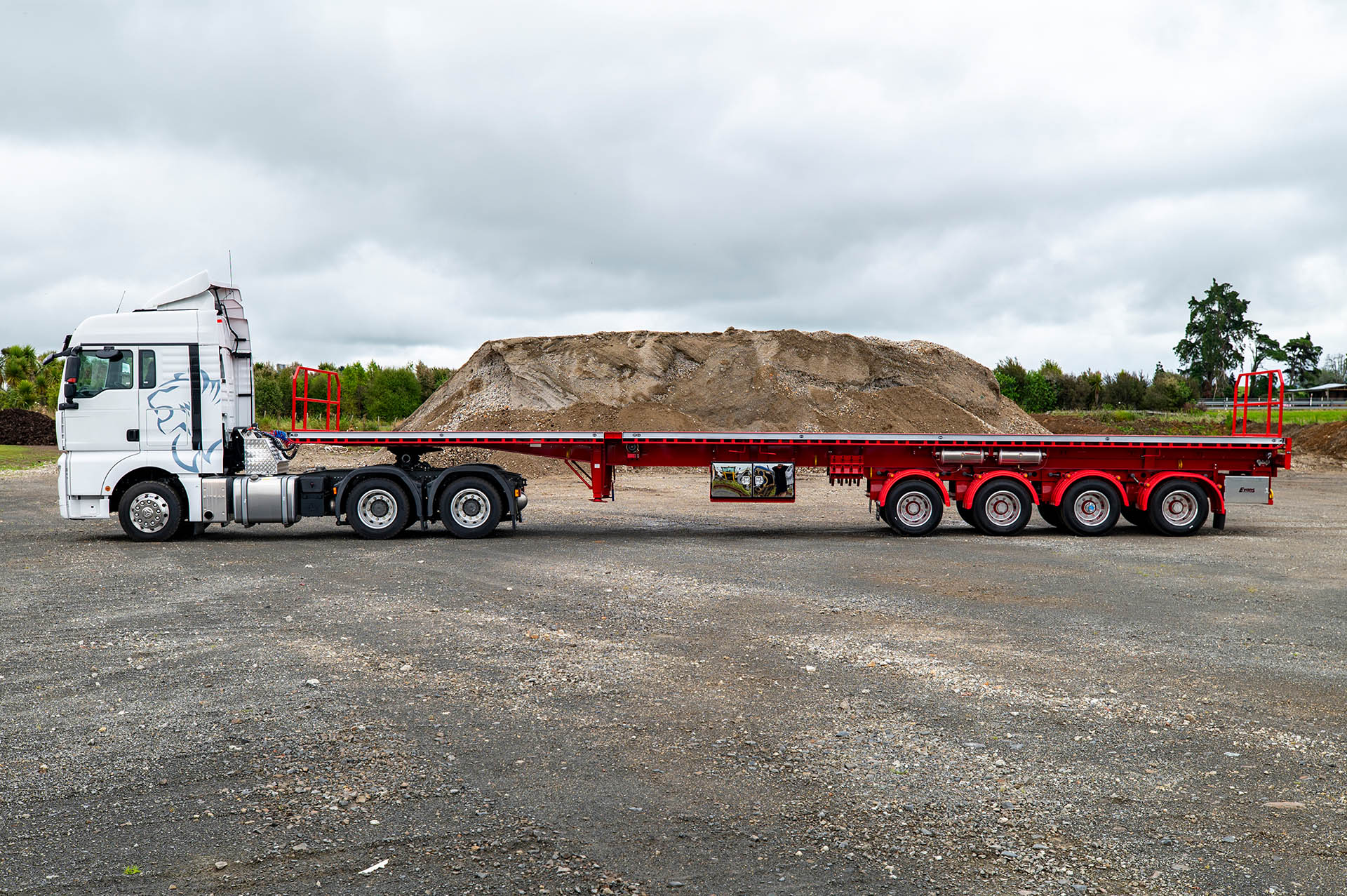

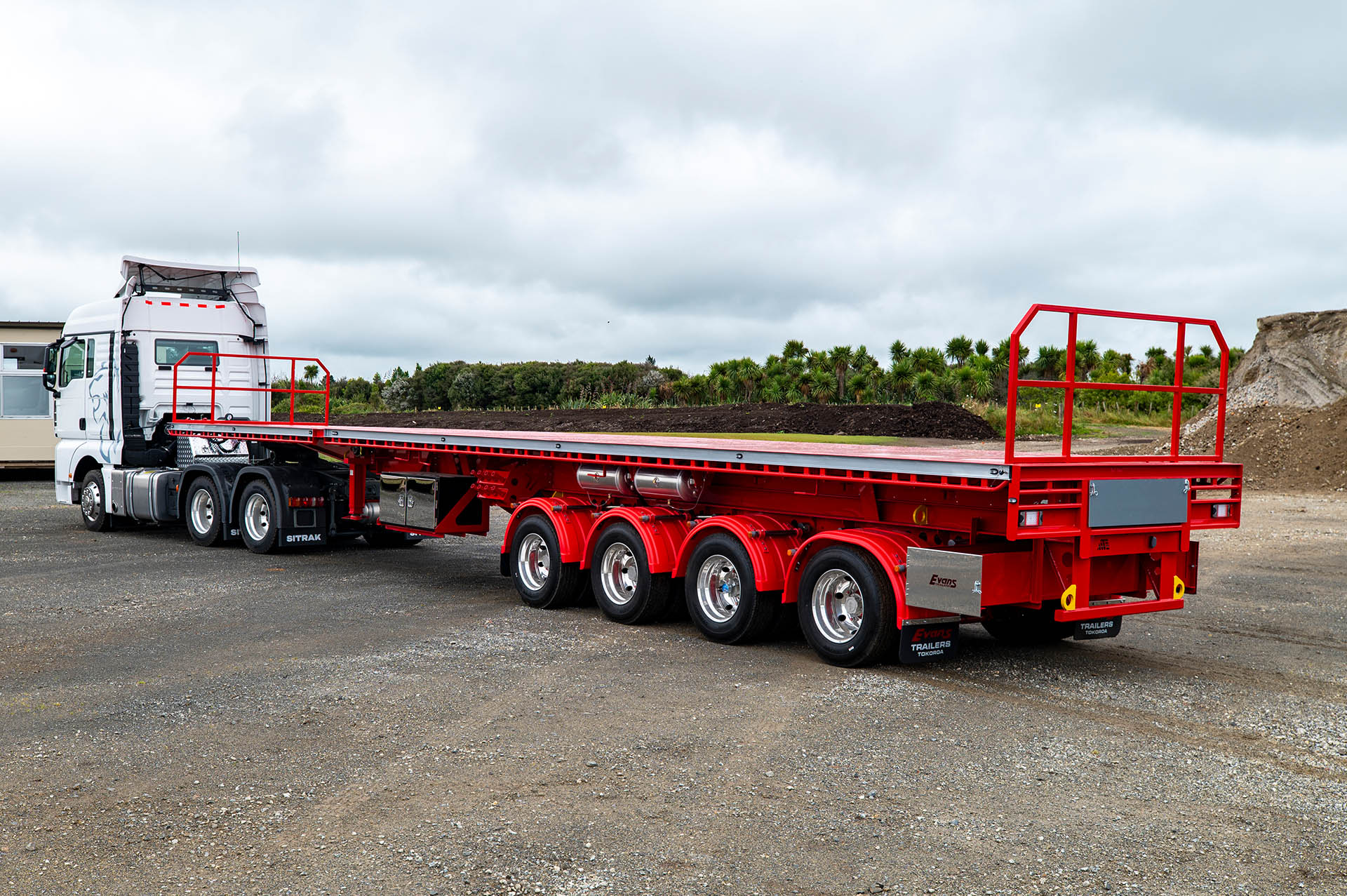

The MTE semi flat top trombone trailer, often simply referred to as a flat top trailer or flatbed trailer, is a versatile type of trailer used in the transportation industry for hauling a wide variety of cargo including machinery, construction materials, and shipping containers. It features a flat extendable deck and rear bumper, providing an unobstructed surface that is ideal for carrying over dimensional or irregularly shaped loads that cannot fit into standard enclosed trailers.

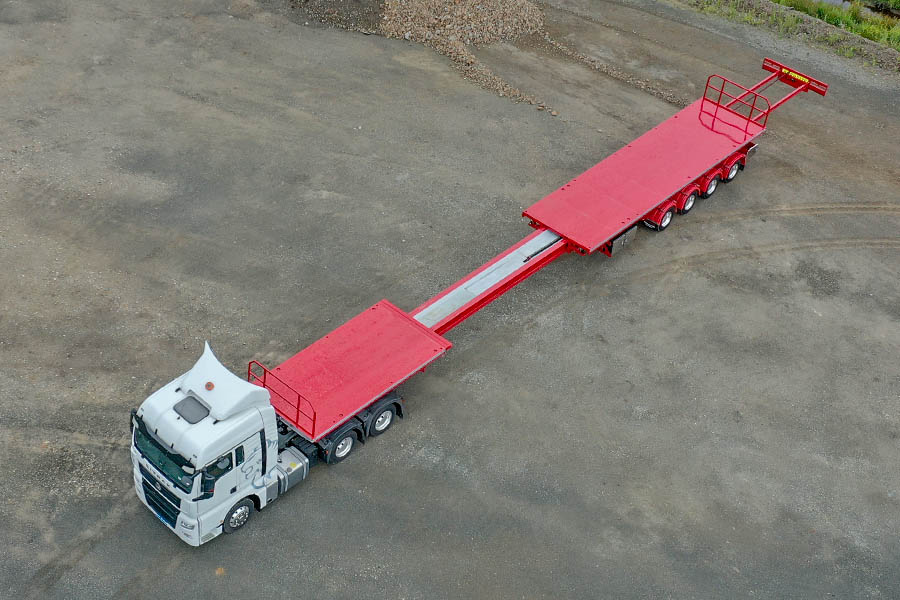

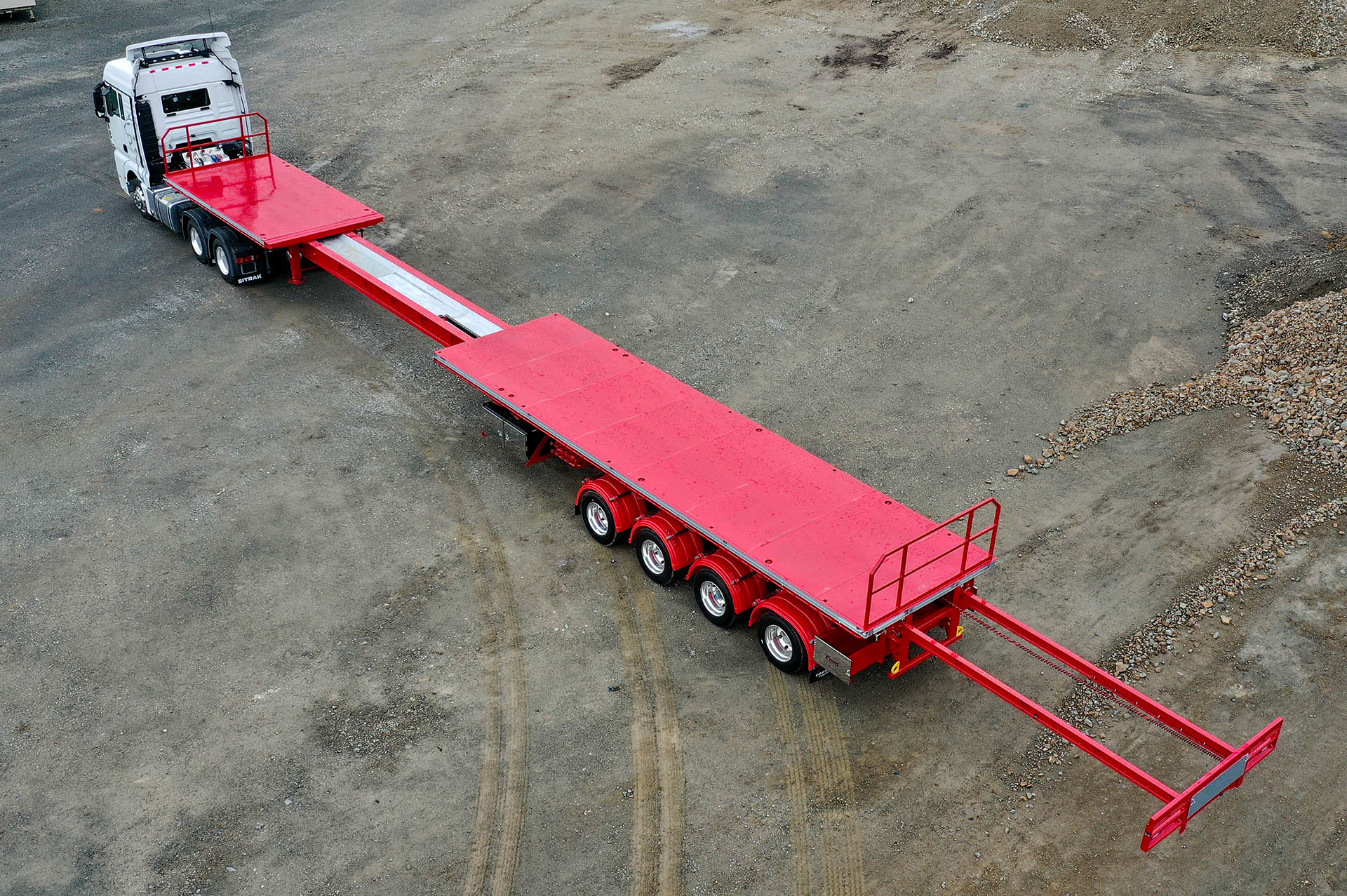

Designed with a front extension of up to 8000mm and a rear bumper extension of 4000mm with 1000mm locking positions, giving operators greater flexibility for long or over-dimensional loads.
Durable steel deck construction built for heavy transport applications, machinery, materials and general freight.

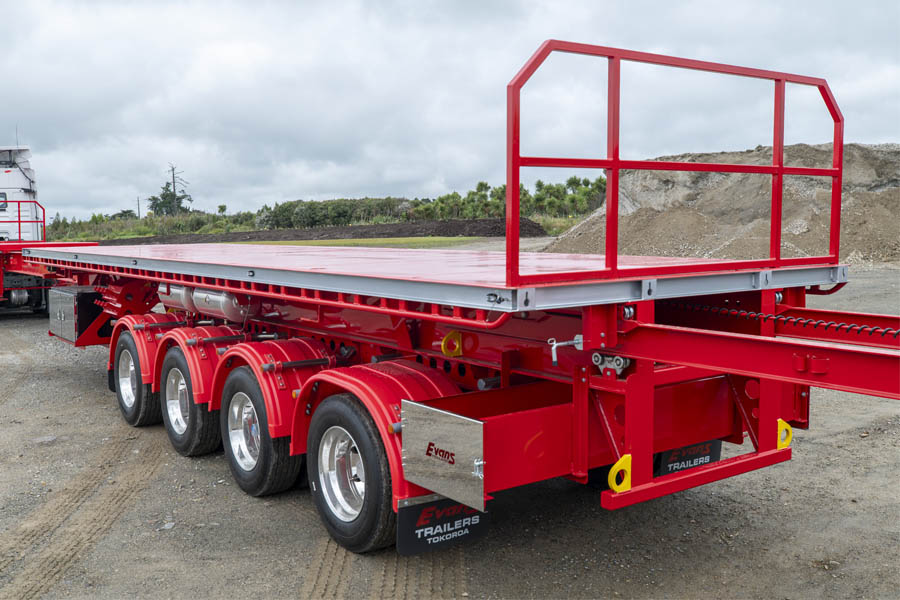

Fitted with ferry hooks, rope rail and chain slot plates to provide flexible tie-down options for different freight types.

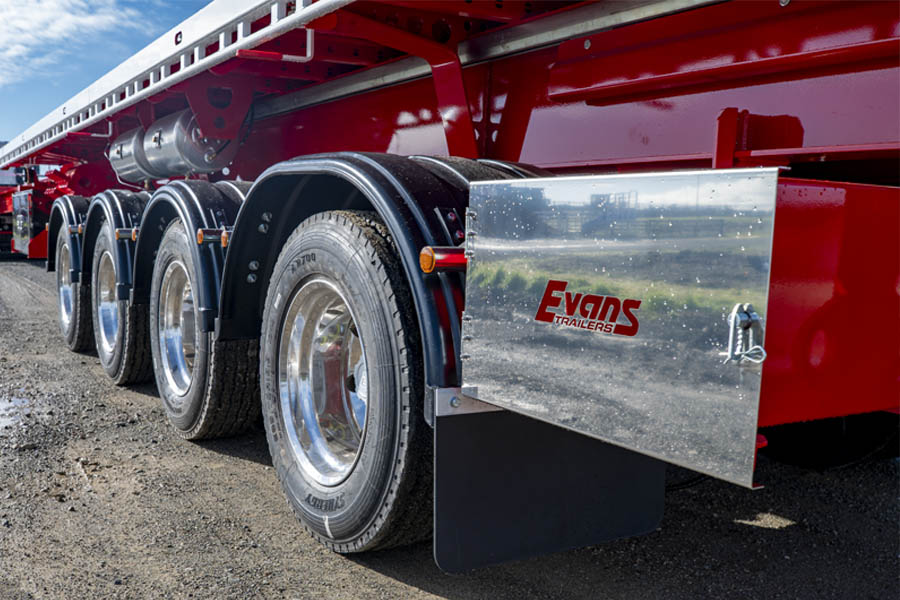

MTE 19.5” disc brake axles, with one steering disc brake axle to improve manoeuvrability and tyre wear.

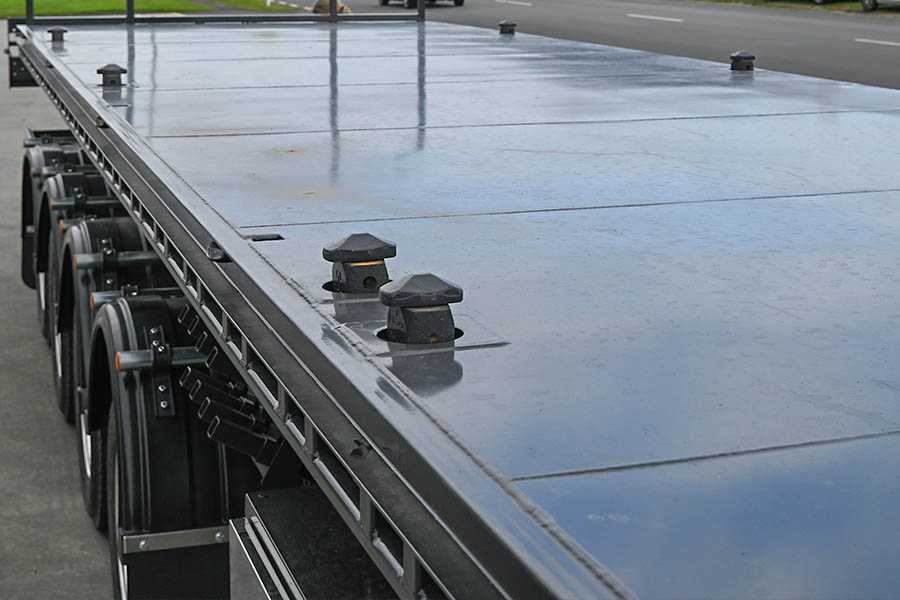

Optional under-deck twist locks allow the trailer to carry 2 x 20ft, 1 x loaded 20ft or 1 x 40ft ISO containers.

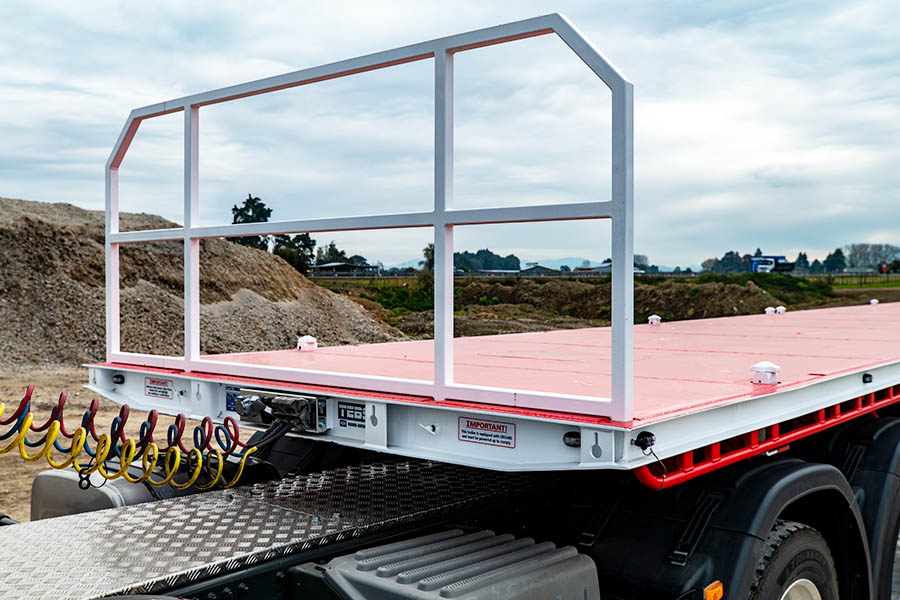

Front and rear removable headboards provide extra load security while still allowing flexibility when required.
Capacity (GVM): 36,000kg
Forward Length (Closed): 9200mm + 650mm
Forward Lengths (Open): 10,300mm - 11,300mm - 13,300mm
Deck Ride Height: 1516mm
Deck Width: 2495mm
Rear Overhang: 4195mm
Deck Length (Closed): 14,992mm
Front Extension: 8000mm

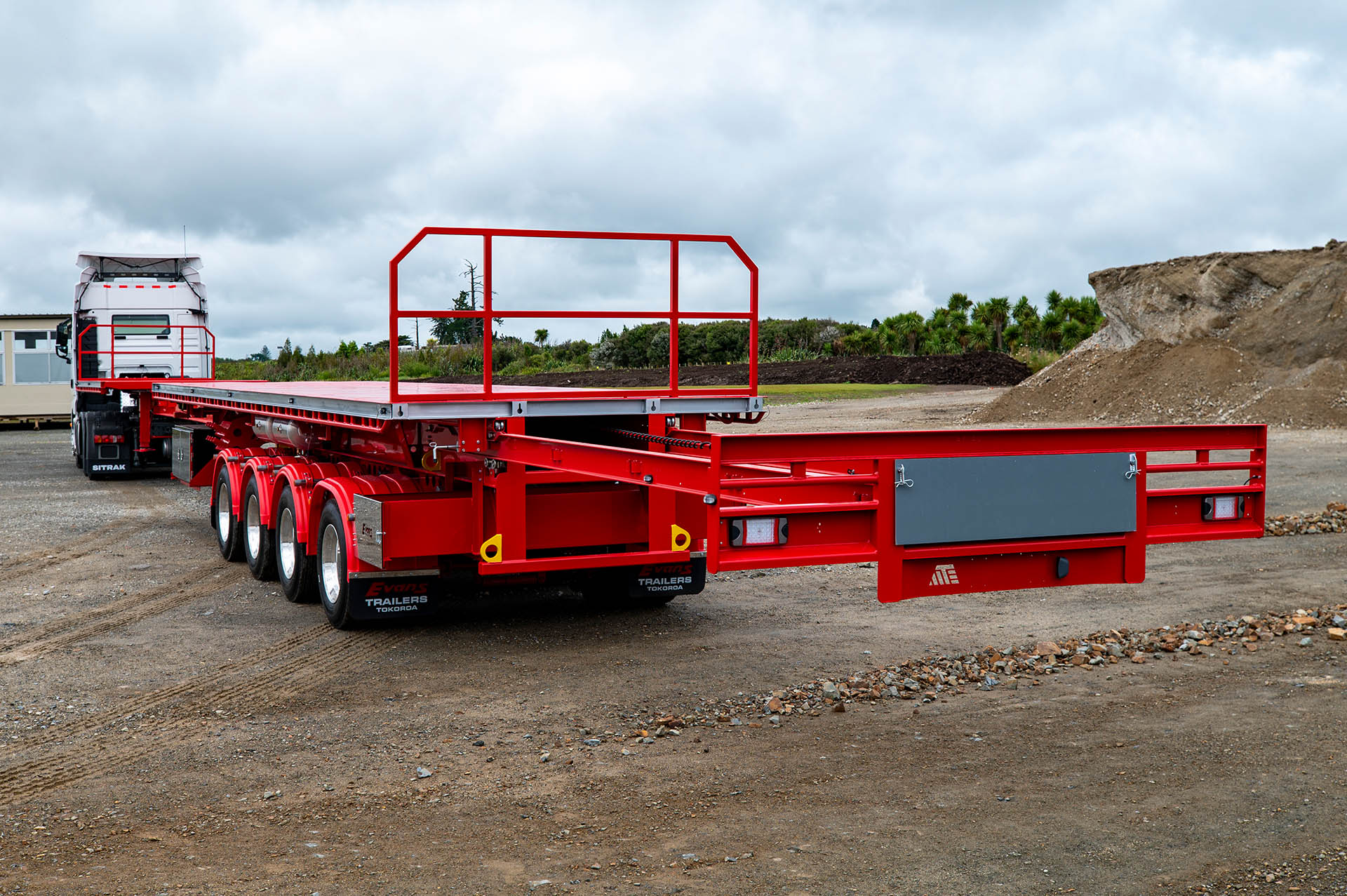

Bumper Extension: 4000mm with 1000mm Locking Positions

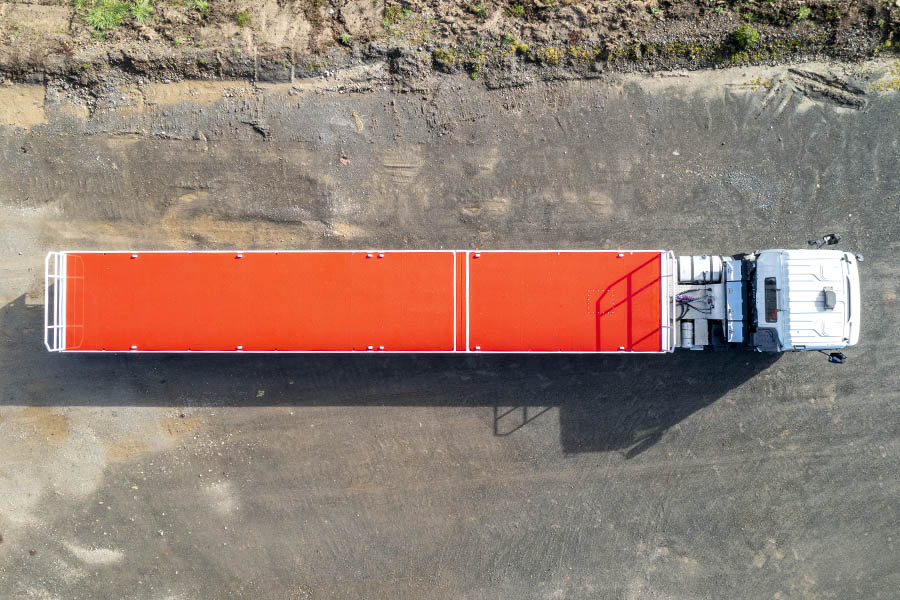

Deck Type: 4mm Coreten Steel Deck
Suspension: MTE Air Suspension
Axles: MTE 19.5” Fixed Disc Brake Axle 1850mm Track, 1 x MTE 19.5” Steering Disc Brake Axle 1850mm Track
Axle Spacing: 1300mm
Brakes: Knorr-Bremse EBS
Landing Legs: Wind Up Landing Legs - G Foot Style
Rub Plate: Single Fixed Position
Rub Plate Height: 1287mm
King Pin: 50mm Drop-in King Pin
Load Anchorage: Ferry Hooks, Rope Rail, Chain Slot Plates
Wheels: Weight Cheetah Alloy Wheels
Tyres: 265 x 19.5” Synergy Tyres
Lights: Hella LED
Mud Flaps: Mud Flaps Front & Rear
Mud Guards: Plastic Mud Guards
Hubometer: Included
Signage: Oversize Signange On Rear, Operator Safety Signage
Headboard: Removable Headboard front & rear
Control Valves: Manual Dump for Airbags & Extension Lock on Drivers Side in Front of Axle Group.

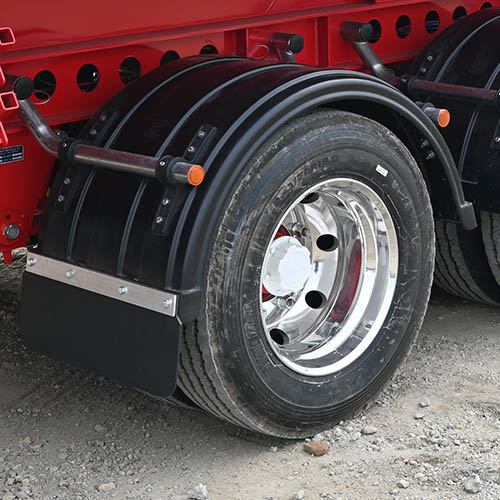

Upgrade your trailer with premium Weight Cheetah alloy wheels, available in Machined, Polished, or Premium Finish options

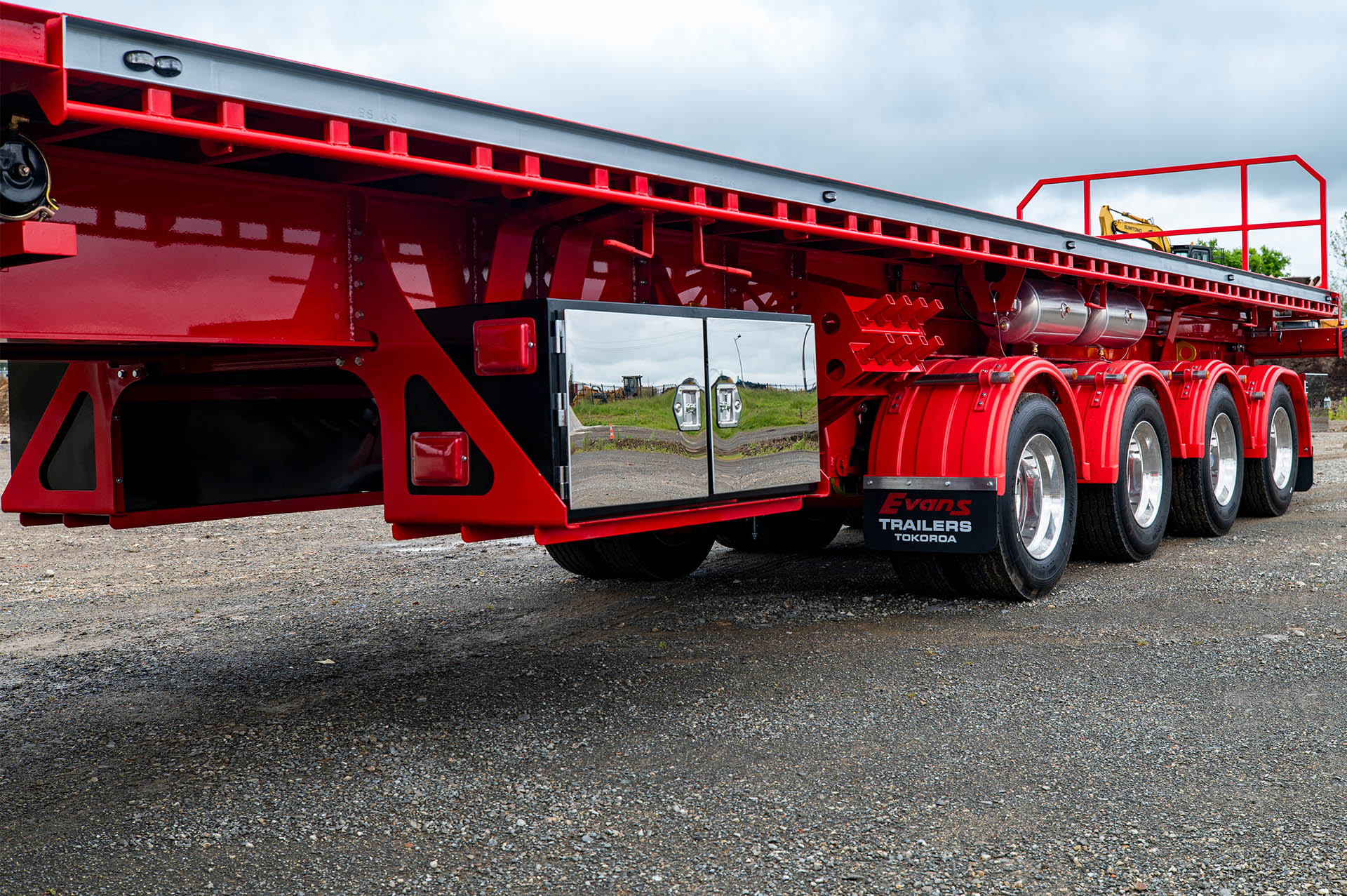

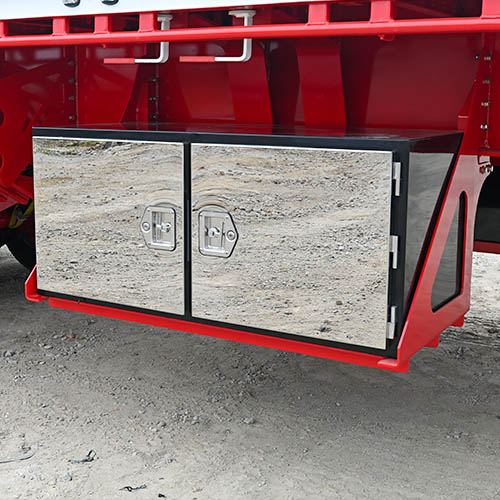

Heavy-duty lockable toolbox provides secure storage for chains, straps, tools and transport equipment

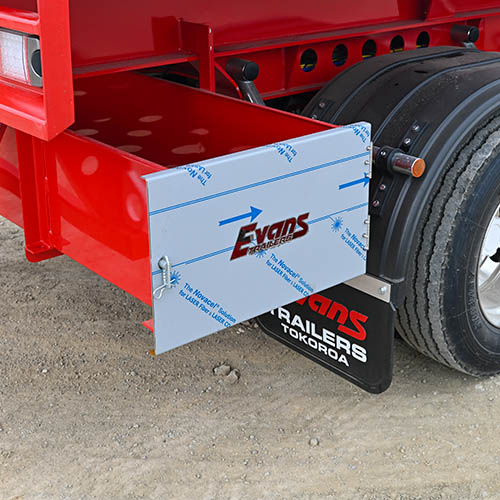

Rear-mounted dunnage tray keeps timber, blocks and load support equipment organised and easily accessible

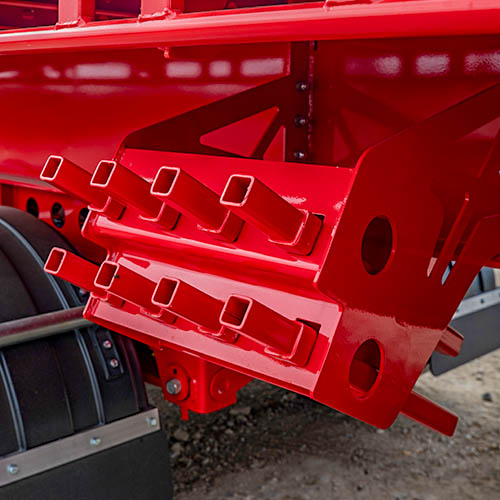

Integrated stanchion holders provide secure storage for removable load restraints, keeping equipment safely stored when not in use
