Built to handle every load.

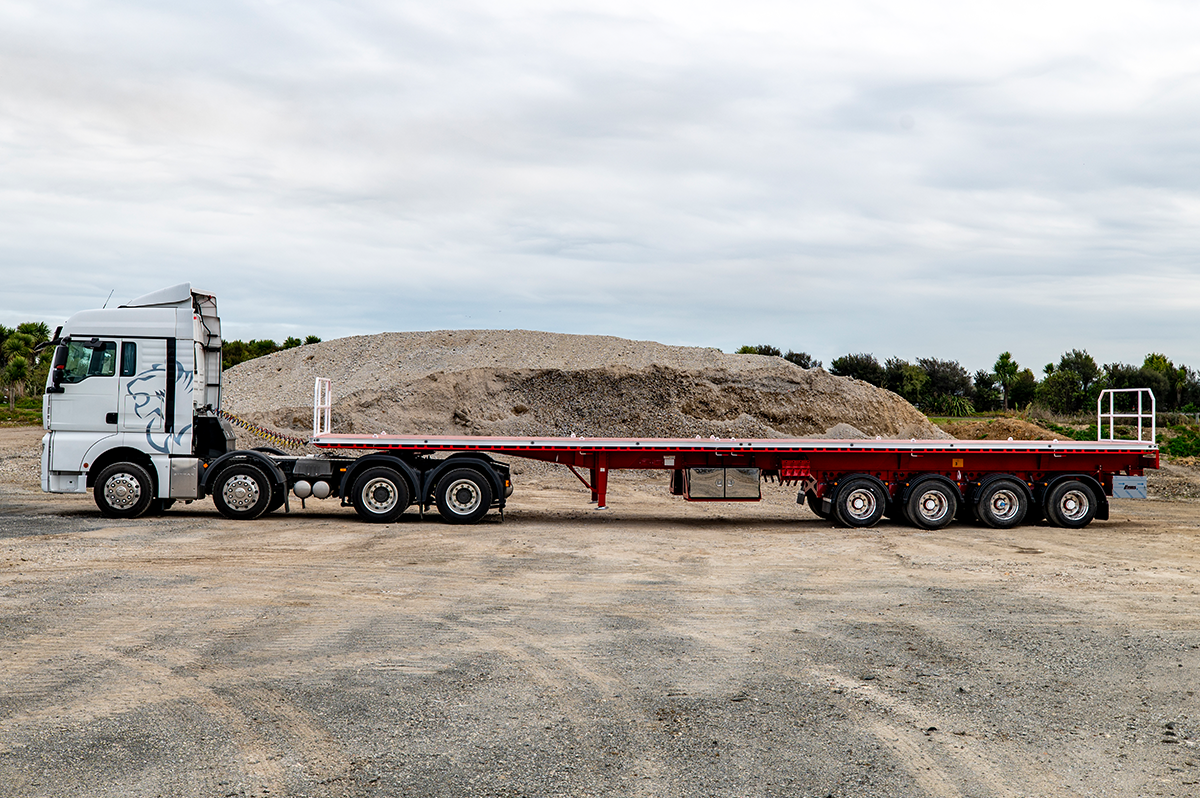

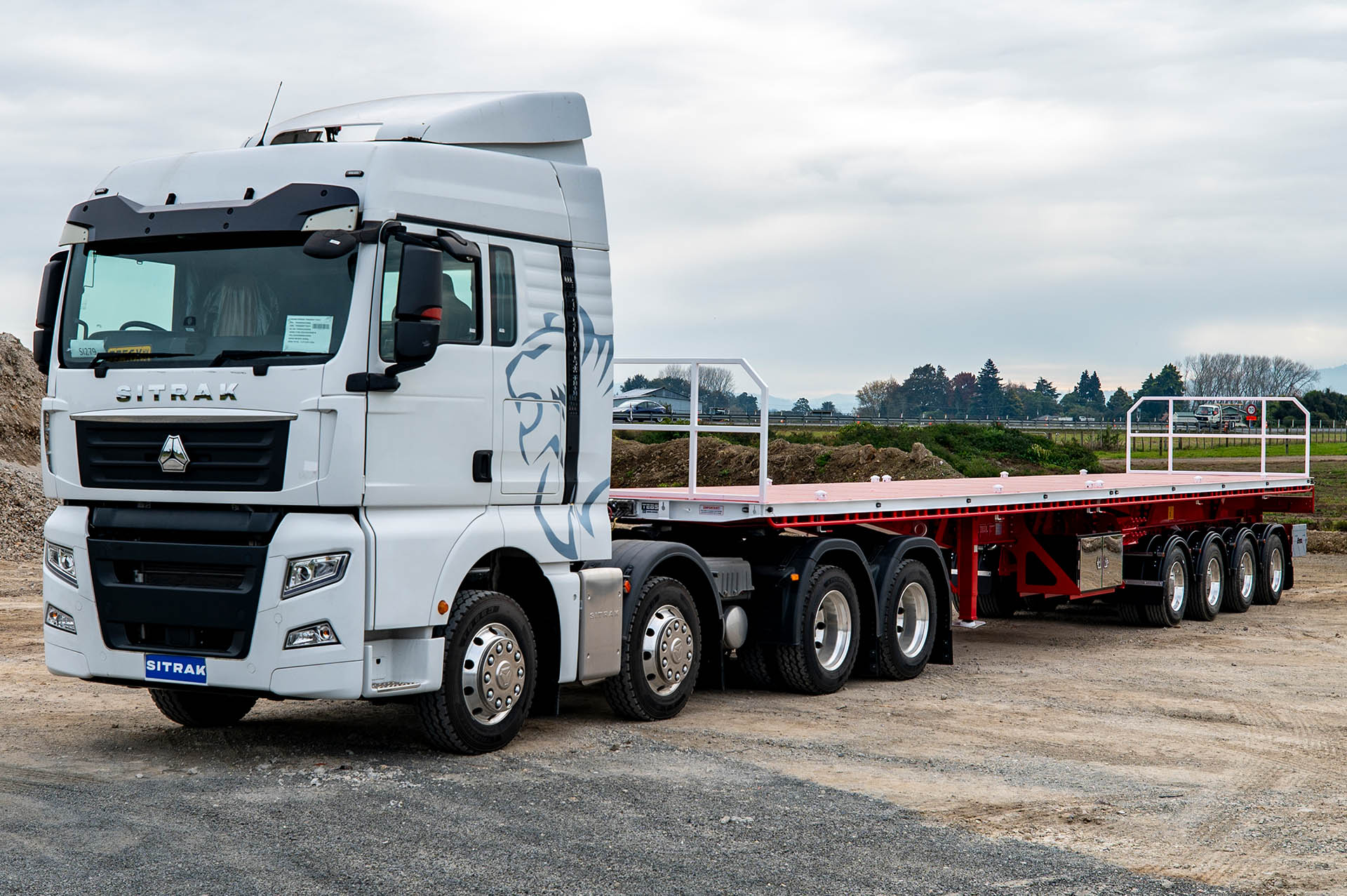

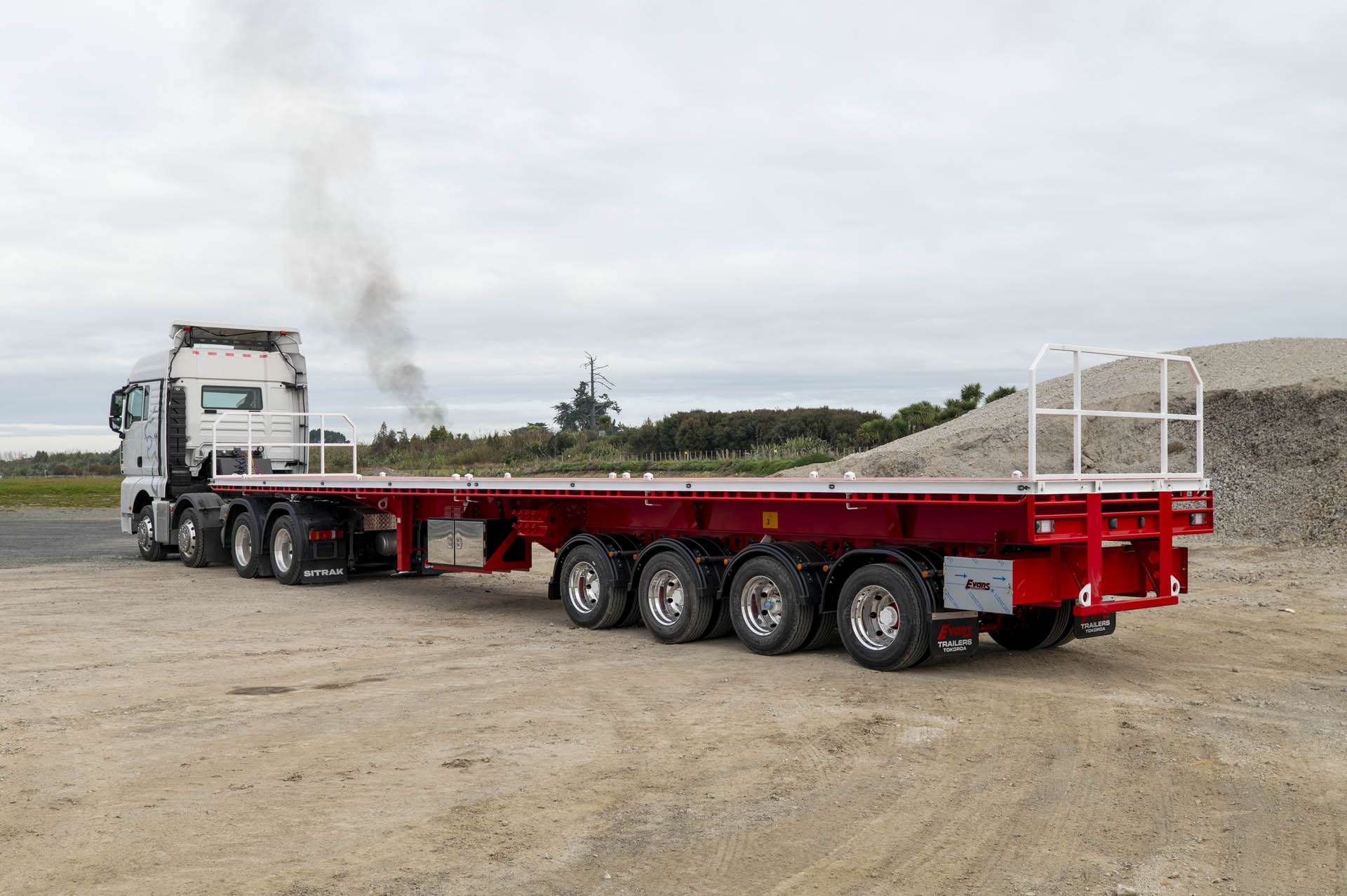

The MTE 4 Axle Semi Flat Top is a versatile heavy-duty trailer designed to transport everything from machinery and construction materials through to palletised freight and ISO containers. Combining a durable steel deck, proven MTE suspension, steering axle technology and premium running gear, it delivers exceptional performance, stability and payload capability across New Zealand's toughest transport applications.
Engineered and manufactured in New Zealand, every MTE Semi Flat Top is built to withstand demanding conditions while offering the flexibility to customise the trailer for your specific operation with a wide range of optional extras.

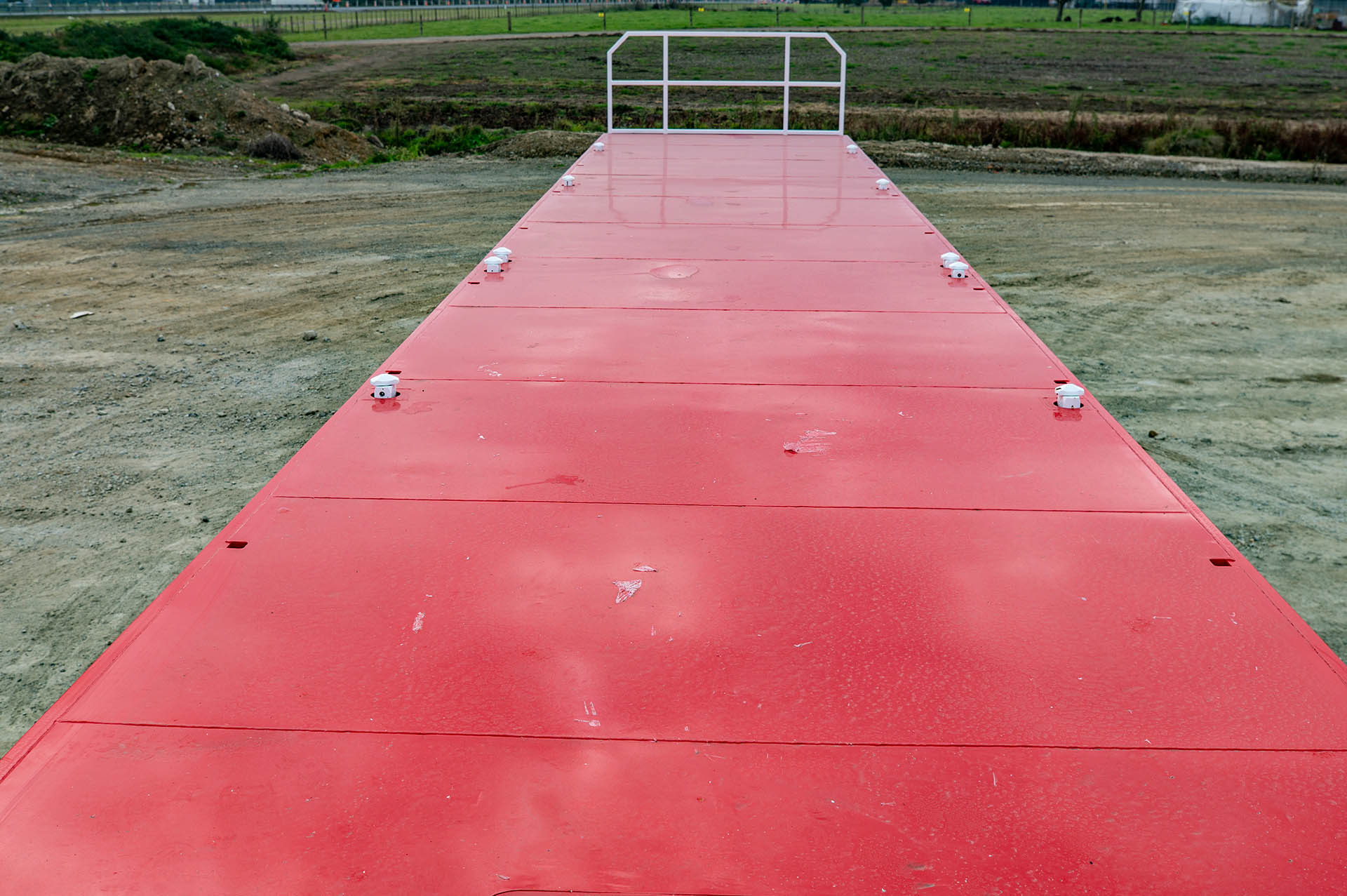

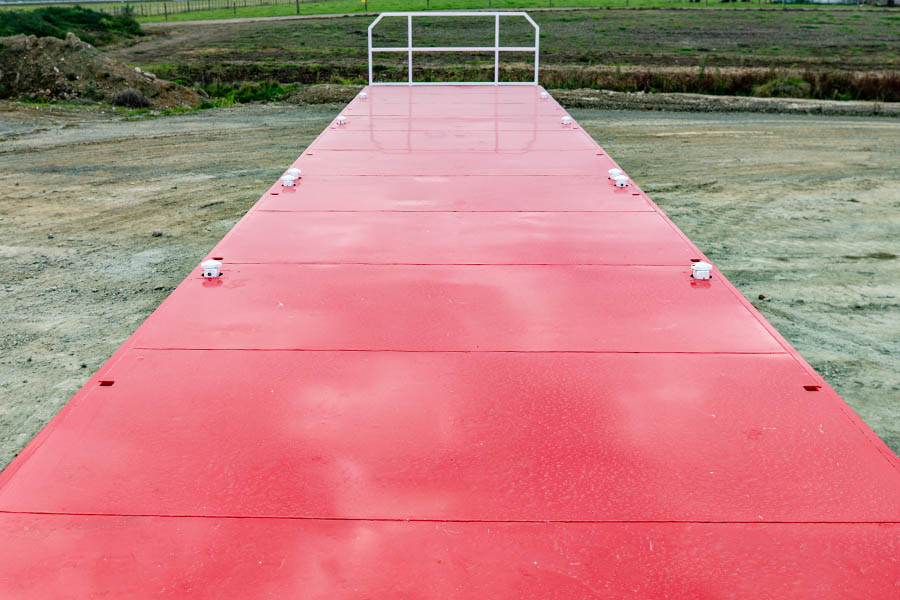

Manufactured with a durable 4mm Cor-Ten steel deck, providing a strong, hard-wearing surface designed for daily commercial use and demanding freight applications

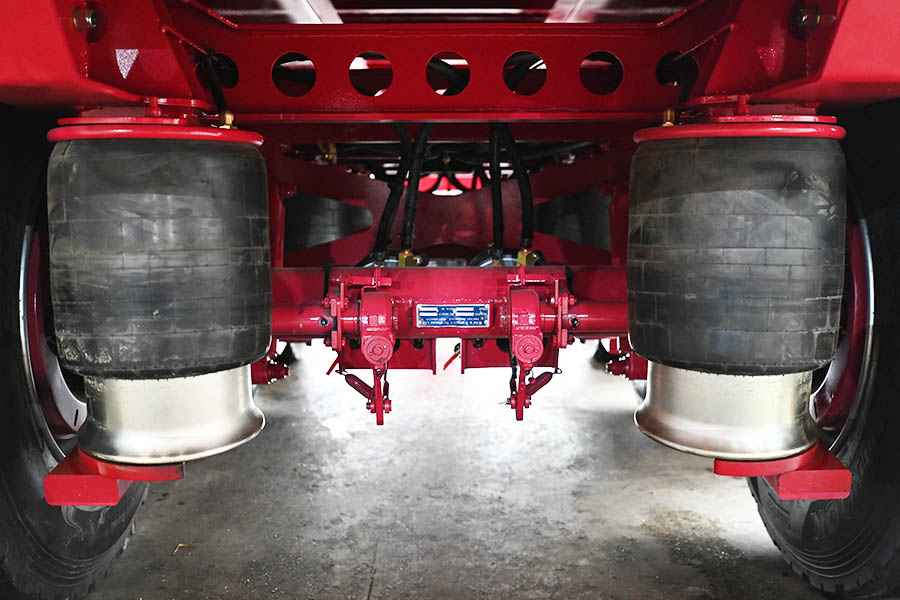

Premium MTW air suspension delivers outstanding ride quality, improved load protection and excellent towing performance over varying road conditions
Fitted with rope rails, ferry hooks and staunchion plates, providing multiple securing options for virtually any type of load

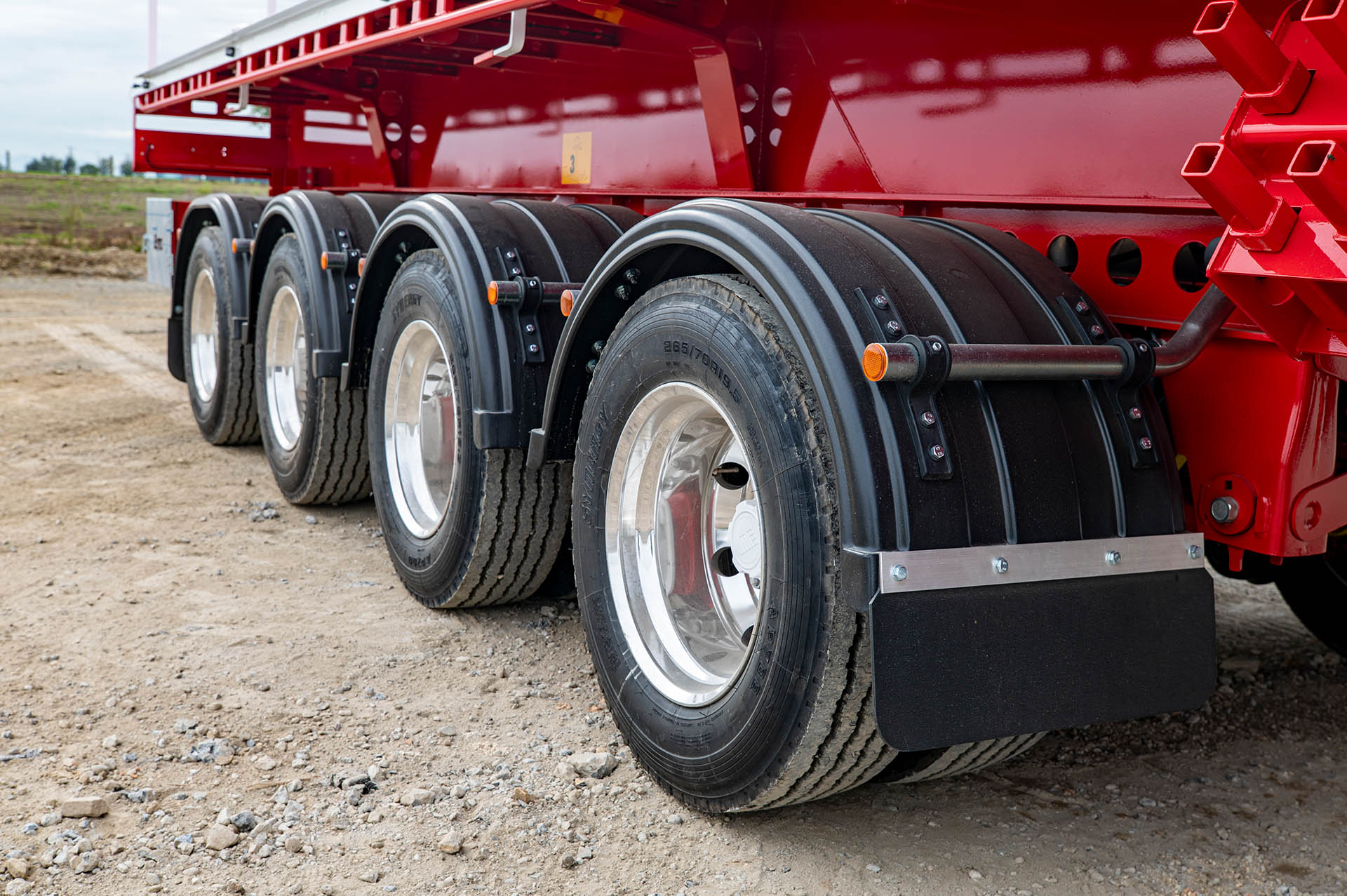

The rear steering axle improves tyre life, reduces scrub when cornering and enhances manoeuvrability

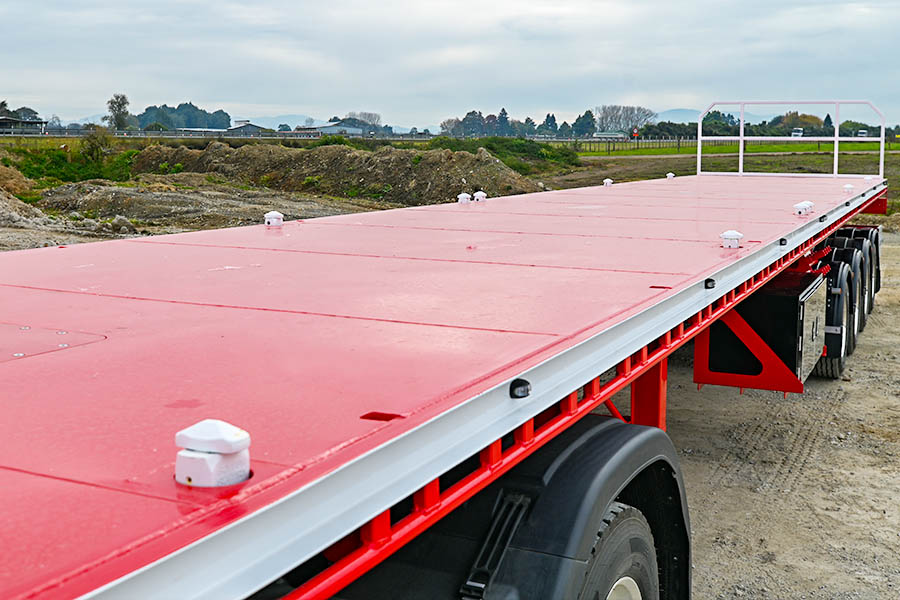

Designed to carry ISO shipping containers while remaining equally suited to machinery, building products and general freight

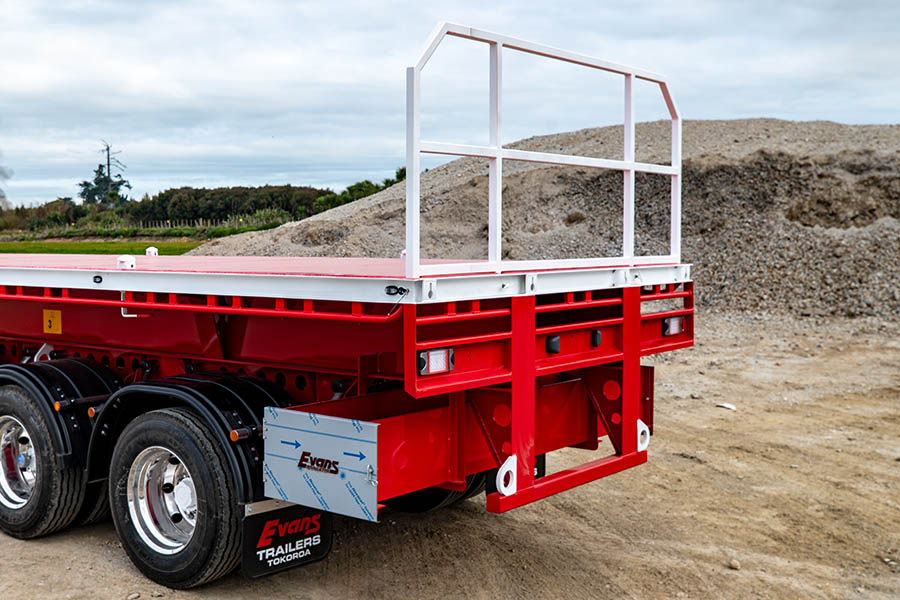

Front and rear removable headboards provide additional load security while allowing greater flexibility for oversized cargo
Capacity (GVM): 36,000kg
Forward Length: 9200mm
Deck Width: 2495mm
Rear Overhang: 4200mm
Deck Length: 15,000mm
Deck Type: 4mm Corten Steel Deck
Suspension: MTW Air Suspension

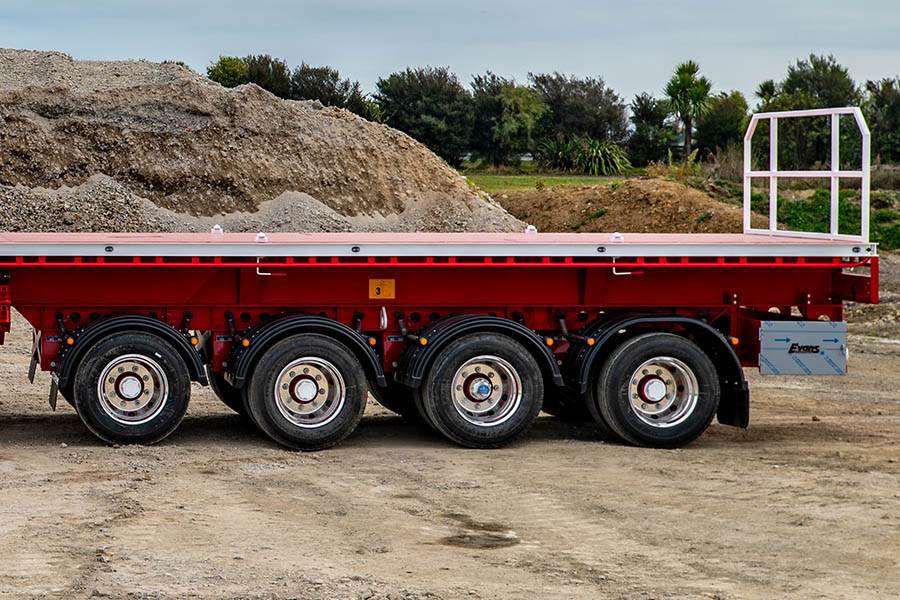

Axles: MTE 19.5” Fixed Disc Brake Axle 1850mm Track, 1 x MTE 19.5” Steering Disc Brake Axle 1850mm Track
Brakes: Knorr-Bremse EBS
Landing Legs: Wind Up Landing Legs - G Foot Style
Rub Plate: Single Fixed Position
King Pin: 50mm Drop-in King Pin
Load Anchorage: Ferry Hooks, Rope Rail, Chain Slot Plates
Wheels: Weight Cheetah Alloy Wheels
Tyres: 265 x 19.5” Synergy Tyres
Lights: Hella LED
Mud Flaps: Mud Flaps Front & Rear
Mud Guards: Plastic Mud Guards
Hubometer: Included
Signage: Operator Safety Signage
Headboard: Removable Headboard front & rear
Control Valves: Manual dump for Airbags & Extension Lock on Drivers Side in Front of Axle Group.
Upgrade your trailer with premium Weight Cheetah alloy wheels, available in Machined, Polished, or Premium Finish options

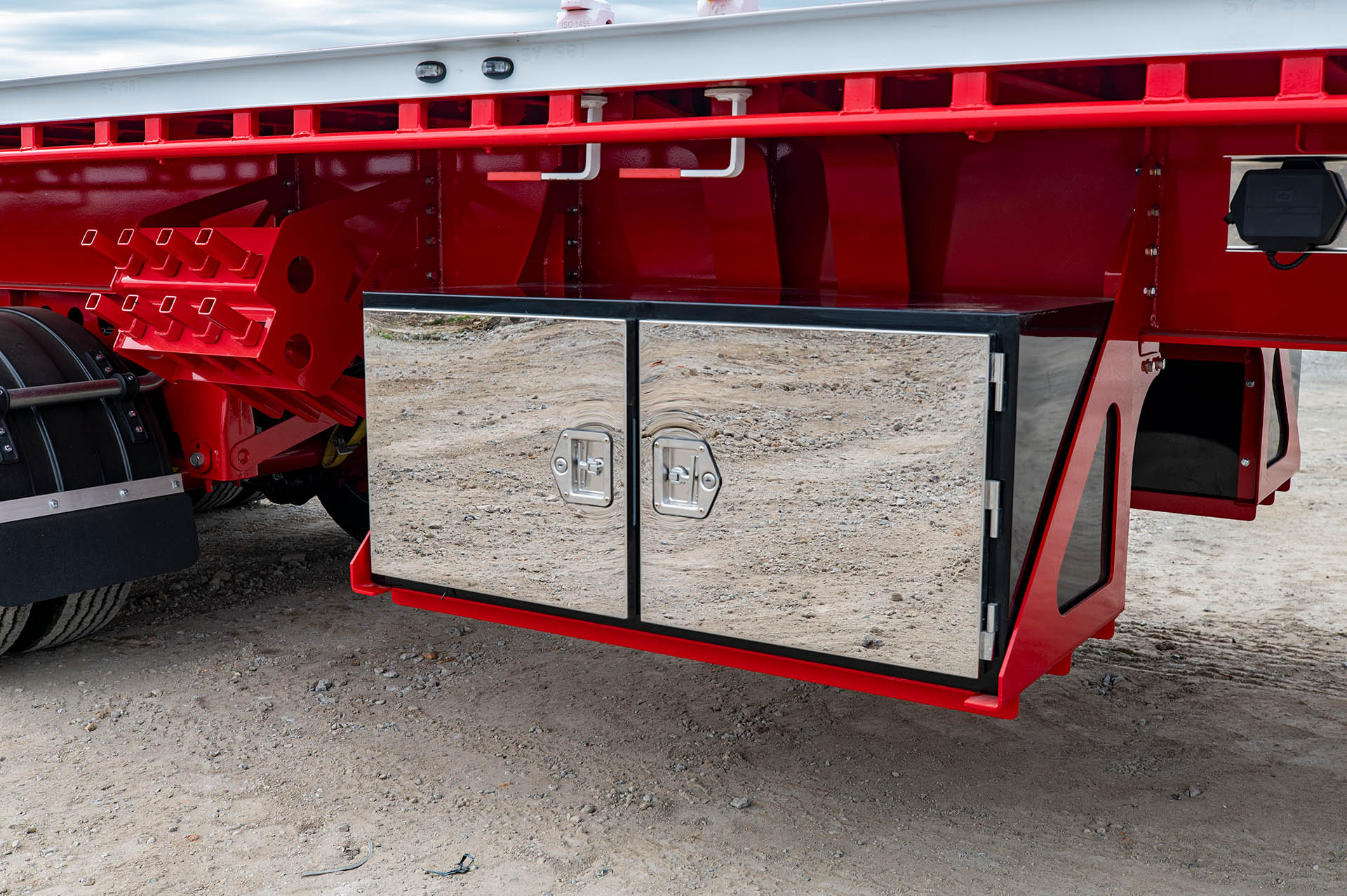

Heavy-duty lockable toolbox provides secure storage for chains, straps, tools and transport equipment
Rear-mounted dunnage tray keeps timber, blocks and load support equipment organised and easily accessible
Integrated staunchion holders provide secure storage for removable load restraints, keeping equipment safely stored when not in use
