As the Industry Standard for Heavy Transport, Modern Transport Engineers’ 4 Axle Semi Transporter is purpose-built for serious heavy haulage. Designed and manufactured in New Zealand using full high-tensile 700MPA steel, this transporter delivers exceptional strength, stability, and longevity under demanding conditions. With a 50,000kg GVM, low deck height, and a highly versatile loading configuration, the MTE 4 Axle Semi Transporter is ideally suited to transporting heavy machinery, construction equipment, and shipping containers. Proven in the field and engineered to perform, it’s a transporter you can rely on day in, day out.

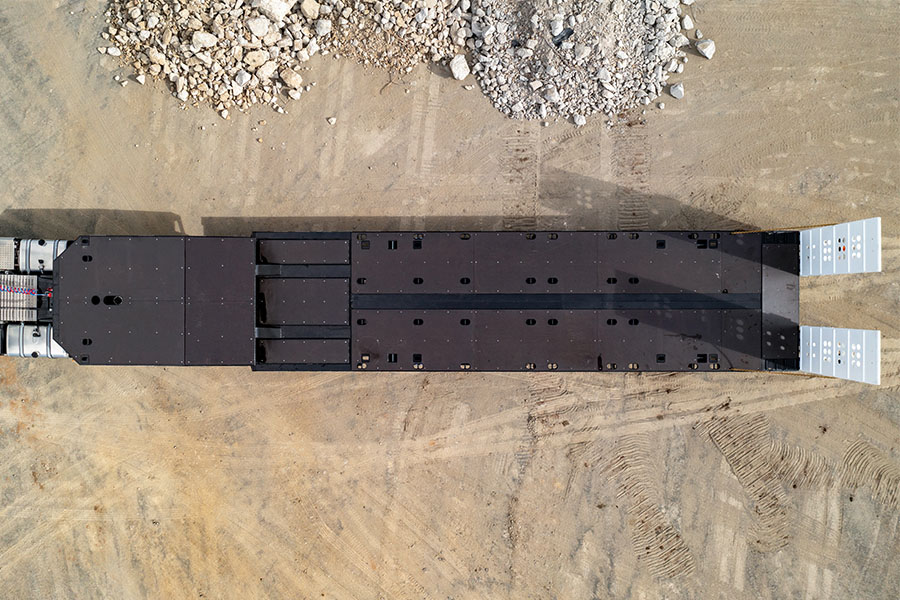

10.9m length, 2.8m width

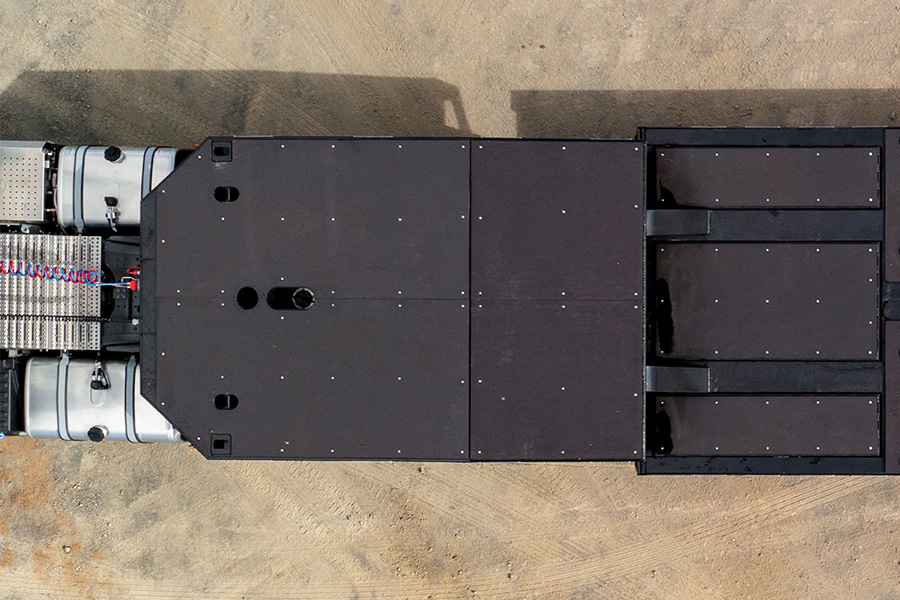

3.8m Length, 2.5m Width

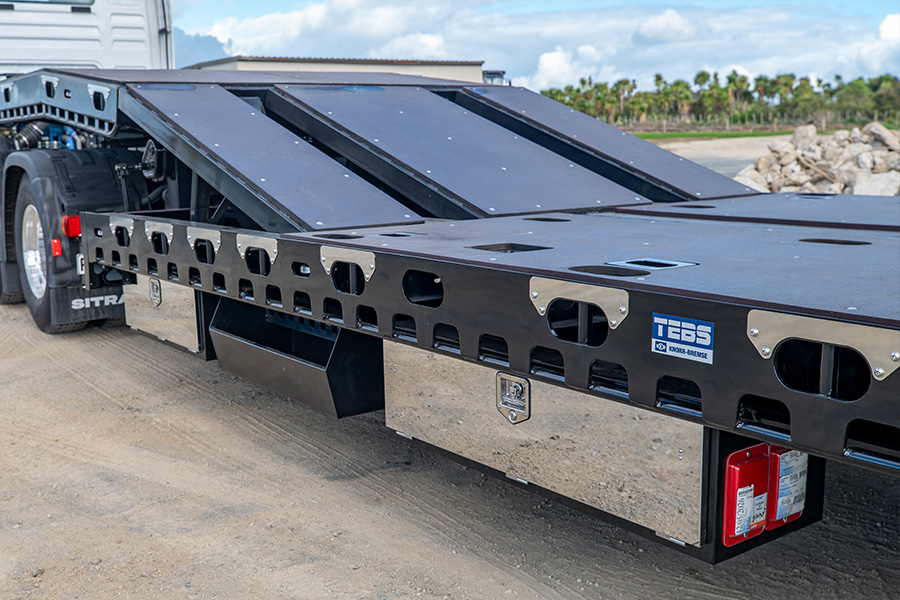

Air operated pop up ramps
Standard 9200mm
Various chain bins and dunnage tray configurations
Outboard drum brake design for quick and easy servicing

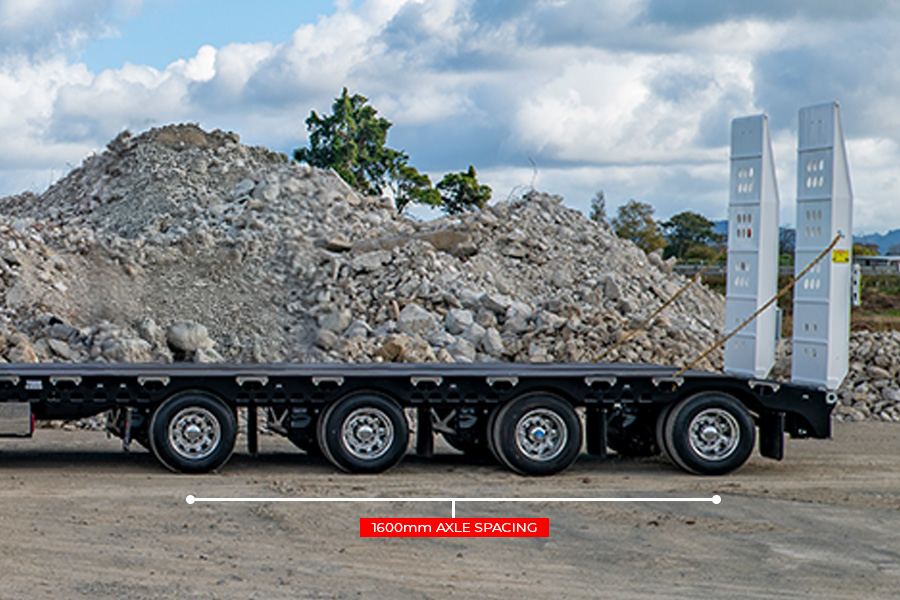

Short 1600mm Axle Spacing

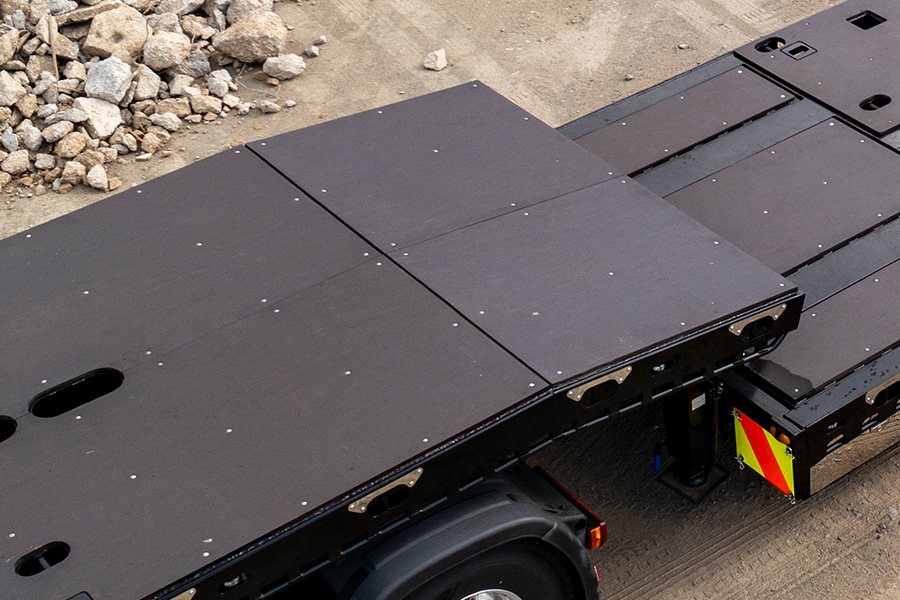

Provides enhanced grip and safety during loading
Capacity (GVM): 50,000kg
Deck Ride Height: 910mm

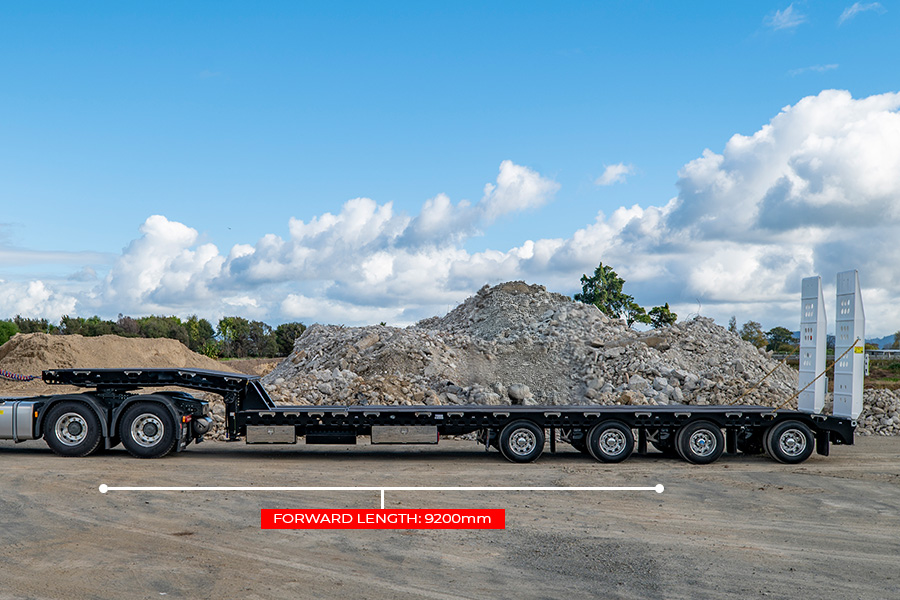

Forward Length: 9200mm
Deck Length: 10,900mm
Deck Width: 2800mm
Deck Type: Steel with 18mm ply
Axle Spacing: 1600mm
Axle Type: 17.5” 84”, Outboard drum
Suspension: MTW air suspension
Brakes Type: Knorr-Bremse EBS
Wheels: 17.5” x 6.0” alloy
Tyres: 215/70R 17.5”
Gooseneck: Fixed with single position rub plate
King Pin: MTE 50mm & 90mm drop in
Hydraulic Supply: Truck PTO
Lashings: 15x per side bottom deck Certified lashing ties to 9,000kg in coaming rails.
32x 9,000kg tie bars In top of bottom deck.
5x per side top deck certified lashing ties to 9,000kg in coaming rails.
2x 9,000kg tie bars in top of top deck. 2,500Kg Certified Rope rail top and bottom deck full length of trailer.
1x Twitch holder on drivers side under front of bottom deck, 900mm long, holds 10 twitches.
Shiplocks: 1x 20” empty container on bottom deck. Includes 4 x double ended shiplocks supplied.
1x 40” container. Includes 6 x double ended shiplocks & 2 x stools for loading 1x 40” containers utilising top deck
Lights: Hella LED
Mudflaps: MTE mudflaps

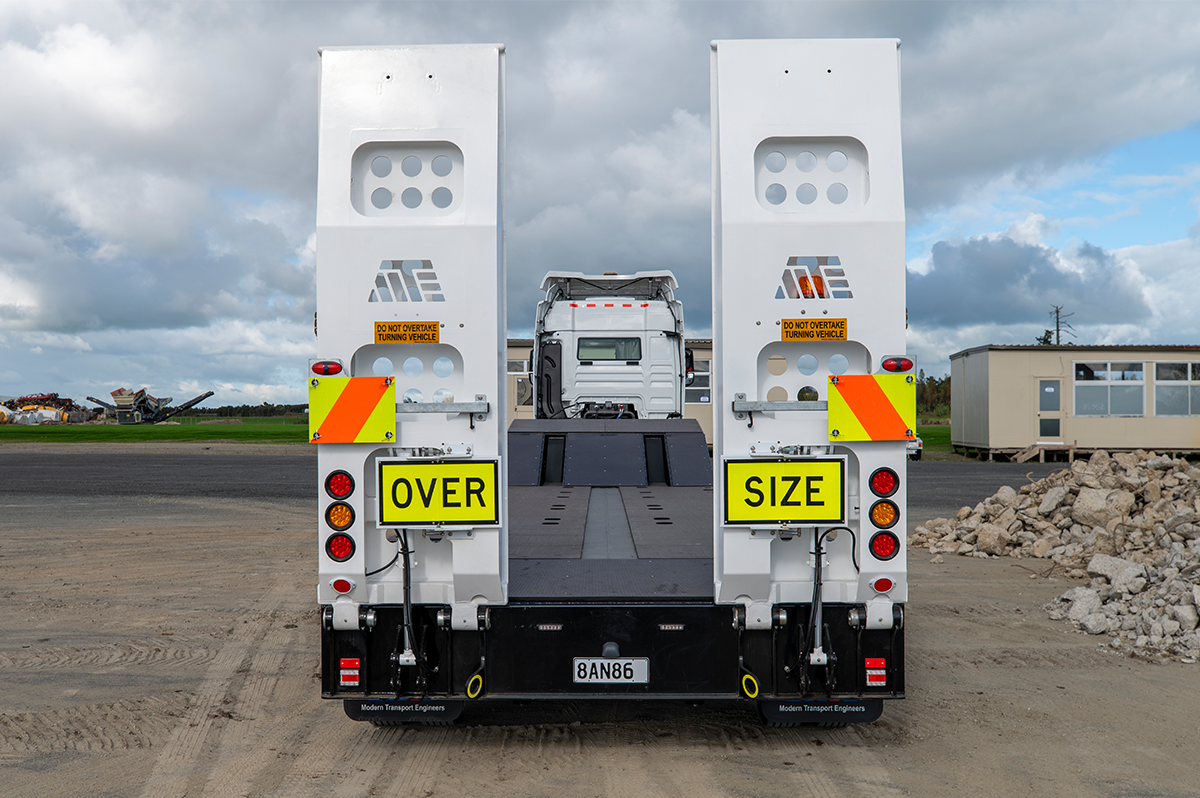

Signage: Hazard panels & oversize signs, Sliding chevrons with lights

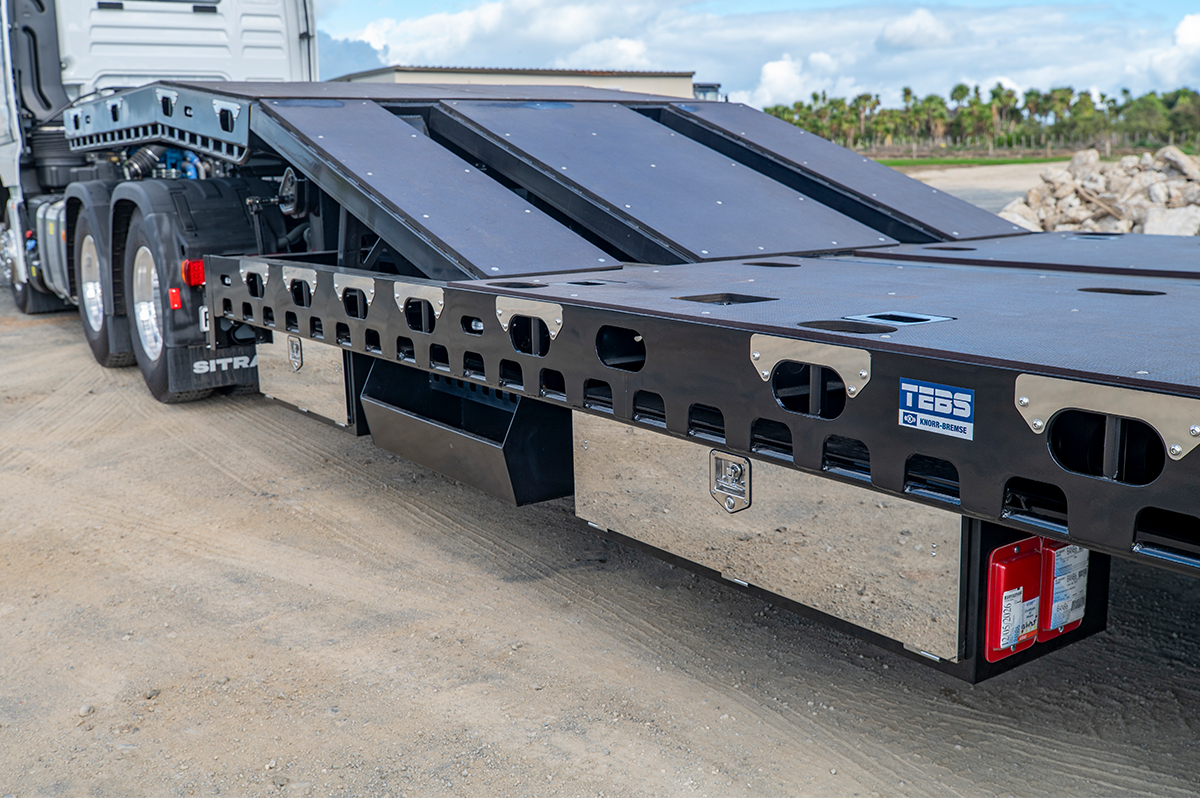

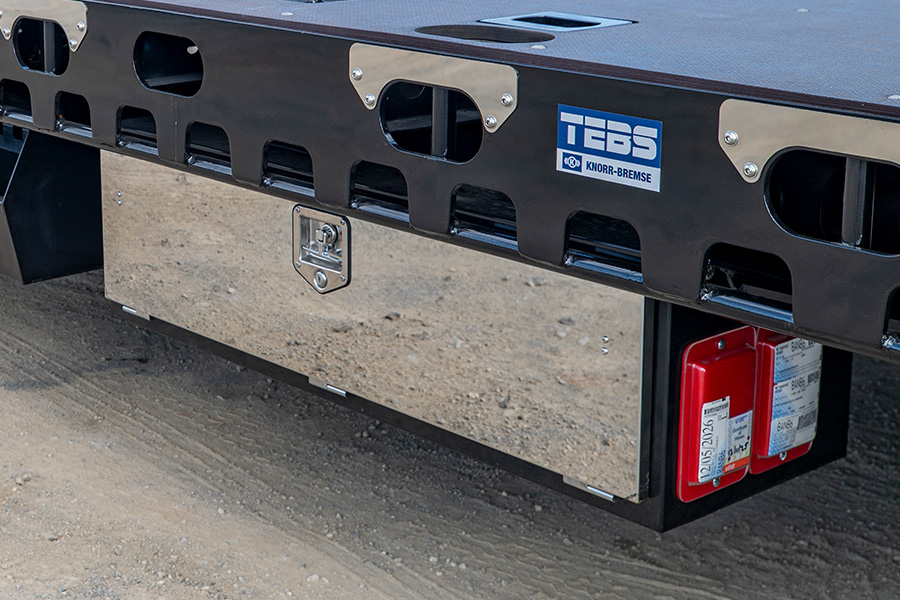

Storage: 2 x 1200mm Lockable toolboxes, 2 x 900mm Chain bins
Machined, polished or premium finish
Centralised automatic greasing
Various sizes available
Petrol or diesel powerpack options
Rubber decking
Extra storage
Larger or custom ramps
