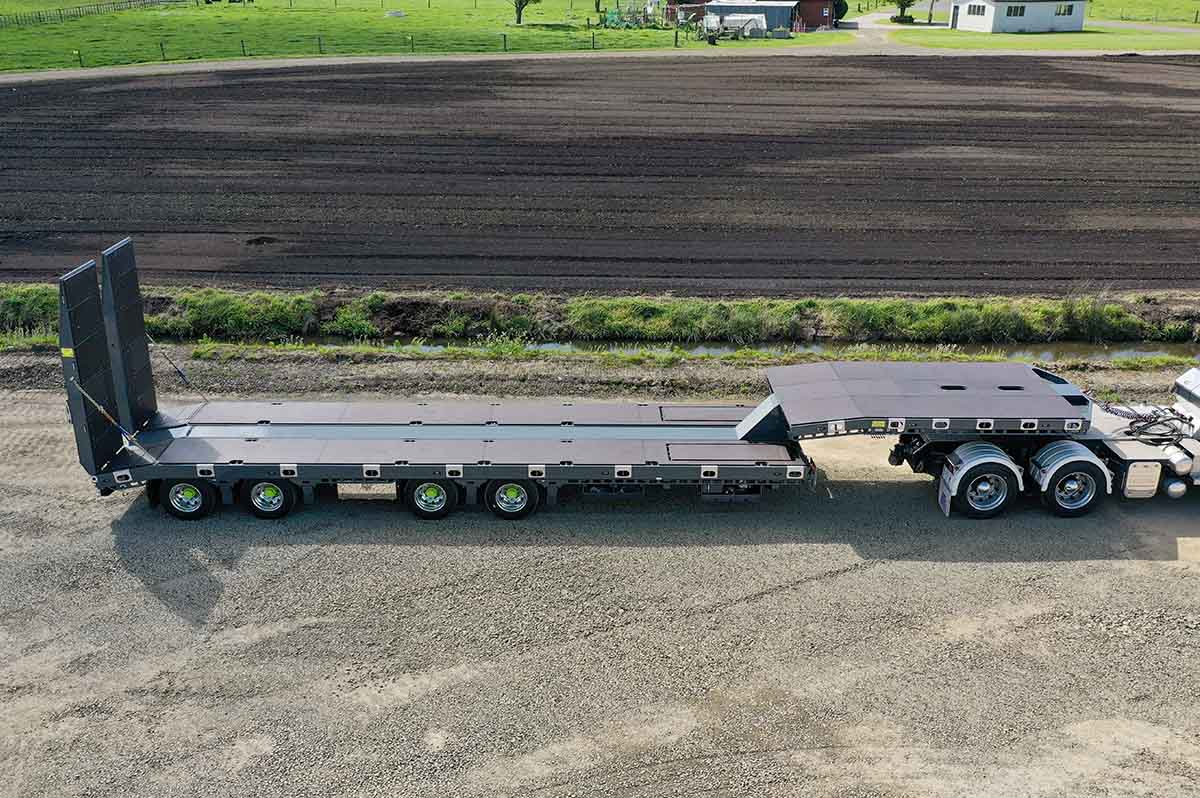

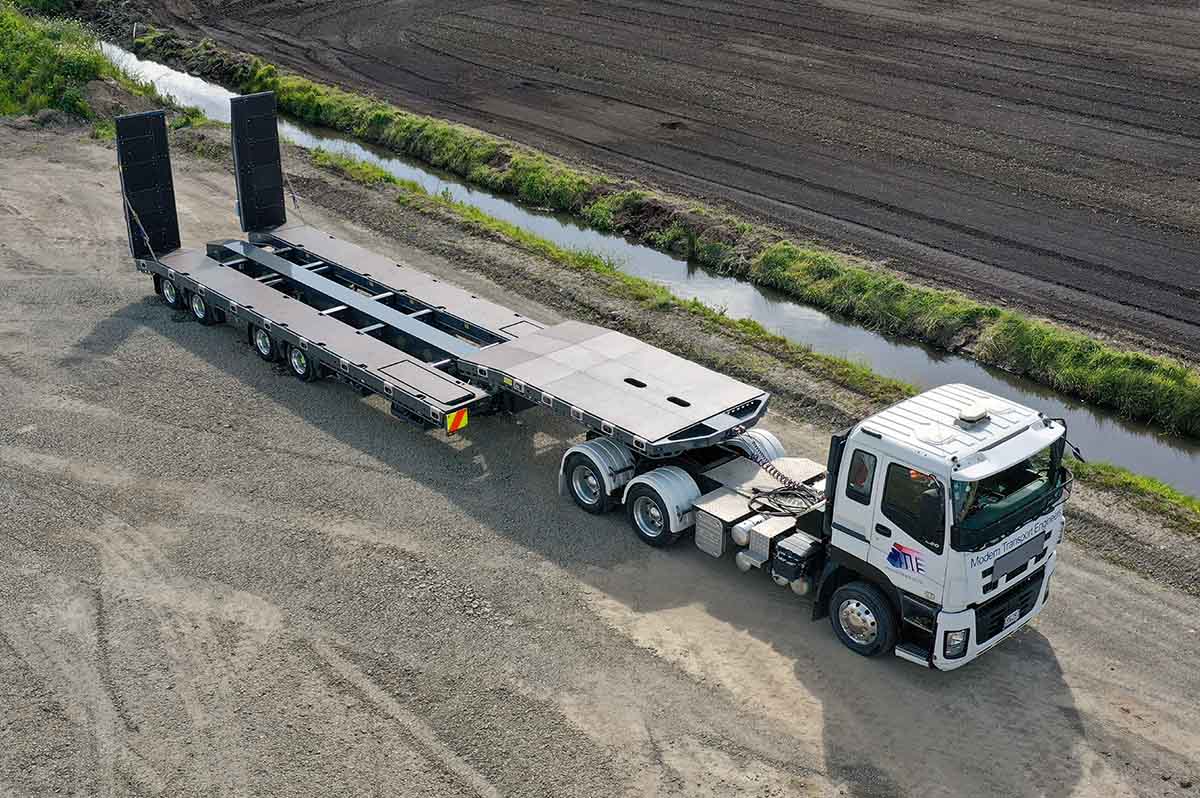

Built for serious heavy machinery transport, the MTE 4 Rows of 4 Widener provides the strength, stability and flexibility required for large and oversized loads. Its hydraulically widening deck and proven heavy-duty construction make it a versatile solution for operators regularly transporting excavators, dozers, loaders and other heavy equipment.

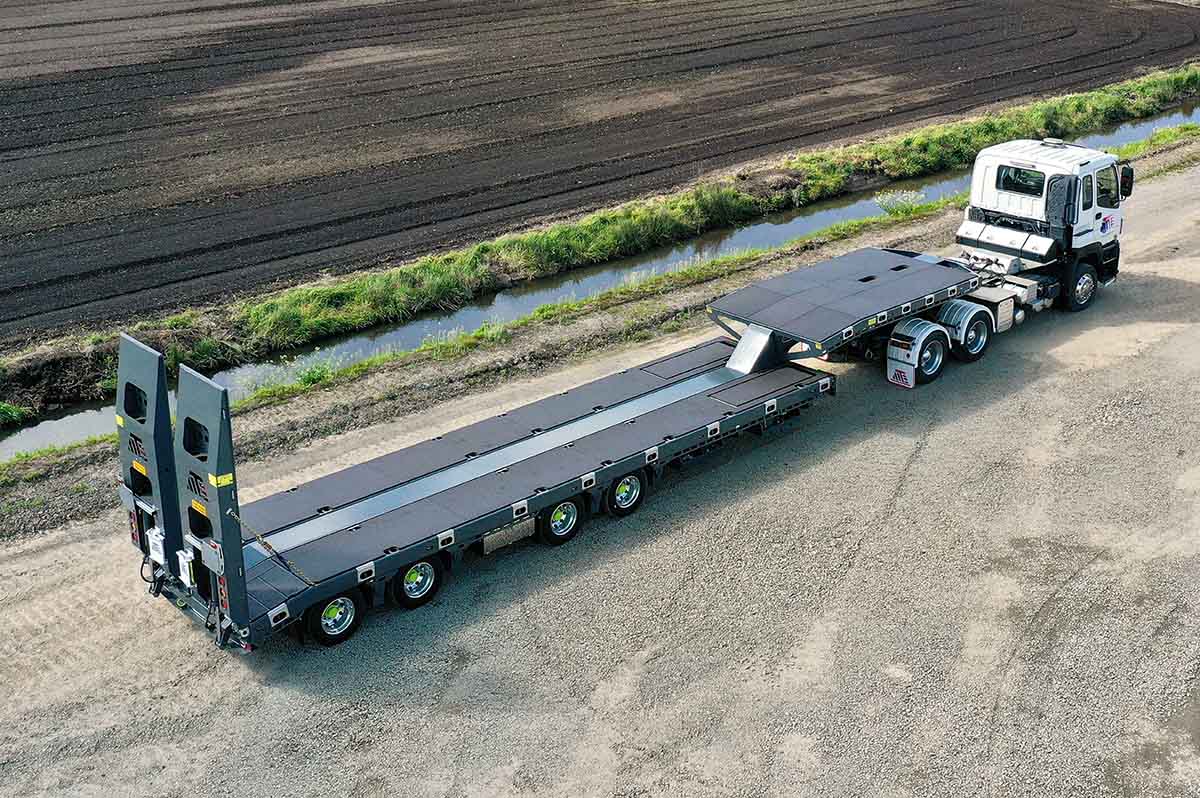

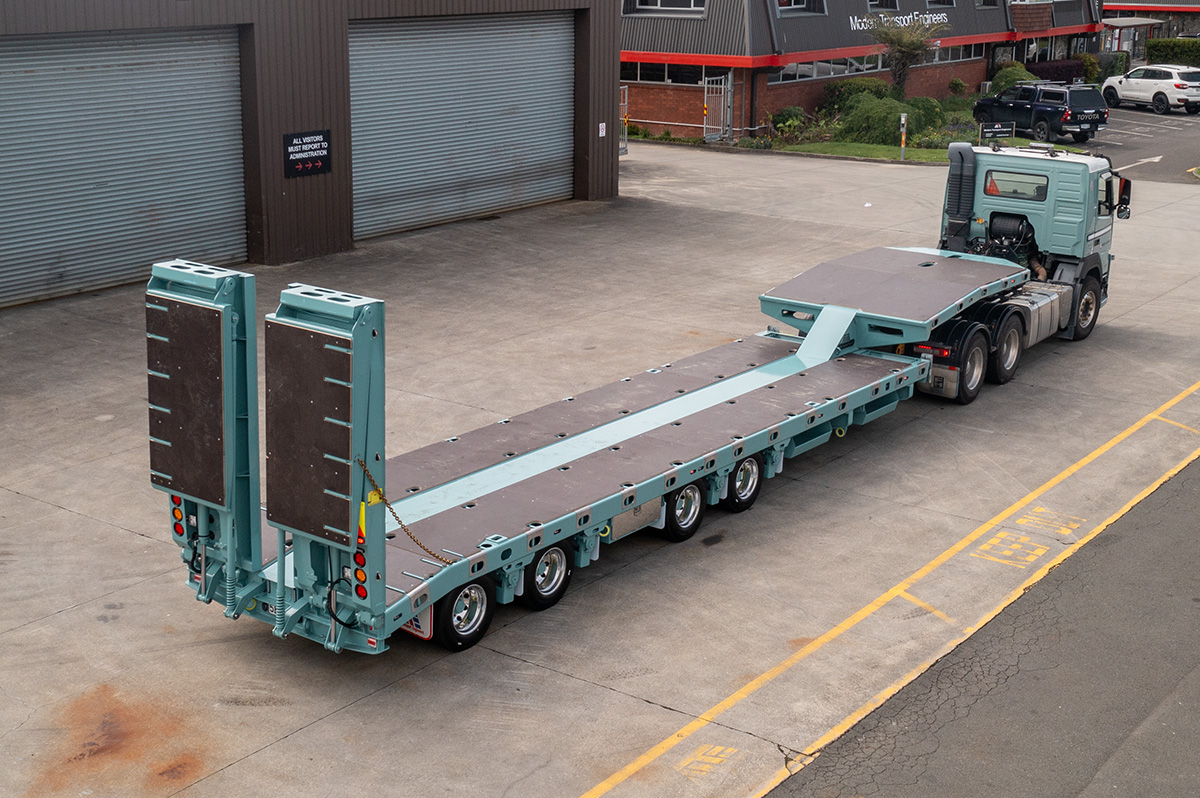

Built for oversized machinery, A strong, stable platform designed for transporting excavators, dozers, loaders and other heavy equipment.

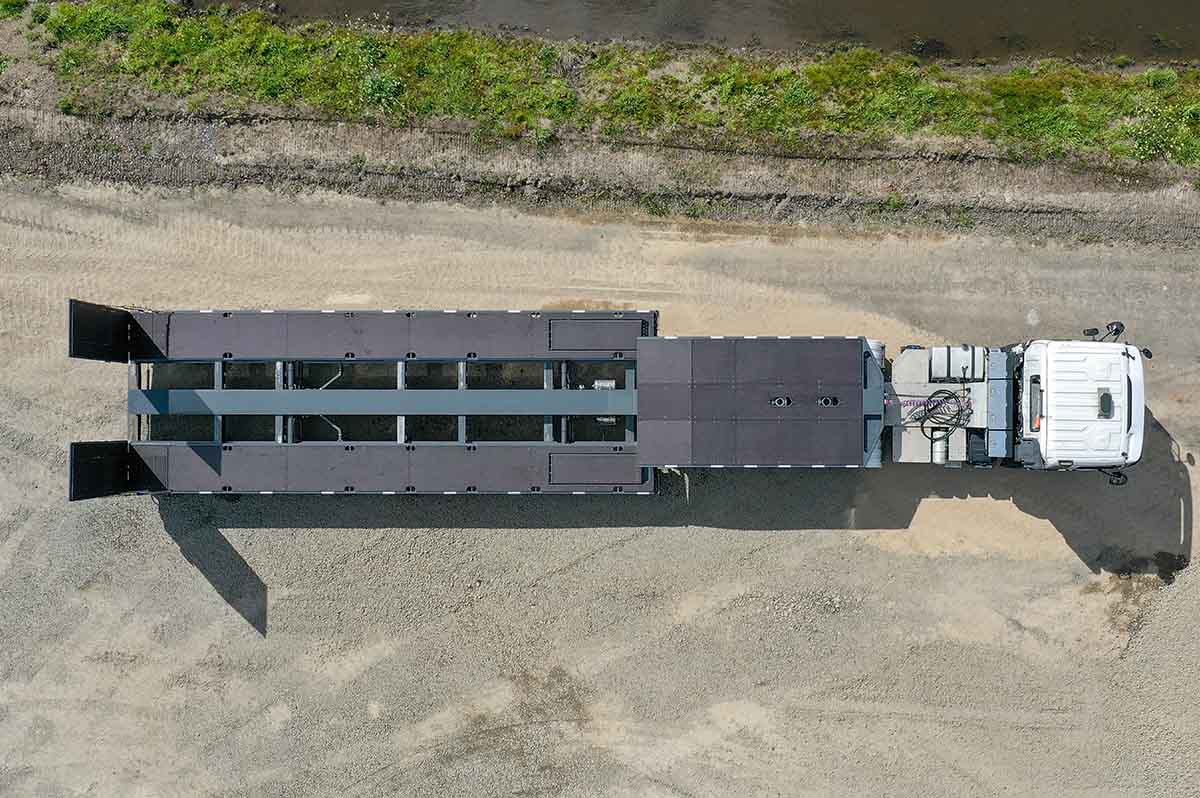

Width when you need it, The hydraulically widening deck provides a stable platform for wider machinery while returning to standard road width for everyday travel.
Hydraulic suspension, Provides excellent load sharing and allows the trailer height to be adjusted to assist with loading, ground clearance and overall transport height.
Configured for the job, A wide range of ramp, storage, decking, container and load-restraint options allow the trailer to be tailored to suit your operation.

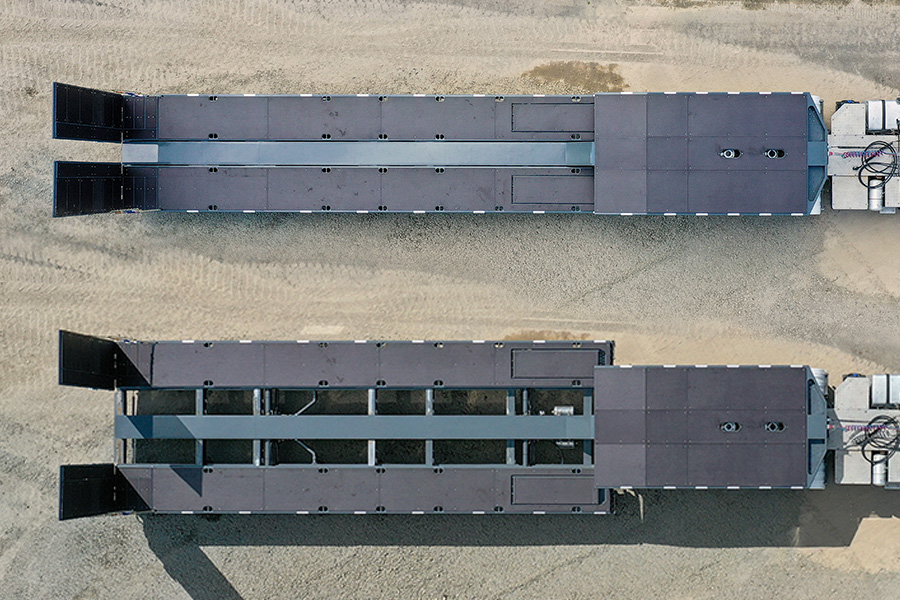

2,500mm - 3,600mm widening

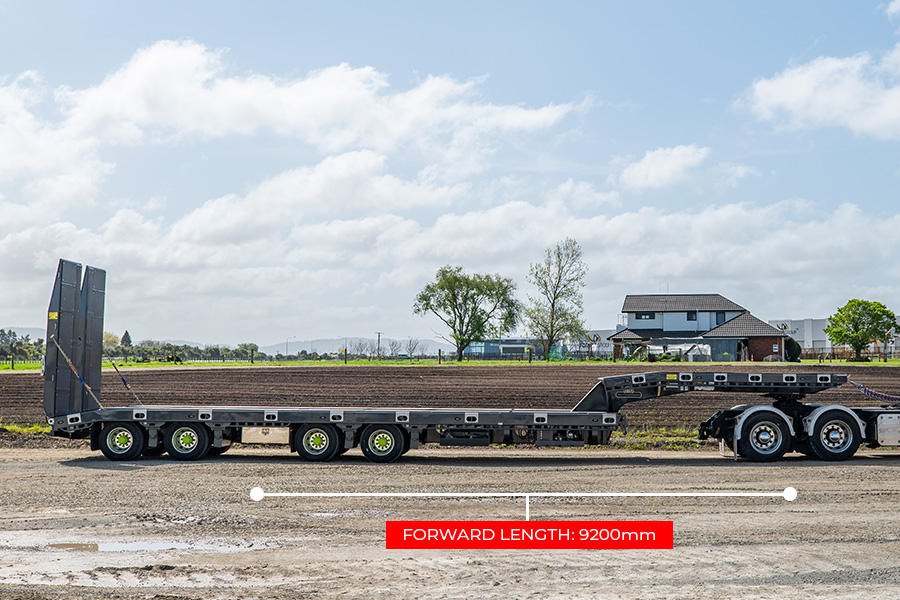

Standard 9,200mm

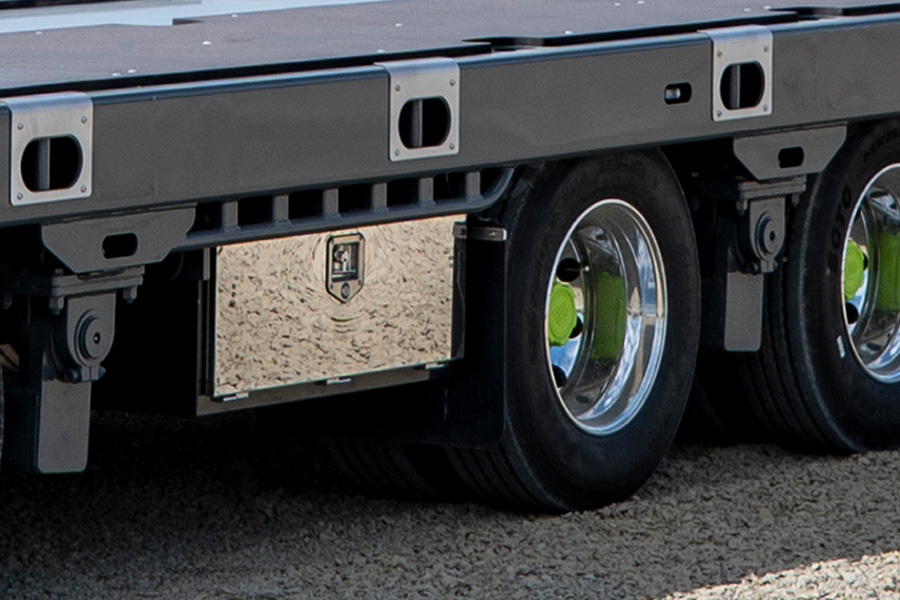

Various chain bins and dunnage tray configurations
Outboard drum brake design for quick and easy servicing

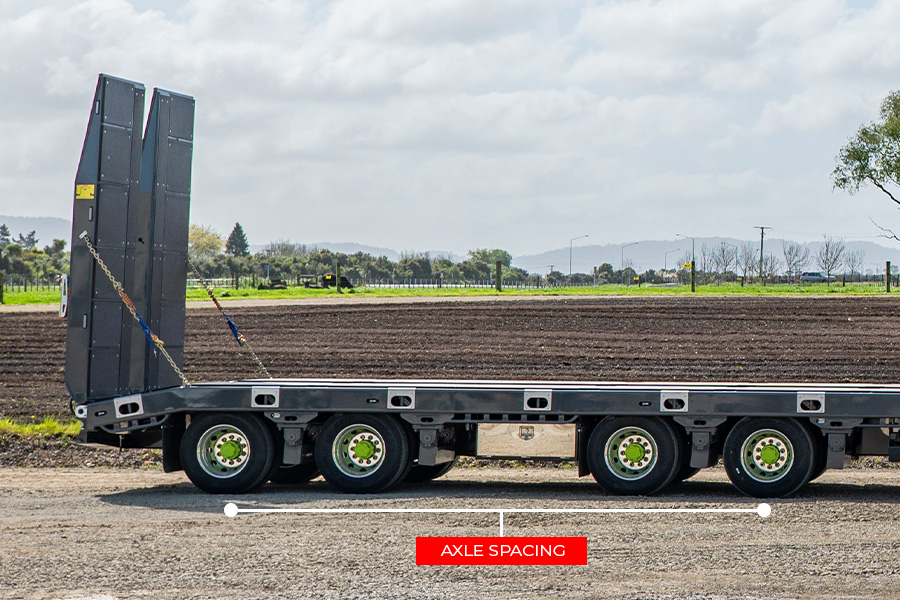

1,200mm - 2,400mm - 1,200mm

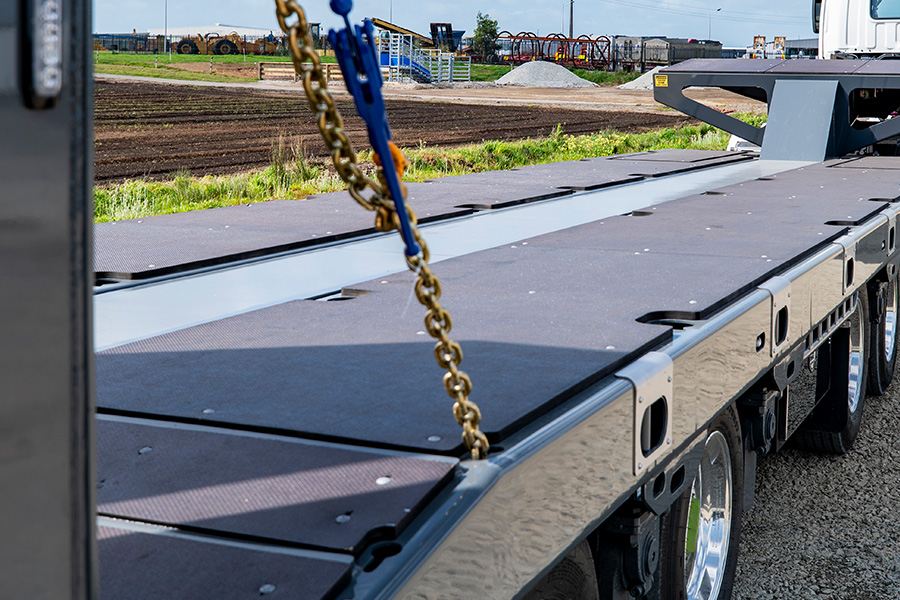

Provides enhanced grip and safety during loading
GVW: 50,000kg
Tare: From 11,000kg
Deck Height: 920mm
Deck Closed Width: 2,500mm
Deck Open Width: 3,600mm
Deck Length: 10,530mm
Forward Length: 9,200mm
Deck Type: High tensile steel with 18mm ply
Axle Spacing: 1,200mm - 2,400mm - 1,200mm
Axle Type: MTW 17.5”, Outboard drum
Suspension: MTE hydraulic
Brakes Type: Non ABS/EBS
Wheels: Weight Cheetah 17.5” x 6.75” steel
Tyres: 235/75 17.5” Synergy
Hydraulic Supply: Truck PTO
Gooseneck: Fixed position
Rub Plate: Fixed at 1,360mm
King Pin: MTE 50mm drop in king pin

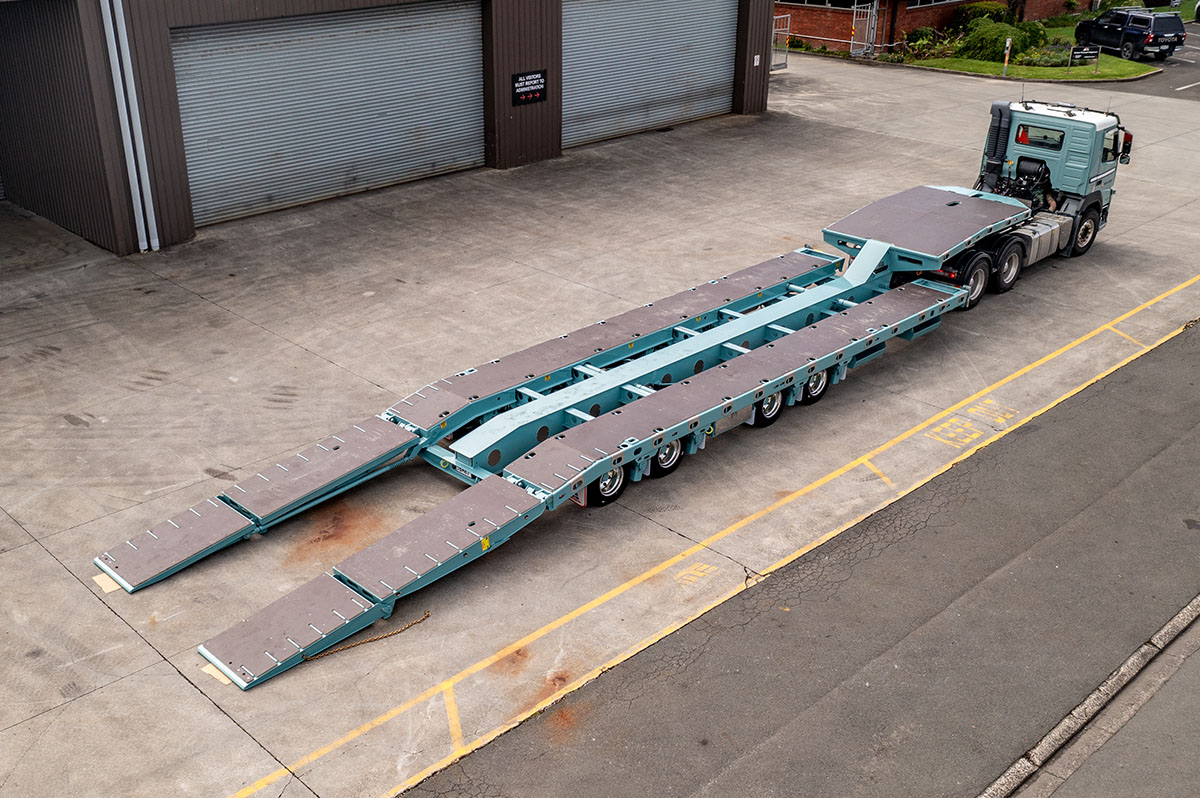

Ramps: 2,400mm x 860mm hydraulic
Landing Legs: Pin type landing legs
Lashings: Certified tie bar lashings in coaming rails: Top deck x6 per side (Front lashings on corners). bottom deck 14 x per side. 2 x Chain Lugs each side of gooseneck. 2 x Ferry hook lashings in back bumper & behind landing legs in front beam.

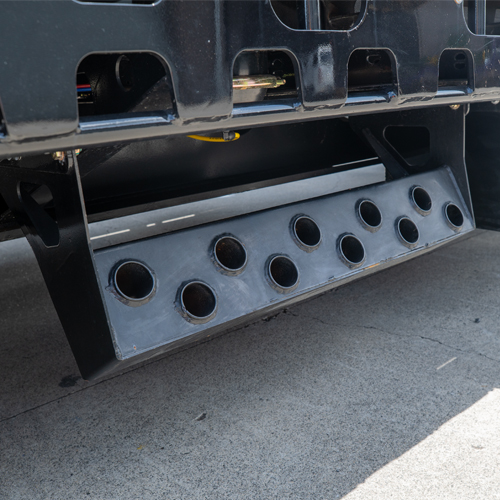

Twitch holders: Front of deck, both sides
Hydraulics: Truck PTO
Lights: Hella LED or Lucidity LED
Control Valves: At rear, between ramps
Odometer: Included

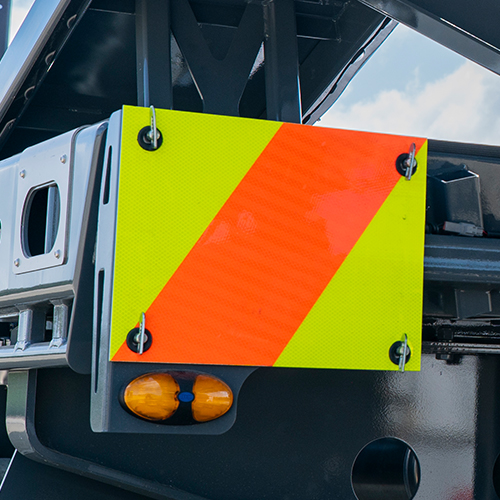

Signage: Hazard panels & oversize signs
Mud Flaps: MTE Mud flaps
Storage: 2 x 900mm toolboxes, 4 x built in chain bins
Machined, polished or premium finish
Centralised automatic greasing
Various sizes available
6000kg Rated
Petrol or diesel powerpack options

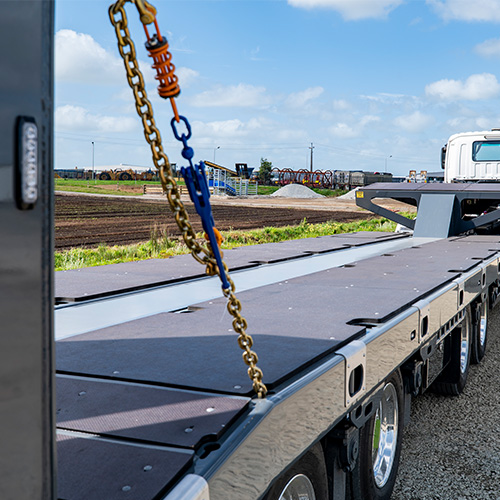

Rubber decking
Sliding chevrons with lights, folding oversize signs

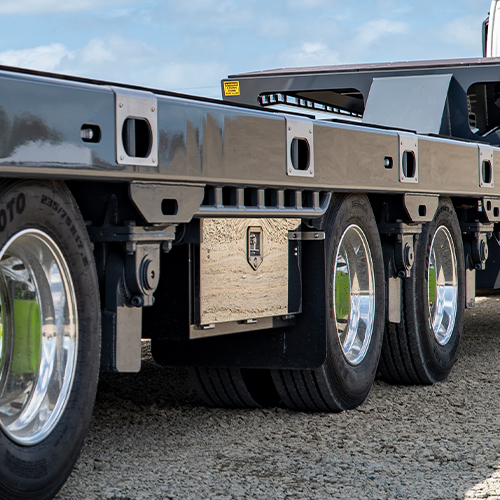

Extra storage

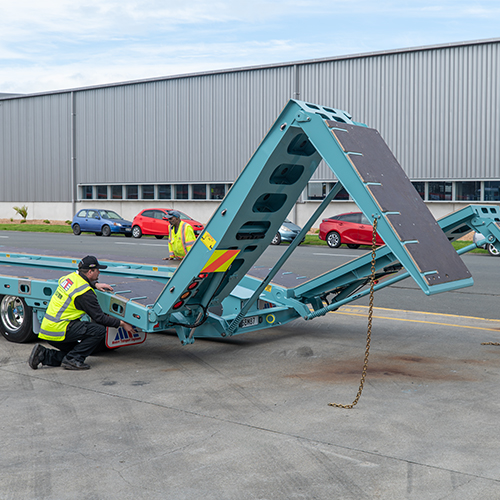

Larger or custom ramps
Holds 10 Twitches
Air operated ramps to top deck
Options for 20’ & 40” containers
