Built for demanding bulk-haul applications, the MTE 5 Axle Dog Tipper combines a high-strength wear-resistant body with a robust, proven design for reliable day-to-day operation. Designed for civil construction, quarrying, demolition or general bulk transport, it is engineered to withstand tough working environments while delivering efficient loading and unloading cycle after cycle.

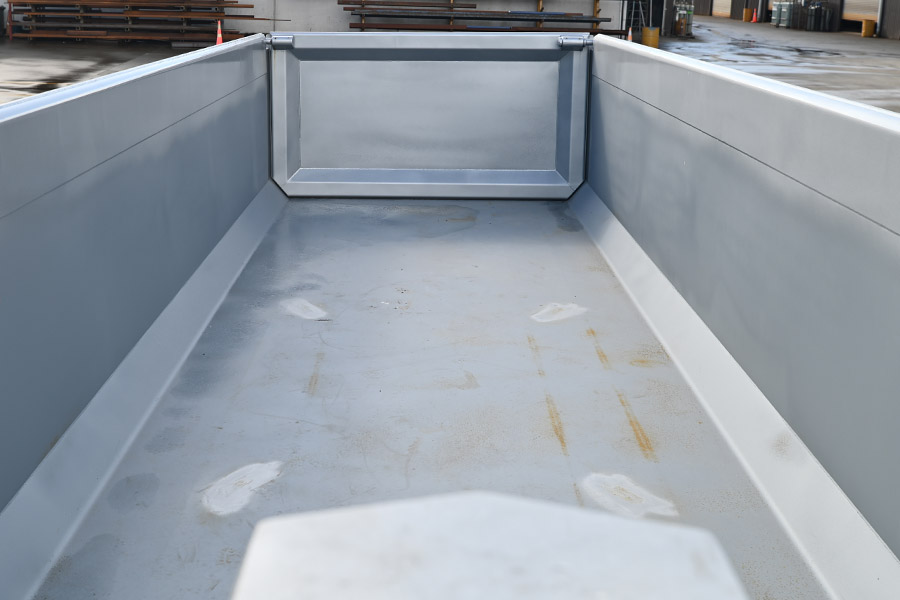

Built for hard work, High-strength, wear-resistant Steel construction provides excellent durability against abrasion and impact.

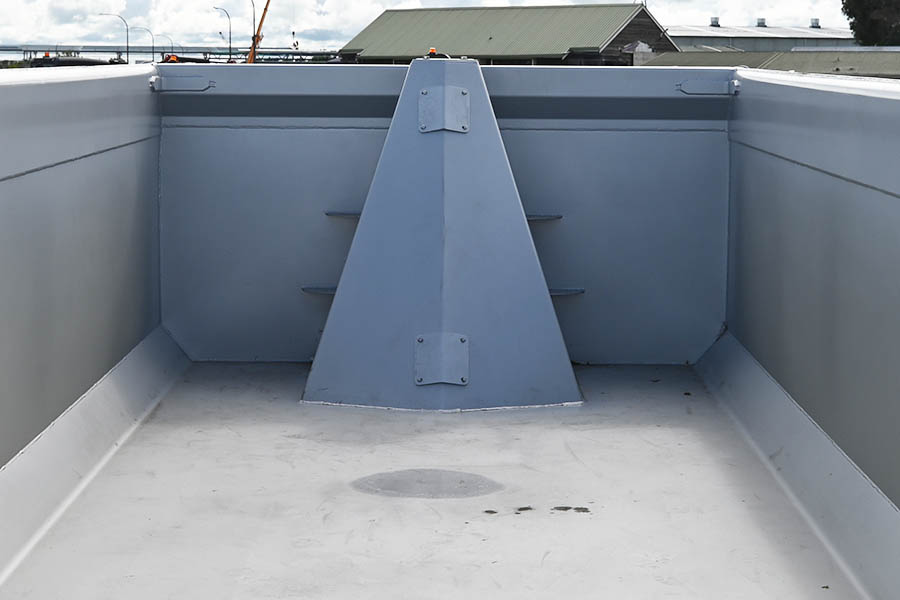

Efficient unloading, A buried front-of-body hoist provides a stable tipping configuration while maximising usable bin space.

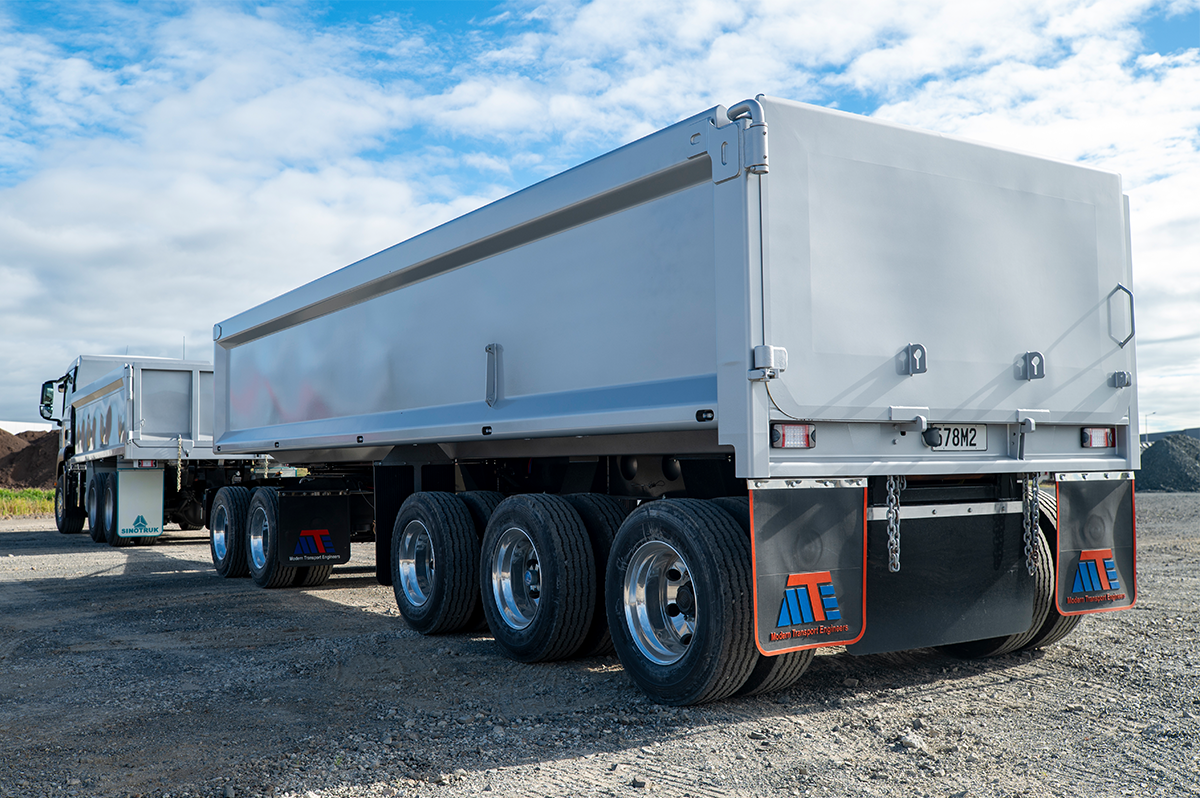

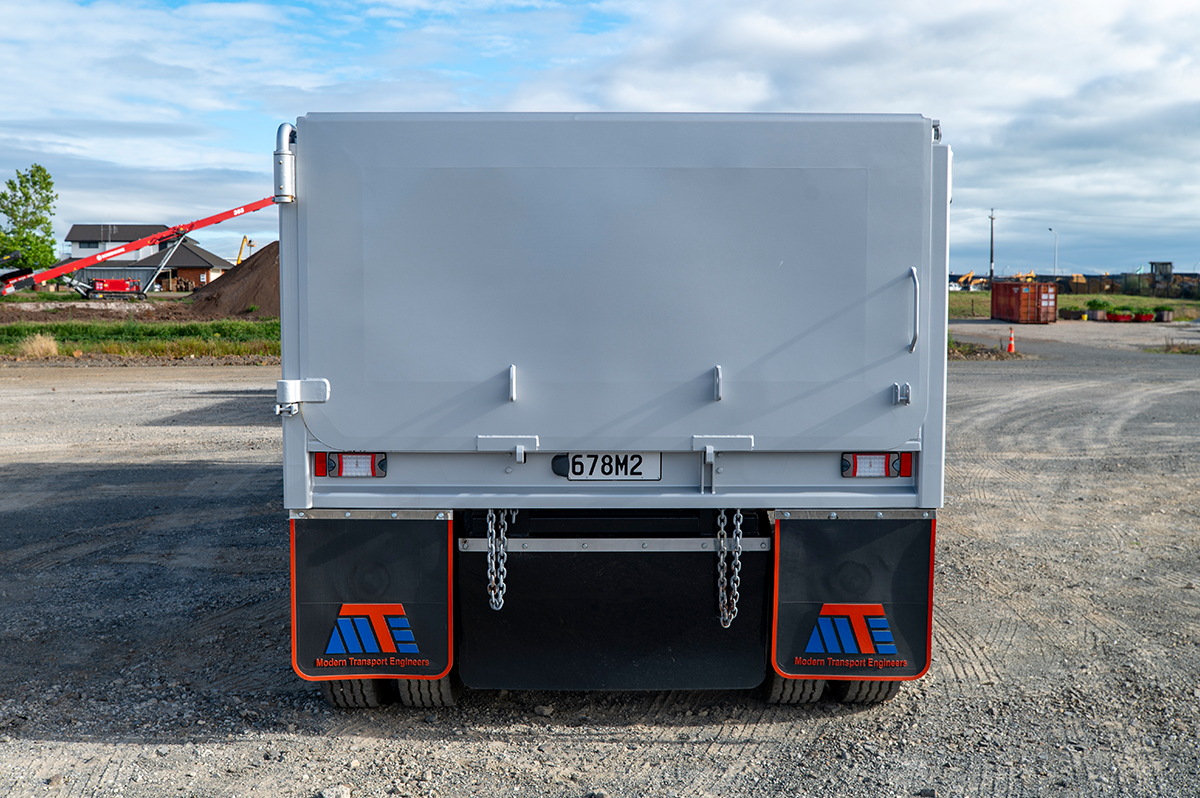

Versatile tailgate design, The two-way demolition tailgate with spreader chains provides flexibility when discharging aggregates, demolition material and other bulk products.
Designed to withstand abrasive materials, demanding construction environments

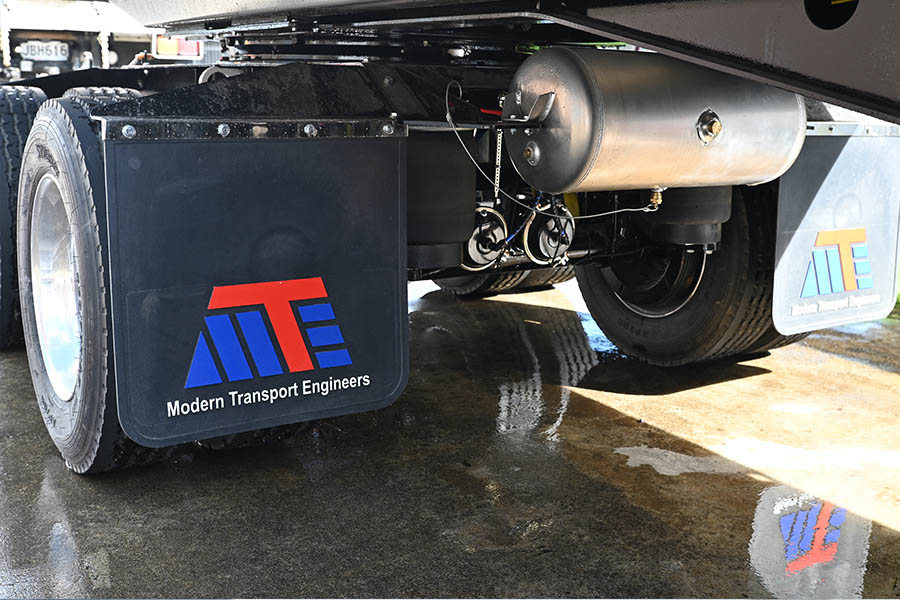

MTW air suspension system delivering improved ride quality
Configured for both conventional tipping and demolition applications
Outboard drum brake design for quick and easy servicing
Buried front hoist design allows for maximum usable bin length
Provides enhanced grip and safety during loading
GVM: 33,000kg
Tare Weight: From 8,500kg
Bin Sides: 5mm
Bin Floor: 6mm
Bin Rear: 4mm
Bin Front: 4mm
Side Height: 1,100mm
Bin Length Overall: 8,090mm
Bin Width Outside: 2,500mm
Bin Width Inside: 2,350mm
Capacity: 22m3
Hoist: Buried front of body
Tailgate: Two-way demo door
Axles: MTW 19.5”, Outboard drum
Suspension: MTW Air suspension
Brakes: Knorr-Bremse EBS
Wheels: Weight Cheetah 19.5”
Tyres: 365/70R 19.5
Hydraulic Supply: Truck PTO
Tow Eye: 50mm weld-in
Ball Race: Jost
Drawbar: Fixed ‘A’ frame 4m

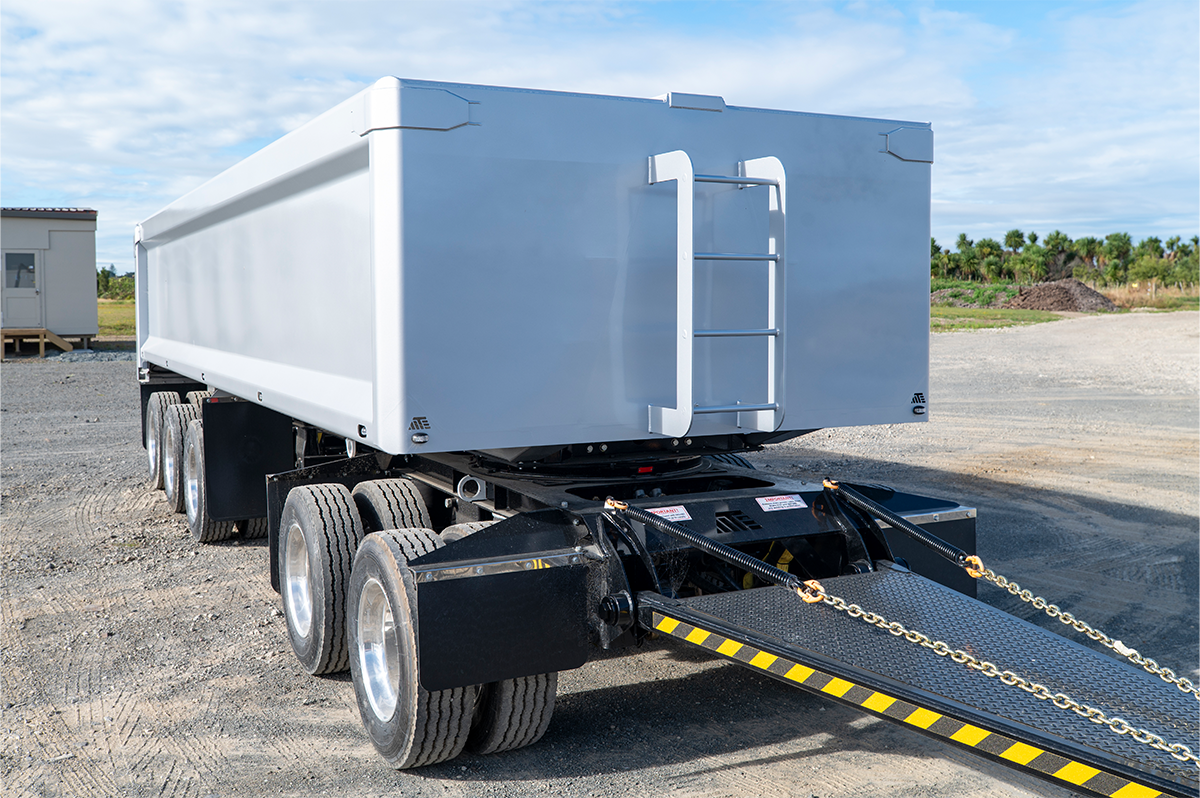

Access Ladder: Front of body
Lights: Hella LED
Odometer: Included

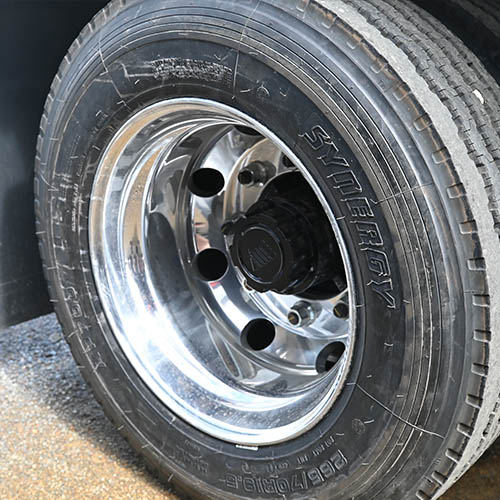

Machined, polished or premium finish
Electric or manual retractable tarp
Custom bin side height options
