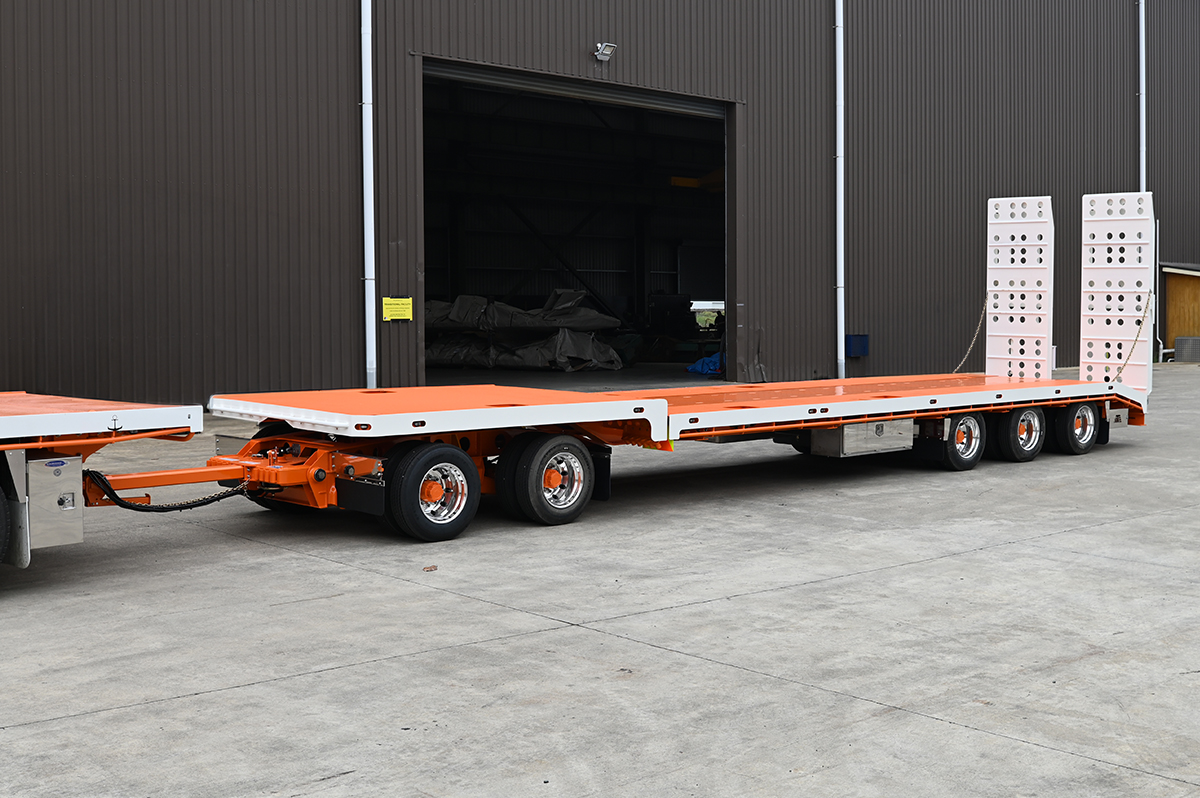

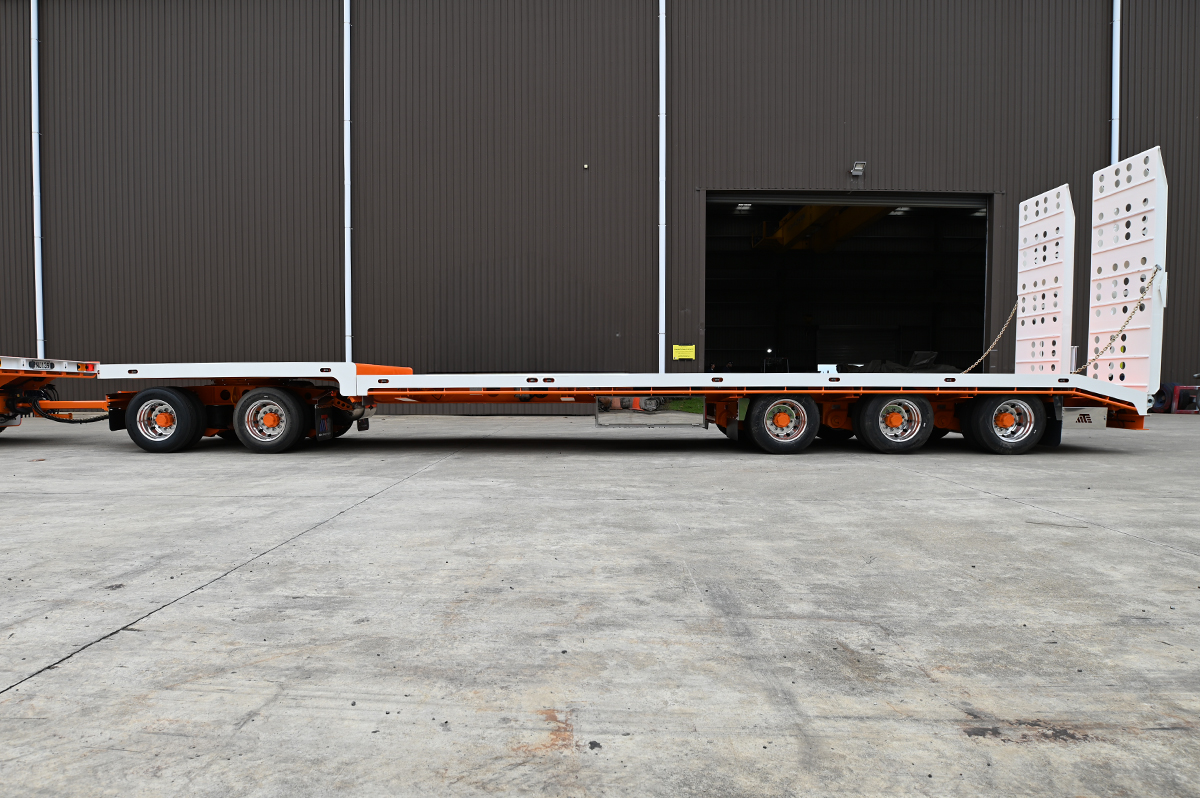

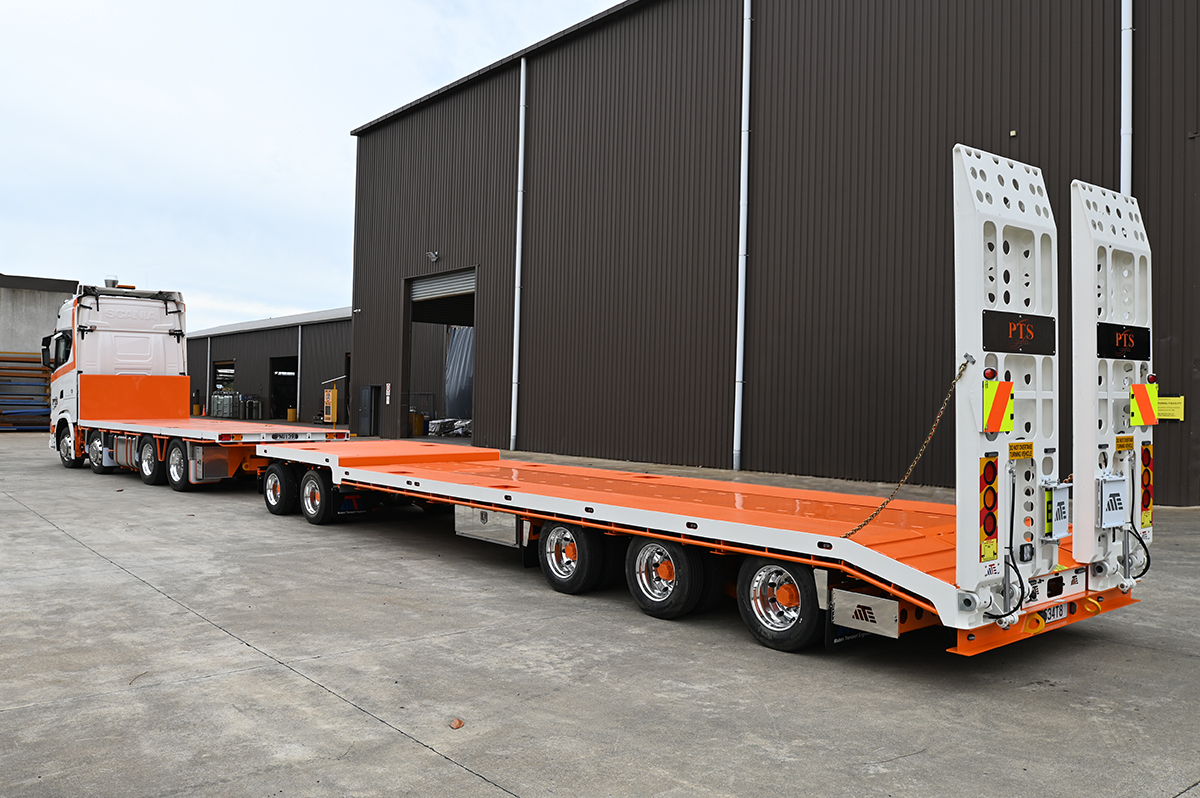

The MTE 5 Axle Flat Top Low Loader Deck Widener combines the practicality of MTE’s proven low loader platform with the added versatility of a widening lower deck. Designed to handle everything from everyday construction equipment through to wider earthmoving machinery, it provides a highly adaptable solution for demanding transport operations.

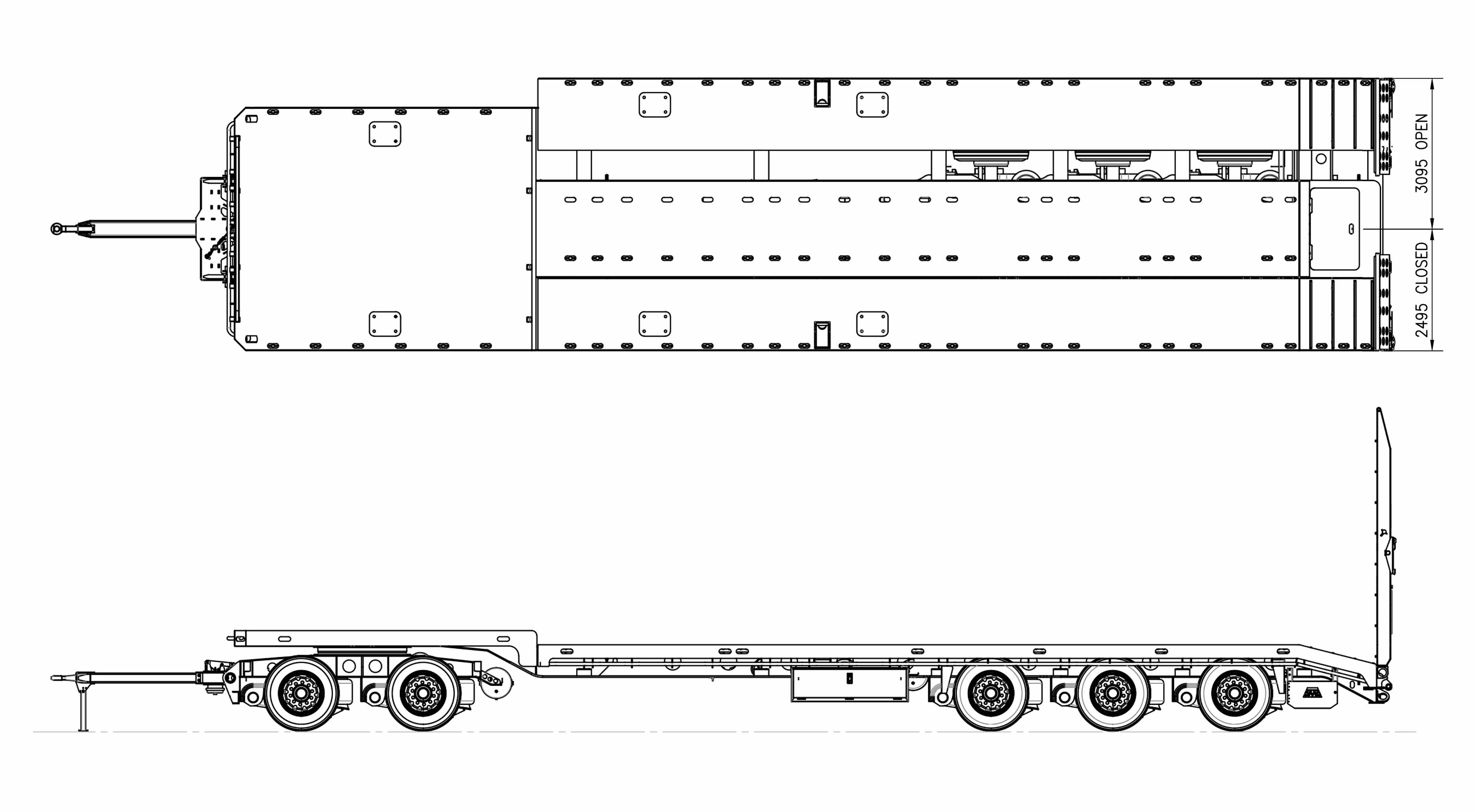

Widen when you need it, The hydraulically widening lower deck expanding from 2490mm closed to 3300mm open, provides additional support and stability for wider machinery while returning to standard road width when closed.

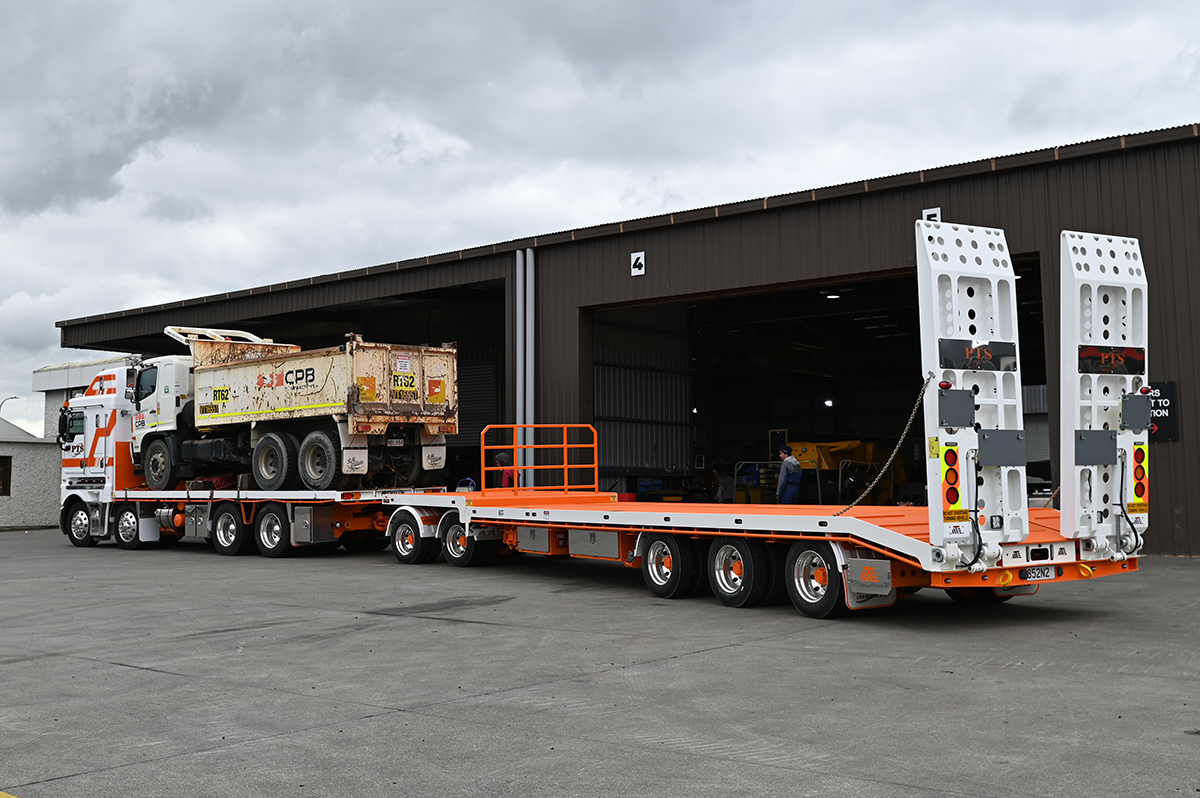

Versatile machinery transport, Well suited to excavators, loaders, rollers, access equipment and a wide range of construction and earthmoving machinery.
Flexible load restraint, Integrated chain slots and certified rope rails provide multiple options for safely securing different machinery and equipment.
More than a machinery trailer, Optional container shiplocks, storage solutions and configurable drawbar options allow the trailer to take on a wider range of transport tasks.

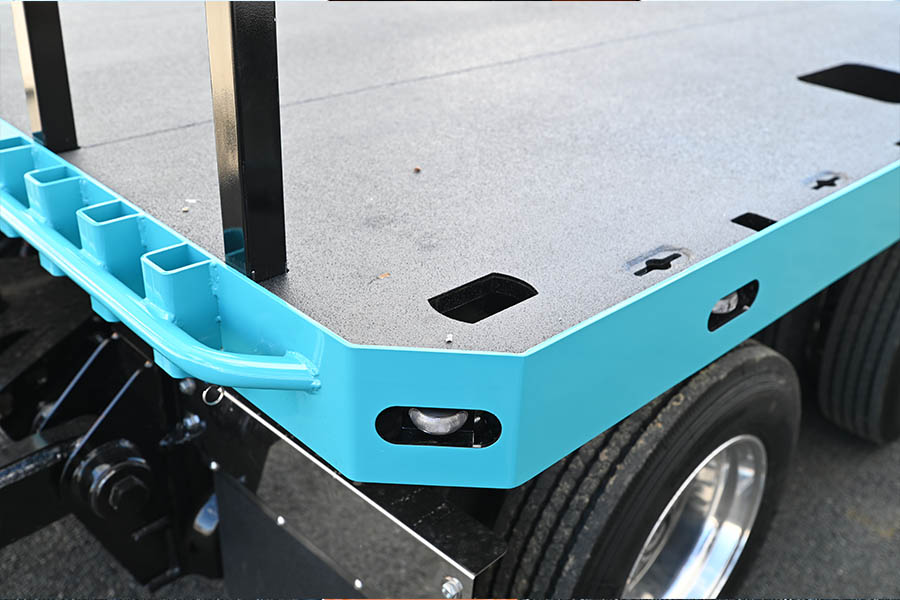

Optional container ship locks allow the trailer to securely transport one 40ft container, two 20ft containers, or a single 20ft container

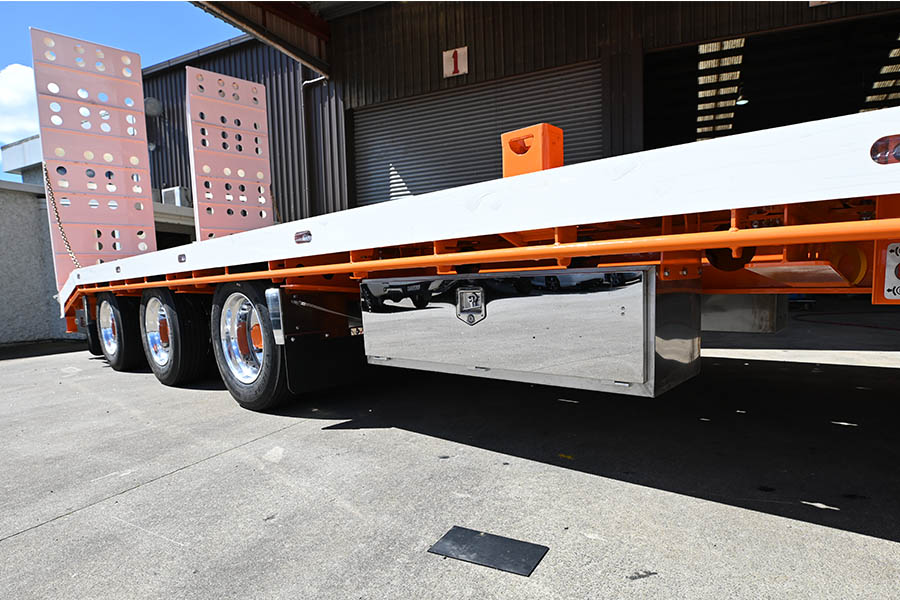

Strategically positioned certified rope rails provide flexible and secure load restraint for machinery

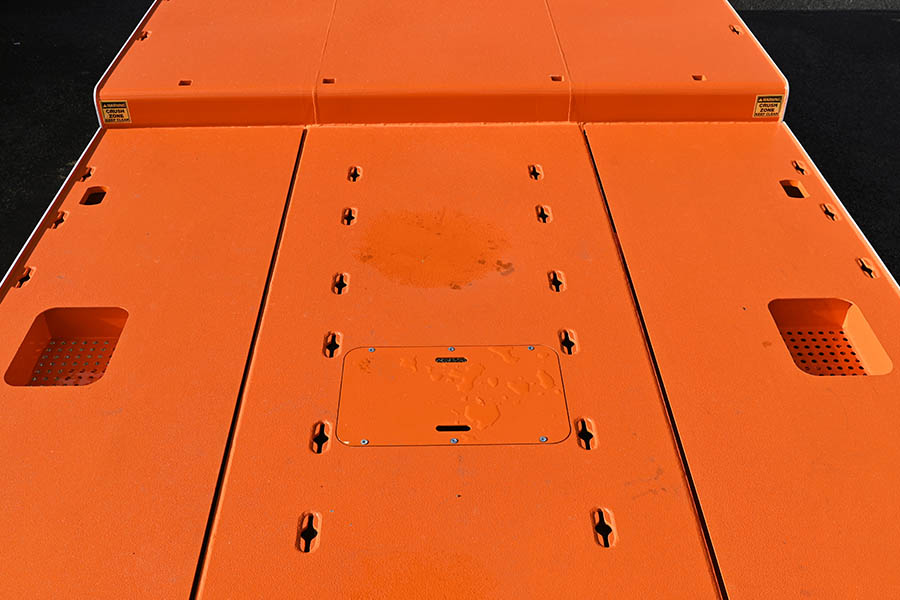

Strategically positioned in deck chain slots provide flexible and secure load restraint for machinery

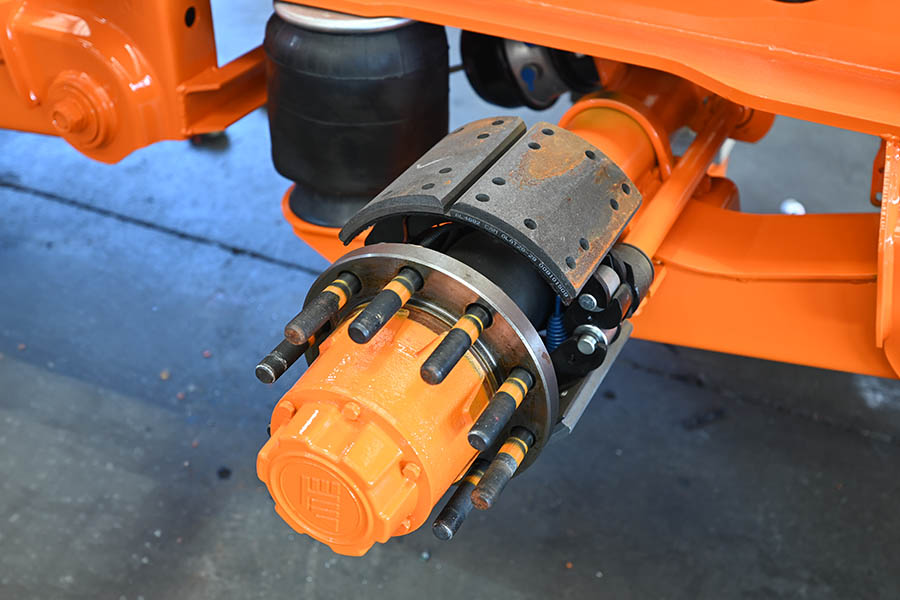

Outboard drum brake design for quick and easy servicing

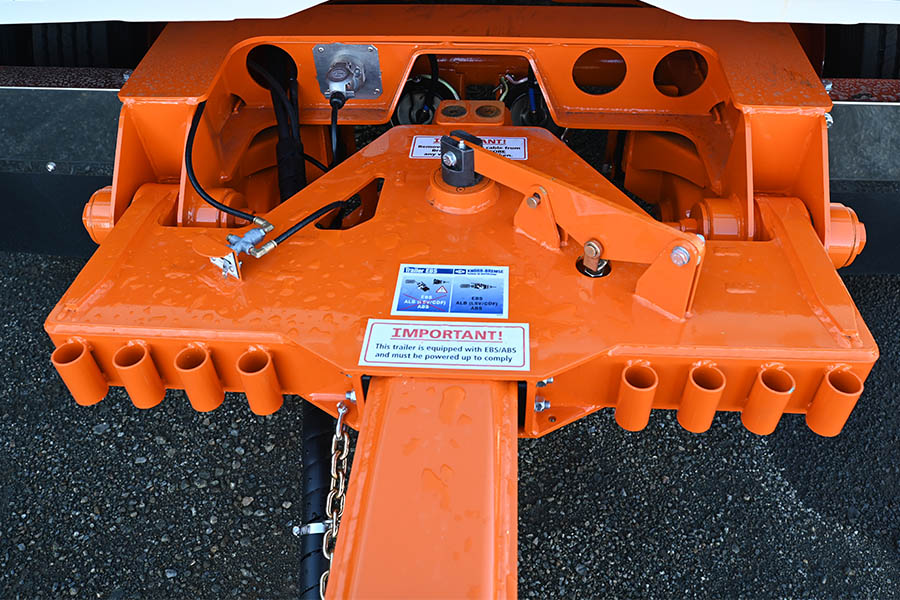

Sliding or fixed drawbar options
Equipped with proven axles, braking systems and suspension components to minimise downtime
GVM: 35,000kg
Tare Weight: From 9,000kg
Overall Length: 13,730mm
Deck Length: 11,720mm
Deck Closed Width: 2,500mm
Deck Open Width: 3,100mm
Deck Height: Front 1,030mm, Rear 890mm
Axle Spacing: 1,250mm
Axle Type: MTW 17.5”, Outboard drum
Suspension: MTW air suspension

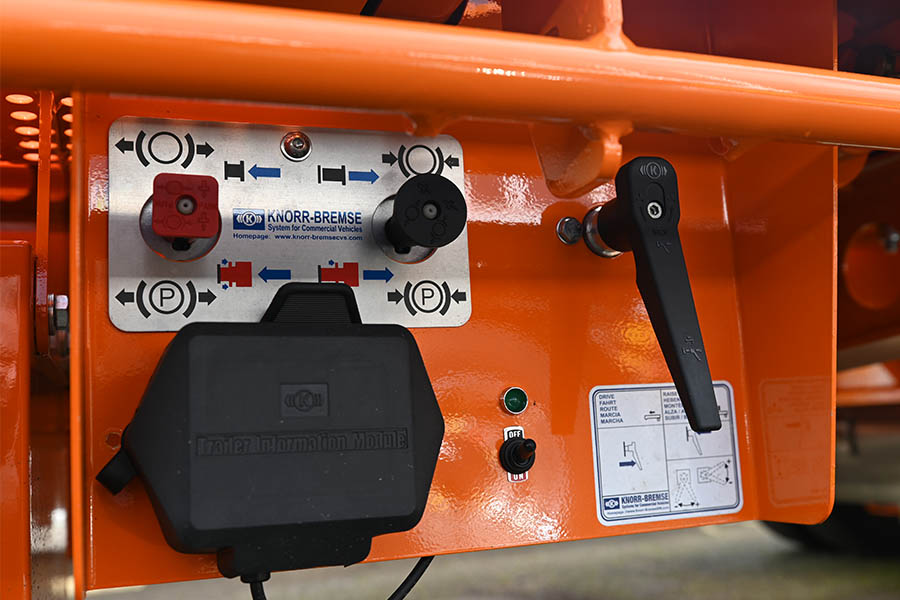

Brakes Type: Knorr-Bremse EBS
Hydraulic Supply: Truck PTO
Guards & Flaps: On bogie & rear
Tow Eye: 40mm or 50mm

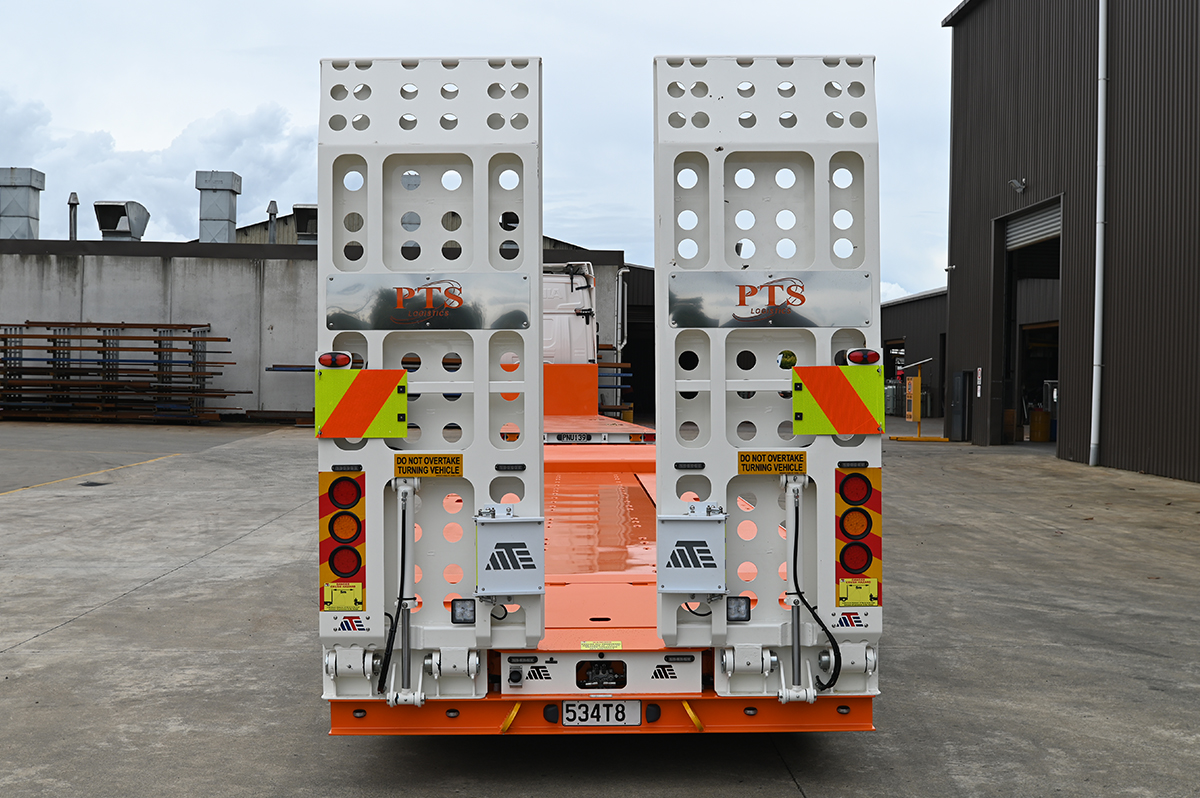

Ramps: 2,400 x 860mm hydraulic

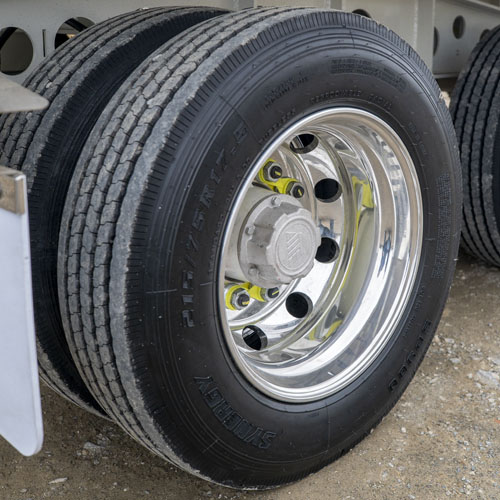

Wheels: Weight Cheetah 17.5” x 6.75”
Tyres: 215 x 17.5”
Deck Type: Steel
Lights: Hella LED
Control Valves: Drivers side & rear of trailer between ramps
Odometer: Included
Signage: Hazard panels & oversize signs
Machined, polished or premium finish

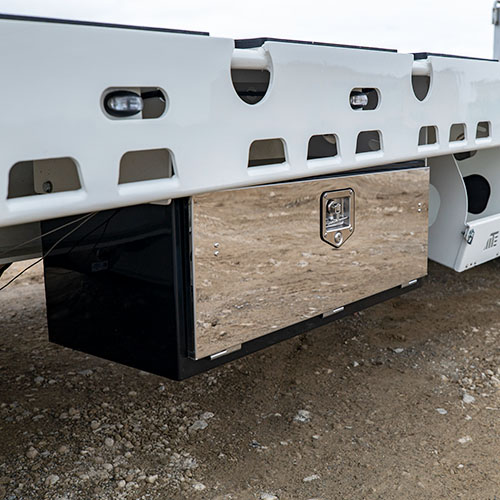

Lockable toolbox options

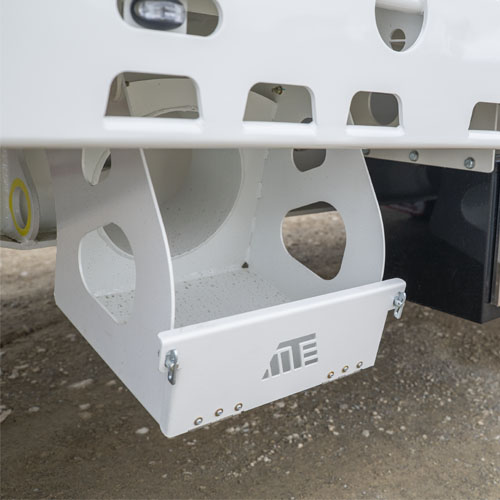

Traffic cone storage

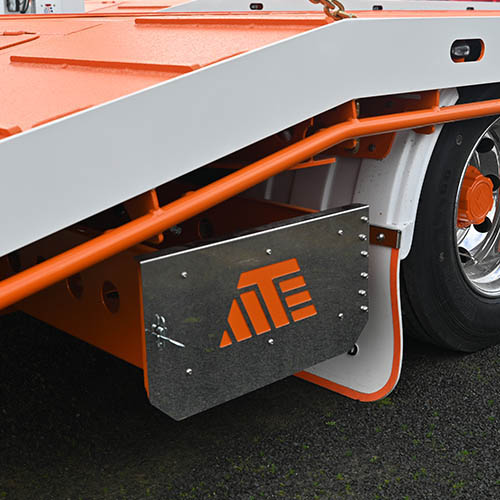

Dunnage tray options
Petrol or diesel powerpack options

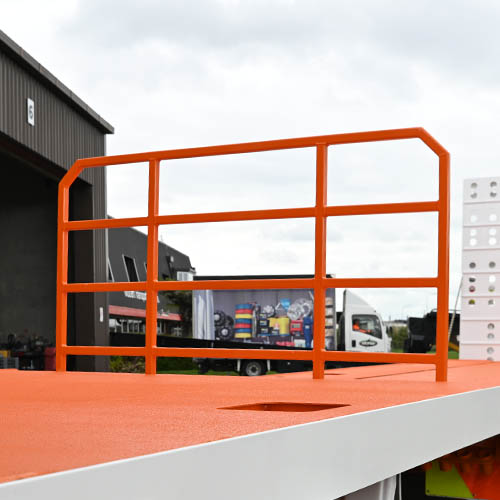

Protection from forward-moving loads
