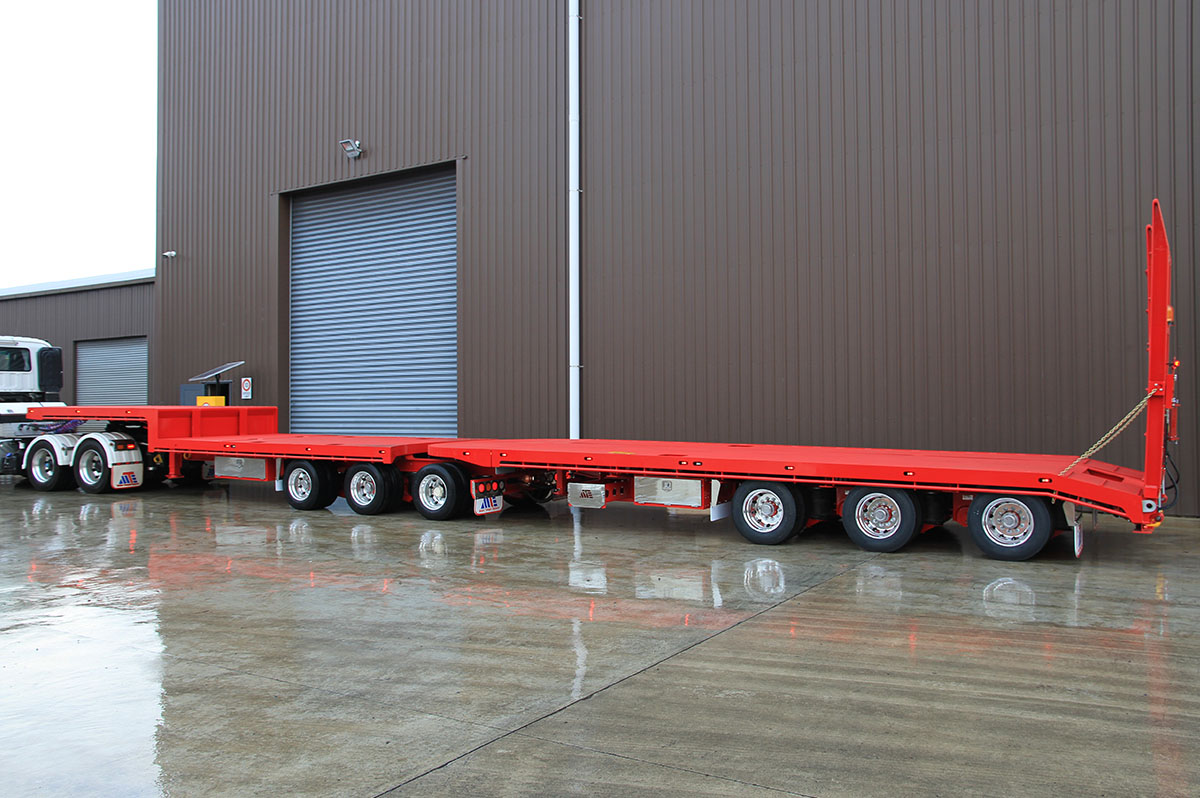

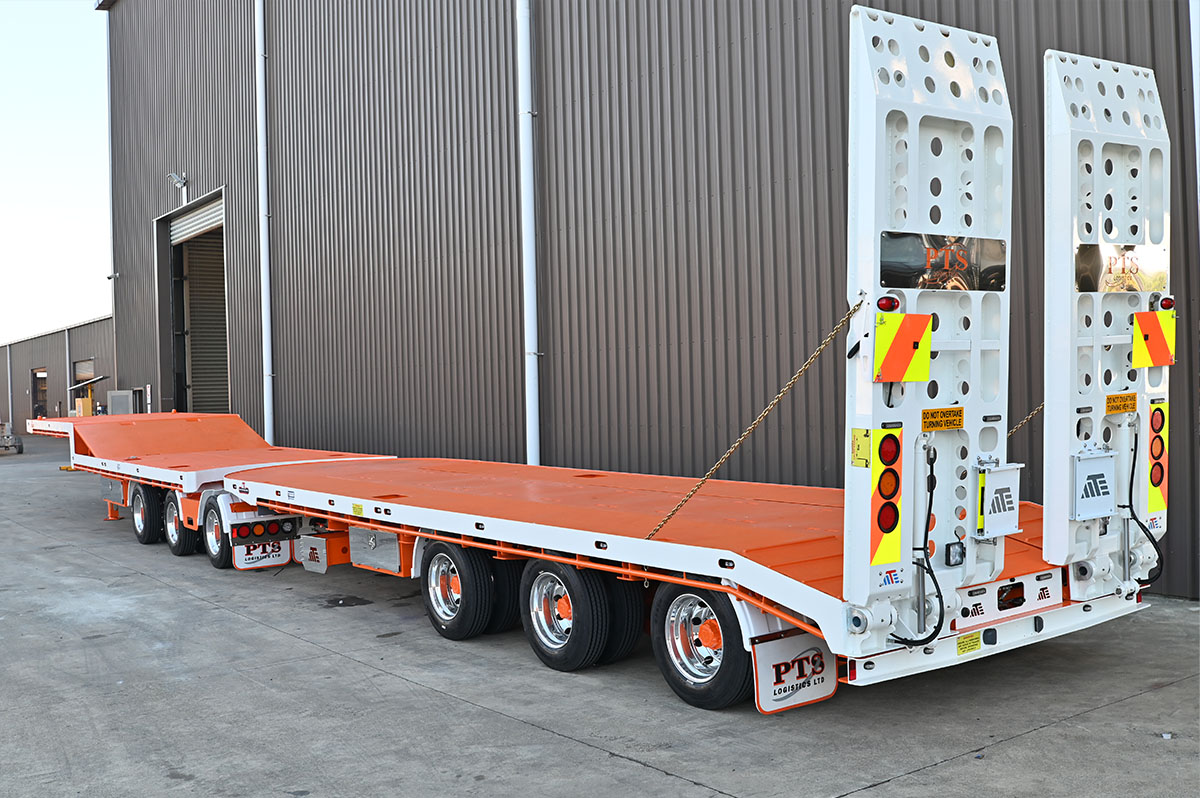

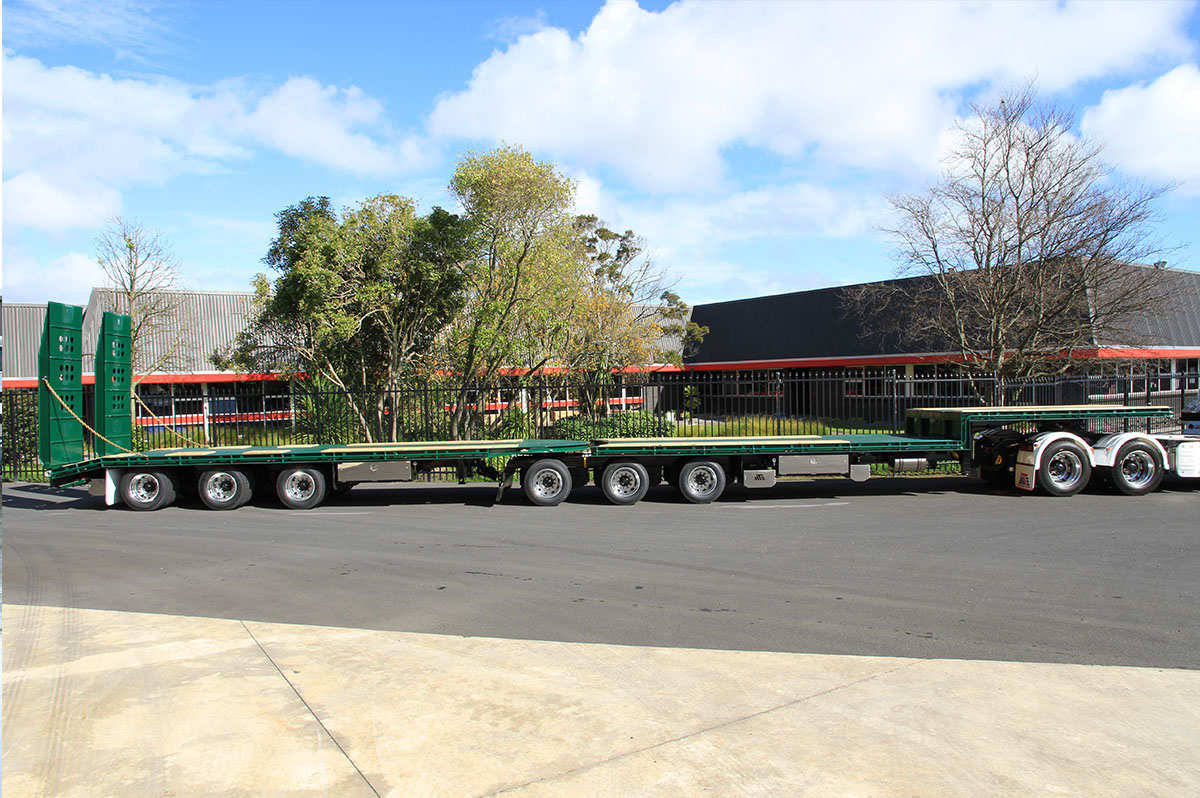

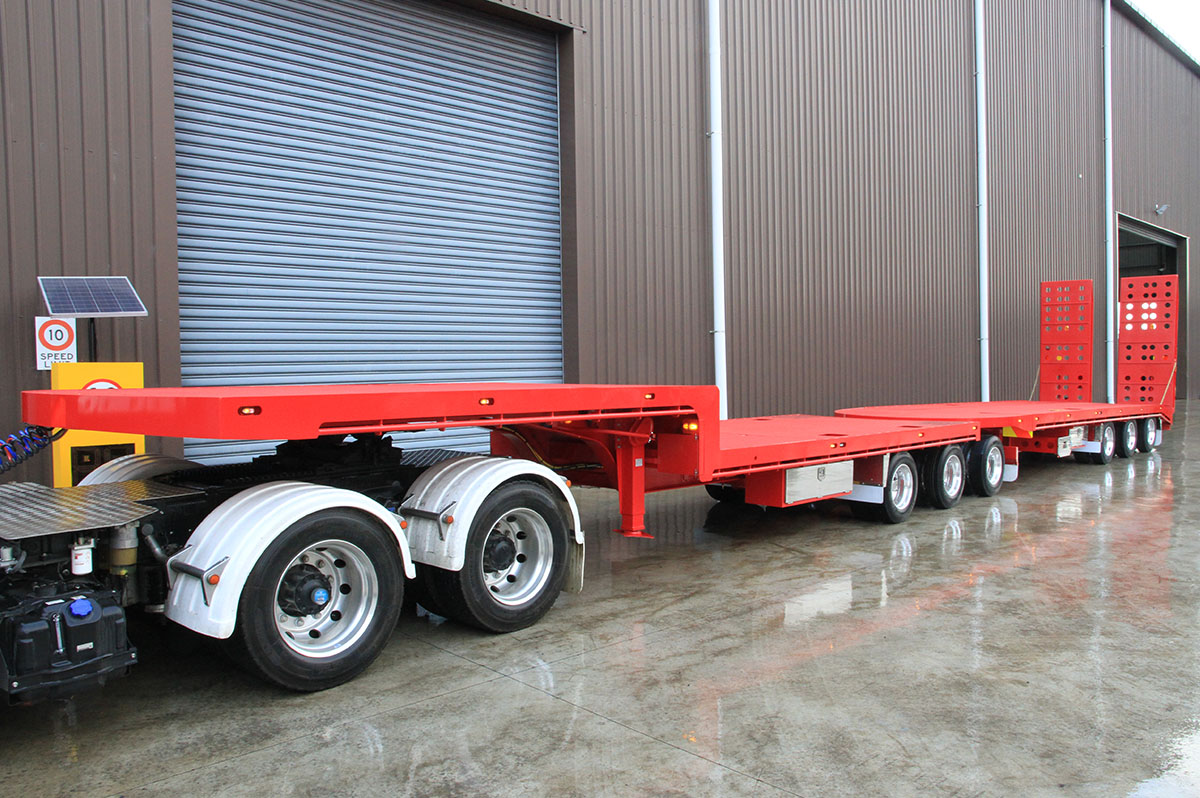

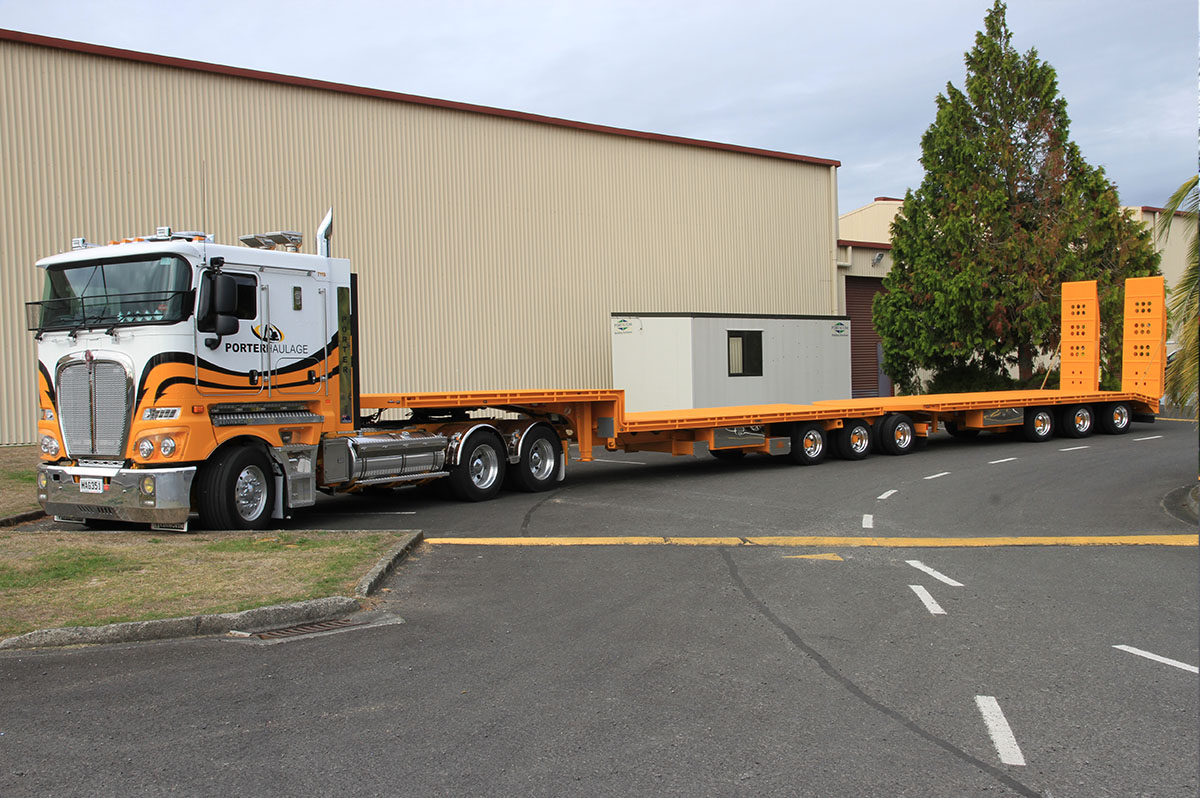

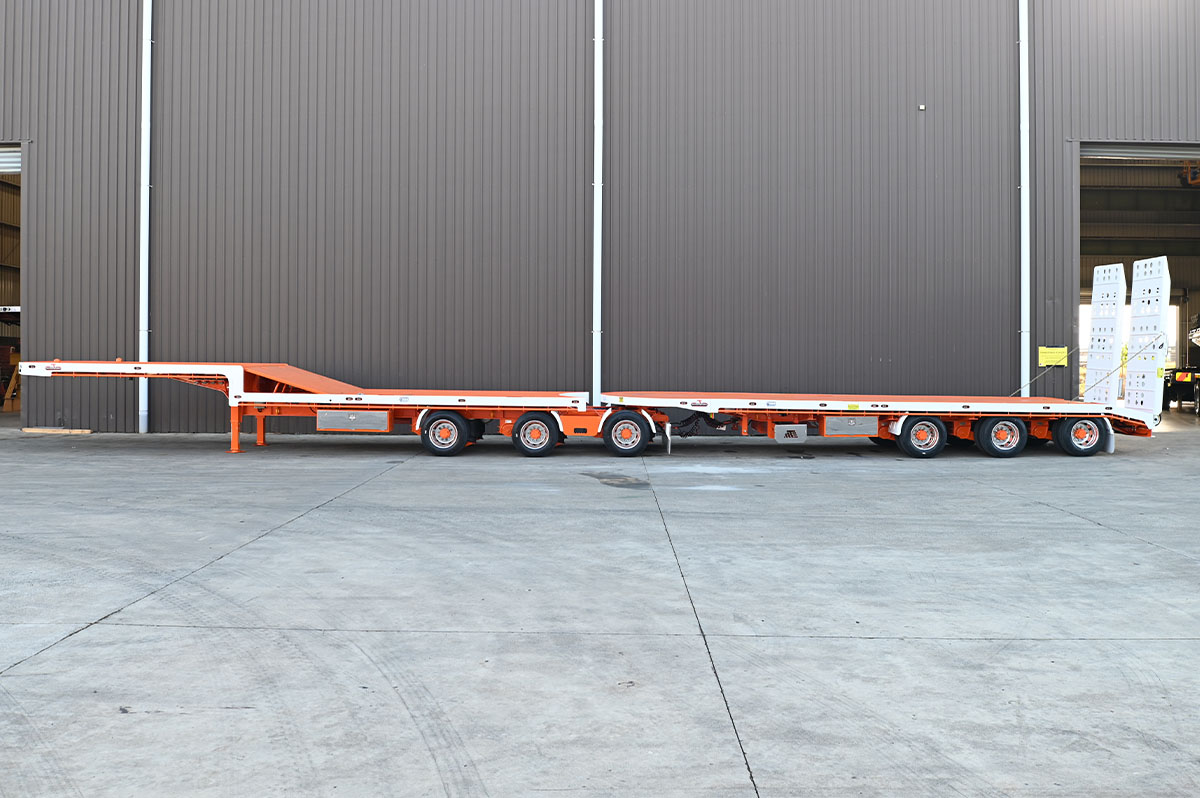

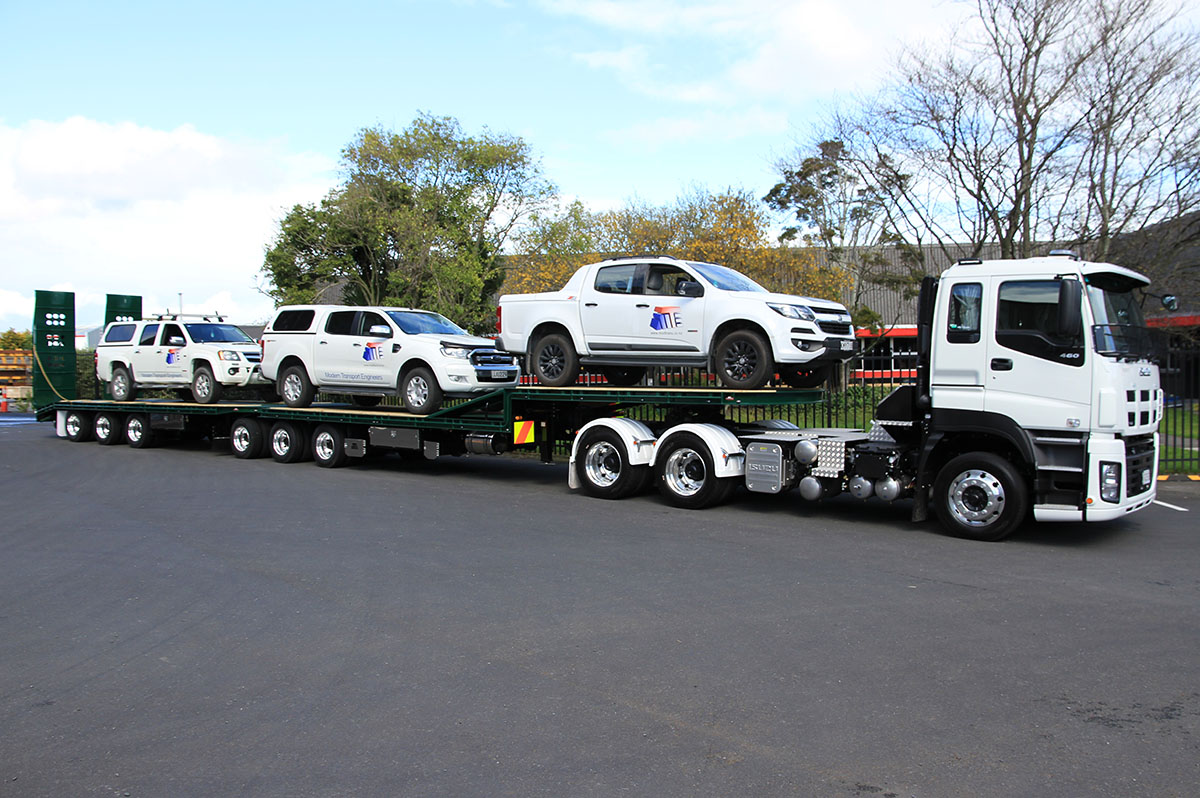

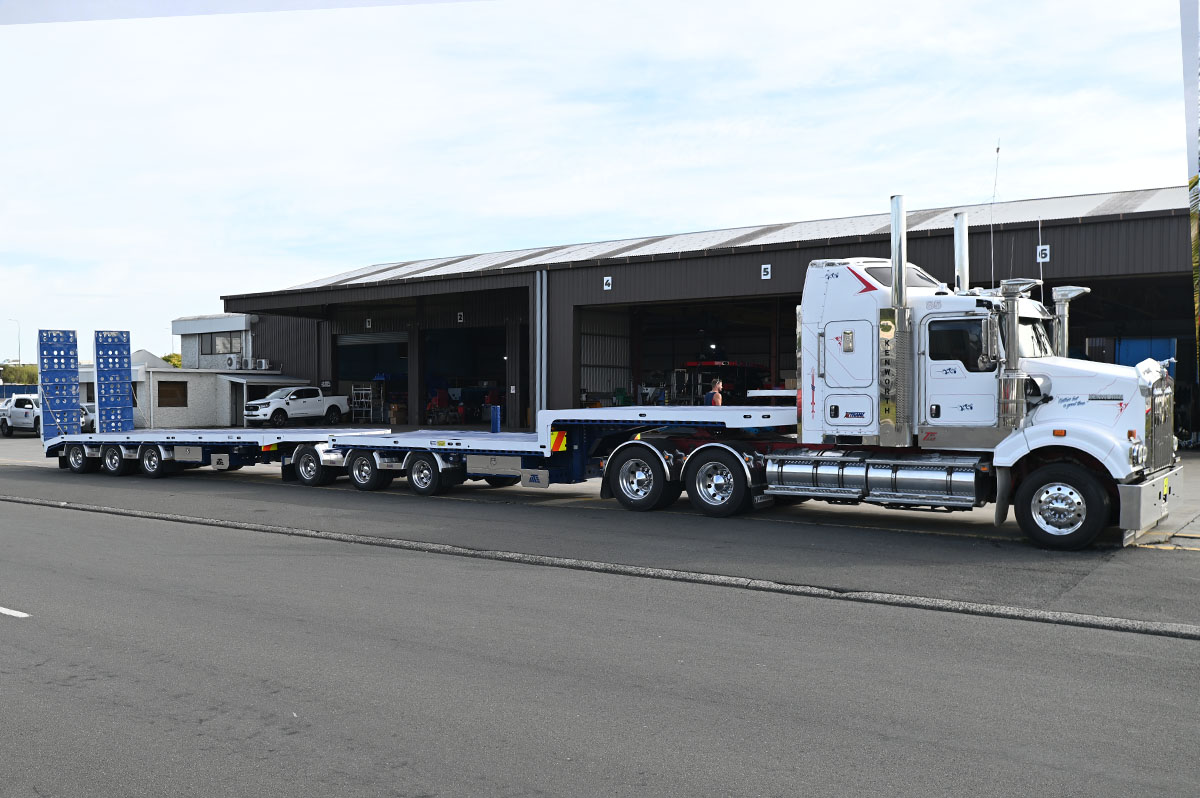

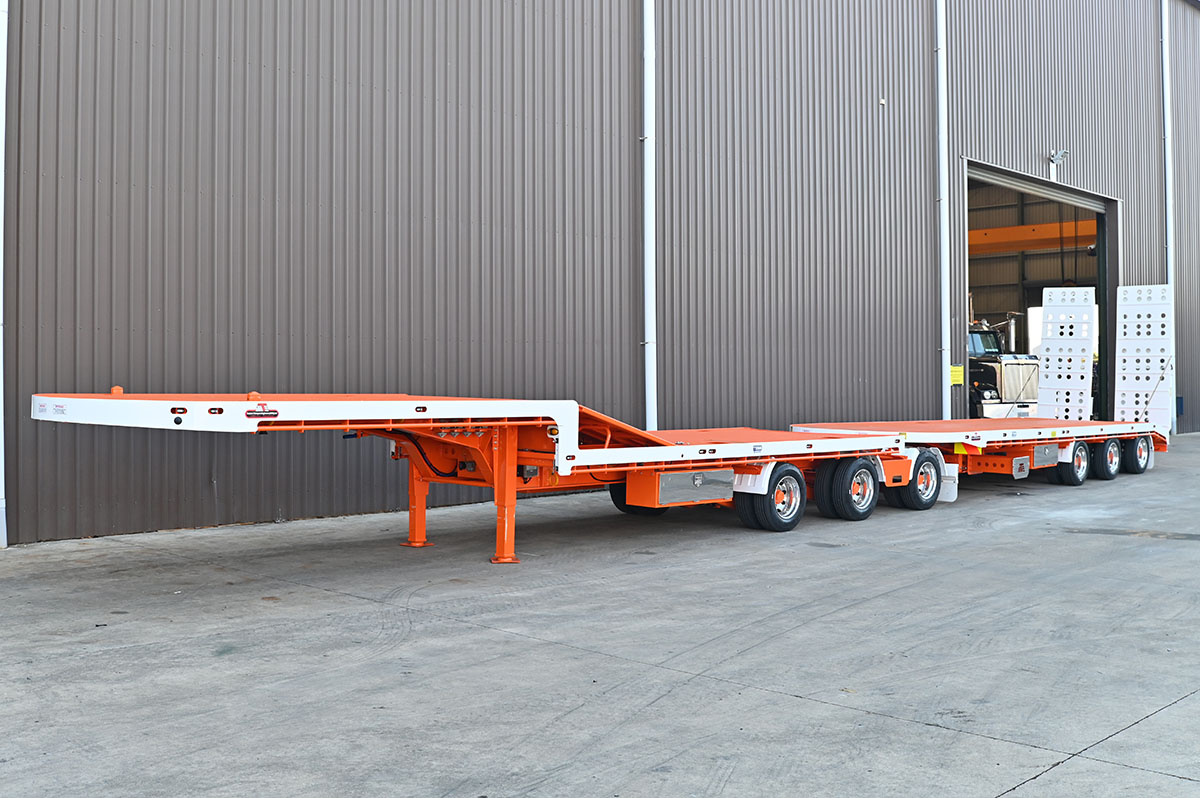

The MTE 6 Axle B-Train provides a highly versatile solution for transporting multiple machines, equipment and general loads. The twin-trailer configuration delivers excellent usable deck space, while the integrated fifth-wheel connection provides stable tracking and smooth articulation, making it equally capable on the highway and around tight yards.
Maximise every load, Extensive usable deck space across both trailers allows multiple machines and equipment to be transported in a single trip. Integrated pop-up top deck ramps allow machinery to be positioned across the available deck space, helping maximise carrying flexibility.
Excellent manoeuvrability, The sliding semi-oscillating fifth wheel provides smooth articulation between trailers.
Versatile transport solution, Ideal for machinery, construction equipment and general freight, with extensive load restraint, storage and configuration options available.

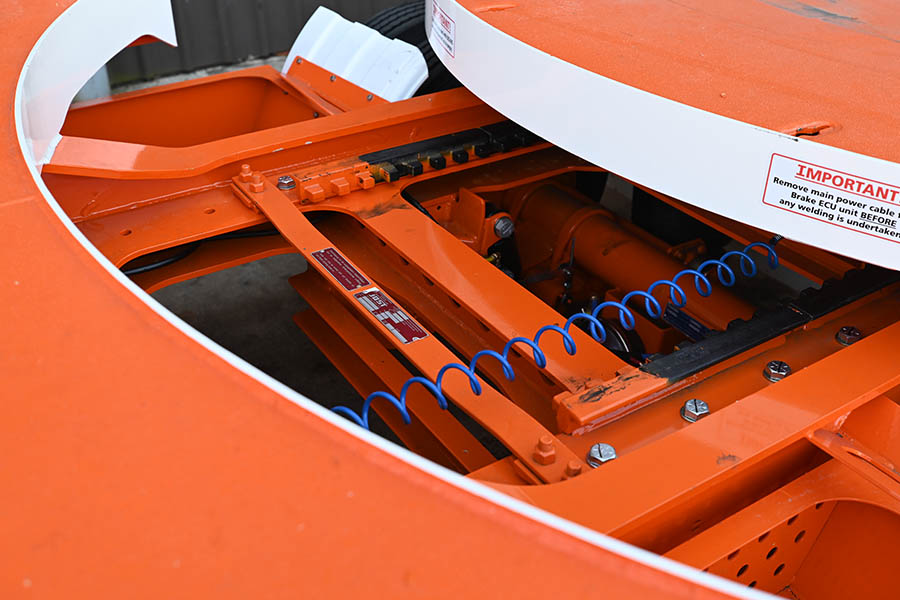

The integrated B-Train design allows greater payload efficiency while maintaining excellent tracking and stability. The sliding semi-oscillating fifth wheel provides smooth articulation between trailers, making the combination easy to manoeuvre in tight yards and on challenging worksites

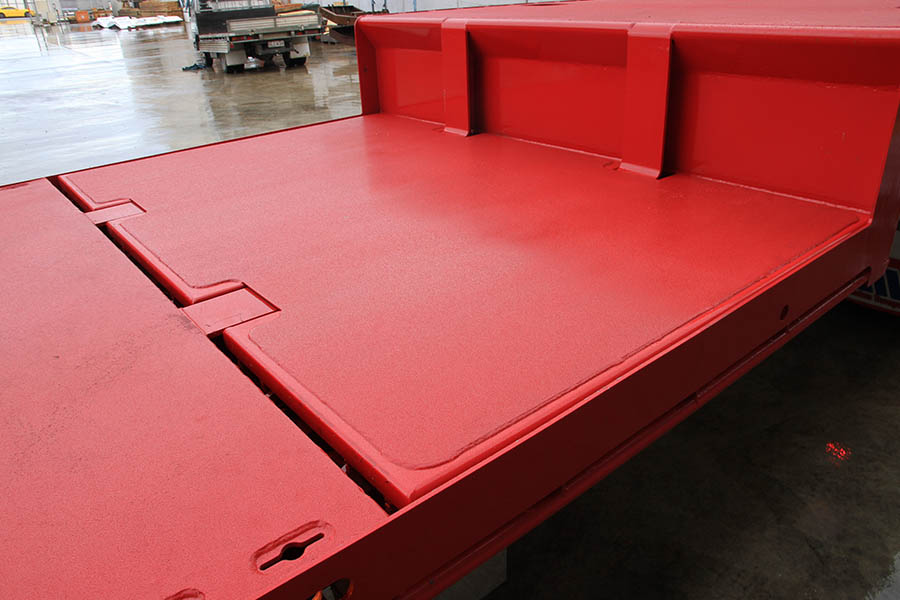

Manufactured using high tensile steel throughout, the full steel deck features an anti-slip grit finish to provide maximum traction when loading machinery in wet or muddy conditions

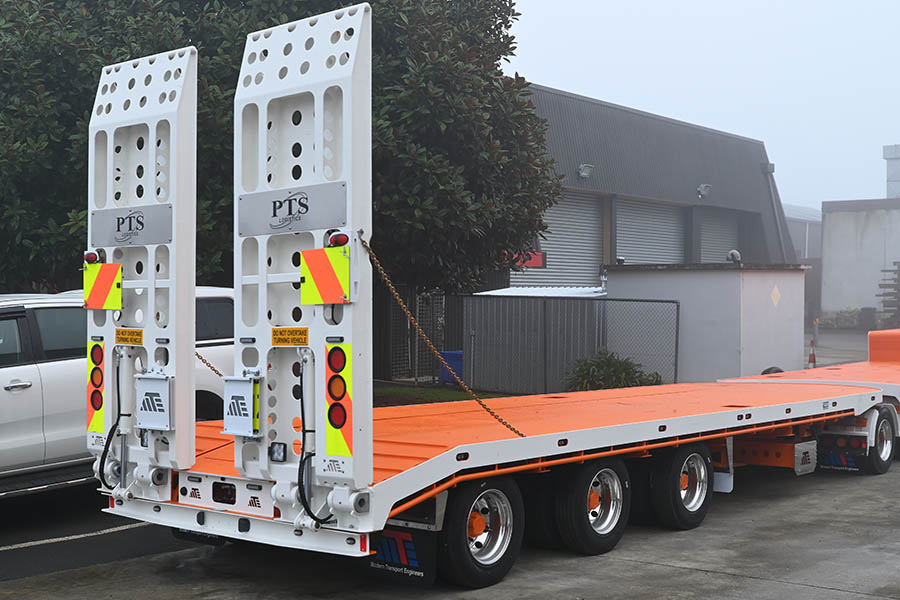

Heavy-duty 2400mm hydraulic loading ramps provide fast, safe loading and unloading of equipment. A range of optional ramp configurations are available, including dog-leg ramps, lightweight ramps and custom ramp designs to suit your application

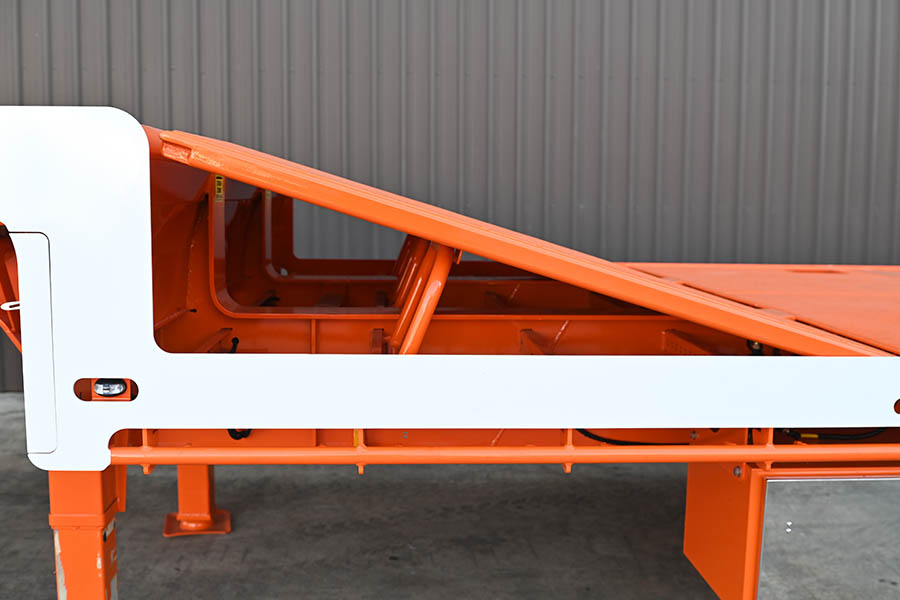

The front trailer features full-width pneumatic pop-up top deck ramps with a 5 tonne capacity, allowing machinery to be easily positioned across both trailer decks while maximising available loading space

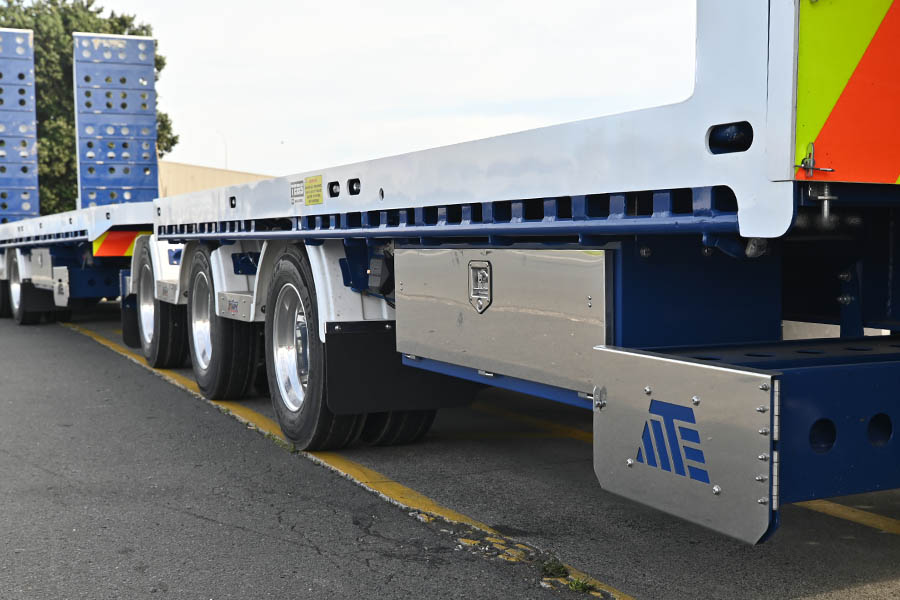

Integrated rope rails, chain lugs and ferry hook lashings are fitted throughout both trailers, providing numerous secure tie-down points for a wide variety of loads while keeping the deck uncluttered

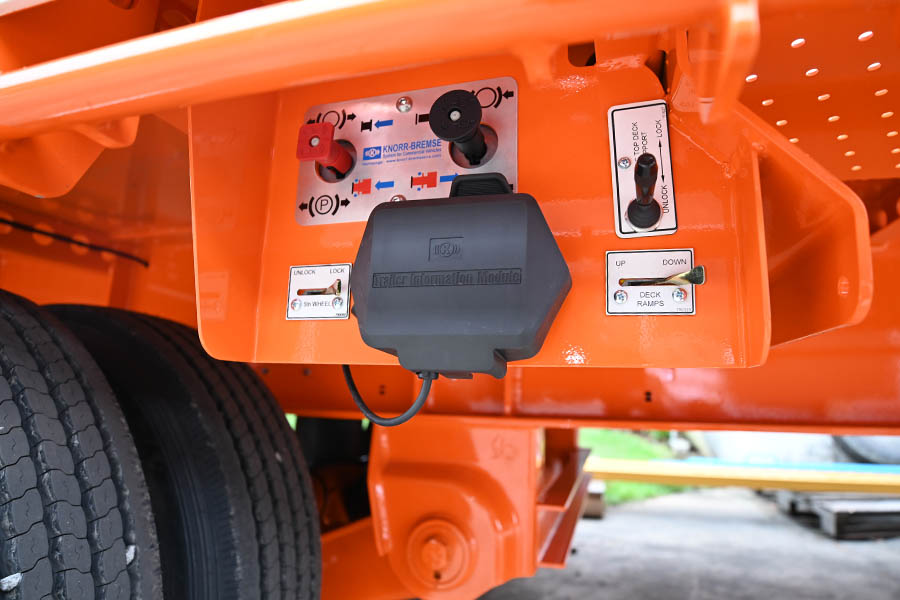

Built using proven MTW axles, air suspension and Knorr-Bremse EBS braking, the MTE B-Train delivers excellent ride quality, dependable braking performance and reduced maintenance across long haul operations
GVM: Combination dependant
Width: 2,500mm
Deck Type: Full steel high tensile decks with anti-slip grit applied to top
Axles: MTW 17.5”, outboard drum
Suspension: K-Hitch air suspension
Brakes: Knorr-Bremse EBS
Wheels: MTW 17.5” x 6.0” Steel wheels
Tyres: 215/75R 17.5
Lashings: Rope rail down both sides of top & bottom decks front & rear units. Chain lugs behind every second dropper on rope rail. Ferry hook lashings
Rubplate: Fixed single position rub plate on front & rear unit
King Pin: 50mm bolt-up king pin on both units
5th Wheel: Sliding semi-oscillating 50mm 5th wheel on front unit
Landing Legs: Full weight wind-up landing legs on front unit. Pin type landing legs on rear unit
Main Ramps: 2,400mm x 860mm hydraulic
Top Deck Ramps: Full width pneumatic pop-up ramp on front unit to top deck, 5T Capacity
Hydraulic Supply: Truck PTO
Control Valves: On drivers side
Lights: Hella LED
Signage: Hazard signage
Mudflaps: Stainless guards with white plastic flaps in front of first axle. Black MTE mud flaps fitted on rear
Toolboxes: 1 x Covered chain bin in rear beaver tail between ramps. 2 x 1200mm Lockable toolboxes with SS door & black powder coated body on front unit (one per side). 1 x 2400mm Dunnage tray under deck on rear unit with SS doors, Accessible from both sides
Paint: Sandblasted and painted to your fleet colours in Valspar 510
Odometer: Included
Upgrade your trailer with premium Weight Cheetah alloy wheels, available in Machined, Polished, or Premium Finish options

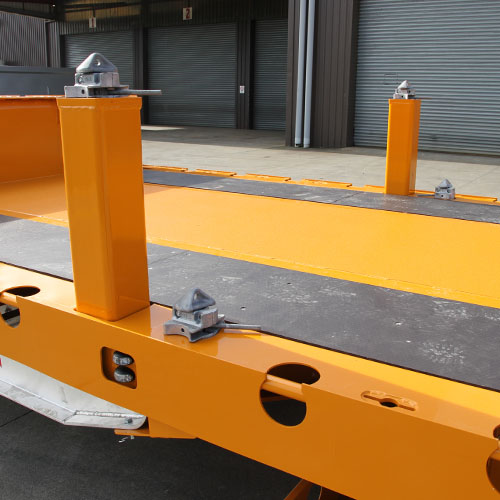

Optional container ship locks allow the trailer to securely transport two 20ft containers, or a single 20ft container

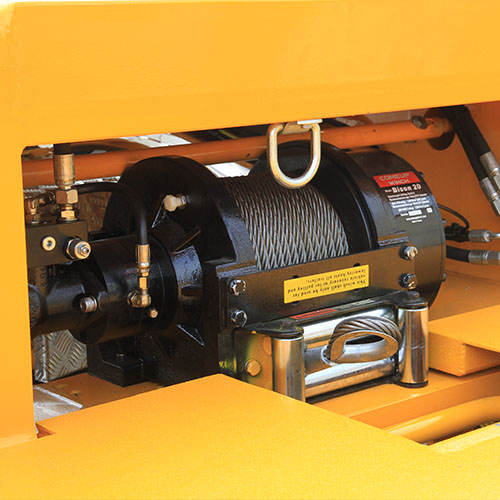

Choose the winch system that best suits your operation. Heavy-duty hydraulic winches for maximum pulling performance or premium COMEUP electric winches for a versatile, self-contained solution

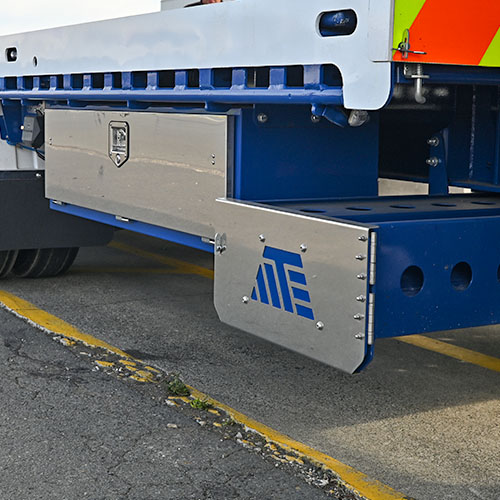

Lockable toolbox and dunnage tray options

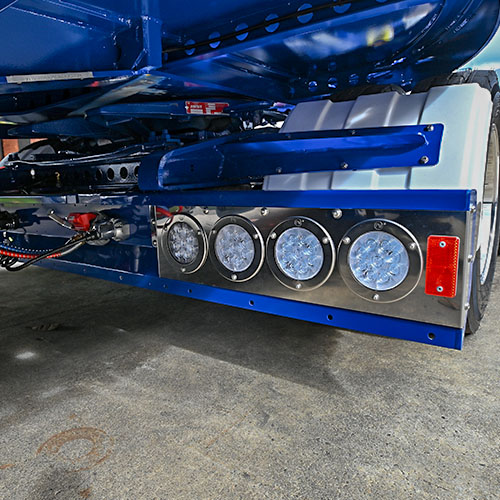

Premium Hella, Peterson or Lucidity LED lighting options

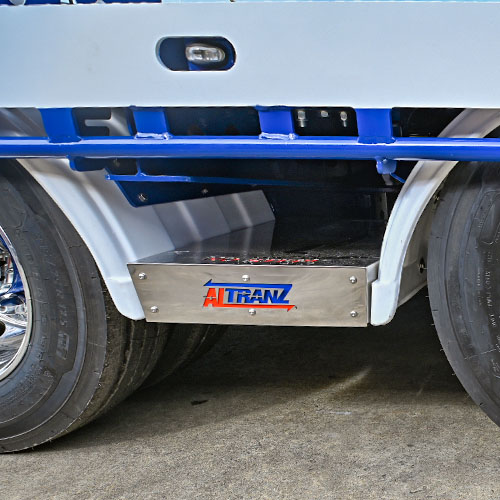

Polished stainless steel mudguard infills, laser cut with your company logo

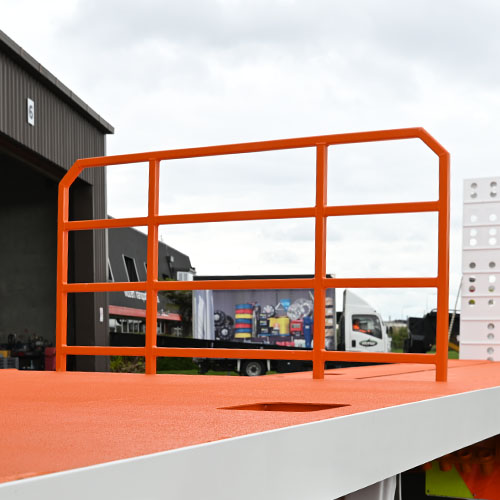

Protection from forward-moving loads

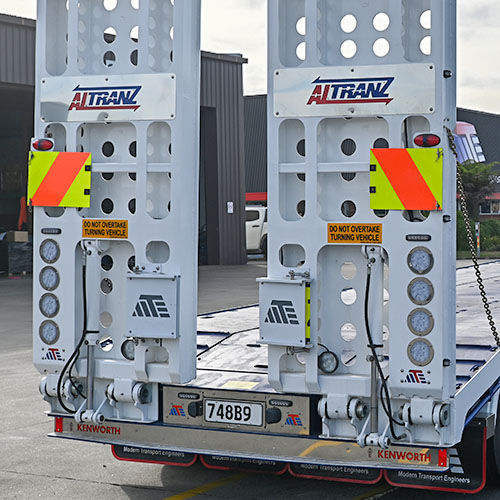

Polished stainless steel ramp infills, laser cut with your company logo

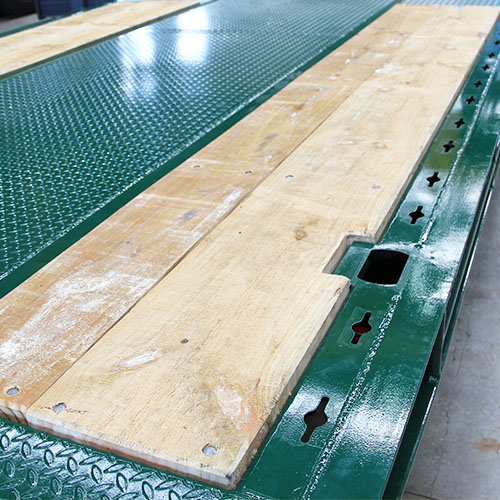

Strategically positioned in deck chain slots provide flexible and secure load restraint for machinery
