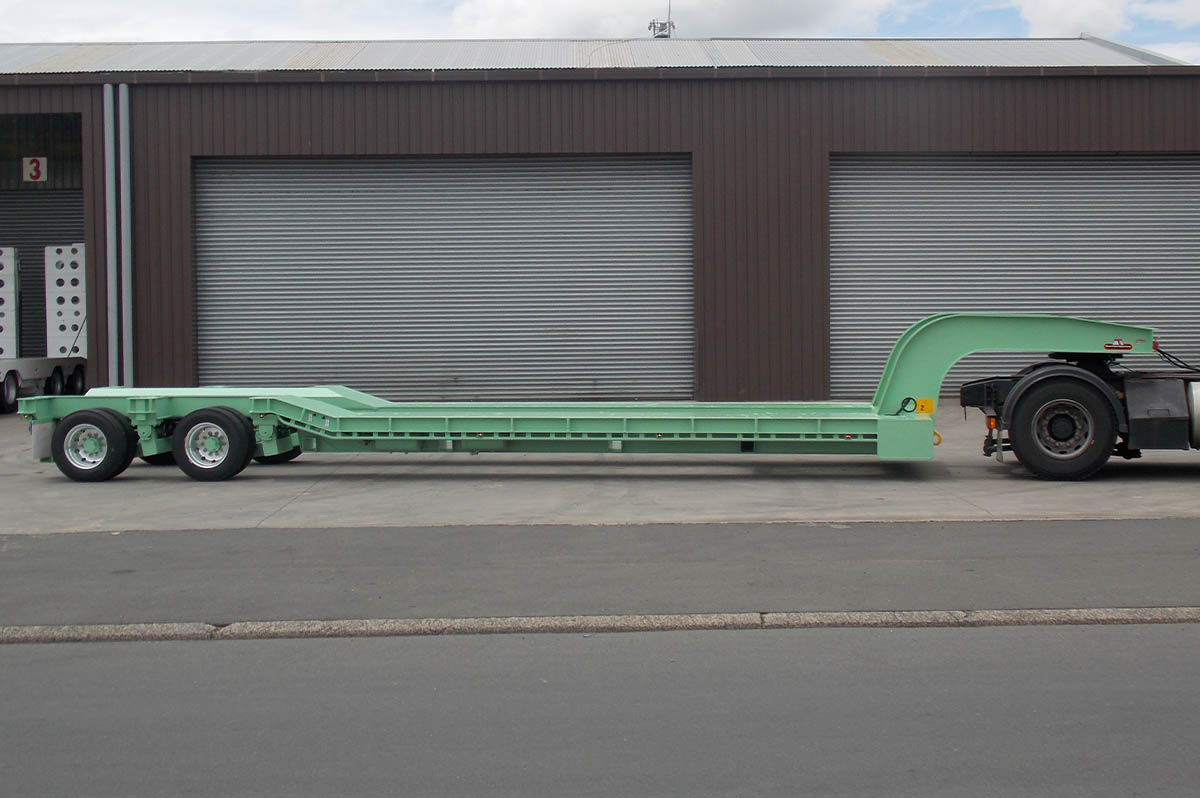

Purpose-built for the transport of large boats and yachts, the MTE Boat Trailer Range combines a specialised low-profile chassis with flexible vessel support and restraint options. Designed to position the hull as low as possible within the trailer, it helps minimise overall transport height while providing the stability and support required for moving valuable vessels between marinas, storage facilities, boat builders and service locations.
Keep transport height down, The open-centre chassis allows the hull to sit low between the trailer rails, reducing overall height while improving stability during transport.
Built around the vessel, Multiple stanchion locations and support options allow the trailer to be configured around different hull shapes and vessel sizes.
Secure & supported, Strategically positioned certified tie-down points provide flexible restraint options to keep vessels securely positioned throughout transport.
Easier loading & unloading, Adjustable air suspension, combined with optional winches and custom loading equipment, helps simplify vessel loading, unloading and positioning.

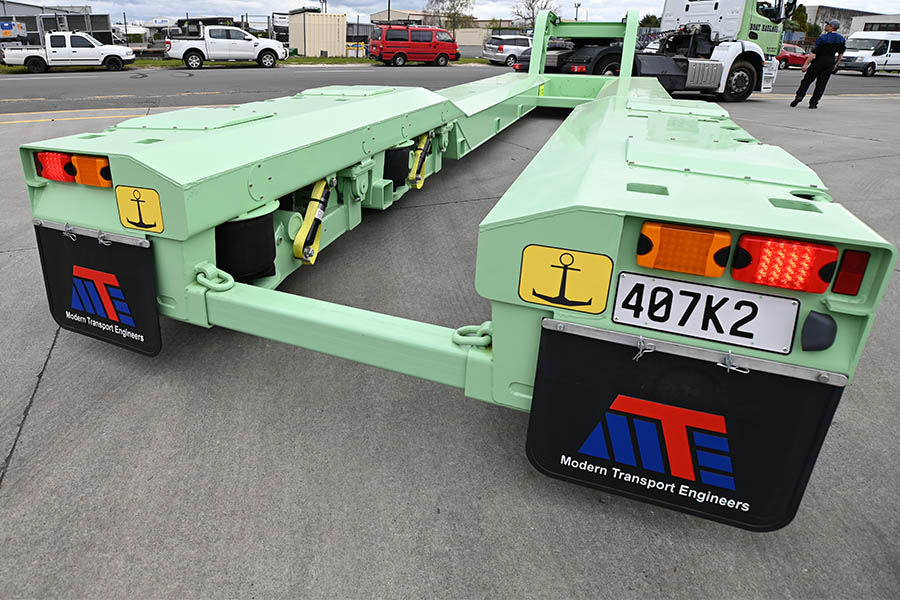

The open-centre chassis design allows the hull to sit as low as possible between the trailer rails, reducing overall transport height while improving stability and making loading and unloading easier.

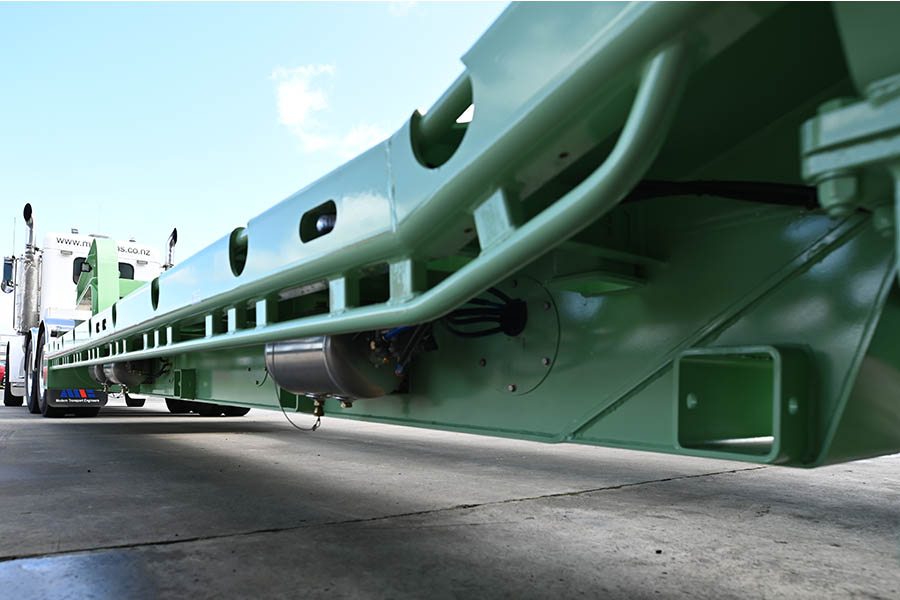

Strategically positioned tie-down points are integrated throughout the trailer, allowing vessels to be safely and securely restrained while providing flexibility for different hull configurations.

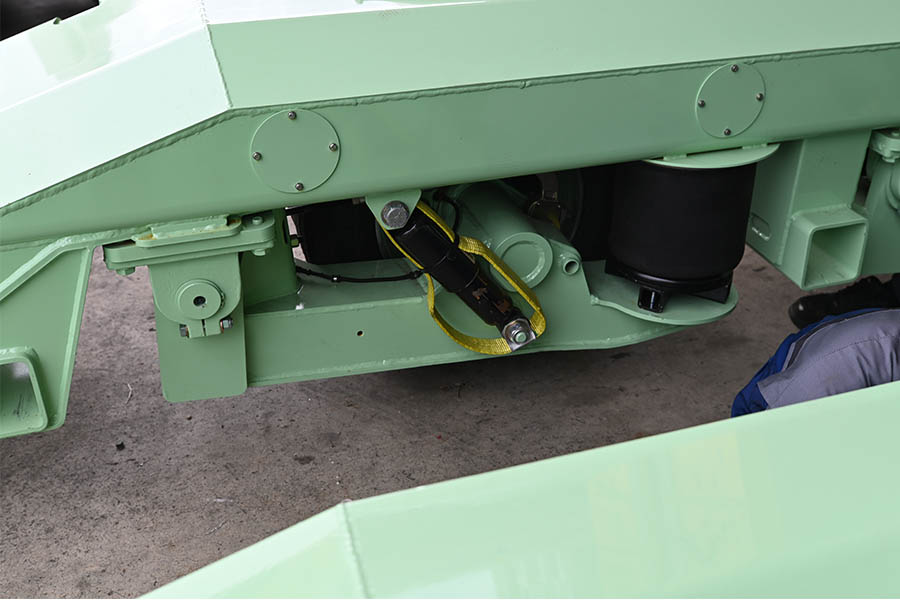

Air suspension allows the trailer height to be adjusted for easier loading and unloading.

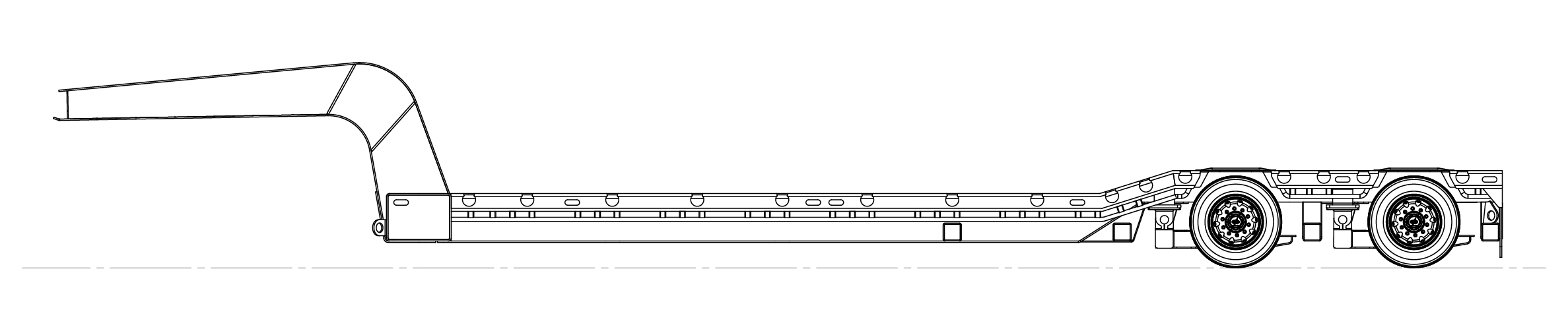

GVM (Gross Vehicle Mass): 20,000kg
Tare Weight: 6,350kg
Deck Length: 8,845mm
Forward Length: 9,625mm
Overall Length: 12,225mm
Max. Width Across Tyres: 2,500mm
Suspension: MTE Air Suspension.
Axles Type: 2x 17.5" MTE ten stud axles 12-1/4” x 5-1/2” brakes
Axles Spacing: 1,300mm
Wheels & Tyres: 8x 215 x17.5 x 16 ply tyres on Steel Wheels
Rub Plate: Fixed rub plate at 1,250mm
Lashings: Gas bottle holder on passengers side in front of bulkhead, 6x twitch holders mounted under top deck on bulkhead
Lashings: Certified rope rail under deck, certified tie bars in combing rails, 2x drop ‘D’ lashings on the insides of rear bumper, ferry lashings front & rear
Landing Legs: Pin type
Sockets: 5x 150 x 9mm SHS horizontal sockets in chassis below deck & at rear
Staunching Pockets: 18x 100 x 3mm SHS vertical staunching pockets (x9 per side)
King Pin: 2” king pin
Lights: Hella LED
Odometer: Included
Paint: Sand blasted & painted to your fleet colours in Valspar 510
