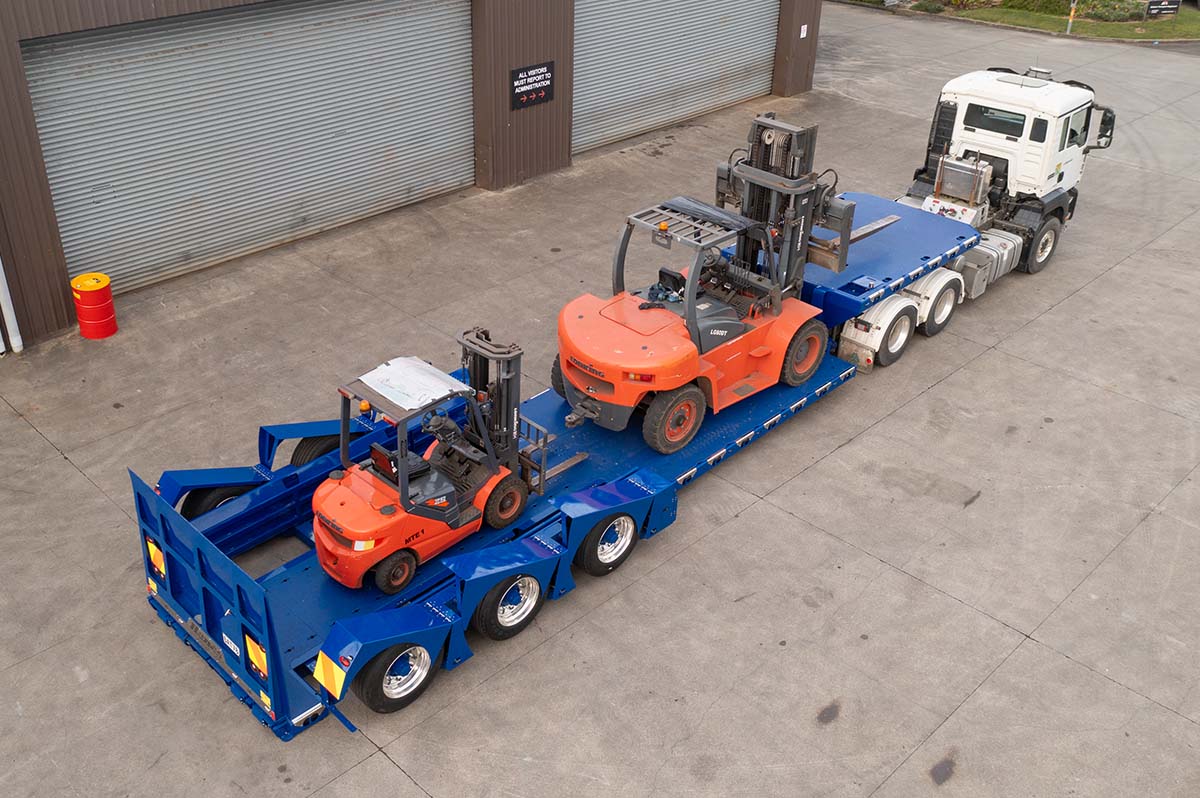

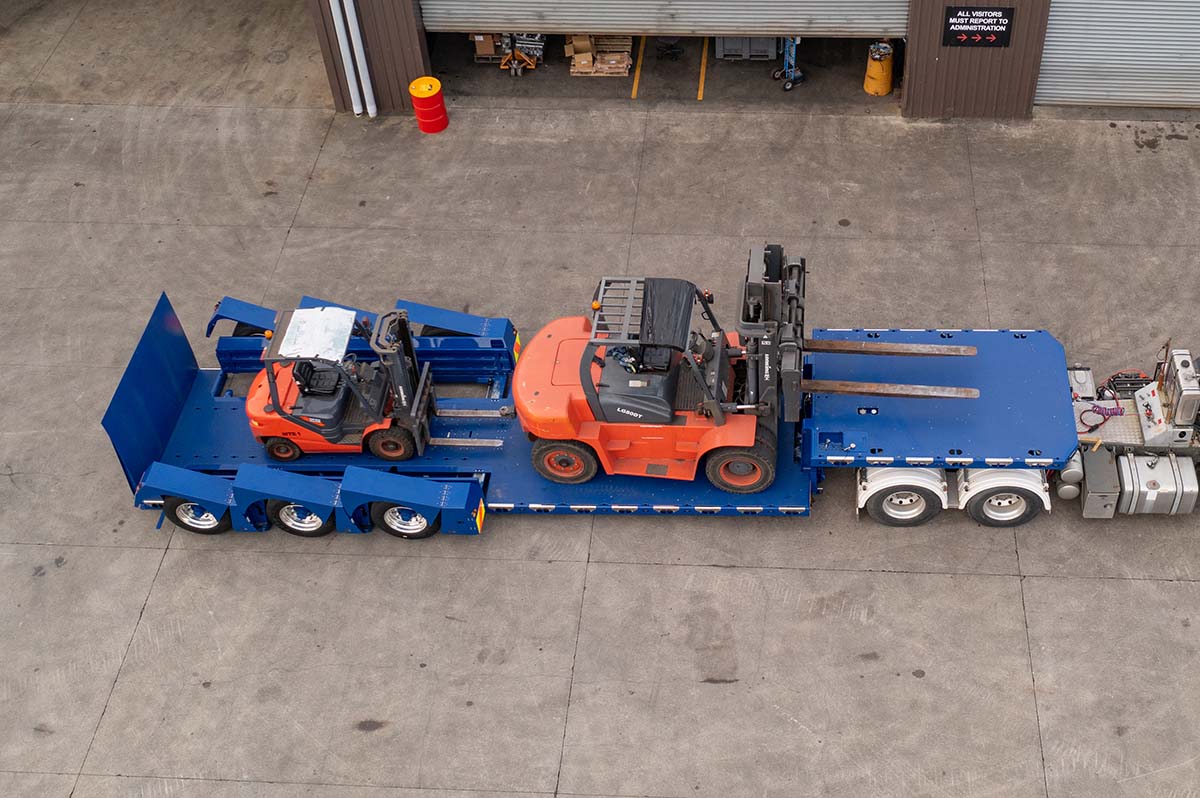

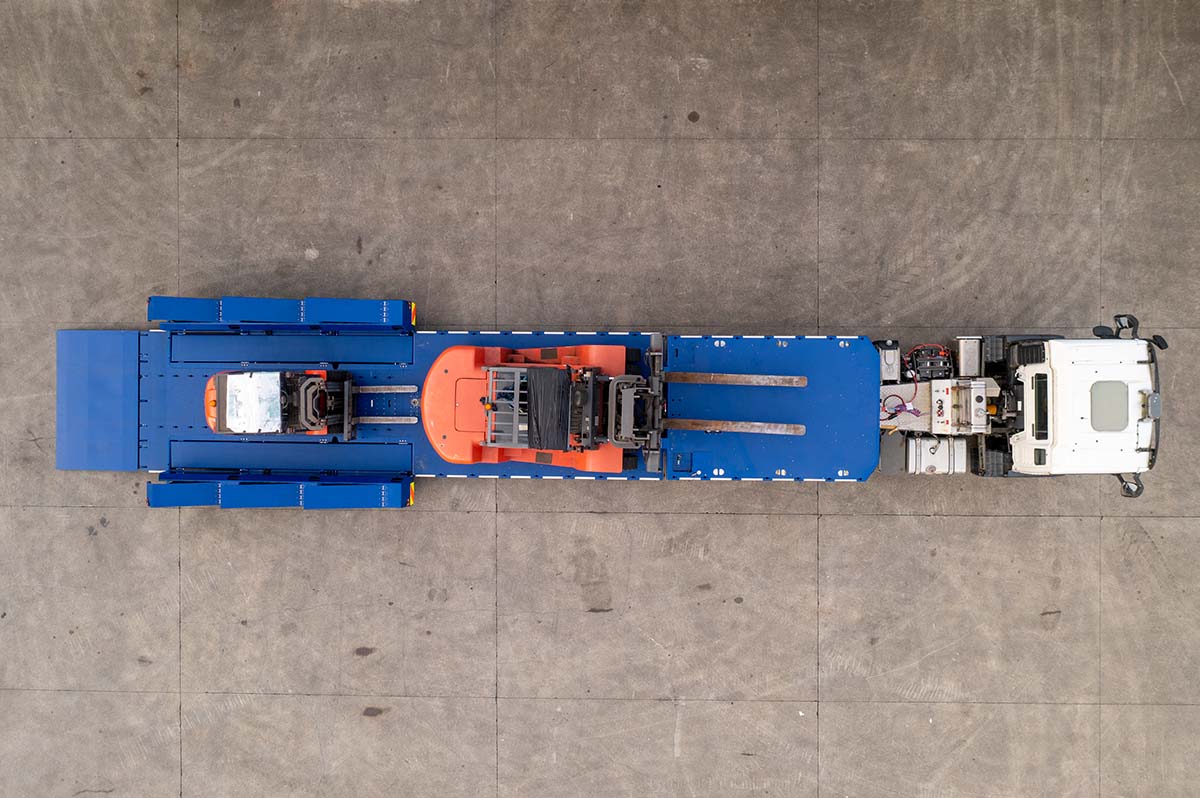

Purpose-built for transporting forklifts, access equipment and other low-clearance machinery, the MTE Forklift Trailer Range makes loading and securing difficult equipment simple. Combining a low deck, hydraulic suspension and widening axle system, these trailers provide the clearance, approach angle and flexibility required for day-to-day machinery transport.
Designed for low-clearance machinery, The low deck and hydraulic suspension create a low loading angle, ideal for forklifts, scissor lifts and access equipment.
Widen for extra clearance, Widening hydraulic axles increase the space between the wheels, allowing wider machinery to be loaded securely within the trailer.
Simple full-width loading, A single full-width hydraulic rear ramp provides a clear, straight forward loading surface across the rear of the trailer.
Built for everyday transport, Extensive tie-downpoints, integrated chain storage and a protective front bulkhead make securing and transporting machinery easy.

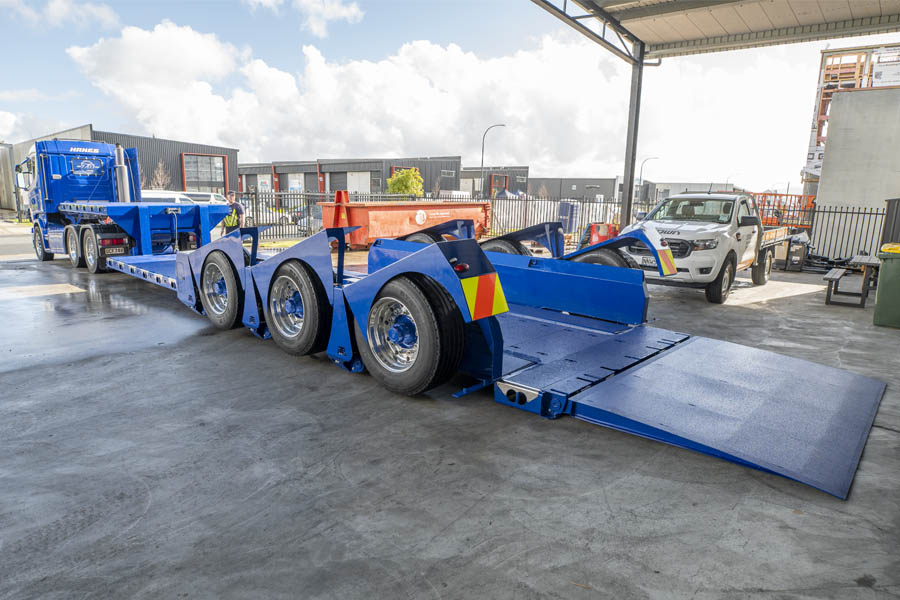

The hydraulic suspension lowers the trailer to create a gradual loading angle, making it suitable for forklifts, scissor lifts, access equipment and machines with low ground clearance.

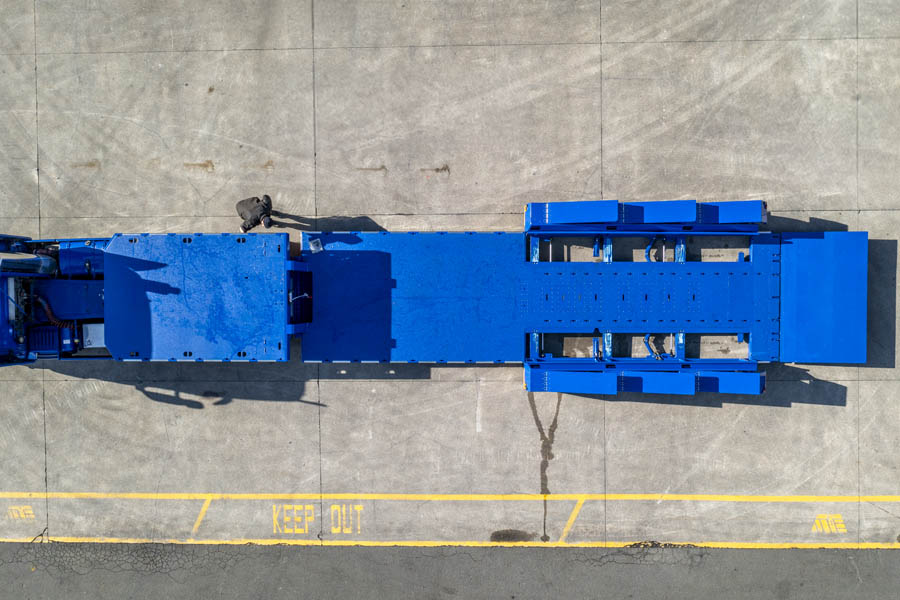

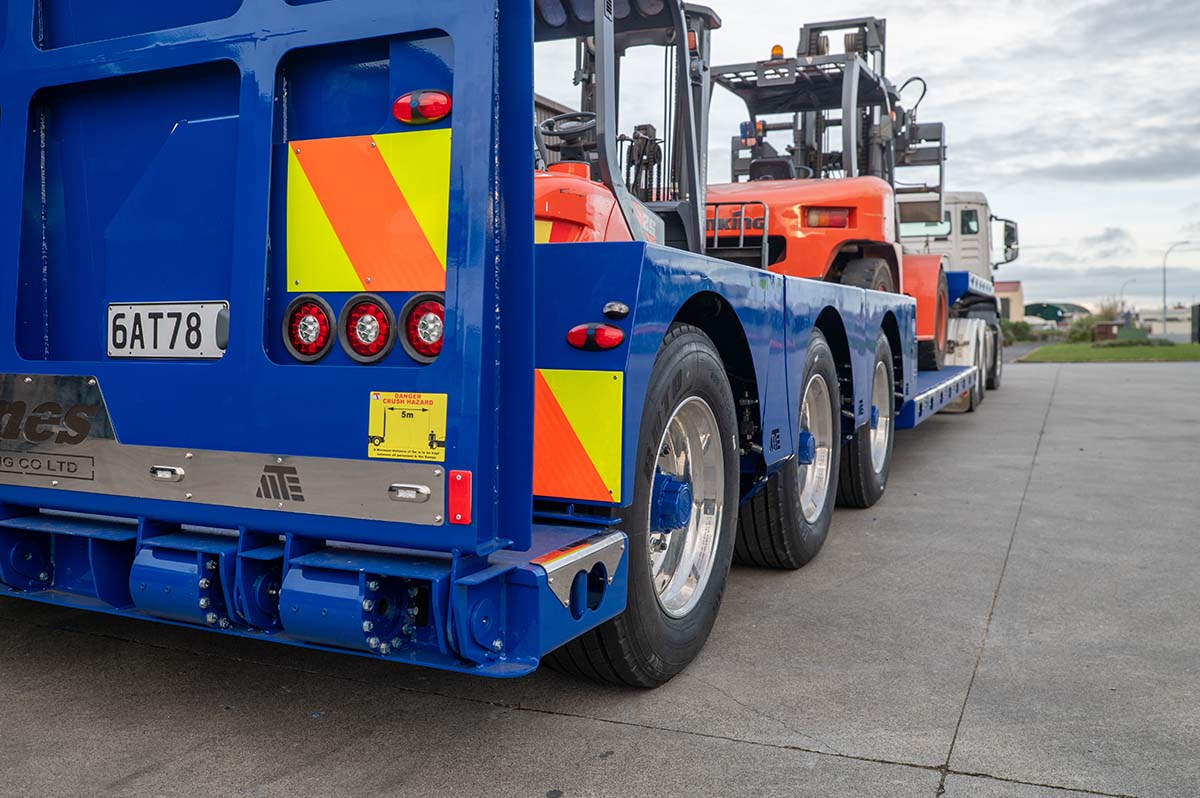

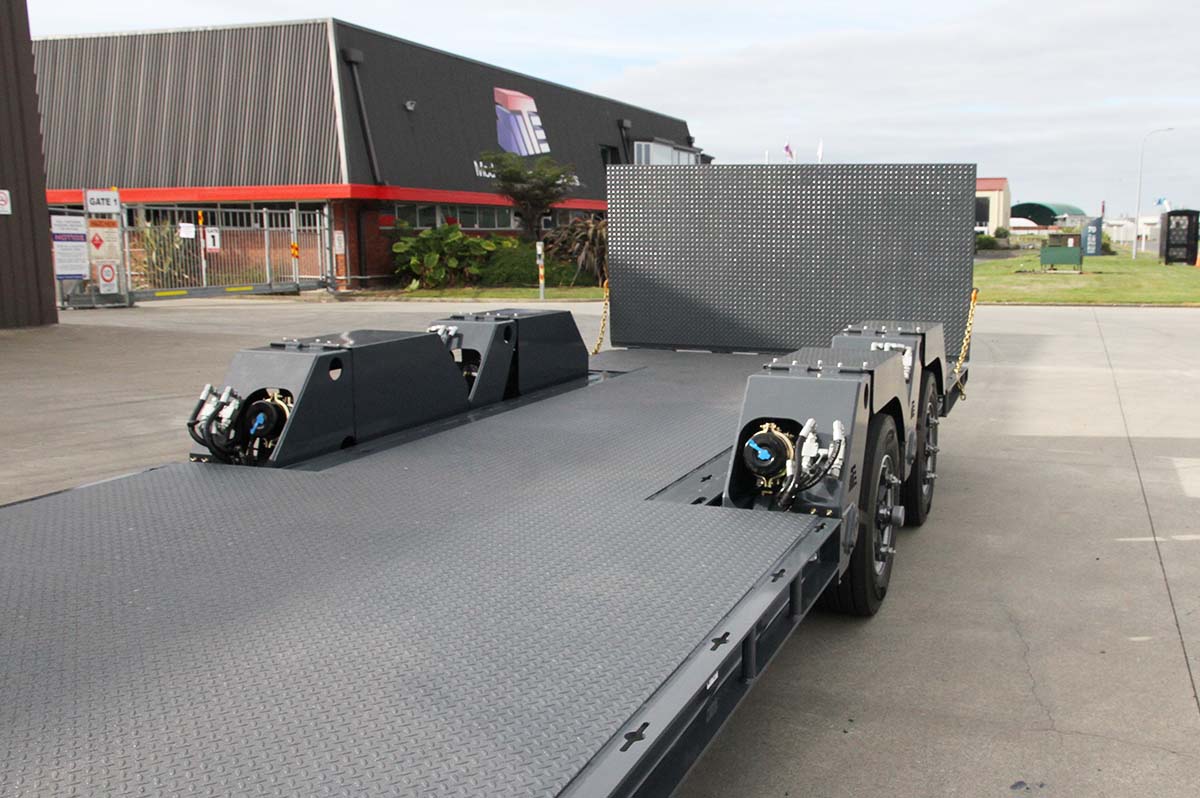

The axle assemblies can widen independently, providing greater clearance between the wheels for wider machines. Sections of the deck fold down between the wheels when the axles are extended.

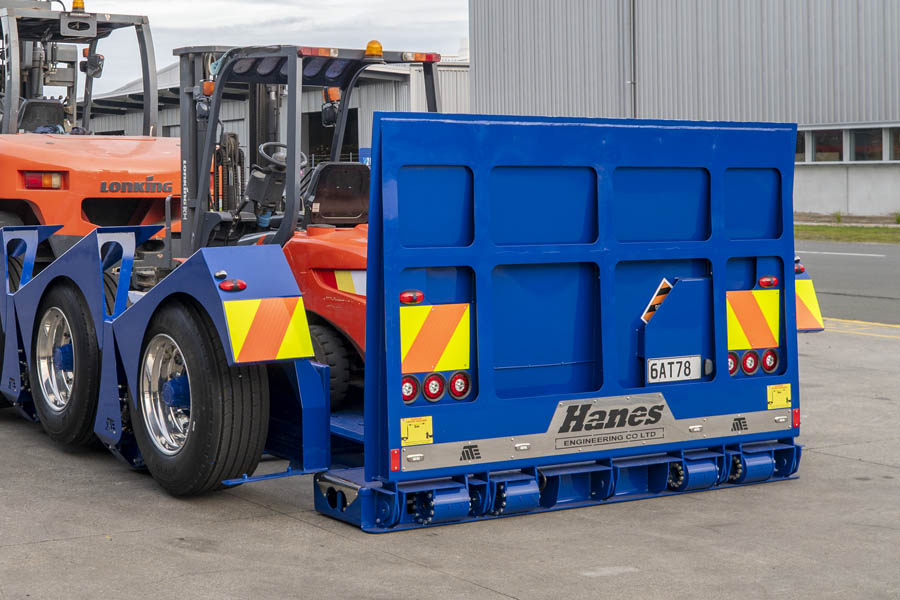

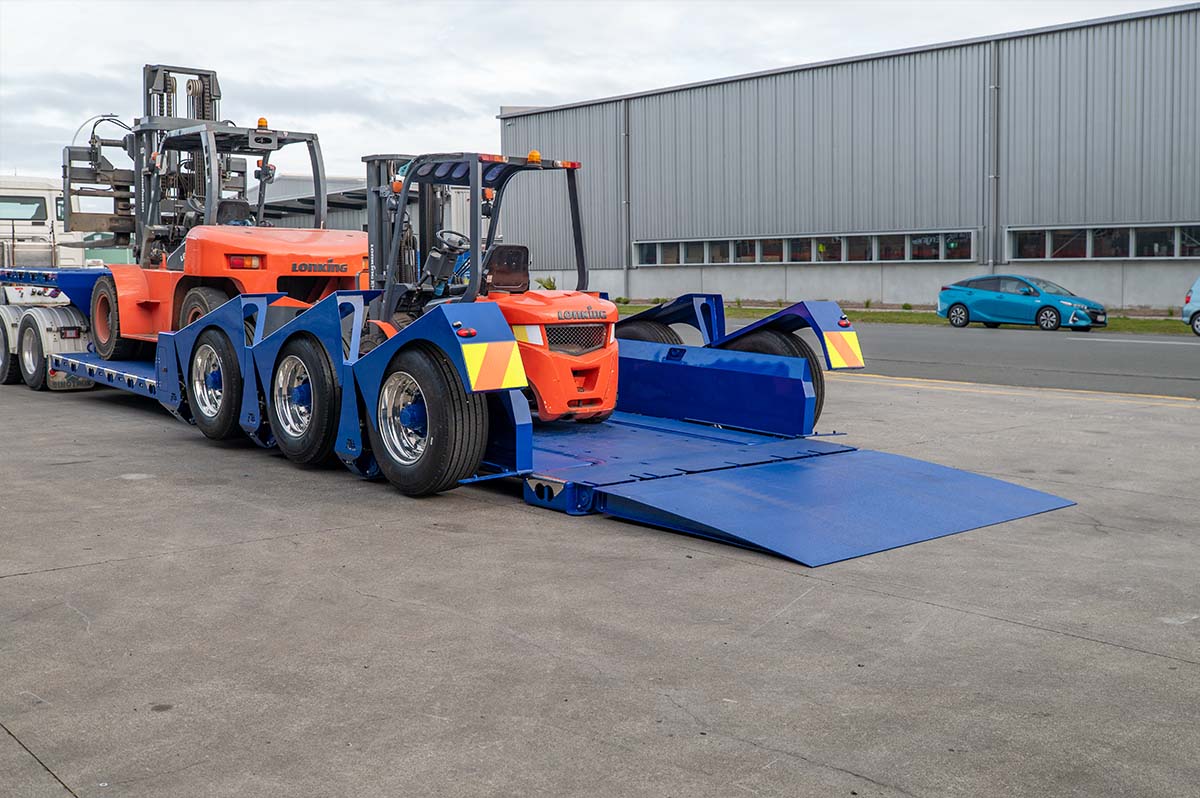

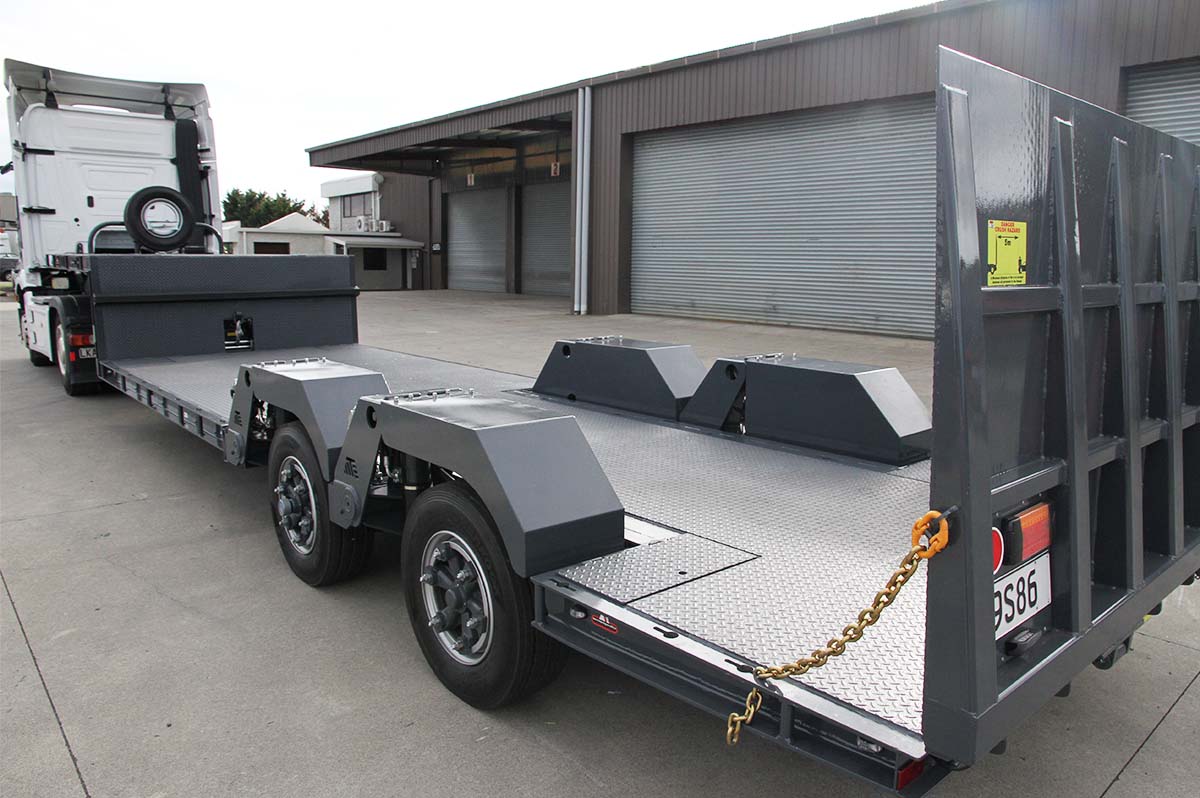

A single full-width hydraulic rear ramp provides a straightforward loading surface across the rear of the trailer. The ramp is operated using the truck’s hydraulic supply as standard.

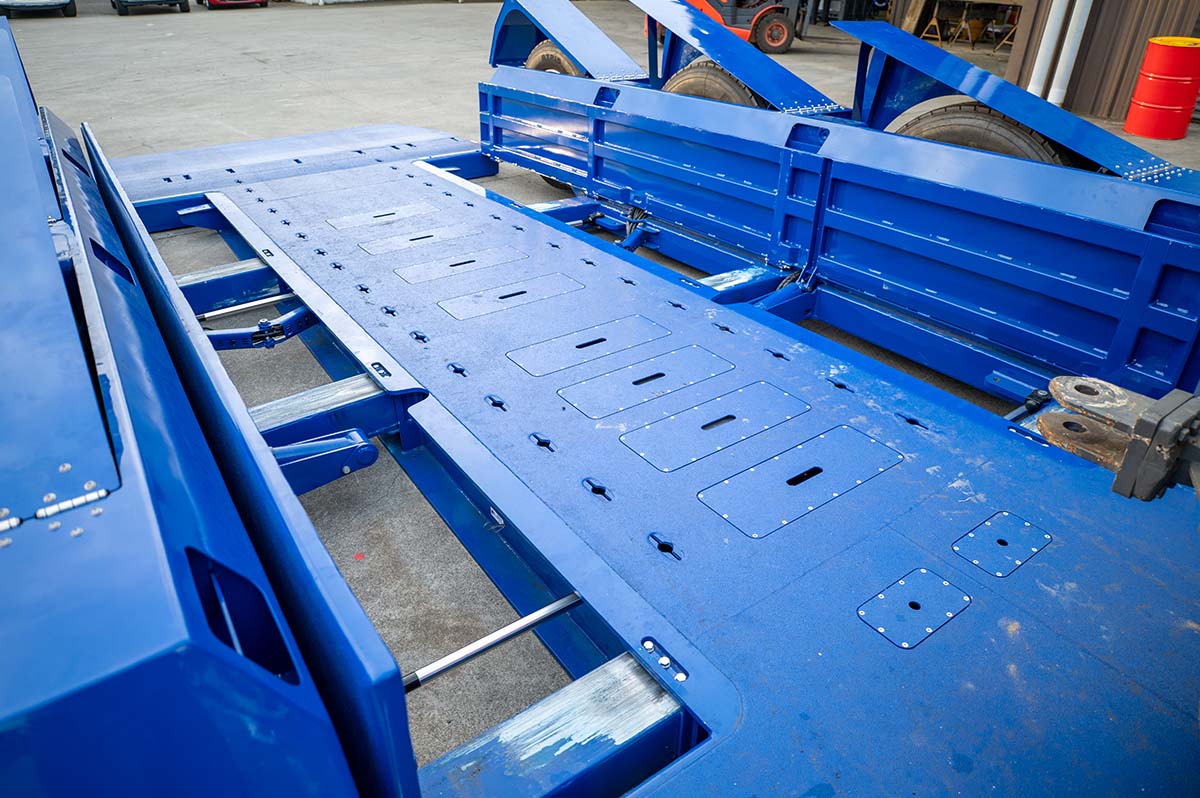

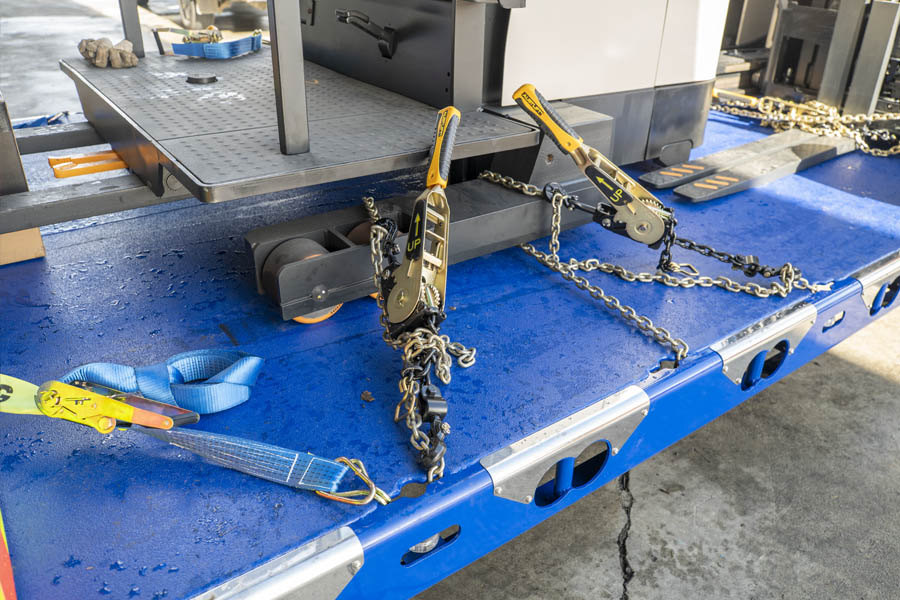

Deck-mounted chain slots, tie bars and heavy-duty chain lugs are positioned throughout the top and bottom decks, providing multiple options for securing different machines.

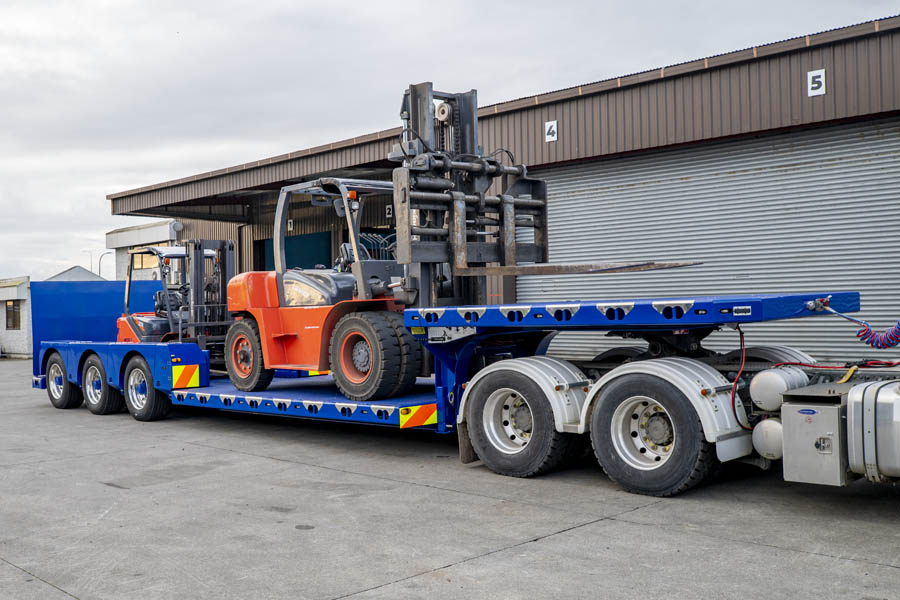

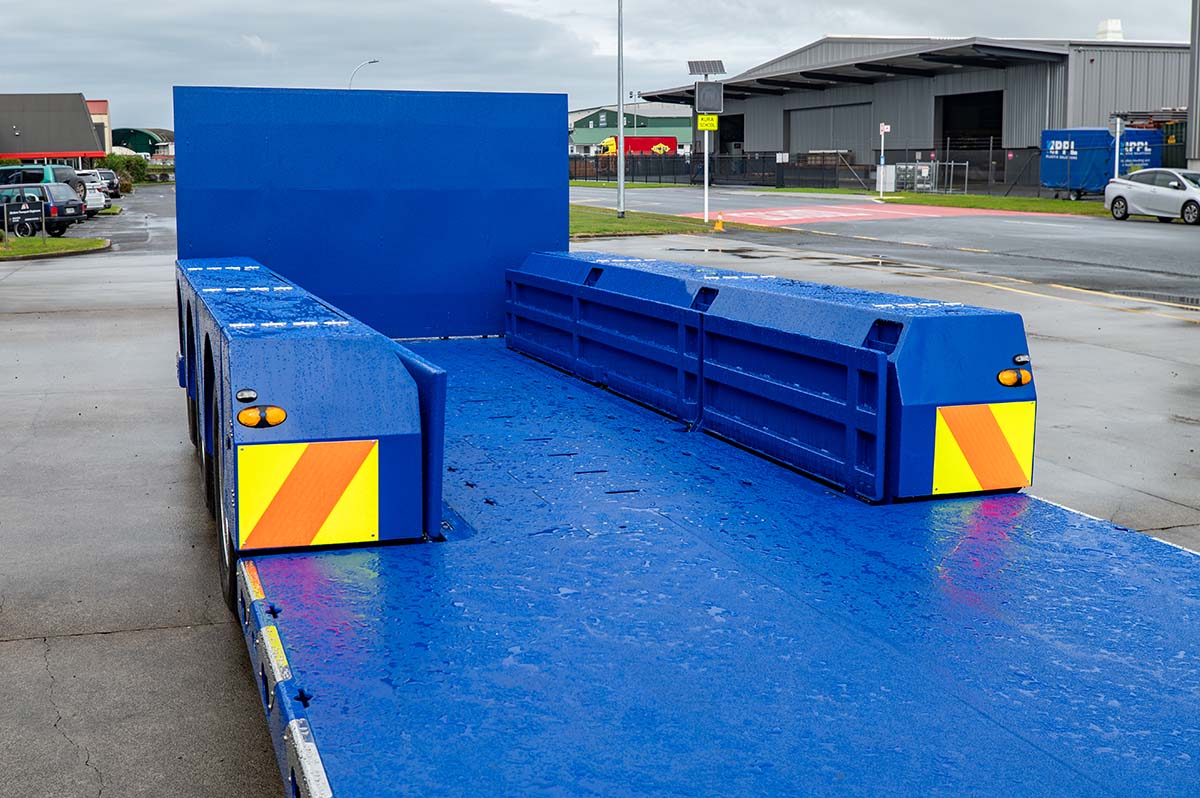

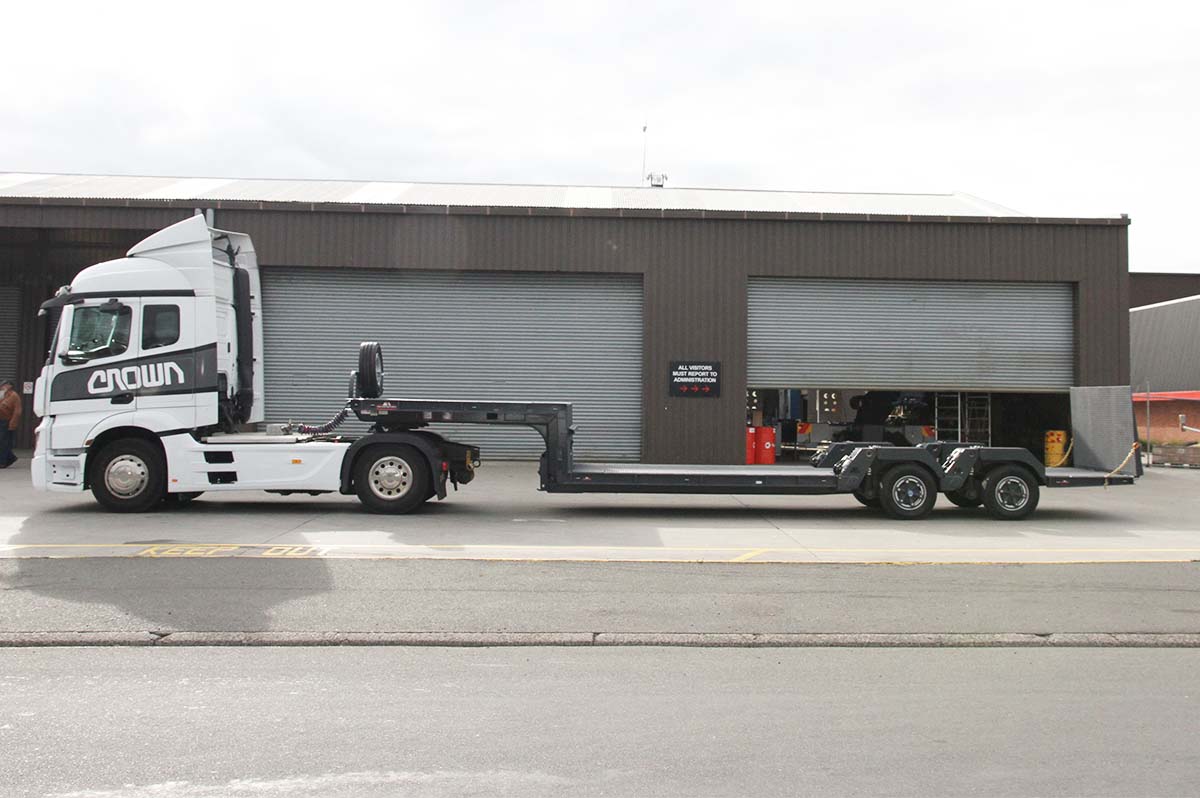

The low bottom deck keeps the machine’s overall transport height down while helping create the trailer’s shallow approach angle. The 2 axle model has an approximate deck ride height of 608mm.

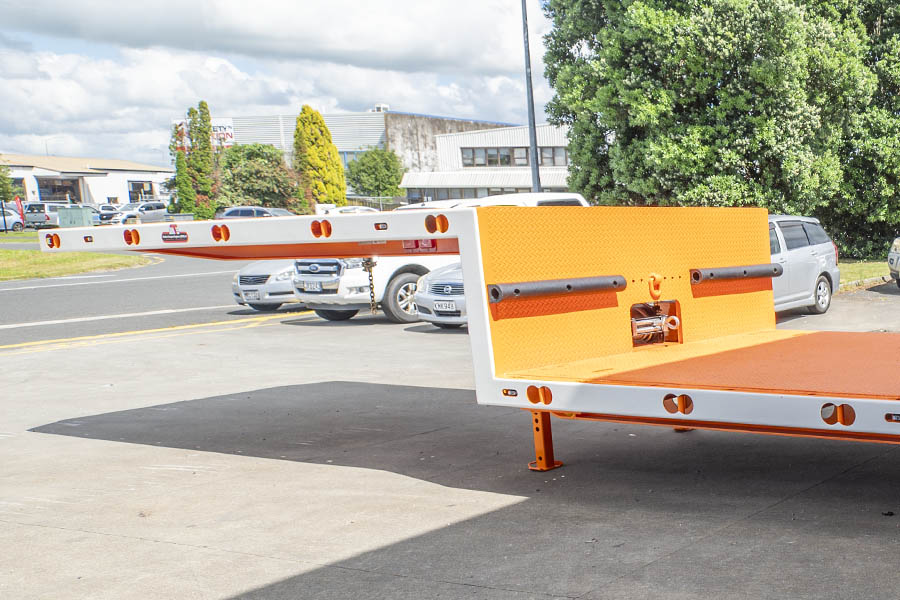

A full-width front bulkhead provides additional load protection, with a rubber bumper positioned across the bulkhead to help protect transported machinery.

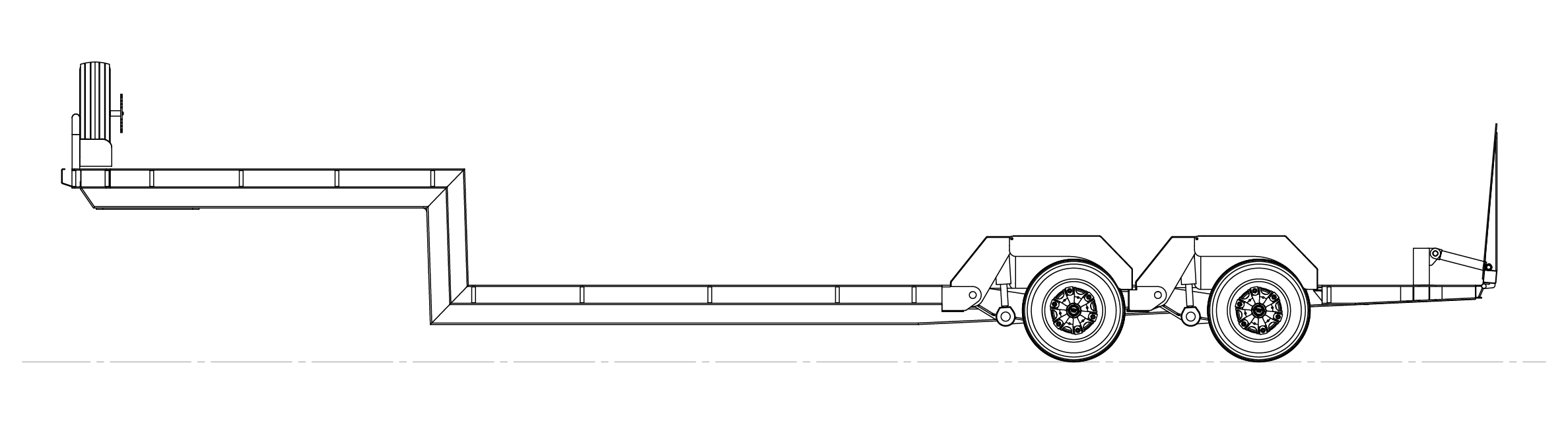

GVM (Gross Vehicle Mass): 20,000kg (2R2)
Tare Weight: From 6,750kg
Deck Height: 610mm
Forward Length: 9,200mm
Top Deck Length: 4,360mm
Closed Width Overall: 2,550mm
Closed Width Inside Guards: 1,725mm
Closed Width Outside Guards: 3,285mm
Decking: Bottom deck - 8mm checker plate. Top Deck - 3mm checker Plate
Chain Slots: 8x Deck mounted chain slots inside wheel arch set into the deck (4x per side).
Tie Bars: Tie bars inside combing rails top & bottom decks (6x per side top deck & 7x per side bottom deck)
Chain Lugs: 2x chain lugs in combing at front, 2x on outside of bulkhead on chassis, 2x under rear
Lashings: Gas bottle holder on passengers side in front of bulkhead, 6x twitch holders mounted under top deck on bulkhead
Axle Spacing: 1450mm
Axle Type: MTE 6 spoke 5000kg artillery axles
Suspension: MTE hydraulic suspension
Brakes: Pacific brakes
Rub Plate: Fixed position
Gooseneck Height: 1,195mm
King Pin: 50mm bolt up king pin
Wheels: 17.5”x 6.75” steel rims
Tyres: 235/75R17.5” synergy tyres
Chain Bins: 6x chain bins in decks with lift-up lids. (2x in top deck at bulkhead, 2x in bottom deck at bulkhead & 2x behind second axle in deck)
Landing Legs: Light weight rows of 4 pin type landing legs
Control Valves: Mounted drivers side under top deck
Odometer: Included
Paint: Sand blasted and painted to your fleet colours in Valspar 510

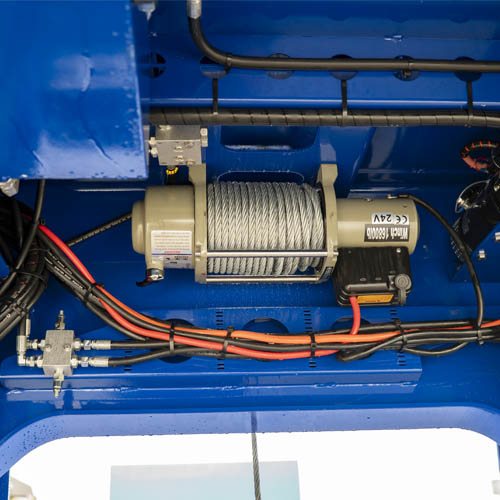

Remote-control options are available for operating the winch, hydraulic suspension and widening axle functions.

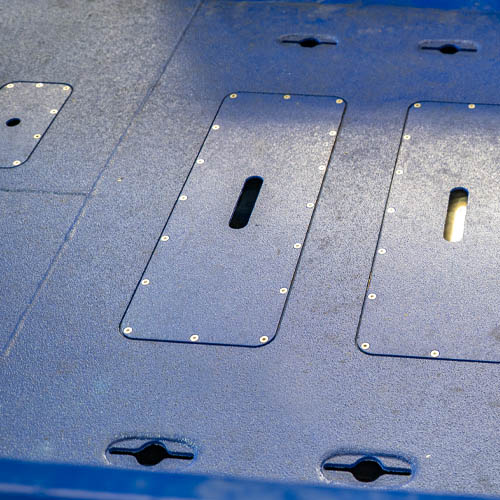

Anti-slip grit or Mita deck liner can be applied to the deck surfaces to provide increased traction.
Various sizes available.
