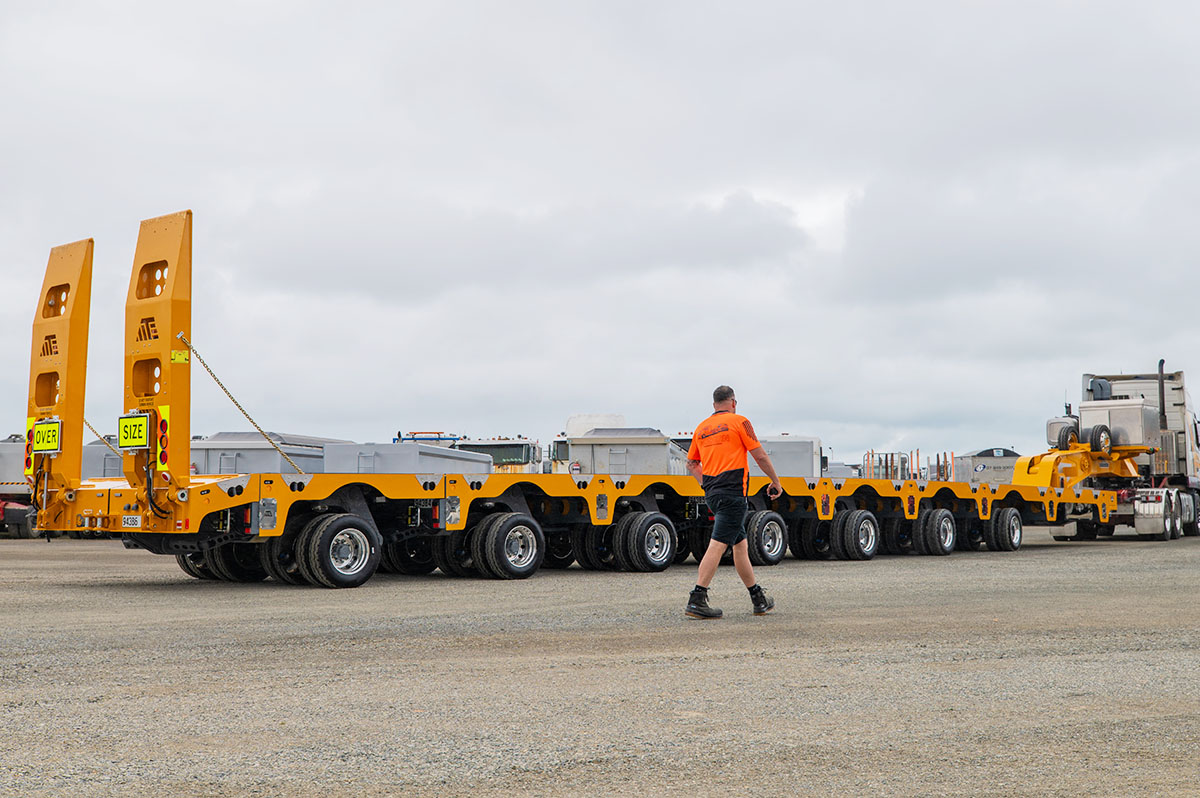

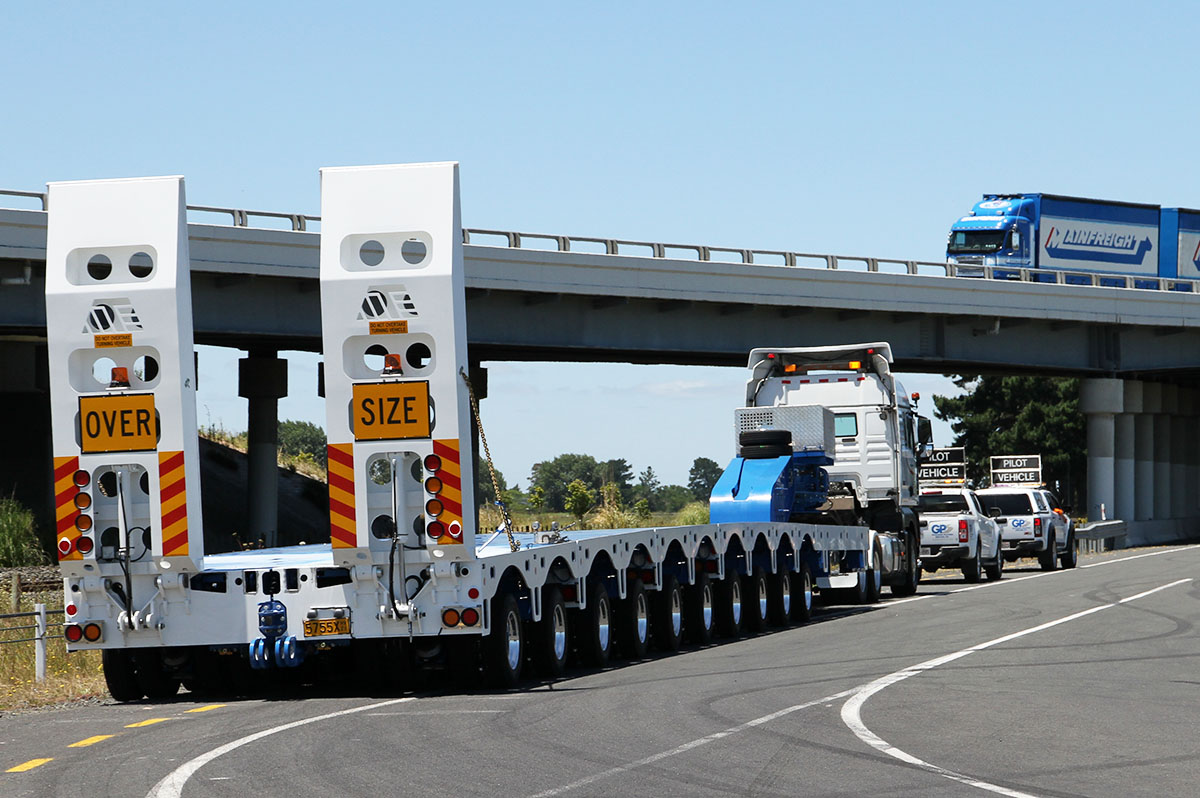

Engineered for the most demanding heavy-haul applications, the MTE E-Command Module Range provides the capacity, control and configuration flexibility required to move exceptionally heavy and oversized loads. Combining modular platform construction with MTE’s advanced E-Command electronic steering system, the range can be configured and expanded to suit everything from heavy machinery and industrial equipment through to major infrastructure components.
Built for extreme loads, A heavy-duty modular platform designed for specialised transport applications where exceptional carrying capacity and stability are required.
E-Command steering technology, Individually controlled steering axles provide exceptional manoeuvrability, accurate tracking and greater control through corners and confined operating areas.
Configure it around the load, Additional clip-on axle rows allow the platform to be expanded as load requirements change, providing a highly adaptable heavy transport system.
Maximum control & flexibility, Hydraulic widening, adjustable suspension, wireless remote operation and multiple gooseneck, drawbar and power options allow the combination to be tailored tothe job.
Control at your fingertips, Wireless remote and in-cab touchscreen controls give the operator live axle-angle monitoring and direct control over steering, suspension and gooseneck or drawbar functions.
At the heart of the range is the MTE E-Command Electronic Alignment Control System.
Alignment sensors are fitted to every axle, while sensors at the kingpin monitor the direction of the tractor unit. The system calculates and controls the steering angle of each axle individually, helping the trailer follow the tractor accurately through corners and confined operating areas.

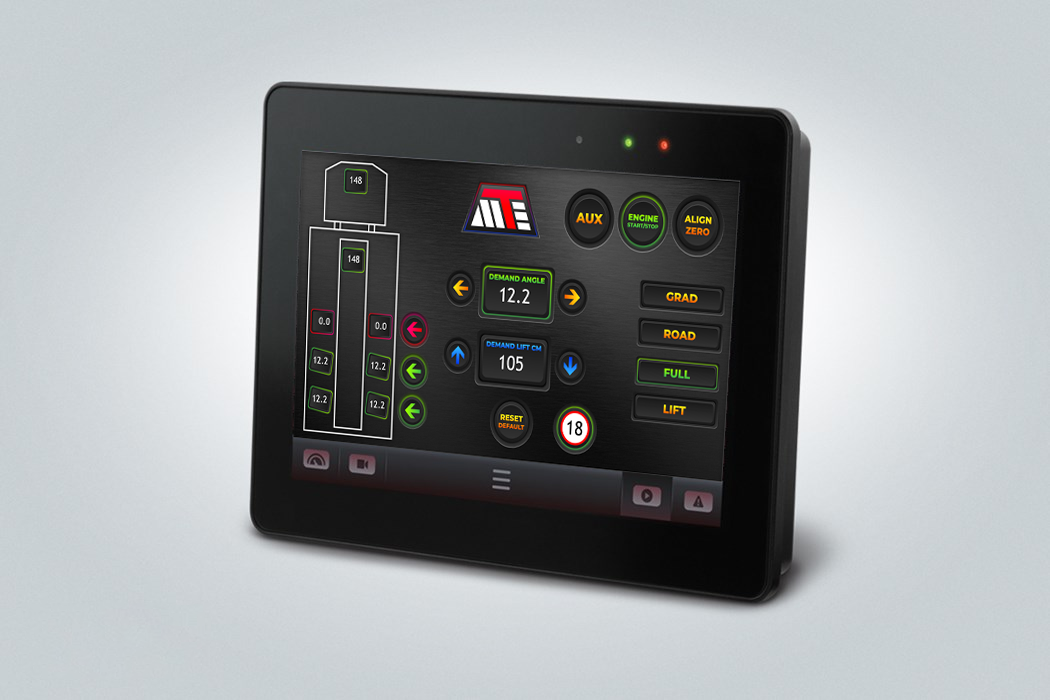

The E-Command system includes an in-cab touchscreen display, giving the operator access to the main trailer functions from inside the tractor unit. The screen provides a live display of individual axle angles and allows the operator to control steering, suspension and gooseneck functions. The in-cab touchscreen also adds Road-Assist steering, automatic levelling, selectable steer-about points and programmable lift heights.

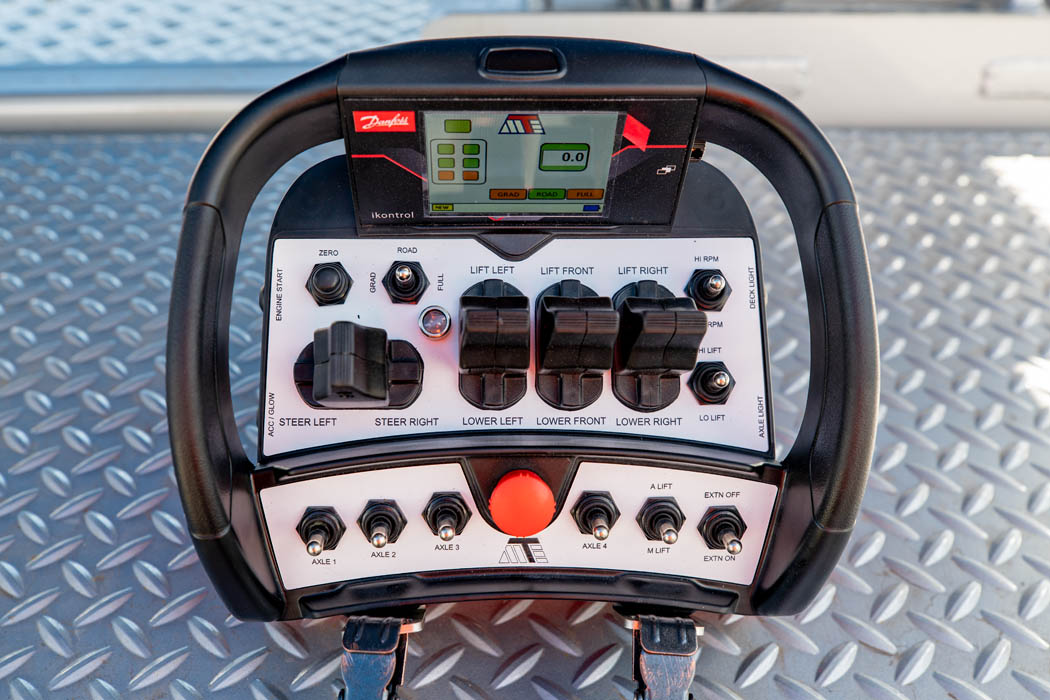

A Danfoss wireless remote with an integrated visual display allows the operator to control the trailer while maintaining a clear view of the load and surrounding area.
Remote functions include:

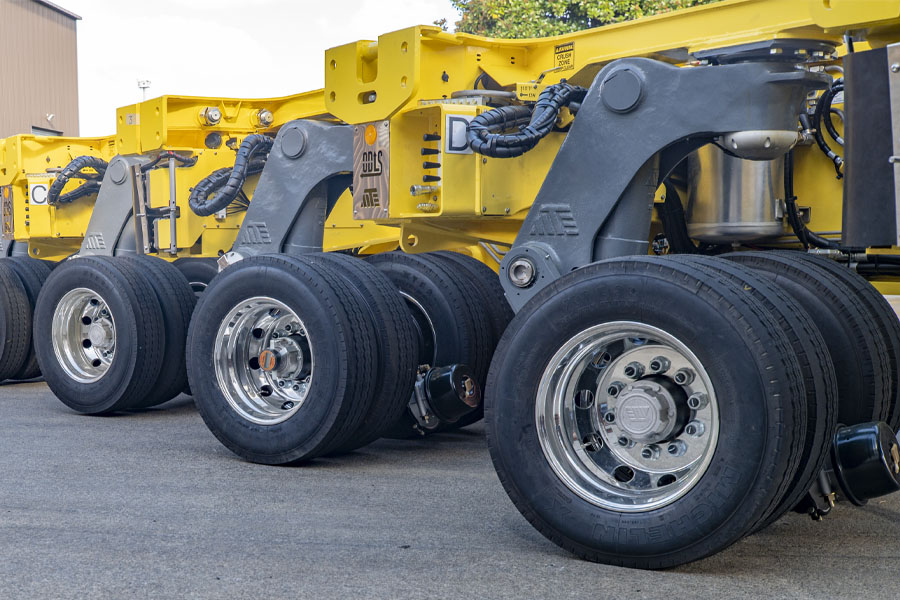

The low-height MTE hydraulic suspension system allows the platform to be raised or lowered to assist with loading, ground clearance and load levelling. Each axle can also be retracted and isolated using individual lock-out taps, allowing the trailer configuration to be managed for different operating requirements.

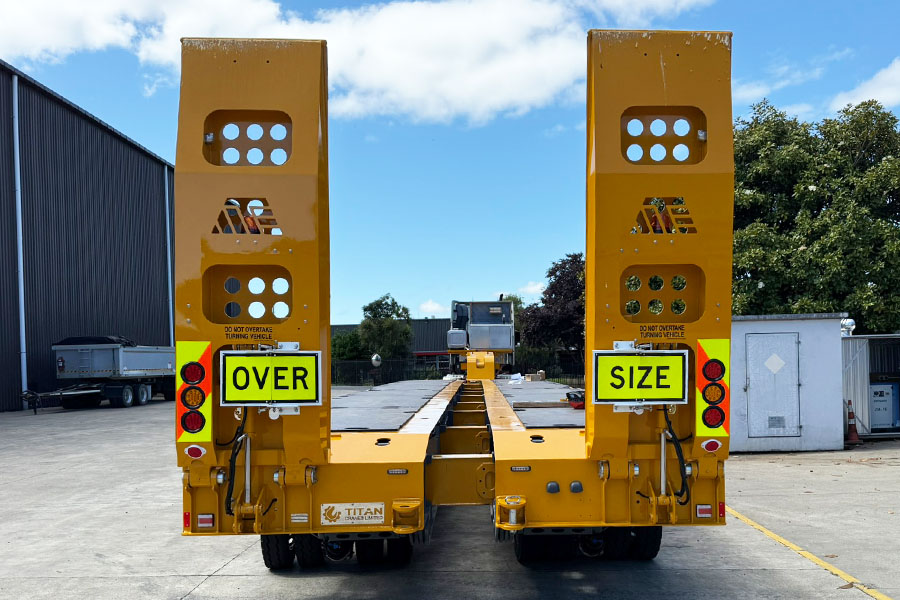

The standard E-Command platform can hydraulically widen from approximately 3,000mm to 4,100mm. An extra-width configuration is also available, increasing the platform from approximately 3,350mm closed to 4,880mm open.

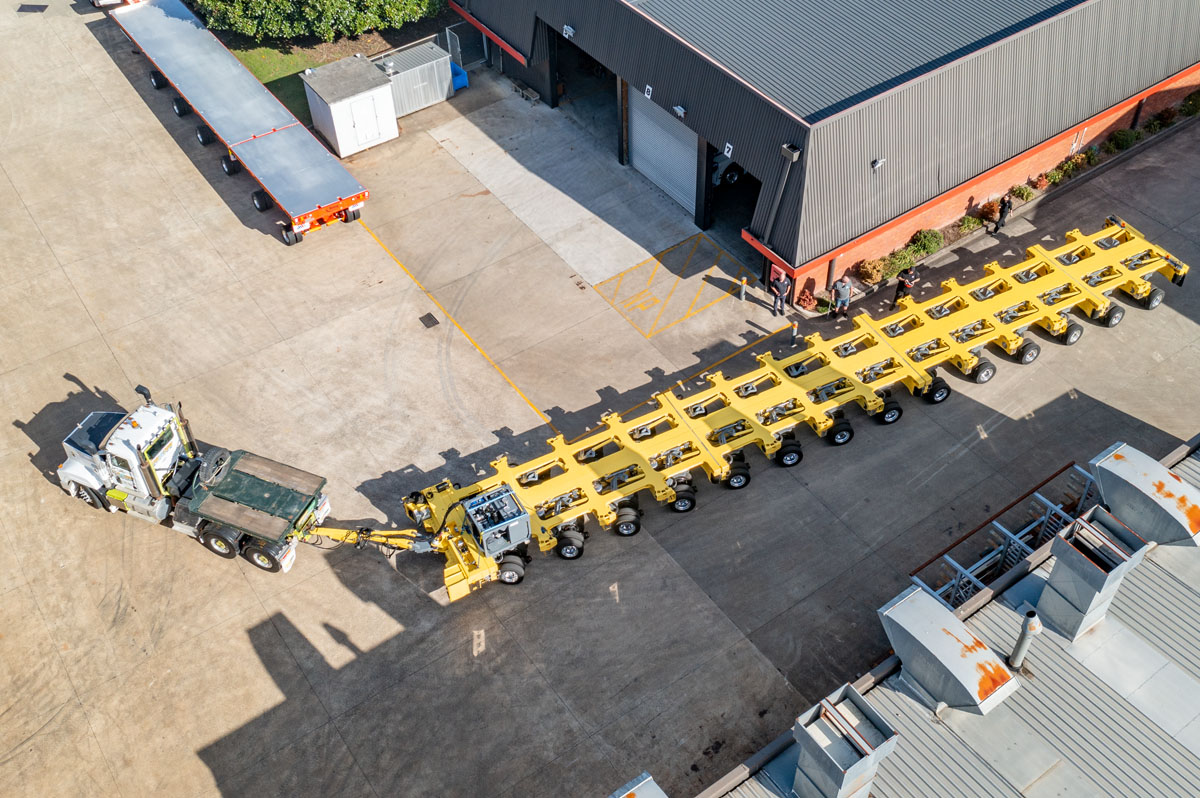

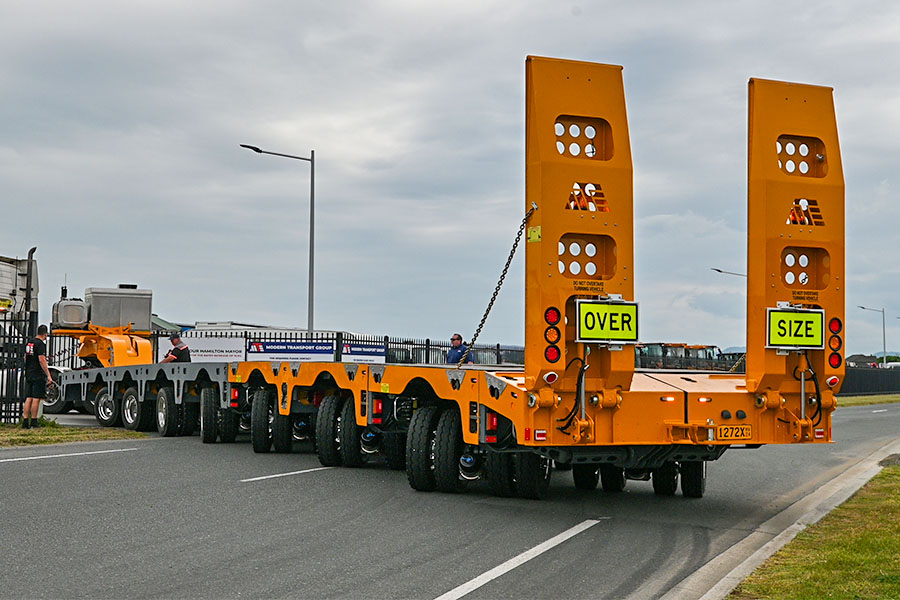

Additional E-Command axle rows can be connected to the main platform to increase trailer length and carrying capacity. Available clip-on configurations include: 1 Row of 8 increasing through to 8 Rows of 8.

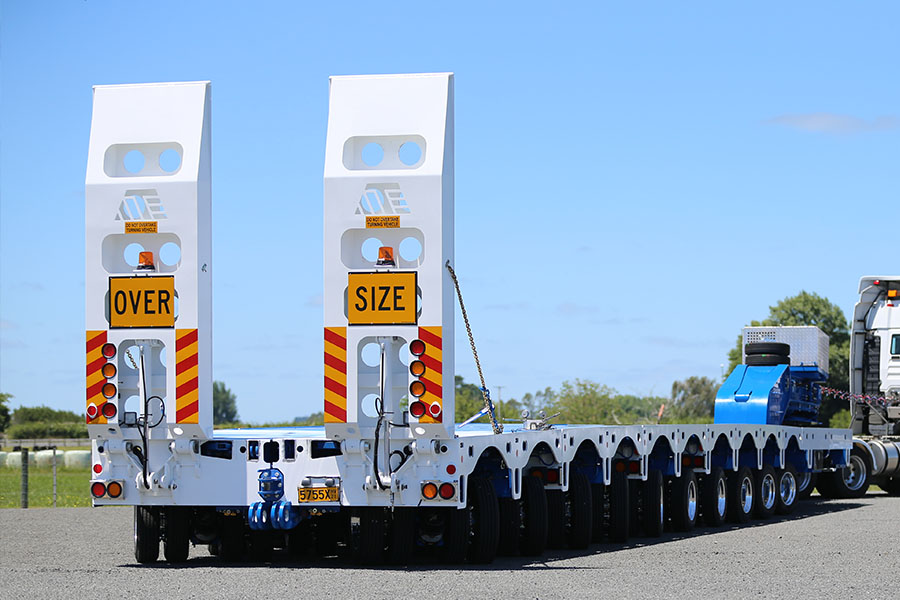

The standard E-Command Module is equipped with detachable dovetails and heavy-duty hydraulic ramps.

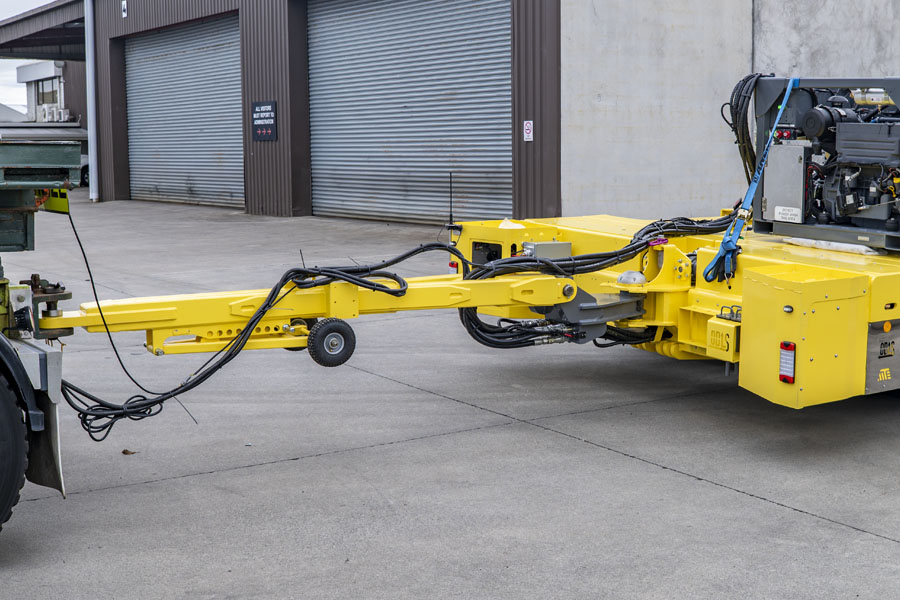

The Spineless E-Command Module can be configured with either a hydraulic compensating gooseneck or an optional drawbar, providing maximum flexibility across different transport operations.

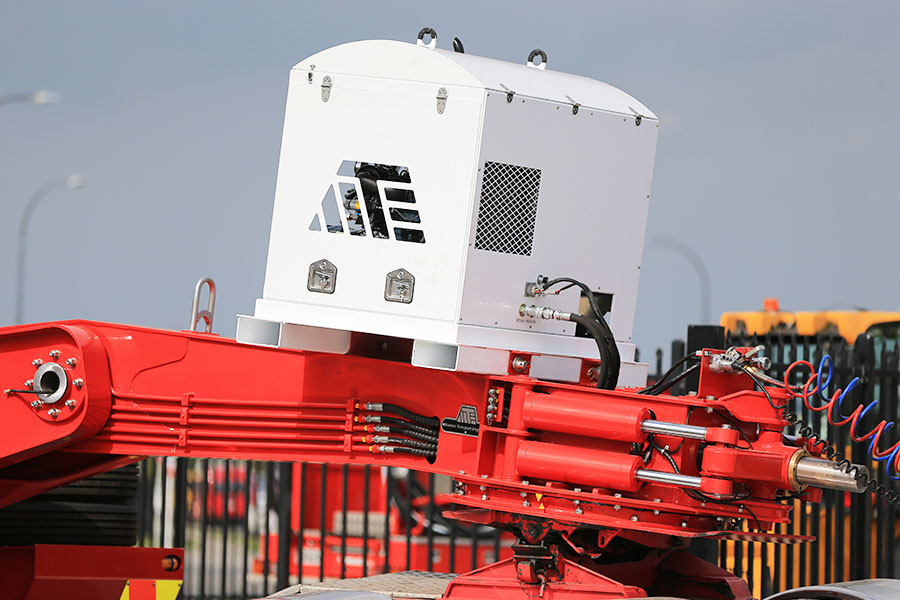

The standard trailer operates from the tractor unit’s hydraulic supply. For independent operation, an optional diesel hydraulic power pack can be mounted on the gooseneck inside a custom enclosure.
Deck Height: 1050mm + 350mm - 200mm
Closed Deck Width: 3,000mm
Open Deck Width: 4,100mm
Deck Type: High tensile steel
Lashings: Figure ‘8’ lashings to top of decks & combing rails
Towing Lugs: Towing lugs on rear of dove tails, one each side
Steering: E-Command electronic alignment control system
Axles: MTE 17.5" 10 stud with outboard drums
Axle Spacing: 1,830mm
Suspension: MTE low height hydraulic suspension
Brakes: Pacific, non ABS brakes
Gooseneck: Hydraulic compensating gooseneck
Rub Plate: Single position semi oscillating skid plate with a double header
King Pin: MTE 90mm (3-1/2”) drop-in king pin
Dove Tail: Detachable dove tails
Ramps: 2,700mm x 900mm heavy duty hydraulic ramps
Hydraulic Supply: Hydraulic power source - truck
Fixed Trailer Controls: Main controls mounted at front of deck
Remote Controls: Danfoss remote system for operating steering, suspension, widening & gooseneck
Lights: Hella LED
Signage: Hazard signage where applicable
Wheels: 17.5" x 6" steel wheels
Tyres: 215/75 X 17.5" tyres
Clip-on: Joining lugs, electrical plugs, air and hydraulic couplings on the rear of the module
Hubodometer: Included
Greasing: Manual
Mud Flaps: Mud flaps behind rear axle
Paint: Sandblasted, etch primed and painted in two-pack to your fleet colours
