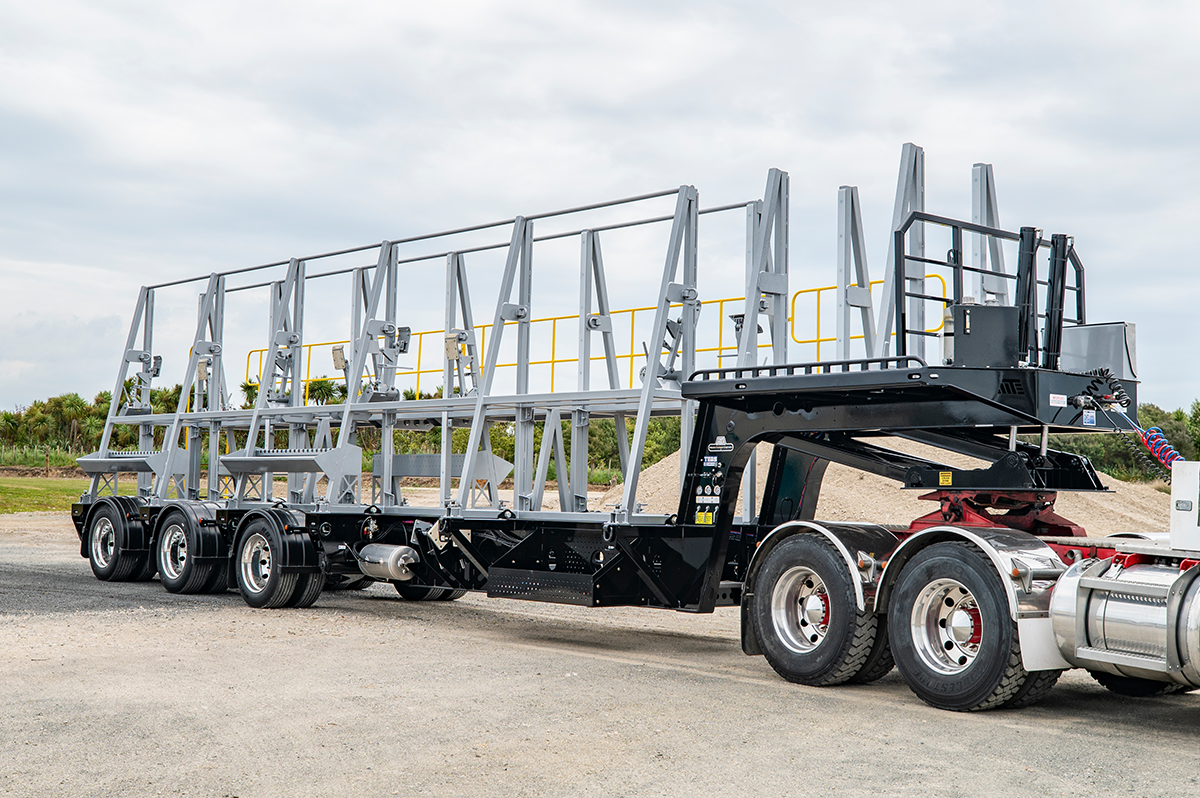

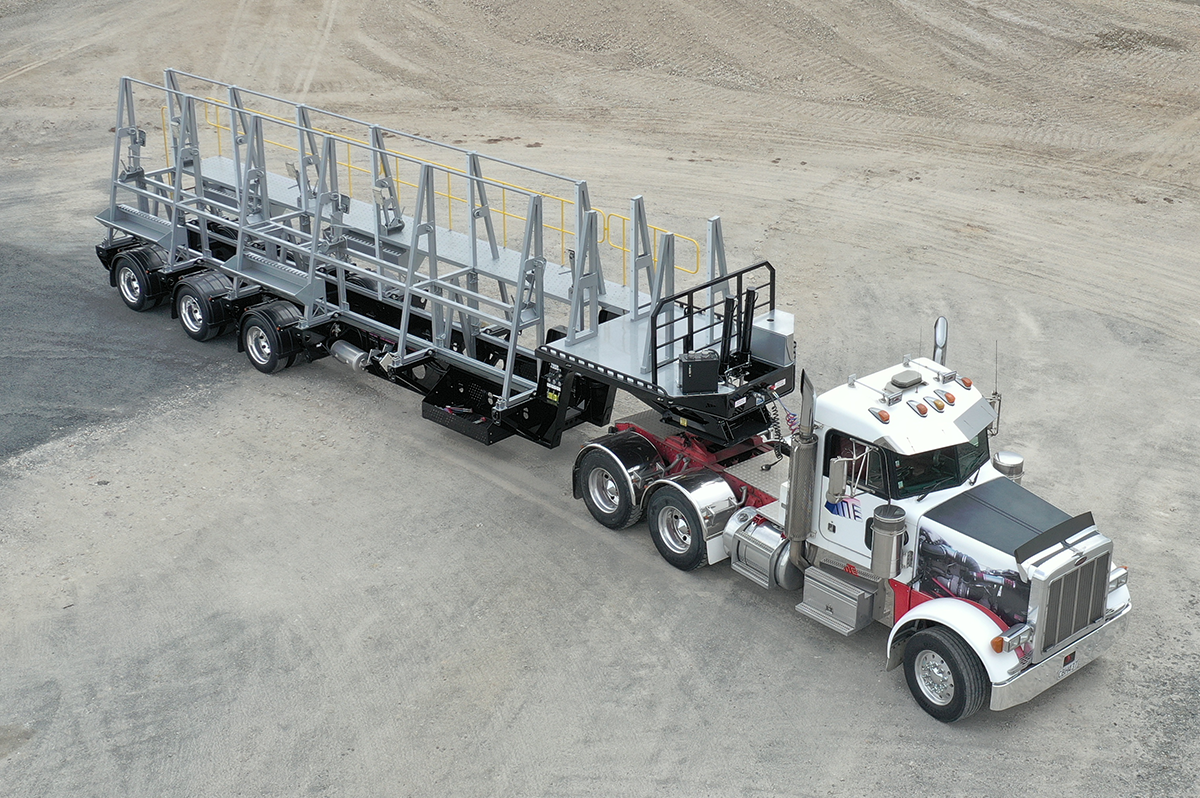

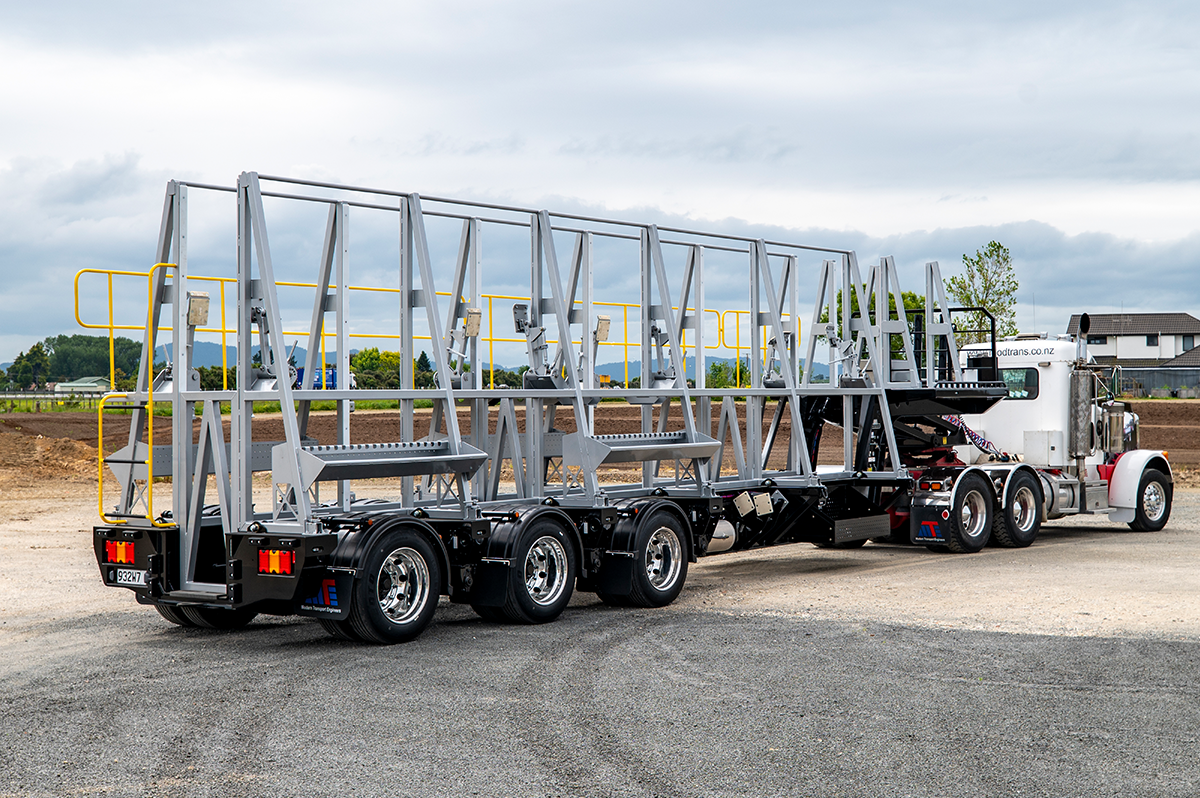

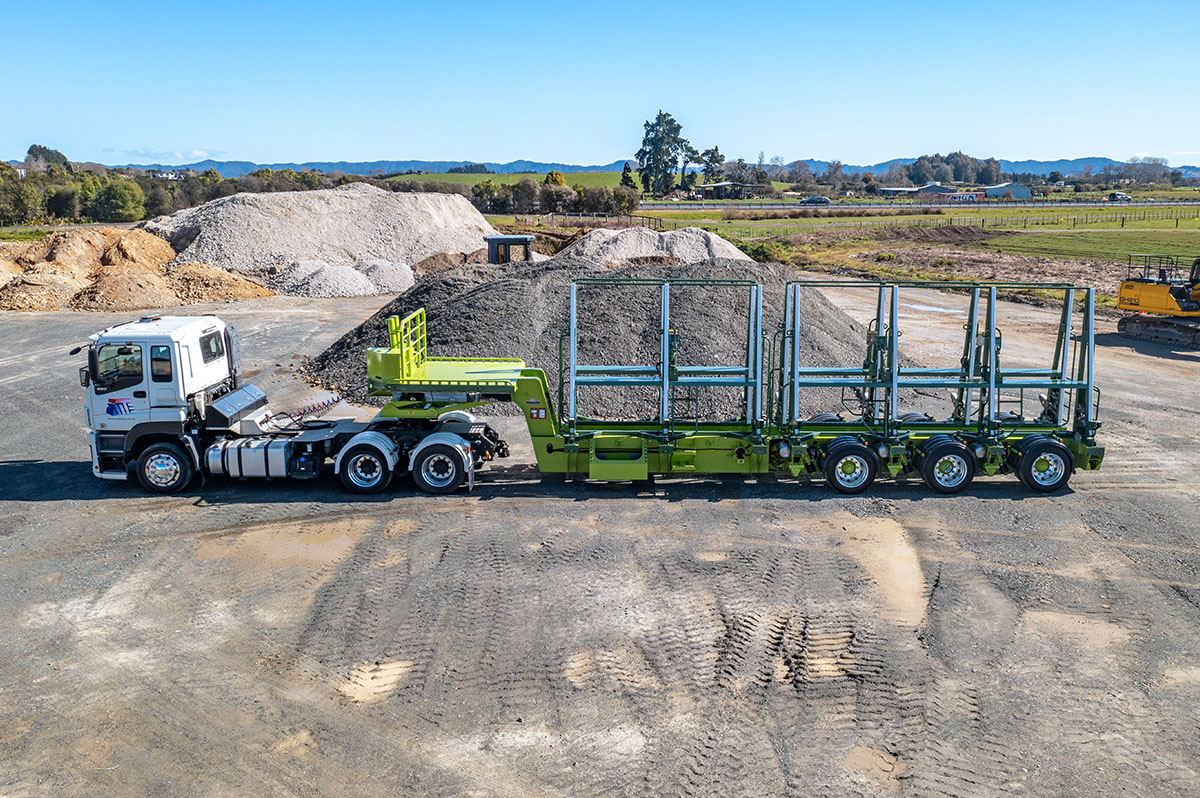

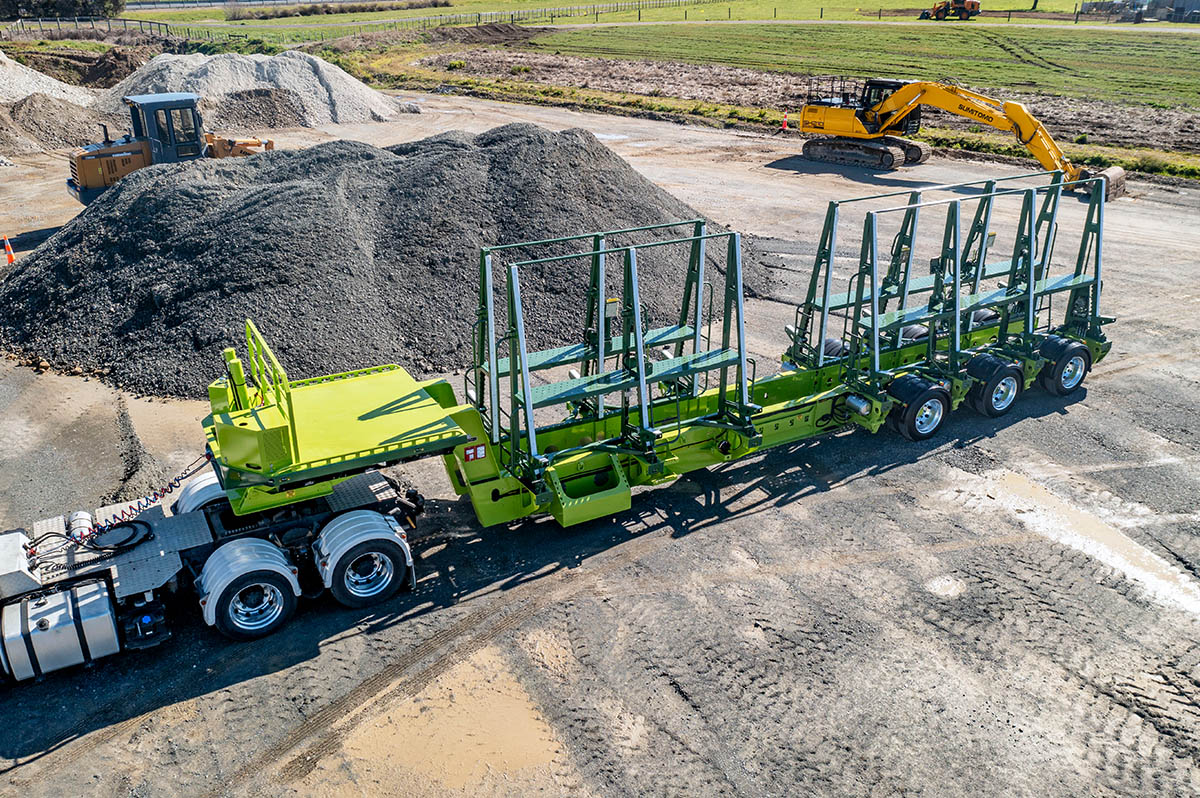

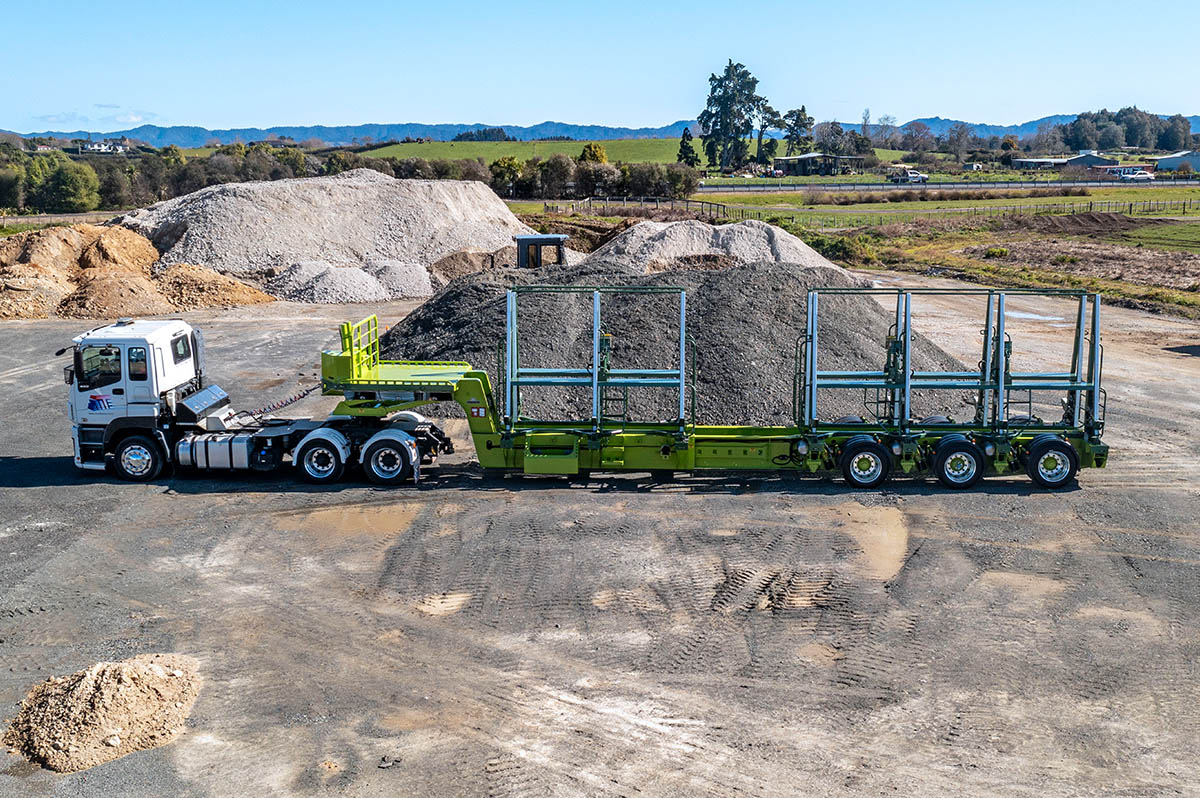

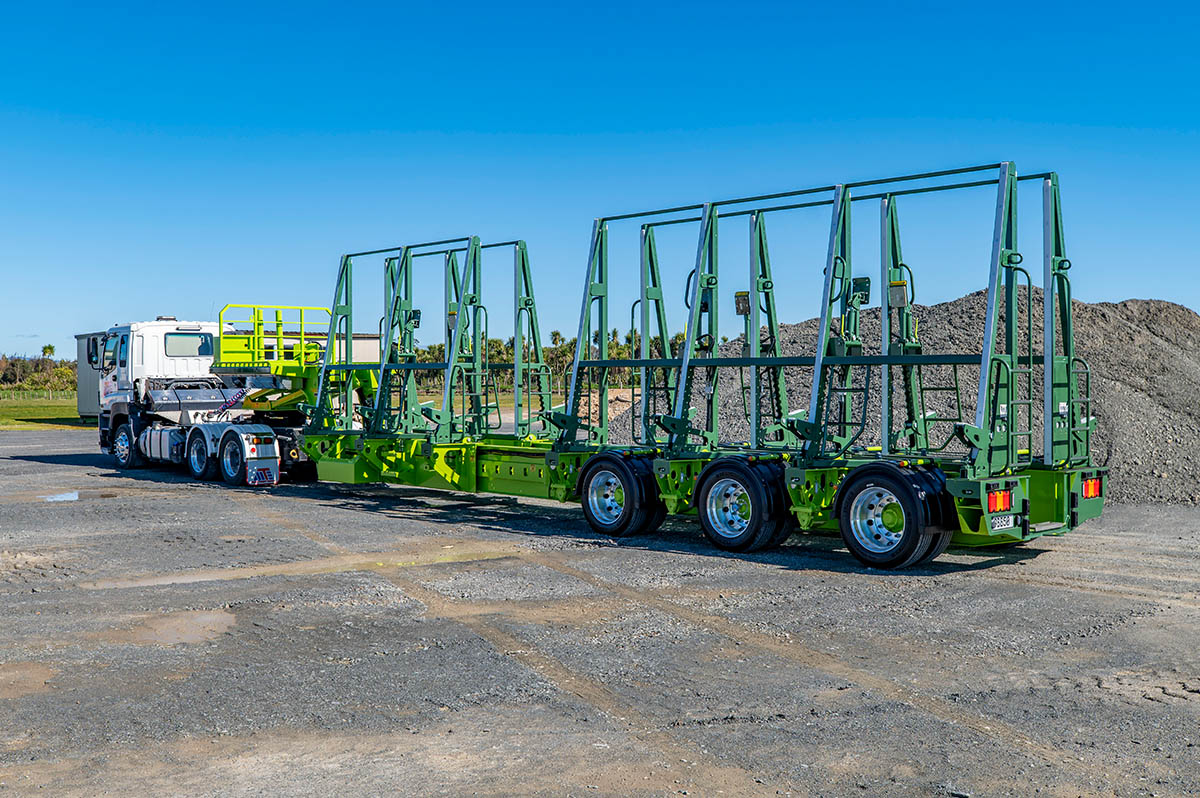

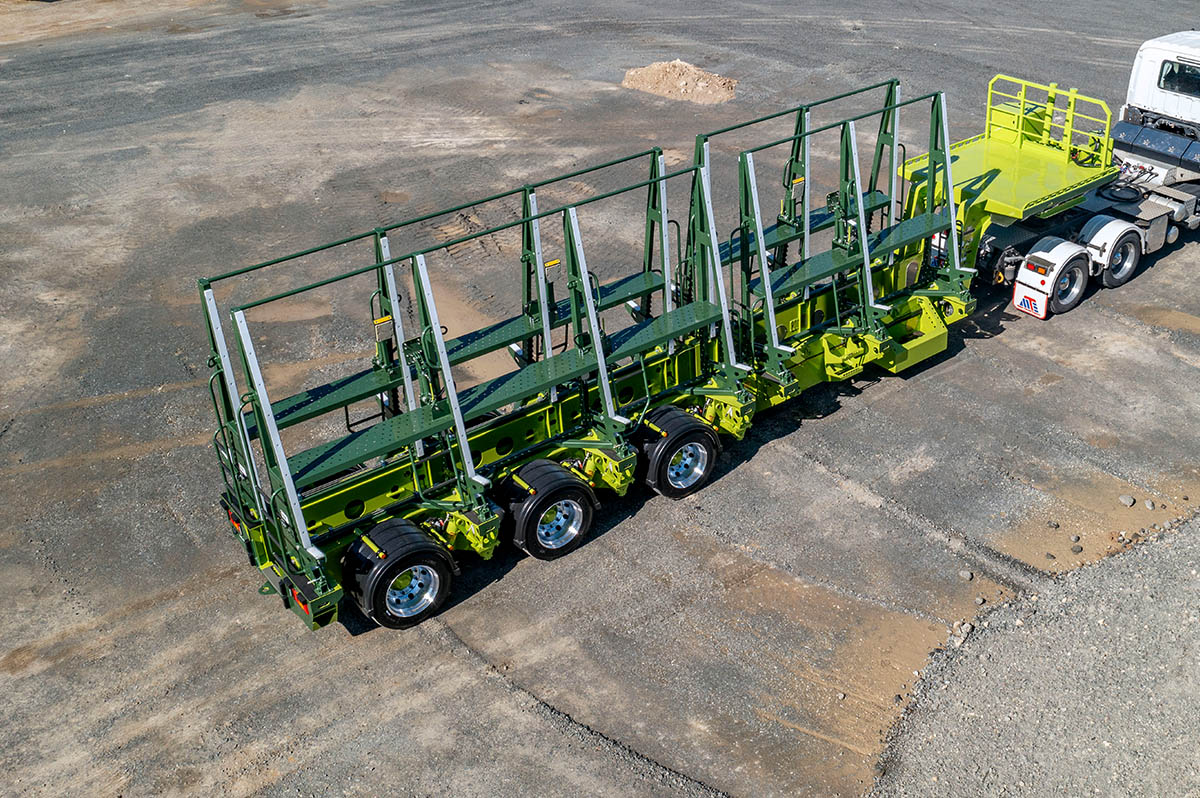

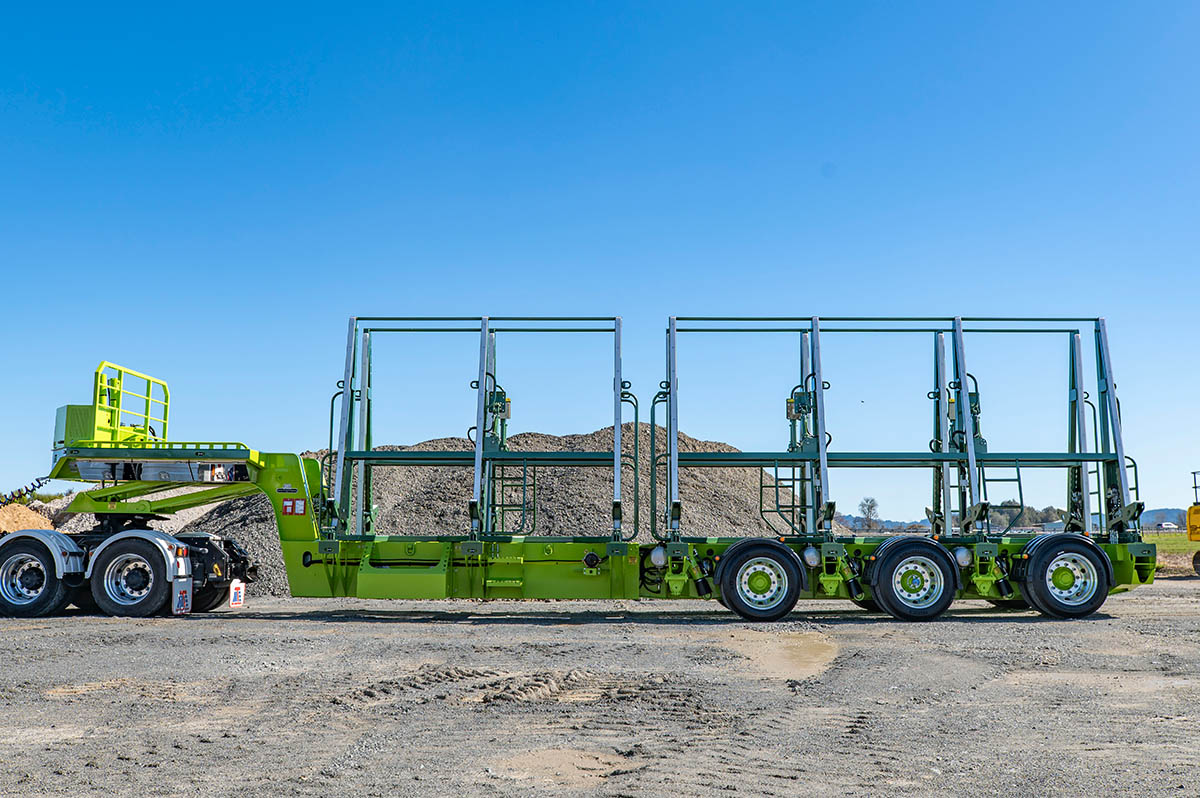

Purpose-built for the precast industry, MTE Rows of 4 Panel Trailers provide a safer and more practical way to transport large concrete panels and structural components. The ultra-low internal deck allows taller panels to be carried upright while remaining within legal transport heights, while independent hydraulic suspension and purpose-designed restraint systems provide the stability and control required for demanding precast transport operations.
Carry taller panels upright, The ultra-low internal deck allows large precast panels to sit between the wheels, reducing overall transport height and avoiding the need to lay panels flat as an over-width load.
Secure panel restraint, Individually controlled hydraulic clamps provide positive restraint across the load, with nylon wearpads helping protect finished panel surfaces.
Configured for your operation, Available in multiple axle configurations with removable uprights, optional deck extensions, walkways, handrails and additional storage to suit different precast transport requirements.

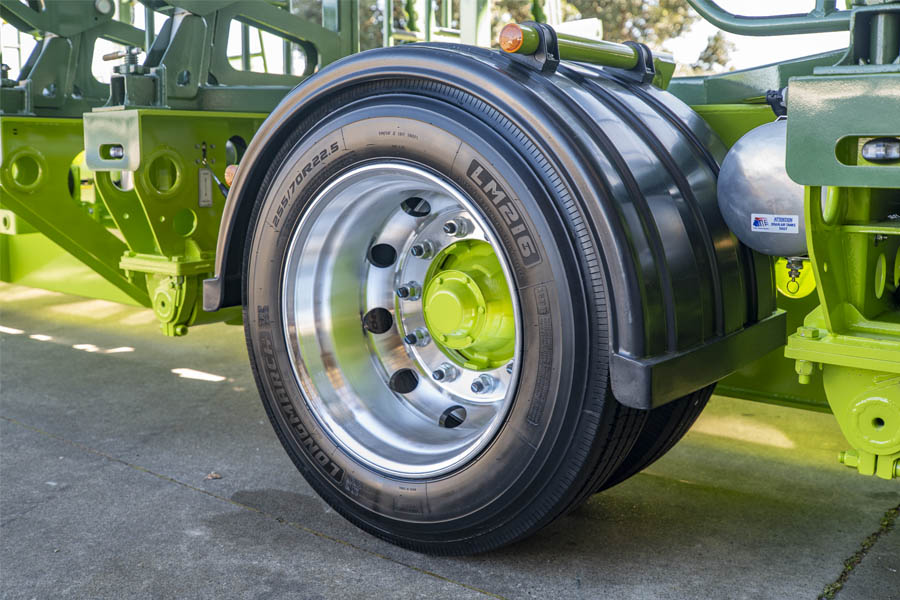

The independent hydraulic suspension eliminates the need for a full-width axle, allowing the trailer well to sit much lower between the wheels. This innovative design improves load stability while making it possible to transport taller panels within legal height limits

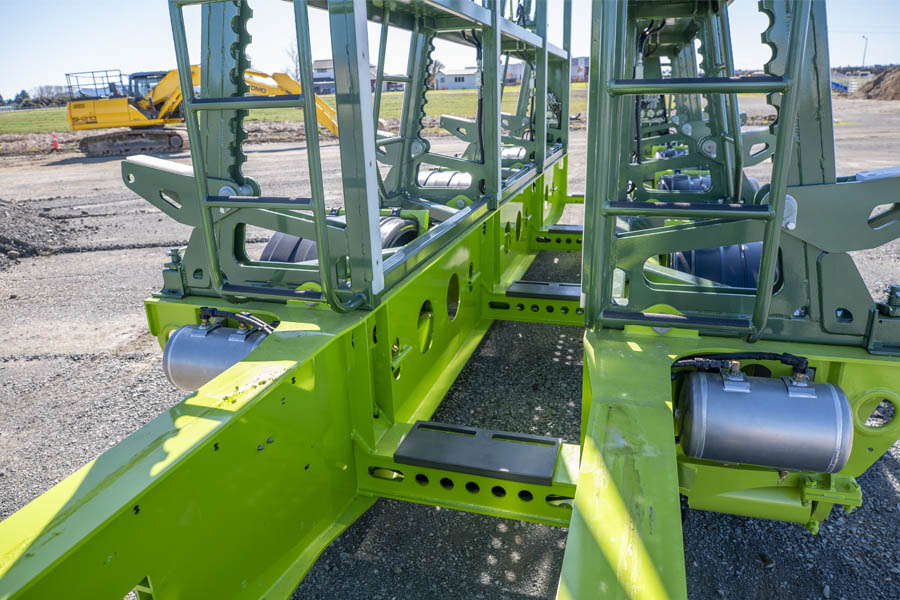

With an internal deck height of just 250mm during travel and 183mm when fully lowered, the MTE Panel Trailer allows large precast panels to be carried upright without exceeding New Zealand's 4.3m height restriction

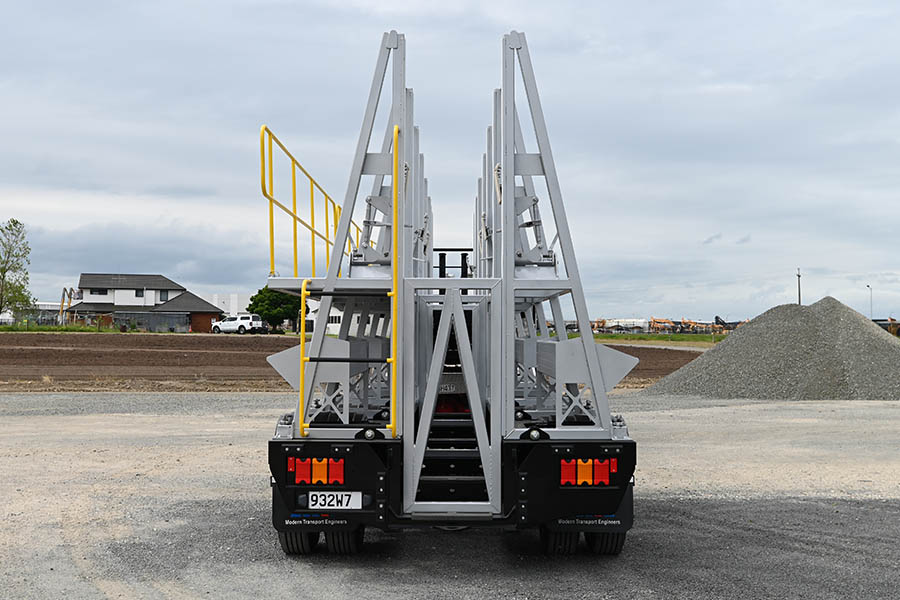

Designed specifically for the precast industry, the trailer enables 4 metre panels to be transported upright rather than laid flat. This avoids creating an over-width load, reducing transport complexity and improving efficiency

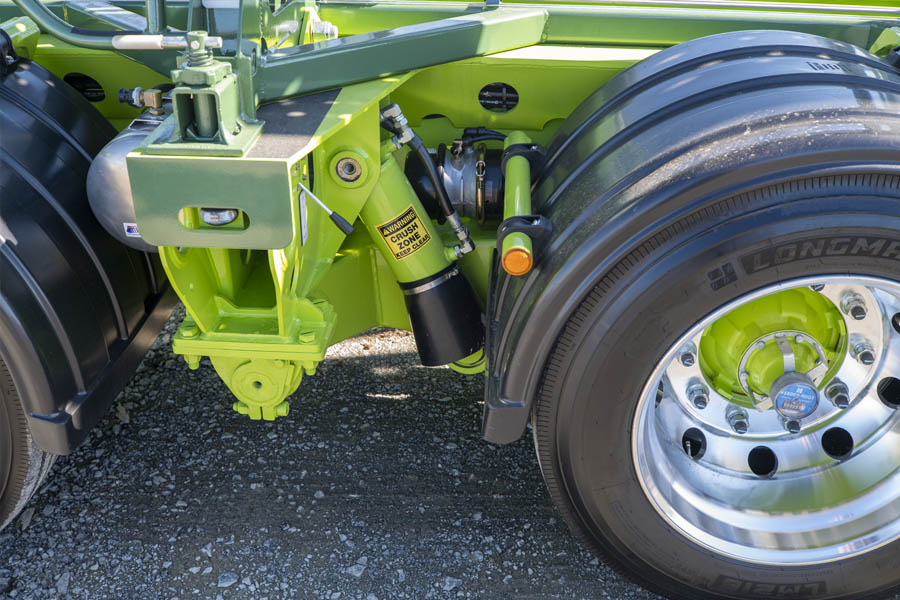

The hydraulic suspension provides up to 600mm of lift, making loading and unloading easier while allowing the trailer height to be adjusted to suit different loading environments

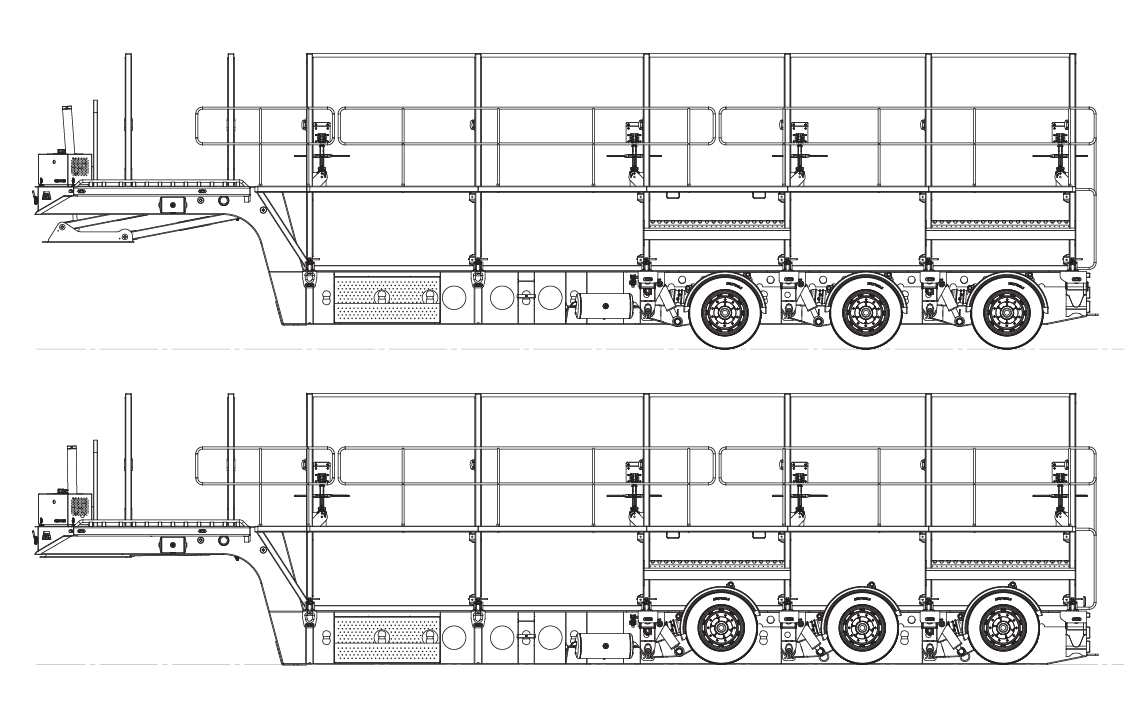

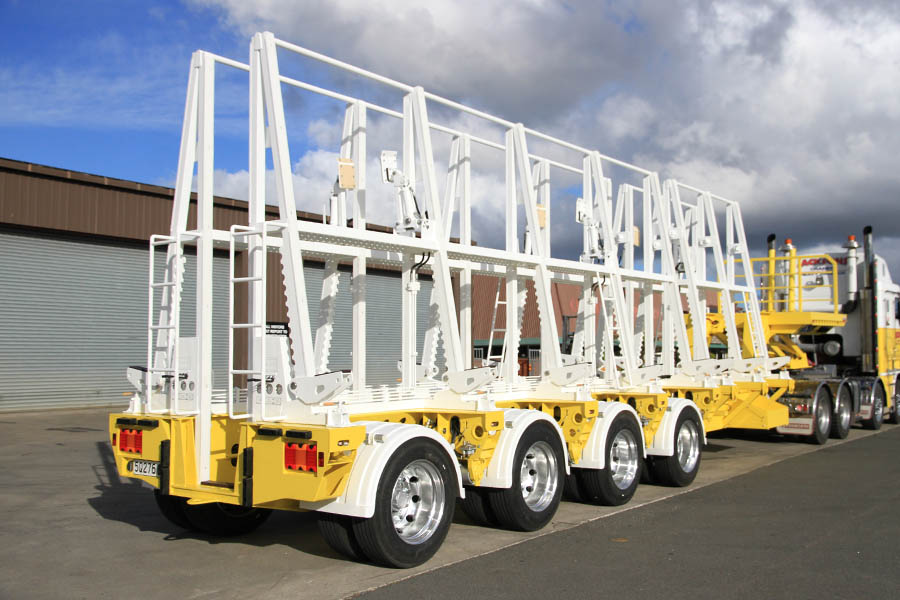

Choose between a 40 tonne GVM 3 axle or 50 tonne GVM 4 axle configuration

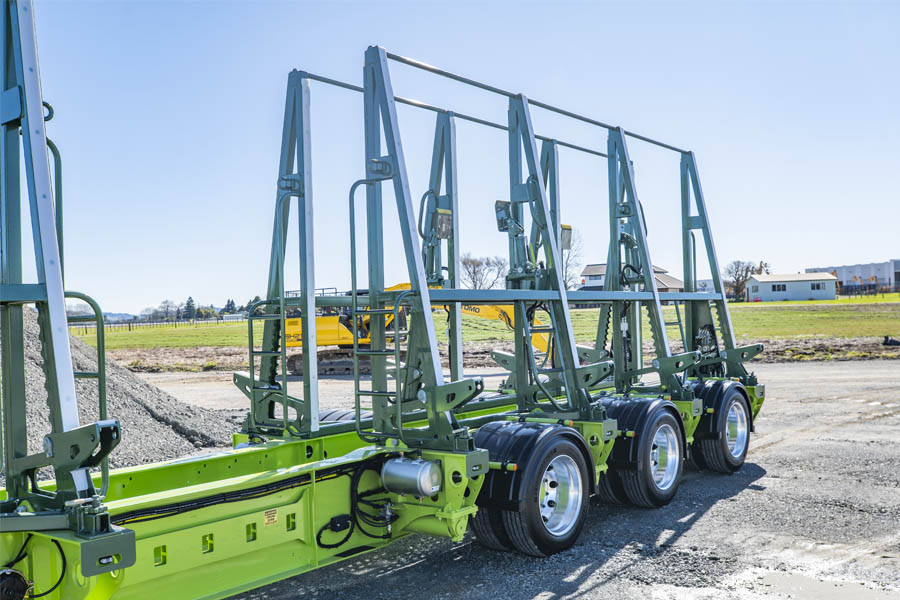

Can be equipped with a upto a 4 metre trombone deck extension, allowing longer precast panels and structural components to be transported while maintaining the trailer's low loading height

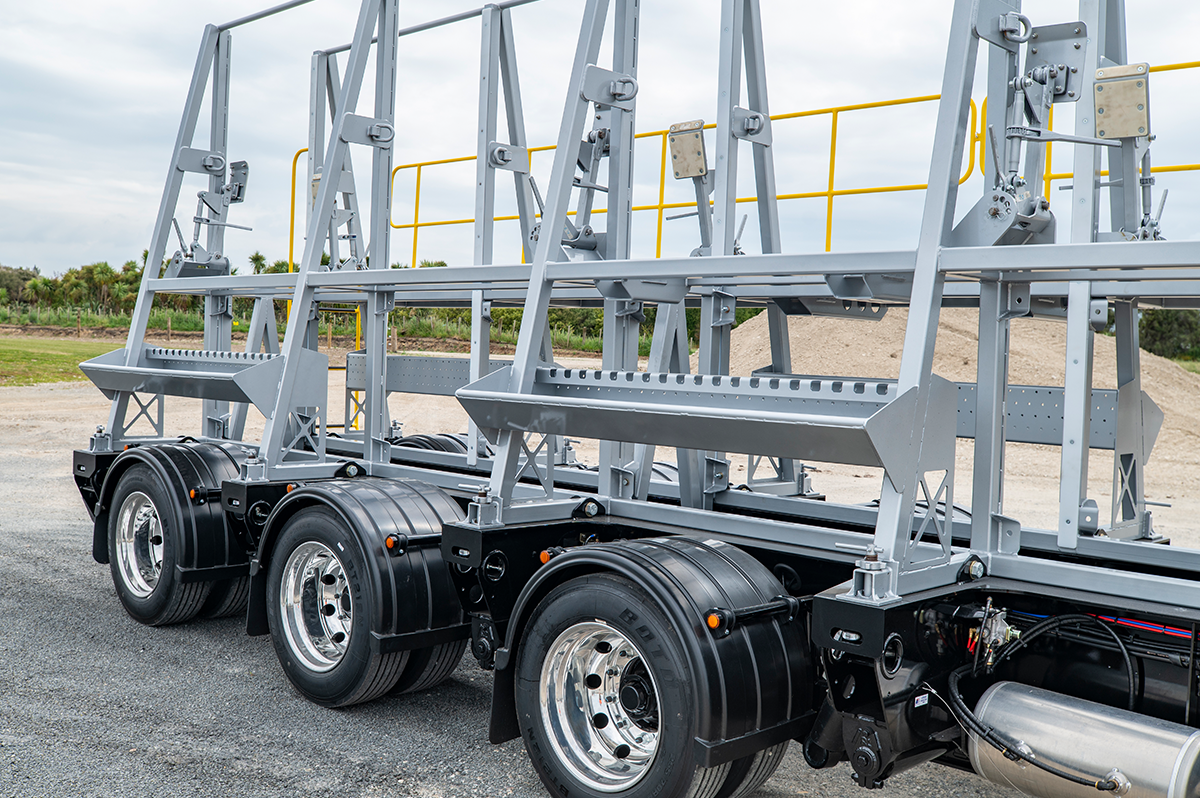

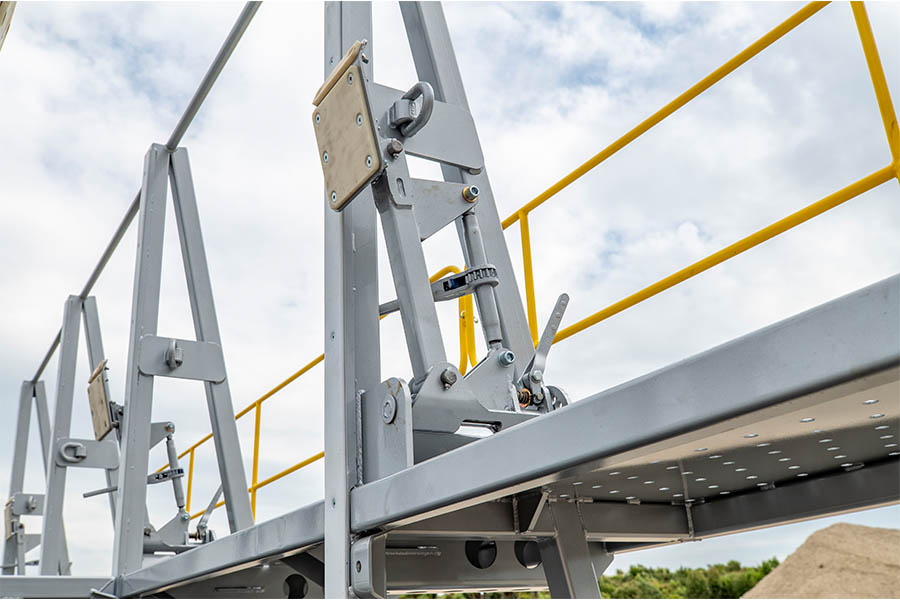

Six independently controlled hydraulic panel clamps securely hold every load during transport, providing even clamping pressure across the trailer. Each clamp features double-acting hydraulic rams with integrated hold and lower valves, nylon wear pads to protect finished panel surfaces, and individual pressure gauges so operators can easily verify the clamping force on every panel

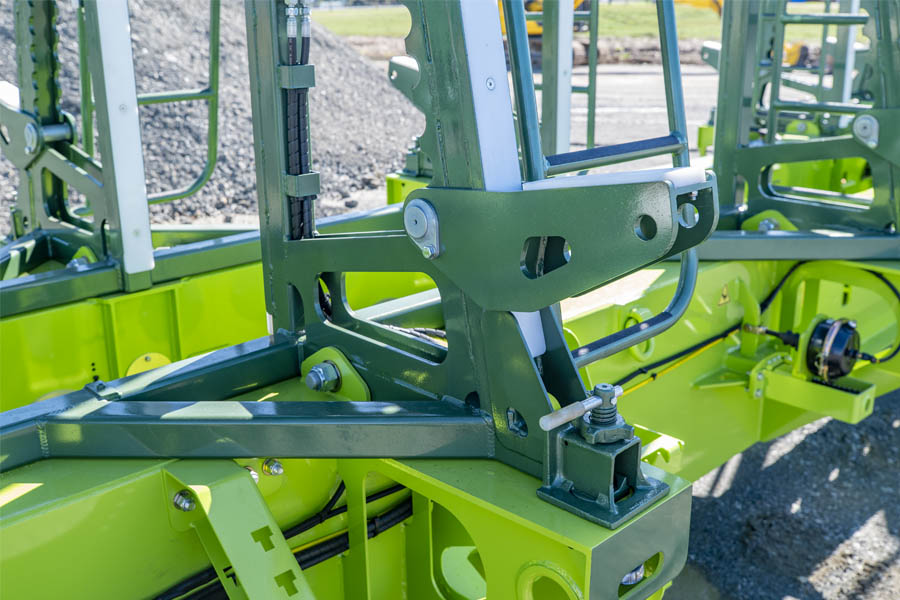

Heavy-duty removable panel uprights provide the flexibility to adapt the trailer for different load configurations. Secured using screw-down locking twist-locks, the uprights can be quickly installed or removed as required. Optional handrails and integrated walkways improve operator safety by providing secure access when loading, unloading and securing panels

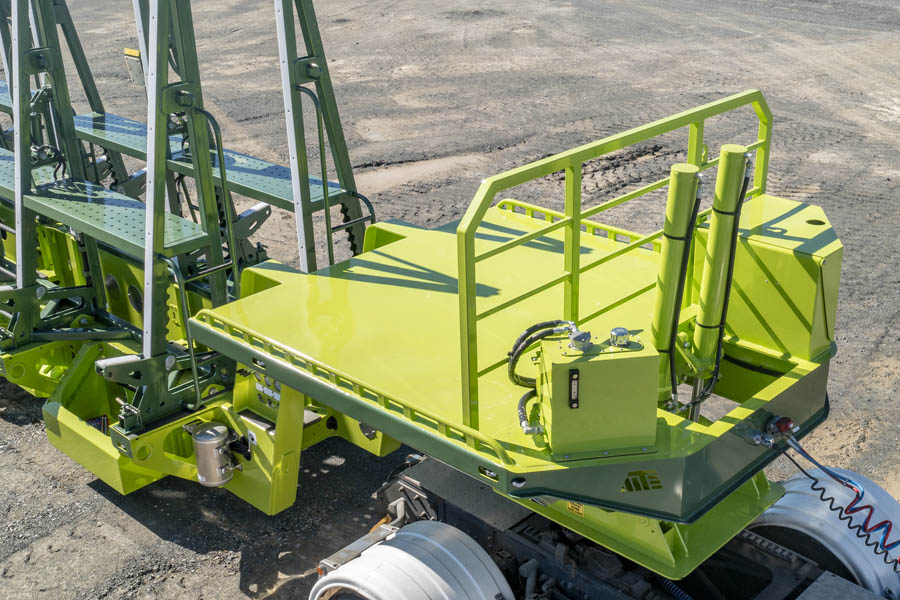

For added versatility, an optional chequer plate top deck with removable headboard provides additional storage space for accessories, equipment and ancillary loads, making the trailer even more capable on site
GVM: 40,000kg (3 rows of 4), 50,000kg (4 rows of 4)
Tare Weight: From 7,500kg (3 rows of 4), from 9,980kg (4 rows of 4)
Forward Length: 9,200mm
Flat Deck Height: 900mm (travelling)
Internal Deck Height: 250mm (travelling), 183mm (fully lowered)
Top Deck Width: 2,500mm
Bottom Deck Width: 2,500mm
Lift Height: 600mm
Axle: 22.5”, 10 stud, 335mm PCD, with 1,854mm track.
Axle Spacing: 1,600mm
Axle Retraction: All axles
Suspension: MTE Hydraulic Suspension (10,000kg capacity)
Brakes: 16” x 7” out-board drums
Brakes Type: Full air brakes
Landing Legs: Heavy duty RHS type
King Pin: 50mm
Wheels: 22.5” x 8.25”, 10 stud, 335mm PCD
Lights: LED
Odometer Included
