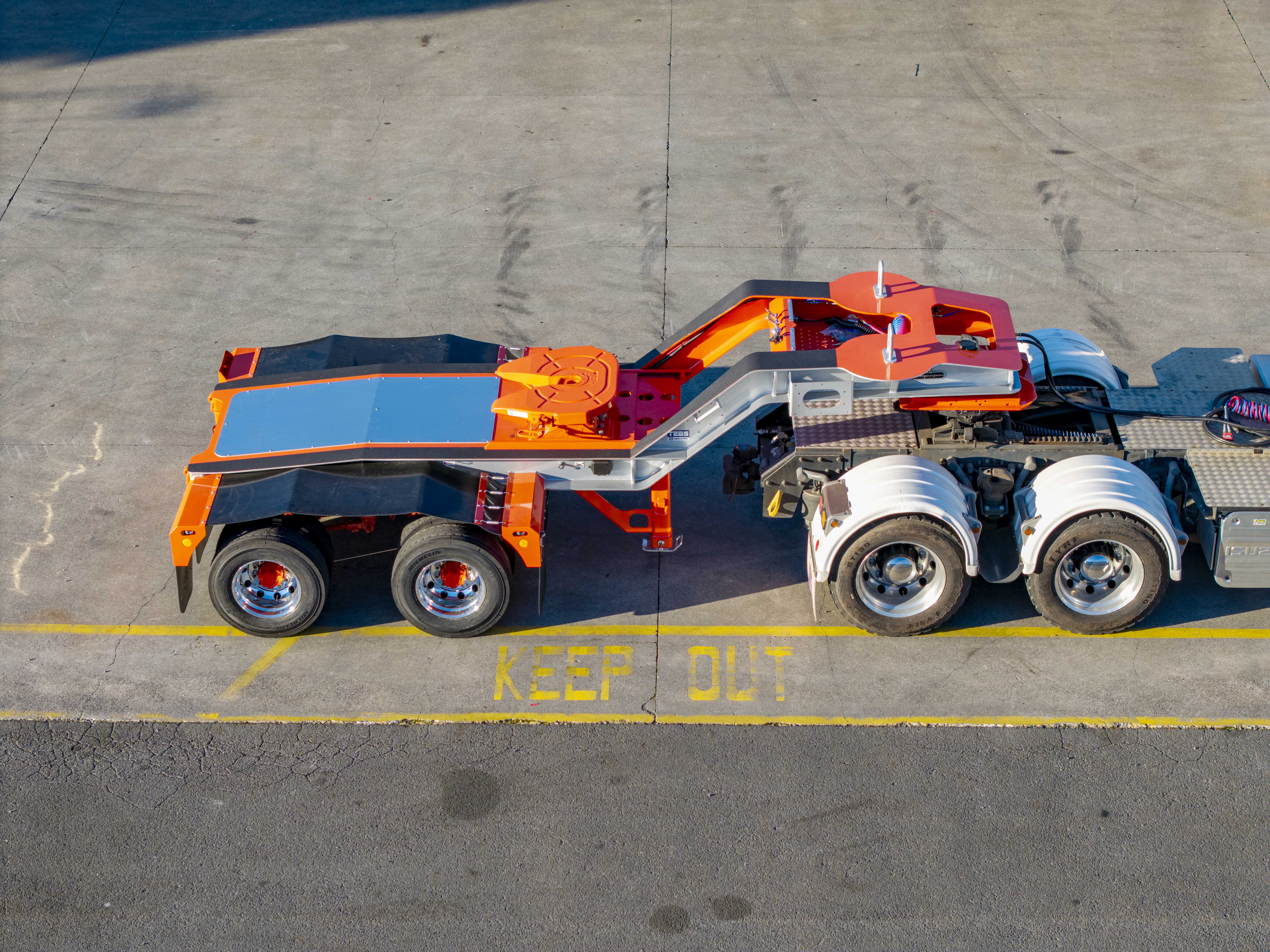

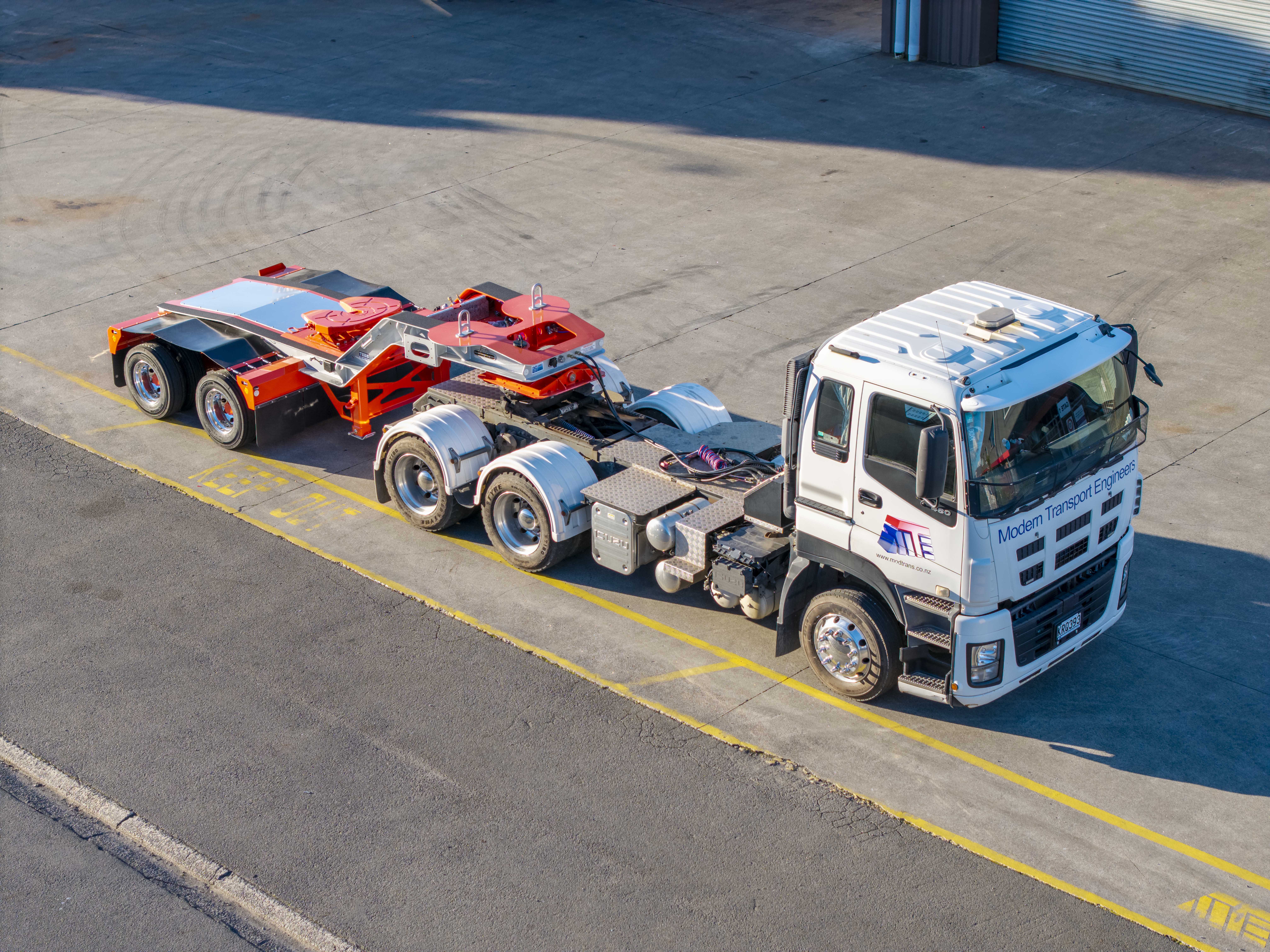

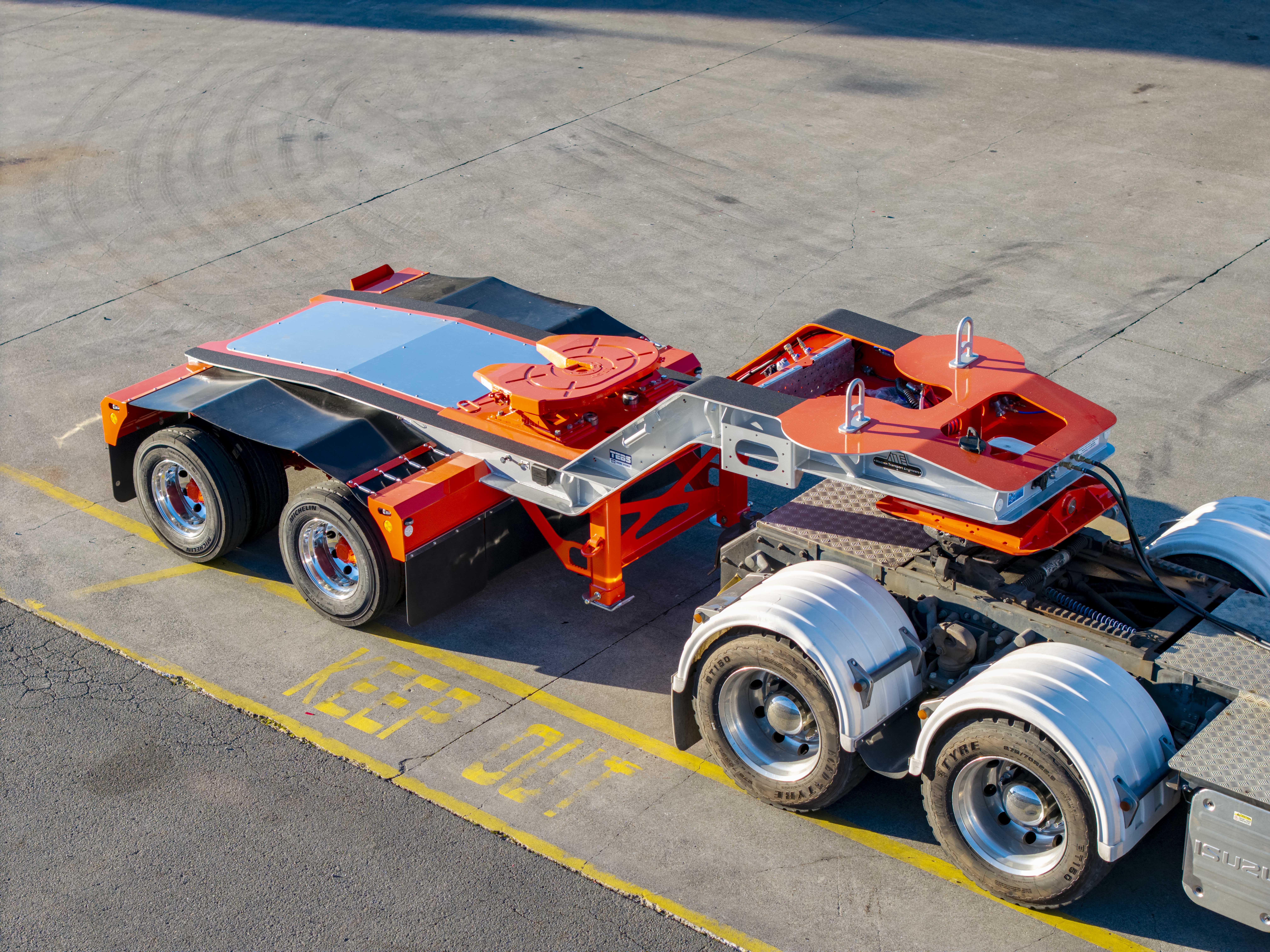

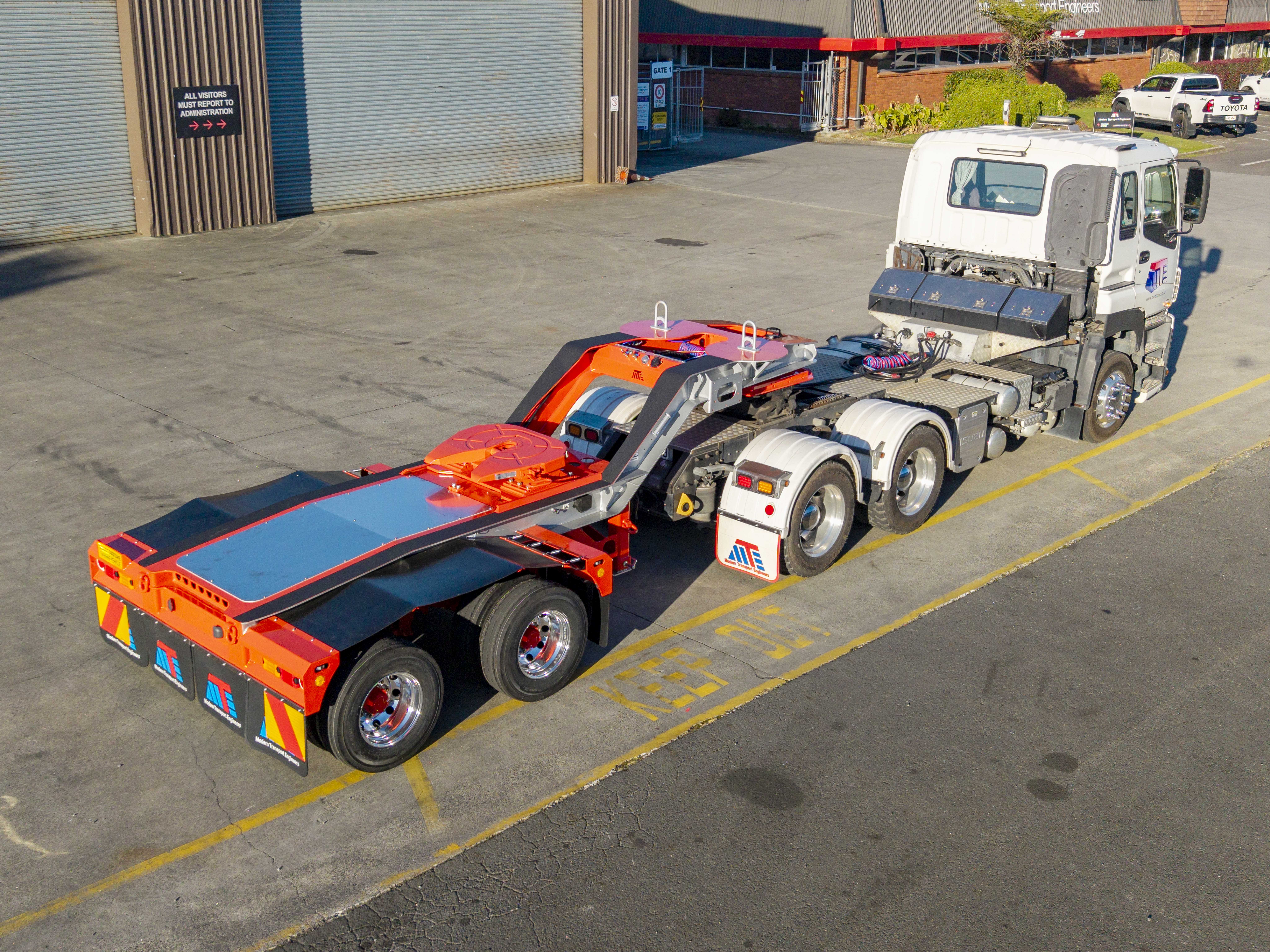

MTE recently completed this 2 Rows of 4 Dolly for Colpak Logistics, designed to provide additional flexibility across their heavy haulage operations in Australia.
The dolly is designed to be used in combination with Colpak’s Rows of 4 and Rows of 8 trailer configurations, allowing their fleet to be adapted to suit different loads and transport requirements.
With a 32,000kg GVW, 17.5" axle equipment and a sliding fifth wheel arrangement, the dolly provides a robust and versatile addition to Colpak’s heavy transport fleet.
Key Specifications
Configuration: 2 Rows of 4
Overall Width: 2,500mm
Capacity: 32,000kg GVW
Axles: 2 × MTE 17.5", 10-stud axles with outboard drums
Axle Spacing: 1,235mm
Suspension: K-Hitch 8-leaf spring suspension
Brakes: Knorr-Bremse EBS
Gooseneck: Fixed height, 1,300mm skid plate height
King Pin: MTE 90mm drop-in king pin
Fifth Wheel: Semi-oscillating 3½" JOST fifth wheel on sliding plate
Landing Legs: Pin-type telescopic landing legs
The dolly is fitted with polished alloy wheels and Michelin 235/17.5 tyres, along with ADR-compliant LED lighting, rear hazard panels and load restraint points. It has been finished in Colpak’s distinctive silver and orange colour scheme.
Customer: Colpak Logistics
Built for Versatility
Designed to integrate with multiple trailer configurations, this 2 Rows of 4 Dolly gives Colpak greater flexibility when configuring combinations for different heavy haulage requirements.
Another purpose-built MTE solution engineered around the customer’s equipment, loads and operating requirements.
