3 Axle Panel Trailer

MTE recently completed this 3 Axle Panel Trailer for Move Logistics – Specialist Lifting & Transport, purpose-built for the transportation of precast concrete panels.

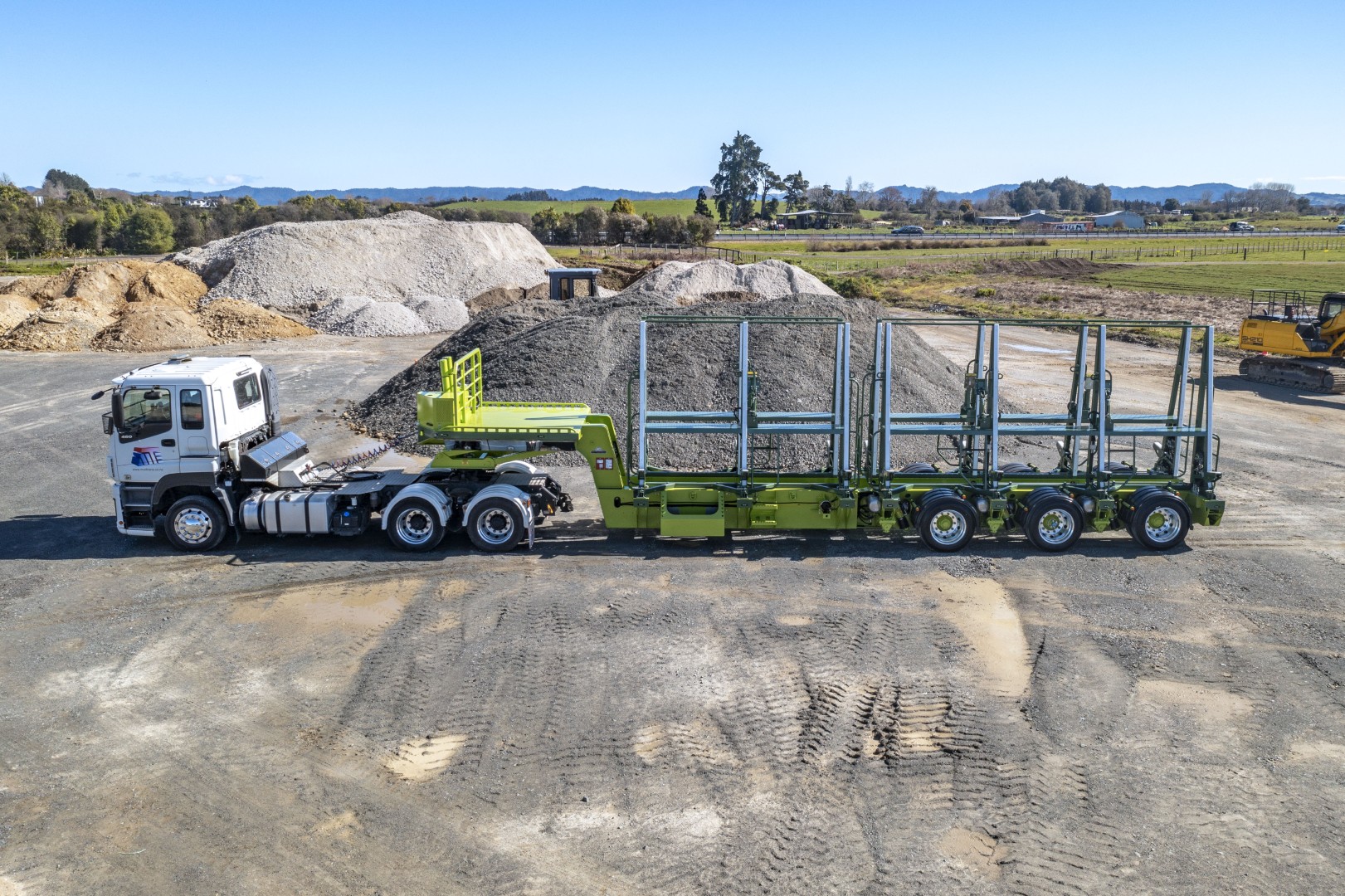

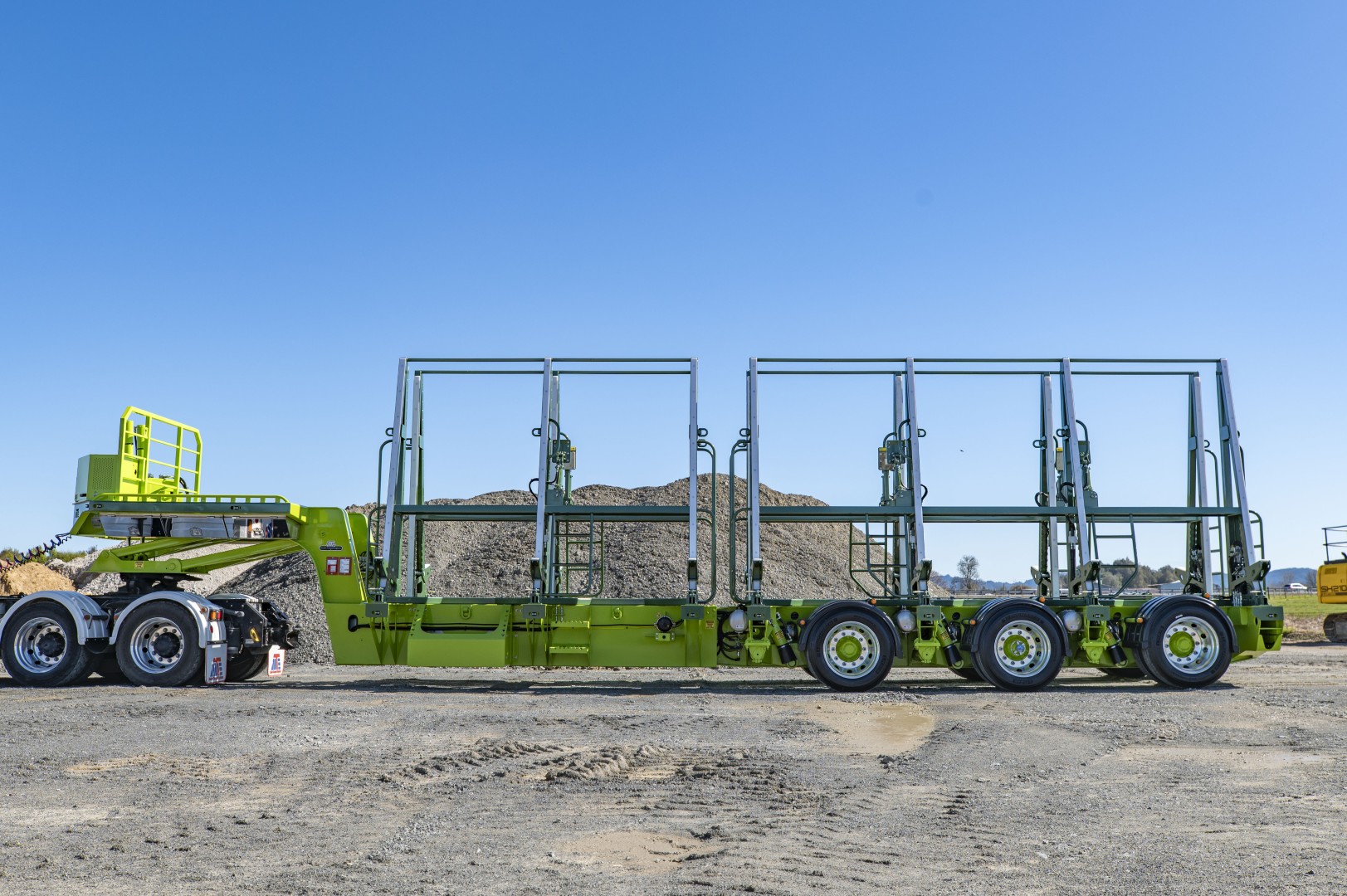

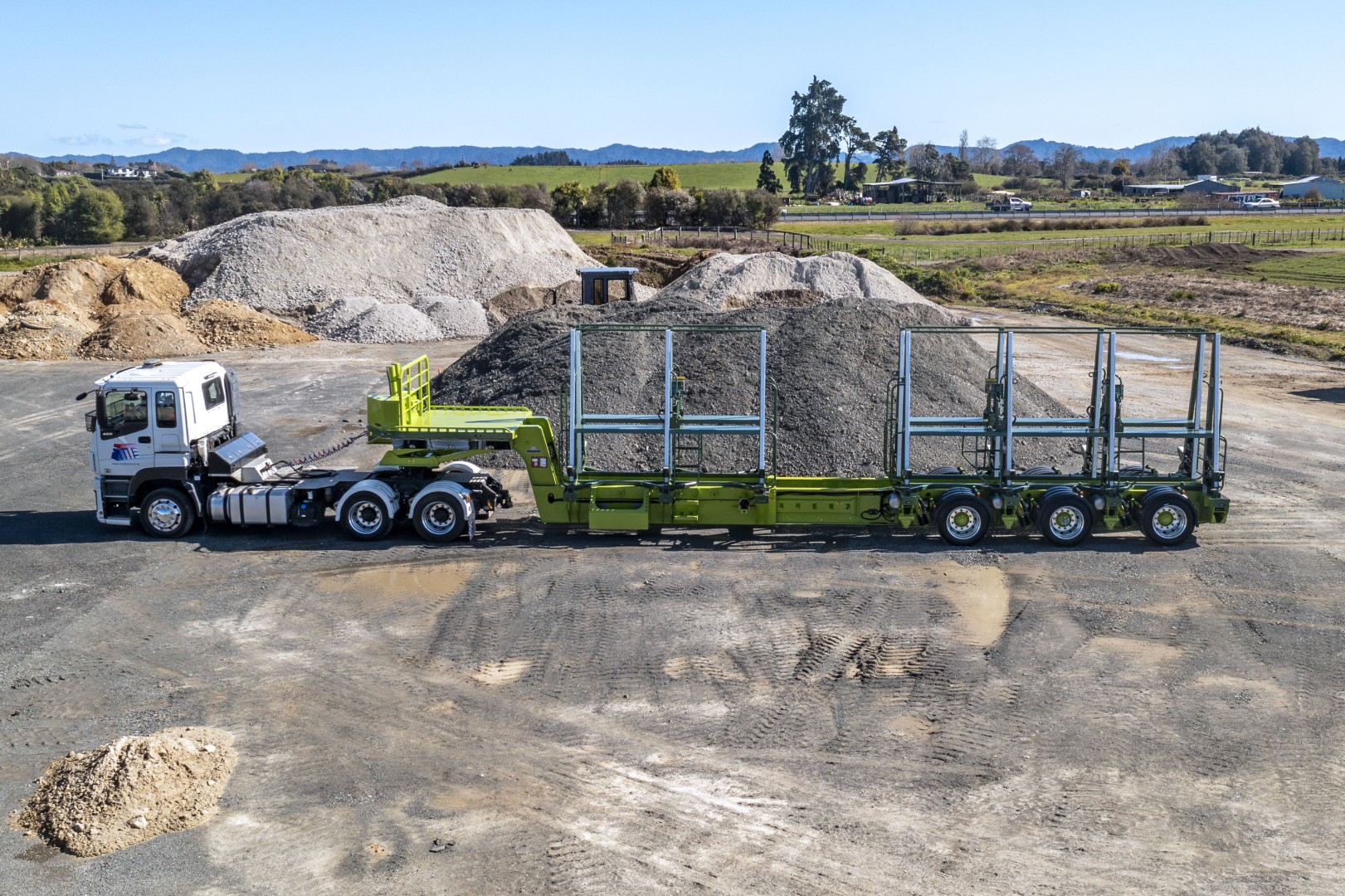

Designed around the unique requirements of precast transport, the trailer features a hydraulically adjustable suspension system that allows the deck to lower to just 200mm between the axles. This allows large concrete panels to sit low within the trailer, helping accommodate taller panels while maintaining a practical overall transport height.

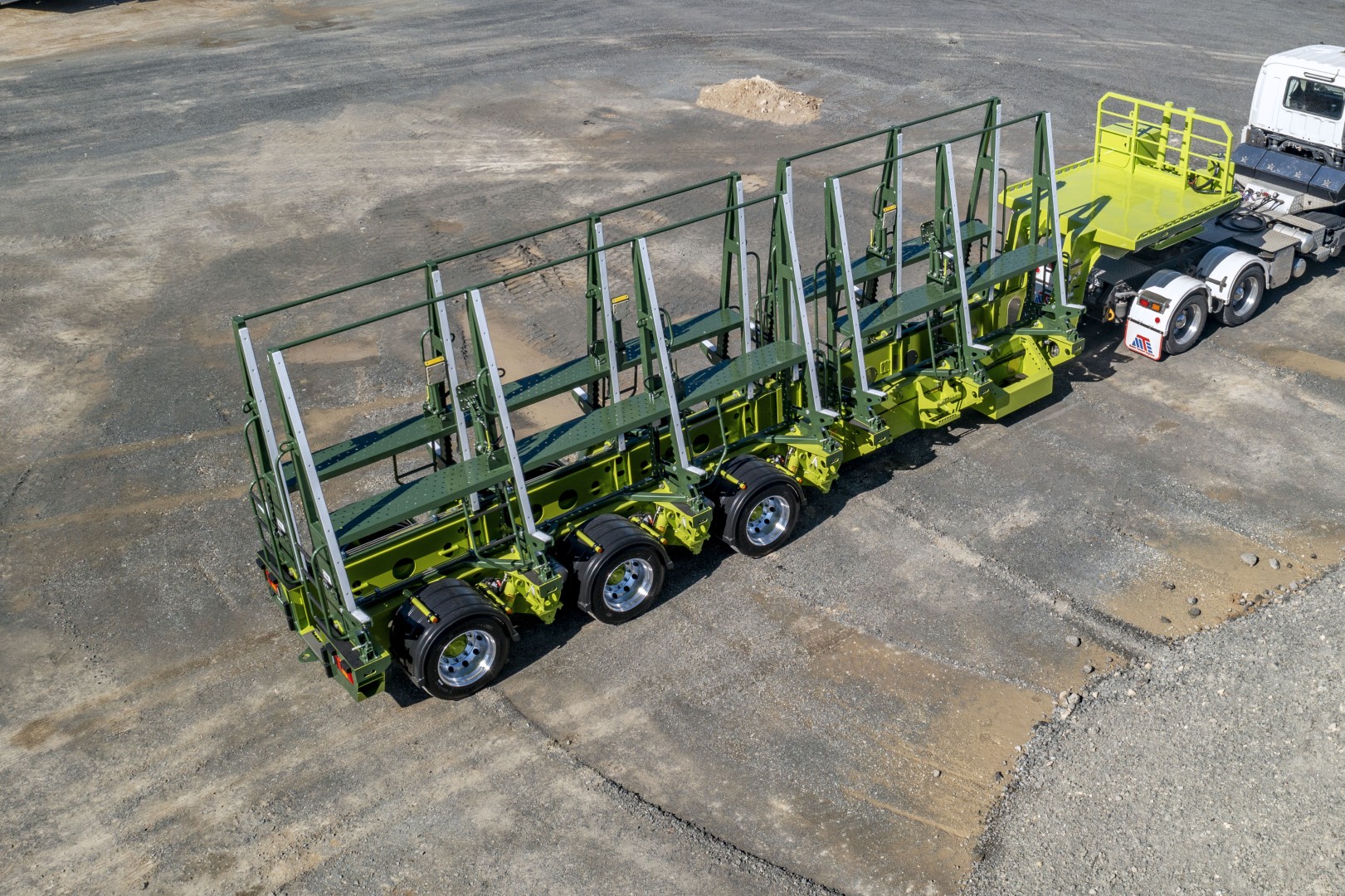

A dedicated panel restraint system incorporates removable uprights and six individually controlled hydraulic panel clamps, providing secure support for panels during transport.

Key Specifications

Configuration: 3 Axle Panel Trailer
GVM: 40,000kg
Deck Width: 2,430mm
Forward Length: 9,860mm
Extension: 1,850mm
Minimum Deck Height: 200mm between axles, fully lowered
Axles: MTE 22.5" 10-stud axles
Axle Spacing: 1,800mm
Suspension: MTE double-acting hydraulic suspension with 600mm lift

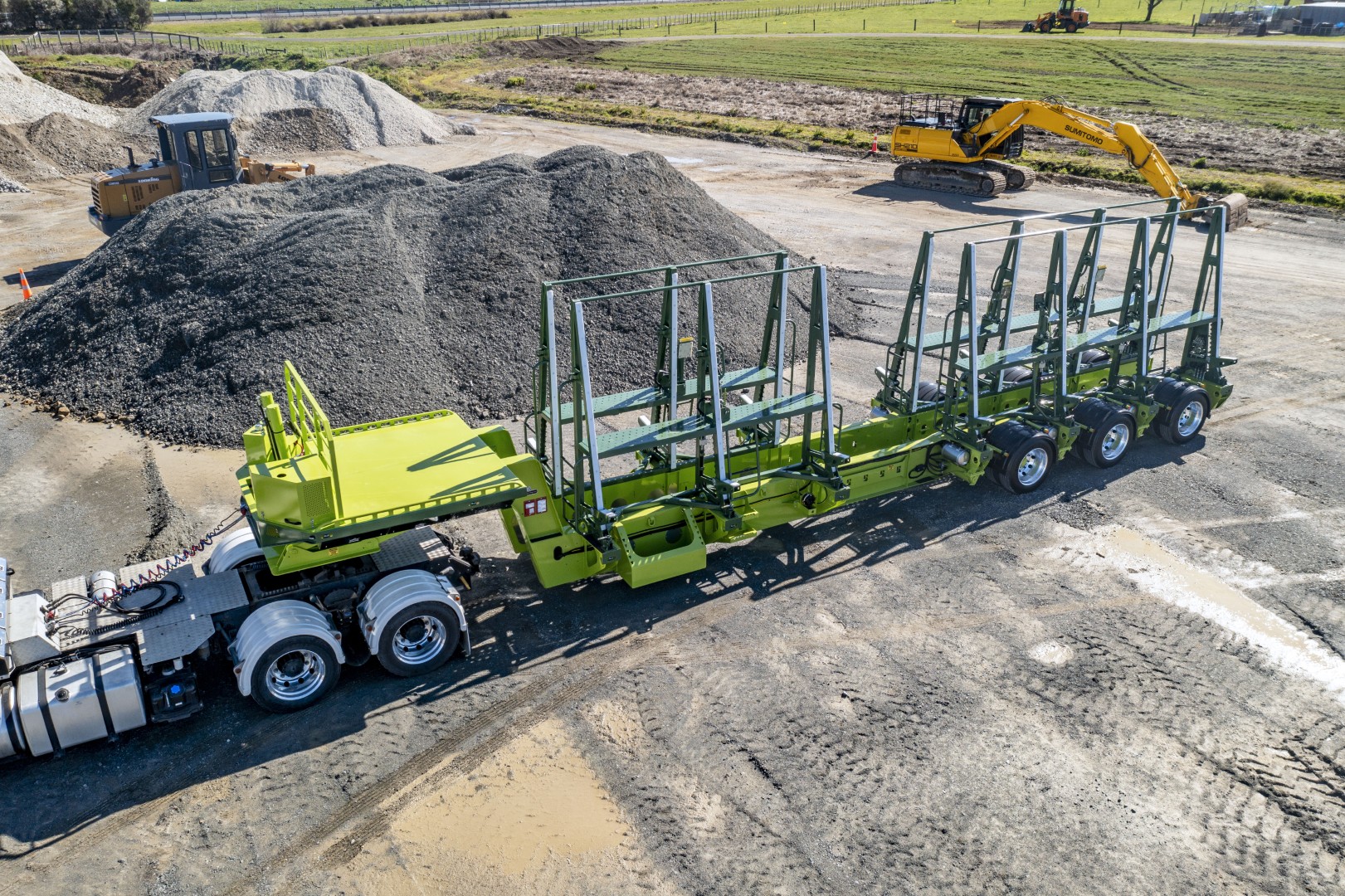

Gooseneck: Scissor lift with 1,200mm travel
5th Wheel Height: 1,360mm

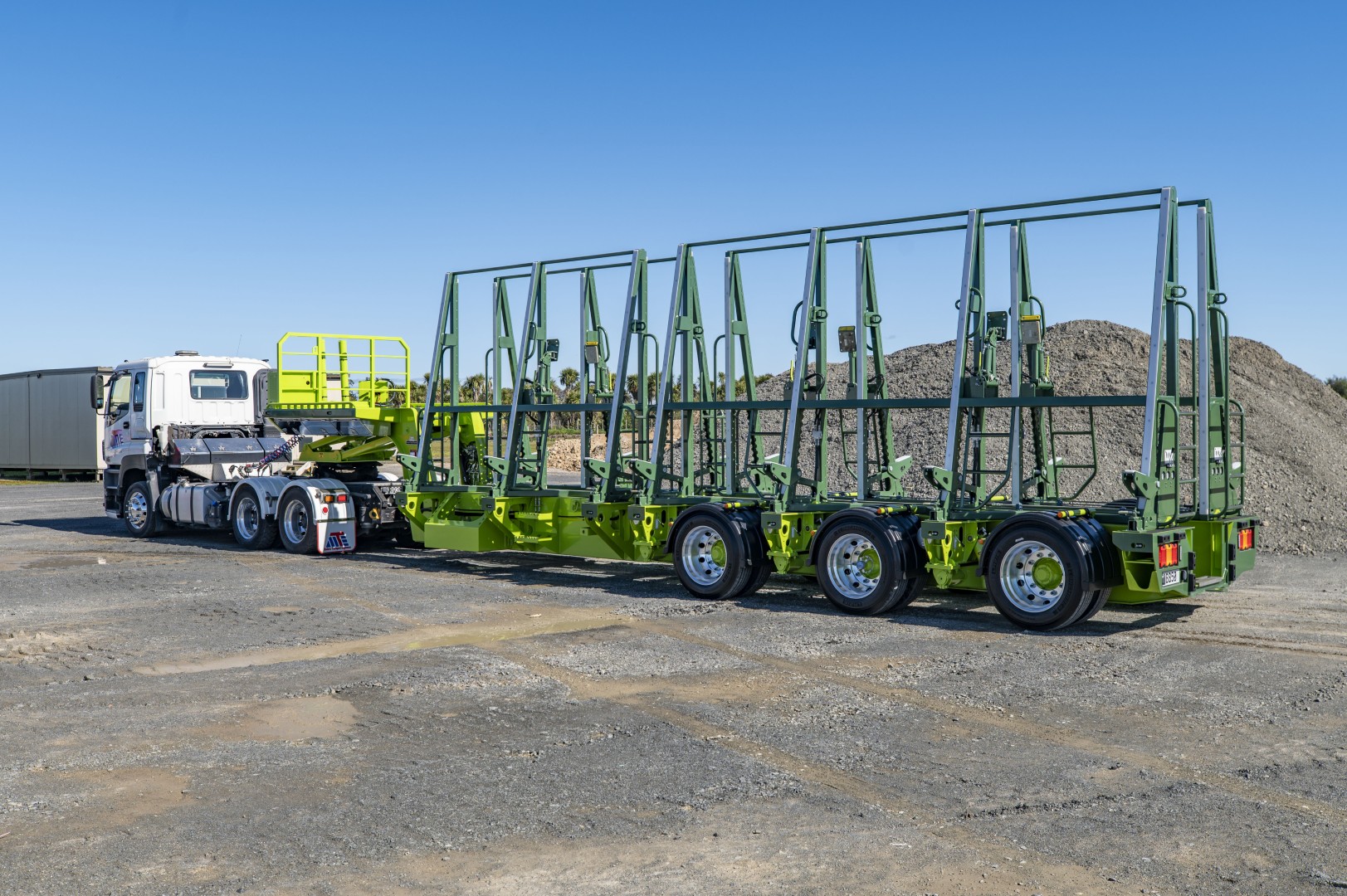

Panel Uprights: 2 removable uprights per side
Panel Restraint: 6 hydraulic panel clamps
Hydraulic Power: 6HP diesel power pack

The outer rack feet provide approximately 600mm of height adjustment, while nylon wear pads protect the panels at key contact points. Each of the six hydraulic clamps has its own pressure gauge, allowing operators to monitor the clamping pressure applied to individual panels.

Customer: Move Logistics – Specialist Lifting & Transport

Purpose-Built for Precast Transport

Transporting large precast concrete panels requires equipment designed specifically around the load.

With its ultra-low deck height, hydraulic suspension, adjustable panel supports and dedicated hydraulic clamping system, this 3 Axle Panel Trailer provides Move Logistics with a specialised solution for safely and efficiently transporting precast panels.

Another purpose-built MTE trailer engineered around a highly specialised transport application.

‍
