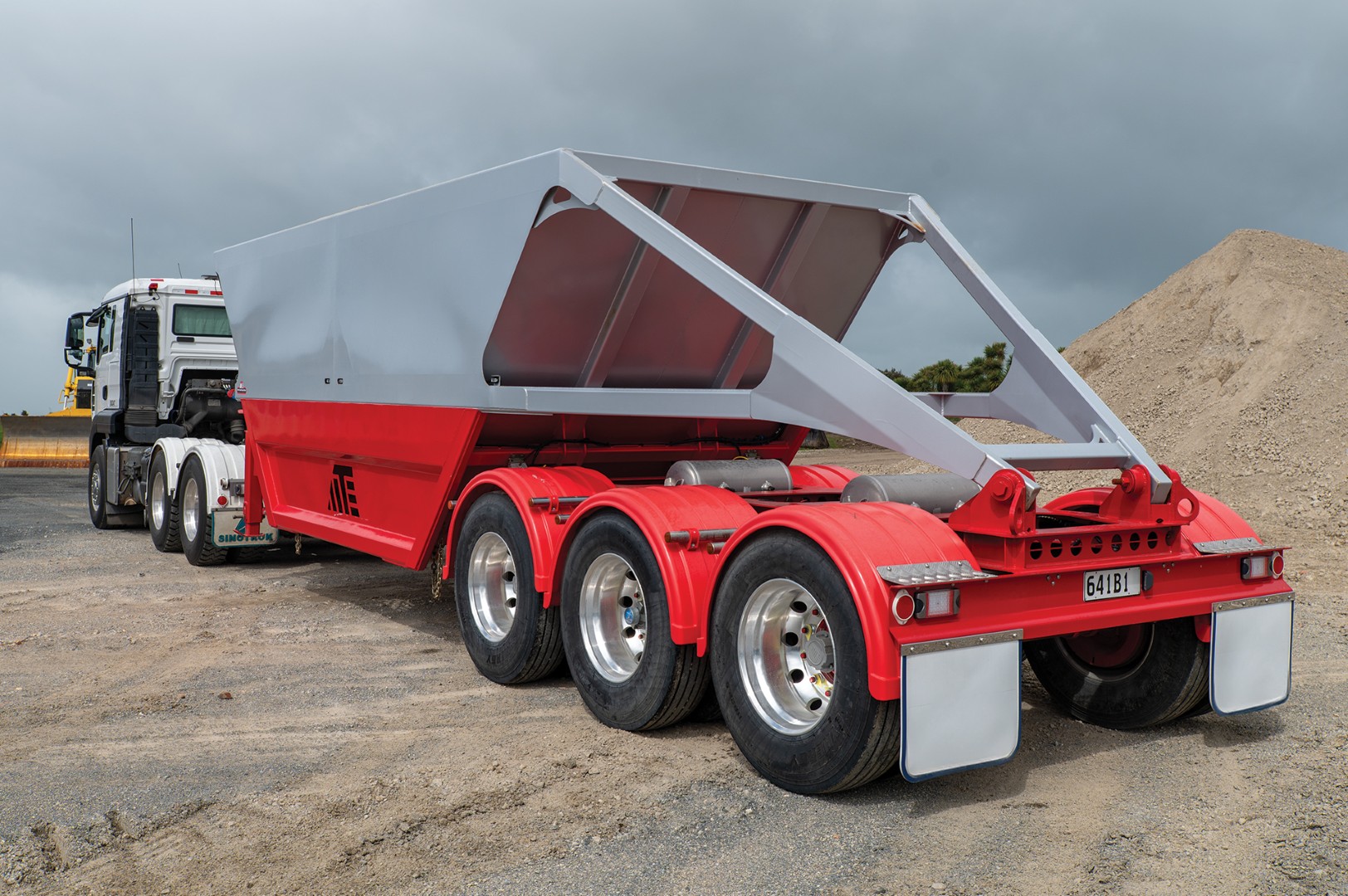

MTE completed this 3 Axle Semi Bottom Dumper for Equipment & Transport Leasing Ltd (ETL Hire), purpose-built for efficient bulk material transport and controlled discharge.
Designed for applications including quarrying, road construction, mining and earthmoving, the Bottom Dumper discharges material through pneumatically operated doors underneath the trailer rather than raising the body like a conventional tipper. This allows material such as aggregate, sand and basecourse to be accurately spread while the combination is moving.
The trailer features a 19m³ high-tensile steel bin, manufactured with 4mm 1100MPa high-tensile steel sides for strength and durability while helping minimise tare weight. The bin is divided into two compartments with four air-operated bottom discharge doors.
Key Specifications
Configuration: 3 Axle Semi Bottom Dumper
GVM: 36,000kg
Bin Capacity: 19m³
Overall Width: 2,500mm
Forward Length: 8,340mm
Bin Construction: 4mm 1100MPa high-tensile steel sides
Discharge System: 4 × air-operated bottom doors across two compartments
Axles: MTW 22.5" 10-stud axles
Axle Spacing: 1,250mm
Suspension: Overslung air suspension
Brakes: Knorr EBS
Kingpin: 50mm retention type
Wheels: 22.5" machined alloy wheels
Tyres: 11R22.5
Lighting: Hella LED
The discharge doors can be operated using trailer-mounted controls or a four-button remote, allowing the operator to control material discharge without leaving the cab when using the remote system.
Customer: Equipment & Transport Leasing Ltd – ETL Hire
Fast, Controlled Material Discharge
Another purpose-built MTE trailer designed to move more material, discharge efficiently and perform in demanding operating environments.
