3 Axle Semi Forklift Transporter

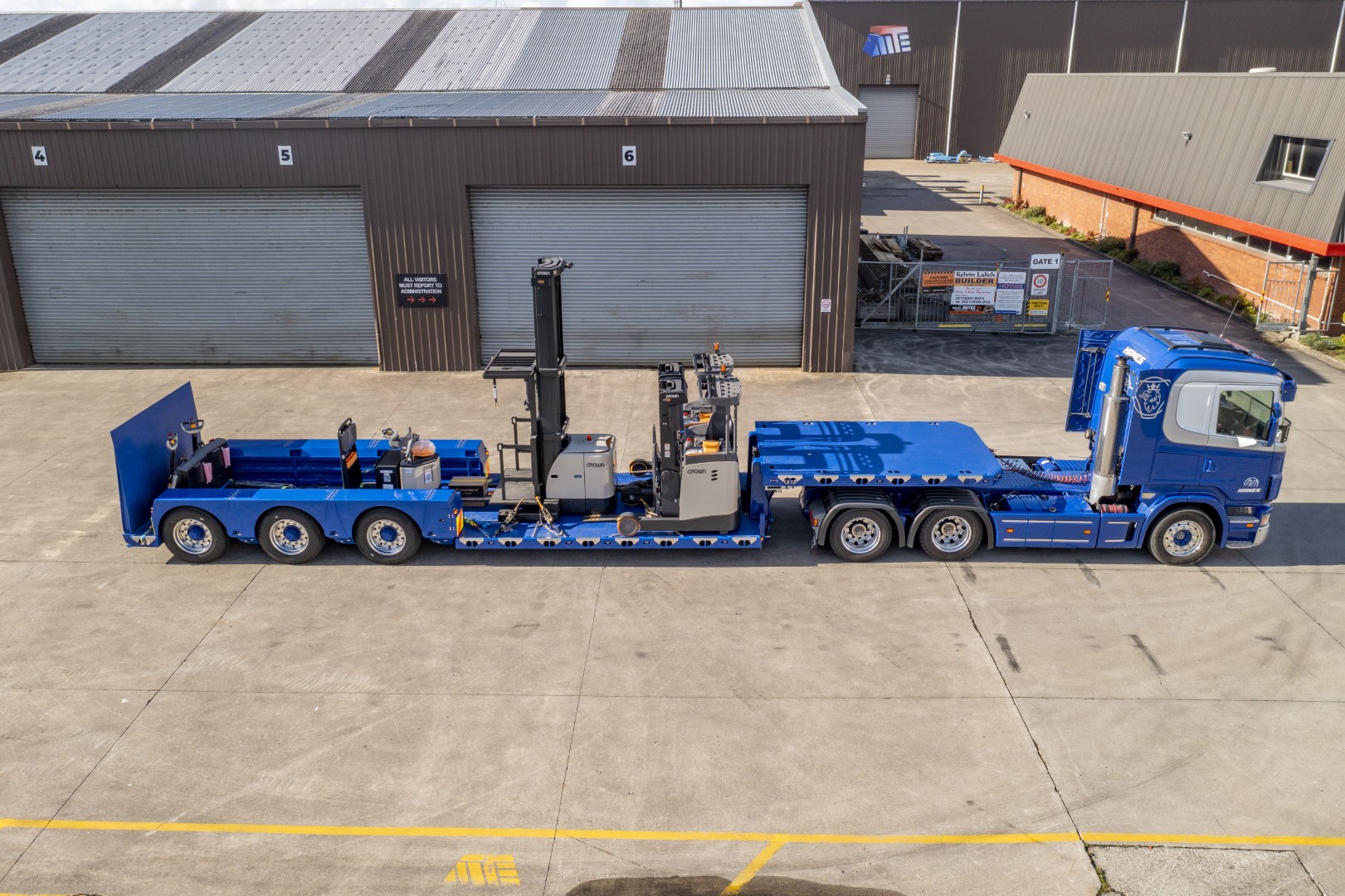

MTE recently completed this 3 Axle Semi Forklift Transporter for Hanes Engineering, purpose-built for the transport of forklifts and other material handling equipment.

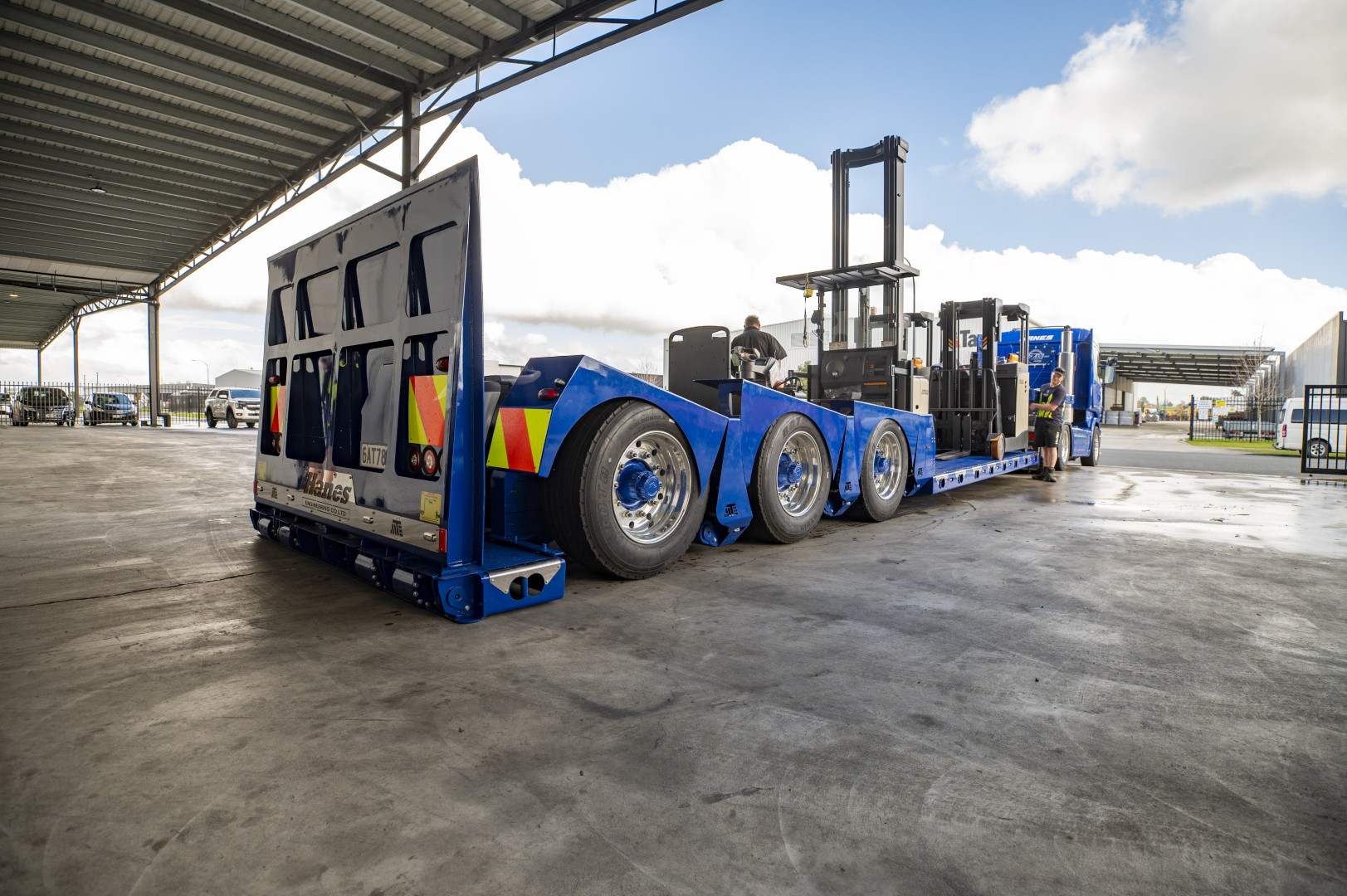

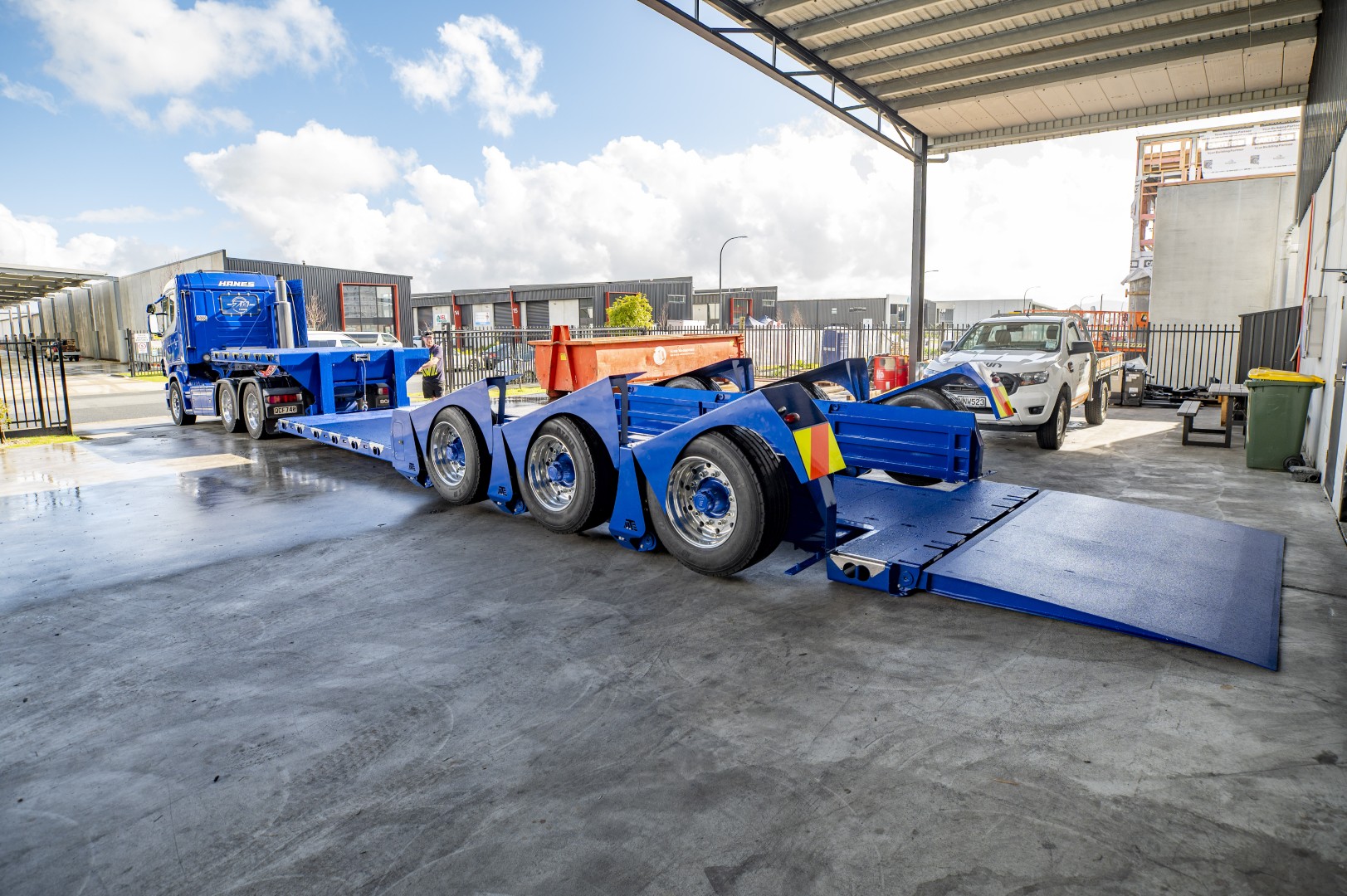

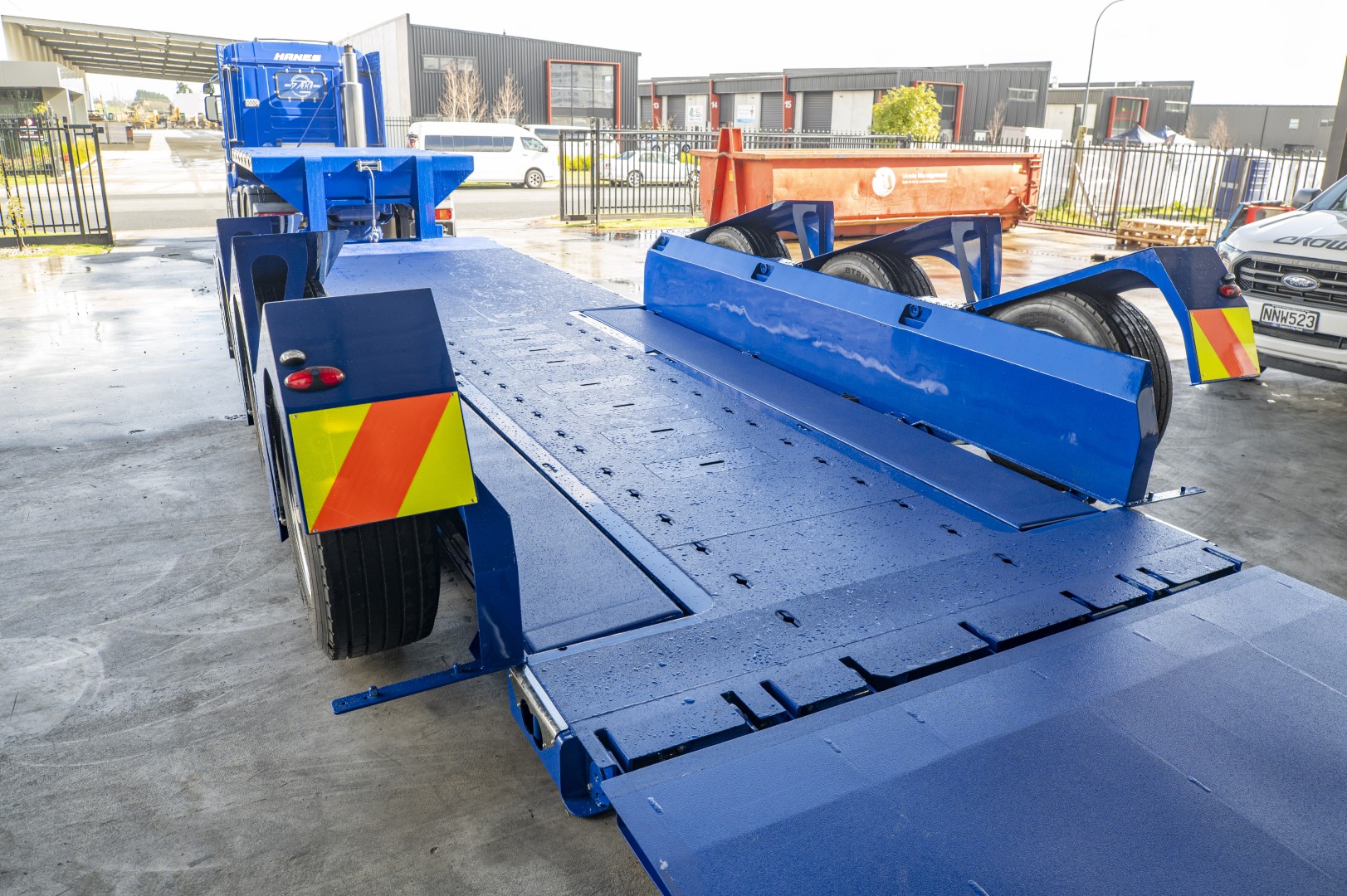

A key feature of this specialised transporter is its hydraulically widening axle and deck system. The axles can be widened for loading, allowing sections of the deck to fold down between the wheels and creating a low, accessible loading platform. Combined with a 570mm deck ride height and full-width hydraulic rear ramp, the design provides a practical solution for loading and transporting forklifts.

Key Specifications

Configuration: 3 Axle Semi Forklift Transporter
GVM: 34,000kg
Payload Requirement: 22,000kg
Deck Ride Height: 570mm
Forward Length: 9,200mm
Top Deck Length: 3,630mm
Bottom Deck Width: 2,700mm closed
Deck Construction: 4mm Hardox bottom deck / 3mm Hardox top deck
Axles: MTE 22.5" axles
Axle Spacing: 1,500mm
Suspension: MTE hydraulic suspension
Brakes: Pacific
Ramp: 2,600mm wide hydraulic rear ramp
Hydraulic Supply: 24V electric power pack
Wheels: 22.5" × 11.75" zero-offset aluminium wheels
Tyres: 385/55R22.5

Designed for Machinery Loading

Hydraulic controls provide independent operation of the left and right suspension, widening system, rear ramp and centre deck, allowing the trailer to be configured to suit the loading operation.

A 15,000lb electric winch is mounted at the front of the trailer, providing additional assistance when loading equipment that cannot be driven onto the deck. Extensive chain slots, tie bars and dedicated tie points provide multiple options for securing machinery once loaded.

Customer: Hanes Engineering

Purpose-Built Forklift Transport

Finished in Hanes Blue with anti-slip grit applied to the deck surfaces, this is another example of an MTE trailer engineered around a customer's specific equipment and day-to-day transport requirements.

‍
