3 Axle Semi Tipper

MTE recently completed this 3 Axle Semi Tipper for Legacy Contracting, paired with their recently refurbished Kenworth T908 tractor unit to create a purpose-built combination for demanding bulk haulage and contracting work.

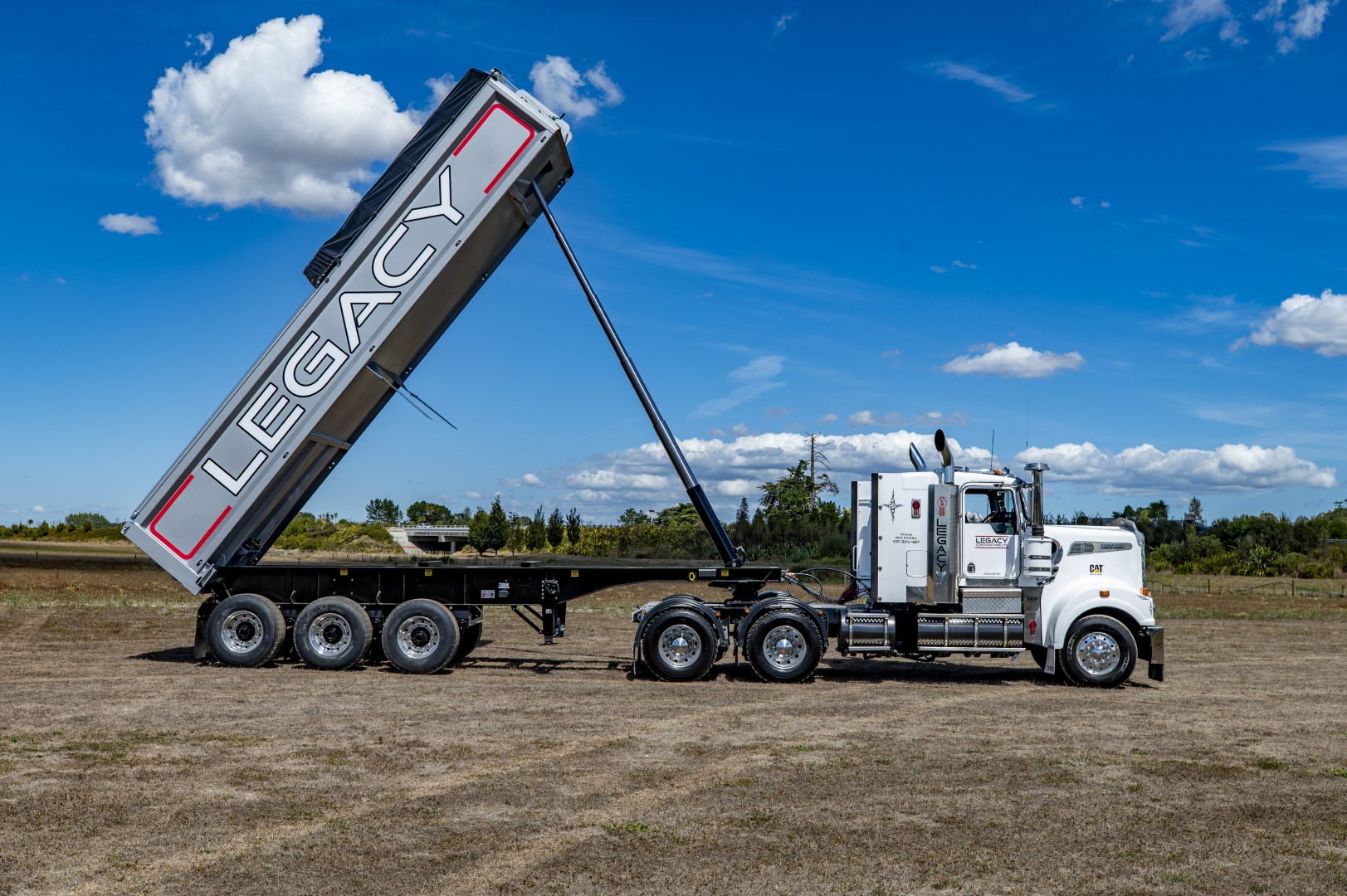

At the centre of the build is a 22m³ high-tensile steel bin, constructed from 1100MPa steel with a 6mm floor and 5mm sides. A buried six-stage hoist keeps the hydraulic system neatly integrated into the trailer while providing the lifting power required for tipping operations.

Key Specifications

Configuration: 3 Axle Semi Tipper
GVM: 36,000kg
Bin Capacity: Approx. 22m³
Bin Length: 8,534mm
Bin Width: 2,450mm
Internal Side Height: 1,200mm
Bin Construction: 1100MPa high-tensile steel
Floor: 6mm high-tensile steel
Sides: 5mm high-tensile steel
Tailgate: 2-way demolition door
Hoist: Buried 6-stage hydraulic hoist
Axles: 3 × MTE 22.5" 10-stud drum brake axles
Axle Spacing: 1,300mm
Suspension: MTW overslung air suspension
Brakes: Knorr EBS
Rubplate Height: 1,248mm
Kingpin: 50mm bolt-up
Wheels: 22.5" polished aluminium
Tyres: 385/65R22.5

Built for Versatile Tipping Work

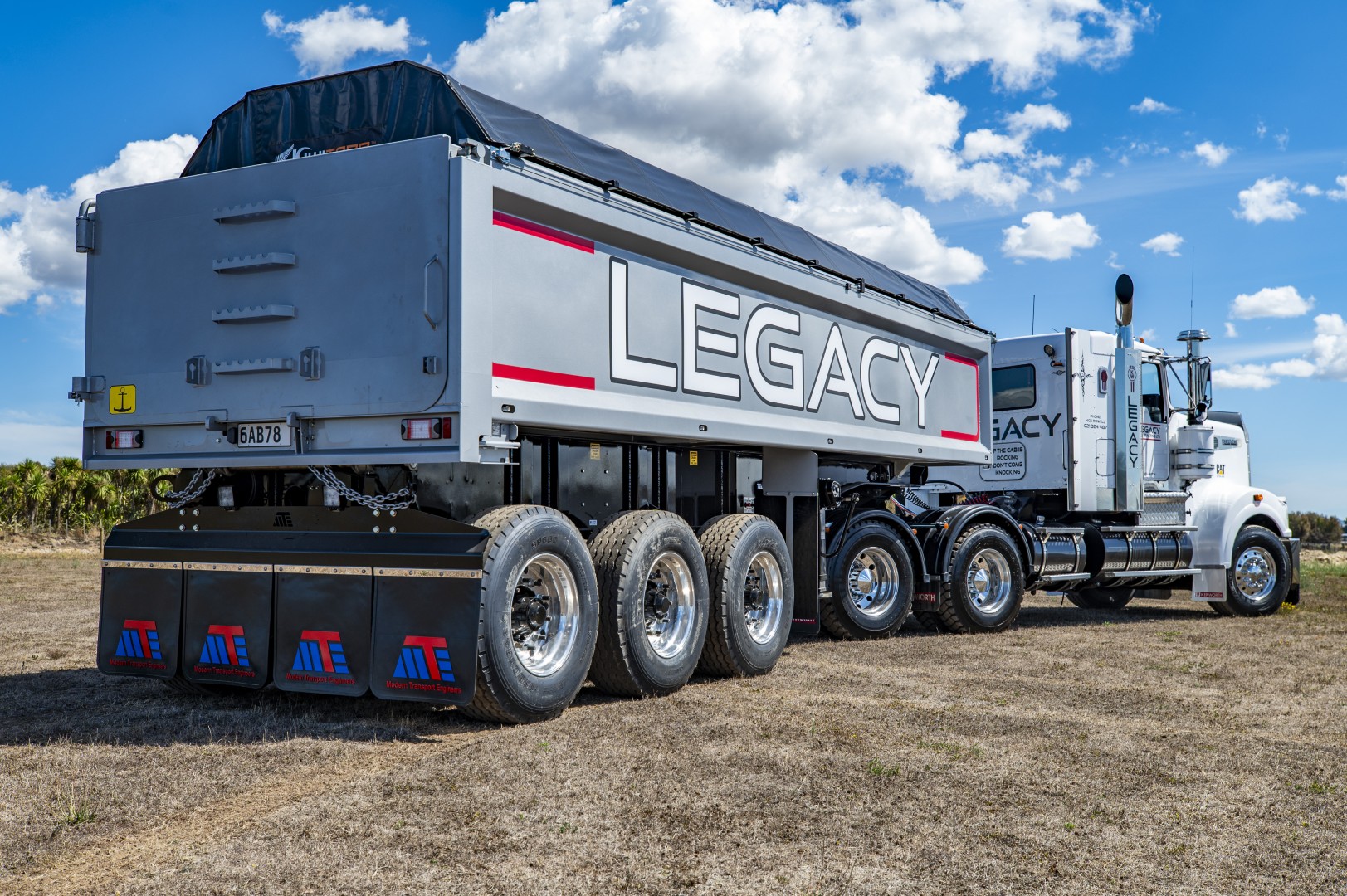

The trailer incorporates a two-way demolition tailgate, allowing the rear door configuration to suit different unloading applications. A pneumatic tailgate trip, spreader chains and truck-powered hydraulics provide a straightforward setup for day-to-day operation.

A Kiwi Tarp system has also been fitted to provide load coverage, while the black chassis and silver bin complement Legacy Contracting’s recently refurbished Kenworth T908.

The combination was finished off with custom signwriting by The Sign Formula, Hamilton, tying the truck and trailer together for a sharp, professional finished package.

‍Customer: Legacy Contracting

A Complete Heavy Haulage Combination

Paired with Legacy Contracting’s recently refurbished Kenworth T908, the finished combination brings together a classic heavy-duty tractor unit with a modern MTE semi tipper engineered for strength, capacity and versatility.

This is another MTE build designed around the customer's specific operating requirements.
