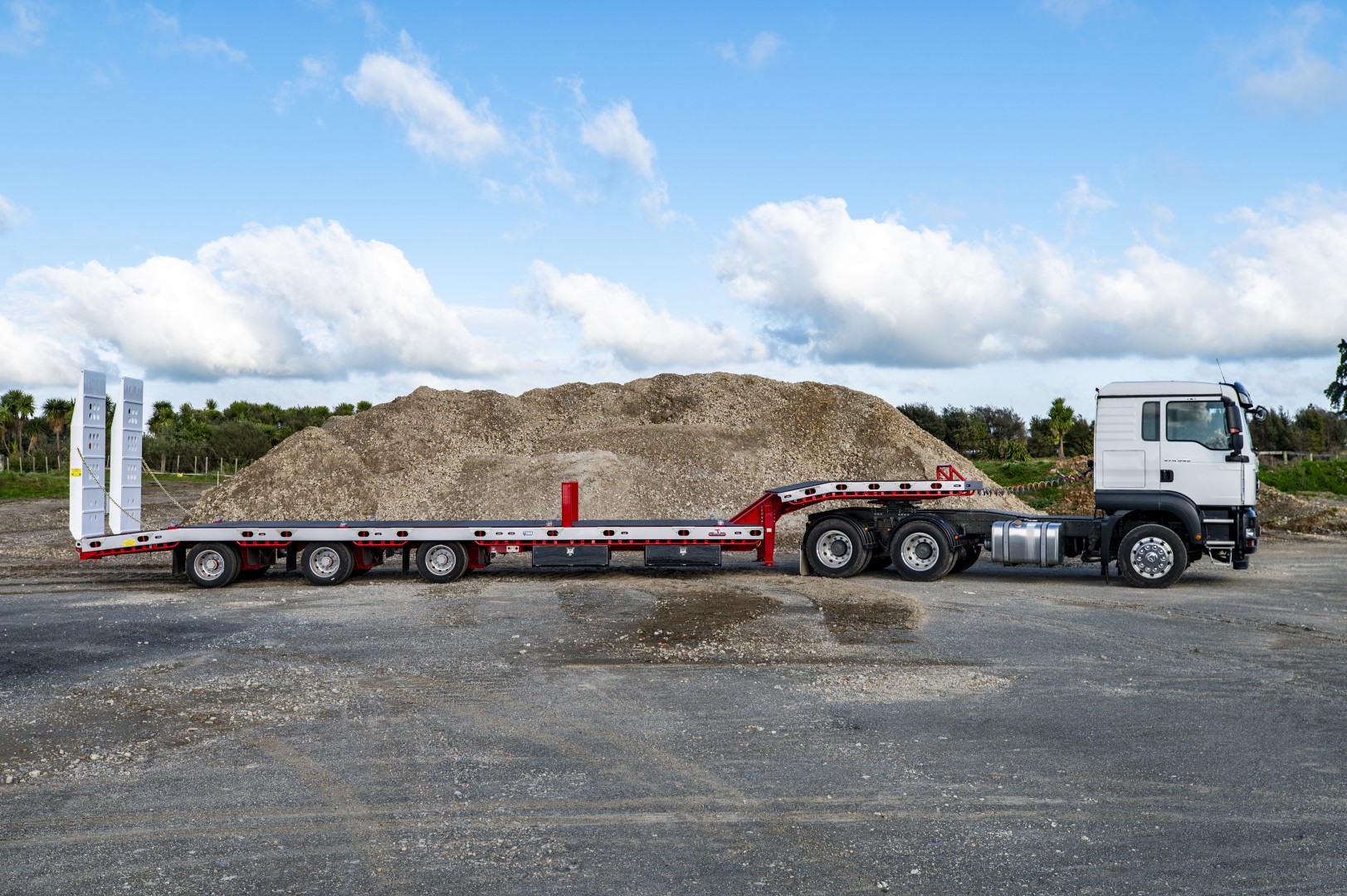

3 Axle Semi Transporter

MTE completed this 3 Axle Semi Transporter for Equipment & Transport Leasing Ltd (ETL Hire), designed as a versatile machinery transport solution for their heavy equipment hire fleet.

With a 39,000kg GVM, 915mm deck ride height and hydraulic rear loading ramps, the trailer provides a practical platform for transporting a wide range of construction and earthmoving equipment between worksites.

Key Specifications

Configuration: 3 Axle Semi Transporter
GVM: 39,000kg
Deck Ride Height: 915mm
Deck Width: 2,500mm
Overall Deck Length: 10,587mm
Forward Length: 9,200mm
Decking: 2" Pine
Axles: MTE 17.5" outboard drum axles
Axle Spacing: 1,300mm
Suspension: MTW underslung air suspension
Brakes: Knorr EBS
Gooseneck: Fixed with top deck and pull-out ramps
Gooseneck Height: 1,300mm
Kingpin: 50mm

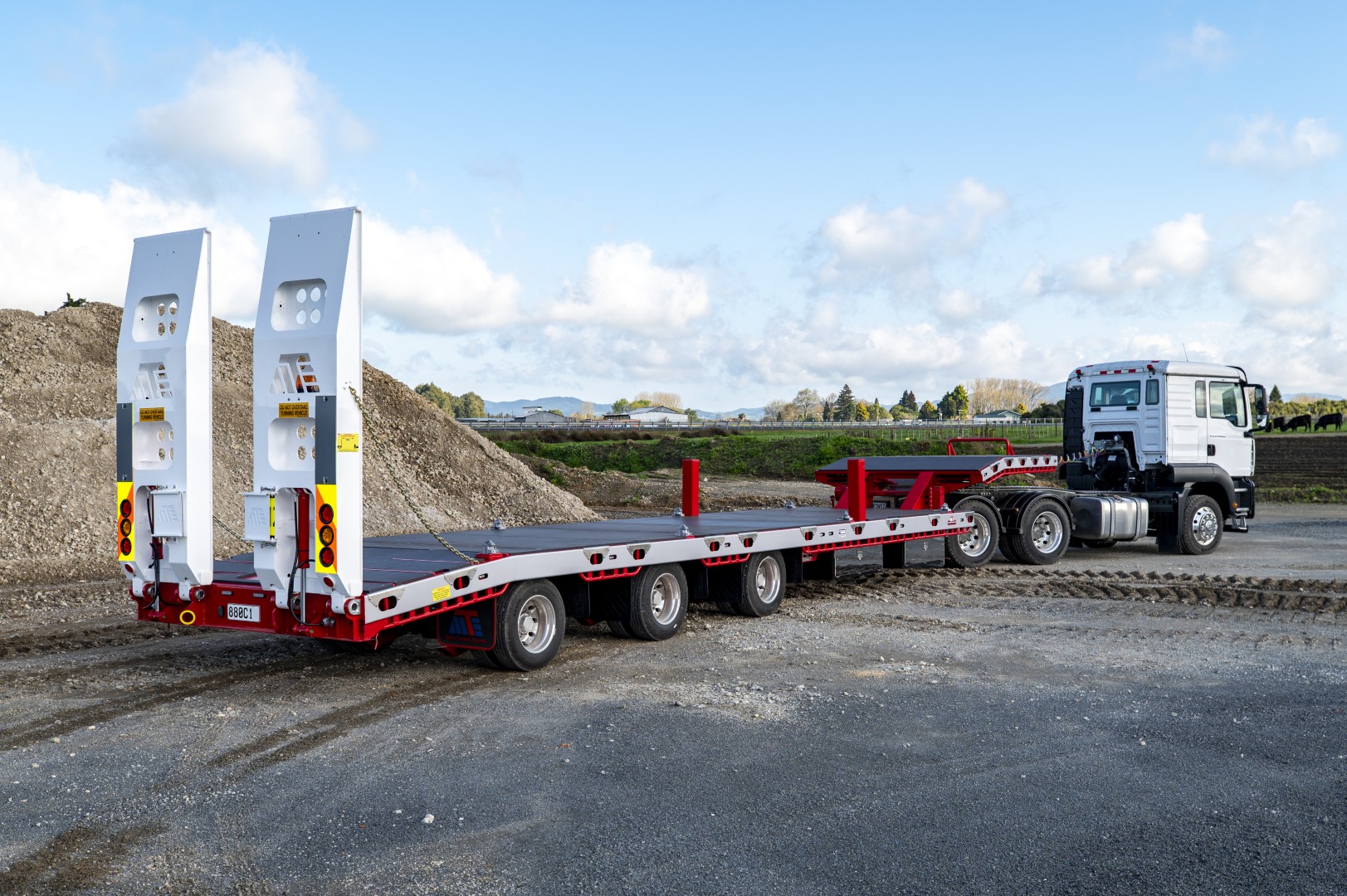

Rear Ramps: 2,400mm × 860mm
Hydraulics: Truck supplied
Wheels: 17.5" alloy wheels
Lighting: Hella LED

Versatility Built In

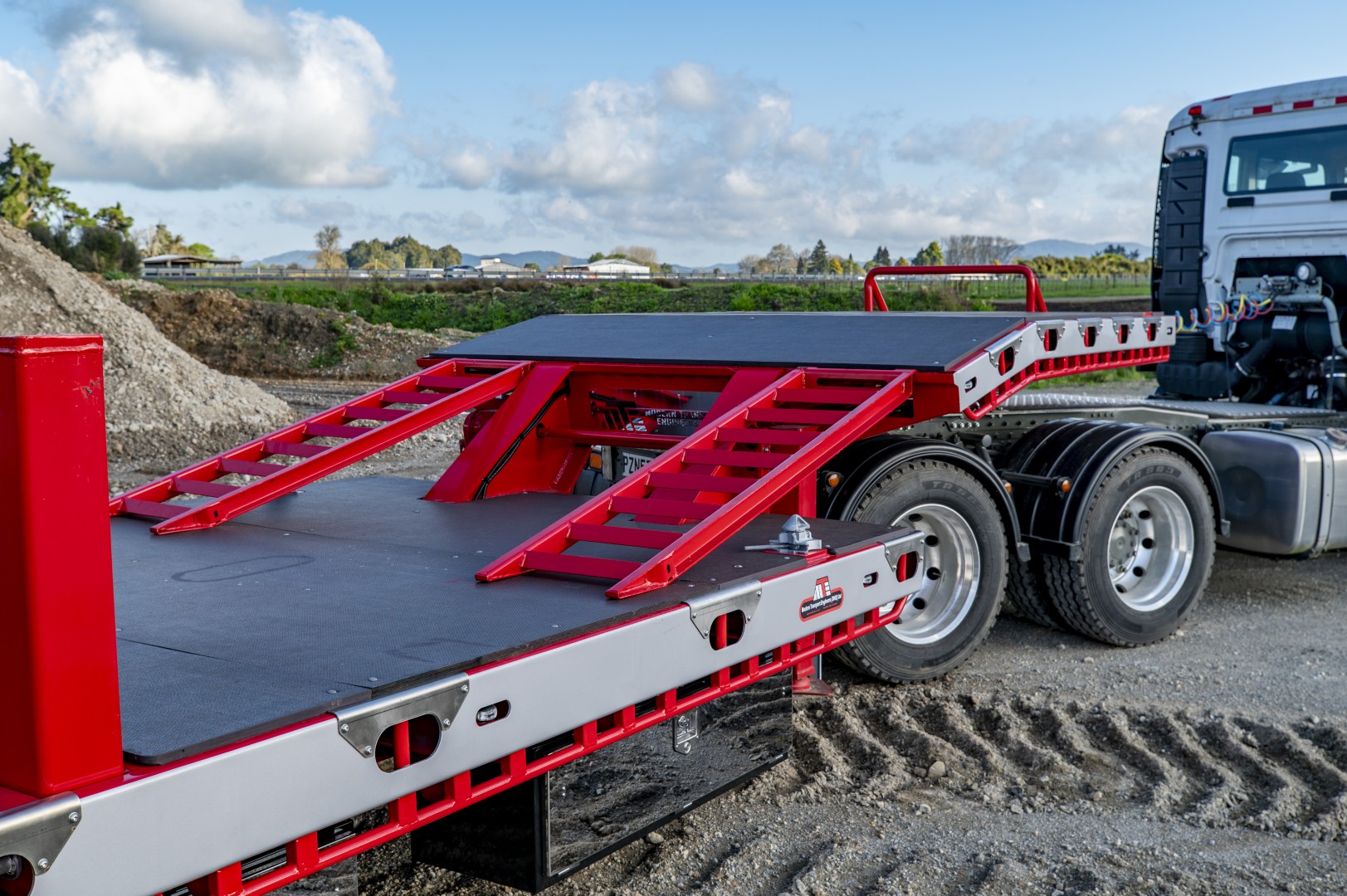

The fixed gooseneck incorporates a top deck with pull-out ramps, providing additional usable loading space and allowing machinery to be carried across multiple deck levels.

For load restraint and operational flexibility, the trailer is equipped with ferry hooks, full-length rope rails and container ship-lock pockets configured for either one 40ft container, two 20ft containers or a loaded 20ft container. Folding OVERSIZE signs and removable chevrons are also incorporated for over-dimensional transport requirements.

Two 900mm toolboxes provide onboard storage, while rear fold-down support legs assist during loading and unloading operations.

Customer: Equipment & Transport Leasing Ltd – ETL Hire

Built for Machinery Transport

Another purpose-built MTE transporter designed to give ETL Hire the flexibility to move a wide range of machinery safely and efficiently between jobs.

‍
