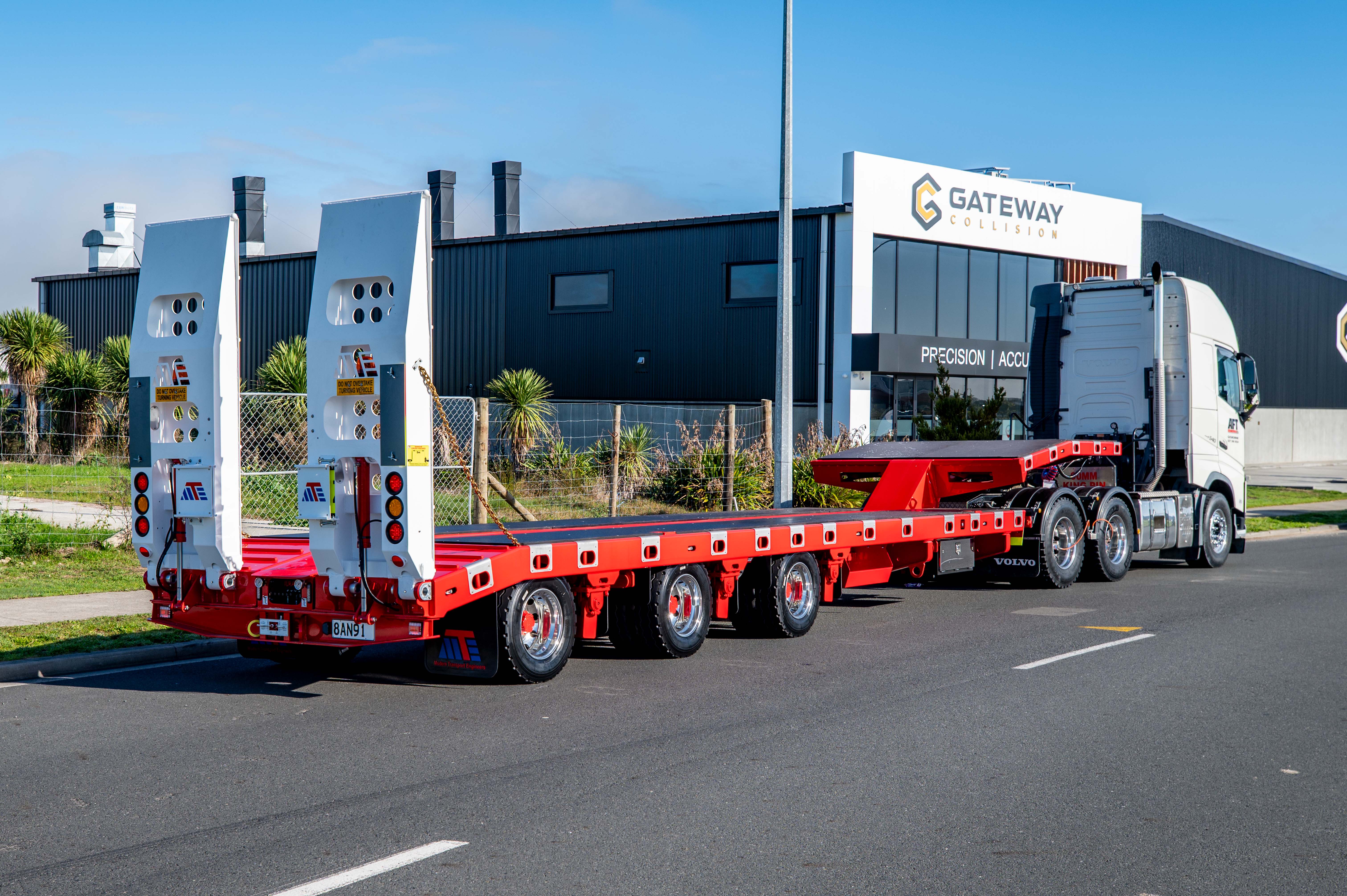

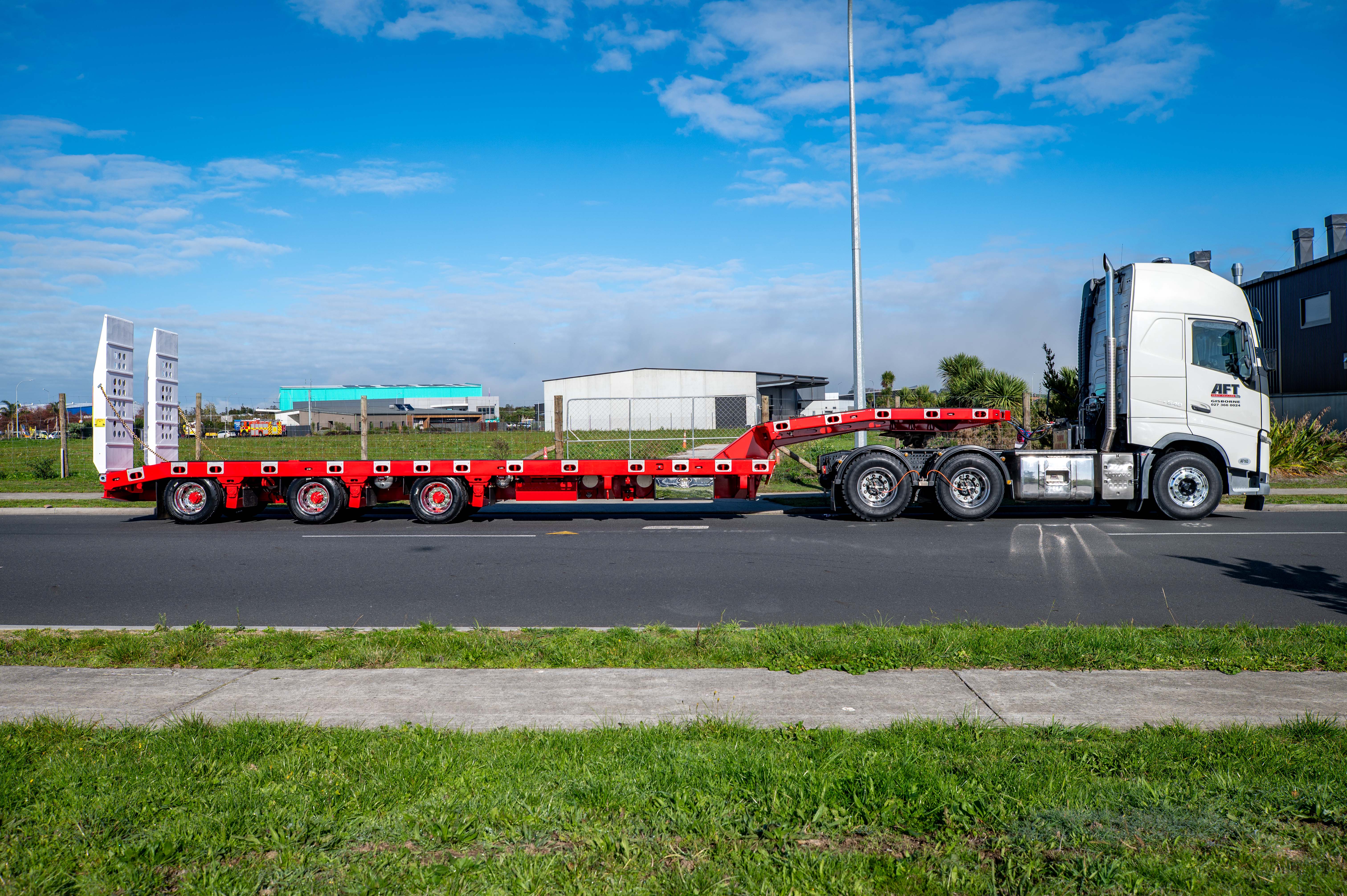

MTE recently completed this 3 Rows of 4 Widener for AFT Heavy Haulage, designed as a versatile heavy machinery transport solution capable of adapting to a wide range of oversized equipment and loads.
The hydraulically widening deck expands from 2,500mm closed to 3,600mm open, while MTE hydraulic suspension provides a 920mm ride height and 820mm loading height. Combined with a 40,000kg GVM, the result is a highly capable platform for specialist heavy haulage work.
Key Specifications
Configuration: 3 Rows of 4 Widener
GVM: 40,000kg
Deck Length: 9,765mm
Forward Length: 9,200mm
Deck Width: 2,500mm closed / 3,600mm open
Deck Ride Height: 920mm
Deck Loading Height: 820mm
Top Deck: 3,900mm × 2,500mm
Deck: High-tensile steel with 18mm treated plywood
Axles: MTE 17.5" 10-stud axles
Axle Spacing: 1,800mm
Suspension: MTE hydraulic ball-type suspension
Kingpin Vertical Rating: 16,000kg
Rear Group Rating: 30,000kg
Kingpin: MTE 90mm drop-in
Main Ramps: 2,400mm × 860mm hydraulic ramps
Hydraulic Supply: Truck PTO
Designed for Maximum Deck Flexibility
The 3.9m top deck provides valuable additional loading space, with 1.8m pull-out steel ramps allowing machinery to be loaded onto the upper deck. This gives AFT greater flexibility when transporting multiple pieces of equipment or machinery with attachments.
The trailer also incorporates a comprehensive load restraint package with certified tie-bar lashings, chain lugs, ferry hooks and ship-lock pockets for a loaded 20ft container. Four integrated chain bins and two 900mm toolboxes provide dedicated storage for chains and other transport equipment.
Folding oversize signage, reversible hazard panels, LED beacons and rear strobes are incorporated for over-dimensional transport operations.
Customer: AFT Heavy Haulage
Built for Heavy Haulage
Finished in MTE Red with contrasting Kenworth Ice White ramps, this 3R4 has a distinctive finish to match its heavy-haulage capability.
