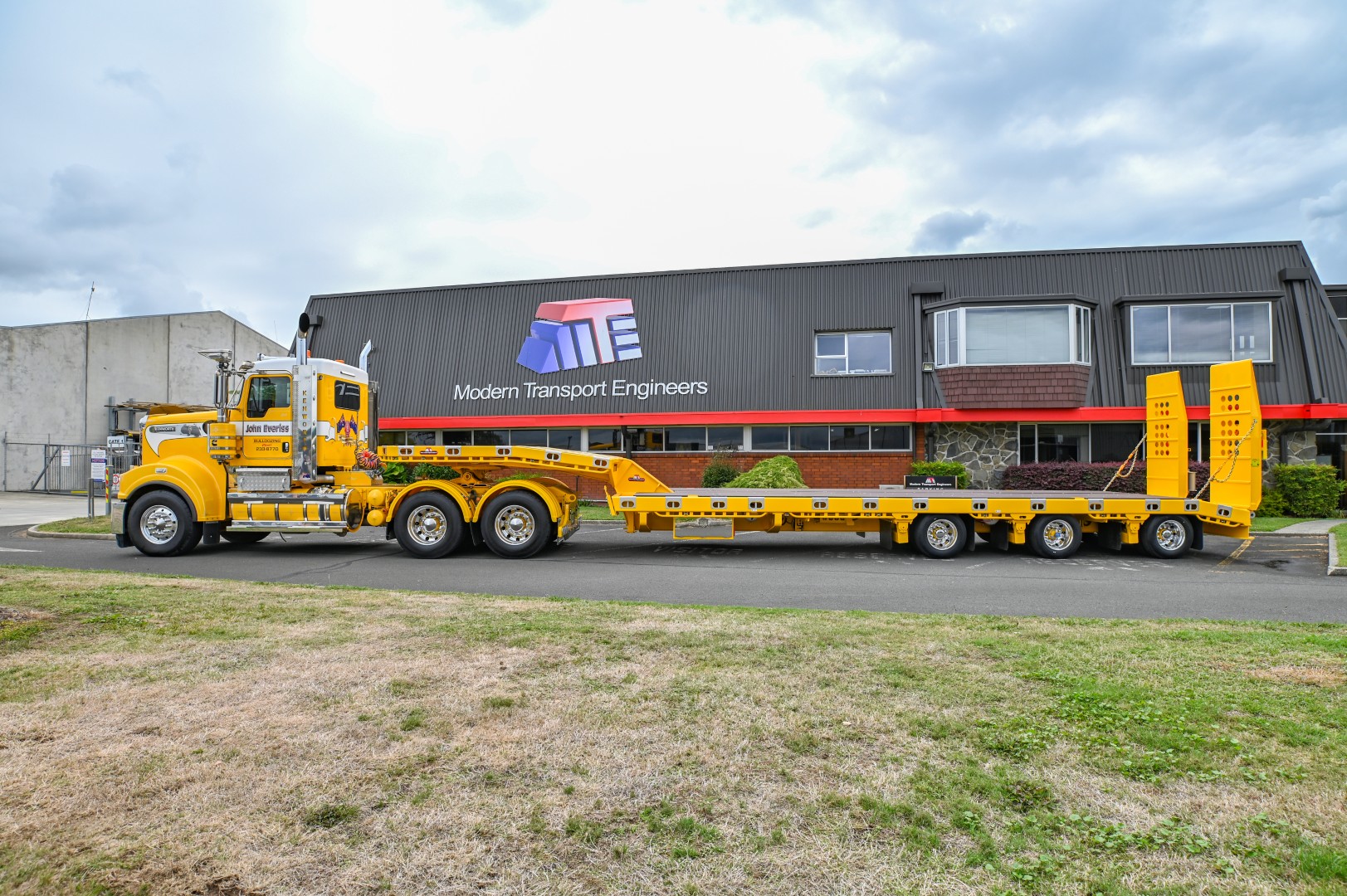

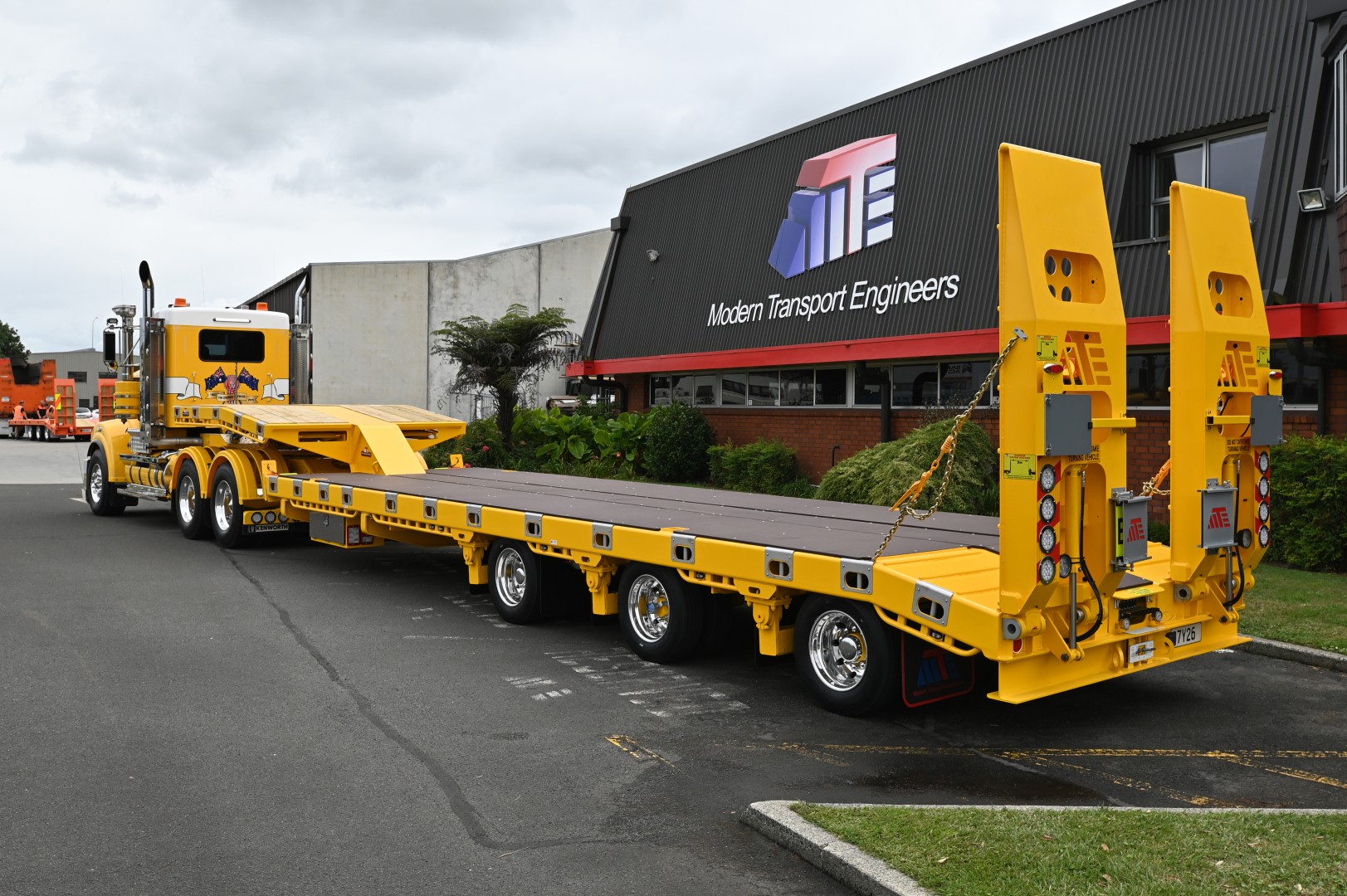

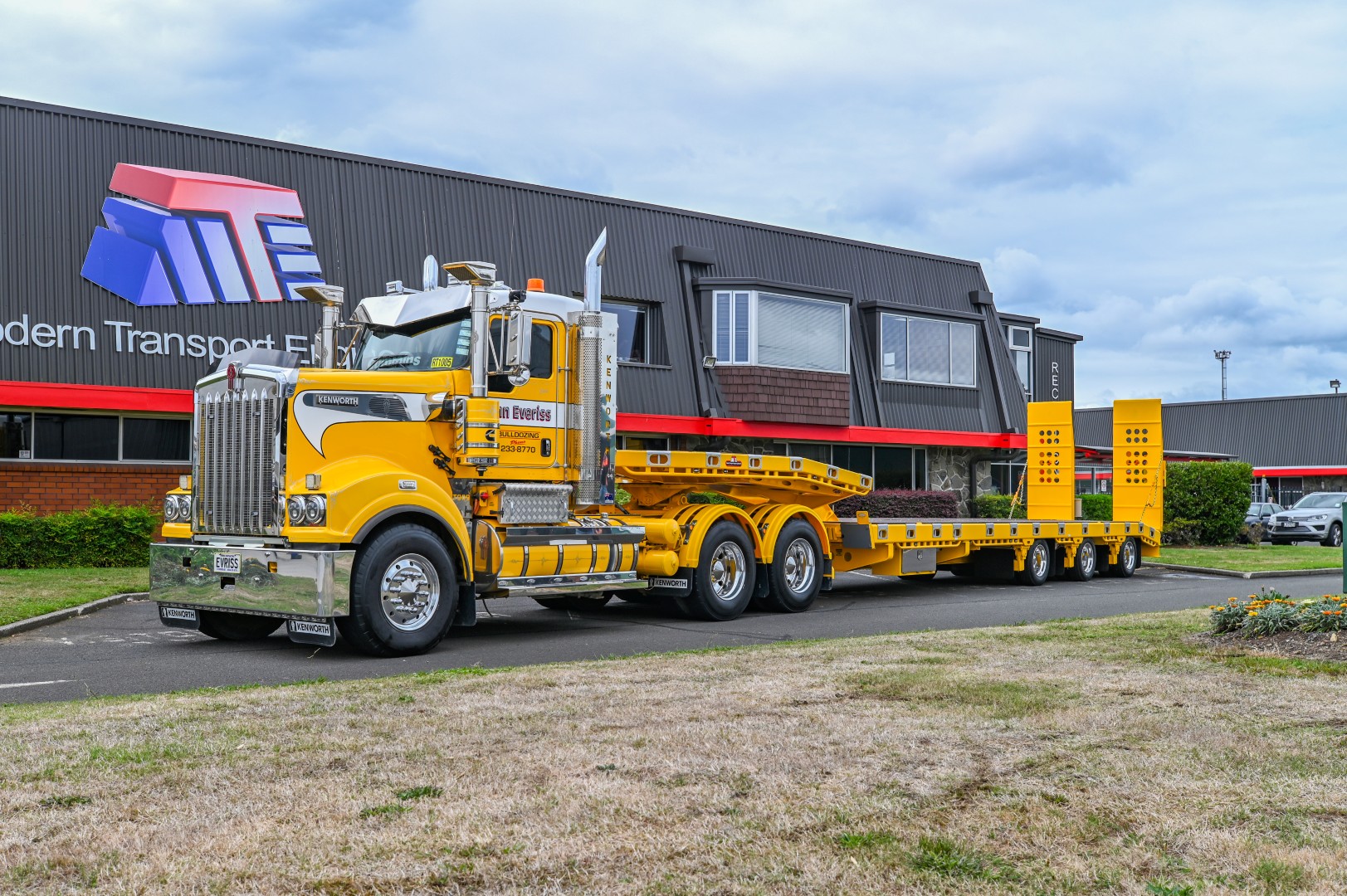

MTE completed this 3 Rows of 4 Widener for Everiss Civil, designed as a versatile machinery transporter with the added benefit of a full top deck and slide-out ramps.
Rated to 40,000kg GVW, the trailer combines a hydraulically widening main deck, MTE hydraulic suspension and a low loading height with additional usable deck space above the gooseneck.
Key Specifications
Configuration: 3 Rows of 4 Widener with Top Deck
GVW: 40,000kg
Deck Width – Closed: 2,500mm
Deck Width – Open: 3,600mm
Deck Ride Height: 900mm
Deck Loading Height: 800mm
Top Deck: 3,700mm × 2,500mm
Forward Length: 9,200mm
Deck: Steel with 18mm treated plywood overlay
Axles: MTE 17.5" 10-stud
Axle Spacing: 1,800mm
Suspension: MTE hydraulic ball type
Gooseneck: Fixed
Ramps: 2,400mm × 860mm hydraulic
Hydraulic Supply: Truck PTO
Container Capability: 1 × loaded 20ft container
