3R8 Linkwing & 2R8 Dolly

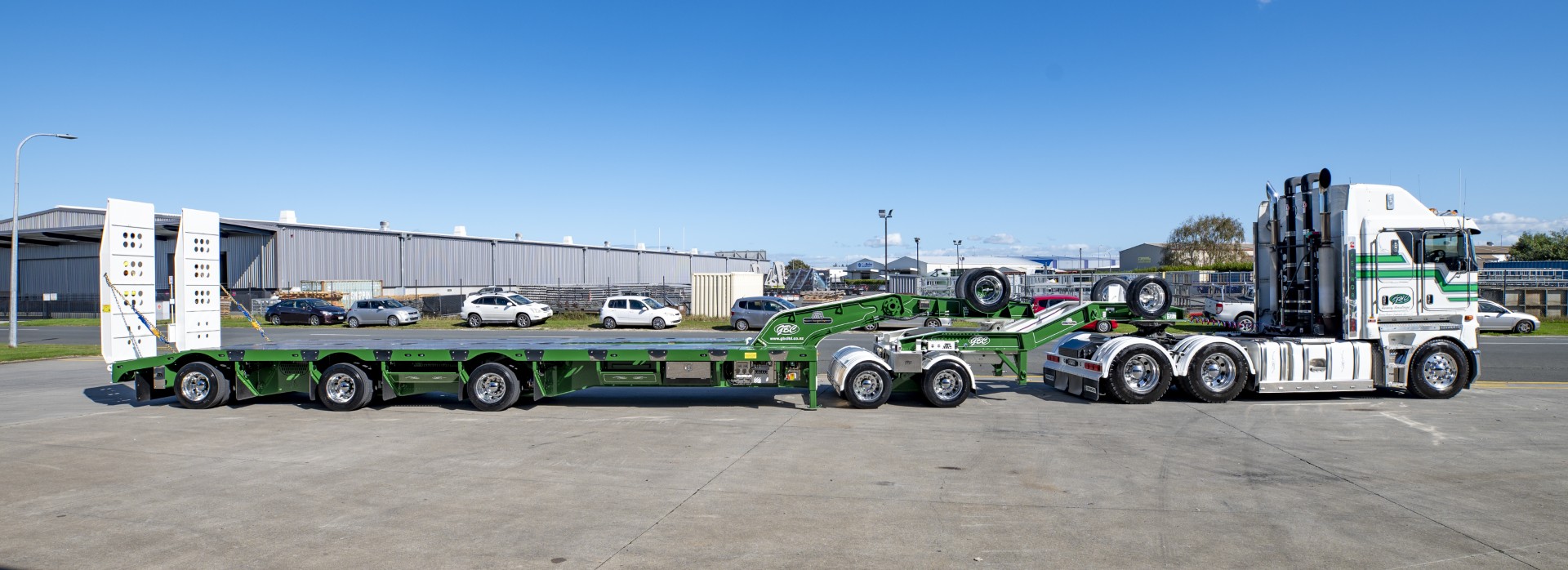

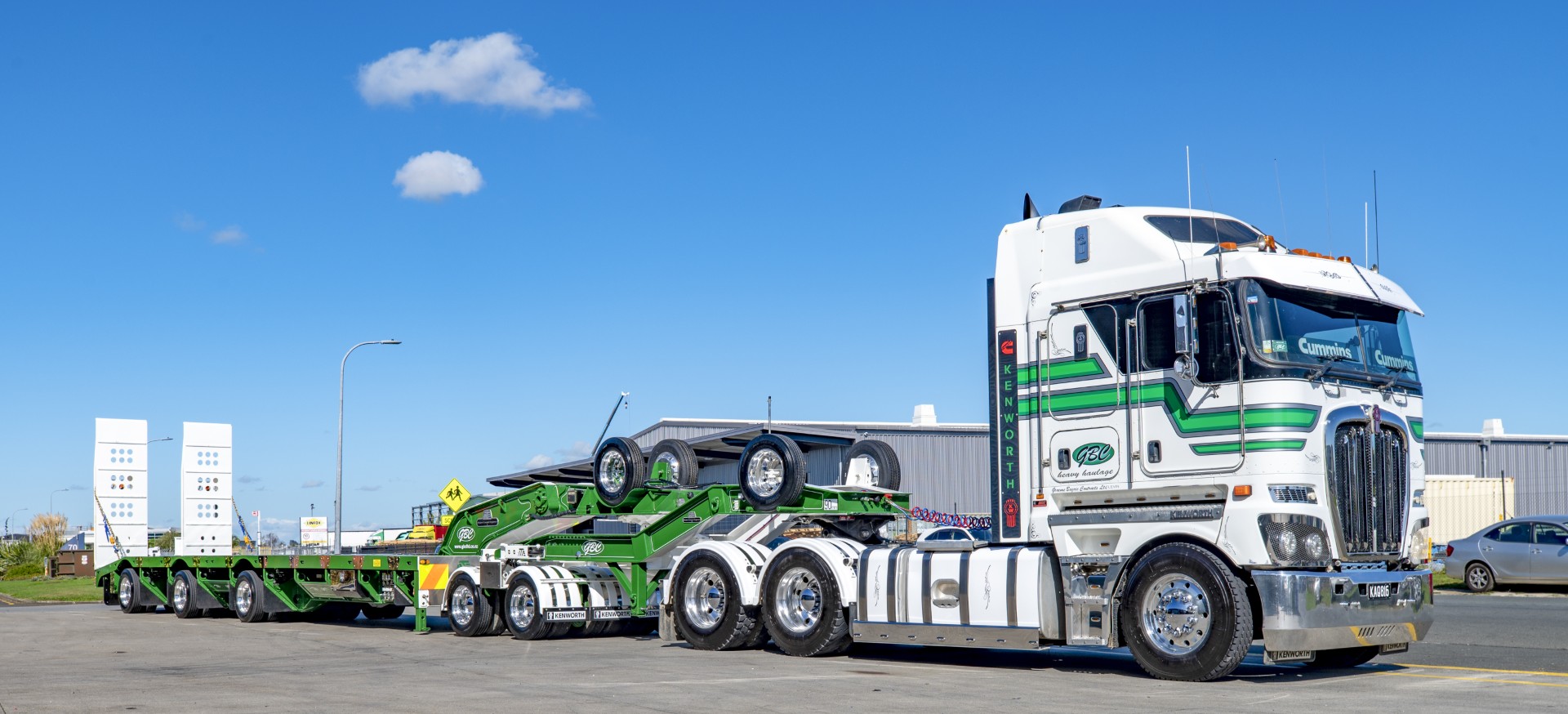

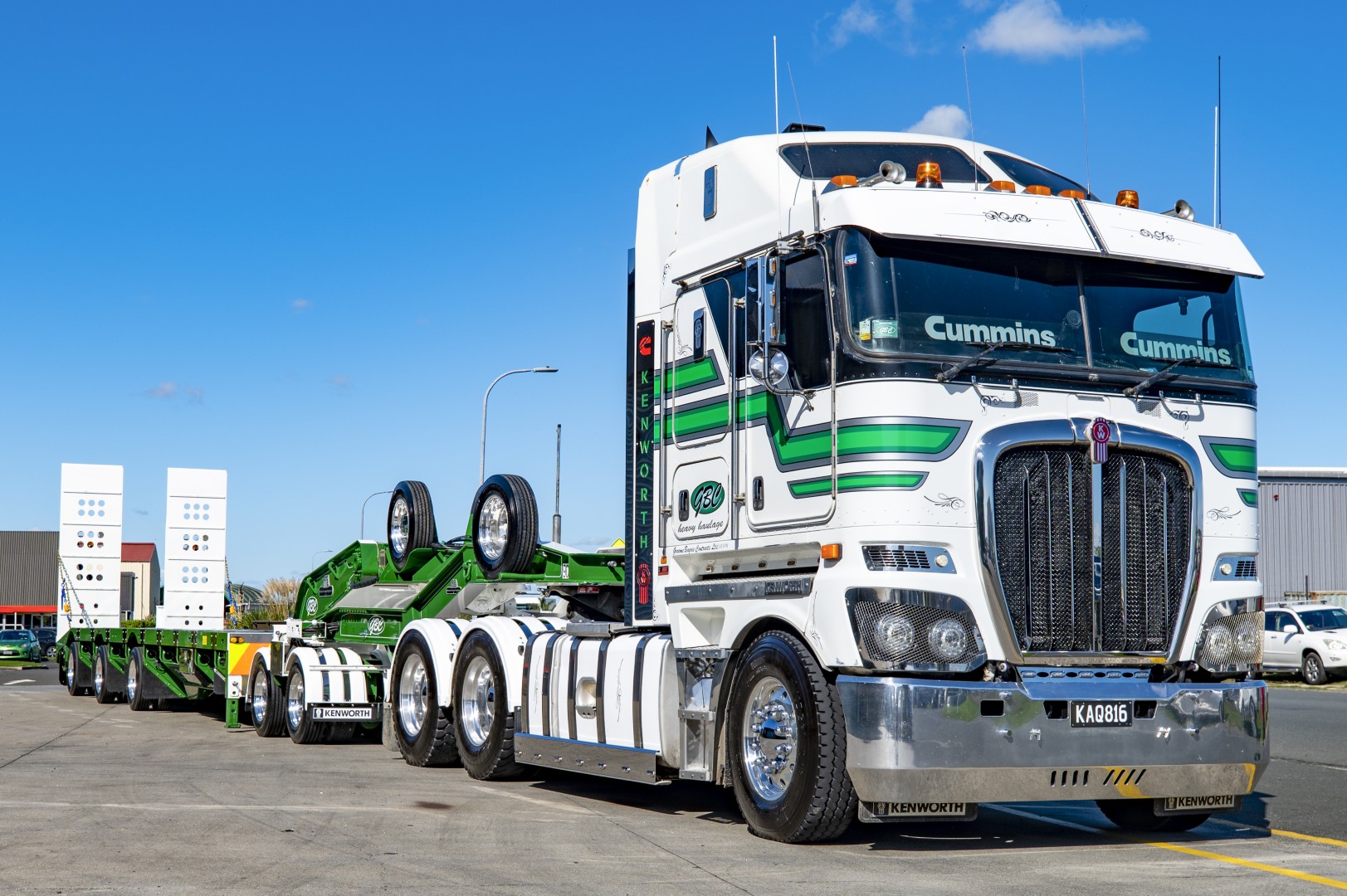

MTE completed this 3 Rows of 8 Linkwing with matching 2 Rows of 8 Dolly for Bagrie Contracts, providing a flexible heavy-haulage combination that can be configured around a wide range of machinery and specialised loads.

The 3R8 Linkwing itself is rated to 85,000kg GVW and combines MTE’s hydraulic widening system, hydraulic ball suspension and an internal hydraulic compensating gooseneck.

Key 3R8 Linkwing Specifications

Configuration: 3 Rows of 8 Linkwing
GVW: 85,000kg
Deck Width – Closed: 2,500mm
Deck Width – Open: 3,700mm
Forward Length: 9,900mm at closed width
Normal Deck Height: 920mm
Lowered Deck Height: 820mm
Raised Deck Height: 1,060mm
Deck Surface: 1,200mm-wide rubber on each deck
Axle Spacing: 2,400mm / 2,400mm
Axles: MTE 17.5" 10-stud
Suspension: MTE hydraulic ball type
Gooseneck: Internal hydraulic compensating

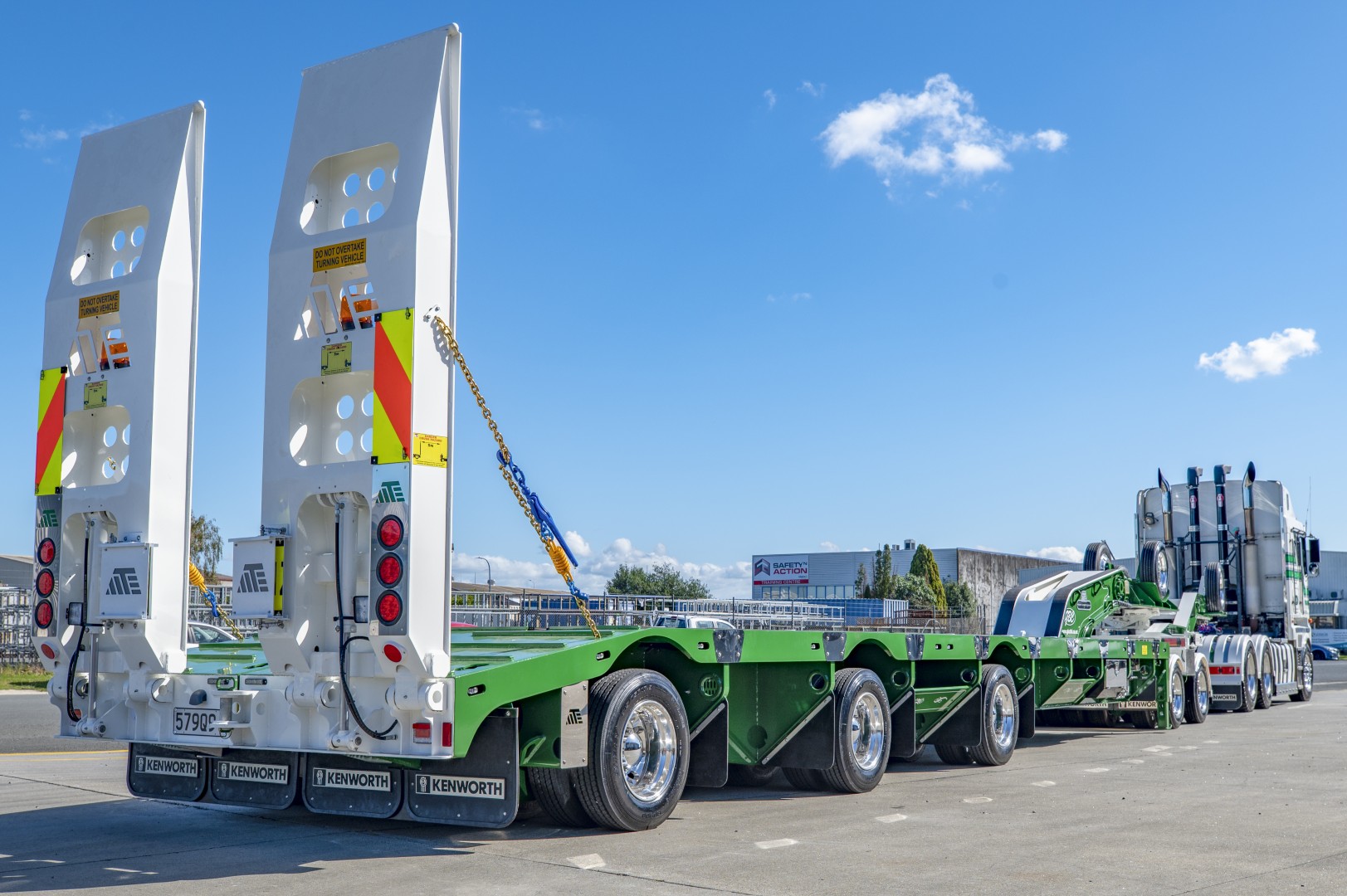

Ramps: 2,700mm × 900mm hydraulic
Hydraulic Supply: Truck hydraulics
Remote: 10-function
Container Capability: 20ft container

2R8 Dolly

The matching 2 Rows of 8 Dolly gives Bagrie Contracts the ability to further configure the Linkwing for heavier transport applications.

Used in combination with the 3R8, the dolly adds additional axle capacity and load distribution, allowing the overall combination to be adapted to suit heavier loads while retaining the versatility of the Linkwing platform.
