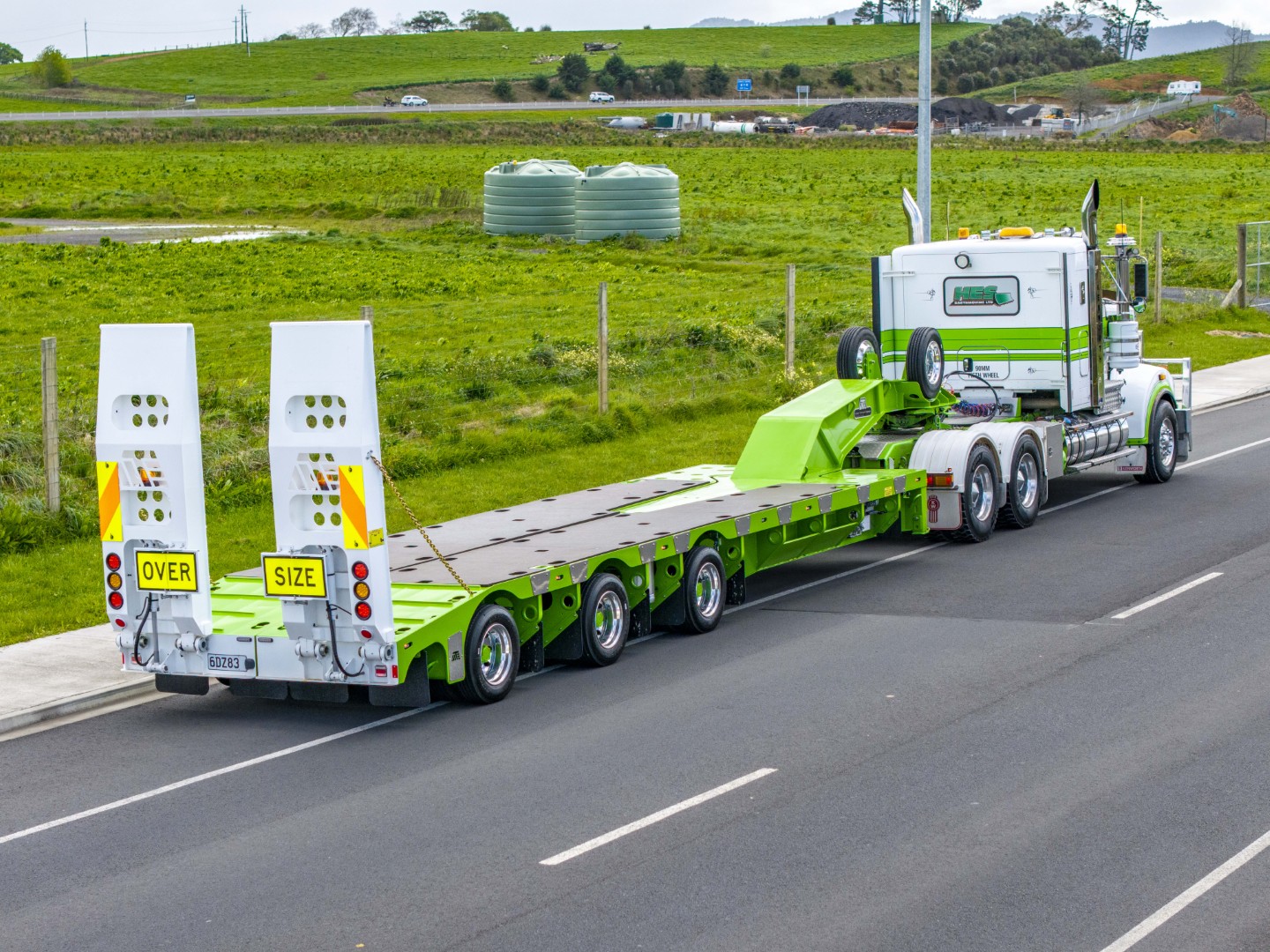

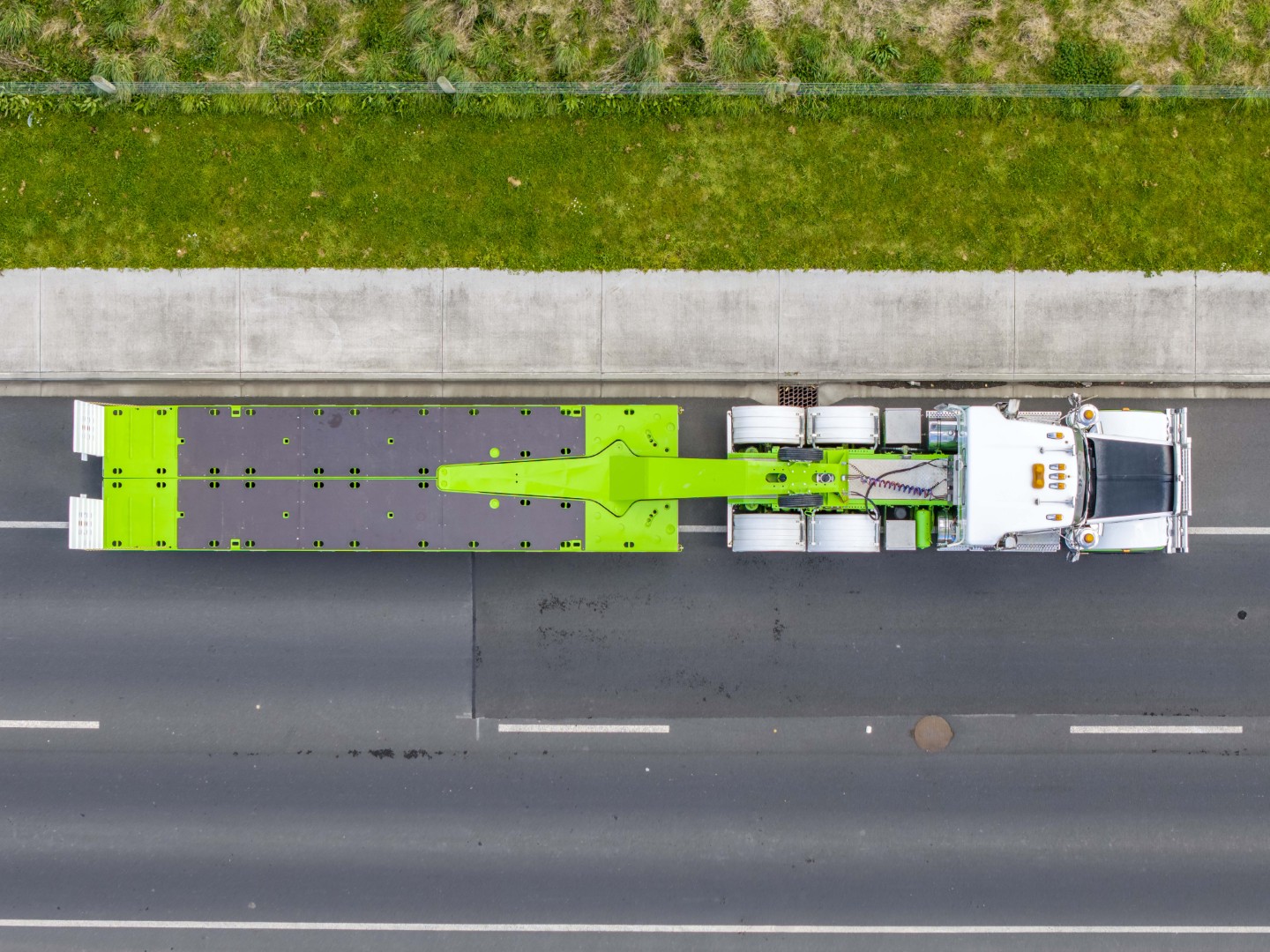

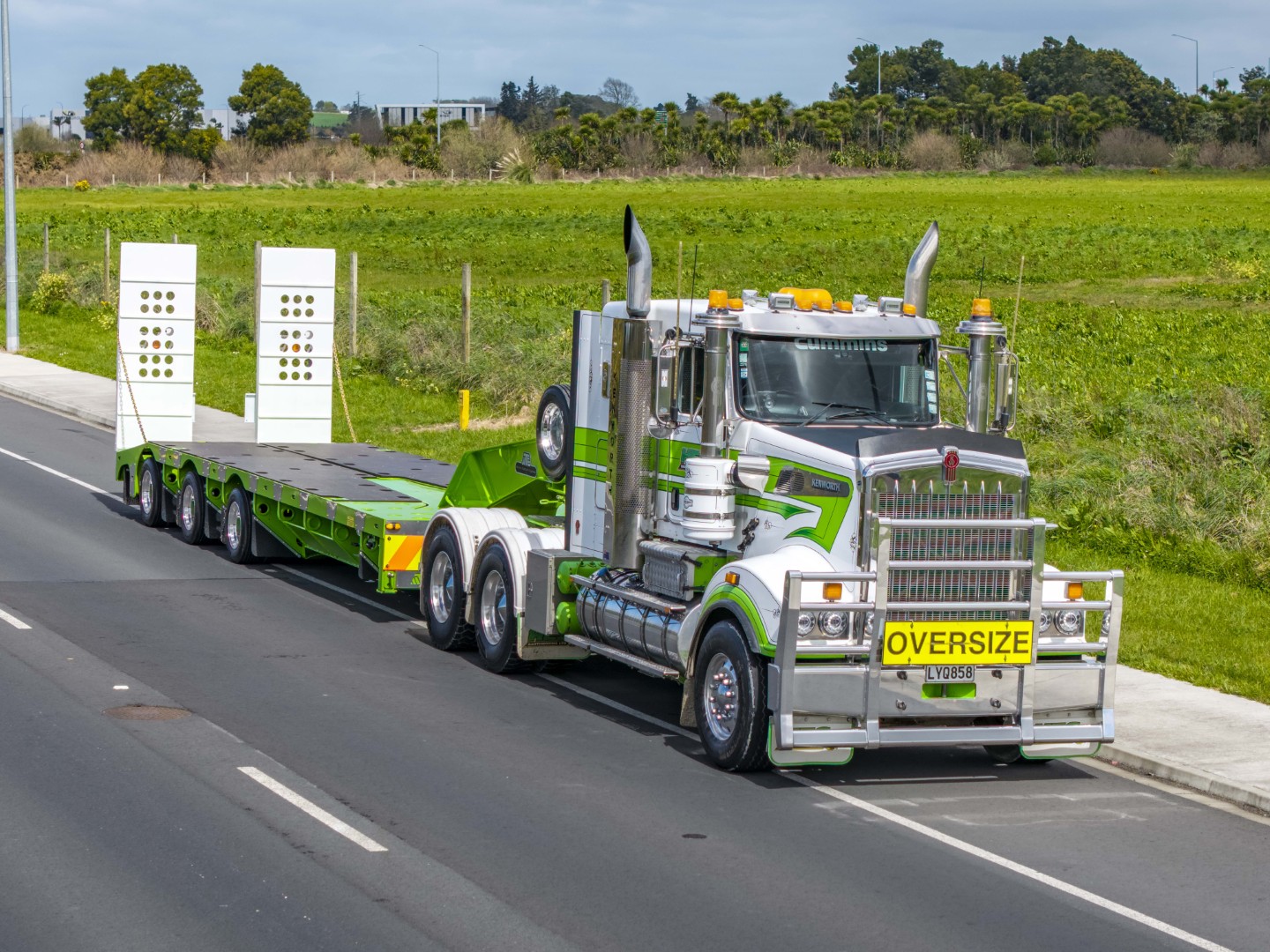

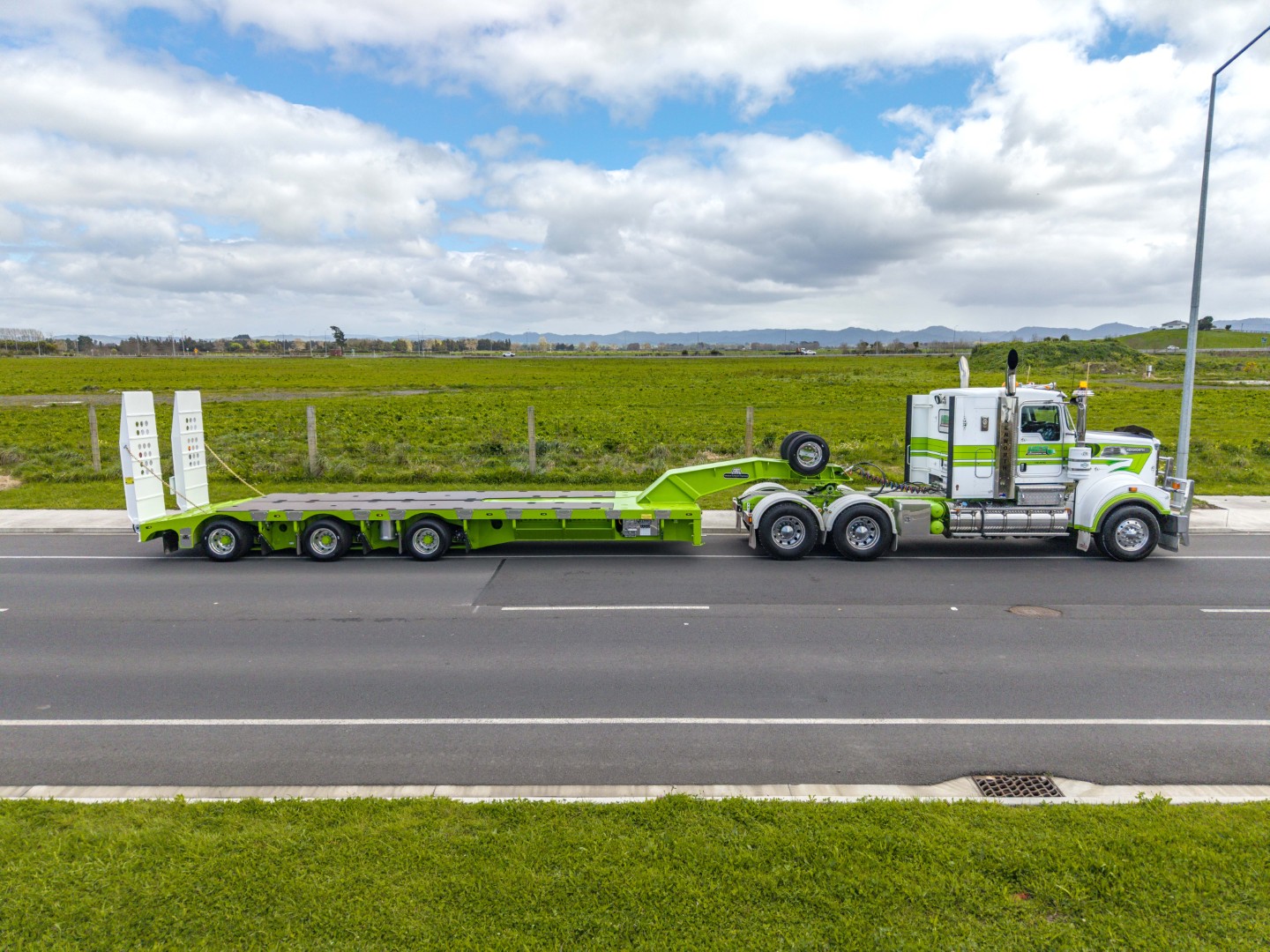

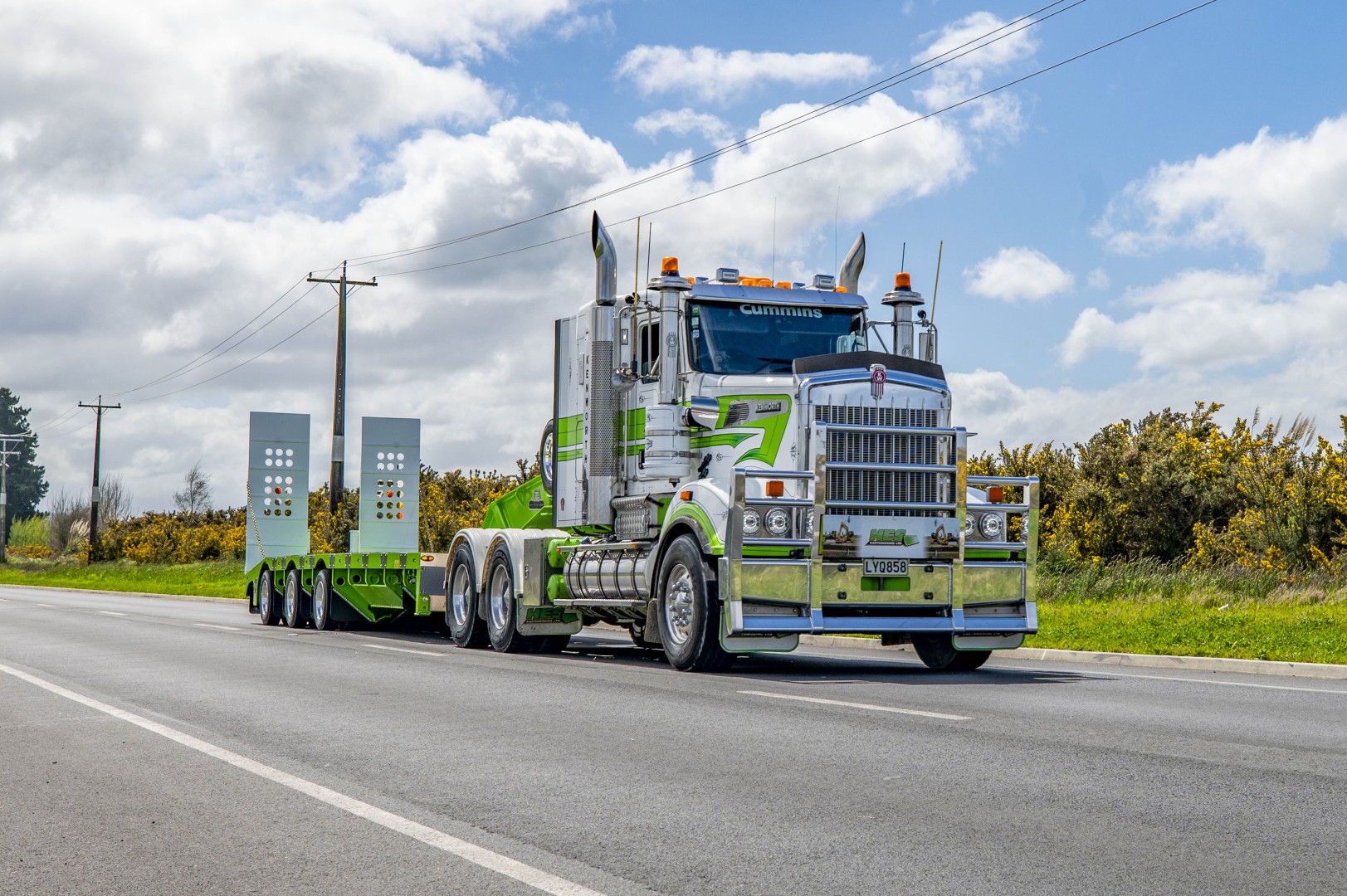

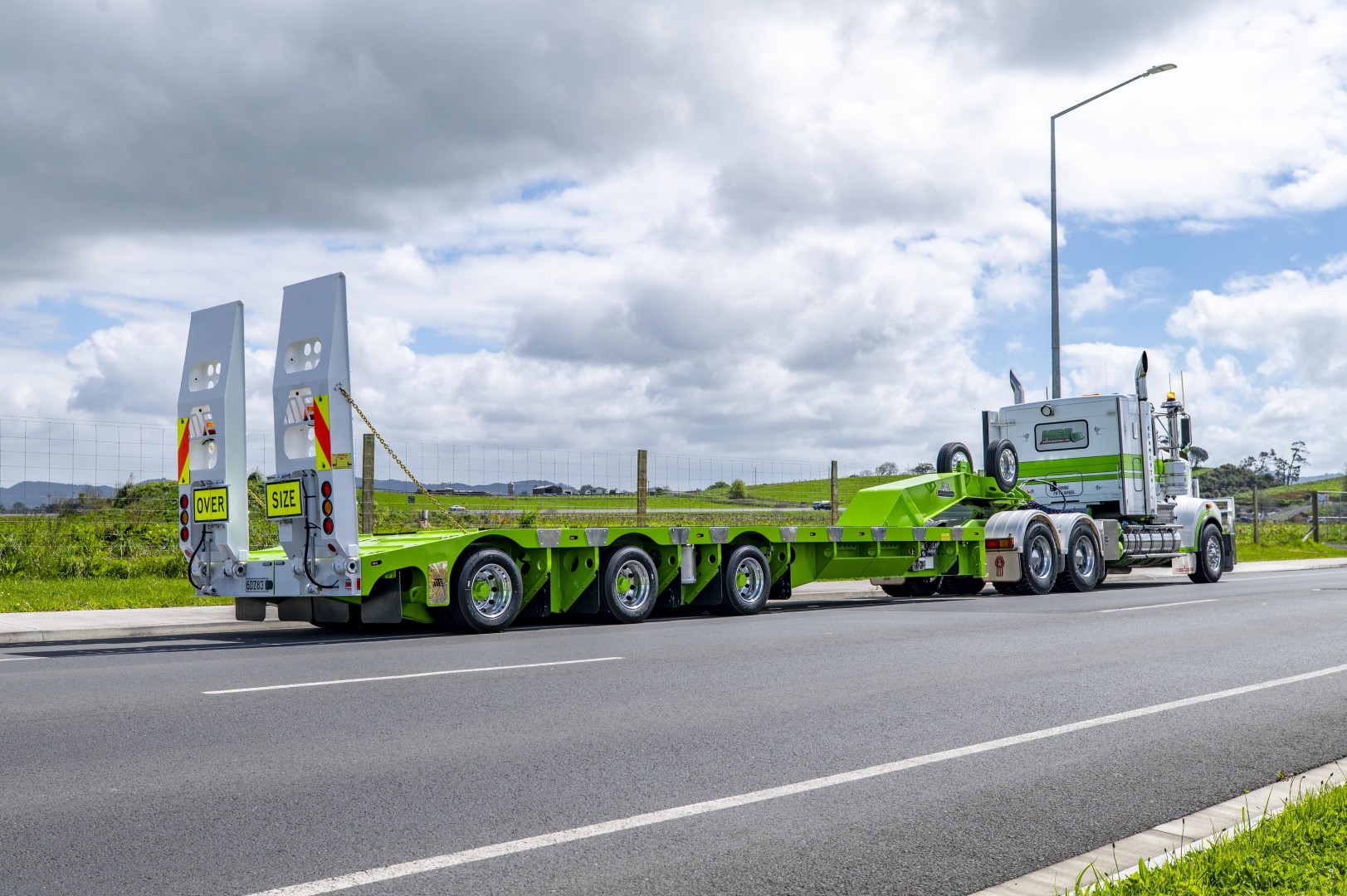

MTE has built this 3 Rows of 8 Lightweight Linkwing for HES Earthmoving, designed to provide the versatility of the Linkwing platform while keeping the trailer configuration lighter and more compact than our standard 3R8.
With a 60,000kg GVM, 1,800mm axle spacing and 9,200mm forward length, the Lightweight Linkwing is well suited to machinery transport where manoeuvrability, tare weight and overall combination dimensions are important.
Key Specifications
Configuration: 3 Rows of 8 Lightweight Linkwing
GVM: 60,000kg
Deck Width – Closed: 2,500mm
Deck Width – Open: 3,700mm
Forward Length: 9,200mm
Deck Ride Height: 940mm
Deck Lowered Height: 820mm
Deck Raised Height: 1,060mm
Deck: 18mm treated plywood over high-tensile steel
Axle Spacing: 1,800mm / 1,800mm
Axles: MTE 17.5" Linkwing axles
Suspension: MTE hydraulic ball type
Gooseneck: Fixed
Ramps: 2,400mm × 860mm lightweight hydraulic
Hydraulic Supply: Truck hydraulics
Container Capability: 1 × 20ft container
