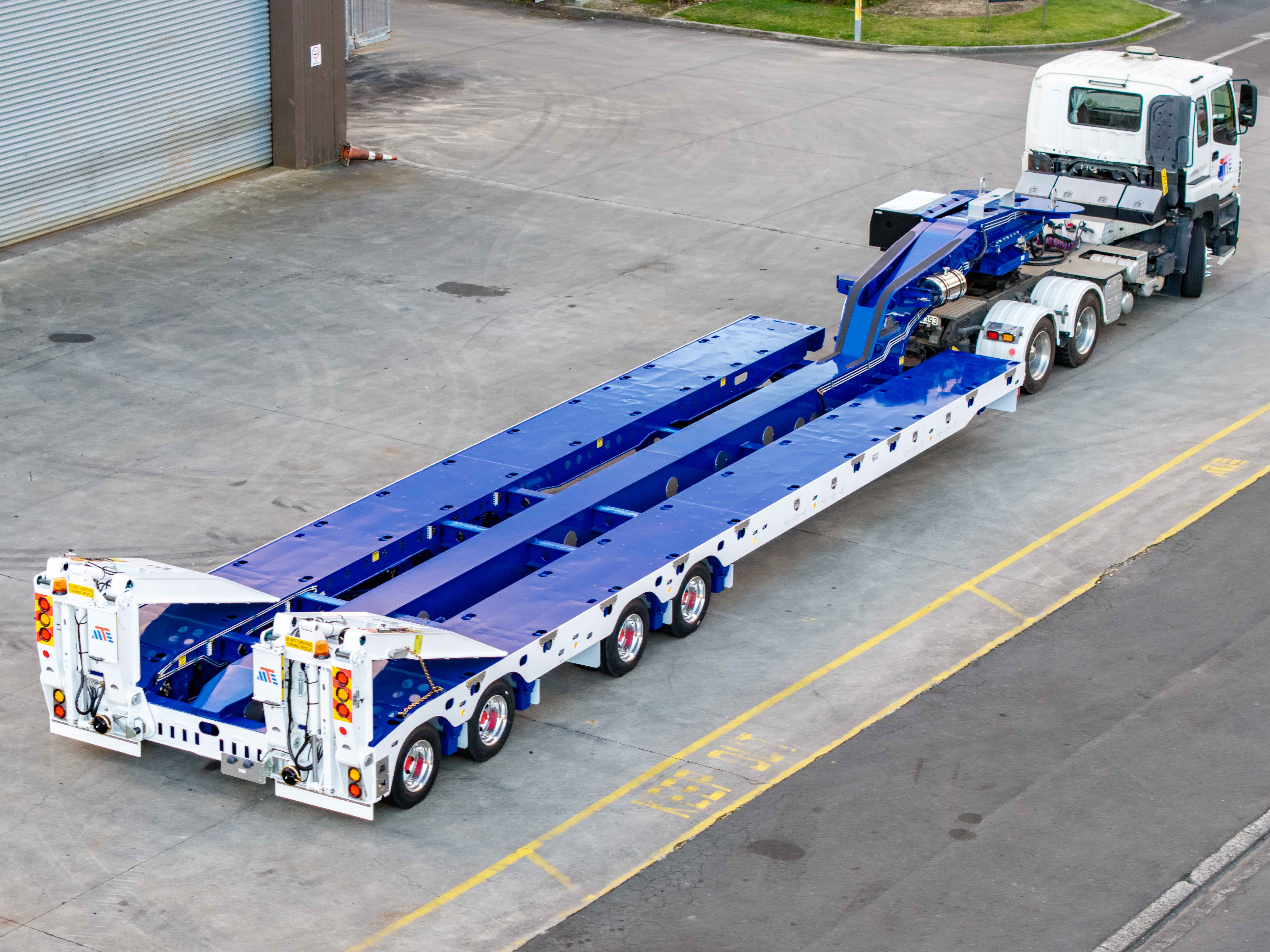

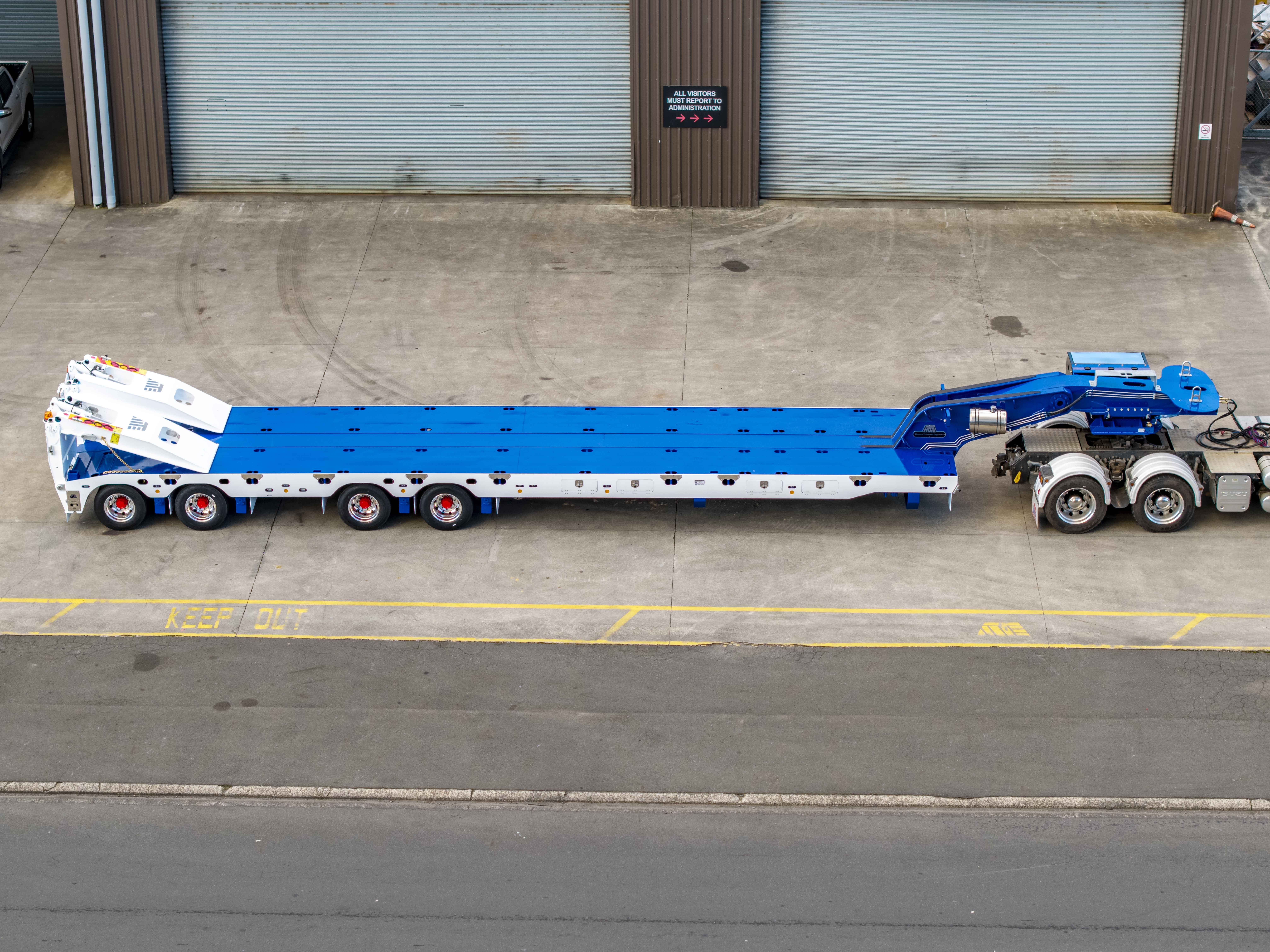

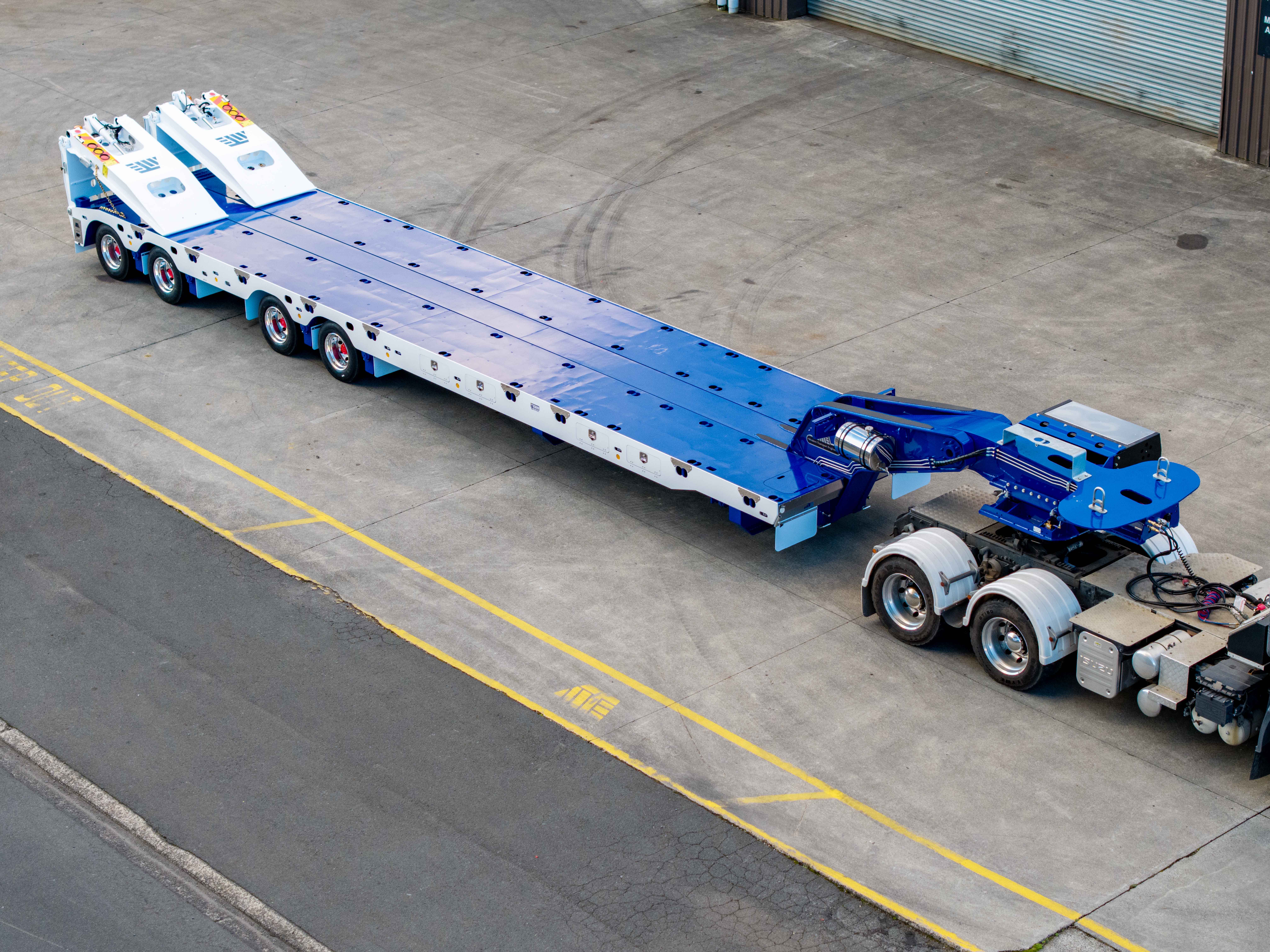

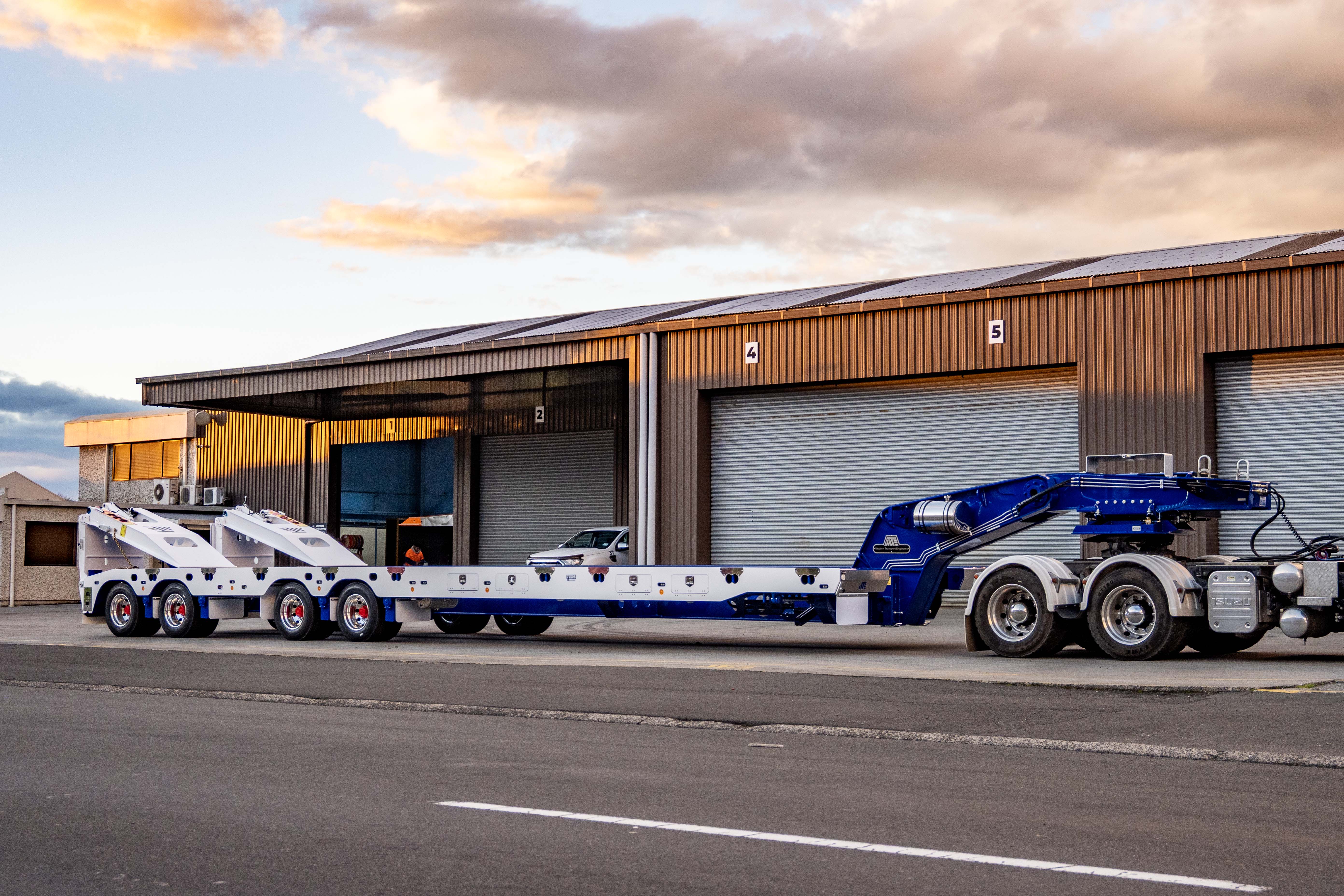

Another Australian-spec build from MTE, this 4 Rows of 4 Full Widener has been purpose-built as a versatile heavy haulage platform for transporting large machinery and specialised loads.

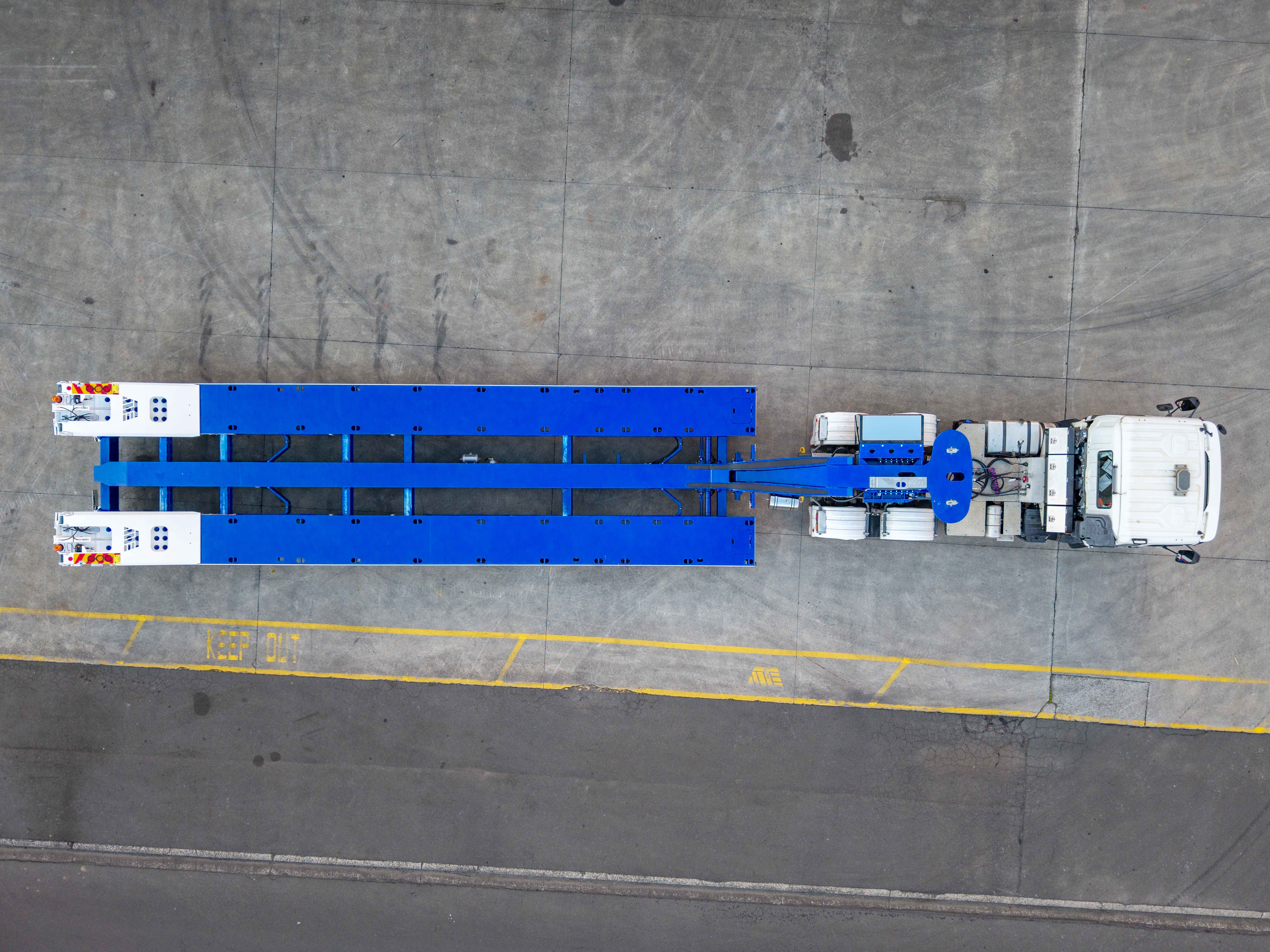

Rated to 65,000kg GVW, the trailer is designed to provide plenty of versatility for heavy machinery and specialised transport work, with the deck hydraulically widening from 2,490mm to 3,600mm.
Key Specifications
Configuration: 4 Rows of 4 Full Widener
GVW: 65,000kg
Deck Ride Height: 950mm
Deck Width – Closed: 2,490mm
Deck Width – Open: 3,600mm
Overall Deck Length: 13,180mm
Deck Length from Gooseneck: 12,314mm
Forward Length: 12,459mm
Deck: 8mm high-tensile steel
Axles: MTE 17.5" 10-stud
Axle Spacing: 1,220mm / 2,440mm / 1,220mm
Suspension: MTE hydraulic ball suspension
Brakes: Knorr-Bremse G2.2 EBS

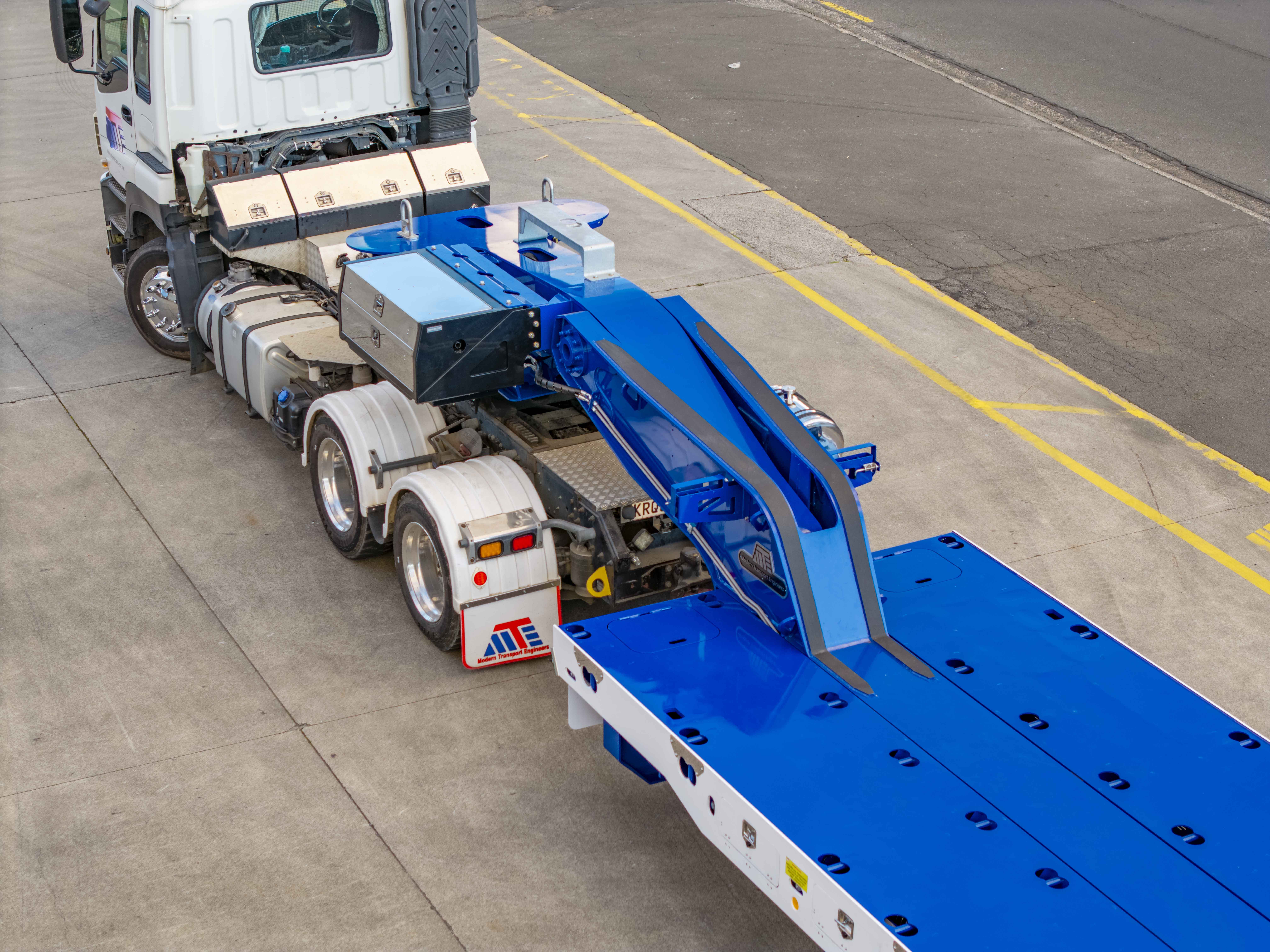

Gooseneck: Custom hydraulic
Ramps: 3,300mm × 1,040mm fold-forward hydraulic ramps
Hydraulic Supply: 5.5HP diesel power pack
Remote: 20-function Lodar remote
Wheels: 18 × polished 17.5" alloy
Tyres: 18 × 235/75R17.5 Synergy
Fold-Forward Ramps

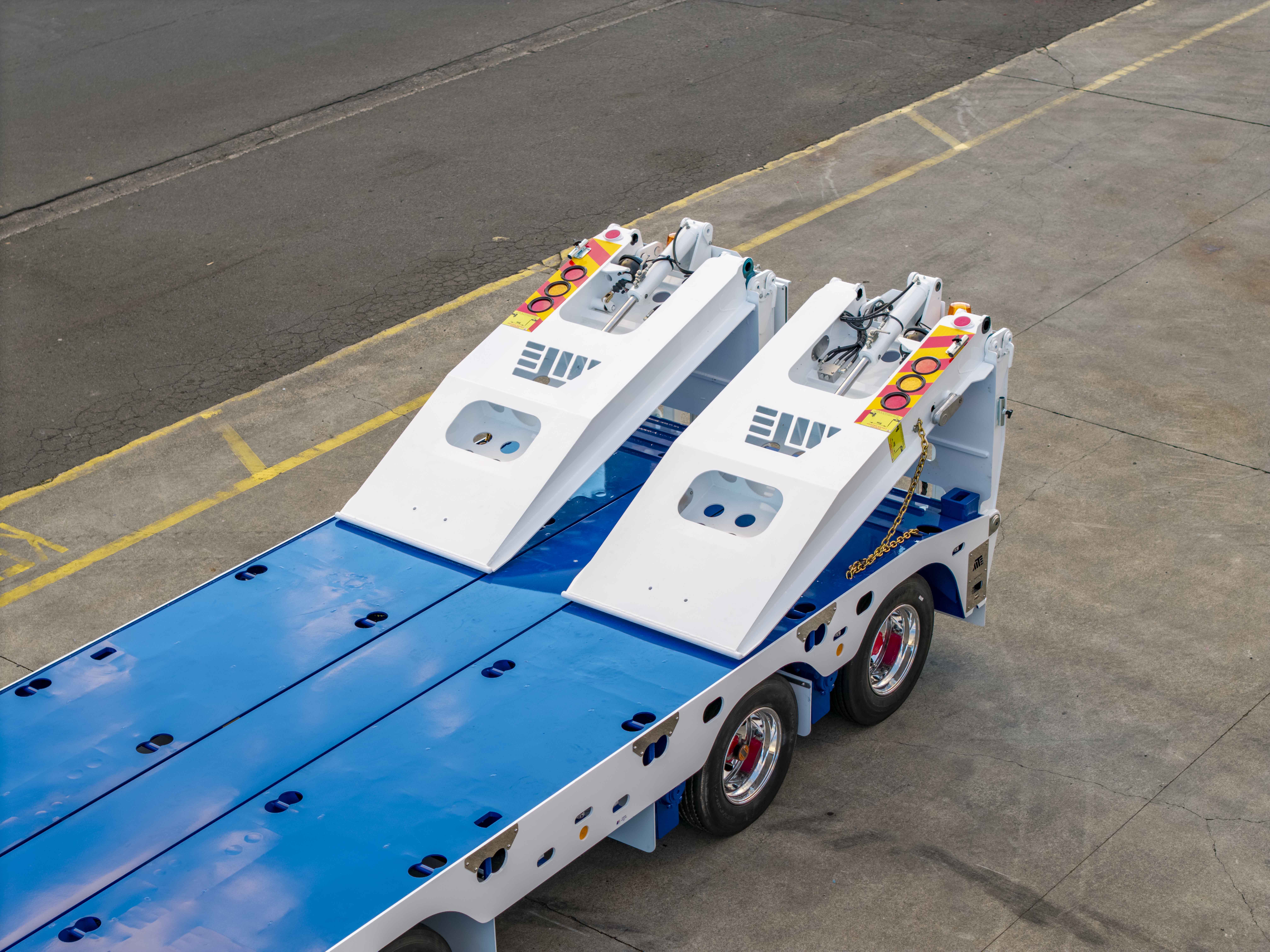

At the rear are 3,300mm × 1,040mm fold-forward ramps, complete with pneumatic chain tensioners and lay-flat capability.
A key advantage of the fold-forward design is the ability to reduce aerodynamic drag when the trailer is travelling empty, helping improve fuel efficiency compared with travelling with the full ramps standing upright.
