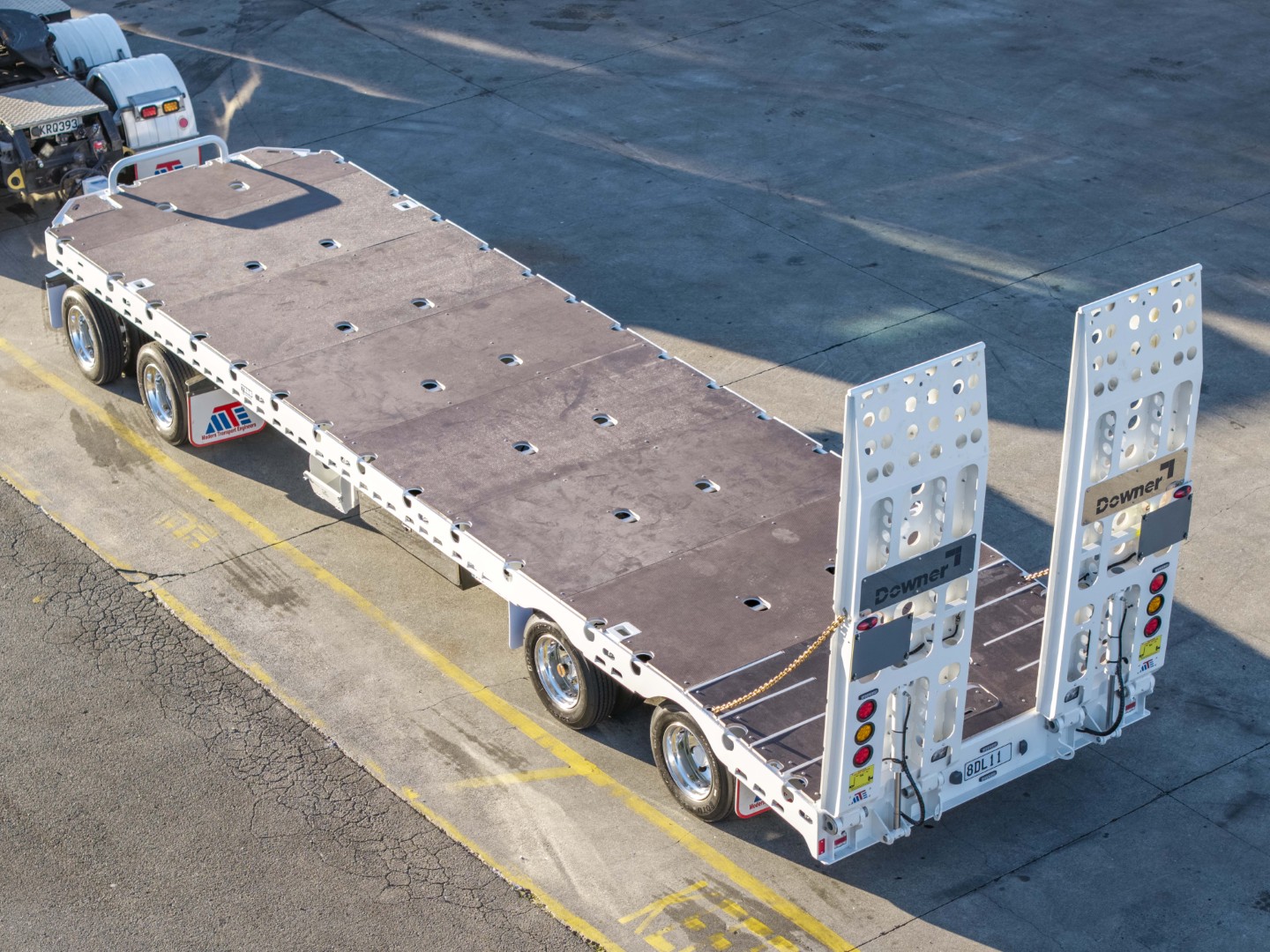

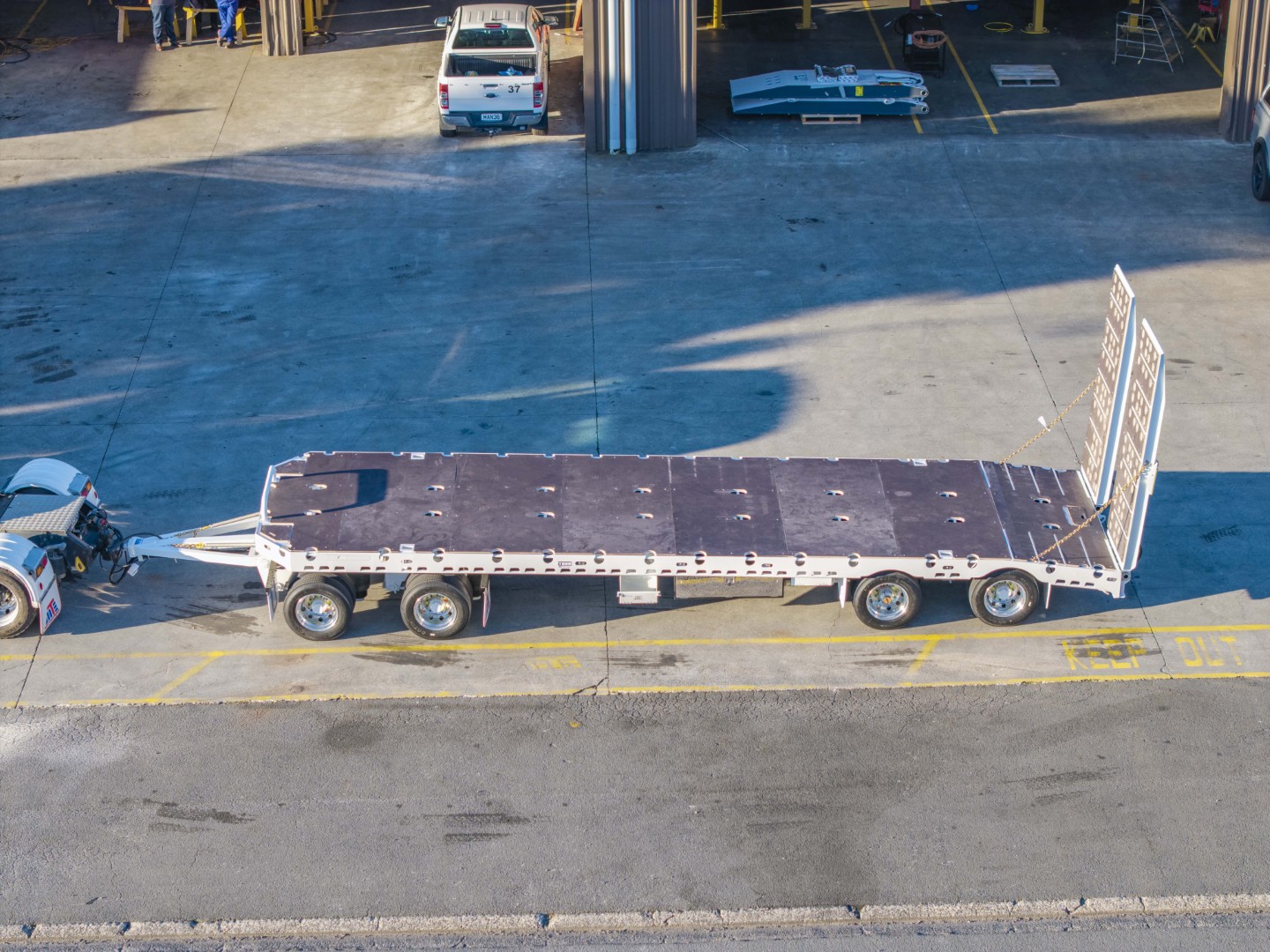

MTE recently completed this 4 Axle Flat Top Low Loader for Downer designed as a straightforward and versatile machinery transport trailer for day-to-day civil and infrastructure work.
With a 32,000kg GVM, 9.5m straight deck and hydraulic loading ramps, the trailer provides a practical platform for transporting excavators, rollers and other construction equipment between worksites.
Key Specifications
Configuration: 4 Axle Flat Top Low Loader – Straight Deck
GVM: 32,000kg

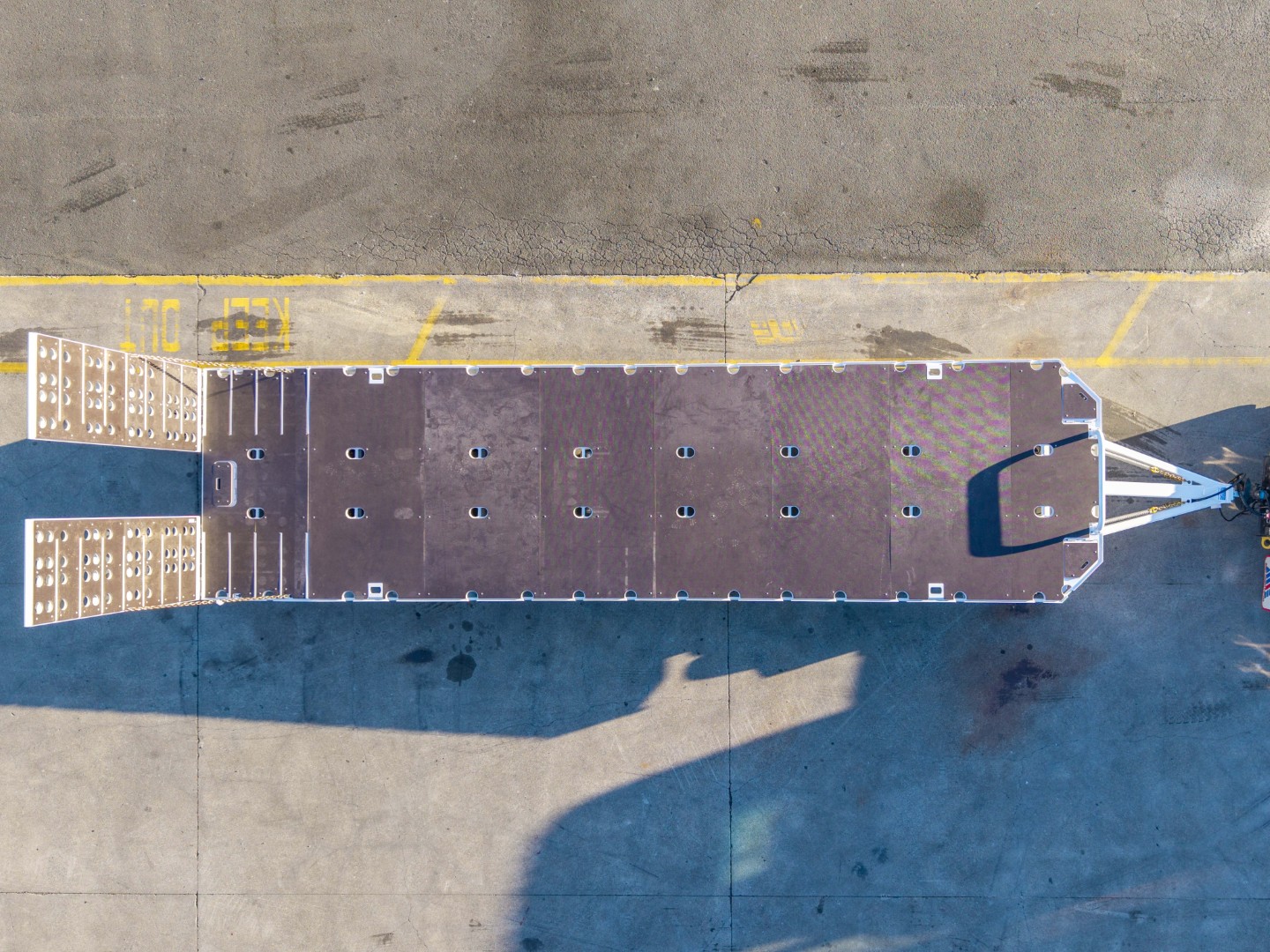

Deck Length: 9,500mm
Overall Length: 11,495mm
Deck Width: 2,490mm
Deck Height: 870mm – 1,150mm
Deck: 18mm anti-slip treated plywood over steel
Axles: MTW 17.5" low-loader axles
Suspension: MTW air suspension
Brakes: Knorr multi-volt EBS

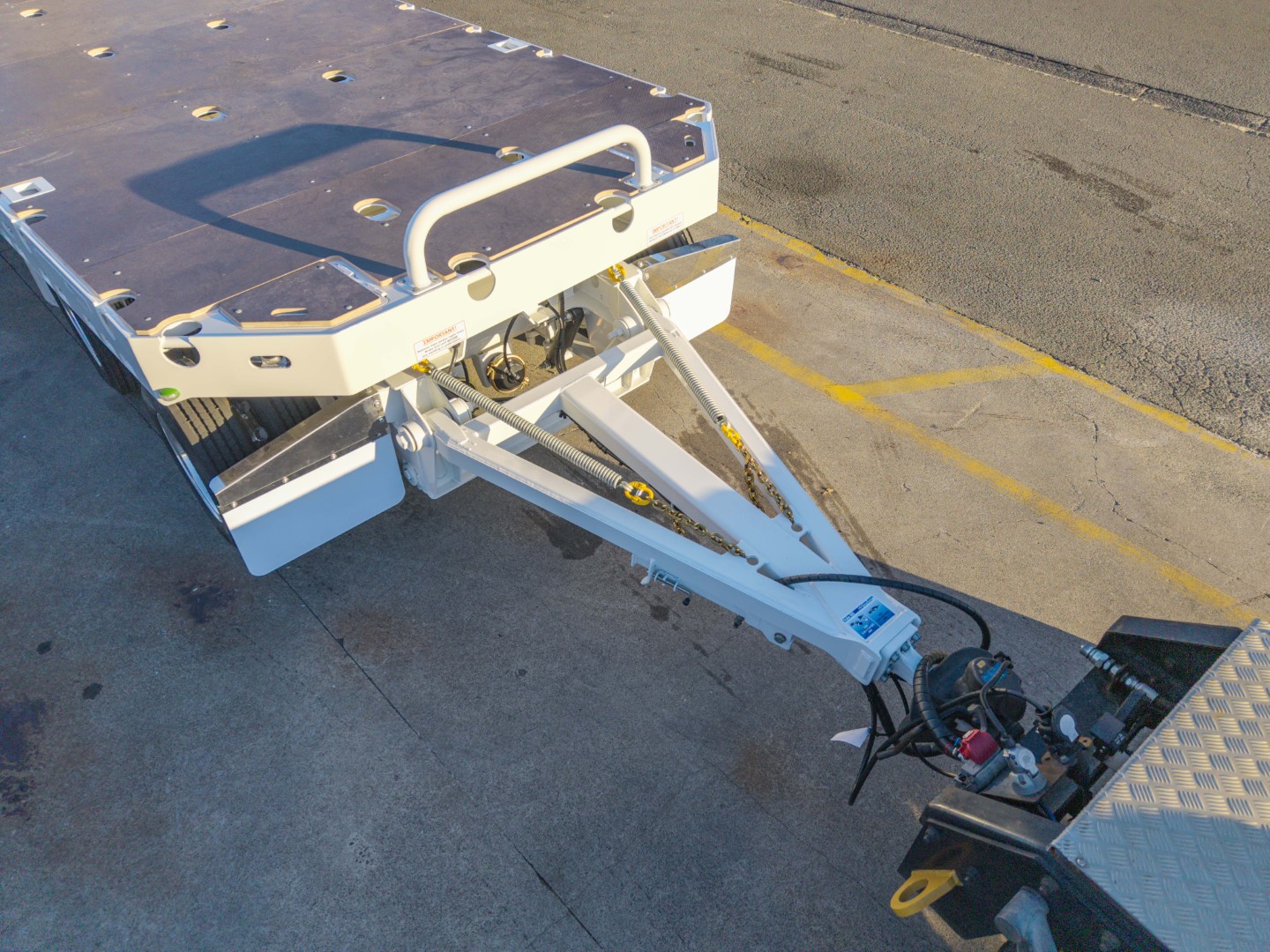

Drawbar: 1,850mm fixed with 40mm bolt-on tow eye

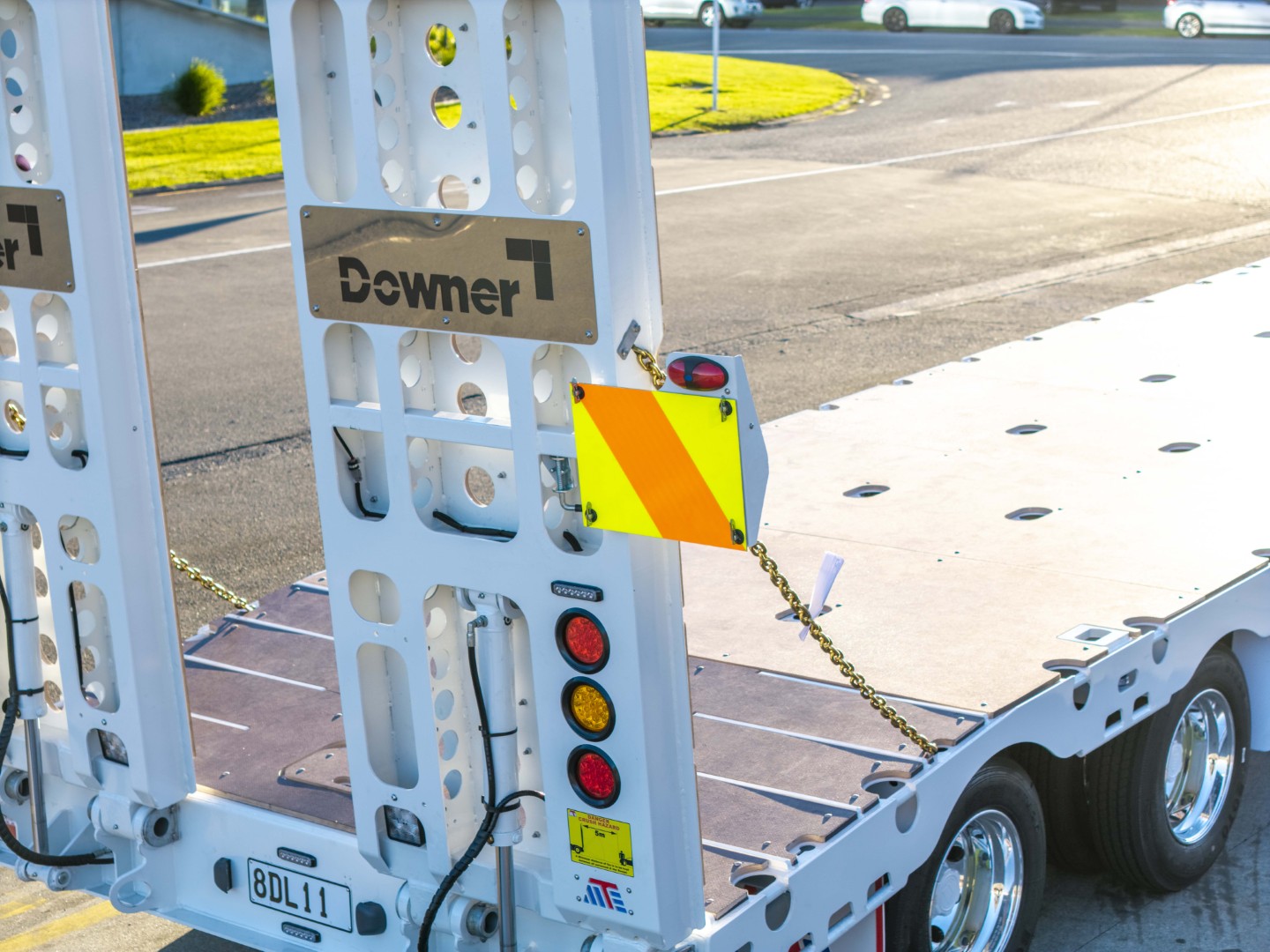

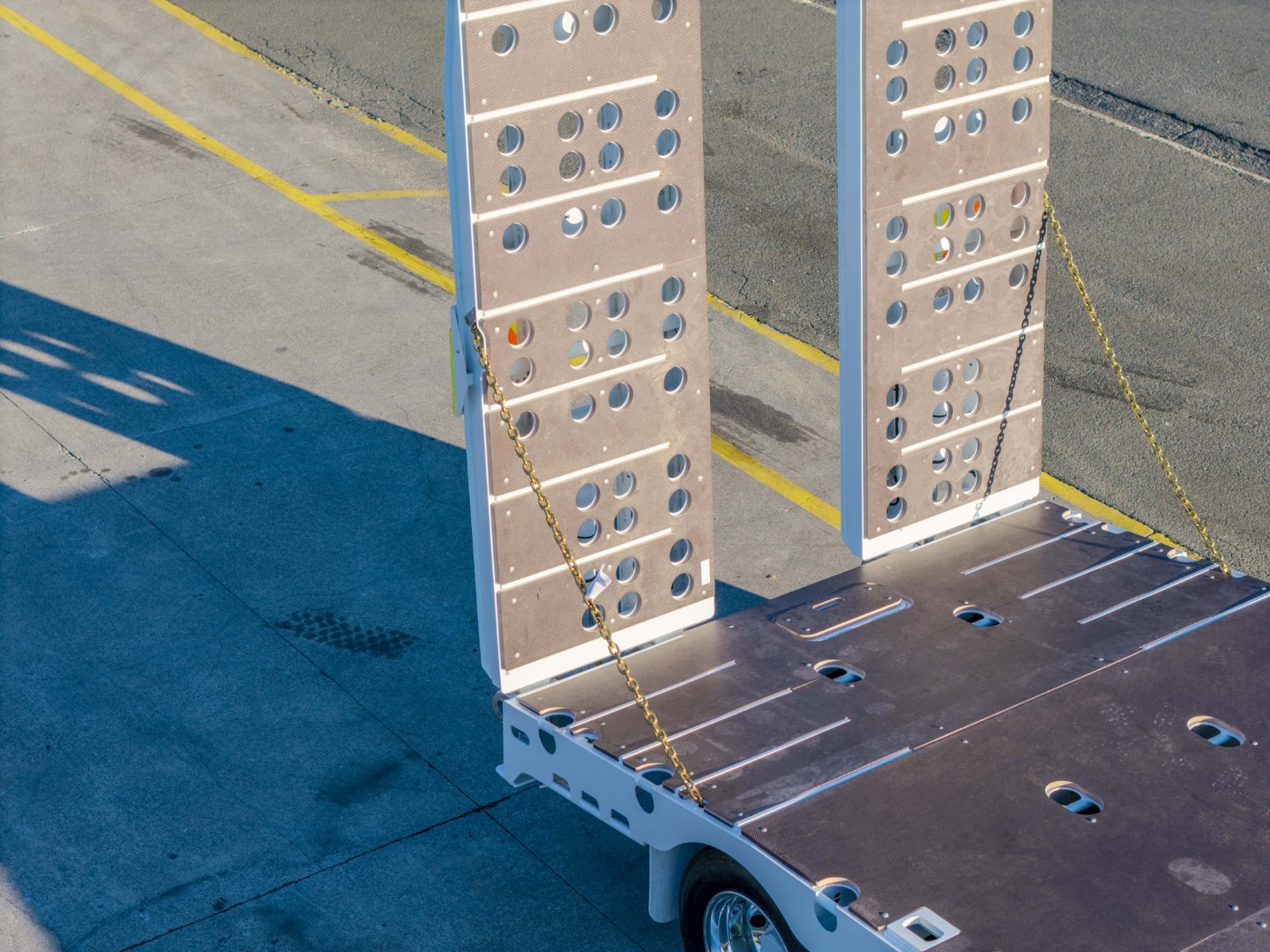

Ramps: 2,700mm × 900mm hydraulic
Hydraulic Supply: Truck hydraulics
Container Capability: 1 × 20ft container
