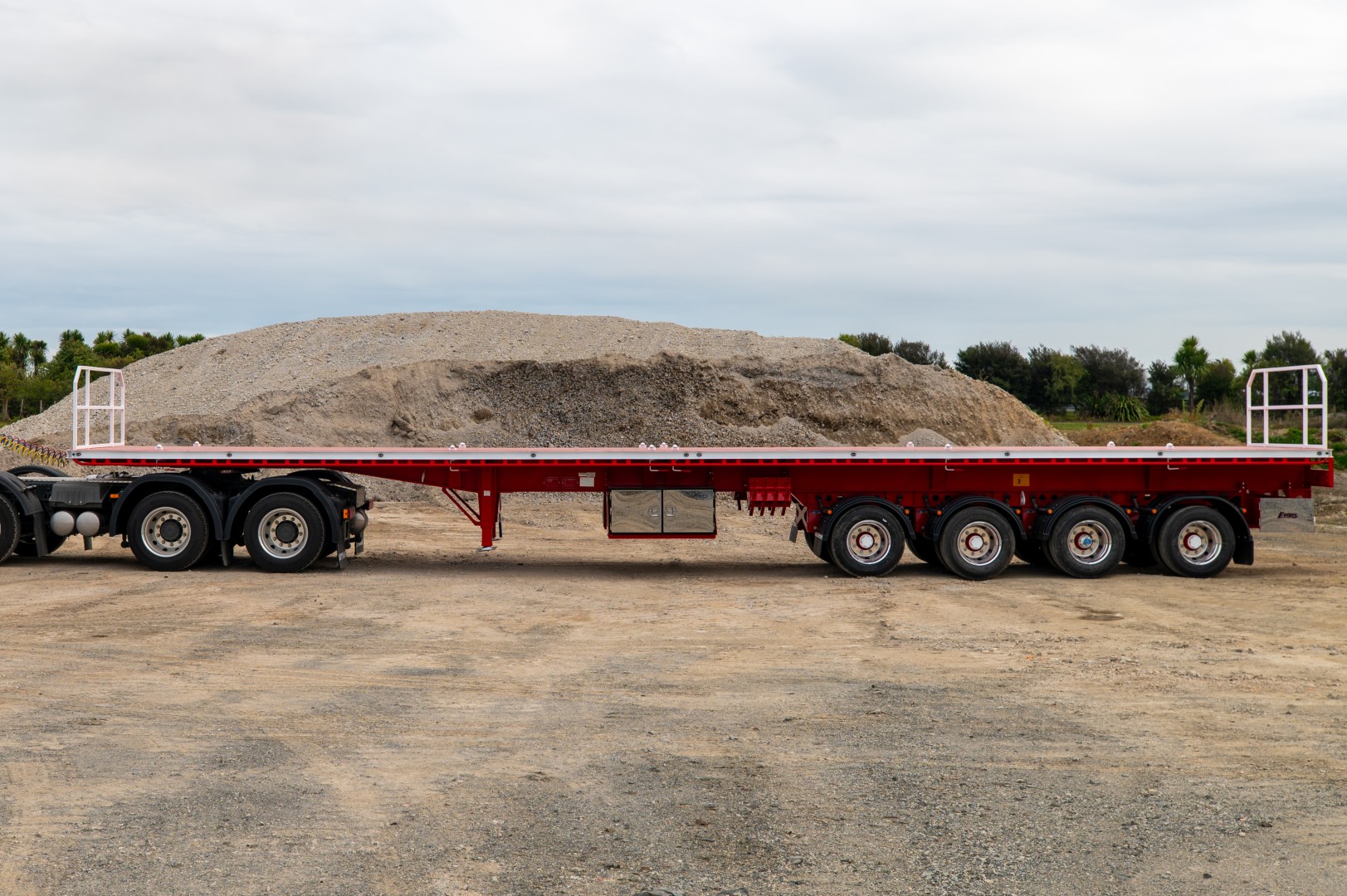

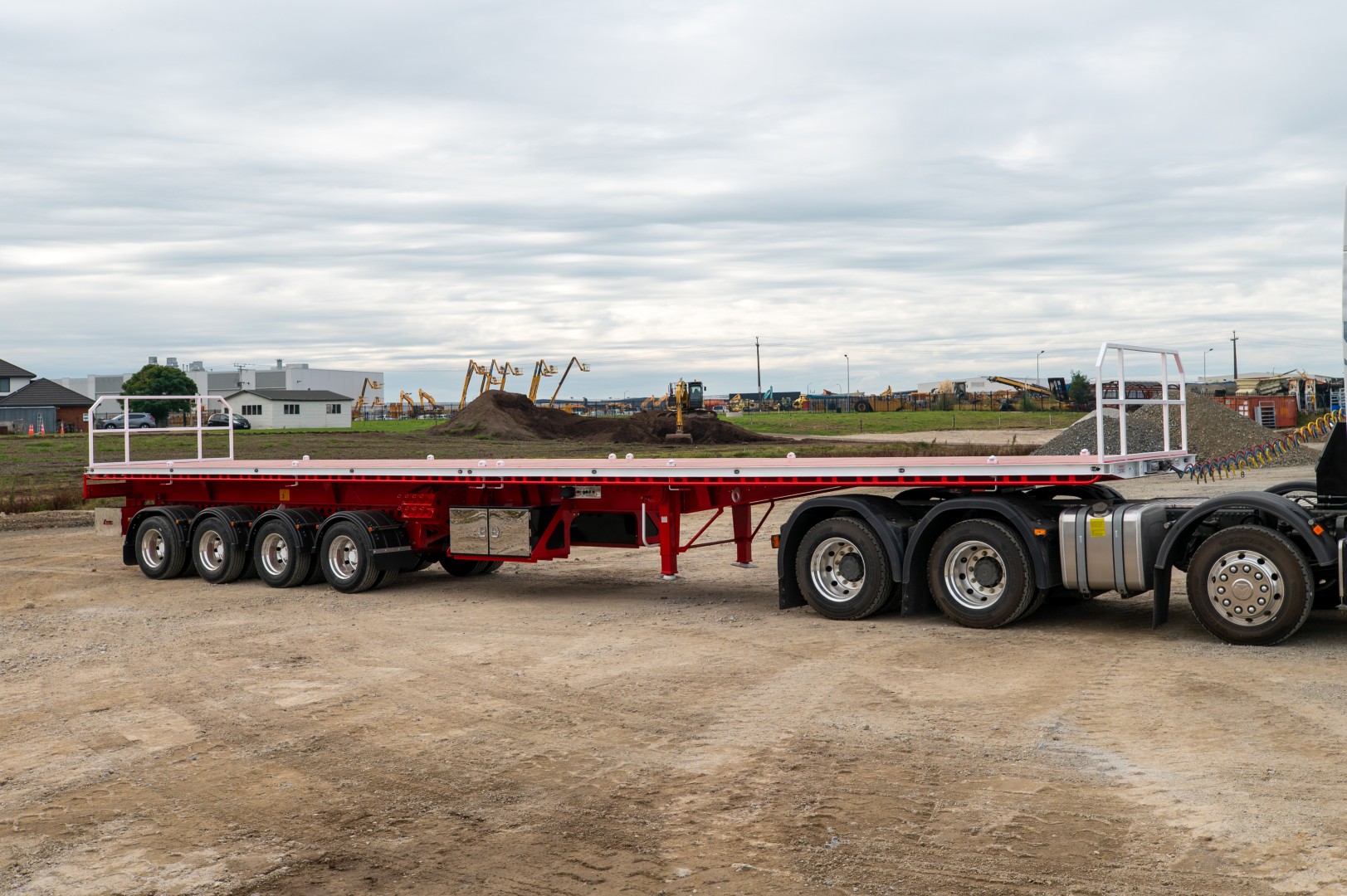

4 Axle Semi Flat Top

MTE recently completed this 4 Axle Semi Flat Top for Equipment & Transport Leasing Ltd (ETL Hire), manufactured by our Evans Engineering business in Tokoroa. Built as a versatile general transport trailer capable of handling freight, machinery, equipment and containers.

With an overall length of 15,000mm and a 9,200mm forward distance, the trailer provides a large, open deck suited to a broad range of transport applications – an important consideration for a hire fleet where the next job can require a completely different load.

Key Specifications

Configuration: 4 Axle Semi Flat Top
GVM: 36,000kg
Deck Length: 15,000mm
Forward Distance: 9,200mm
Deck Width: 2,495mm
Rear Overhang: 4,200mm
Deck: 4mm Corten steel
Suspension: MTW air suspension
Axles: MTE 19.5" disc brake axles, including 1 × steering axle
Axle Track: 1,850mm
Brakes: Knorr-Bremse EBS
Kingpin: 50mm drop-in
Rub Plate: Single fixed position
Landing Legs: Wind-up G-foot style
Wheels: Weight Cheetah alloy wheels
Tyres: 265 × 19.5" Synergy
Lighting: Hella LED
Headboards: Removable front & rear

Container Capability

A key feature of this build is its flexible container carrying configuration.

Integrated container mounting provisions allow the trailer to be configured to carry a single 20ft container, two 20ft containers or one 40ft container, giving ETL Hire considerably more flexibility across different transport requirements.

When the container mounts aren't required, the full flat deck remains available for machinery, equipment and general freight.

A Versatile Transport Platform

At 15 metres overall, the Semi Flat Top provides a substantial amount of usable deck space while retaining a straightforward open-deck configuration.

For ETL Hire, that versatility is particularly valuable. Their wider fleet covers trucks, trailers and a broad range of heavy construction and earthmoving equipment, so a general-purpose transport platform can be used across a variety of jobs and equipment movements.

Whether transporting construction machinery between sites, relocating equipment within the hire fleet or carrying 20ft and 40ft containers, the trailer can be configured around the requirements of the job.

Customer: Equipment & Transport Leasing Ltd – ETL Hire

‍
