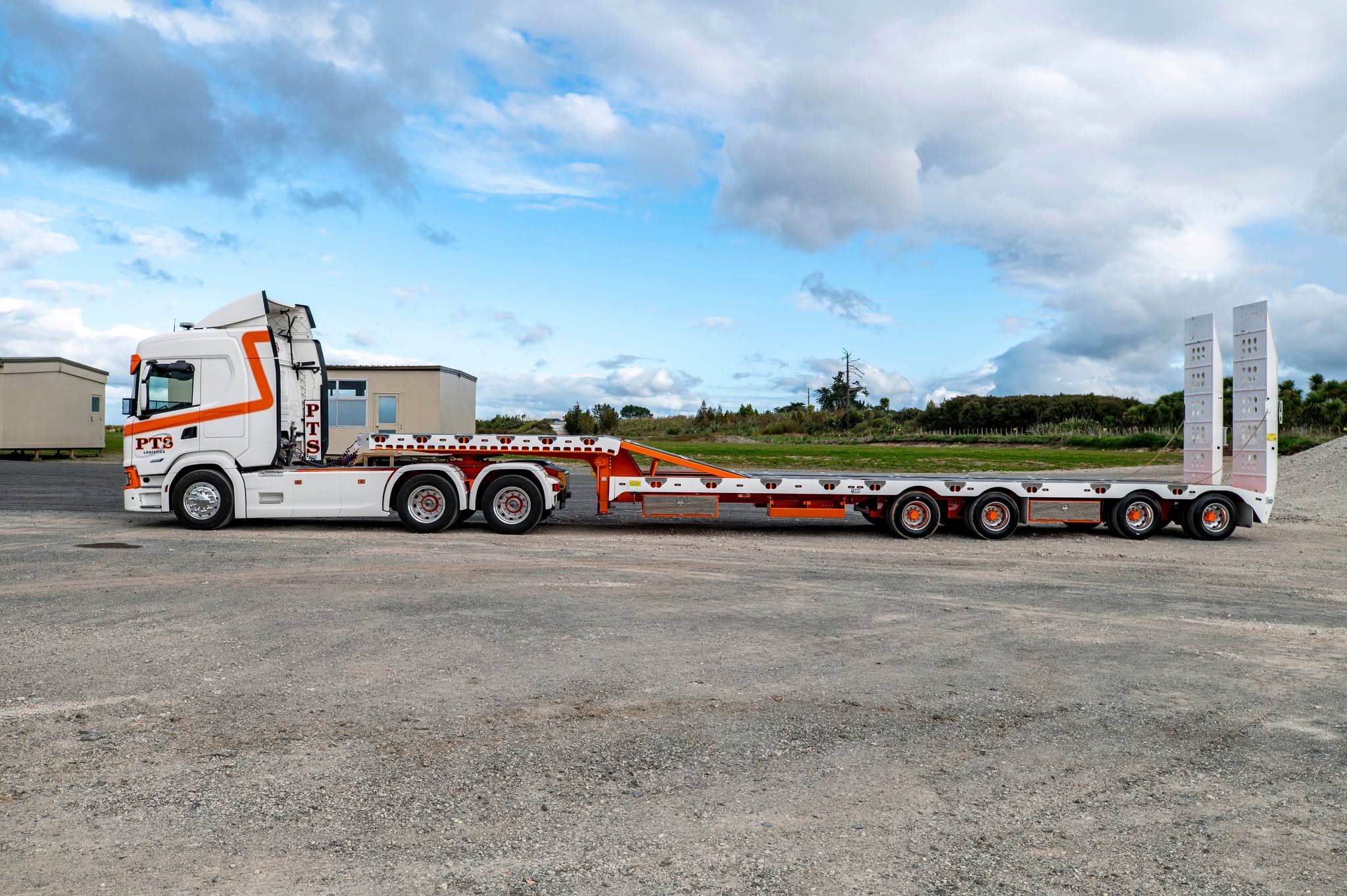

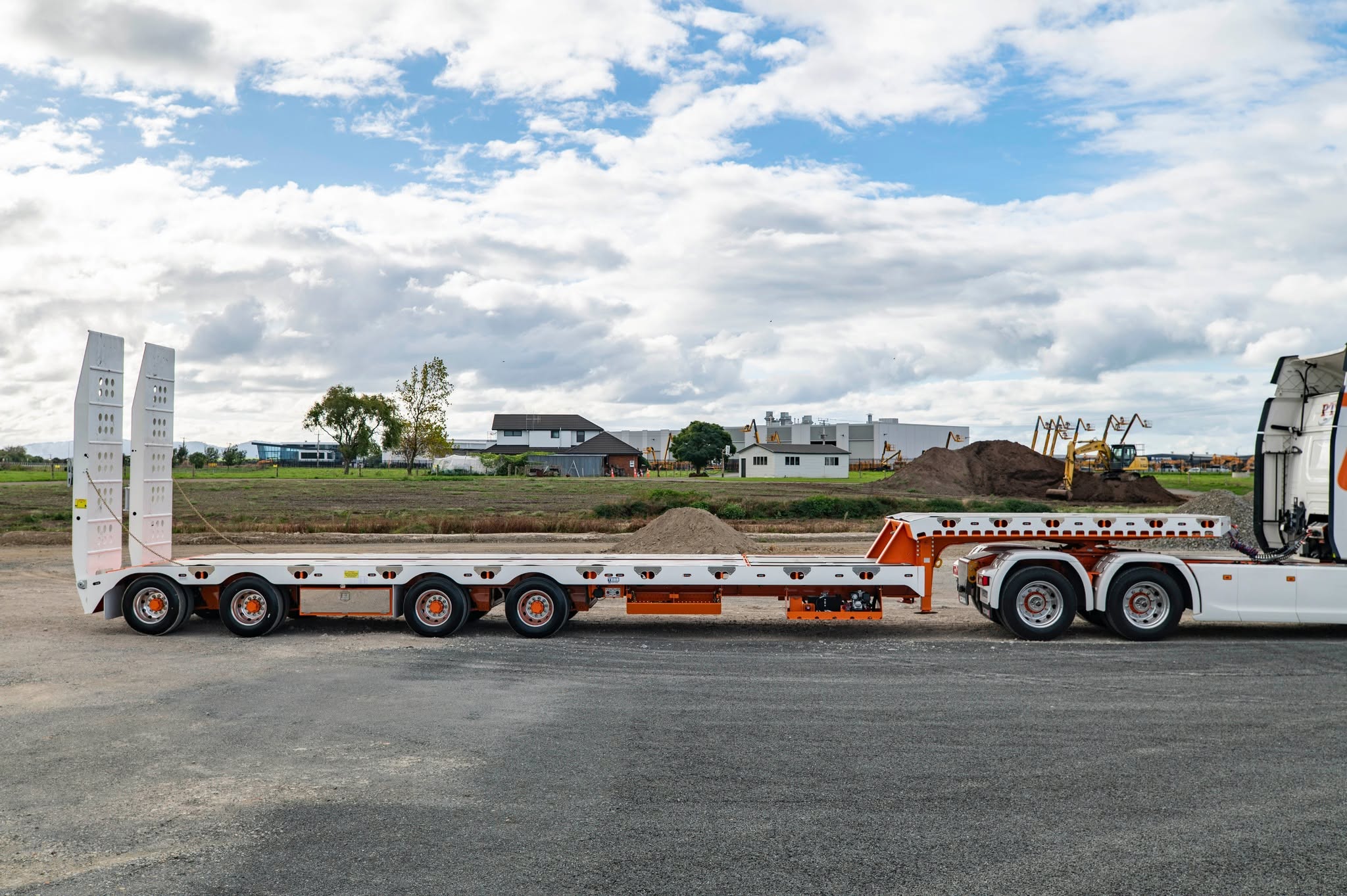

MTE completed this custom 4 Axle Semi Transporter for PTS Logistics, built specifically around their heavy machinery and equipment transport requirements.
While based on MTE’s 4 Axle Semi Transporter platform, this unit differs considerably from our standard specification. The build features a 2.8m-wide deck, 50,000kg GVM, rear steering axle, 3.3m heavy-duty loading ramps, air-operated top deck ramps and a 20,000lb hydraulic winch.
Key Specifications
Configuration: 4 Axle Semi Transporter – HPMV
GVM: 50,000kg
Deck Length: 10,647mm
Deck Width: 2,800mm
Deck Ride Height: 910mm
Forward Length: 9,150mm
Beavertail: 605mm at 12°
Top Deck Length: 4,920mm
Top Deck Width: 2,500mm
Deck Surface: Steel with 13mm rubber strips
Axles: MTE 17.5" outboard drum axles
Axle Configuration: 3 fixed + 1 rear steering axle
Suspension: MTW Air Suspension
Brakes: Knorr-Bremse EBS
Gooseneck: Fixed with single-position rub plate
Kingpins: MTE 50mm & 90mm drop-in

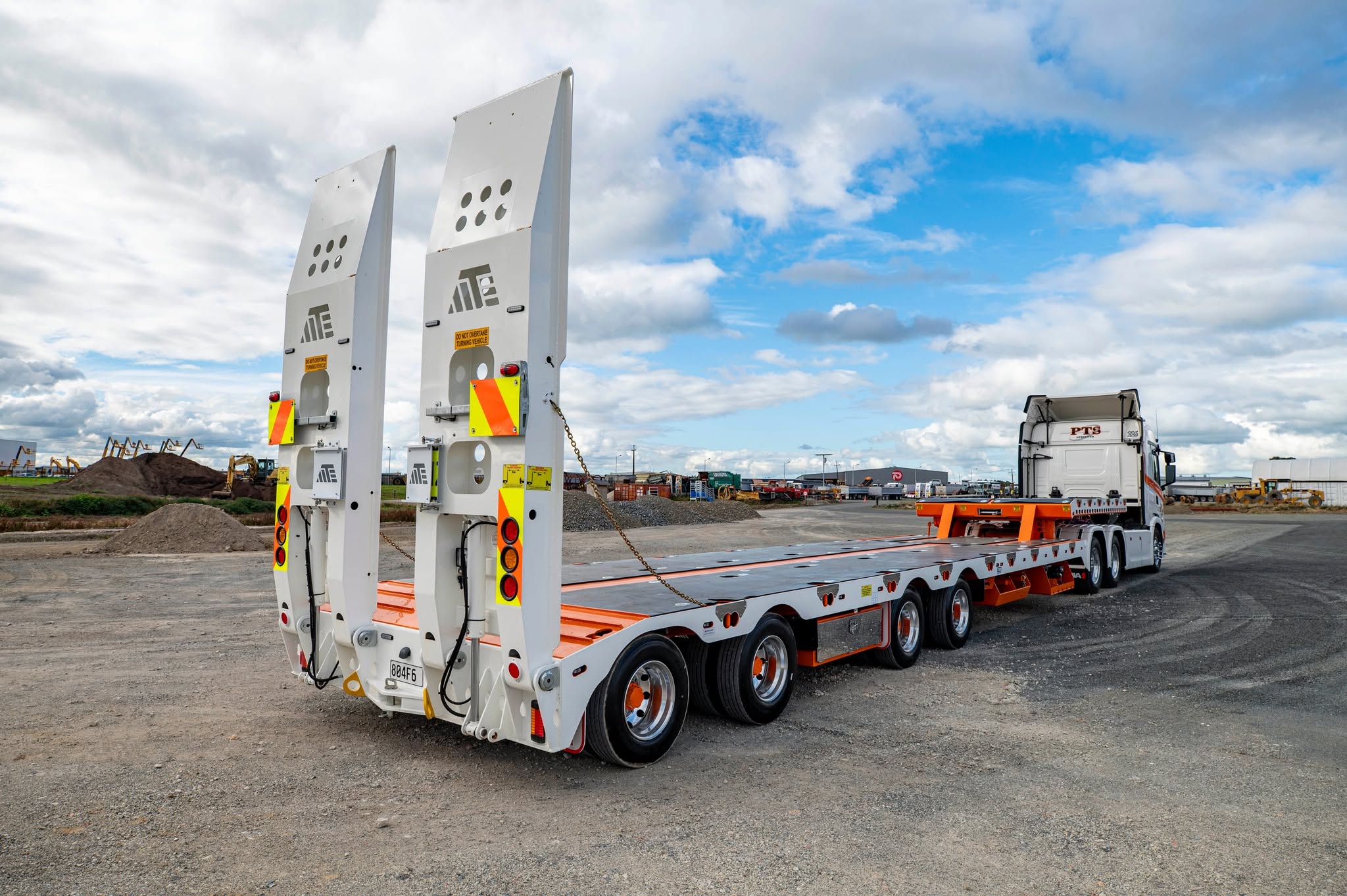

Main Ramps: 3,300mm × 1,050mm heavy-duty hydraulic ramps
Top Deck Ramps: 5-tonne air-operated
Winch: 20,000lb hydraulic
Hydraulic Supply: Truck PTO
Wheels: 17.5" × 6.75" polished alloy wheels
Tyres: 235 × 17.5" Synergy
Custom-Built for PTS
The deck incorporates 32 Figure 8 lashings, positioned on both sides of the spine and around the outside of the deck, with another four incorporated into the top deck.
There are also 14 coaming-rail lashings per side, ferry hooks and a rope rail beneath the top deck. Stainless-steel coaming protectors are fitted around the lashing points to help protect the paintwork during regular heavy-haulage use.
PTS specified plenty of onboard storage, with four 1,200mm lockable toolboxes with stainless-steel doors and two 1,200mm chain bins with chain hangers incorporated into the trailer.

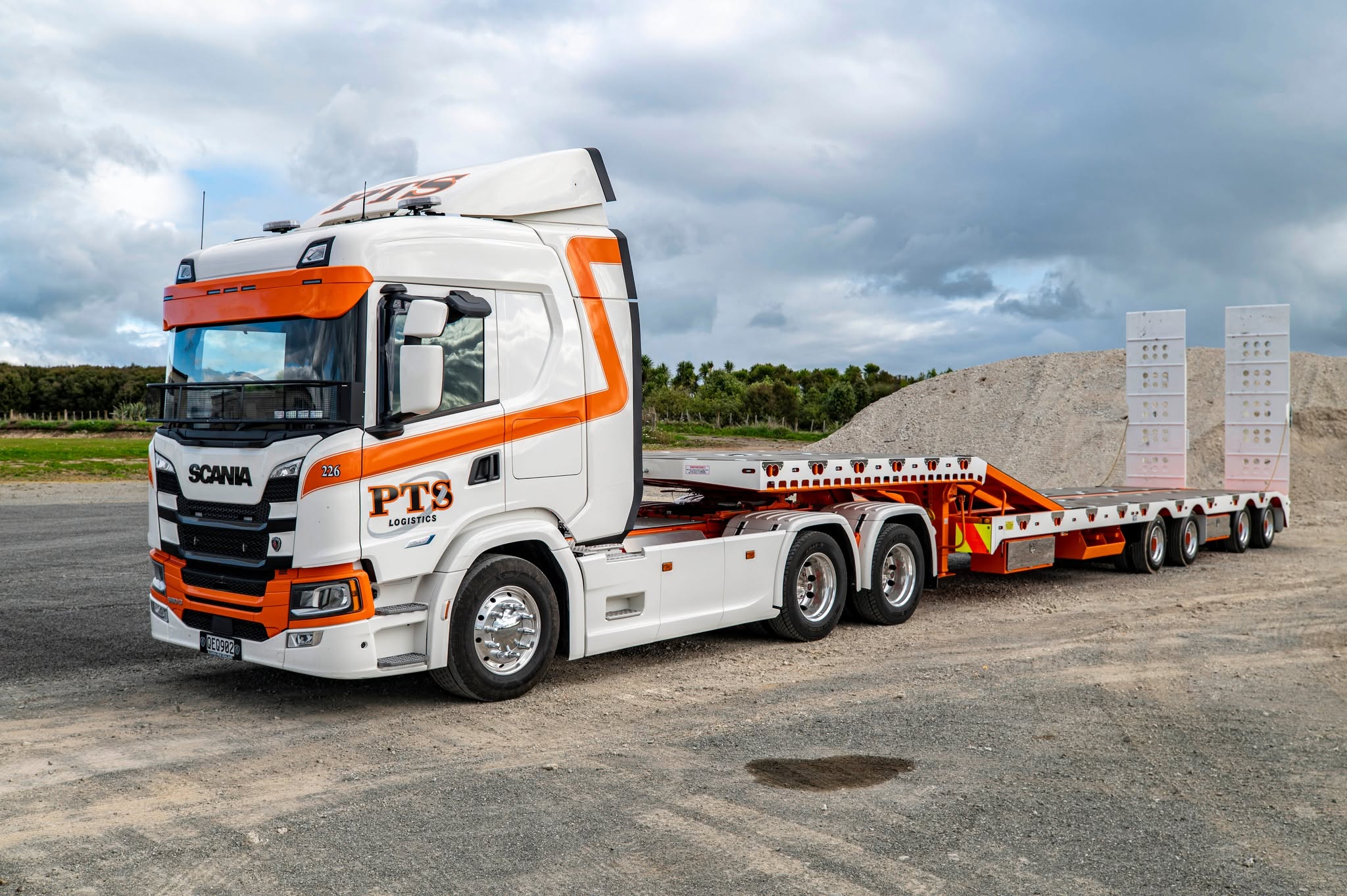

The finished transporter is unmistakably PTS, with the deck and chassis finished in custom PTS Orange and the coaming rails, bumper and ramps in PTS White, complemented by custom stainless PTS signs on the rear of the ramps.
Customer: PTS Logistics
