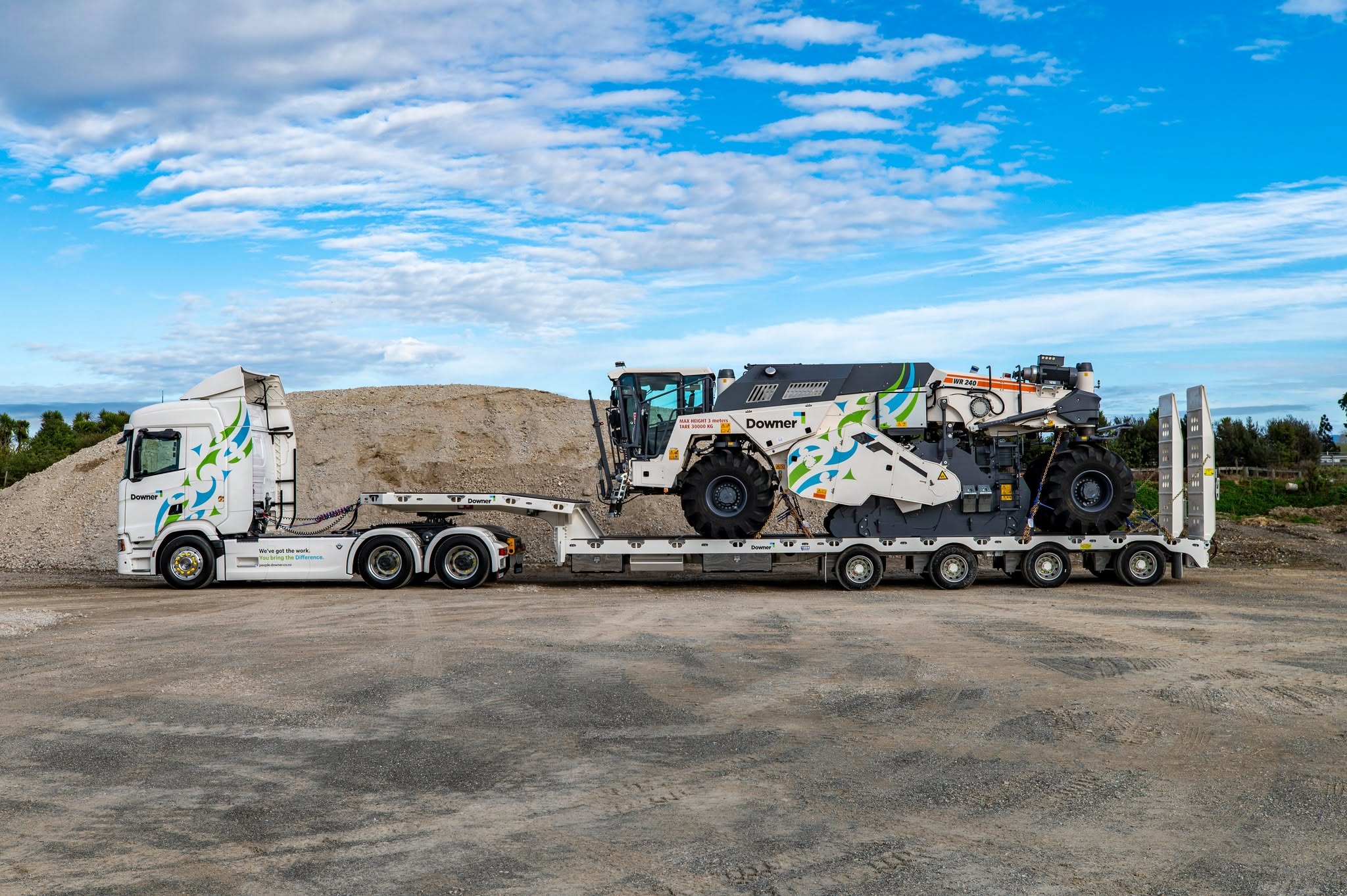

MTE completed this 4 Axle Semi Low Loader for Downer Group NZ, specifically configured to transport their Wirtgen WR240 Asphalt Recycler.
Rather than a general-purpose transporter, this build was configured around the requirements of the WR240, combining a 2.8m-wide deck, 50,000kg GVM, lifting axles, rear steering axle and 2.7m hydraulic loading ramps into a purpose-built machinery transport solution.
Key Specifications
Configuration: 4 Axle Semi Low Loader
GVM: 50,000kg
Deck Length: 10,900mm
Forward Length: 9,200mm
Bottom Deck Width: 2,800mm
Top Deck Width: 2,500mm
Deck Ride Height: 910mm
Deck: Steel with 18mm H3 treated plywood
Axles: MTE 17.5" outboard drum axles
Axle Configuration: 3 fixed + 1 rear steering axle
Axle Spacing: 1,600mm / 1,600mm / 1,600mm
Lifting Axles: Front & rear
Suspension: MTW air suspension
Brakes: Knorr-Bremse EBS
Kingpin Vertical Rating: 16,000kg
Rear Group Rating: 36,000kg
Gooseneck: Fixed with single-position rub plate
Kingpins: MTE 50mm & 90mm drop-in

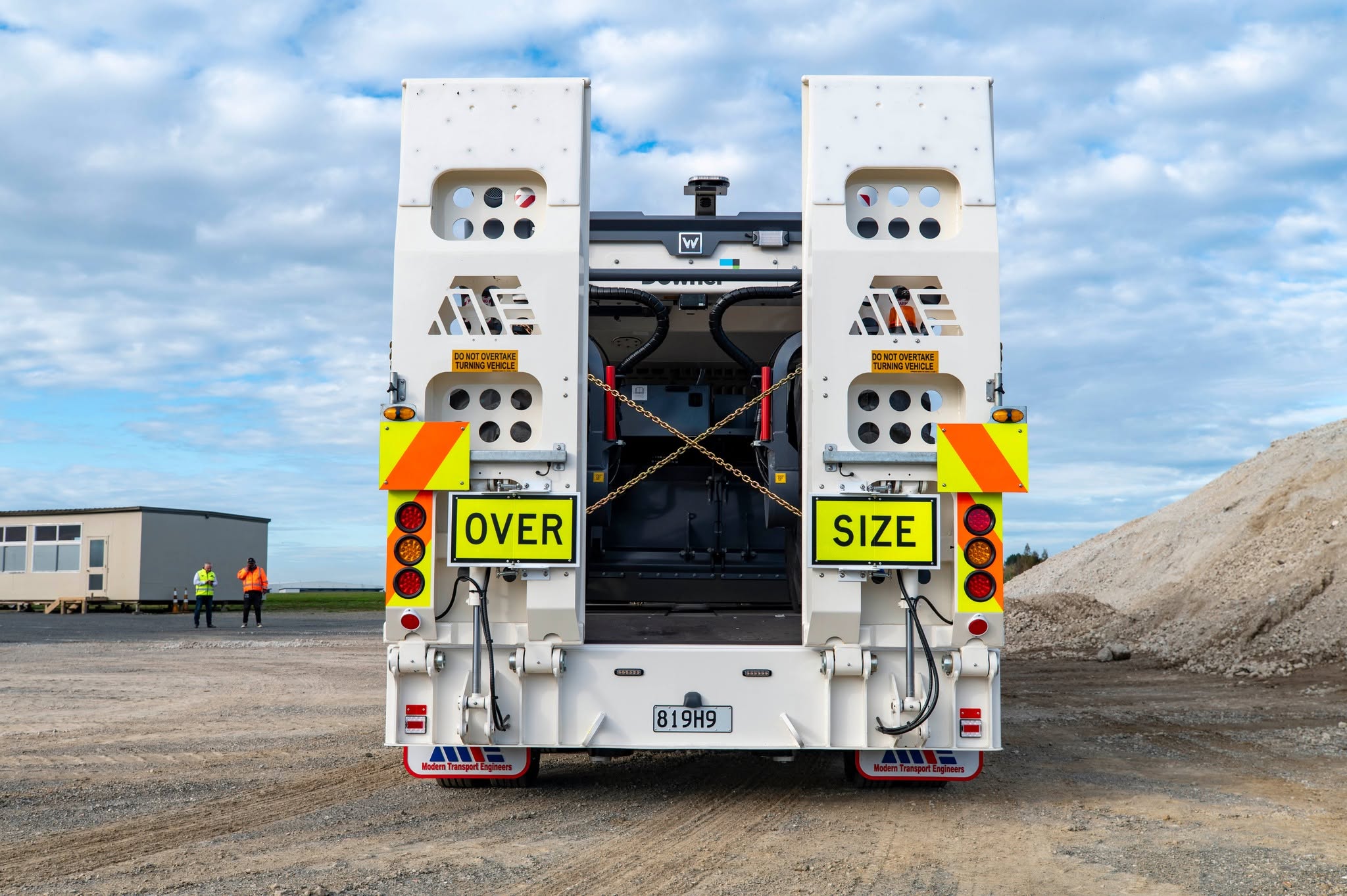

Main Ramps: 2,700mm × 900mm hydraulic
Top Deck Ramps: 5-tonne air-operated
Hydraulic Supply: Truck PTO
Purpose-Built for the Wirtgen WR240
The key requirement behind this trailer was the transport of Downer's Wirtgen WR240 Asphalt Recycler, with the trailer configured to provide the deck width, capacity and loading arrangement required for the machine.
The 2,800mm-wide bottom deck provides the additional width needed for large road construction machinery.
The deck itself is finished with 18mm H3 treated plywood over steel, with cleats incorporated into the beavertail to provide additional traction during loading.
The EBS air suspension incorporates an automatic raise/lower levelling system, which returns the trailer to its normal ride height once a pre-programmed road speed is reached after loading.
Load Restraint & Storage

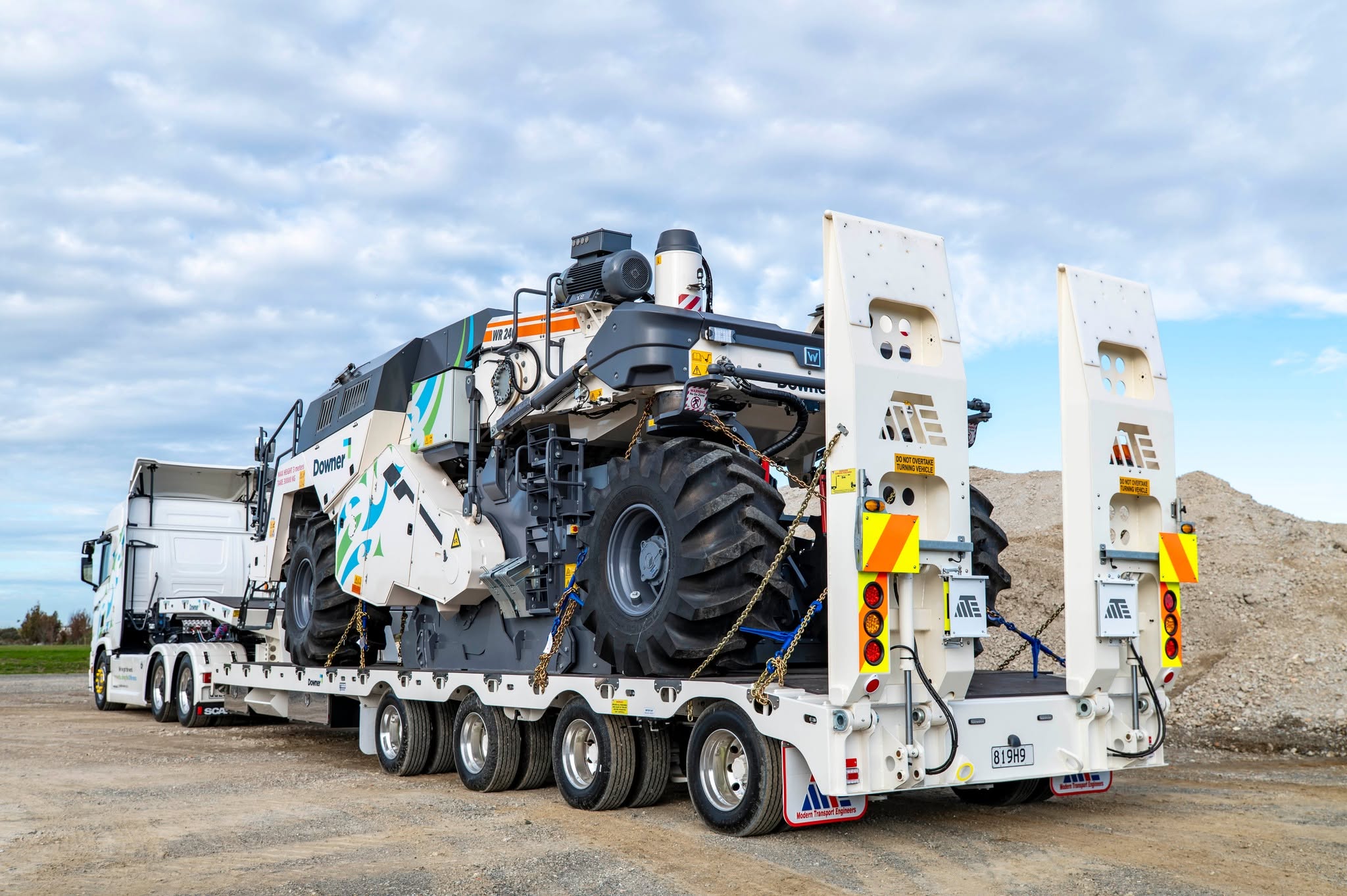

Heavy machinery restraint is catered for with 15 certified 9,000kg lashing points per side on the bottom deck and another five per side on the top deck. Stainless-steel covers are fitted above the coaming rail tie points to help protect the trailer during regular loading and chain-down operations.
Storage includes three lockable toolboxes and two 900mm chain bins, providing dedicated space for chains, load restraint equipment and other gear required on the road.
Customer: Downer Group NZ
