4 Axle Semi Transporter

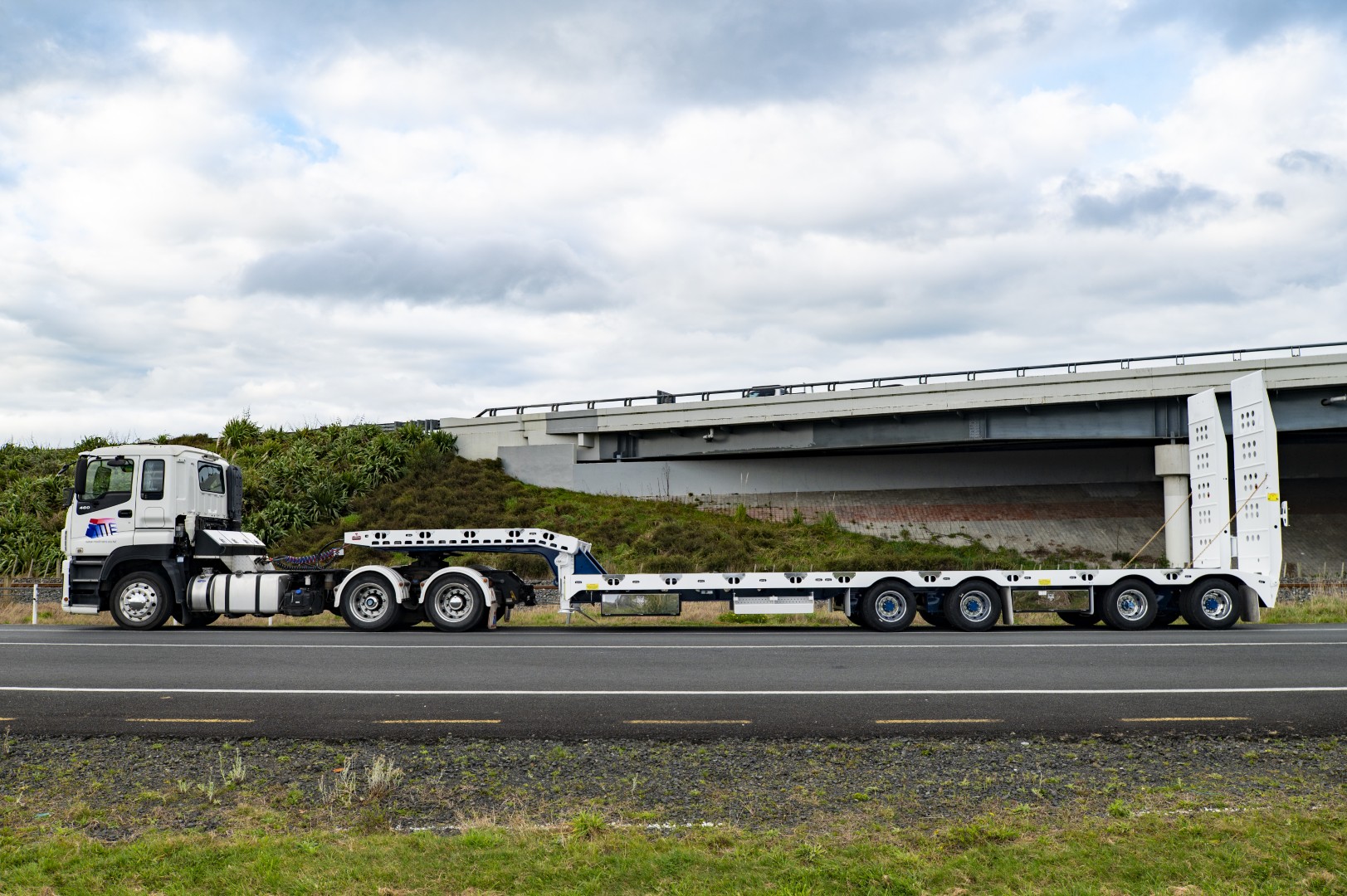

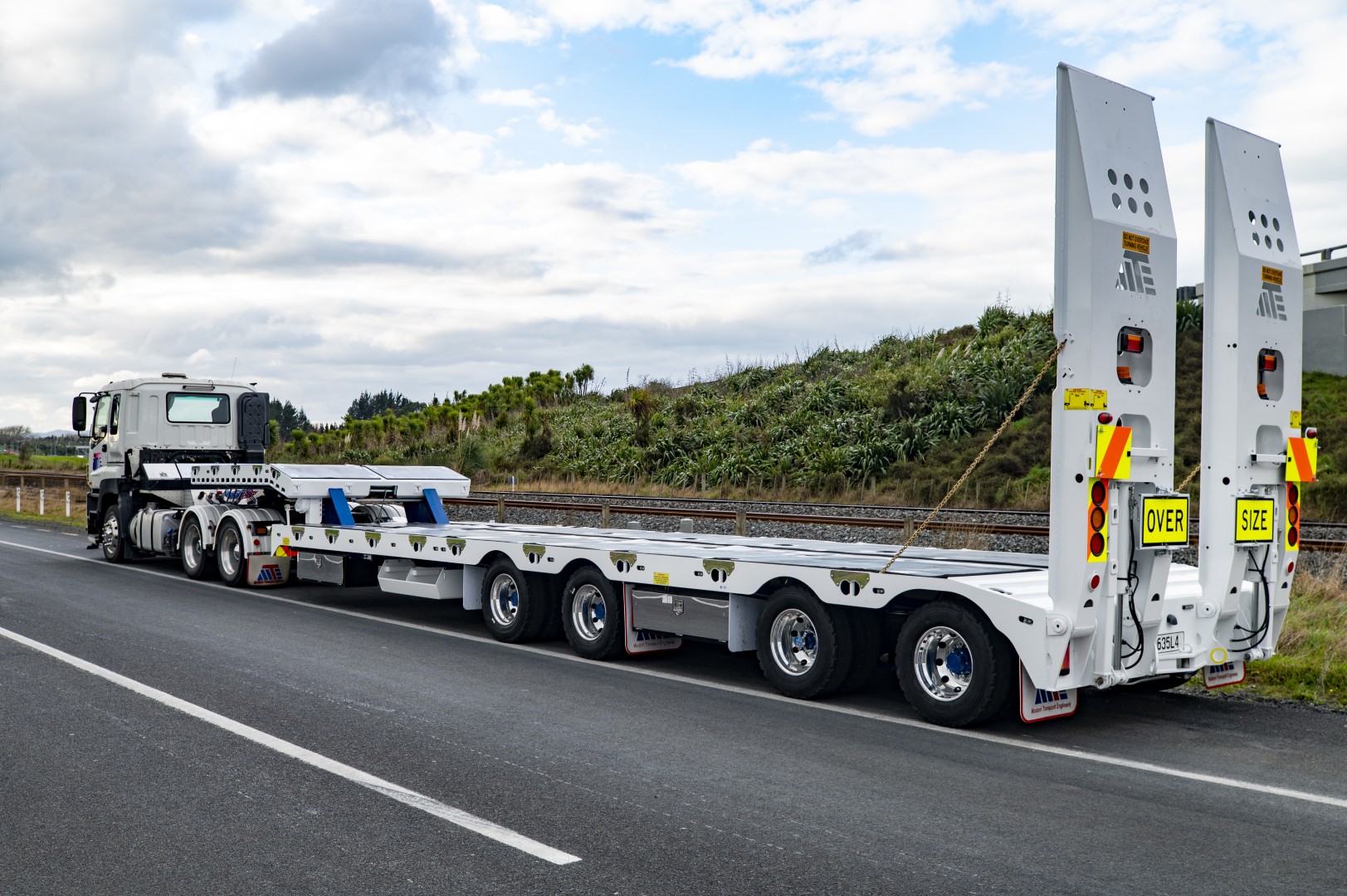

MTE completed this 4 Axle Semi Transporter for J Swap Contractors, purpose-built as a heavy-duty machinery transport solution for their New Zealand operations.

With a 50,000kg GVM, 2.8m-wide deck, low 910mm ride height and rear steering axle, the trailer provides a practical combination of load capacity, deck space and manoeuvrability for transporting large earthmoving and construction equipment.

Key Specifications

Configuration: 4 Axle Semi Transporter
GVM: 50,000kg
Deck Width: 2,800mm
Main Deck Length: 10,647mm
Deck Ride Height: 910mm
Beavertail: 605mm at 12°

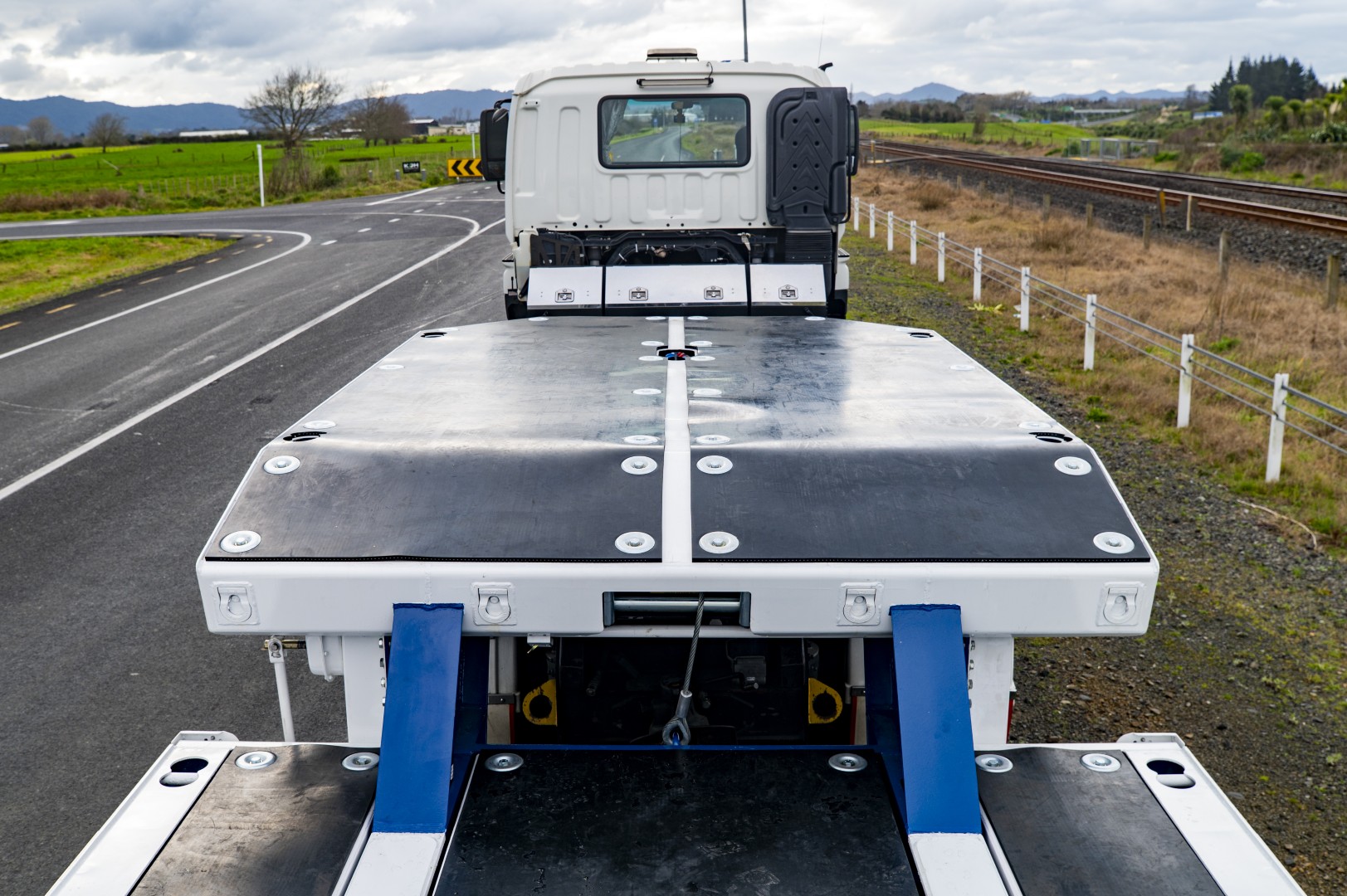

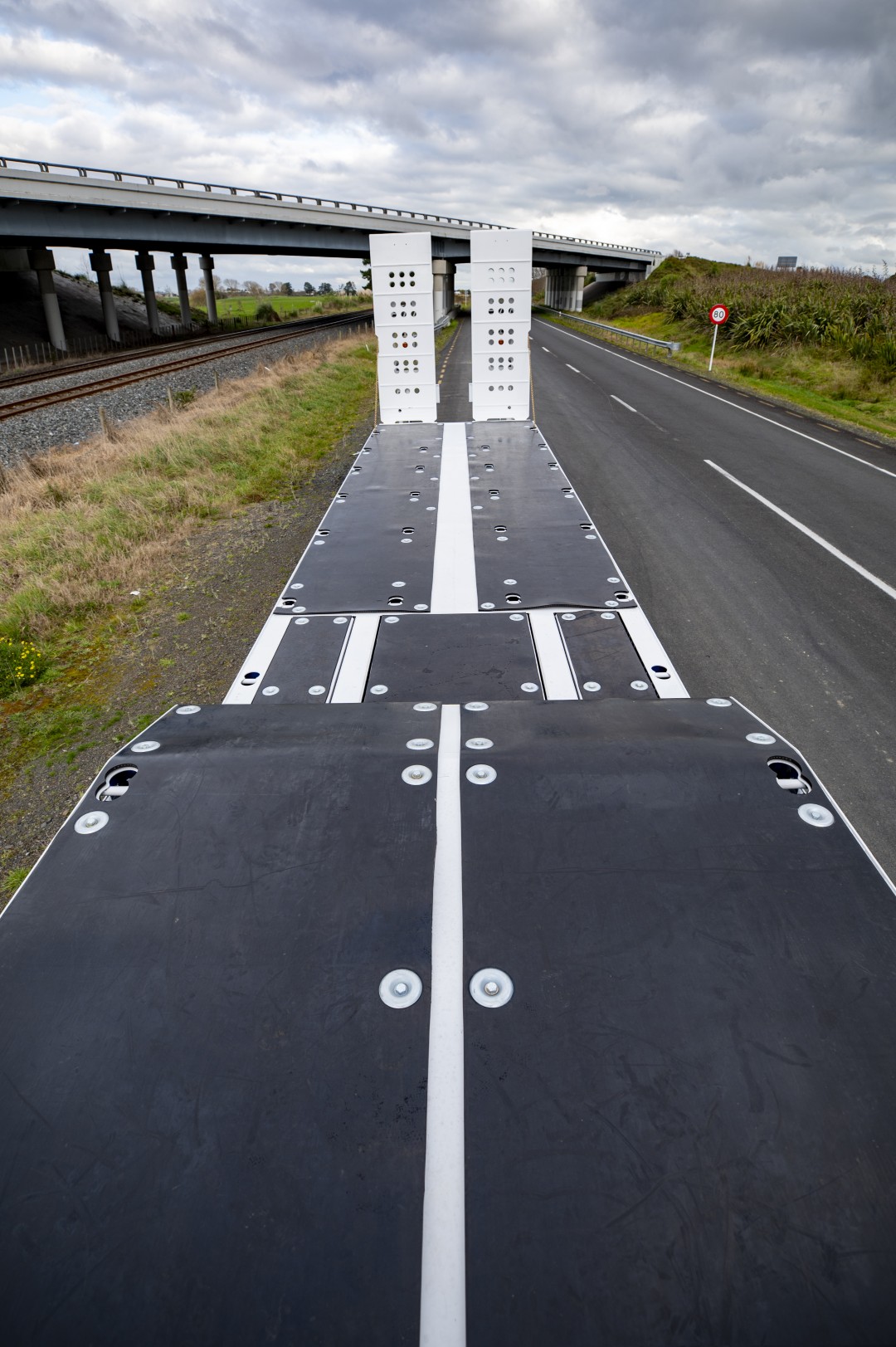

Top Deck: 3,594mm × 2,500mm
Forward Length: 9,150mm
Axles: 3 × fixed + 1 × rear steering axle
Suspension: Alion air suspension
Brakes: Wabco EBS
Gooseneck: Fixed with top deck

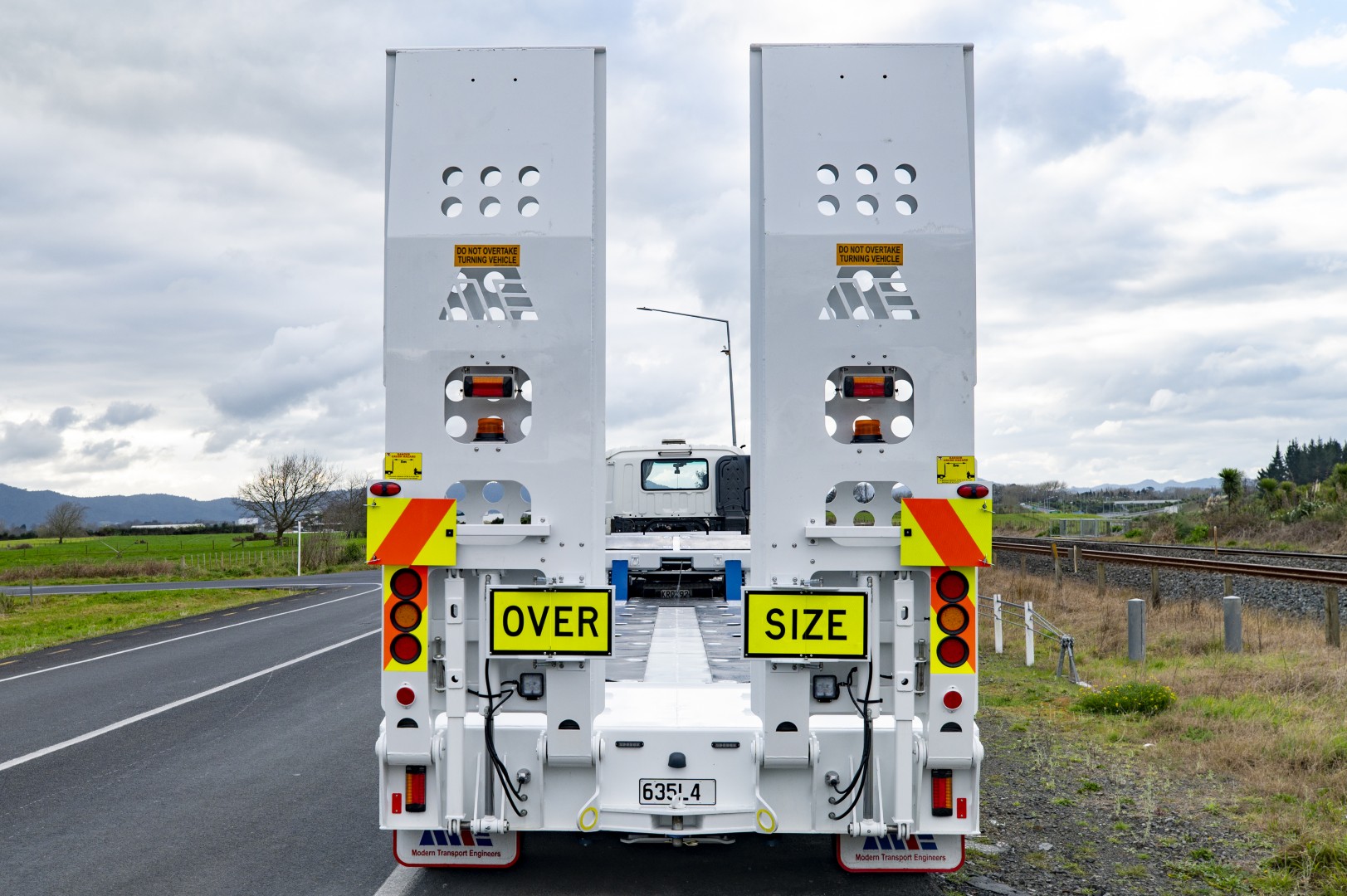

Main Ramps: 3,300mm × 1,050mm hydraulic
Top Deck Ramps: 3 × air-operated pop-up ramps
Winch: 20,000lb hydraulic
Hydraulic Supply: Truck hydraulics
Wheels: 17.5" polished alloy

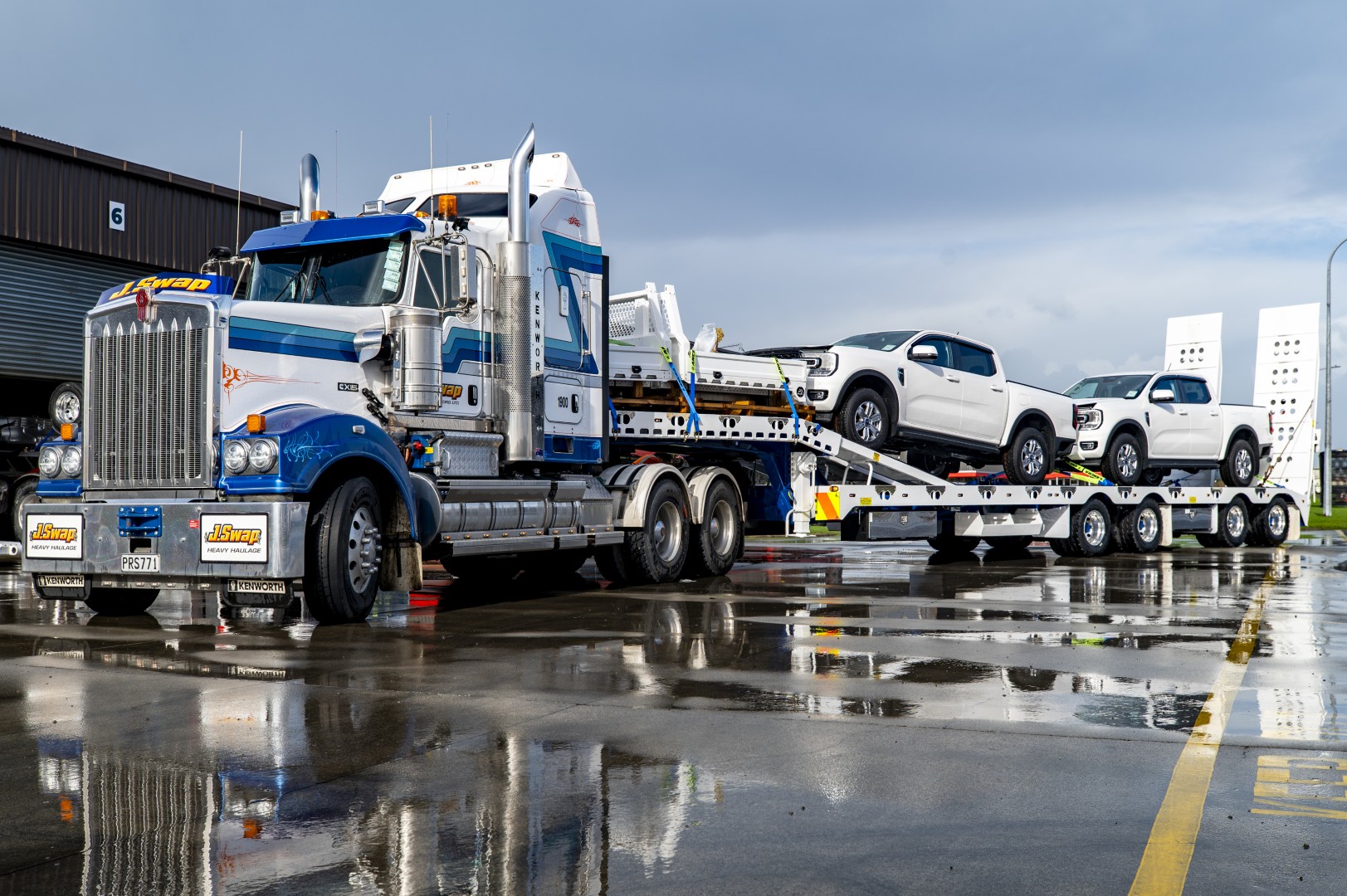

Built for J Swap Contractors

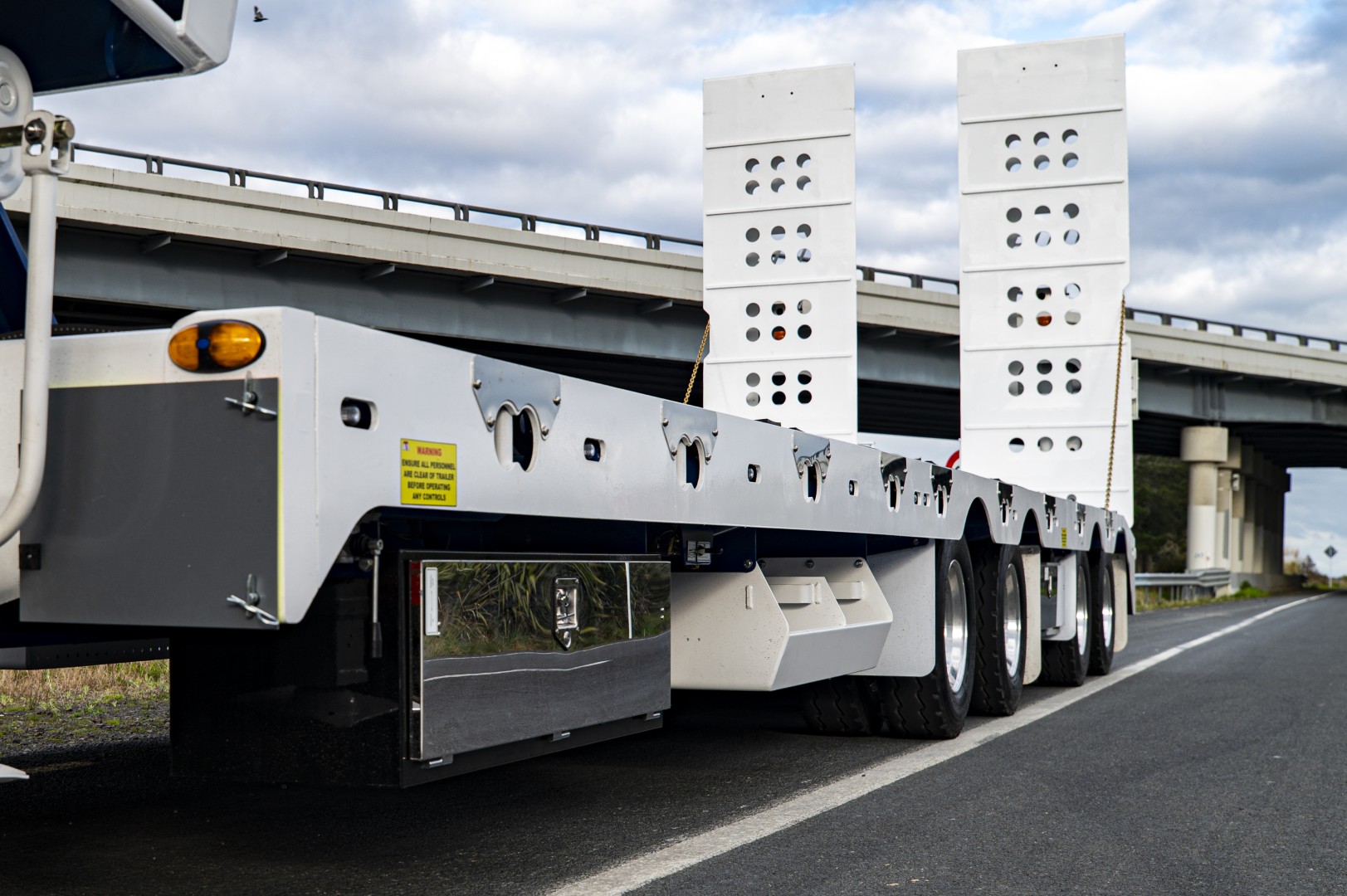

The finished trailer carries J Swap's distinctive fleet colours, with the chassis, suspension, axles and neck beams finished in J Swap Blue, contrasted by white coaming rails, upper deck structure, ramps, toolboxes and chain bins.
