4R8 Dropbed Linkwing & 2R8 Dolly & 2R8 Dolly

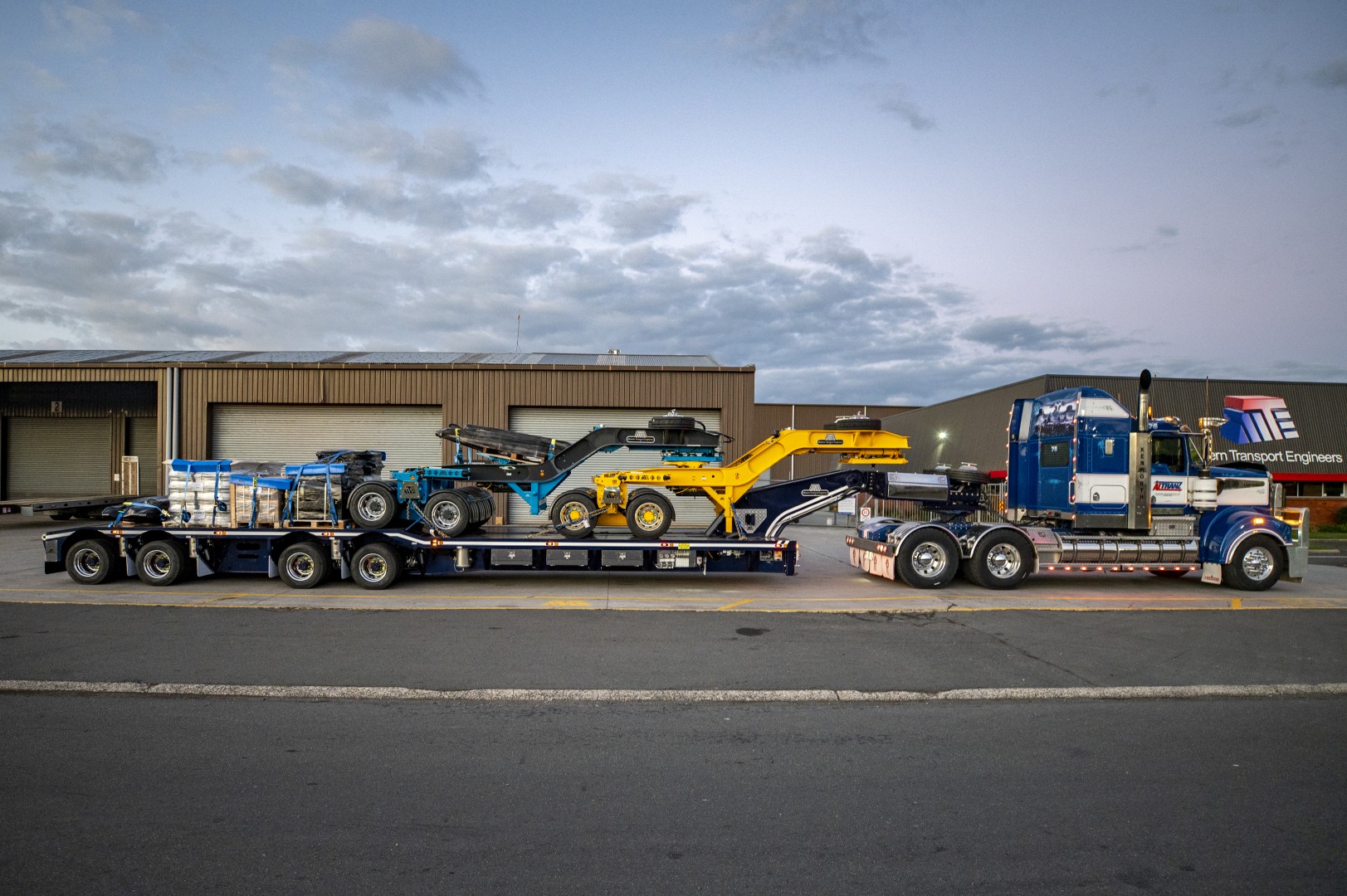

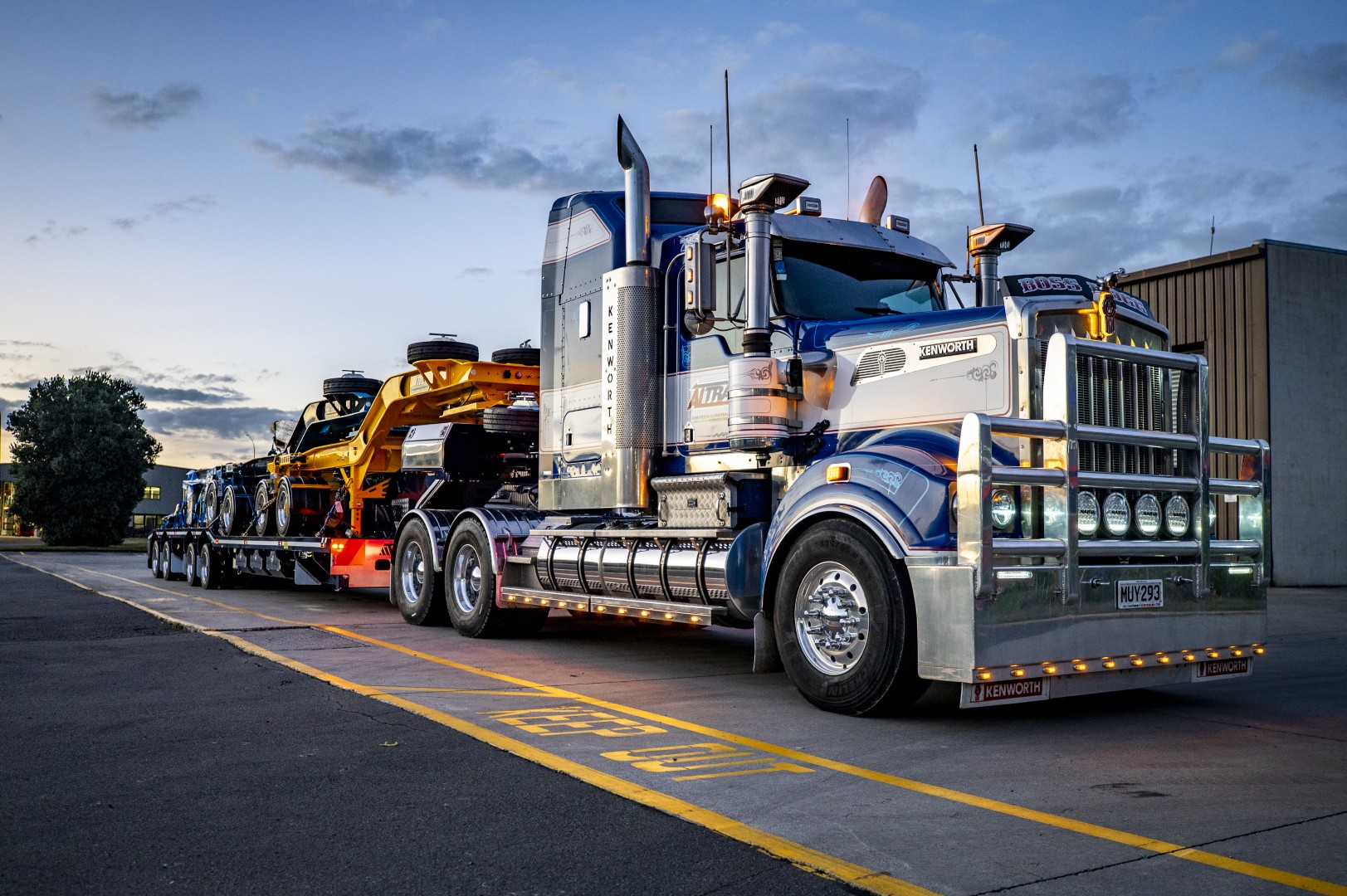

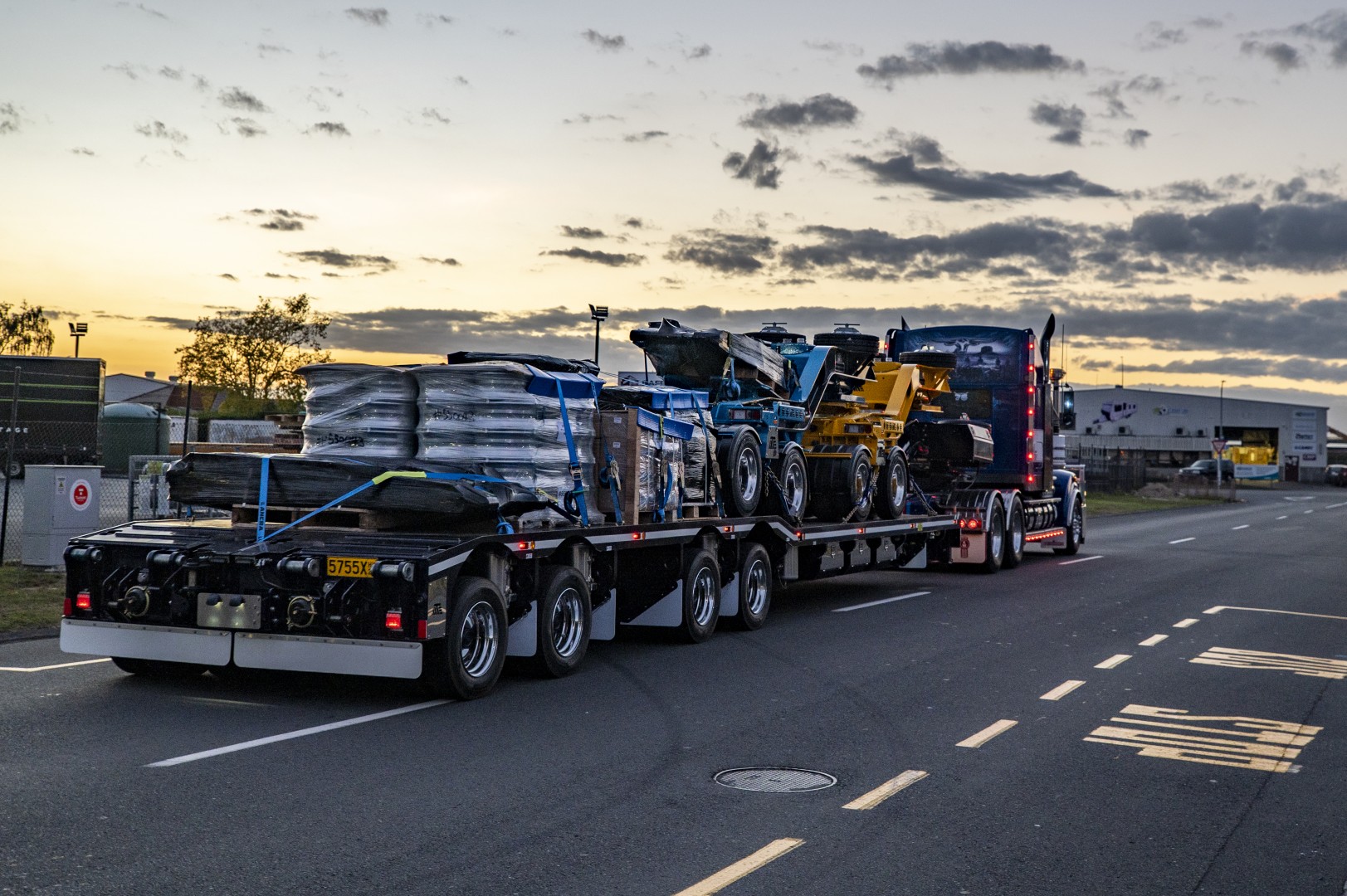

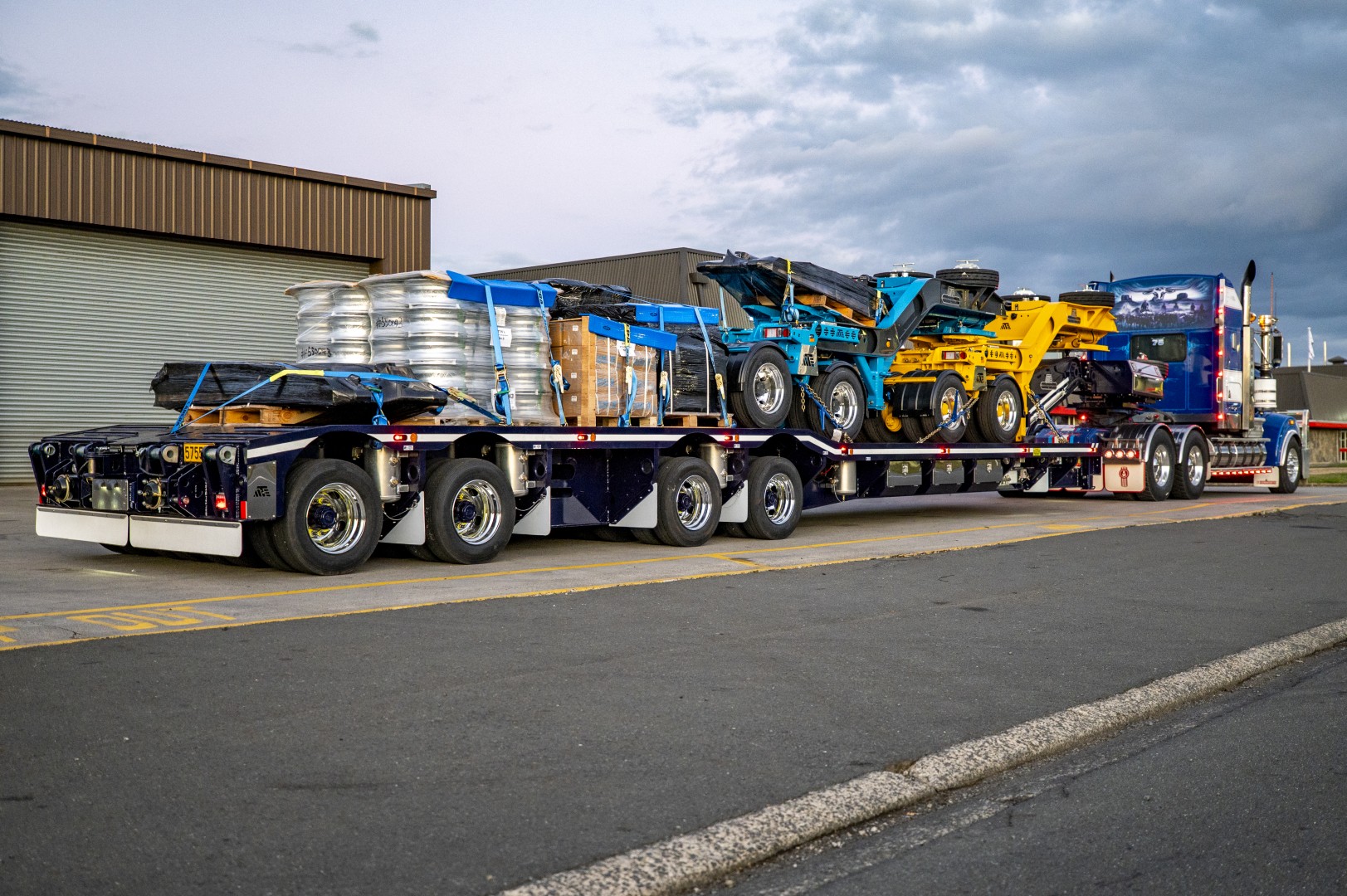

Another shipment of MTE heavy haulage equipment packed up and heading for the ship, with a 4 Rows of 8 Dropbed Linkwing and two 2 Rows of 8 Dollies on their way across the Tasman to Australian customers.

The shipment includes a 4R8 Dropbed Linkwing, along with two 2R8 Dollies, adding another mix of specialised widening and modular heavy transport equipment to Australian fleets.

MTE 4R8 Dropbed Linkwing – Haulmack Heavy Haulage

The largest unit in the shipment is this 4 Rows of 8 Dropbed Linkwing rated to an impressive 110,000kg GVW.

The trailer features a 12,607mm deck, 127mm dropbed and MTE hydraulic Linkwing widening system, allowing the deck to open from 2,700mm to 4,600mm with multiple intermediate locking widths.

Linkwing Specifications

Configuration: 4 Rows of 8 Dropbed Linkwing
GVW: 110,000kg
Overall Deck Length: 12,607mm
Deck Width – Closed: 2,700mm
Deck Width – Open: 4,600mm
Locking Widths: 2.7m / 3.1m / 3.5m / 3.75m / 4.0m / 4.27m / 4.47m / 4.6m
Dropbed: 127mm
Deck Ride Height: 950mm
Lowered Height: 820mm
Raised Height: 1,060mm
Suspension: MTE hydraulic ball type
Gooseneck: Internal hydraulic
Ramps: 3,700mm × 900mm double-fold
Remote: 12-function remote
Container Capability: 20ft & 40ft containers at 2.7m width

2R8 Dolly Specifications

Travelling alongside the Linkwing are two MTE 2 Rows of 8 Dollies, designed to provide additional axle capacity and flexibility within larger modular heavy-haulage combinations.

The supplied 2R8 specification is rated to 50,000kg GVW and hydraulically widens from 2,500mm to 4,260mm, giving operators the ability to configure the dolly around different trailer widths and heavy transport combinations.

Key 2R8 Dolly Specifications

Configuration: 2 Rows of 8 Dolly – Australian Spec
GVW: 50,000kg
Width – Closed: 2,500mm
Width – Open: 4,260mm
Axle Spacing: 1,250mm
Axles: MTE 17.5" 10-stud
Suspension: Dolly trunnion
Brakes: Knorr EBS
Skid Plate Height: 1,300mm
Rub Plate: Sliding & oscillating – 800mm travel
Kingpin: 90mm MTE drop-in
Fifth Wheel: JOST JSK50 on sliding plate
Fifth Wheel Travel: 600mm
Hydraulics: 5.5HP Kubota diesel power pack
Wheels: Polished alloy
Tyres: Michelin 215/75R17.5
