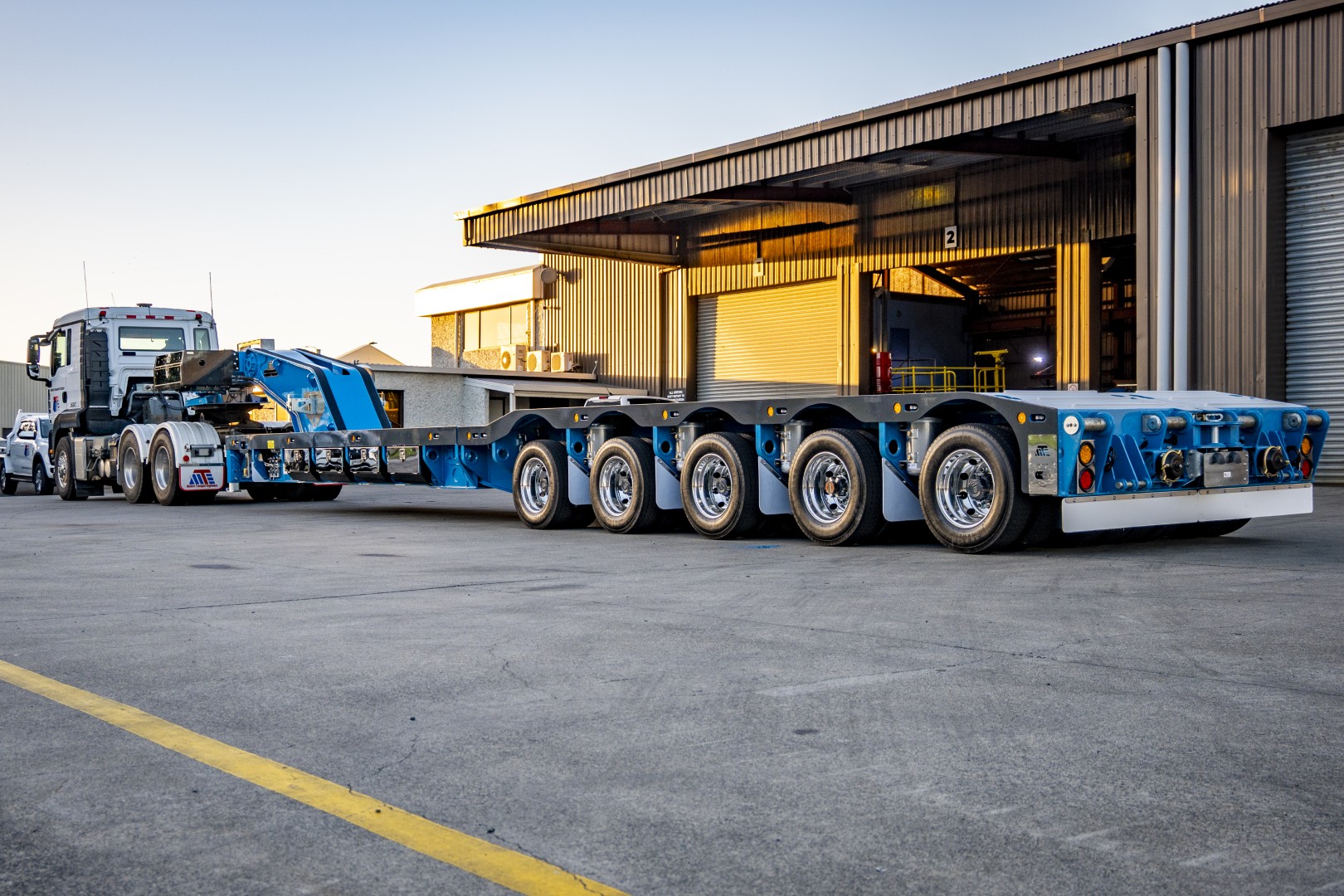

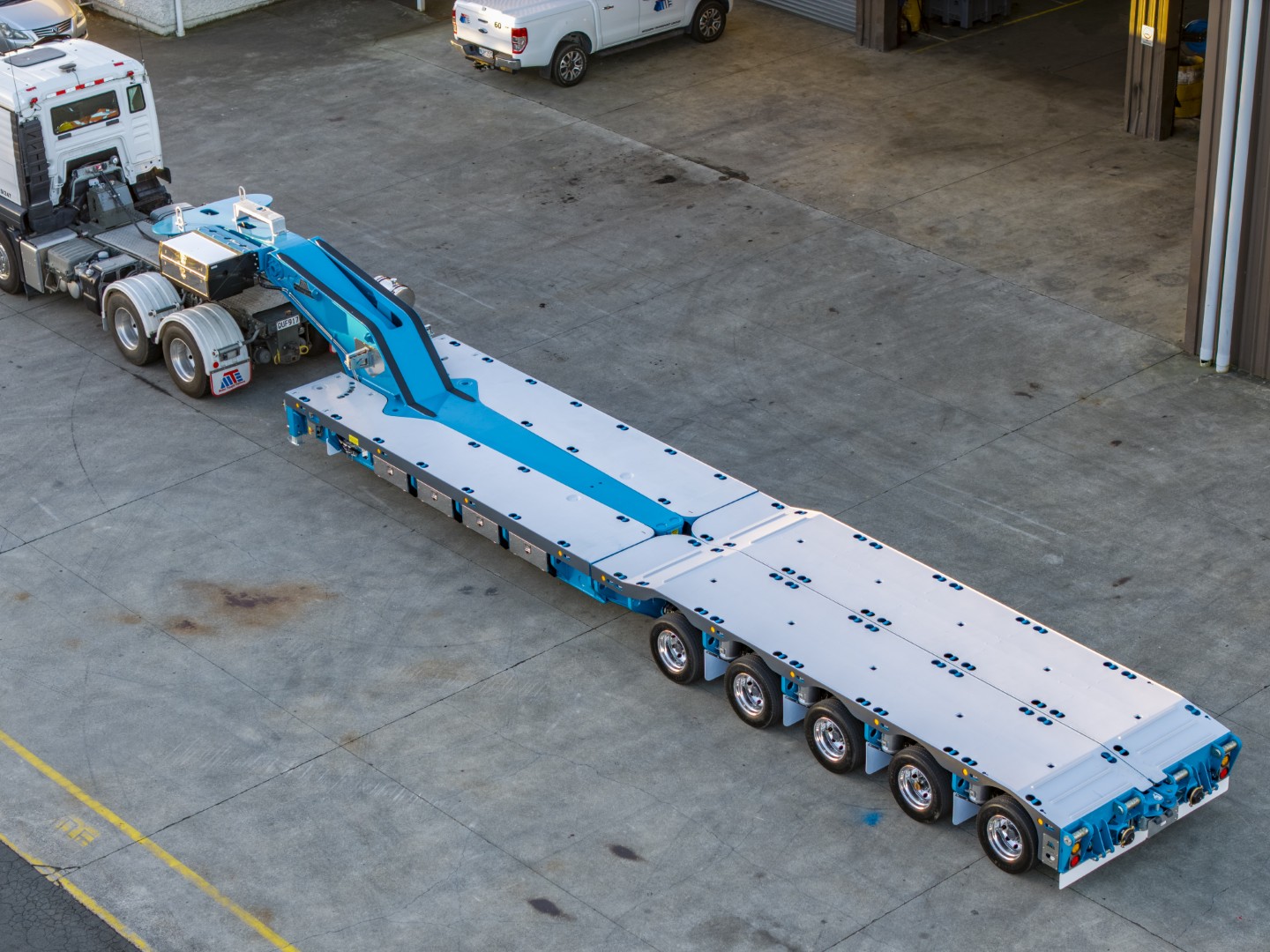

MTE recently completed this 5 Rows of 8 Dropbed Extendable Linkwing for Freight Movements, purpose-built for Australian heavy haulage operations and shipped to Brisbane.
Combining a 130,000kg GVW, hydraulic Linkwing widening, 127mm dropbed and 3-metre extendable deck, this trailer gives Freight Movements a highly adaptable platform for transporting heavy, wide and longer loads.
Key Specifications
Configuration: 5 Rows of 8 Dropbed Extendable Linkwing
GVW: 130,000kg
Overall Deck Length: 12,875mm
Deck Length Behind Gooseneck: 11,530mm closed

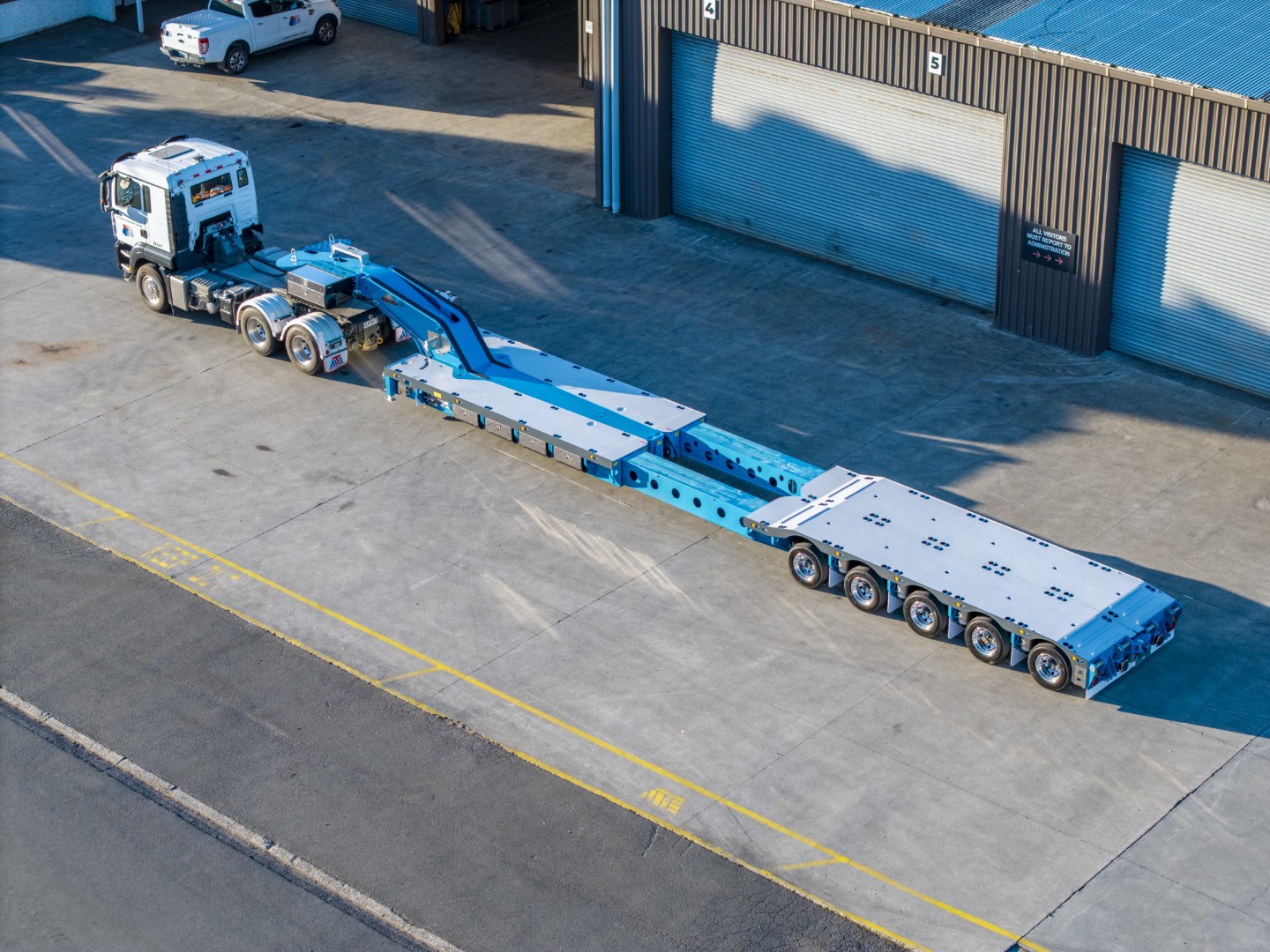

Deck Extension: 3,000mm – locking every 500mm
Deck Width – Closed: 2,500mm

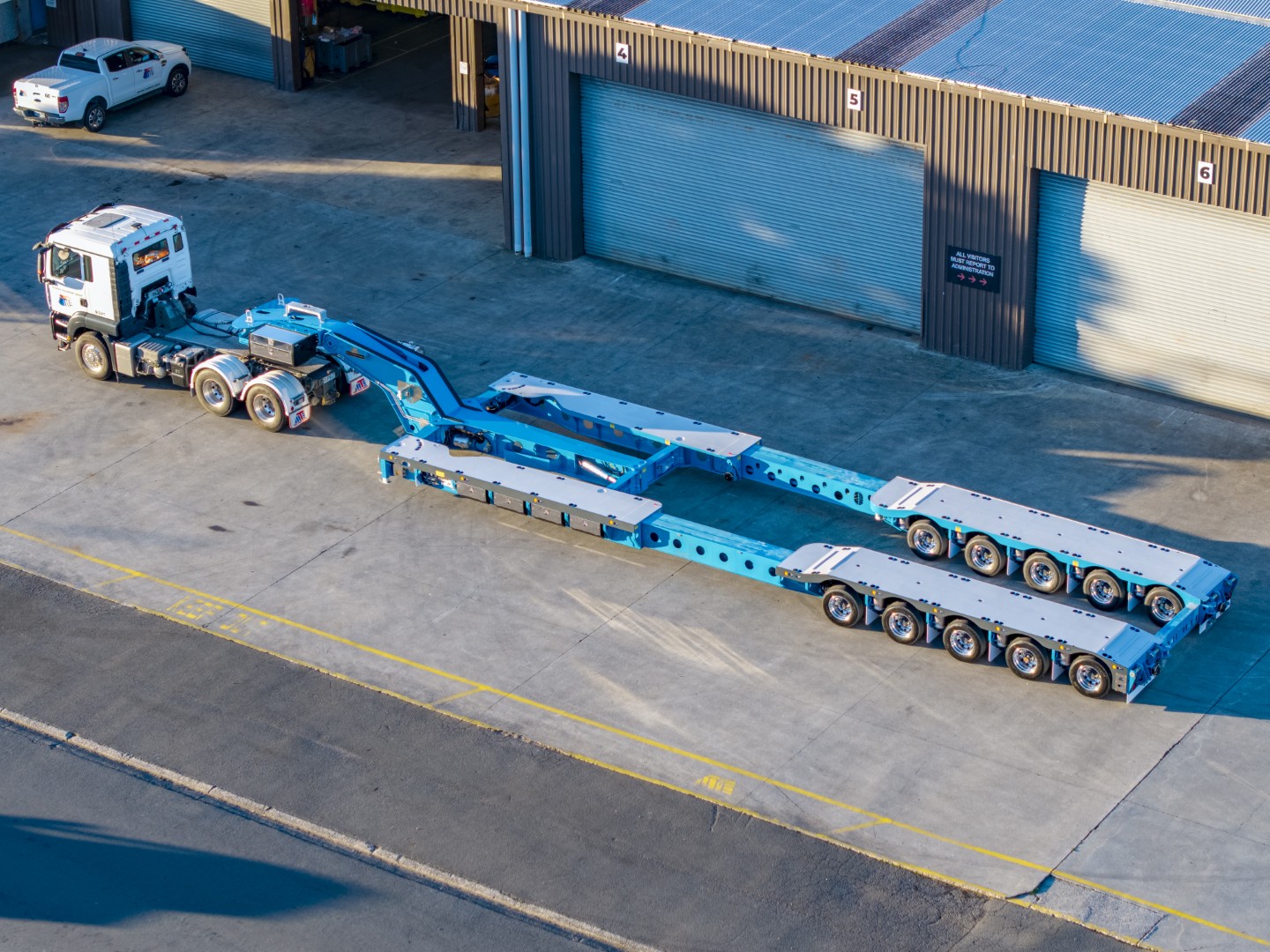

Deck Width – Open: 4,270mm
Locking Widths: 2.5m / 2.7m / 3.1m / 3.5m / 3.75m / 4.0m / 4.27m
Dropbed: 127mm
Normal Deck Height: 950mm
Lowered Deck Height: 820mm
Raised Deck Height: 1,060mm
Deck: Fully enclosed 10mm 690MPa high-tensile steel

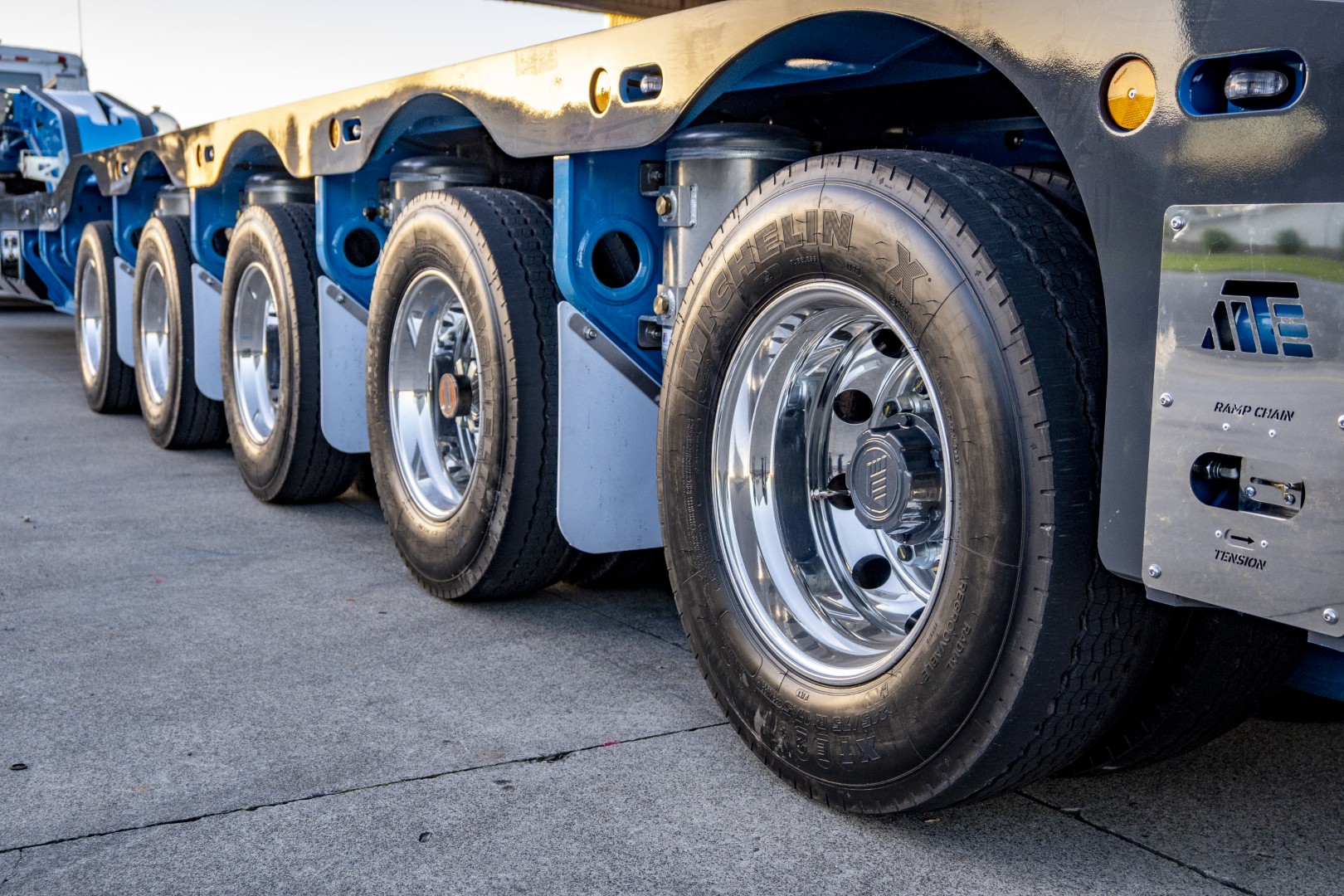

Suspension: MTE hydraulic ball type

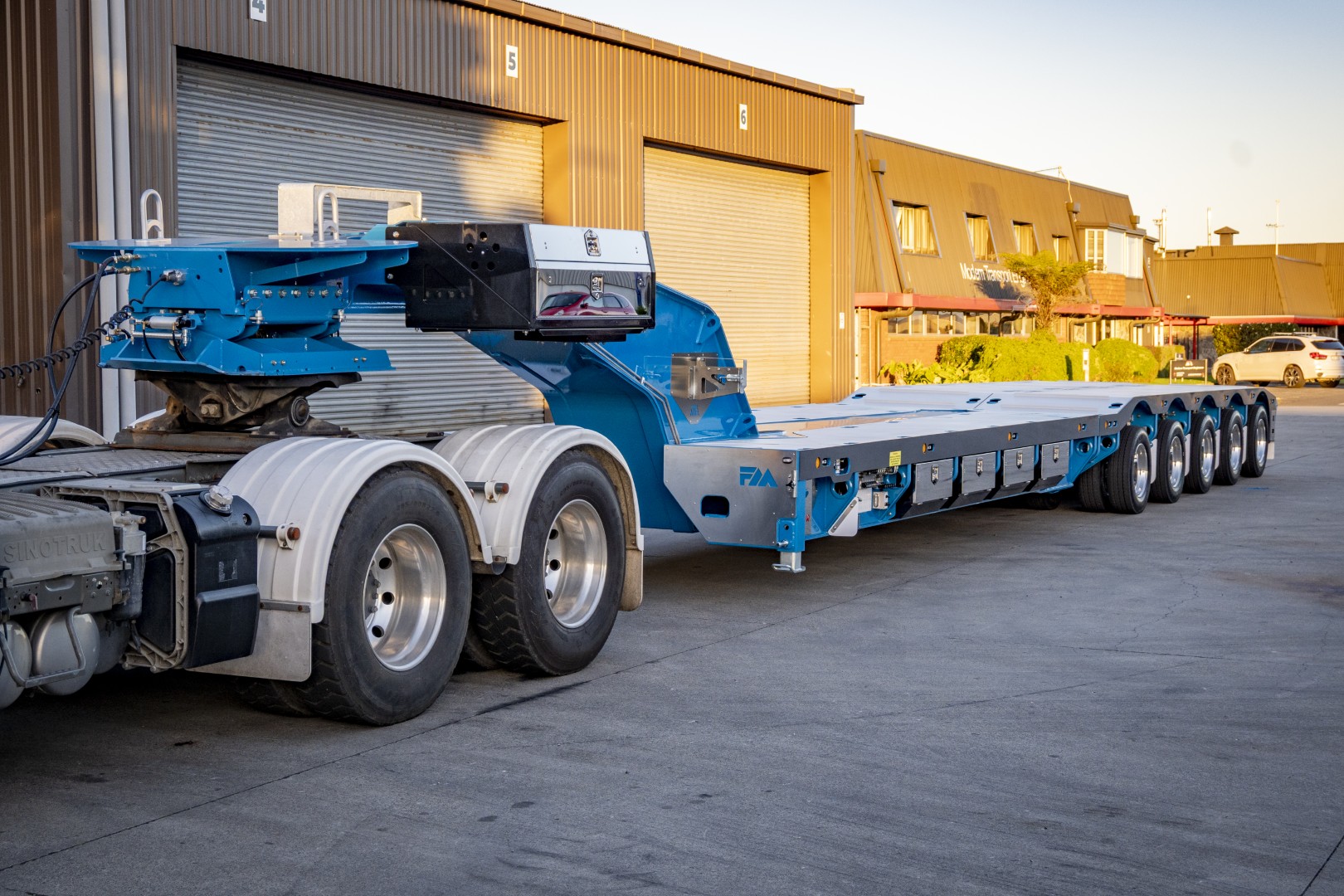

Gooseneck: Internal hydraulic
Ramps: 3,300mm × 1,050mm heavy-duty hydraulic
Hydraulic Supply: Kubota OC60 diesel power pack
Remote: 12-function Apollo
