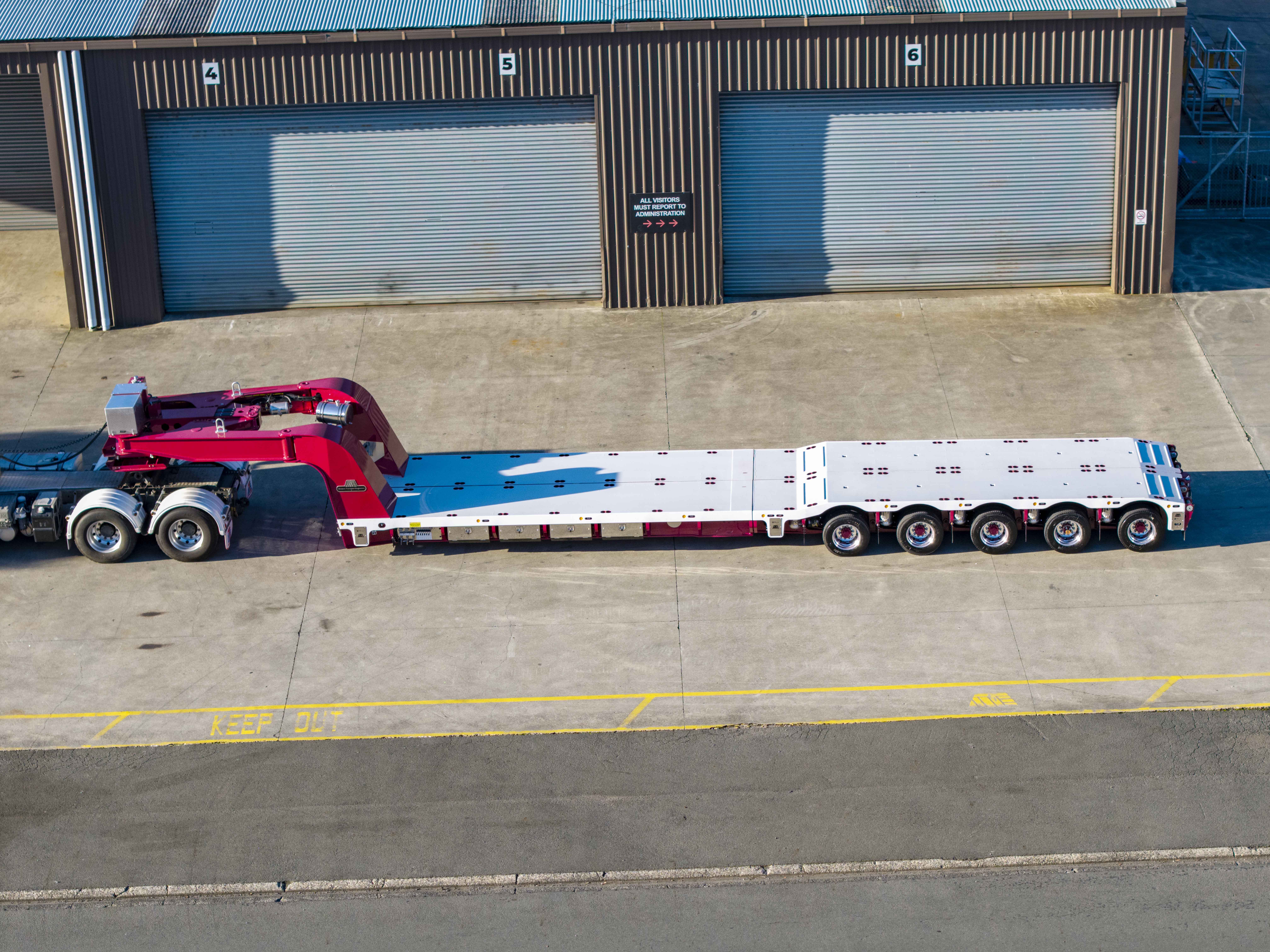

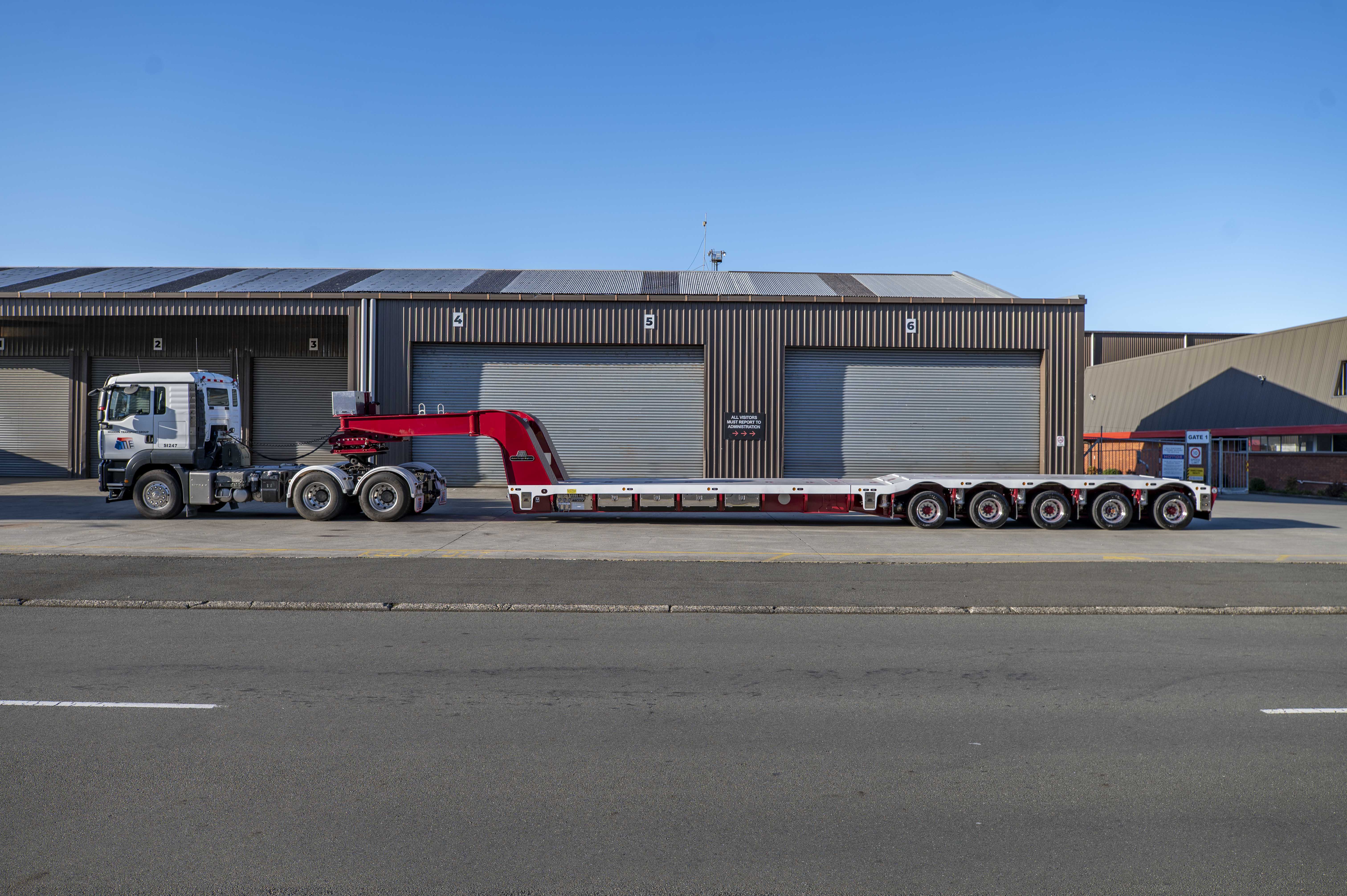

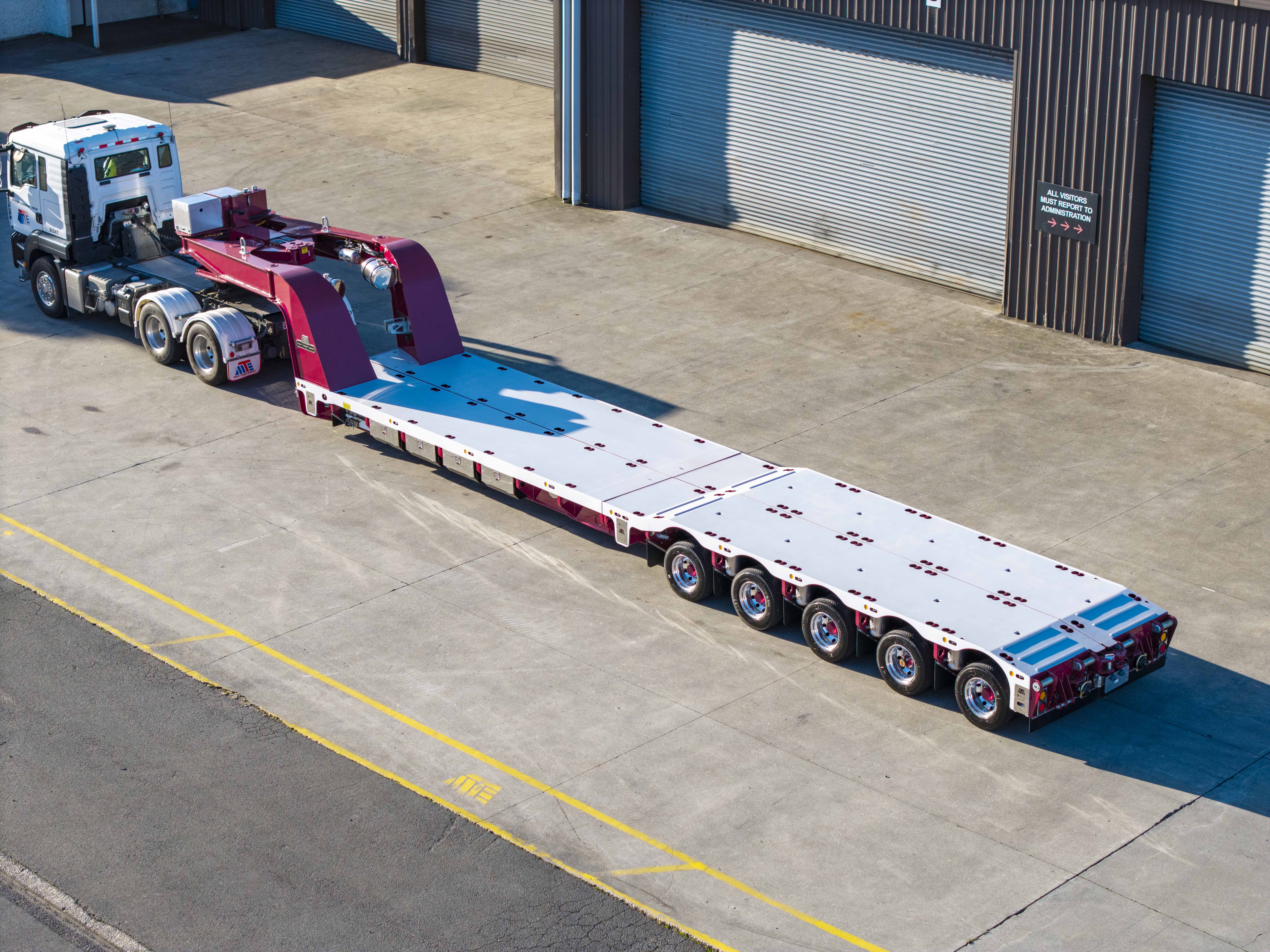

MTE recently completed this 5 Rows of 8 Swingwide Dropbed Extendable for Ace Haulage, purpose-built for specialised heavy haulage operations in Australia and destined for Brisbane.
This is one of the more versatile configurations in the MTE heavy haulage range, combining the Swingwide widening system, 125mm dropbed, 4-metre deck extension and 130,000kg GVW into a single platform. The result gives Ace Haulage significant flexibility when configuring the trailer around long, wide and heavy loads.
Key Specifications
Configuration: 5 Rows of 8 Swingwide Dropbed Extendable
GVW: 130,000kg
Deck Length Behind Gooseneck: 13,100mm
Deck Extension: 4,000mm – locking every 500mm
Dropbed: 125mm
Deck Width – Closed: 2,500mm
Deck Width – Open: 4,270mm
Widening Positions: 2.5m / 3.1m / 3.5m / 3.75m / 4.0m / 4.27m
Normal Deck Height: 950mm
Lowered Deck Height: 820mm
Raised Deck Height: 1,060mm
Deck Construction: 690MPa high-tensile steel with fully enclosed 10mm deck
Axles: MTE 17.5" 10-stud
Axle Spacing: 1,220mm / 1,220mm / 1,220mm / 1,220mm
Suspension: MTE hydraulic ball type
Brakes: Pacific non-ABS
Ramps: 3,300mm × 1,050mm heavy-duty hydraulic
Hydraulic Supply: 5.5HP diesel power pack
Swingwide Widening
A major feature of this build is MTE’s Swingwide widening system.

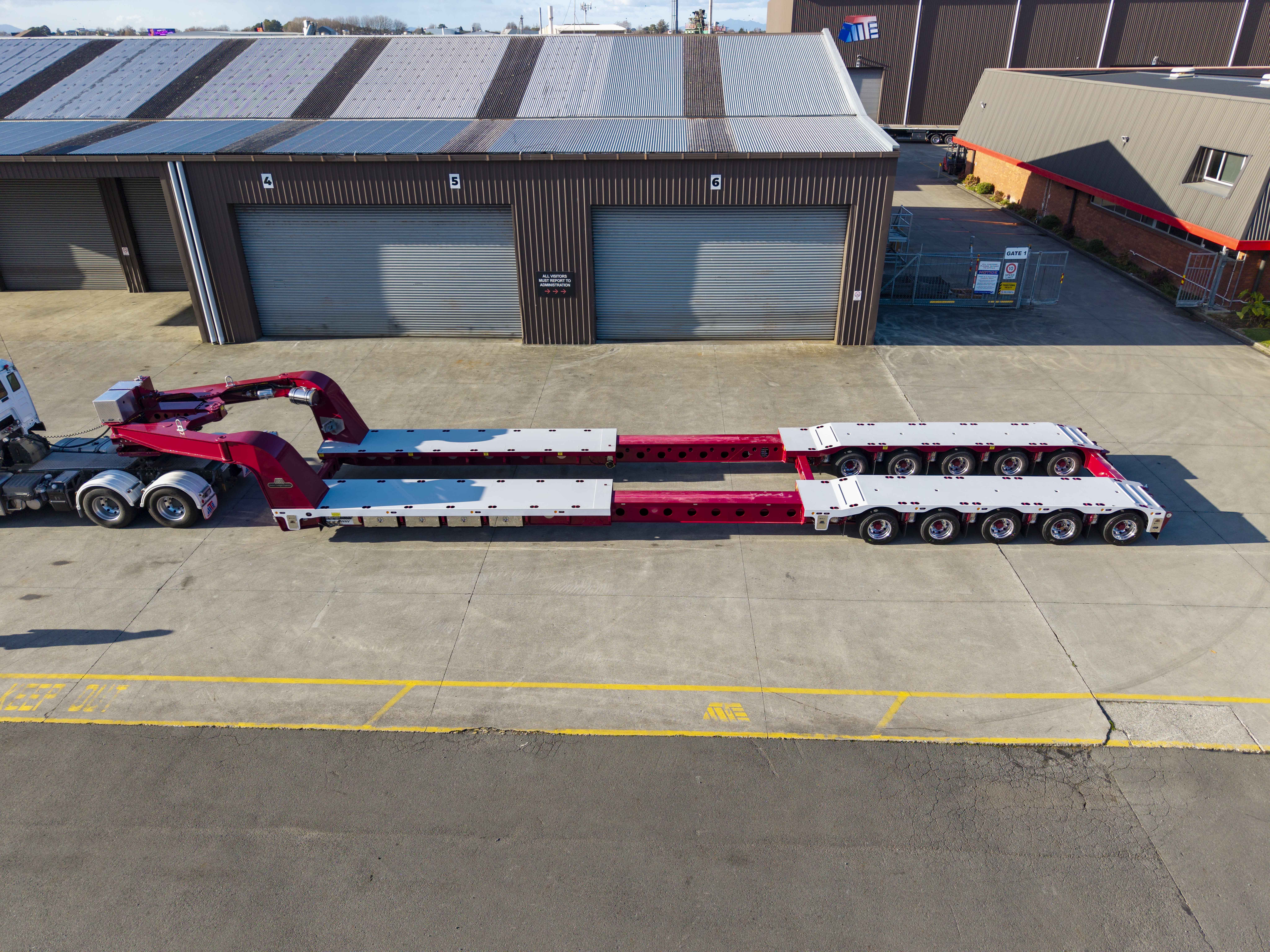

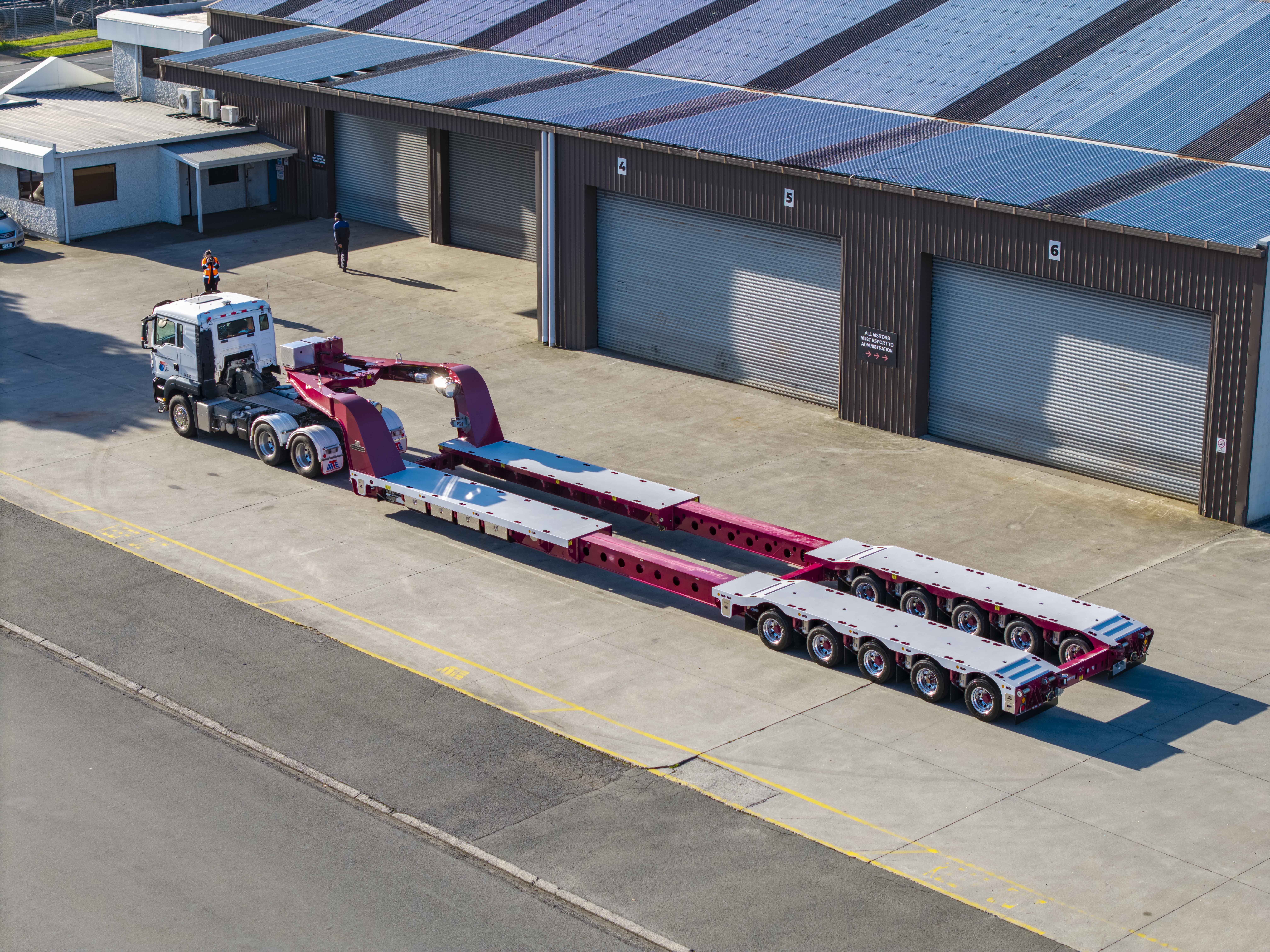

The trailer can widen from a road-going 2,500mm to a maximum 4,270mm, with multiple intermediate locking positions. Unlike a conventional parallel widening system, the trailer shortens as it widens, changing the trailer geometry as the deck is opened.
This provides Ace Haulage with a highly configurable deck that can be adjusted around the width and dimensions of specialised machinery and oversized loads.
4-Metre Extendable Dropbed

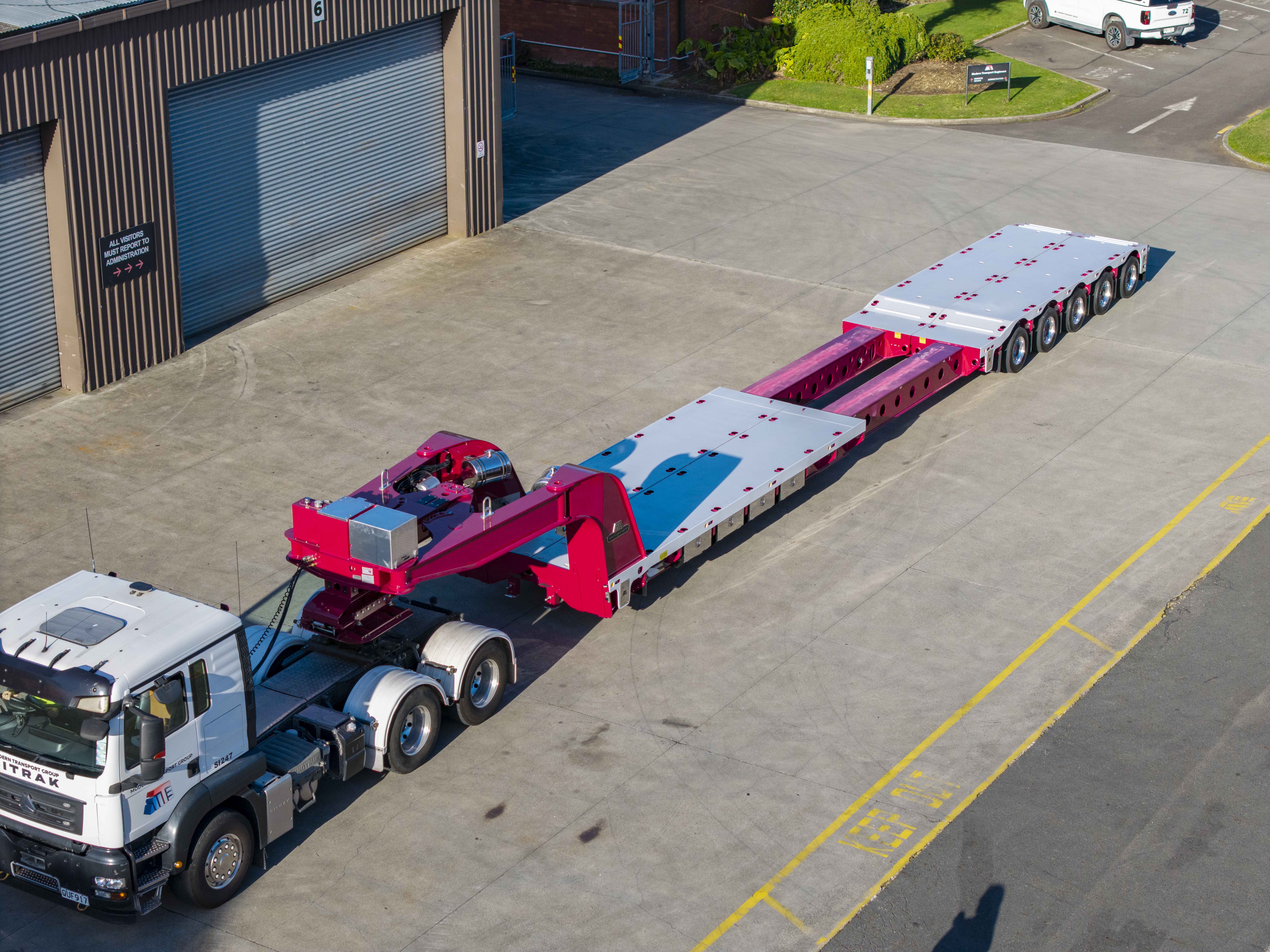

Alongside the Swingwide system, the trailer incorporates a 4-metre deck extension, locking at 500mm increments.
With the trailer closed, the deck measures 13,100mm behind the gooseneck, giving the operator substantial additional deck length when fully extended.
The 125mm dropbed and MTE hydraulic suspension also help minimise loaded height. From its normal 950mm ride height, the deck can be hydraulically lowered to approximately 820mm, or raised to 1,060mm when additional ground clearance is required.
Built for Ace Haulage

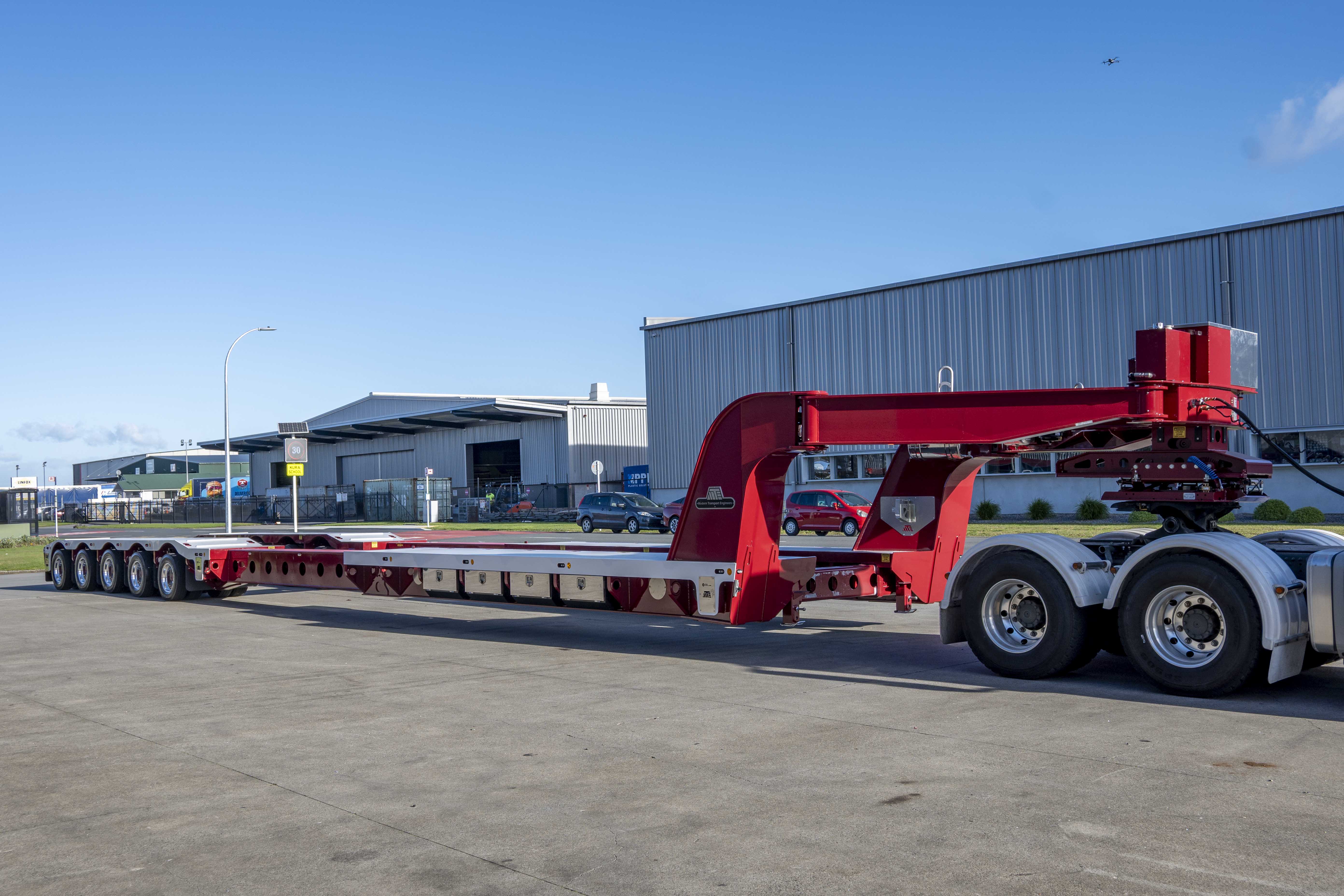

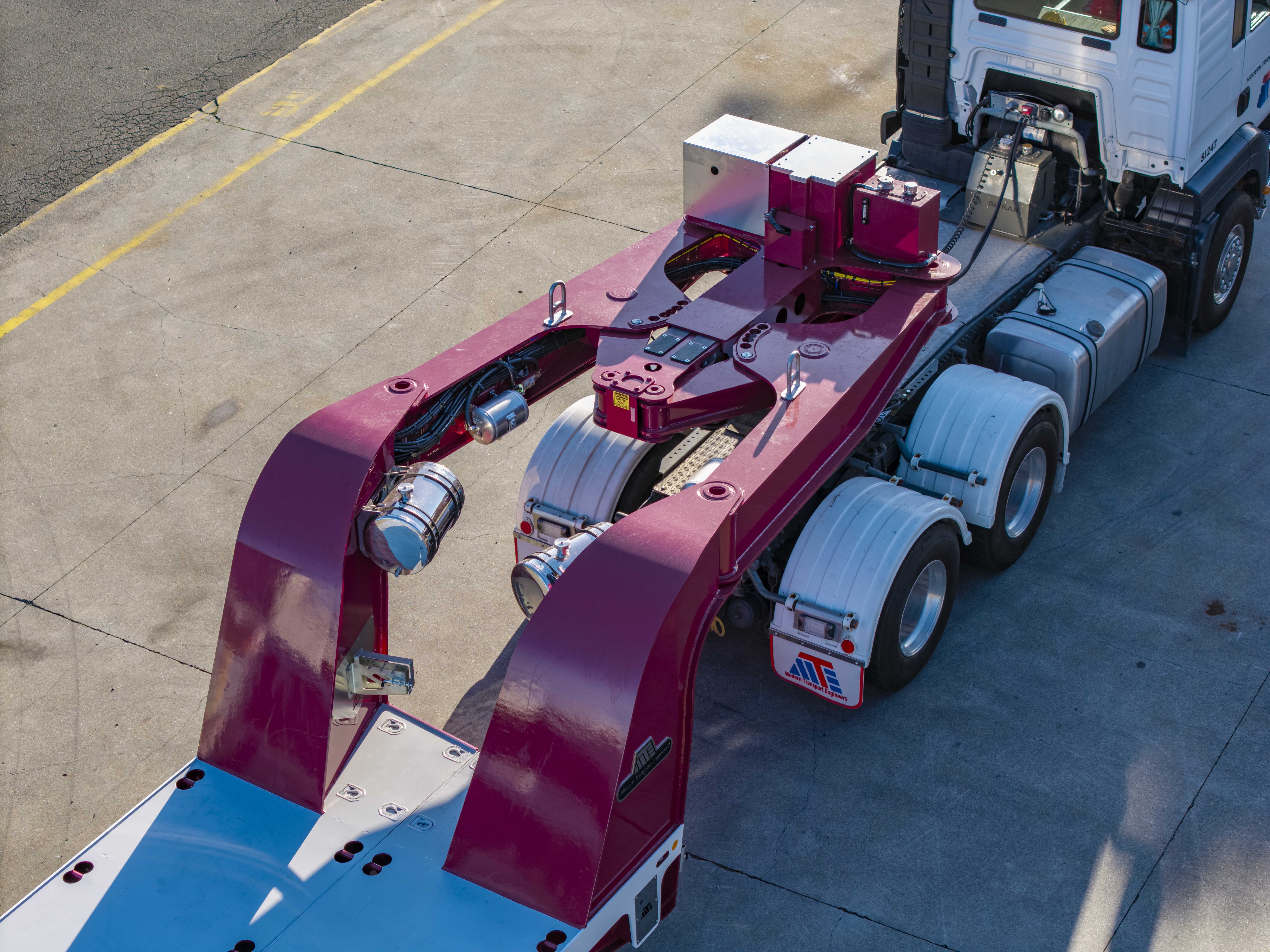

The finished trailer carries Ace Haulage's distinctive specification, with the main chassis, gooseneck, ramps and bumper finished in Queensland Rail Maroon, contrasting white coaming rails and grey-primed decks.
Customer: Ace Haulage
