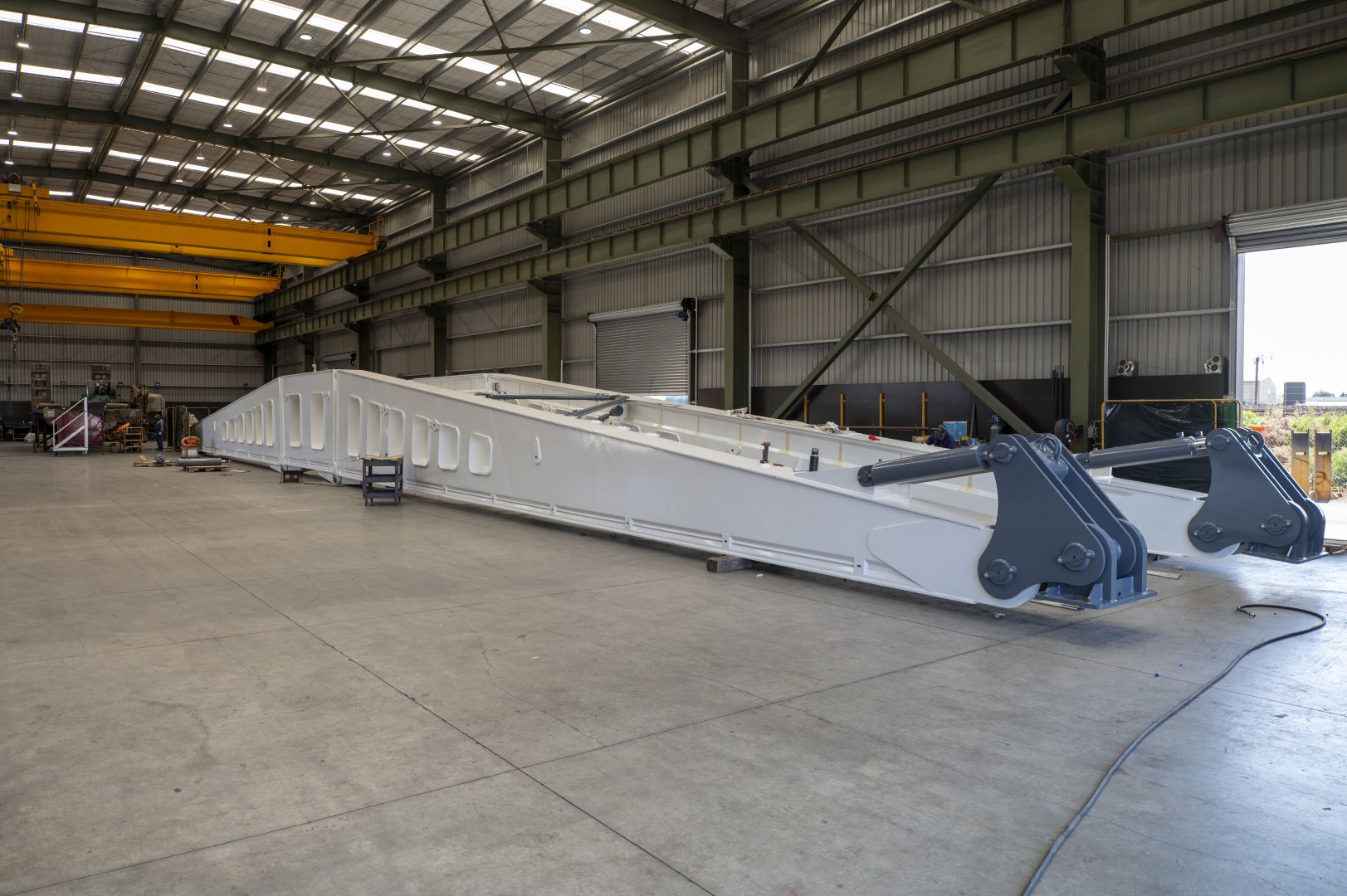

MTE recently completed this 300 Tonne Beam Set for ODLS, engineered specifically for the transport of super loads, transformers and other exceptionally large and heavy loads.
Designed to integrate into ODLS’s specialised heavy haulage operations, the system consists of four 18-metre beams, providing a 36-metre overall beam length and an impressive maximum payload capacity of 300,000kg.
The beam set incorporates adjustable cross members, allowing its width to be configured between 3,320mm and 5,520mm to accommodate different load dimensions and transport requirements.
Key Specifications
Maximum Payload: 300,000kg
Beam Configuration: 4 × 18m beams, 2 x 5m beams
Overall Beam Length: 41m
Beam Depth: 2,775mm
Adjustable Width: 3,320mm – 5,520mm
Construction: High-strength 780 high-tensile steel
Width Adjustment: Extendable pin-in cross-member beams
Hydraulics: 8 hydraulic rams
Hydraulic Plumbing: Stainless steel hosing to connection plates
Electrical: 15-core electrical cable running both sides
Braking Provision: EBS provision
Lighting: ADR-compliant LED lighting with 24 sidelights
Customer: ODLS
Engineered for Super Loads
When conventional heavy transport equipment isn't enough, specialised loads require specialised engineering.
Another example of MTE’s capability to design and manufacture bespoke heavy transport equipment for highly specialised applications.
