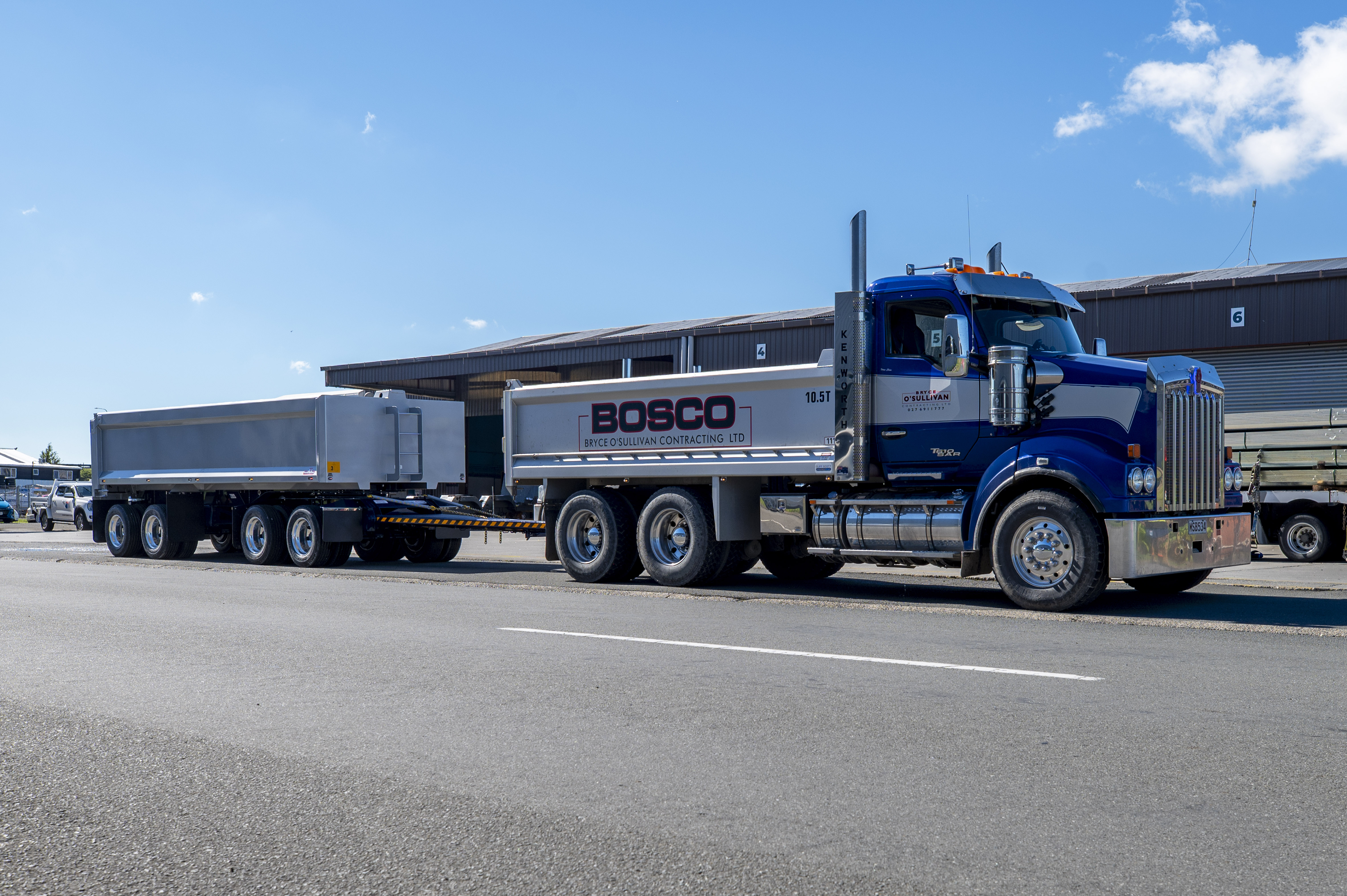

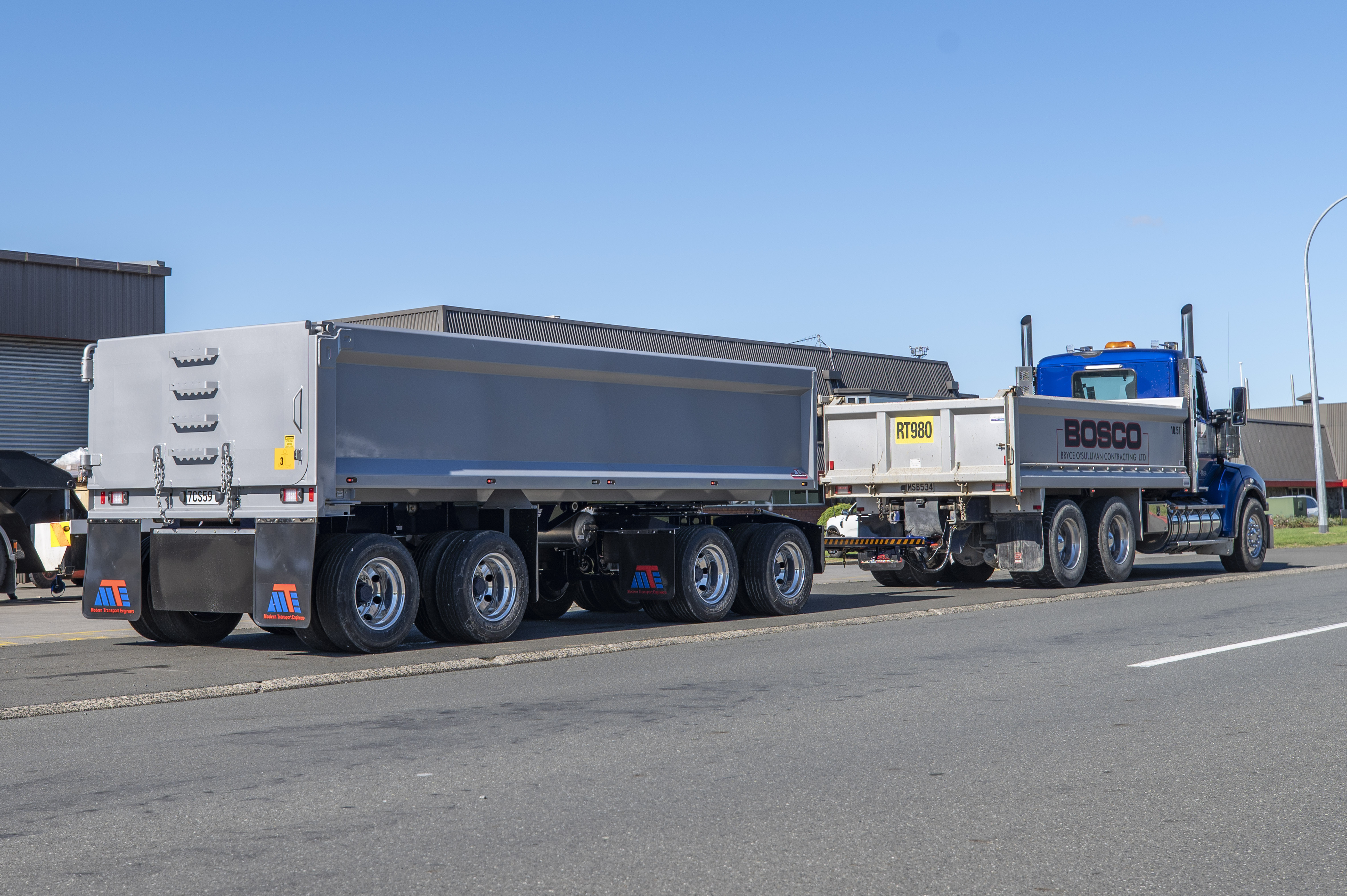

MTE recently completed this 4 Axle Hardox Dog Tipper for Bryce O’Sullivan Contracting Ltd, built for demanding bulk haulage and contracting applications.
Featuring a 6.7m Hardox Steel bin, 29,000kg GVM, EBS braking and air suspension, this unit has been designed to provide a durable, practical solution for day-to-day tipper work.
Key Specifications
Configuration: 4 Axle Dog Tipper
GVM: 29,000kg
Bin Length: 6,700mm
Bin Width: 2,450mm
Internal Side Height: 1,100mm
Bin Floor: 6mm 1100MPa steel
Bin Sides: 5mm 1100MPa steel
Headboard & Tailgate: 4mm 1100MPa steel
Axles: MTW 19.5" 8-stud drum brake axles
Suspension: Alion airbag suspension
Brakes: Knorr EBS – 12V & 24V compatible
Drawbar: 4m Dog Tipper drawbar
Tow Eye: Swappable 40mm / 50mm
Ball Race: JOST 1100 × 90
Hoist: 5-stage hydraulic hoist with 4,899mm stroke
Hydraulic Supply: Truck hydraulics
Wheels: 16 × polished alloy
Tyres: 265/70R19.5 Synergy
Customer: Bryce O’Sullivan Contracting Ltd
Purpose-Built for Contracting
Finished with a Medium Metallic Silver bin and custom Bryce O’Sullivan Blue chassis, along with polished alloy wheels, the finished trailer has a clean but distinctive appearance.
Another purpose-built MTE trailer, engineered around the customer's operation and ready to get straight to work.
