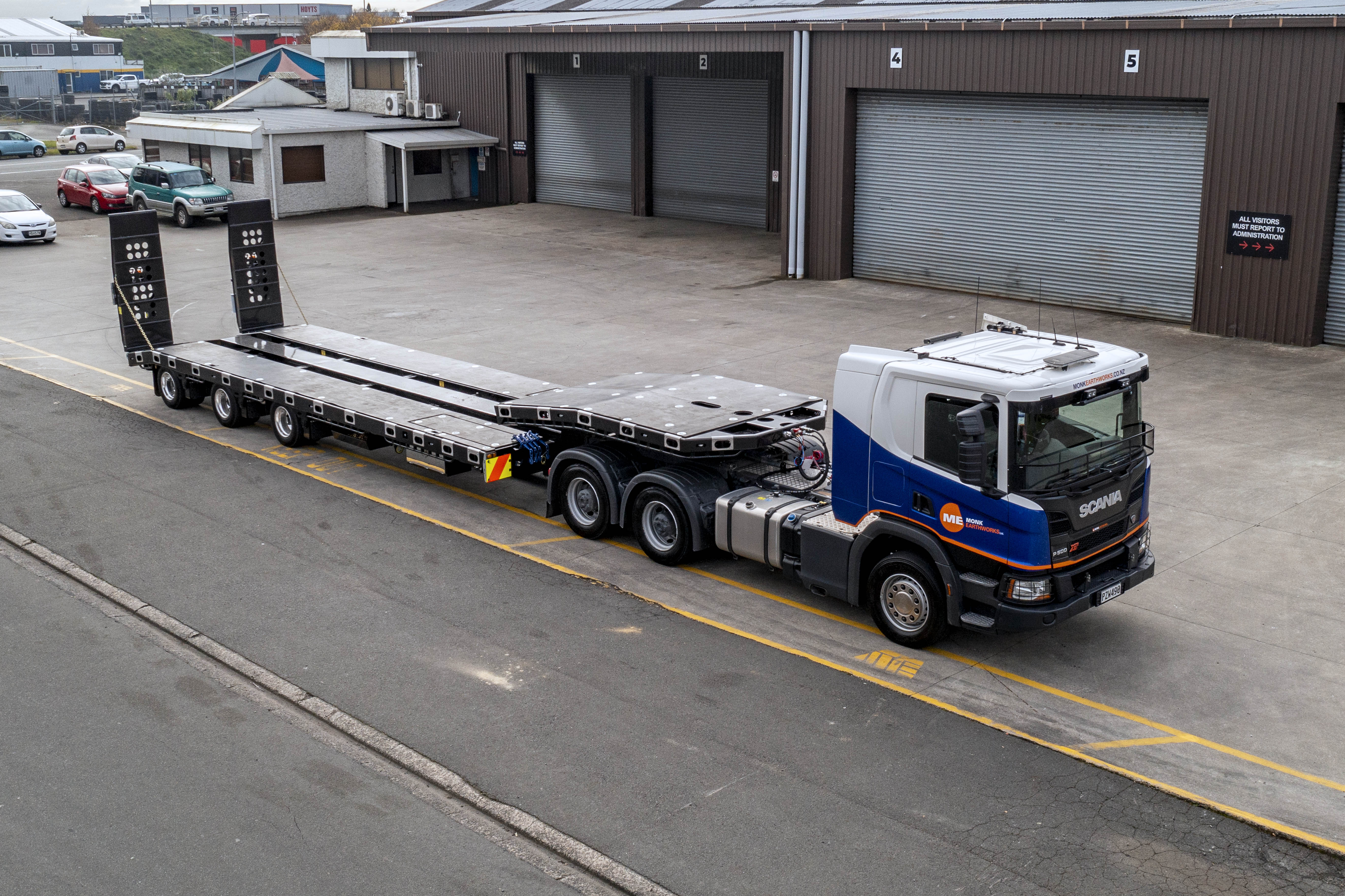

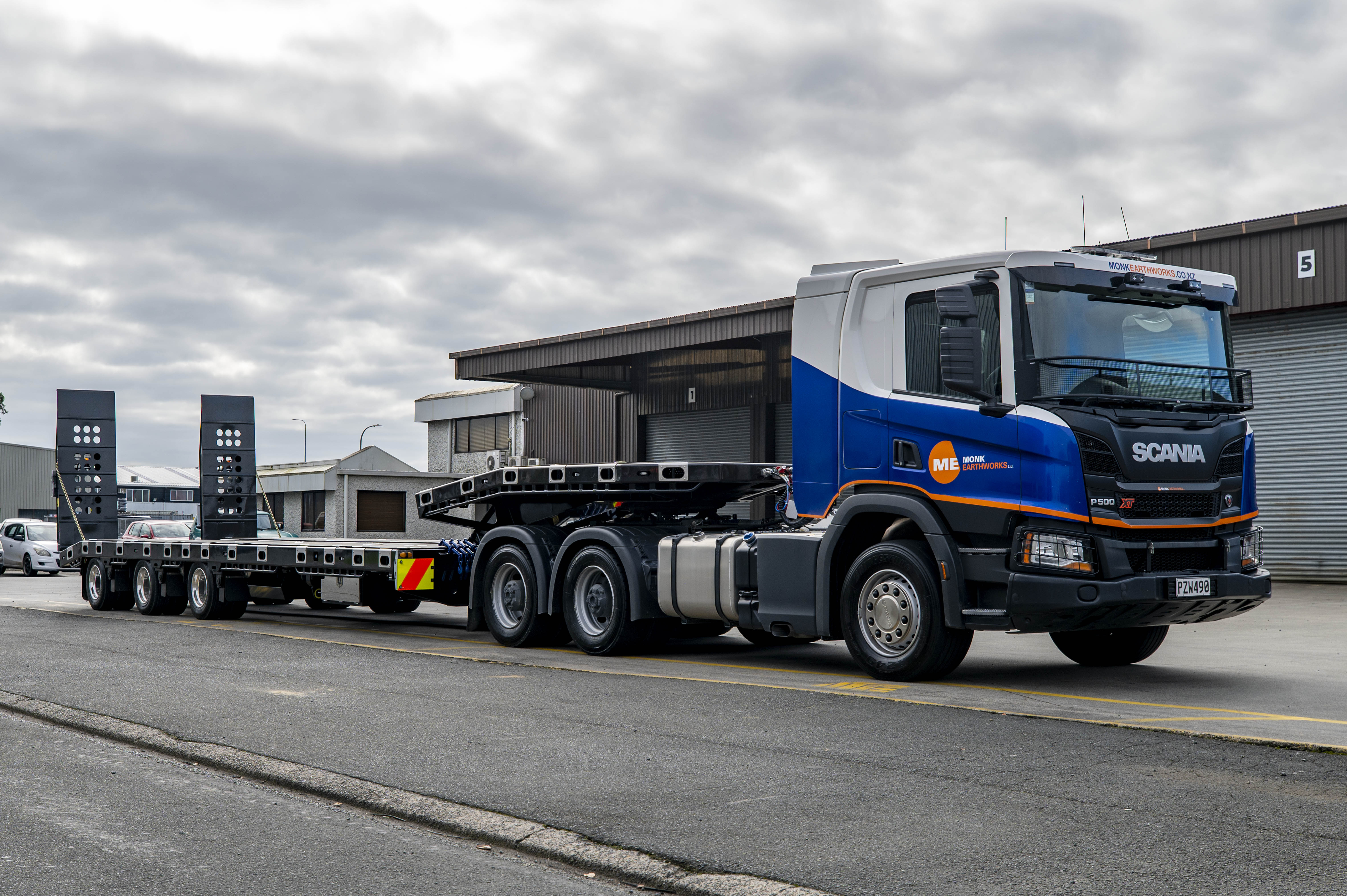

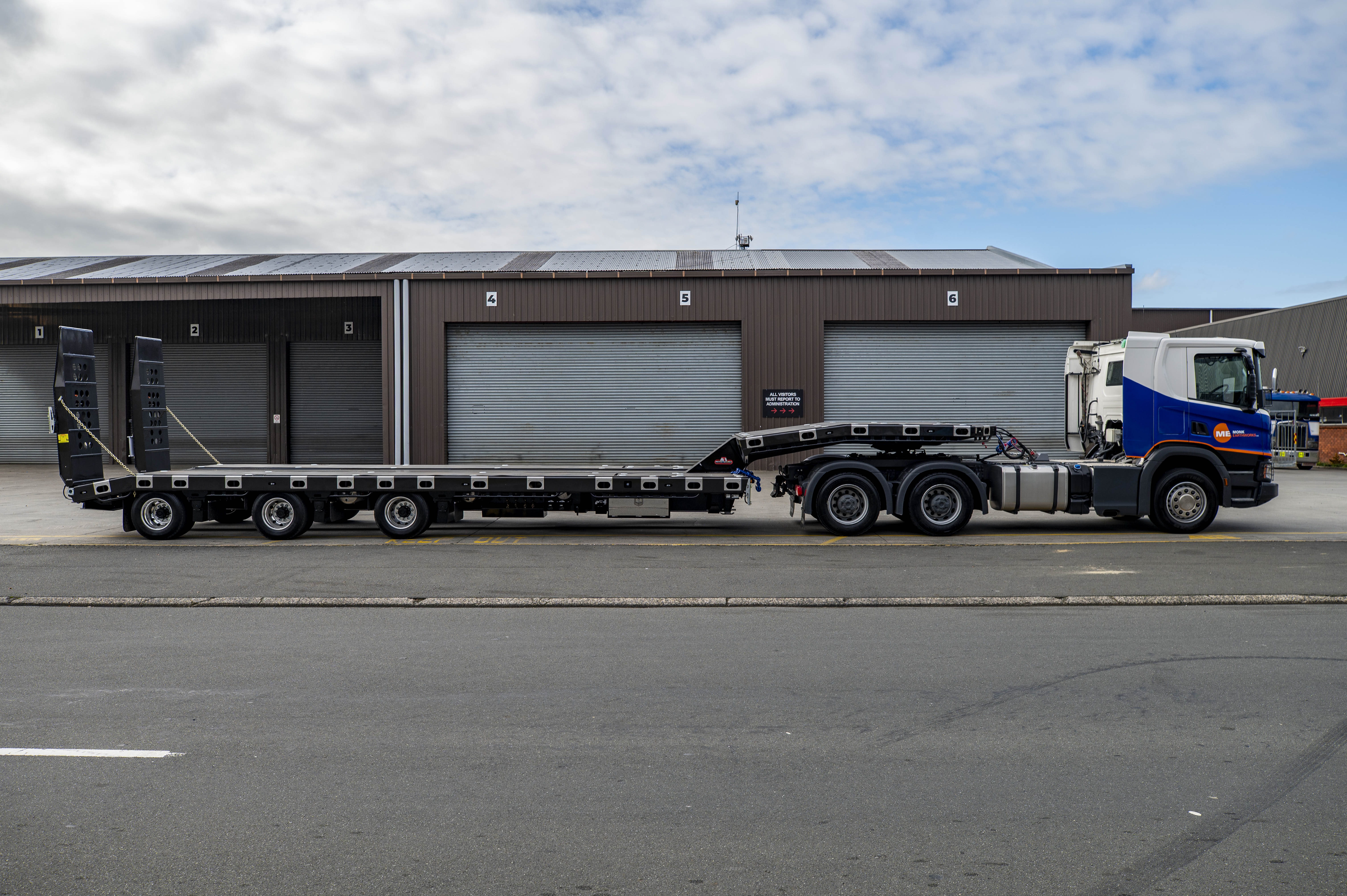

MTE recently completed this 3 Rows of 4 Widener for Monk Earthworks, purpose-built to provide a versatile heavy machinery transport solution for their earthmoving operations.
The trailer features MTE’s hydraulic widening system, allowing the 2,500mm closed deck to widen out to 3,600mm when required. Combined with hydraulic suspension and a low 820mm loading height, the trailer provides the flexibility to handle a wide range of earthmoving and construction machinery.
Key Specifications
Configuration: 3 Rows of 4 Widener
GVM: 40,000kg
Deck Length: 9,765mm
Forward Length: 9,200mm
Deck Width: 2,500mm closed / 3,600mm open
Deck Ride Height: 920mm
Deck Loading Height: 820mm
Top Deck: 3,900mm × 2,500mm
Deck Construction: High-tensile steel with rubber deck surface
Axles: MTE 17.5" 10-stud axles
Axle Spacing: 1,800mm
Suspension: MTE hydraulic ball-type suspension
Kingpin Vertical Rating: 16,000kg
Rear Group Rating: 30,000kg
Main Ramps: 2,400mm × 860mm hydraulic ramps
Hydraulic Supply: Truck PTO
More Usable Deck Space
A key feature of this build is the 3.9-metre-long top deck, providing additional usable space for equipment and attachments. Air-operated pop-up ramps provide access between the main and top decks, allowing machinery to utilise the additional loading area.
The trailer also incorporates an extensive load restraint and storage package, including certified tie-bar lashings, rope rails, chain lugs, ferry hooks, container ship-lock pockets, four chain bins and two 900mm toolboxes.
For over-dimensional loads, sliding front and rear chevrons, folding oversize signs and reversible hazard panels are integrated into the trailer.
Customer: Monk Earthworks
Built for Heavy Machinery
Finished with a black chassis and deck complemented by Monk Earthworks' Gun Metal Grey on the coaming rails, bumper and ramps, the finished trailer combines functionality with a distinctive customer-specific finish.
