3R4 Widener

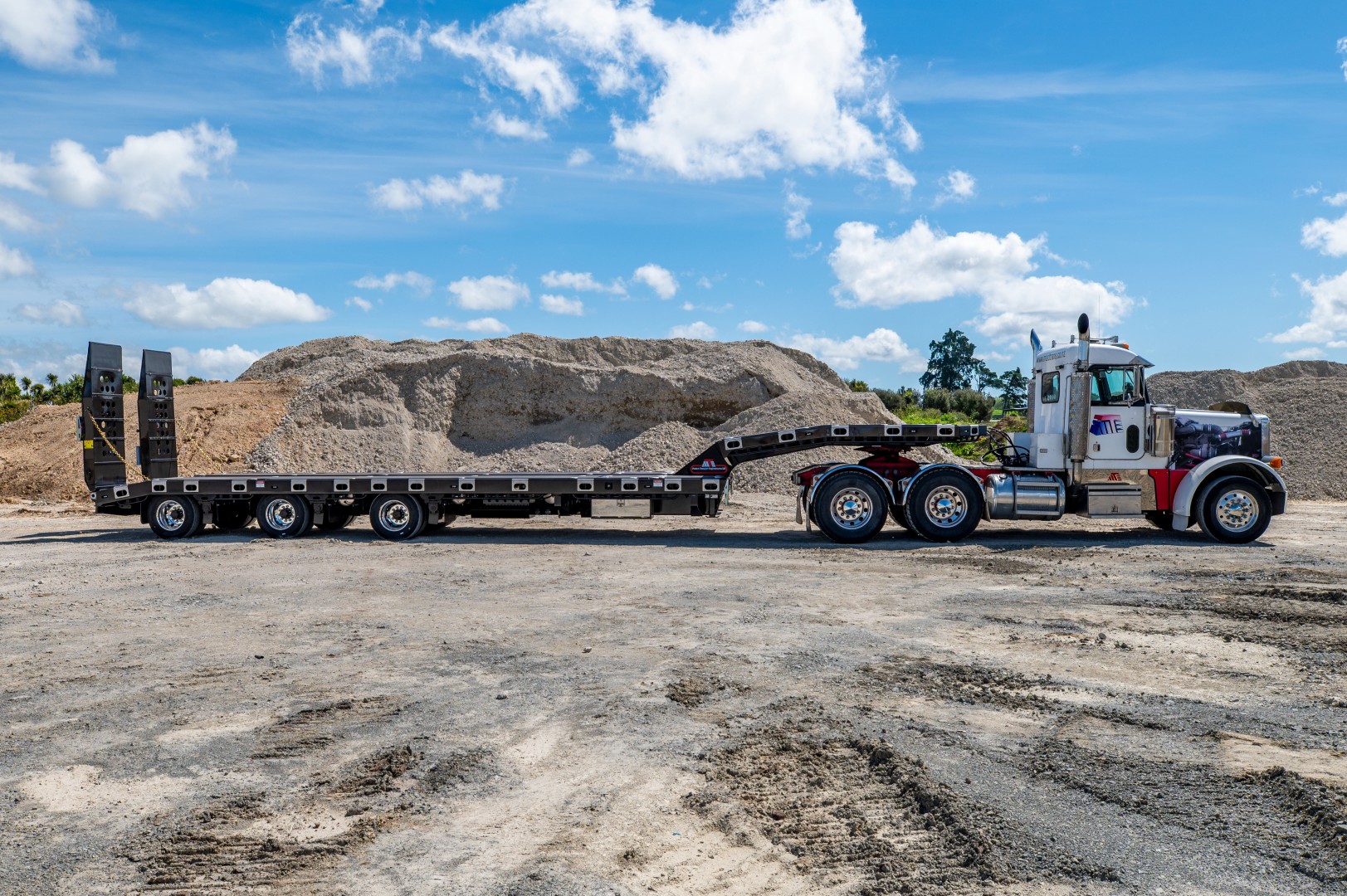

MTE recently completed this 3 Rows of 4 Widener for Woodford Developments Ltd, built as a versatile heavy machinery transporter for their civil construction and earthmoving operations.

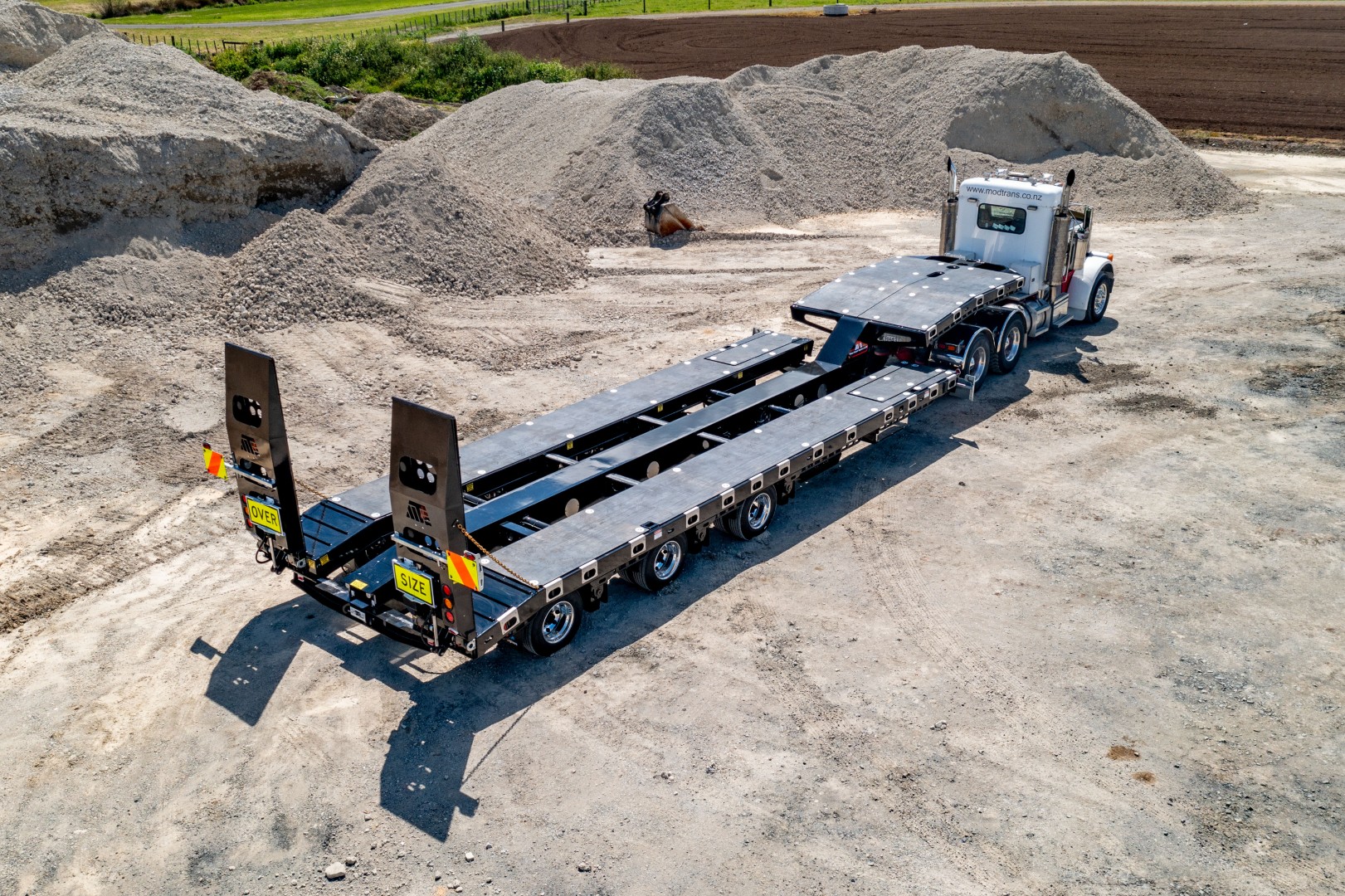

The trailer features MTE’s proven hydraulic widening system, allowing the deck to expand from 2,500mm closed to 3,600mm open. Combined with MTE hydraulic suspension, a 40,000kg GVM and an 820mm loading height, the trailer provides a flexible platform for transporting a wide range of heavy machinery.

Key Specifications

Configuration: 3 Rows of 4 Widener with Top Deck
GVM: 40,000kg
Deck Length: 9,765mm
Forward Length: 9,200mm
Deck Width: 2,500mm closed / 3,600mm open
Deck Ride Height: 920mm
Deck Loading Height: 820mm
Top Deck: 3,900mm × 2,500mm
Deck: High-tensile steel with rubber deck surface
Axles: MTE 17.5" 10-stud axles
Axle Spacing: 1,800mm
Suspension: MTE hydraulic ball-type suspension
Kingpin Vertical Rating: 16,000kg
Rear Group Rating: 30,000kg
Kingpin: MTE 50mm drop-in

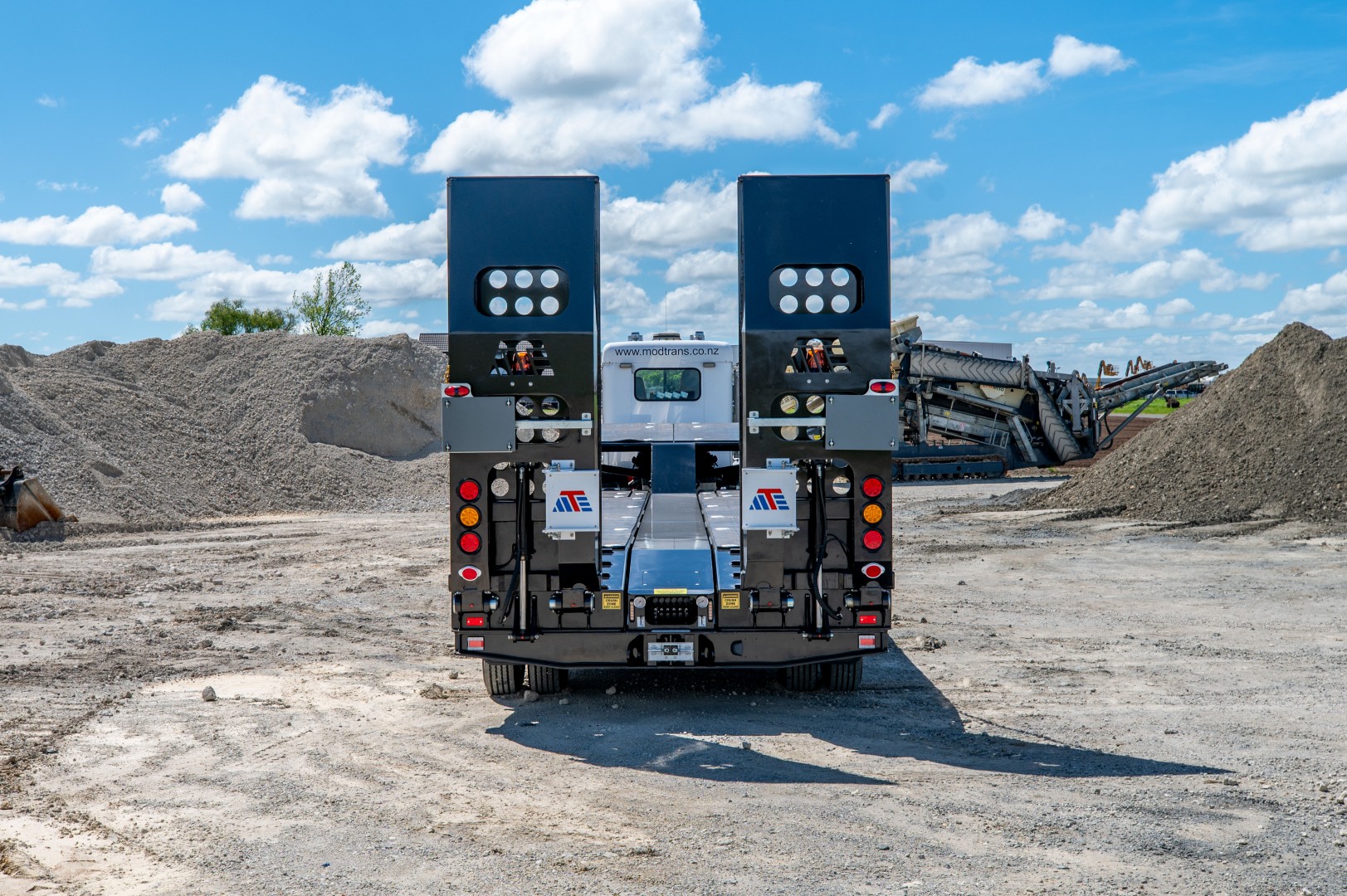

Main Ramps: 2,400mm × 860mm hydraulic ramps
Hydraulic Supply: Truck PTO

Versatility Across Two Deck Levels

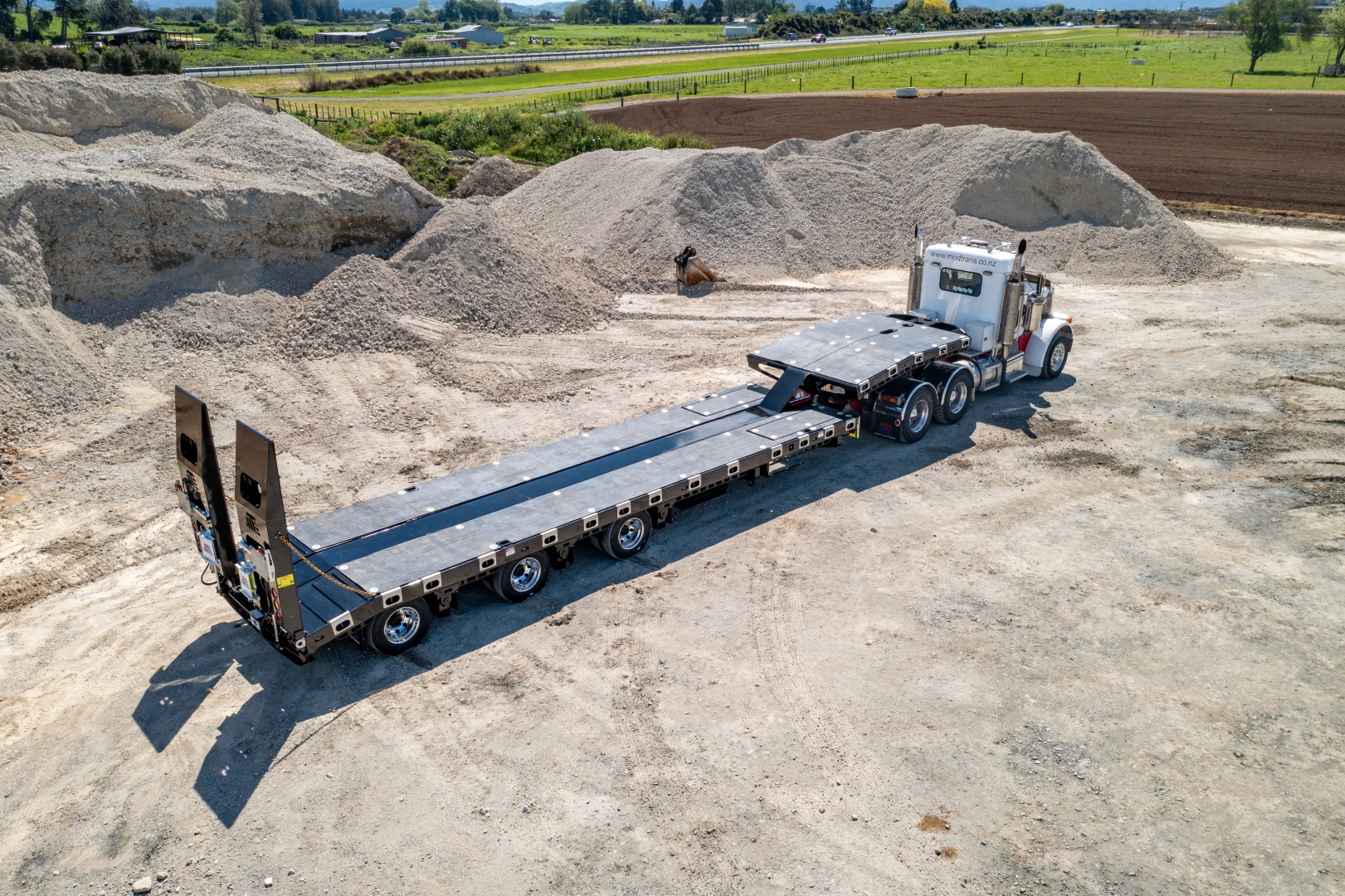

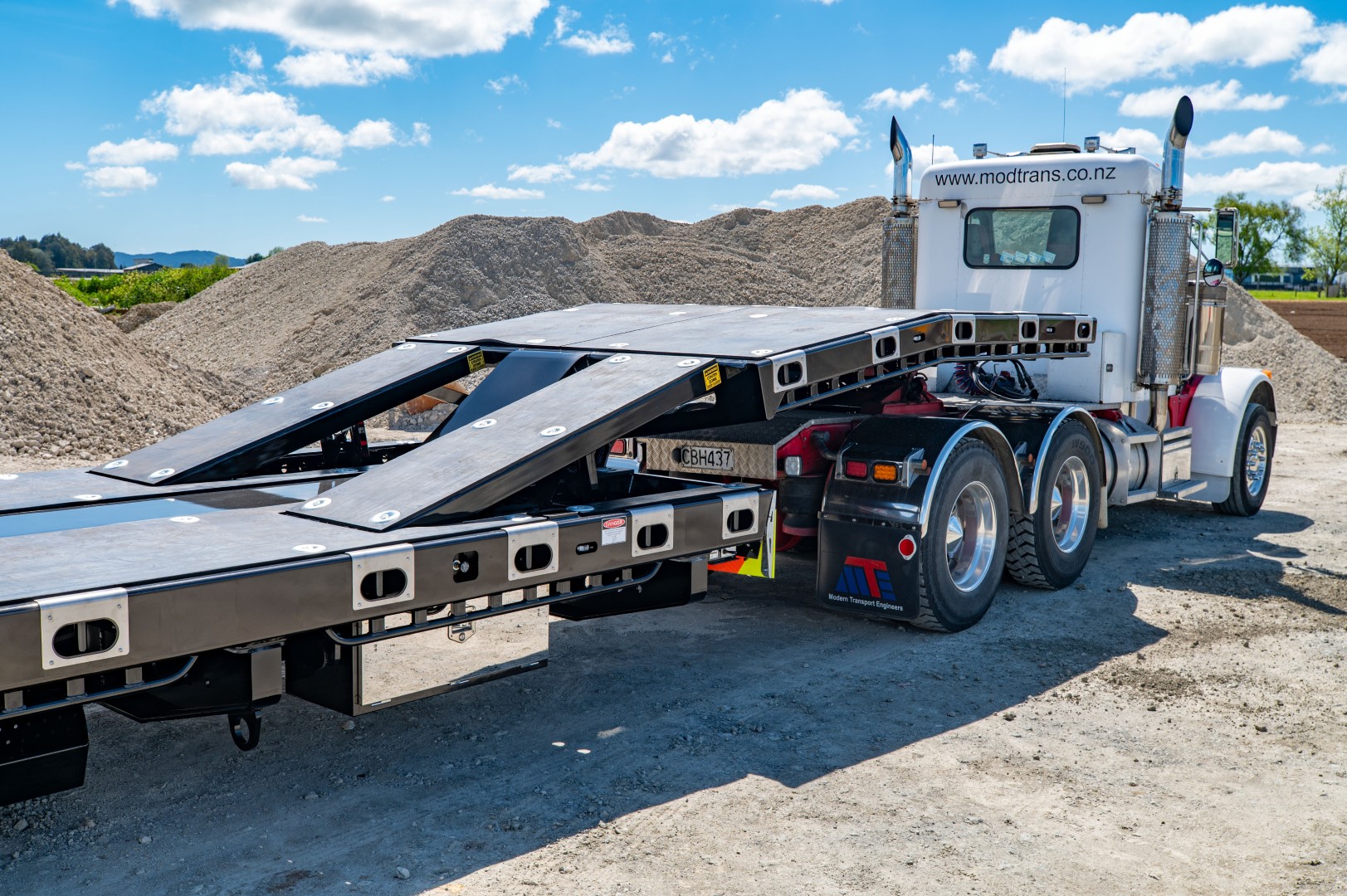

The 3.9m top deck provides additional usable loading space, with air-operated pop-up ramps allowing machinery to be driven between the main and upper decks. This makes the trailer particularly versatile when transporting multiple machines or additional attachments.

An extensive load restraint system includes six certified tie-bar lashings per side on the top deck and 14 per side on the main deck, along with chain lugs, ferry hooks, rope rails and ship-lock pockets for a loaded 20ft container.

The trailer also features two 900mm toolboxes and four dedicated chain bins, keeping chains and other load restraint equipment stored securely and within easy reach.

Ready for Oversize Loads

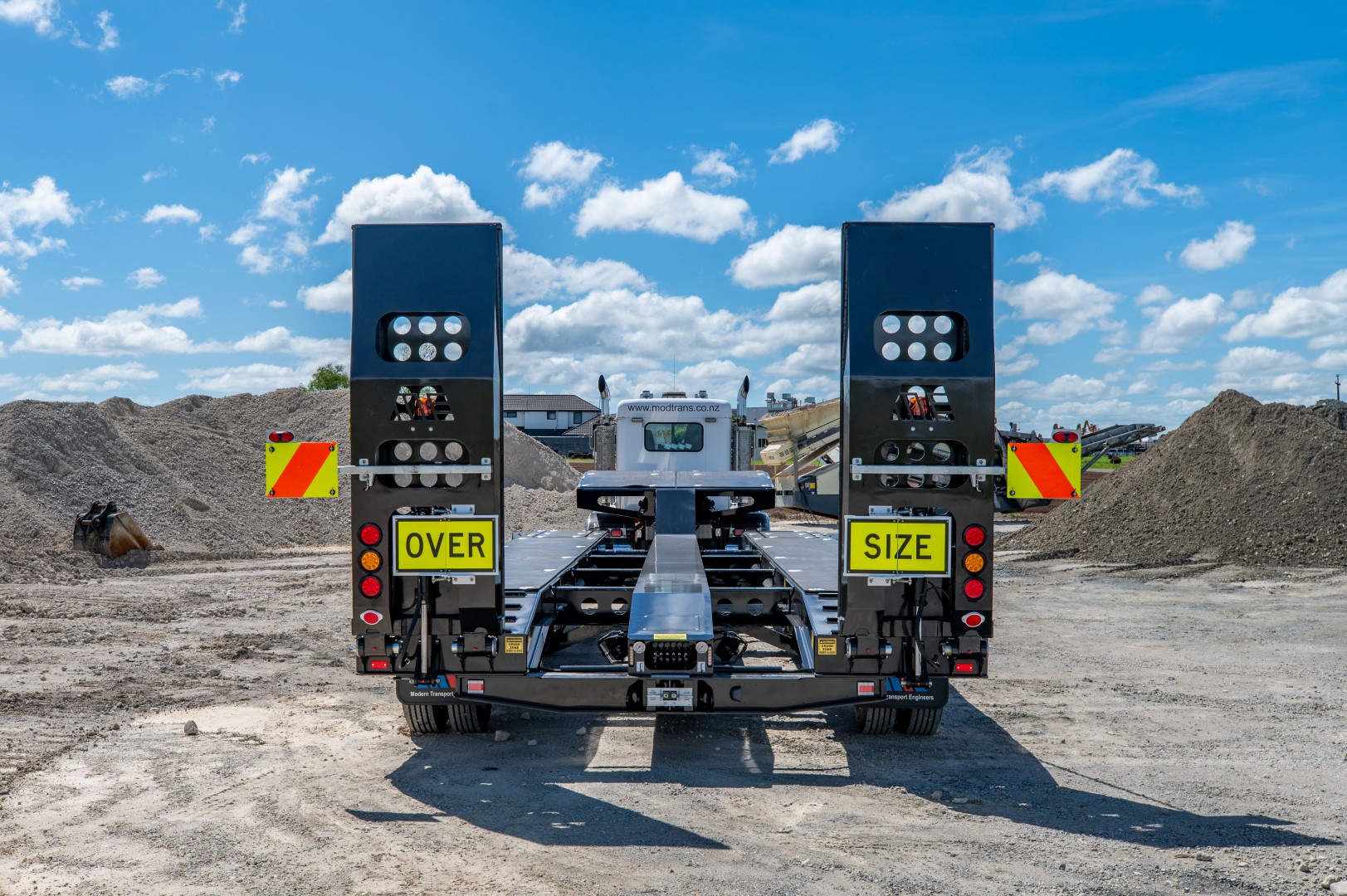

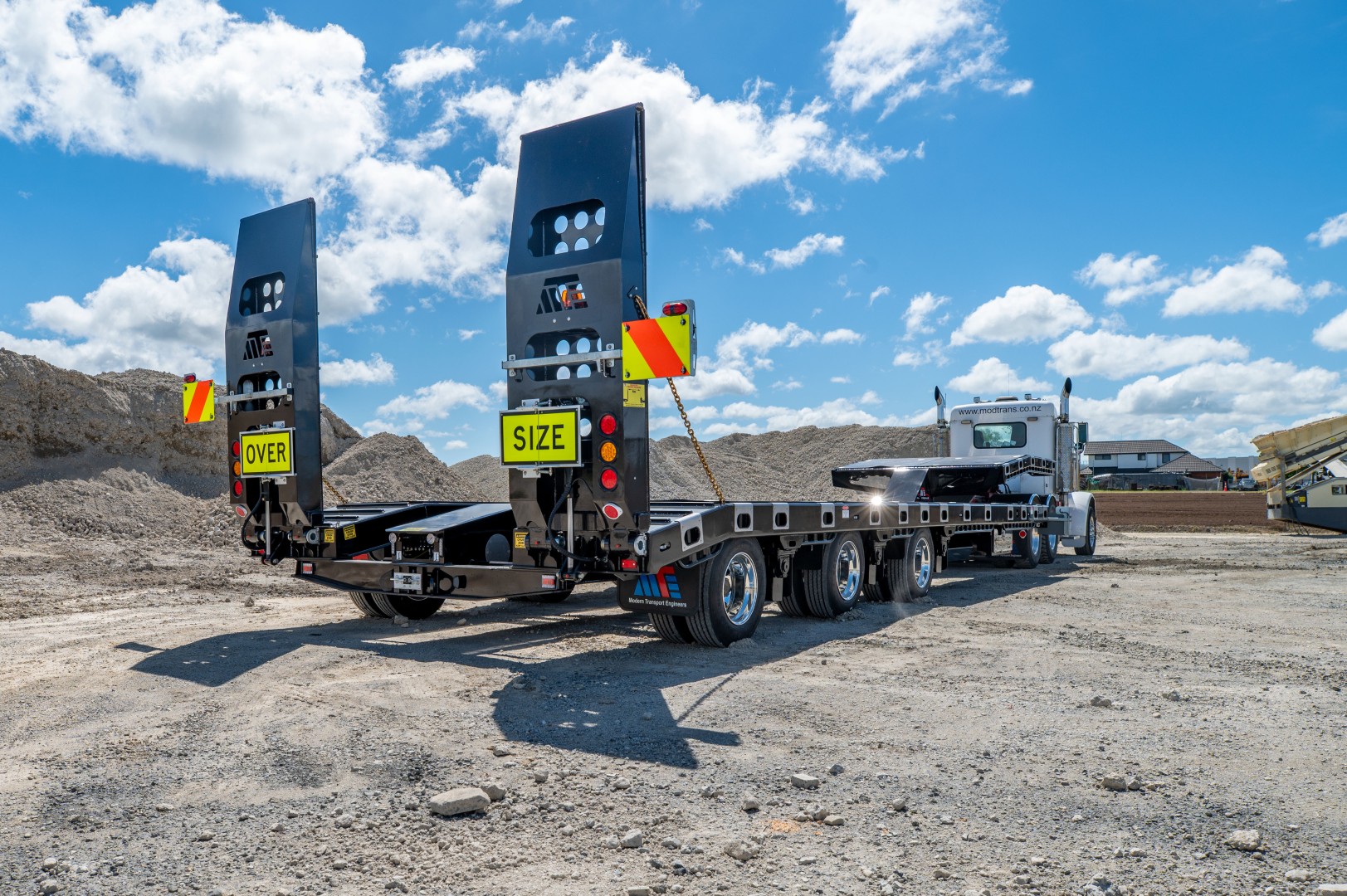

Sliding front and rear chevrons, folding oversize signs, reversible hazard panels, LED beacons and rear strobes are integrated into the build for over-dimensional machinery transport.

Built for Heavy Machinery

Another purpose-built MTE trailer designed to deliver flexibility, durability and capability for demanding machinery transport applications.

‍
